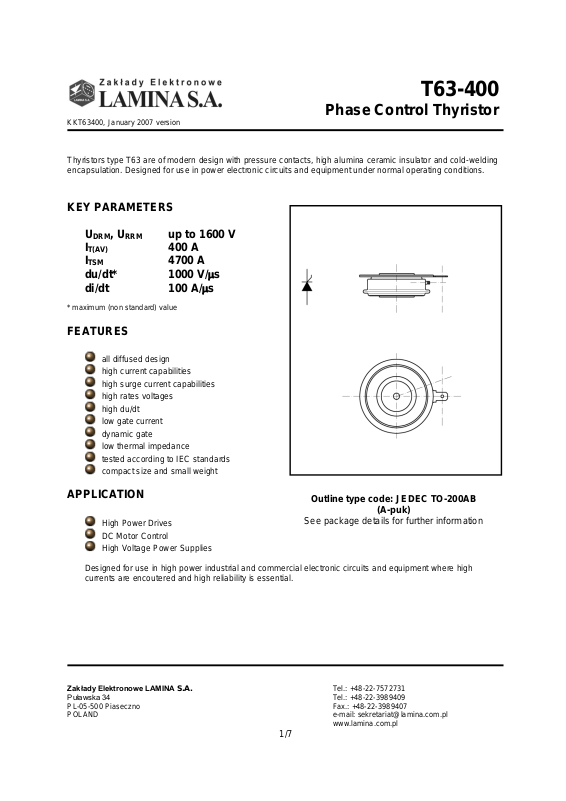

T63-400
Outline type code: JEDEC TO-200AB
(A-puk)
See package details for further information
Phase Control Thyristor
KKT63400, January 2007 version
Thyristors type T63 are of modern design with pressure contacts, high alumina ceramic insulator and cold-welding encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.
KEY PARAMETERS
U
, U
DRM
I
400 A
T(AV)
I
4700 A
TSM
du/dt* 1000 V/s di/dt 100 A/s
* maximum (non standard) value
FEATURES
all diffused design
high current capabilities high surge current capabilities high rates voltages high du/dt low gate current dynamic gate low thermal impedance tested according to IEC standards compact size and small weight
APPLICATION
High Power Drives DC Motor Control High Voltage Power Supplies
Designed for use in high power industrial and commercial electronic circuits and equipment where high currents are encoutered and high reliability is essential.
up to 1600 V
RRM
Zakłady Elektronowe LAMINA S.A. Tel.: +48-22-7572731
Puławska 34 Tel.: +48-22-3989409 PL-05-500 Piaseczno Fax.: +48-22-3989407 POLAND e-mail: sekretariat@lamina.com.pl www.lamina.com.pl
1/7
Page 2
T63-400
Voltage class
U
DRM
, U
RRM
U
DSM
, U
RSM
I
DRM
, I
RRM
V V mA
04
400
500
22
06
600
700
08
800
900
10
1000
1100
12
1200
1300
14
1400
1500
16
1600
1700
Group code
du/dt
V/s
0
no specified value
4
200
5
320
6
500
7
1000
voltage class (hundreds of volts)
Phase Control Thyristor
KKT63400, January 2007 version
ORDERING INFORMATION
When ordering please refer to device code builder presented below. Please use the complete part number when ordering, quote or in any future correspondence relating to your order.
T63-400-
This is standard device, with no dynamic parameters specified and standard accessory set. Please refer to Electrical Parameters if specific dynamic demands have to be met. Those information, as well as any other concerning non-standard accessories e.g. custom leads lenght or lead terminal connector type should be included in the order.
ELECTRICAL PARAMETERS
Voltage ratings
du/dt group codes
Zakłady Elektronowe LAMINA S.A. Tel.: +48-22-7572731
Puławska 34 Tel.: +48-22-3989409 PL-05-500 Piaseczno Fax.: +48-22-3989407 POLAND e-mail: sekretariat@lamina.com.pl www.lamina.com.pl
2/7
Page 3
T63-400
Parameter
Unit
Test conditions
Value
Average on-state current
I
T(AV)
A
400
Case temperature
Tc °C
65
RMS 0n-state current
I
T(RMS)
A
630
Surge current
I
TSM
A
T
j
=125°C, U
R
=0,8U
RRM
,
tp=10ms
4700
I2t – value
I2t
kA2s
110
On-state voltage max.
U
TM
V
T
j
=25°C, I
TM
=625A
1,40
Treshold voltage
U
T(T0)
V
0,95
Slope resistance
rT mΩ
0,80
Latching current
Il
mA
T
j
=25°C, U
D
=12V
800
Holding current
IH mA
T
j
=25°C, U
D
=12V
180
Circuit commutated turn-off time (typical)
tq (typ)
s
T
j
=125°C, I
TM
=150A,
diR/dt=12,5A/s, du/dt=20V/s,
UD=0,67U
DRM
, URM=100V
200
Turn-0n time (typical)
ton
s
ITM=100A, UDM=100V
10
Rate of rise of on-state current­repetitive
di/dt
A/s
T
j
=125°C, I
TM
=3I
T(AV)
,
UD=0,67U
DRM
, f=50Hz, IGM=1A,
diG/dt=1A/s
100
Critical rate of raise of off-state voltage
du/dt
V/s
T
j
=125°C, U
D
=0,67U
DRM
,
200 - 1000
Gate current to trigger
I
GT
mA
T
j
=25°C, U
D
=12V
150
Gate voltage to trigger
UGT V T
j
=25°C, U
D
=12V
3
Parameter
Unit
Test conditions
Value
Thermal resistance, junction to case
R
thJC
°C/W
two sided, DC
0,08
Thermal resistance, case to heatsink
R
thCS
°C/W
two sided
0,02
Operating junction temperature
T
jmin
...T
jmax
°C
-40...+125
Storage temperature
T
stg
°C
-40...+125
Parameter
Unit
Value
Clamping force
FM
kN
4,5 ... 6,4
Weight m g
60
Phase Control Thyristor
KKT63400, January 2007 version
Electrical properties
Termal properties
Mechanical properties
Zakłady Elektronowe LAMINA S.A. Tel.: +48-22-7572731
Puławska 34 Tel.: +48-22-3989409 PL-05-500 Piaseczno Fax.: +48-22-3989407 POLAND e-mail: sekretariat@lamina.com.pl www.lamina.com.pl
3/7
Page 4
T63-400
Phase Control Thyristor
KKT63400, January 2007 version
Package details
For further package information, please contact Sales & Marketing Department. All dimensions in mm, unless stated otherwise. Do not scale.
Zakłady Elektronowe LAMINA S.A. Tel.: +48-22-7572731 Puławska 34 Tel.: +48-22-3989409 PL-05-500 Piaseczno Fax.: +48-22-3989407 POLAND e-mail: sekretariat@lamina.com.pl www.lamina.com.pl
4/7
Page 5
T63-400
Power loss characteristics. Sinus wave form.
I
T(AV)
, A
0 100 200 300 400 500
P
T(AV)
, W
0
200
400
600
800
Q
30
o
60
o
90
o
120
o
180
o
Power loss characteristics. Square wave form.
I
T(AV)
, A
0 100 200 300 400
P
T(AV)
, W
0
100
200
300
400
500
600
700
Q
30
o
60
o
90
o
120
o
180
o
DC
Case temperature ratings. Sinus wave form.
I
T(AV)
, A
0 100 200 300 400
TC, oC
50
70
90
110
130
Q
30
o
60
o
120
o
90
o
180
o
Case temperature ratings. Square wave form.
I
T(AV)
, A
0 100 200 300 400 500 600 700
TC, oC
30
50
70
90
110
130
Q
30
o
60
o
90
o
120
o
180
o
DC
Phase Control Thyristor
KKT63400, January 2007 version
CHARACTERISTICS
Zakłady Elektronowe LAMINA S.A. Tel.: +48-22-7572731
Puławska 34 Tel.: +48-22-3989409 PL-05-500 Piaseczno Fax.: +48-22-3989407 POLAND e-mail: sekretariat@lamina.com.pl www.lamina.com.pl
5/7
Page 6
T63-400
n
1 10 100
I
TSM
, [kA]
2
3
4
5
Tj=T
jmax
UR=0,8U
RRM
Non-repetitive surge current rating
ITM, A
100 1000 10000
UTM, V
0
1
2
3
4
Tj=T
jmax
On-state characteristic
t, s
0,001 0,01 0,1 1 10
Z
th(t)
, oC/W
0,001
0,01
0,1
Transient thermal impedance
Phase Control Thyristor
KKT63400, January 2007 version
Zakłady Elektronowe LAMINA S.A. Tel.: +48-22-7572731 Puławska 34 Tel.: +48-22-3989409 PL-05-500 Piaseczno Fax.: +48-22-3989407 POLAND e-mail: sekretariat@lamina.com.pl www.lamina.com.pl
6/7
Page 7
T63-400
Gate characteristic. Possible trigger area.
uG, V
0 1 2 3 4
iG, mA
0
75
150
225
300
375
Tj=+25oC
Tj=-40oC
Tj=+125oC
Gate characteristic.
A - possible trigger area B - permitted gate pulse forcing area R - recommended gate drive load line
uG, V
0 5 10 15 20
iG, A
0
1
2
3
4
I
FGM
=4A
U
FGM
=20V
PGM=16W
A
B
R
Phase Control Thyristor
KKT63400, January 2007 version
Gate characteristics
