• Polymer Cathode Technology •

• Low ESR

• High Frequency Cap Retention • Capacitance 15 to 1000μF (±20%)

• No-Ignition Failure Mode • Voltage 2V to 25V

•

CONDUCTIVE POLYMER CHIP CAPACITORS

Use Up to 90% of Rated Voltage (10% Derating)

for part types ≤ 10 Volts

• Halogen Free Epoxy

• 100% Accelerated Steady State Aging

• Volumetrically Efficient • RoHS Compiant & Leadfree Terminations (see

CATHODE (-) END

VIEW

T520 Series - KO Cap

FEATURES

Use Up to 80% of Rated Voltage (20% Derating)

for part types > 10 Volts

• EIA Standard Case Sizes

• 100% Surge Current Tested

• Operating Temperature -55ºC to +105ºC

• Self Healing Mechanism

www.kemet.com for lead transition)

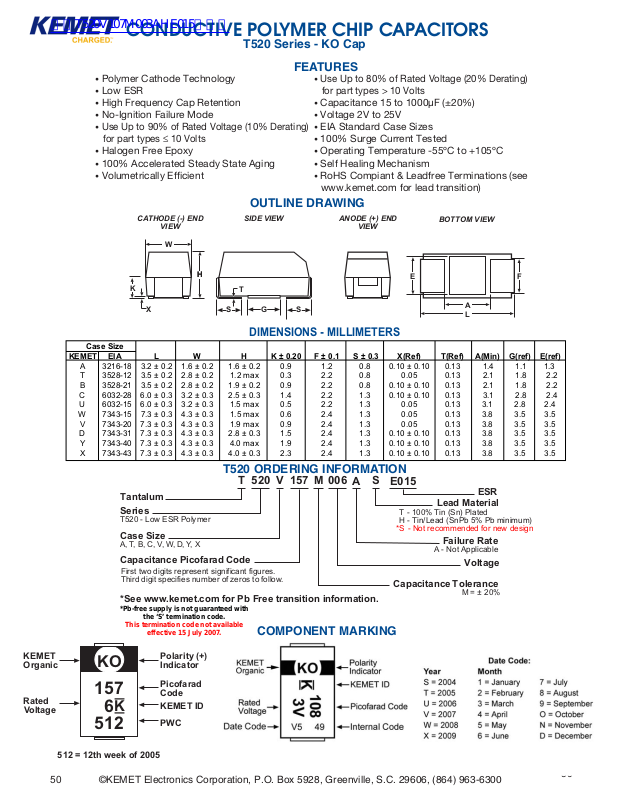

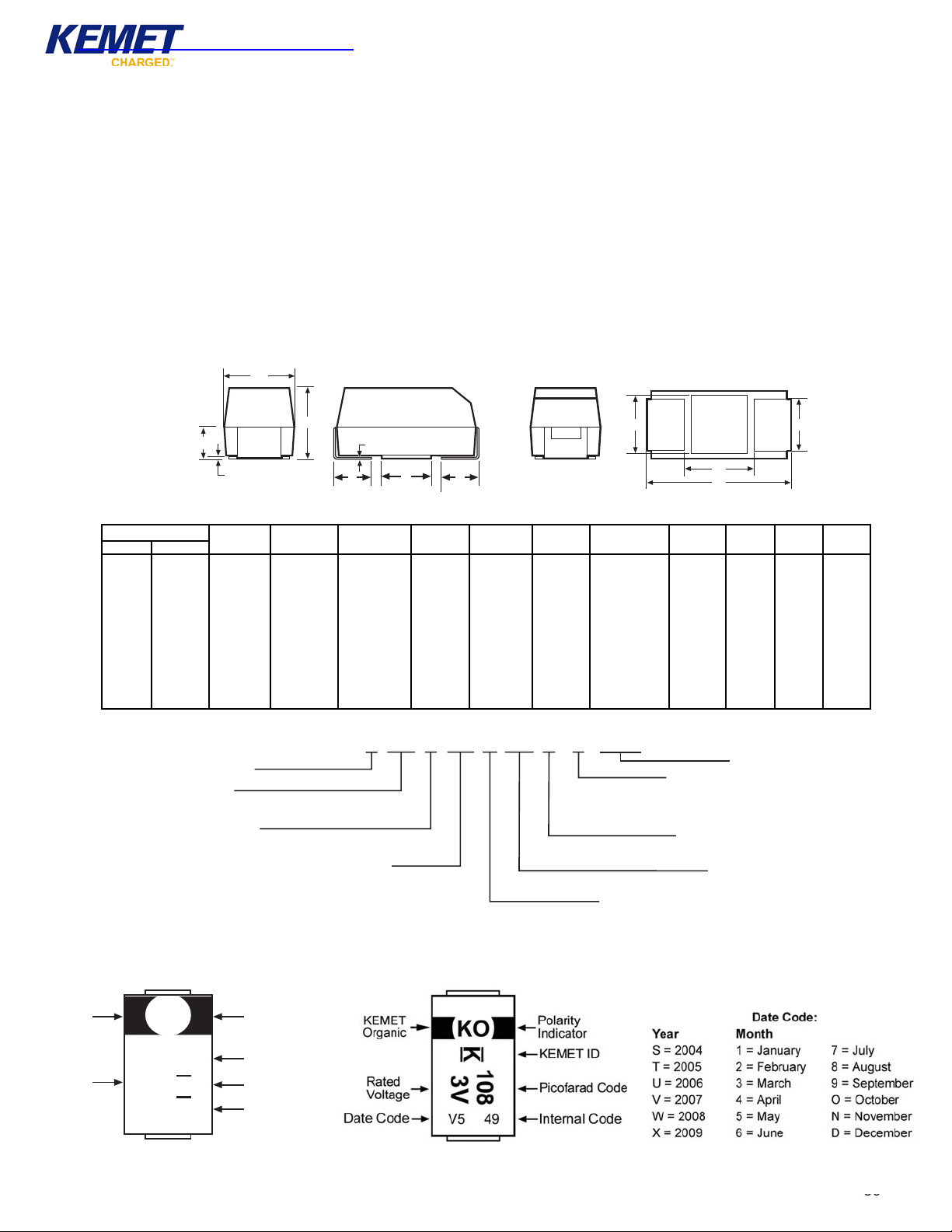

OUTLINE DRAWING

SIDE VIEW ANODE (+) END

VIEW

BOTTOM VIEW

GS S

E F

A L

DIMENSIONS - MILLIMETERS

Case Size

KEMET EIA L W H K ± 0.20 F ± 0.1 S ± 0.3 X(Ref) T(Ref) A(Min) G(ref) E(ref)

A 3216-18 3.2 ± 0.2 1.6 ± 0.2 1.6 ± 0.2 0.9 1.2 0.8 0.10 ± 0.10 0.13 1.4 1.1 1.3 T 3528-12 3.5 ± 0.2 2.8 ± 0.2 1.2 max 0.3 2.2 0.8 0.05 0.13 2.1 1.8 2.2 B 3528-21 3.5 ± 0.2 2.8 ± 0.2 1.9 ± 0.2 0.9 2.2 0.8 0.10 ± 0.10 0.13 2.1 1.8 2.2 C 6032-28 6.0 ± 0.3 3.2 ± 0.3 2.5 ± 0.3 1.4 2.2 1.3 0.10 ± 0.10 0.13 3.1 2.8 2.4 U 6032-15 6.0 ± 0.3 3.2 ± 0.3 1.5 max 0.5 2.2 1.3 0.05 0.13 3.1 2.8 2.4

W 7343-15 7.3 ± 0.3 4.3 ± 0.3 1.5 max 0.6 2.4 1.3 0.05 0.13 3.8 3.5 3.5

V 7343-20 7.3 ± 0.3 4.3 ± 0.3 1.9 max 0.9 2.4 1.3 0.05 0.13 3.8 3.5 3.5 D 7343-31 7.3 ± 0.3 4.3 ± 0.3 2.8 ± 0.3 1.5 2.4 1.3 0.10 ± 0.10 0.13 3.8 3.5 3.5 Y 7343-40 7.3 ± 0.3 4.3 ± 0.3 4.0 max 1.9 2.4 1.3 0.10 ± 0.10 0.13 3.8 3.5 3.5 X 7343-43 7.3 ± 0.3 4.3 ± 0.3 4.0 ± 0.3 2.3 2.4 1.3 0.10 ± 0.10 0.13 3.8 3.5 3.5

T520 ORDERING INFORMATION

T 520

Tantalum

Series

T520 - Low ESR Polymer

Case Size

A, T, B, C, V, W, D, Y, X

Capacitance Picofarad Code

First two digits represent significant figures. Third digit specifies number of zeros to follow.

*See www.kemet.com for Pb Free transition information.

*Pb-free supply is not guaranteed with

the ‘S’ termination code.

This termination code not available

effective 15 July 2007.

V 157 M 006 S

COMPONENT MARKING

E015

ESR

T - 100% Tin (Sn) Plated H - Tin/Lead (SnPb 5% Pb minimum)

*S - Not recommended for new design

Capacitance Tolerance

Lead Material

Failure Rate

A - Not Applicable

Voltage

M = ± 20%

KEMET Organic

Rated

oltage

157

6 512

512 = 12th week of 2005

©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300

Polarity (+) Indicator

Picofarad Code

KEMET ID

PWC

*100% Tin

Page 2

CONDUCTIVE POLYMER CHIP CAPACITORS

(1) To complete KEMET part number, insert letter designation for lead material from page 50. Higher voltage ratings and tighter tolerance product may be susbstituted with the same size as KEMET’s option. Voltage substitutions will be marked with the higher voltage rating.

T520 Series - KO Cap

T520 RATINGS & PART NUMBER REFERENCE

Capaci-

tance µF

1000.0 D T520D108M2R5A(1)E015 250 8 15 3.2 1.1

1000.0 D T520D108M2R5A(1)E030 250 10 30 2.2 0.7

1000.0 Y T520Y108M2R5A(1)E010 250 10 10 4.0 1.3

1000.0 Y T520Y108M2R5A(1)E015 250 10 15 3.3 1.0

1000.0 Y T520Y108M2R5A(1)E025 250 10 25 2.5 0.8

1000.0 X T520X108M2R5A(1)E010 250 10 10 4.1 1.3

1000.0 X T520X108M003A(1)E015 300 10 15 3.3 1.0

1000.0 X T520X108M003A(1)E030 300 10 30 2.3 0.7

Case

tance µF

Size

470.0 V T520V477M002A(1)E040 94 10 40 1.8 0.6

47.0 A T520A476M2R5A(1)E090 12 8 90 0.9 0.3

56.0 T T520T566M2R5A(1)E040 14 6 40 1.3 0.4

56.0 T T520T566M2R5A(1)E070 14 8 70 1.0 0.3

68.0 A T520A686M2R5A(1)E070 17 8 70 1.0 0.3

68.0 A T520A686M2R5A(1)E080 17 8 80 1.0 0.3

100.0 T T520T107M2R5A(1)E070 25 8 70 1.0 0.3

100.0 B T520B107M2R5A(1)E035 25 8 35 1.6 0.5

100.0 B T520B107M2R5A(1)E025 25 8 25 1.8 0.6

100.0 B T520B107M2R5A(1)E040 25 8 40 1.5 0.5

100.0 B T520B107M2R5A(1)E070 25 8 70 1.1 0.3

100.0 B T520B107M2R5A(1)E035 25 8 35 1.6 0.5

150.0 U T520U157M2R5A(1)E055 38 8 55 1.3 0.4

100.0 B T520B107M2R5A(1)E040 25 8 40 1.5 0.5

220.0 B T520B227M2R5A(1)E025 55 8 25 1.8 0.6

100.0 B T520B107M2R5A(1)E070 25 8 70 1.1 0.3

220.0 B T520B227M2R5A(1)E030 55 8 30 1.7 0.5

150.0 U T520U157M2R5A(1)E055 38 8 55 1.3 0.4

220.0 B T520B227M2R5A(1)E035 55 8 35 1.6 0.5

220.0 B T520B227M2R5A(1)E025 55 8 25 1.8 0.6

220.0 B T520B227M2R5A(1)E070 55 8 70 1.1 0.3

220.0 B T520B227M2R5A(1)E030 55 8 30 1.7 0.5

220.0 C T520C227M2R5A(1)E025 55 8 25 2.1 0.7

220.0 B T520B227M2R5A(1)E035 55 8 35 1.6 0.5

220.0 C T520C227M2R5A(1)E045 55 8 45 1.6 0.5

220.0 B T520B227M2R5A(1)E070 55 8 70 1.1 0.3

220.0 V T520V227M2R5A(1)E007 55 10 7 4.2 1.3

220.0 C T520C227M2R5A(1)E025 55 8 25 2.1 0.7

220.0 V T520V227M2R5A(1)E009 55 10 9 3.7 1.2

220.0 C T520C227M2R5A(1)E045 55 8 45 1.6 0.5

220.0 V T520V227M2R5A(1)E012 55 10 12 3.2 1.0

220.0 V T520V227M2R5A(1)E007 55 10 7 4.2 1.3

220.0 V T520V227M2R5A(1)E015 55 10 15 2.9 0.9

220.0 V T520V227M2R5A(1)E009 55 10 9 3.7 1.2

220.0 V T520V227M2R5A(1)E025 55 10 25 2.2 0.7

220.0 V T520V227M2R5A(1)E012 55 10 12 3.2 1.0

220.0 V T520V227M2R5A(1)E045 55 10 45 1.7 0.5

220.0 V T520V227M2R5A(1)E015 55 10 15 2.9 0.9

220.0 D T520D227M2R5A(1)E007 55 10 7 4.6 1.5

220.0 V T520V227M2R5A(1)E025 55 10 25 2.2 0.7

220.0 D T520D227M2R5A(1)E040 55 10 40 1.9 0.6

220.0 V T520V227M2R5A(1)E045 55 10 45 1.7 0.5

330.0 B T520B337M2R5A(1)E045 83 8 45 1.4 0.4

220.0 D T520D227M2R5A(1)E007 55 10 7 4.6 1.5

330.0 B T520B337M2R5A(1)E070 83 8 70 1.1 0.3

220.0 D T520D227M2R5A(1)E040 55 10 40 1.9 0.6

330.0 C T520C337M2R5A(1)E015 83 8 15 2.7 0.8

330.0 B T520B337M2R5A(1)E045 83 8 45 1.4 0.4

330.0 C T520C337M2R5A(1)E018 83 8 18 2.4 0.8

330.0 B T520B337M2R5A(1)E070 83 8 70 1.1 0.3

330.0 C T520C337M2R5A(1)E025 83 8 25 2.1 0.7

330.0 C T520C337M2R5A(1)E015 83 8 15 2.7 0.8

330.0 C T520C337M2R5A(1)E045 83 8 45 1.6 0.5

330.0 C T520C337M2R5A(1)E018 83 8 18 2.4 0.8

330.0 W T520W337M2R5A(1)E040 83 10 40 1.7 0.5

330.0 C T520C337M2R5A(1)E025 83 8 25 2.1 0.7

330.0 V T520V337M2R5A(1)E006 83 10 6 4.6 1.4

330.0 V T520V337M2R5A(1)E007 83 10 7 4.2 1.3

330.0 C T520C337M2R5A(1)E045 83 8 45 1.6 0.5

330.0 V T520V337M2R5A(1)E009 83 10 9 3.7 1.2

330.0 W T520W337M2R5A(1)E040 83 10 40 1.7 0.5

330.0 V T520V337M2R5A(1)E012 83 10 12 3.2 1.0

330.0 V T520V337M2R5A(1)E006 83 10 6 4.6 1.4

330.0 V T520V337M2R5A(1)E015 83 10 15 2.9 0.9

330.0 V T520V337M2R5A(1)E007 83 10 7 4.2 1.3

330.0 V T520V337M2R5A(1)E018 83 10 18 2.6 0.8

330.0 V T520V337M2R5A(1)E009 83 10 9 3.7 1.2

330.0 V T520V337M2R5A(1)E025 83 10 25 2.2 0.7

330.0 V T520V337M2R5A(1)E012 83 10 12 3.2 1.0

330.0 V T520V337M2R5A(1)E040 83 10 40 1.8 0.6

330.0 V T520V337M2R5A(1)E015 83 10 15 2.9 0.9

330.0 D T520D337M2R5A(1)E006 83 10 6 5.0 1.7

330.0 V T520V337M2R5A(1)E018 83 10 18 2.6 0.8

330.0 D T520D337M2R5A(1)E007 83 10 7 4.6 1.5

330.0 V T520V337M2R5A(1)E025 83 10 25 2.2 0.7

470.0 V T520V477M2R5A(1)E007 118 10 7 4.2 1.3

330.0 V T520V337M2R5A(1)E040 83 10 40 1.8 0.6

470.0 V T520V477M2R5A(1)E009 118 10 9 3.7 1.2

330.0 D T520D337M2R5A(1)E006 83 10 6 5.0 1.7

470.0 V T520V477M2R5A(1)E012 118 10 12 3.2 1.0

330.0 D T520D337M2R5A(1)E007 83 10 7 4.6 1.5

470.0 V T520V477M2R5A(1)E015 118 10 15 2.9 0.9

470.0 V T520V477M2R5A(1)E007 118 10 7 4.2 1.3

470.0 V T520V477M2R5A(1)E018 118 10 18 2.6 0.8

470.0 V T520V477M2R5A(1)E009 118 10 9 3.7 1.2

470.0 C T520C477M2R5A(1)E025 118 8 25 2.0 0.6

470.0 V T520V477M2R5A(1)E012 118 10 12 3.2 1.0

470.0 C T520C477M2R5A(1)E045 118 8 45 1.5 0.5

470.0 V T520V477M2R5A(1)E015 118 10 15 2.9 0.9

470.0 D T520D477M2R5A(1)E006 118 10 6 5.0 1.7

470.0 V T520V477M2R5A(1)E018 118 10 18 2.6 0.8

470.0 D T520D477M2R5A(1)E007 118 10 7 4.6 1.5

470.0 C T520C477M2R5A(1)E025 118 8 25 2.0 0.6

470.0 D T520D477M2R5A(1)E009 118 10 9 4.1 1.3

470.0 C T520C477M2R5A(1)E045 118 8 45 1.5 0.5

680.0 D T520D687M2R5A(1)E010 170 10 10 3.9 1.2

470.0 D T520D477M2R5A(1)E006 118 10 6 5.0 1.7

680.0 D T520D687M2R5A(1)E015 170 10 15 3.2 1.0

470.0 D T520D477M2R5A(1)E007 118 10 7 4.6 1.5

680.0 D T520D687M2R5A(1)E040 170 10 40 1.9 0.6

470.0 D T520D477M2R5A(1)E009 118 10 9 4.1 1.3

680.0 Y T520Y687M2R5A(1)E015 170 10 15 3.3 1.0

680.0 D T520D687M2R5A(1)E010 170 10 10 3.9 1.2

680.0 Y T520Y687M2R5A(1)E025 170 10 25 2.5 0.8

680.0 D T520D687M2R5A(1)E015 170 10 15 3.2 1.0

1000.0 D T520D108M2R5A(1)E015 250 8 15 3.2 1.1

1000.0 D T520D108M2R5A(1)E030 250 10 30 2.2 0.7

680.0 D T520D687M2R5A(1)E040 170 10 40 1.9 0.6

1000.0 Y T520Y108M2R5A(1)E010 250 10 10 4.0 1.3

680.0 Y T520Y687M2R5A(1)E015 170 10 15 3.3 1.0

1000.0 Y T520Y108M2R5A(1)E015 250 10 15 3.3 1.0

680.0 Y T520Y687M2R5A(1)E025 170 10 25 2.5 0.8

1000.0 Y T520Y108M2R5A(1)E025 250 10 25 2.5 0.8

1000.0 X T520X108M2R5A(1)E010 250 10 10 4.1 1.3

100.0 B T520B107M003A(1)E035 30 8 35 1.6 0.5

100.0 B T520B107M003A(1)E040 30 8 40 1.5 0.5

100.0 B T520B107M003A(1)E070 30 8 70 1.1 0.3

150.0 B T520B157M003A(1)E035 45 8 35 1.6 0.5

150.0 B T520B157M003A(1)E040 45 8 40 1.5 0.5

100.0 B T520B107M003A(1)E025 30 8 25 1.8 0.6

150.0 B T520B157M003A(1)E070 45 8 70 1.1 0.3

100.0 B T520B107M003A(1)E035 30 8 35 1.6 0.5

330.0 V T520V337M003A(1)E009 99 10 9 3.7 1.2

100.0 B T520B107M003A(1)E040 30 8 40 1.5 0.5

330.0 V T520V337M003A(1)E012 99 10 12 3.2 1.0

100.0 B T520B107M003A(1)E070 30 8 70 1.1 0.3

330.0 V T520V337M003A(1)E015 99 10 15 2.9 0.9

150.0 B T520B157M003A(1)E035 45 8 35 1.6 0.5

330.0 V T520V337M003A(1)E025 99 10 25 2.2 0.7

150.0 B T520B157M003A(1)E040 45 8 40 1.5 0.5

680.0 D T520D687M003A(1)E015 204 10 15 3.2 1.0

150.0 B T520B157M003A(1)E070 45 8 70 1.1 0.3

680.0 D T520D687M003A(1)E040 204 10 40 1.9 0.6

330.0 V T520V337M003A(1)E009 99 10 9 3.7 1.2

1000.0 X T520X108M003A(1)E015 300 10 15 3.3 1.0

330.0 V T520V337M003A(1)E012 99 10 12 3.2 1.0

1000.0 X T520X108M003A(1)E030 300 10 30 2.3 0.7

330.0 V T520V337M003A(1)E015 99 10 15 2.9 0.9

330.0 V T520V337M003A(1)E025 99 10 25 2.2 0.7

15.0 T T520T156M004A(1)E100 6 8 100 0.8 0.3

680.0 D T520D687M003A(1)E015 204 10 15 3.2 1.0

33.0 A T520A336M004A(1)E070 13 8 70 1.0 0.3

680.0 D T520D687M003A(1)E040 204 10 40 1.9 0.6

33.0 A T520A336M004A(1)E080 13 8 80 1.0 0.3

47.0 A T520A476M004A(1)E070 19 8 70 1.0 0.3

47.0 A T520A476M004A(1)E080 19 8 80 1.0 0.3

47.0 T T520T476M004A(1)E070 19 8 70 1.0 0.3

68.0 T T520T686M004A(1)E070 27 8 70 1.0 0.3

15.0 T T520T156M004A(1)E100 6 8 100 0.8 0.3

68.0 B T520B686M004A(1)E035 27 8 35 1.6 0.5

33.0 A T520A336M004A(1)E070 13 8 70 1.0 0.3

68.0 B T520B686M004A(1)E040 27 8 40 1.5 0.5

33.0 A T520A336M004A(1)E080 13 8 80 1.0 0.3

68.0 B T520B686M004A(1)E070 27 8 70 1.1 0.3

47.0 A T520A476M004A(1)E070 19 8 70 1.0 0.3

68.0 U T520U686M004A(1)E055 27 8 55 1.3 0.4

47.0 A T520A476M004A(1)E080 19 8 80 1.0 0.3

100.0 B T520B107M004A(1)E035 40 8 35 1.6 0.5

47.0 T T520T476M004A(1)E070 19 8 70 1.0 0.3

100.0 B T520B107M004A(1)E040 40 8 40 1.5 0.5

68.0 T T520T686M004A(1)E070 27 8 70 1.0 0.3

100.0 B T520B107M004A(1)E070 40 8 70 1.1 0.3

68.0 B T520B686M004A(1)E035 27 8 35 1.6 0.5

100.0 U T520U107M004A(1)E055 40 8 55 1.3 0.4

68.0 B T520B686M004A(1)E040 27 8 40 1.5 0.5

150.0 B T520B157M004A(1)E025 60 8 25 1.8 0.6

68.0 B T520B686M004A(1)E070 27 8 70 1.1 0.3

150.0 B T520B157M004A(1)E030 60 8 30 1.7 0.5

68.0 U T520U686M004A(1)E055 27 8 55 1.3 0.4

150.0 B T520B157M004A(1)E035 60 8 35 1.6 0.5

100.0 B T520B107M004A(1)E025 40 8 25 1.8 0.6

150.0 B T520B157M004A(1)E040 60 8 40 1.5 0.5

100.0 B T520B107M004A(1)E035 40 8 35 1.6 0.5

150.0 B T520B157M004A(1)E070 60 8 70 1.1 0.3

100.0 B T520B107M004A(1)E040 40 8 40 1.5 0.5

150.0 U T520U157M004A(1)E055 60 8 55 1.3 0.4

100.0 B T520B107M004A(1)E070 40 8 70 1.1 0.3

150.0 C T520C157M004A(1)E015 60 8 15 2.7 0.9

100.0 U T520U107M004A(1)E055 40 8 55 1.3 0.4

150.0 C T520C157M004A(1)E025 60 8 25 2.1 0.7

150.0 C T520C157M004A(1)E045 60 8 45 1.6 0.5

KEMET Part Number

Size

KEMET Part Number

Leakage

µA @ 25°C

Max

2 Volt Rating @ 105°C

2.5 Volt Rating @ 105°C

3 Volt Rating @ 105°C

4 Volt Rating @ 105°C

Max

DF% @

25°C

120 Hz

Max

ESR

mΩ @

25°C

100 kHz

Max

ESR

: @

25°C

Max

Ripple Current

Arms @

100 kHz Max

w/'T=20°C

w/ΔT=20°C

@ -55°C

to 85°C

'T= 2°C

w/ΔT= 2°C

@ 105°C

product may be substituted within the same size at KEMET’S option. Voltage substitutions will be marked with the higher voltage rating.

©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300

T520V477M002

Conductive Polmer Surface Mount

Page 3

CONDUCTIVE POLYMER CHIP CAPACITORS

(1)

T520 Series - KO Cap

T520 RATINGS & PART NUMBER REFERENCE

Case

Size

KEMET Part Number

T520V157M004A(1)E00 T520V157M004A(1)E00 T520V157M004A(1)E01 T520V157M004A(1)E01 T520V157M004A(1)E02

T520V227M004A(1)E00 T520V227M004A(1)E00 T520V227M004A(1)E01 T520V227M004A(1)E01 T520V227M004A(1)E01 T520V227M004A(1)E02 T520V227M004A(1)E04 T520V227M004A(1)E04

T520V337M004A(1)E00 T520V337M004A(1)E00 T520V337M004A(1)E01 T520V337M004A(1)E01 T520V337M004A(1)E02 T520V337M004A(1)E04

T520Y687M004A(1)E01 T520Y687M004A(1)E01 T520Y687M004A(1)E02 T520X687M004A(1)E01 T520X687M004A(1)E01 T520X687M004A(1)E03

T520A226M006A(1)E09 T520A226M006A(1)E10 T520A336M006A(1)E07 T520A336M006A(1)E08

T520V107M006A(1)E00 T520V107M006A(1)E00 T520V107M006A(1)E01 T520V107M006A(1)E01 T520V107M006A(1)E04

T520V157M006A(1)E00 T520V157M006A(1)E00 T520V157M006A(1)E01 T520V157M006A(1)E01 T520V157M006A(1)E02 T520V157M006A(1)E04 T520V157M006A(1)E04

tance µF

150.0 B T520B157M004A(1)E035 60 8 35 1.6 0.5

150.0 B T520B157M004A(1)E040 60 8 40 1.5 0.5

150.0 B T520B157M004A(1)E070 60 8 70 1.1 0.3

150.0 U T520U157M004A(1)E055 60 8 55 1.3 0.4

150.0 C T520C157M004A(1)E015 60 8 15 2.7 0.9

150.0 C T520C157M004A(1)E025 60 8 25 2.1 0.7

150.0 C T520C157M004A(1)E045 60 8 45 1.6 0.5

150.0 C T520C157M004A

150.0

150.0 D T520D157M004A

220.0 B T520B227M004A(1)E03

220.0 B T520B227M004A

220.0 C T520C227M004A

220.0 W T520W227M004A

220.0

220.0 D T520D227M004A

220.0 D T520D227M004A(1)E06

330.0 C T520C337M004A

330.0

330.0 D T520D337M004A

470.0 D T520D477M004A

680.0 D T520D687M004A

680.0

15.0 T T520T156M006A

22.0

33.0

33.0 T T520T336M006A

33.0 B T520B336M006A

47.0 T T520T476M006A

47.0 B T520B476M006A

68.0 B T520B686M006A

68.0 U T520U686M006A

100.0 B T520B107M006A(1)E04

100.0 B T520B107M006A

100.0 U T520U107M006A(1)E05

100.0 W T520W107M006A

100.0

100.0 C T520C107M006A

100.0 D T520D107M006A(1)E00

120.0 B T520B127M006A

150.0 B T520B157M006A

150.0 C T520C157M006A(1)E02

150.0 C T520C157M006A

150.0 W T520W157M006A

150.0

150.0 D T520D157M006A

220.0 C T520C227M006A

220.0 C T520C227M006A(1)E01

220.0 C T520C227M006A

product may be substituted within the same size at KEMET’S option. Voltage substitutions will be marked with the higher voltage rating.

220.0 C T520C227M006A

Leakage

µA @ 25°C

4 Volt Rating @ 105°C cont.

E10

E00 E04

E07 E01 E01 E02 E04 E05

E040 88 10 40 1.7 0.5

E00 E00 E01

E02

E00 E00 E00 E01 E01 E04 E04 E01 E01 E01 E01 E02 E04 E01 E01 E02

6.3 Volt Rating @ 105°C

E10

E07 E03 E04 E07 E04 E07 E03 E04 E07 E02 E03 E04 E07 E05

E04 E07

E040 63 10 40 1.7 0.5

E02 E04

E03 E03 E04 E07

E04

E040 95 10 40 1.7 0.5

E00 E00 E01 E02 E05 E01

E02 E04

Max

60 8 100 1.0 0.3 60 10 7 4.2 1.3 60 10 9 3.7 1.2 60 10 12 3.2 1.0 60 10 15 2.9 0.9 60 10 25 2.2 0.7 60 10 7 4.6 1.5 88 8 35 1.6 0.5 88 8 45 1.4 0.4 88 8 70 1.1 0.3 88 8 15 2.7 0.9 88 8 18 2.5 0.8 88 8 25 2.1 0.7 88 8 45 1.6 0.5 88 8 55 1.4 0.4

88 10 7 4.2 1.3 88 10 9 3.7 1.2 88 10 12 3.2 1.0 88 10 15 2.9 0.9 88 10 18 2.6 0.8 88 10 25 2.2 0.7 88 10 40 1.8 0.6 88 10 45 1.7 0.5 88 10 6 5.0 1.7 88 10 7 4.6 1.5 88 10 12 3.5 1.1

88 10 65 1.5 0.5 132 8 25 2.0 0.6 132 10 7 4.2 1.3 132 10 9 3.7 1.2 132 10 12 3.2 1.0 132 10 18 2.6 0.8 132 10 25 2.2 0.7 132 10 40 1.8 0.6 132 10 6 5.0 1.7 132 10 7 4.6 1.5 132 10 9 4.1 1.3 132 10 12 3.5 1.1 132 10 15 3.2 1.0 132 10 40 1.9 0.6 132 8 45 1.5 0.5 188 10 10 3.9 1.2 188 10 12 3.5 1.1 188 10 15 3.2 1.0 188 10 18 2.9 0.9 188 10 25 2.4 0.8 188 10 40 1.9 0.6 272 10 12 3.5 1.2 272 10 15 3.2 1.1 272 10 25 2.4 0.8 272 10 10 4.0 1.3 272 10 15 3.3 1.0 272 10 25 2.5 0.8 272 10 10 4.1 1.3 272 10 15 3.3 1.0 272 10 35 2.2 0.7

9.5 8 100 0.8 0.3

14 8 90 0.9 0.3

14 8 100 0.9 0.3

21 8 70 1.0 0.3

21 8 80 1.0 0.3

21 8 70 0.9 0.4

21 8 35 1.5 0.5

21 8 40 1.5 0.5

21 8 70 1.1 0.3

30 8 40 1.3 0.4

30 8 70 1.0 0.3

30 8 35 1.6 0.5

30 8 40 1.5 0.5

30 8 70 1.1 0.3

43 8 25 1.8 0.6

43 8 35 2.4 0.5

43 8 40 1.5 0.5

43 8 70 1.1 0.3

43 8 55 1.3 0.4

63 8 40 1.5 0.5

63 8 45 1.4 0.4

63 8 70 1.1 0.3

63 8 55 1.3 0.4

63 10 7 4.2 1.3

63 10 9 3.7 1.2

63 10 12 3.2 1.0

63 10 15 2.9 0.9

63 10 45 1.7 0.5

63 8 25 2.1 0.7

63 8 45 1.6 0.5

63 10 7 4.6 1.5

76 8 35 1.5 0.5

95 8 35 1.6 0.5

95 8 45 1.4 0.4

95 8 70 1.1 0.3

95 8 25 2.1 0.7

95 8 45 1.6 0.5

95 10 7 4.2 1.3

95 10 9 3.7 1.2

95 10 12 3.2 1.0

95 10 15 2.9 0.9

95 10 25 2.2 0.7

95 10 40 1.8 0.6

95 10 45 1.7 0.5

95 10 6 5.0 1.7

95 10 7 4.6 1.5

95 10 15 3.2 1.0

95 10 25 2.4 0.8

95 10 55 1.7 0.5 139 8 15 2.7 0.9 139 8 18 2.5 0.8 139 8 25 2.0 0.6 139 8 45 1.5 0.5

25°C

120 Hz

Max

mΩ @

25°C

100 kHz

Max

ESR

DF% @

©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300

2 Volt Rating @ 105°C

Ripple Current

Arms @

100 kHz MaxCapaci-

w/ΔT=20°C

@ -55°C

to 85°C

w/ΔT= 2°C

@ 105°C

Conductive Polymer Surface Mount

Page 4

CONDUCTIVE POLYMER CHIP CAPACITORS

(1)

T520 Series - KO Cap

T520 RATINGS & PART NUMBER REFERENCE

Capaci-

Case

Size

KEMET Part Number

T520V227M006A(1)E00 T520V227M006A(1)E00 T520V227M006A(1)E01 T520V227M006A(1)E01 T520V227M006A(1)E02

E00 E00

E01 E04

T520V337M006A(1)E01 T520V337M006A(1)E01 T520V337M006A(1)E02 T520V337M006A(1)E04 T520V337M006A(1)E04

T520Y337M006A(1)E01 T520Y337M006A(1)E02 T520Y337M006A(1)E04 T520Y477M006A(1)E01 T520Y477M006A(1)E01 T520Y477M006A(1)E01 T520Y477M006A(1)E02 T520Y477M006A(1)E03

T520X477M006A(1)E01 T520X477M006A(1)E01 T520X477M006A(1)E03

T520A106M010A(1)E08 T520A156M010A(1)E08 T520A226M010A(1)E08

T520V686M010A(1)E02 T520V686M010A(1)E04 T520V686M010A(1)E04 T520V686M010A(1)E06 T520V686M010A(1)E10

T520V107M010A(1)E01 T520V107M010A(1)E02 T520V107M010A(1)E04 T520V107M010A(1)E05

T520Y227M010A(1)E04

T520Y337M010A(1)E01 T520Y337M010A(1)E03 T520X337M010A(1)E01 T520X337M010A(1)E02

T520V336M016A(1)E04 T520V336M016A(1)E06 T520V336M016A(1)E07

T520V476M016A(1)E04 T520V476M016A(1)E07

T520V226M020A(1)E04 T520V226M020A(1)E04

E00 E01

E01 E02 E04 E04

E02 E03

E07 E08 E03 E04 E07 E07 E03 E07 E02 E04 E02 E04 E05

E07 E08 E03 E04 E07 E07 E03 E07 E05

E04

E10 E02 E04

E01 E05

E02 E04 E05

E01 E02 E04

E03 E05

E06 E08

E025 68 10 25 2.2 0.7 E040 68 10 40 1.7 0.5

E040 100 10 40 1.7 0.5

E045 53 10 60 1.6 0.5

tance µF

220.0

220.0 V T520V227M006A(1)E040 139 10 40 1.8 0.6

220.0 D T520D227M006A

220.0 D T520D227M006A(1)E00

220.0 D T520D227M006A

220.0 D T520D227M006A(1)E050 139 10 50 1.7 0.5

330.0

330.0 D T520D337M006A

330.0 D T520D337M006A(1)E01

330.0 D T520D337M006A

330.0

470.0

470.0 D T520D477M006A

470.0

470.0 X T520X477M006A(1)E040 296 10 40 2.0 0.6

33.0 T T520T336M008A

33.0 B T520B336M008A

33.0 U T520U336M008A

47.0 B T520B476M008A

82.0 C T520C826M008A

150.0 D T520D157M008A

150.0 V T520V157M008A(1)E040 120 10 40 3.1 1.0

10.0

15.0

22.0

33.0 T T520T336M010A

33.0 B T520B336M010A

33.0 U T520U336M010A

47.0 B T520B476M010A

47.0 U T520U476M010A

68.0 W T520W686M010A

68.0 C T520C686M010A

68.0

68.0 D T520D686M010A

100.0 C T520C107M010A

100.0 W T520W107M010A

100.0

100.0 D T520D107M010A

100.0 D T520D107M010A(1)E08

150.0 D T520D157M010A

220.0

220.0 D T520D227M010A

330.0

330.0 X T520X337M010A(1)E040 330 10 40 2.0 0.6

33.0 W T520W336M016A

33.0

47.0 W T520W476M016A(1)E045 75 10 45 1.6 0.5

47.0

47.0 D T520D476M016A

47.0 D T520D476M016A(1)E07

68.0 D T520D686M016A

150.0 X T520X157M016A(1)E040 240 10 40 2.6 0.8

22.0

22.0 V T520V226M020A(1)E090 44 10 90 1.2 0.4

15.0 D T520D156M025A

Leakage

µA @ 25°C

Max

6.3 Volt Rating @ 105°C cont.

139 10 7 4.2 1.3 139 10 9 3.7 1.2 139 10 12 3.2 1.0 139 10 15 2.9 0.9 139 10 25 2.2 0.7

139 10 6 5.0 1.7 139 10 7 4.6 1.5 139 10 9 4.1 1.3 139 10 15 3.2 1.0 139 10 40 1.9 0.6

6.3 Volt Rating @ 105°C

208 10 15 2.8 0.9 208 10 18 2.6 0.8 208 10 25 2.2 0.7 208 10 40 1.8 0.6 208 10 45 1.7 0.5 208 10 9 4.1 1.4 208 10 10 3.9 1.2 208 10 15 3.2 1.1 208 10 18 2.9 0.9 208 10 25 2.4 0.8 208 10 40 1.9 0.6 208 10 45 1.8 0.6 208 10 15 3.3 1.0 208 10 25 2.5 0.8 208 10 40 2.0 0.6 296 10 10 4.0 1.3 296 10 15 3.3 1.0 296 10 18 3.0 0.9 296 10 25 2.5 0.8 296 10 35 2.1 0.7 296 10 25 2.4 0.8 296 10 30 2.2 0.7 296 10 10 4.1 1.3 296 10 18 3.0 1.0 296 10 35 2.2 0.7

8 Volt Rating @ 105°C

120 10 25 2.4 0.8 120 10 40 1.9 0.6 120 10 55 1.7 0.5

10 Volt Rating @ 105°C

100 8 25 2.1 0.4 100 8 45 1.5 0.5

100 10 18 2.6 0.8 100 10 25 2.2 0.7 100 10 45 1.7 0.5 100 10 50 1.6 0.5 100 10 18 2.9 0.9 100 10 55 1.7 0.5 100 10 80 1.4 0.4 150 10 25 2.4 0.8 150 10 40 1.9 0.6 150 10 55 1.7 0.5 220 10 40 2.0 0.6 220 10 18 2.9 0.9 220 10 25 2.4 0.8 220 10 40 1.9 0.6 330 10 15 3.3 1.0 330 10 35 2.1 0.4 330 10 10 4.1 1.3 330 10 25 2.6 0.8

16 Volt Rating @ 105°C

109 10 50 1.7 0.5

20 Volt Rating @ 105°C

25 Volt Rating @ 105°C

26 8 70 1.0 0.3 26 8 80 0.9 0.3 26 15 35 1.5 0.5 26 8 40 1.5 0.5 26 8 70 1.1 0.3 26 8 70 1.1 0.4 38 8 35 1.6 0.5 38 8 70 1.1 0.3 82 8 66 2.1 0.6 82 8 66 1.5 0.2

10 8 80 1.0 0.3 15 8 80 1.0 0.3 22 8 80 0.9 0.3 33 8 70 1.0 0.3 33 8 80 0.9 0.3 33 8 35 1.5 0.5 33 8 40 1.5 0.5 33 8 70 1.1 0.3 33 8 70 1.1 0.4 47 8 35 1.6 0.5 47 8 70 1.1 0.3 47 8 55 1.2 0.4

68 8 45 1.6 0.5 68 10 25 2.2 0.7 68 10 40 1.8 0.6 68 10 45 1.7 0.5 68 10 60 1.4 0.5 68 10 100 1.1 0.4 68 10 100 1.2 0.4

53 10 45 1.7 0.5 53 10 60 1.4 0.5 53 10 70 1.9 0.4

75 10 45 1.7 0.5 76 10 70 1.3 0.4 75 10 35 2.1 0.7 75 10 70 1.5 0.5

44 10 40 1.8 0.6 44 10 45 1.6 0.2

38 10 60 1.6 0.5 38 10 80 1.4 0.4

25°C

120 Hz

Max

mΩ @

25°C

100 kHz

Max

ESR

DF% @

product may be substituted within the same size at KEMET’S option. Voltage substitutions will be marked with the higher voltage rating.

Ripple Current

Arms @

100 kHz Max

w/ΔT=20°C

@ -55°C

to 85°C

w/ΔT= 2°C

@ 105°C

Conductive Polmer Surface Mount

Page 5

TANTALUM AND ALUMINUM CHIP CAPACITORS

Packaging Information

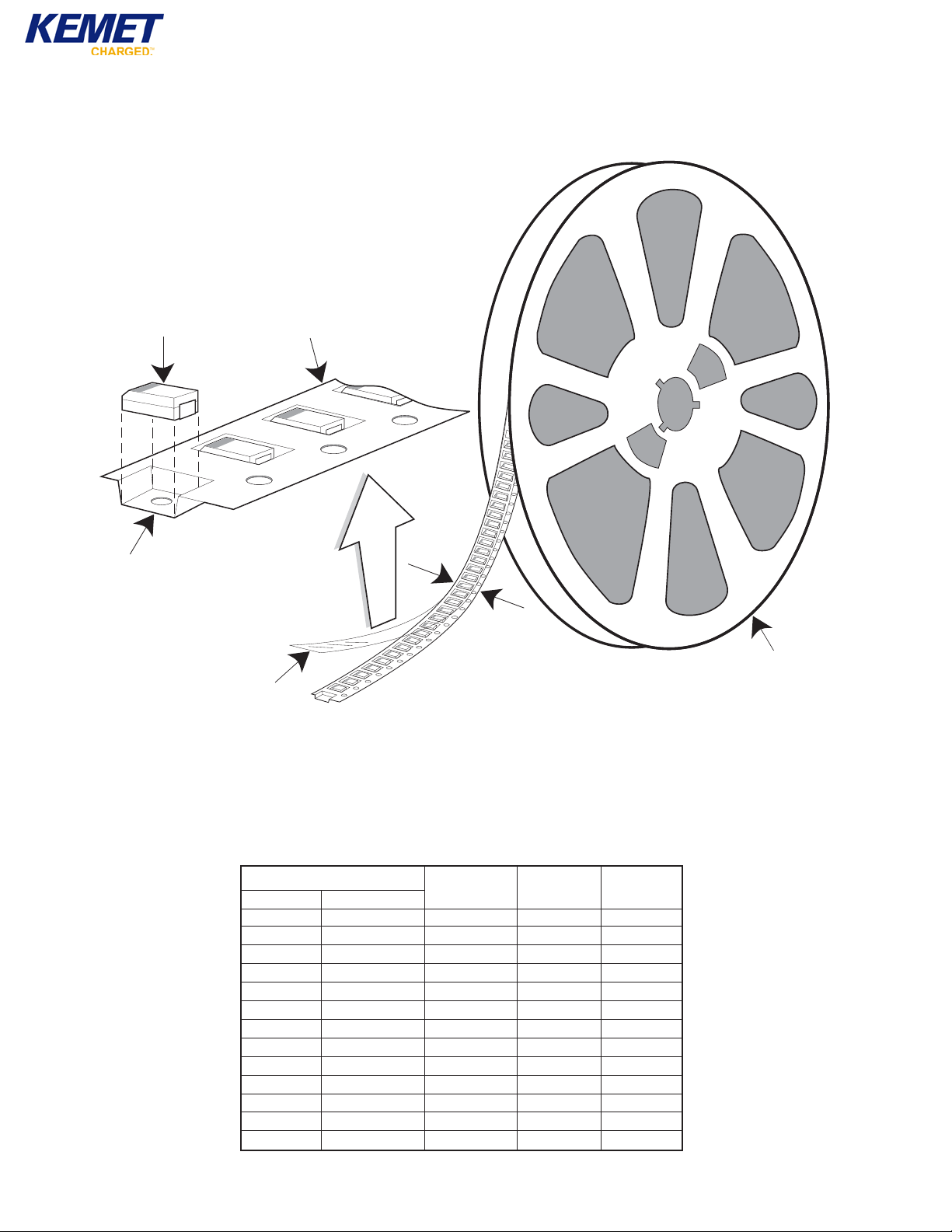

Tape & Reel Packaging

KEMET’s Molded Tantalum and Aluminum Chip Capacitor families are packaged in 8 mm and 12 mm plastic tape on 7" and 13" reels, in accordance with EIA Standard 481-1: Taping of Surface Mount Components for Automatic Handling. This packaging system is compatible with all tape fed automatic pick and place systems.

Right Hand Orientation

Only

Embossed Carrier

(+)

Embossment

.10mm (.004") Max Thickness

(–)

Top Tape Thickness

8mm ±.30

8mm (0.315")

(.315 ±.012")

12mm (0.472")

12mm ±.30

(.472 ±.012")

178mm (7.00")

180mm (7.0")

330mm (13.00")

330mm (13.0")

Labeling: Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes. Refer to EIA-556.

QUANTITIES PACKAGED PER REEL

Case Code

KEMET EIA Width-mm 7" Reel* 13" Reel*

R 2012-12 8 2,500 10,000 S 3216-12 8 2,500 10,000

T 3528-12 8 2,500 10,000

U 6032-15 12 1,000 5,000

W 7343-15 12 1,000 3,000

V 7343-20 12 1,000 3,000 A 3216-18 8 2,000 9,000 B 3528-21 8 2,000 8,000 C 6032-28 12 500 3,000 D 7343-31 12 500 2,500 Y 7343-40 12 500 2,000 X 7343-43 12 500 2,000 E 7260-38 12 500 2,000

* No c-spec required for 7" reel packaging. C-7280 required for 13" reel packaging.

* Standard reel packaging is not mandatory. * Bulk packaging also available using C-7610.

Tape

Packaging

Page 6

Performance Notes

1. Cover Tape Break Force: 1.0 Kg Minimum.

2. Cover Tape Peel Strength: The total peel strength of the cover tape from the carrier tape shall be: Tape Width Peel Strength

8 mm 0.1 Newton to 1.0 Newton (10g to 100g)

12 mm 0.1 Newton to 1.3 Newton (10g to 130g) The direction of the pull shall be opposite the direction of the carrier tape travel. The pull angle of the carrier tape shall be 165 to 180 from the plane of the carrier tape. During peeling, the carrier and/or cover tape shall be pulled at a velocity of 300 ±10 mm/minute.

3. Reel Sizes: Molded tantalum capacitors are available on either 180 mm (7") reels (standard) or 330 mm (13")

reels (with C-7280). Note that 13” reels are preferred.

4. Labeling: Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes.

Refer to EIA-556.

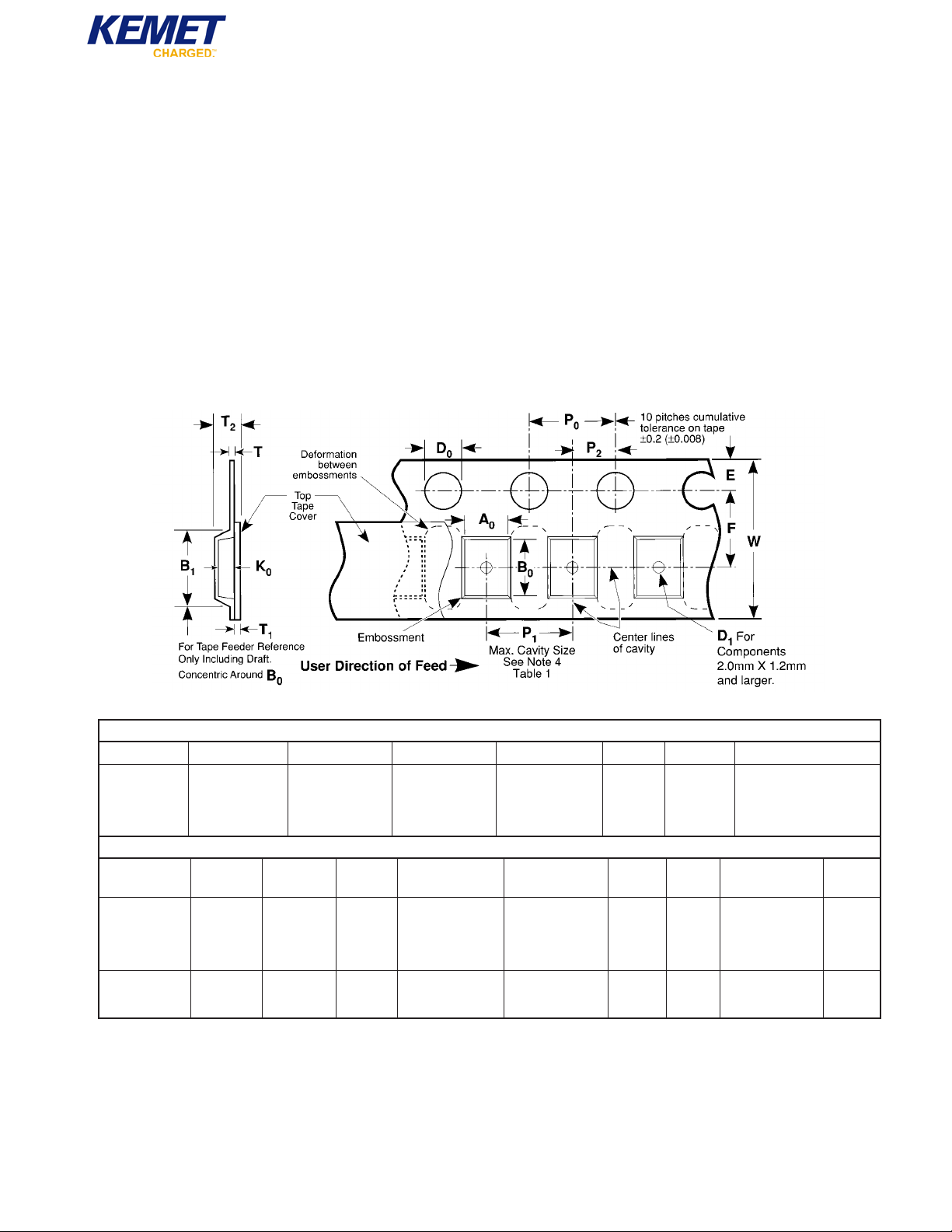

Embossed Carrier Tape Configuration: Figure 1

NOTES

1. B1 dimension is a reference dimension for tape feeder clearance only.

2. The embossment hole location shall be measured from the sprocket hole controlling the location of the embossment. Dimensions of embossment location and hole location shall be applied independent of each other.

3. Tape with components shall pass around radius “R” without damage (see sketch A). The minimum trailer length (Fig. 2) may require additional length to provide R min. for 12 mm embossed tape for reels with hub diameters approaching N min. (Table 2)

4. The cavity defined by A

, B0, and K0shall be configured to surround the part with sufficient clearance such that the chip does not pro- trude beyond the sealing plane of the cover tape, the chip can be removed from the cavity in a vertical direction without mechanical restriction, rotation of the chip is limited to 20 degrees maximum in all 3 planes, and lateral movement of the chip is restricted to 0.5 mm maximum in the pocket (not applicable to vertical clearance.)

Table 1 — EMBOSSED TAPE DIMENSIONS (Metric will govern)

Constant Dimensions — Millimeters (Inches)

Tape Size D

EP0P

T Max T1Max

8 mm 1.5 1.75 ±0.10 4.0 ±0.10 2.0 ±0.05 0.600 0.100

and +0.10 -0.0

12 mm (0.059 (0.069 ±0.004) (0.157 ±0.004) (0.079 ±0.002) (0.024) (0.004)

+0.004, -0.0)

Variable Dimensions — Millimeters (Inches)

Tape Size Pitch B1Max. D1Min. F P

R Min. T2Max W A0B0K

Note 1 Note 2 Note 3 Note 4

8 mm Single 4.4 1.0 3.5 ±0.05 4.0 ±0.10 25.0 2.5 8.0 ±0.30

(4 mm)

(0.173) (0.039) (0.138 ±0.002) (0.157 ±0.004) (0.984) (0.098) (.315 ±0.012)

12 mm Double 8.2 1.5 5.5 ±0.05 8.0 ±0.10 30.0 4.6 12.0 ±0.30

(8 mm) (0.323) (0.059) (0.217 ±0.002) (0.315 ±0.004) (1.181) (0.181) (0.472 ±0.012)

TANTALUM, CERAMIC AND

ALUMINUM CHIP CAPACITORS

Packaging Information

Page 7

Embossed Carrier Tape Configuration (cont.)

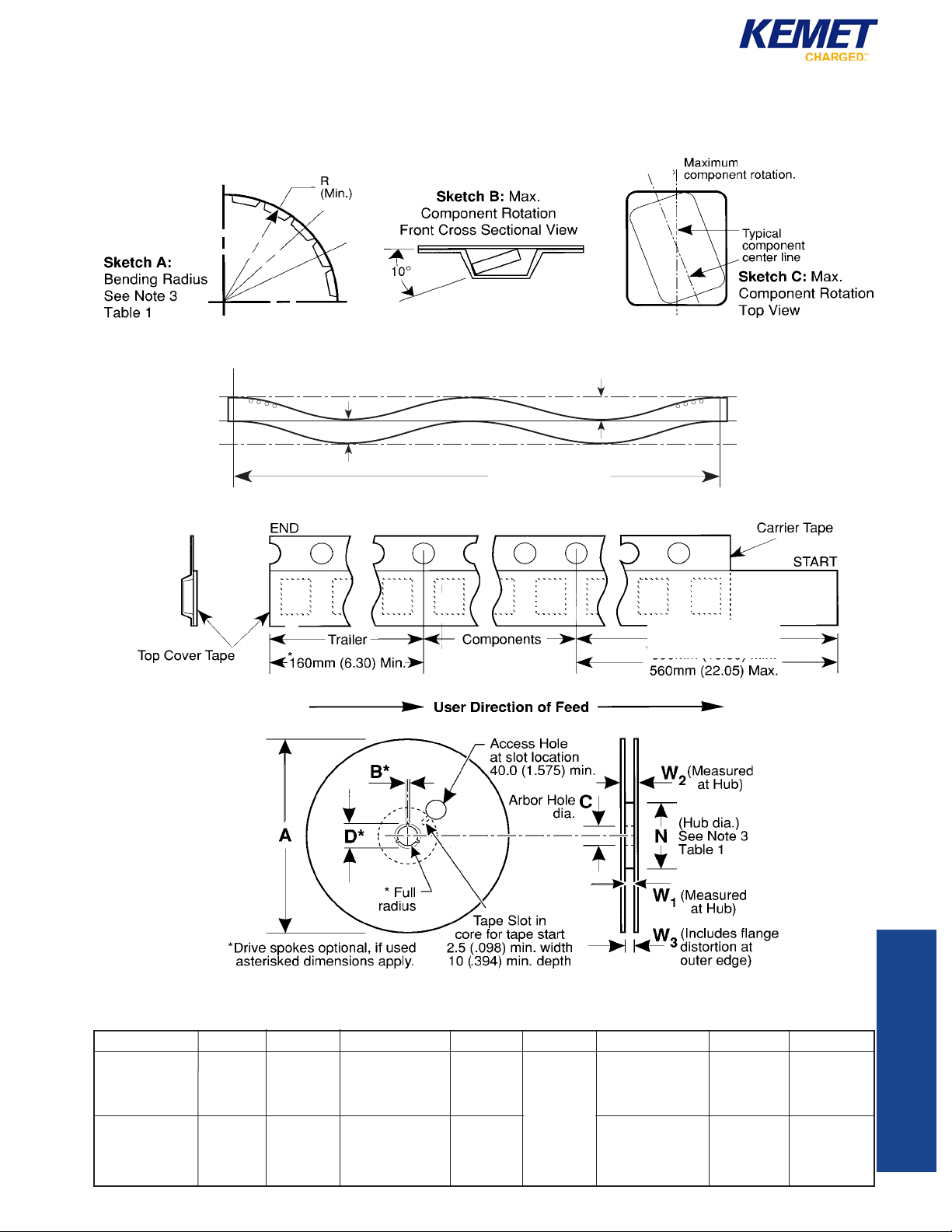

Sketch D: Tape Camber (Top View)

Allowable camber to be 1 mm/250 mm.

Table 2 – REEL DIMENSIONS (Metric will govern)

Figure 3: Reel Dimensions (Metric Dimensions will govern)

Tape Size A Max B* Min C D* Min N Min W

W2Max W

8 mm 330.0 1.5 13.0 ± 0.20 20.2 50.0 8.4 14.4 7.9 Min

(12.992) (0.059) (0.512 ± 0.008) (0.795) (1.969) +1.5, -0.0 (0.567) (0.311)

See (0.331 10.9 Max

Note 3 +0.059, -0.0) (0.429)

12 mm 330.0 1.5 13.0 ± 0.20 20.2 Table 1 12.4 18.4 11.9 Min

(12.992) (0.059) (0.512 ± 0.008) (0.795) +2.0, -0.0 (0.724) (0.469)

(0.488 15.4 Max

+0.078, -0.0) (0.606)

TANTALUM, CERAMIC AND

ALUMINUM CHIP CAPACITORS

Packaging Information

Figure 2:

Tape Leader & Trailer Dimensions (Metric Dimensions Will Govern)

400mm (15.75) Min.

20°

1mm (0.039) Max.

250mm (9.843)

Packaging
