T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 1/37

LCD Module Technical Specification

T-51513-D104U-FW-A-AB

CONTENTS

No. Item Page

1 OVERVIEW 2 2 ABSOLUTE MAXIMUM RATINGS 3 3 ELECTRICAL CHARACTERISTICS 3∼5 4 INTERFACE PIN CONNECTION 6 5 INTERFACE TIMING 7∼9 6 BLOCK DIAGRAM 10 7 MECHANICAL SPECIFICATION 11∼13 8 OPTICAL CHARACTERISTICS 14,15

9 RELIABILITY TEST CONDITION 16 10 INSPECTION STANDARDS 17 11 HANDLING PRECAUTIONS FOR TFT-LCD MODULE 18∼20 12 REVISION STATUS 21,22 13 REVISION STATUS (INTERNAL USE ONLY) 23 14 PACKAGING SPECIFICATION 23∼27 15 PRODUCTS NUMBER LABELING FORMS 28∼30 16 LAMP UNIT FOR 10.4 VGA 31∼37

Checked by (Design Engineering Div.)

Checked by (Quality Assurance Div.)

Approved by (Production Div.)

Prepared by (Production Div.)

Type No.

Jul 1, 2002

OPTREX

First Edition

Final Revision

******

Page 2

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 2/37

1. OVERVIEW

AA104VB05 is 10.4” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, driver ICs, control circuit, and backlight unit.

By applying 6 bit digital data 640 × 480, 260K-color images are displayed on the 10.4” diagonal screen. Input power voltage is single 3.3 / 5.0V for LCD driving. Both 3.3V-CMOS and 5.0V-CMOS level voltage are acceptable for logic input voltage.

Inverter for backlight is not included in this module. General specifications are summarized in the following table:

ITEM SPECIFICATION

Display Area (mm)

211.2 (H) × 158.4 (V)

(10.39-inch diagonal)

Number of Dots 640 × 3 (H) × 480 (V) Pixel Pitch (mm) 0.33 (H) × 0.33 (V) Color Pixel Arrangement RGB vertical stripe Display Mode normally white Number of Color 260 K Wide Viewing Angle Technology Optical compensation film Optimum Viewing Angle(Contrast ratio) 12 o’clock Brightness (cd/m2) 380 Module Size (mm) 243.0 (W) × 181.6 (H) × 12.2 (D) Module Mass (g) 530 Backlight Unit CCFL, 2-tubes, replaceable Surface Treatment Anti-glare and hard-coating 3H

Characteristic value without any note is typical value.

The LCD product described in this specification is designed and manufactured for the standard use in OA equipment and consumer products, such as computers, communication equipment, industrial robots, AV equipment and so on. Do not use the LCD product for the equipment that require the extreme high level of reliability, such as aerospace applications, submarine cables, nuclear power control systems and medical or other equipment for life support. ADI assumes no responsibility for any damage resulting from the use of the LCD product in disregard of the conditions and handling precautions in this specification. If customers intend to use the LCD product for the above items or other no standard items, please contact our sales persons in advance.

Page 3

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 3/37

2. ABSOLUTE MAXIMUM RATINGS

ITEM SYMBOL MIN. MAX. UNIT

Power Supply Voltage for LCD VCC -0.3 6.5 V Logic Input Voltage VI 0 6.5 V Lamp Voltage VL 0 2000 Vrms Lamp Current IL 0 10.0 mArms Lamp Frequency FL -- 80 kHz Operation Temperature *1) T

0 50 °C

Storage Temperature *1) T

stg

-20 60 °C

[Note]

*1) Top,Tstg ≤ 40°C : 90%RH max. without condensation

Top,Tstg > 40°C : Absolute humidity shall be less than the value of 90%RH at 40°C without

condensation.

3. ELECTRICAL CHARACTERISTICS

(1) TFT- LCD Ambient Temperature : Ta = 25°C

ITEM SYMBOL MIN. TYP. MAX. UNIT Remarks

3.3 V powered VCC 3.0 3.3 3.6 V

A), D)

Power Supply Voltage for LCD

5.0 V powered VCC 4.75 5.0 5.25 V

A), D)

3.3 V powered ICC - 220 380 mA VCC=3.3 V

Power Supply Current for LCD

5.0 V powered ICC - 150 280 mA VCC=5.0 V

Permissive Input Ripple Voltage VRP - - 100 mVp-p VCC=+3.3 V/5.0 V

High VIH 2.0 - 5.25 V

Logic Input Voltage

Low VIL 0 - 0.8 V

(2) Backlight Ta=25°C

ITEM SYMBOL MIN. TYP. MAX. UNIT Remarks

Lamp Voltage VL -- 580 -- Vrms IL=6.0mArms Lamp Current IL 3.0 6.0 7.0 mArms *1) Lamp Frequency FL 40 -- 80 kHz *2) Starting Lamp Voltage Ta=25°C 810 -- -- Vrms

Ta=0°C

1000 -- -- Vrms

IL=3.0mArms 50000 50000 -- h *3),*4)

Lamp Life Time IL=6.0mArms LT 40000 50000 -- h

IL=7.0mArms 30000 40000 -- h

Page 4

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 4/37

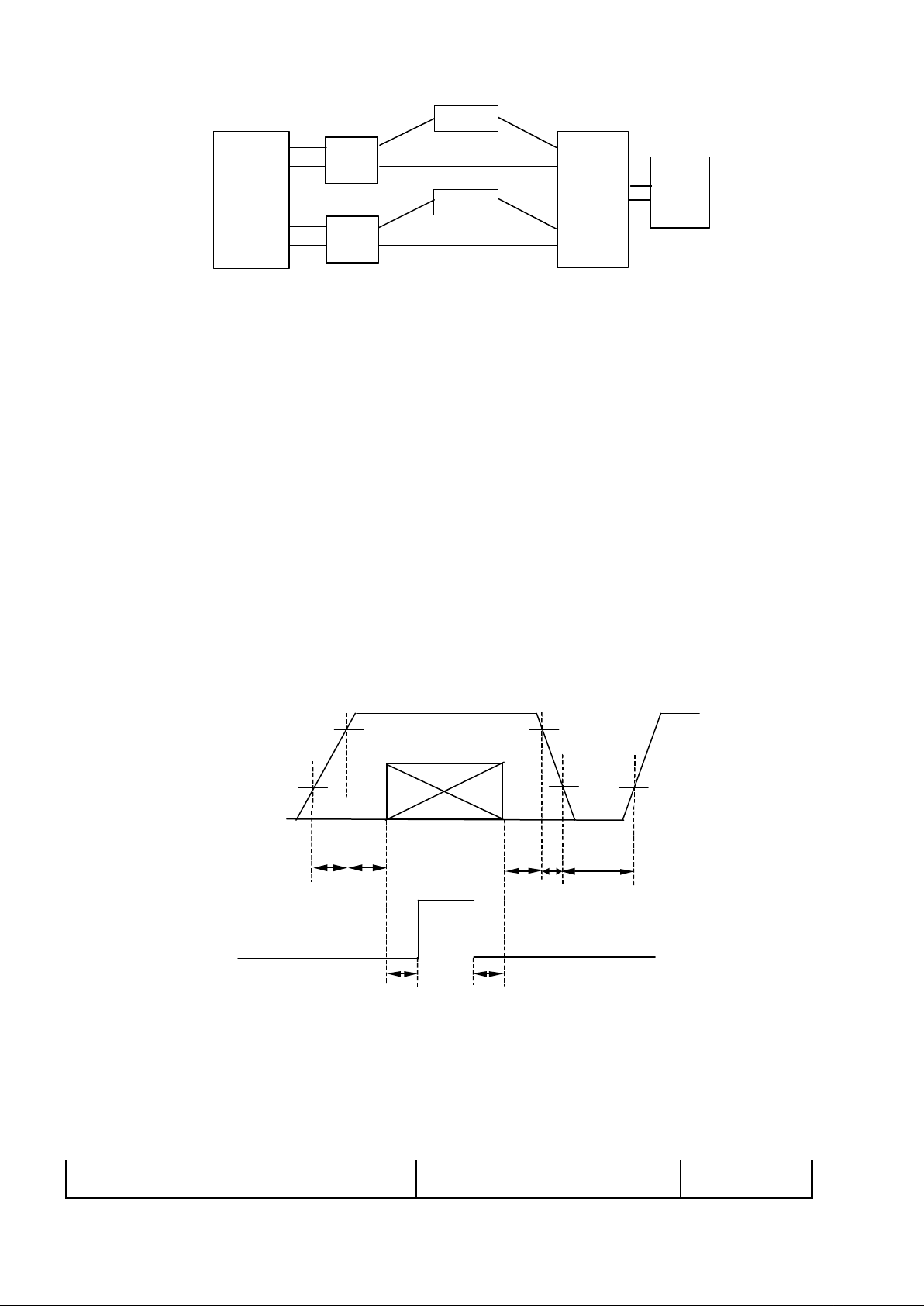

*1) Lamp Current measurement method (The current meter is inserted in low voltage line.)

CTL

CTH

CTL

CTH

LCD

Module

Inverter

Power

Supply

*2) Lamp frequency of inverter may produce interference with horizontal synchronous frequency, and

this may cause horizontal beat on the display. Therefore, please adjust lamp frequency, and keep inverter as far from module as possible or use electronic shielding between inverter and module to avoid the interference.

*3) Lamp life time is defined as the time either when the brightness becomes 50% of the initial value, or

when the starting lamp voltage does not meet the value specified in this table.

*4) The life time of the backlight depends on the ambient temperature. The life time will decrease under

low/high temperature.

[Note] A) Power and signals sequence:

t1 ≤ 10 ms 400 ms ≤ t5 0 < t2 ≤ 50 ms 200 ms ≤ t6 0 < t3 ≤ 50 ms 0 ≤ t7 0 < t4 ≤ 50 ms

t2 t3

data

0.9VCC

0.1VCC

VCC

Backlight

data

: RGB DATA, DCLK, HD, VD, DENA

0.1VCC

Page 5

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 5/37

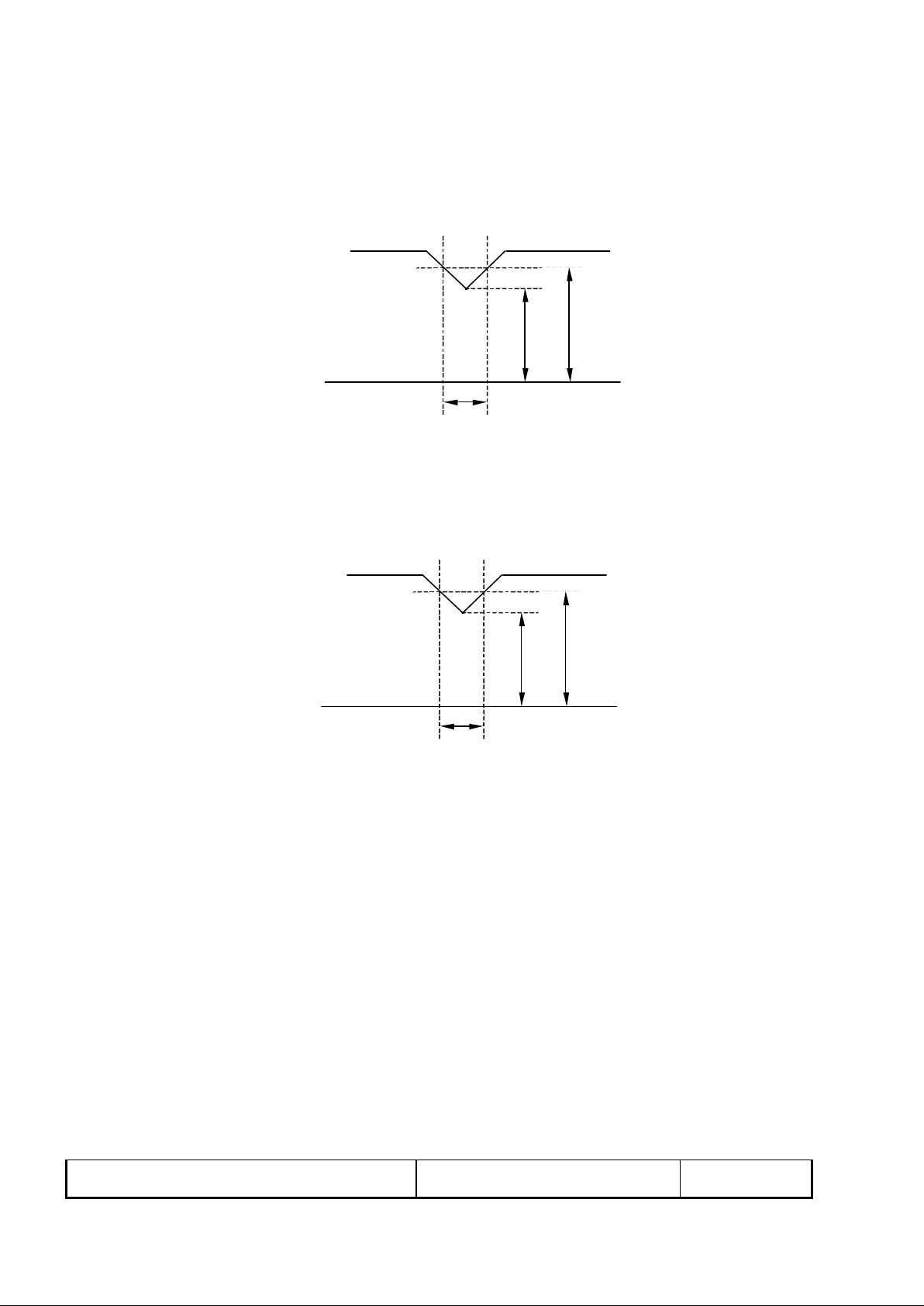

VCC-dip conditions:

(a) 3.3 V powered

1) When 2.4 V ≤ VCC < 3.0 V, td ≤ 10 ms

2) When VCC < 2.4 V VCC-dip conditions should also follow the power and signals sequence.

2.4 V 3.0 V

VCC

(b) 5.0 V powered

1) When 3.6 V ≤ VCC < 4.5 V, td ≤ 10 ms

2) When VCC < 3.6 V VCC-dip conditions should also follow the power and signals sequence.

3.6 V 4.5 V

VCC

B) Typical current condition:

64- gray- bar-pattern 480 line mode VCC = + 3.3 / 5.0 V, fH=31.6kHz, fV=60Hz, f

CLK

= 25MHz

Page 6

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 6/37

4. INTERFACE PIN CONNECTION

CN 1(INTERFACE SIGNAL)

Used connector: DF9B-31P-1V(Hirose) Corresponding connector: DF9B-31S-1V(Hirose)

Pin No.

Symbol

Function

GND

2 DCLK Clock signal for sampling catch data signal 3 HD Horizontal sync signal 4 VD Vertical sync signal 5 GND 6 R0 Red data signal(LSB) 7 R1 Red data signal 8 R2 Red data signal 9 R3 Red data signal

10R4Red data

signal

11 R5 Red data signal(MSB) 12 GND 13 G0 Green data signal(LSB) 14 G1 Green data signal 15 G2 Green data signal 16 G3 Green data signal 17 G4 Green data signal 18 G5 Green data signal(MSB) 19 GND 20 B0 Blue data signal(LSB) 21 B1 Blue data signal 22 B2 Blue data signal 23 B3 Blue data signal 24 B4 Blue data signal 25 B5 Blue data signal(MSB) 26 GND 27 DENA Data enable signal(to settle the viewing area) 28 VCC 3.3 / 5.0 V Power Supply 29 VCC 3.3 / 5.0 V Power Supply 30 TEST This pin should be open. Test signal output for only internal test use. 31 SC Scan direction Control.(GND or Open:Normal, High:Reverse)

*1) The shielding case is connected with GND *2) See; Timing Chart(P9)

CN 2 , CN 3 (BACKLIGHT)

Backlight-side connector: BHR-02(8.0)VS-1N(JST) Inverter-side connector: SM02(8.0)B-BHS(JST)

Pin No. Symbol Function

1 CTH VBLH（High Voltage） 3 CTL VBLL（Low Voltage）

[Note]

VBLH-VBLL=VL

Page 7

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 7/37

5. INTERFACE TIMING

(1) Timing Specifications

ITEM SYMBOL MIN. TYP. MAX. UNIT

Frequency f

CLK

-- 25 29 MHz

Period t

CLK

34.5 40 -- ns

Low Width t

WCL

12 -- -- ns

DCLK

*1) *4)

High Width t

WCH

12 -- -- ns

Set up time t

5 -- -- ns

DATA *1)

(R,G,B,DENA

HD, VD)

Hold time t

5 -- -- ns

Horizontal Active Time t

640 640 640 t

CLK

Horizontal Front Porch t

HFP

10 16 -- t

CLK

Horizontal Back Porch t

HBP

2 144 -- t

CLK

Vertical Active Time t

480 480 480 t

DENA

*3)

Vertical Front Porch t

VFP

1 12 -- t

Vertical Back Porch t

VBP

2 33 -- t

Frequency f

27 31.6 38 kHz

Period t

26.3 31.6 37.0 µs

*2)*4)

Low Width t

WHL

5 96 -- t

CLK

Frequency f

55 60 70 Hz

Period t

14.3 16.7 18.2 ms

VD *2)

Low Width t

WVL

3 -- -- t

[Note]

*1) DATA is latched at fall edge of DCLK in this specification. *2) Polarities of HD and VD are negative in this specification. *3) DENA (Data Enable) should always be positive polarity as shown in the timing specification.

*4) DCLK should appear during all invalid period, and HD should appear during invalid period of

frame cycle.

Page 8

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 8/37

(2) Timing Chart

a. Pixel Timing Chart

0.8

tWCH tWCL

tCLK

Ｓ t

Ｈ

DCLK

DATA(R ,G,B), DENA, HD, VD

0.8V

2.0V

DCLK

DATA (R,G,B)

1 2 639 6403Invalid Data Invalid Data

HFP

HBP

WHL

tH=1/f

DENA

b. Horizontal Timing Chart

c. Vertical Timing Chart

1 2 479 4803Invalid Data Invalid Data

tWVL

VFP

VBP

tV=1/f

LINE DATA

DENA

tVA

Page 9

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 9/37

(3)Color Data Assignment

R DATA G DATA B DATA

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0COLOR

INPUT

DATA

MSB LSB MSB LSB MSB LSB

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 BLUE(63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 CYAN 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 MAGENTA 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0

BASIC

COLOR

WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 RED(0) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(1) 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 RED(2) 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(62) 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(0) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(1) 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 RED(2) 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0

GREEN(62) 1 1 1 1 1 0 1 1 1 1 1 0 0 0 0 0 0 0

GREEN

GREEN(63) 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 BLUE(0) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 BLUE(1) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 BLUE(2) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0

BLUE(62) 1 1 1 1 1 0 0 0 0 0 0 0 1 1 1 1 1 0

BLUE

BLUE(63) 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1

[Note] 1) Definition of gray scale Color (n)…n indicates gray scale level. Higher n means brighter level.

2) Data 1: High , 0: Low

Page 10

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 10/37

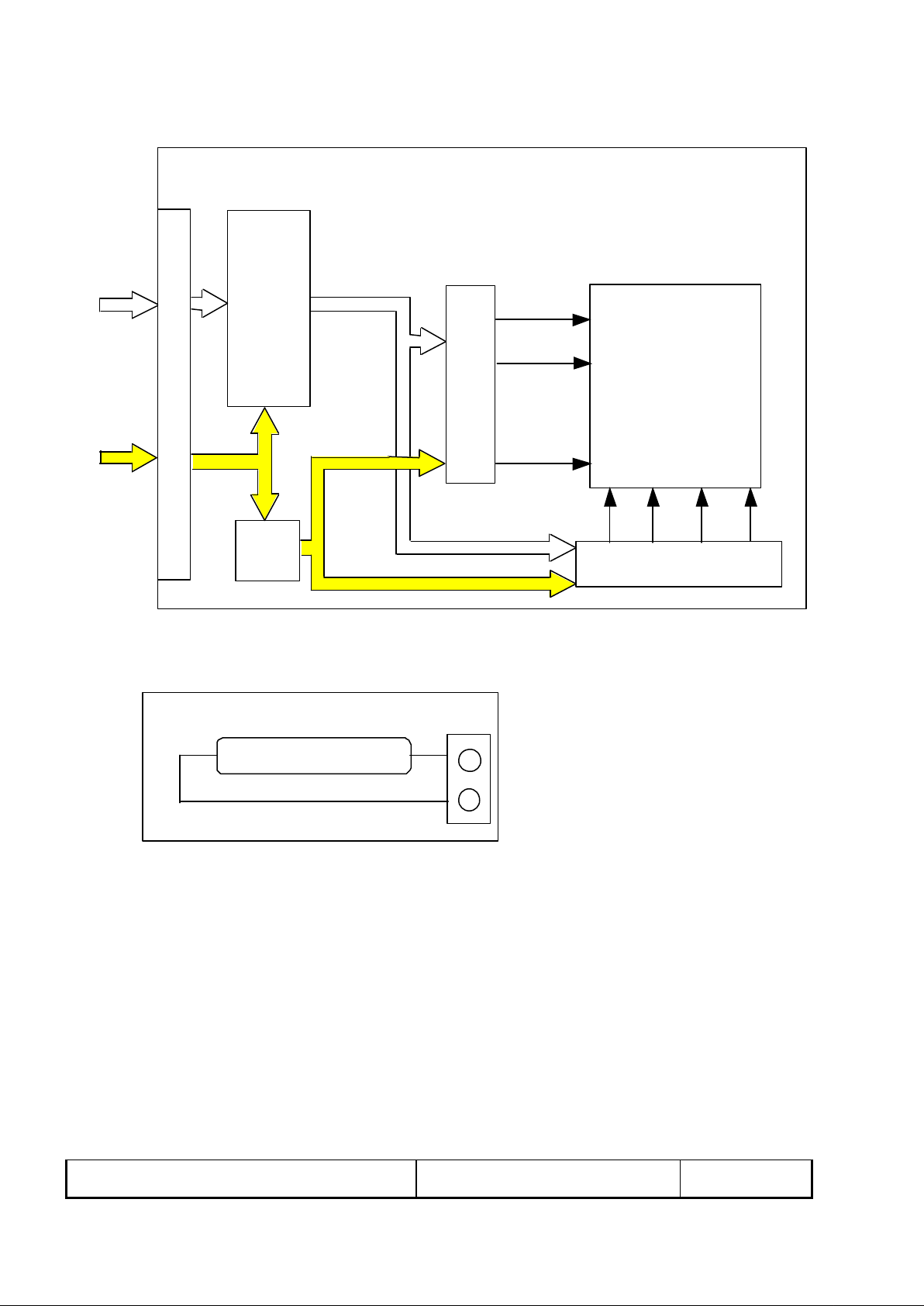

6. BLOCK DIAGLAM

I/F Connector

Timing

Converter

Driver(source)

TFT-LCD

Driver(gate)

Power

Supply

Circuit

BACKLIGHT

CCFL

1 3

CN2, 3

G480

Timing signal Display data

S1919

S1920

Power

Page 11

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 11/37

7. MECHANICAL SPECIFICATIONS

(1) Front Side

Tolerance is ±0.5mm unless noted.

Page 12

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 12/37

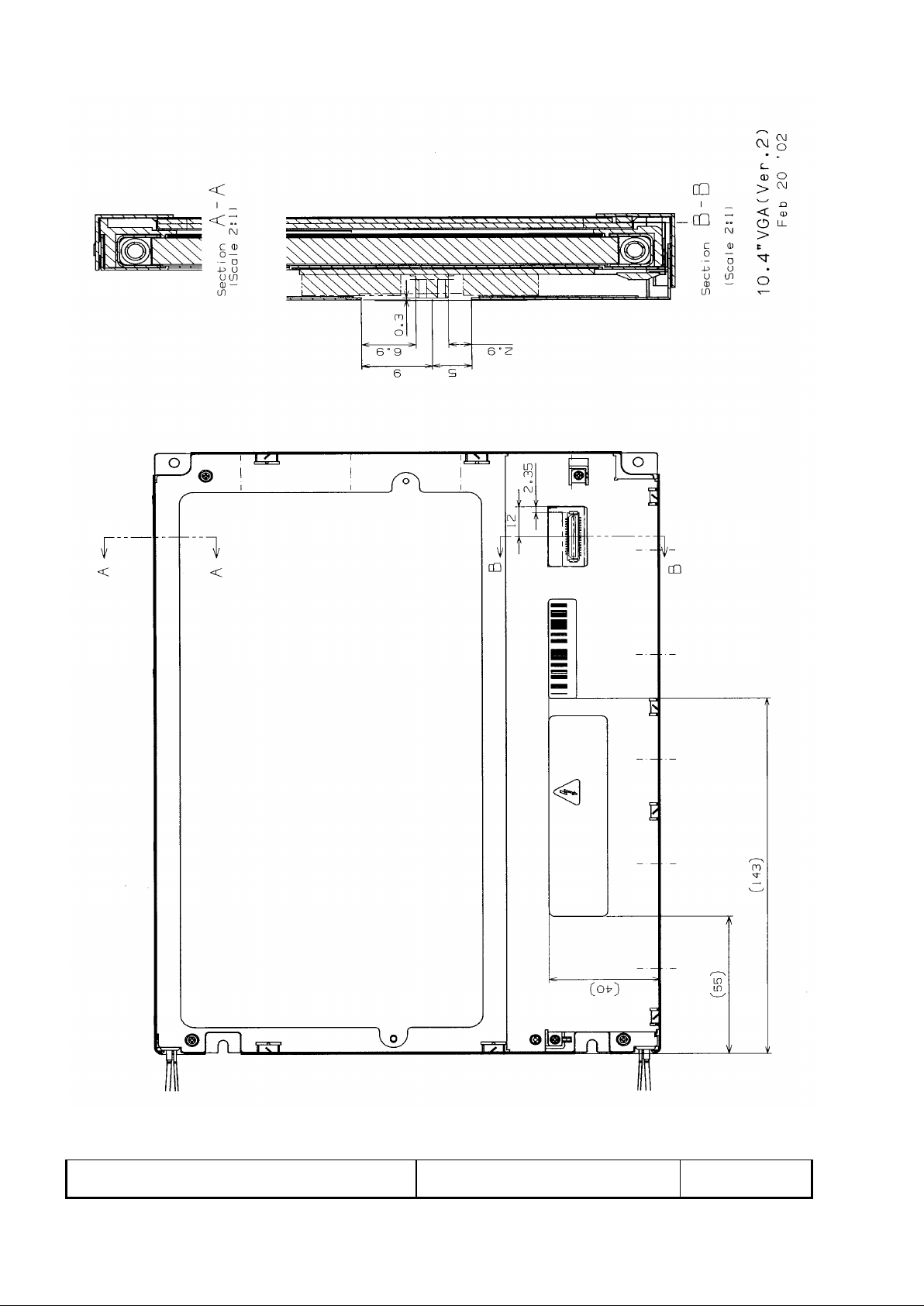

(2) Rear Side

Tolerance is ±0.5mm unless noted

[Note]

Page 13

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 13/37

We recommend you referring to the detailed drawing for your design. Please contact our company sales representative when you need the detailed drawing.

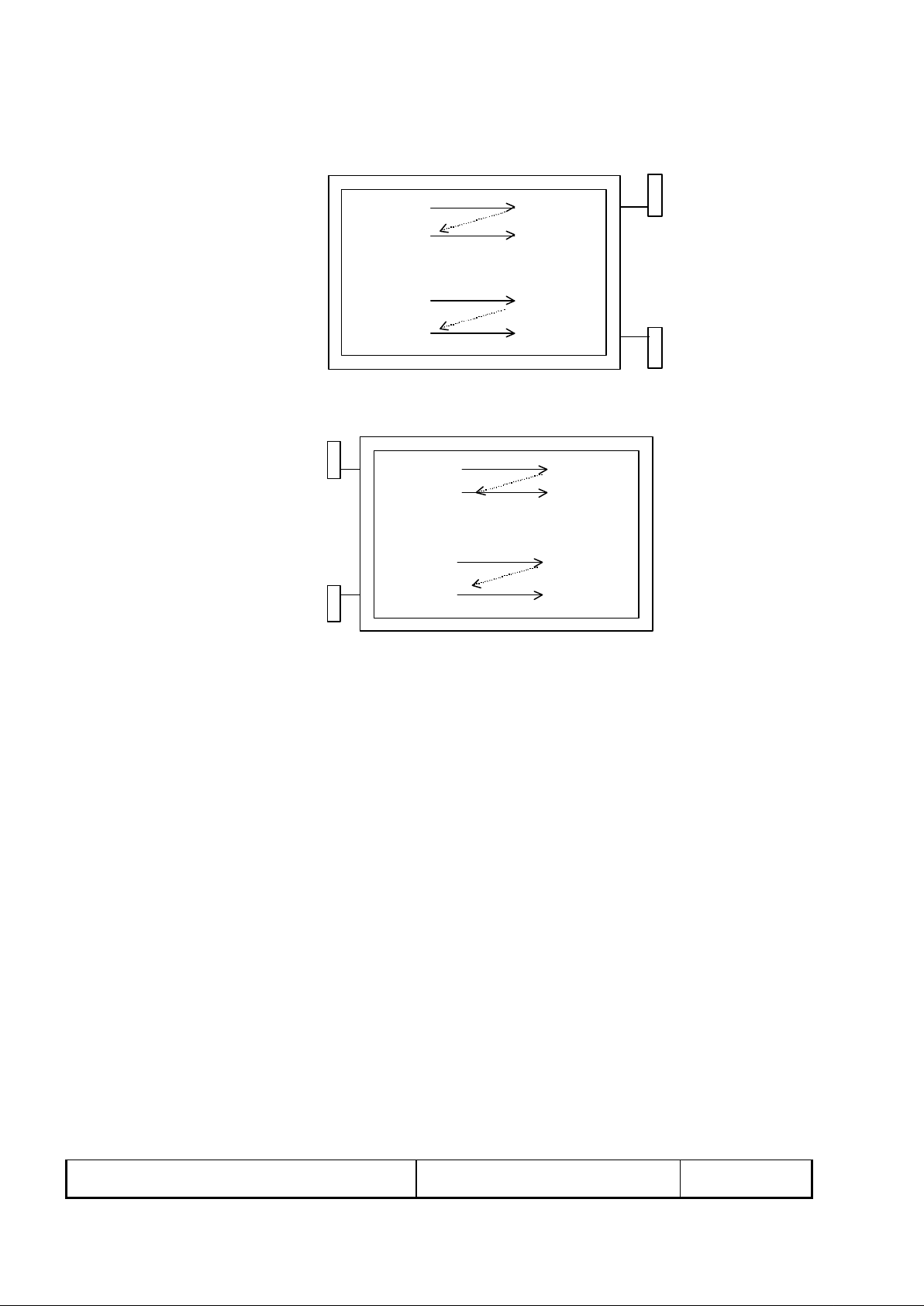

(3) Scanning direction

SC：High

CN3

D(1,1) D(640,1)

D(1,480)

D(640,480)

CN2

SC : GND or Open

CN2

D(1,1) D(640,1)

D(1,480)

D(640,480)

CN3

Page 14

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 14/37

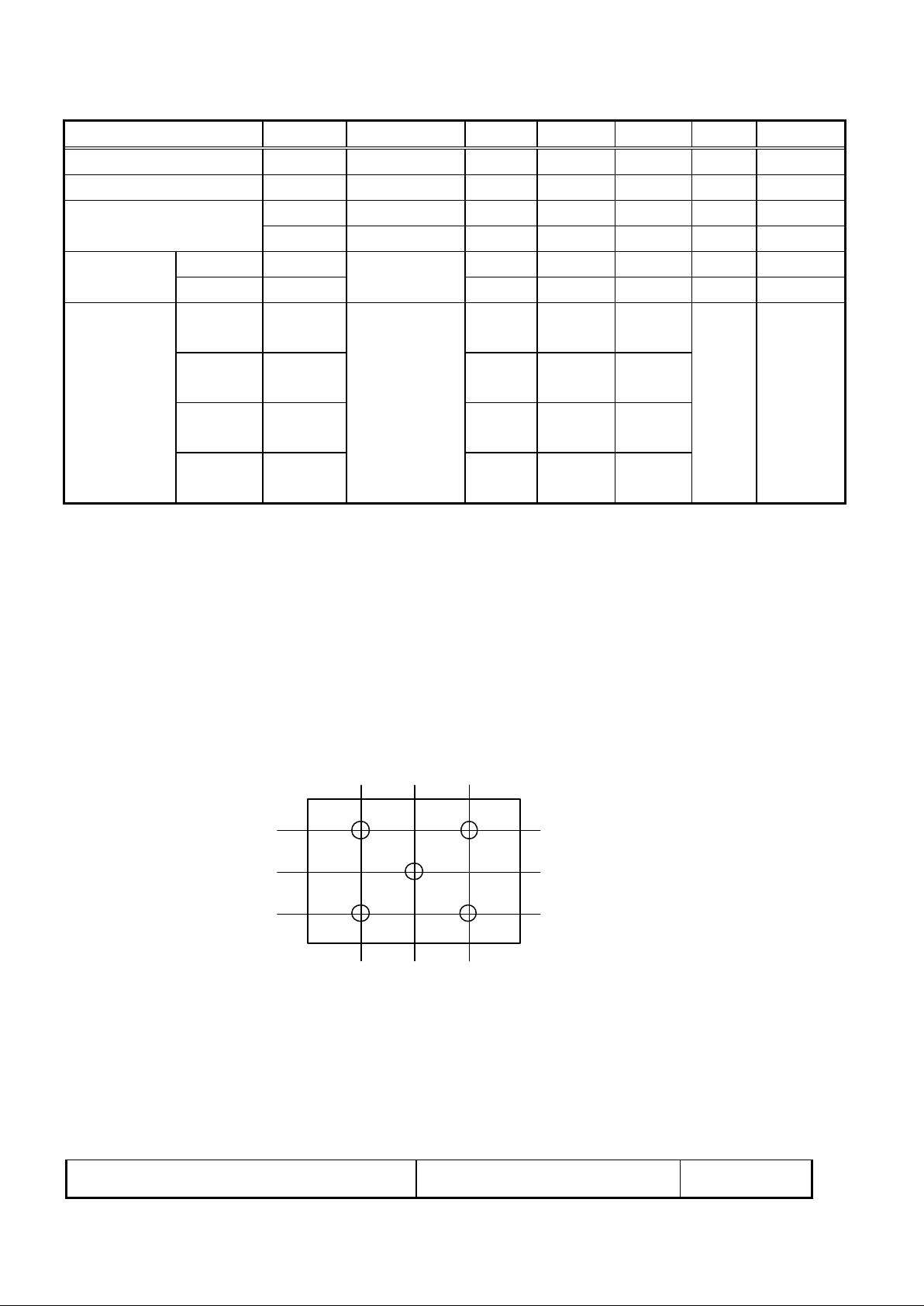

8. OPTICAL CHARACTERISTICS

Ta=25°C, VCC=3.3 / 5.0 V, Input Signals: Typ. Values shown in Section 5

ITEM SYMBOL CONDITION MIN. TYP. MAX. UNIT Remarks

Contrast Ratio CR θ = φ = 0° 150 300 --

*1)*3)

Luminance Lw θ = φ = 0° 300 380 --

cd/m

*2)*3)

Response Time tr θ = φ = 0° -- 15 --

*3)*4)

tf θ = φ = 0° -- 35 --

*3)*4)

Viewing Horizontal φ CR ≥ 10 -- -60∼60 --

*3)

Angle Vertical θ -- -45∼55 --

*3)

Red Rx 0.54 0.57 0.60

Ry 0.30 0.33 0.36 Color Green Gx 0.30 0.33 0.36 Coordinates Gy θ = φ = 0° 0.49 0.52 0.55

*3)

Blue Bx 0.14 0.17 0.20

By 0.15 0.18 0.21

White Wx 0.29 0.32 0.35

Wy 0.31 0.34 0.37

[Note]

These items are measured using BM-5A(TOPCON) or LCD-7000(Otsuka Electronic) under the dark room condition (no ambient light).

Condition: IL=6.0mArms, FL=55 kHz *1) Definition of Contrast Ratio

CR=ON (White) Luminance / OFF(Black) Luminance: average of 5 points

*2) Definition of Luminance

Lw= ON (White) Luminance: average of 5 points

(1,1)

160 320 480

120

240

360

(640,480)

MEASUREMENT POINT

Page 15

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 15/37

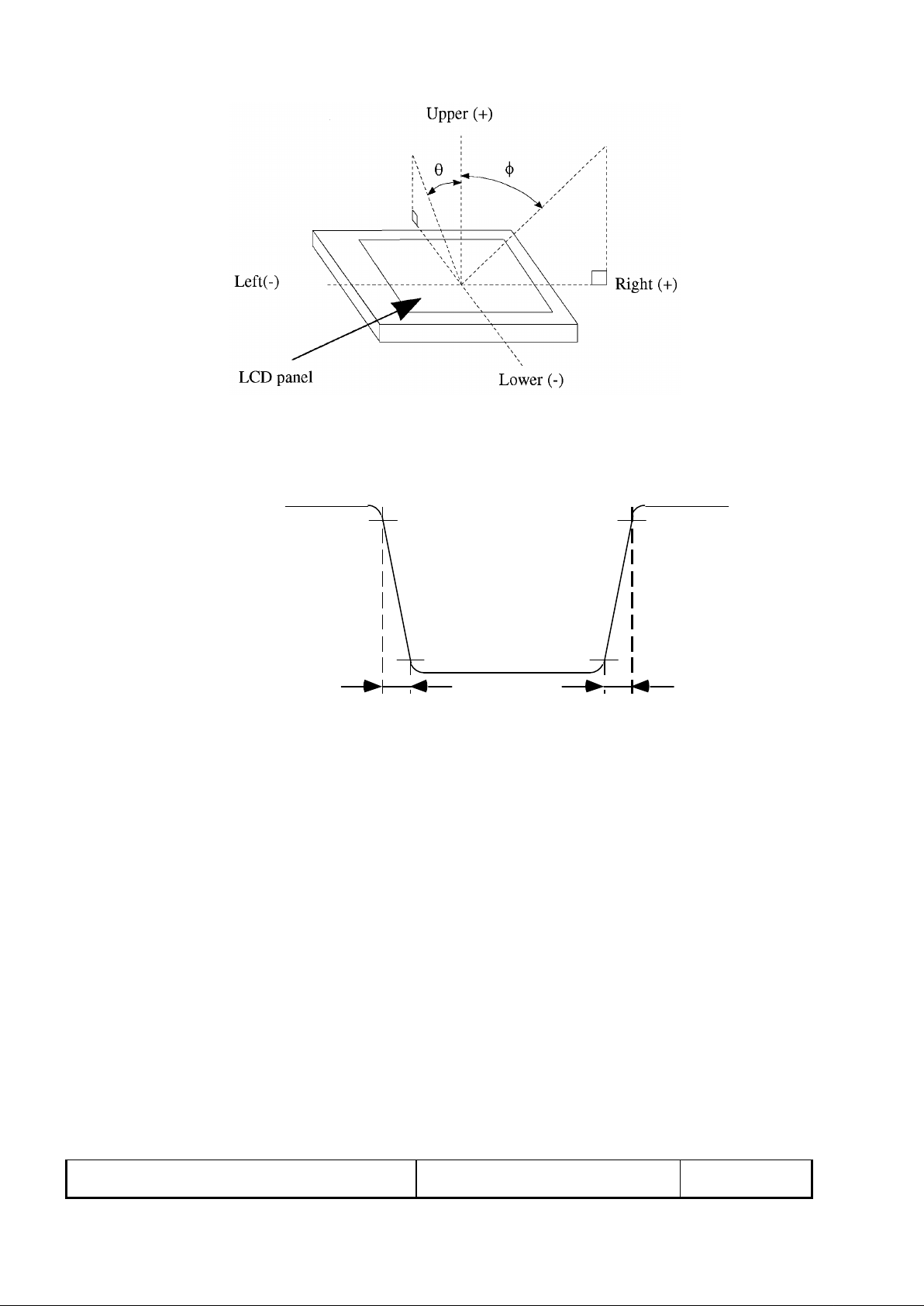

*3) Definition of Viewing Angle( θ , φ)

*4) Definition of Response Time

White

90%90%

10%10% Black

Luminance

Page 16

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 16/37

9. RELIABILITY TEST CONDITION

(1) Temperature and Humidity

TEST ITEM CONDITIONS

HIGH TEMPERATURE

HIGH HUMIDITY OPERATION

40°C, 90%RH, 240 h

HIGH TEMPERATURE STORAGE 60°C, 96 h

LOW TEMPERATURE STORAGE -20°C, 96 h

THERMAL SHOCK(NON-OPERATION)

BETWEEN -20°C (1h) and 60°C(1h),

5 CYCLES

(2) Shock & Vibration

ITEM CONDITIONS

Shock level: 1470m/s2 (150G)

SHOCK Waveform: half sinusoidal wave, 2ms

(NON-OPERATION) Number of shocks: one shock input in each direction of three mutually

perpendicular axis for a total of six shock inputs Vibration level: 9.8m/s2 (1.0G) Waveform: sinusoidal

VIBRATION Frequency range: 5 to 500Hz

(NON-OPERATION) Frequency sweep rate: 0.5 octave /min

Duration: one sweep from 5 to 500 to 5Hz in each of three mutually

perpendicular axis(total 3 hours)

(3) Judgment standard

The judgment of the above tests should be made as follow:

Pass: Normal display image with no obvious non-uniformity and no line defect.

Partial transformation of the module parts should be ignored.

Fail: No display image, obvious non-uniformity, or line defects.

Page 17

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 18/37

11. HANDLING PRECAUTIONS FOR TFT-LCD MODULE

Please pay attention to the followings in handling TFT-LCD products;

(1) ASSEMBLY PRECAUTION

a. Please use the mounting hole on the module in installing and do not bending or wrenching

LCD in assembling. And please do not drop, bend or twist LCD module in handling.

b. Please design display housing in accordance with the following guide lines.

(a) Housing case must be designed carefully so as not to put stresses on LCD all sides and

not to wrench module. The stresses may cause non-uniformity even if there is no nonuniformity statically.

(b) Keep sufficient clearance between LCD module back surface and housing when the

LCD module is mounted. Approximately 1.0mm of the clearance in the design is recommended taking into account the tolerance of LCD module thickness and mounting structure height on the housing.

LCD module, still sufficient clearance is required, such as 0.5mm. This clearance is, especially, to be reconsidered when the additional parts are implemented for EMI countermeasure.

(d) Design the inverter location and connector position carefully so as not to give stress to

lamp cable, or not to interface the LCD module by the lamp cable.

(e) Keep sufficient clearance between LCD module and the others parts, such as inverter

and speaker so as not to interface the LCD module. Approximately 1.0mm of the clearance in the design is recommended.

c. Please do not push or scratch LCD panel surface with anything hard. And do not soil LCD

panel surface by touching with bare hands. (Polarizer film, surface of LCD panel is easy to be flawed.)

d. Please do not press any parts on the rear side such as source TCP, gate TCP, control circuit

board and FPCs during handling LCD module. If pressing rear part is unavoidable, handle the LCD module with care not to damage them.

e. Please wipe off LCD panel surface with absorbent cotton or soft cloth in case of it being

soiled.

f. Please wipe off drops of adhesives like saliva and water on LCD panel surface immediately.

They might damage to cause panel surface variation and color change.

g. Please do not take a LCD module to pieces and reconstruct it. Resolving and reconstructing

modules may cause them not to work well.

Page 18

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 19/37

h. Please do not touch metal frames with bare hands and soiled gloves. A color change of the

metal frames can happen during a long preservation of soiled LCD modules.

i. Please pay attention to handling lead wire of backlight so that it is not tugged in connecting

with inverter.

j. Please connect the metal frame of LCD module to GND in order to minimize the effect of

external noise and EMI.

k. Please connect the metal frame of LCD module to GND in order to minimize the effect of

external noise and EMI.

(2) OPERATING PRECAUTIONS

a. Please be sure to turn off the power supply before connecting and disconnecting signal

input cable.

b. Please do not change variable resistance settings in LCD module. They are adjusted to the

most suitable value. If they are changed, it might happen LCD does not satisfy the characteristics specification.

c. LCD backlight takes longer time to become stable of radiation characteristics in low

temperature than in room temperature.

d. A condensation might happen on the surface and inside of LCD module in case of sudden

change of ambient temperature.

e. Please pay attention not to display the same pattern for very long time. Image might stick on

LCD. Even if image sticking happens, it may disappear as the operation time proceeds.

f. Please obey the same safe instructions as ones being prepared for ordinary electronic

products.

(3) PRECAUTIONS WITH ELECTROSTATICS

a. This LCD module use CMOS-IC on circuit board and TFT-LCD panel, and so it is easy to be

affected by electrostatics. Please be careful with electrostatics by the way of your body connecting to the ground and so on.

b. Please remove protection film very slowly from the surface of LCD module to prevent from

electrostatics occurrence.

(4) STORAGE PRECAUTIONS

a. Please do not leave the LCDs in the environment of high humidity and high temperature

such as 60°C90%RH.

Page 19

T-51513-D104U-FW-A-AB (AB) No. 2002-0186 OPTREX CORPORATION Page 20/37

b. Please do not leave the LCDs in the environment of low temperature; below -20°C.

(5) SAFETY PRECAUTIONS

a. When you waste damaged or unnecessary LCDs, it is recommended to crush LCDs into

pieces and wash them off with solvents such as acetone and ethanol, which should later be burned.

b. If any liquid leaks out of a damaged glass cell and comes in contact with the hands, wash off

thoroughly with soap and water. c. Be sure to turn off the power supply when inserting or disconnecting the cable. d. Inverter should be designed carefully so as not to keep working in case of detecting over

current or open circuit on the lamp.

(6) OTHERS

a. A strong incident light into LCD panel might cause display characteristics changing inferior

because of polarizer film, color filter, and other materials becoming inferior. Please do not

expose LCD module direct sunlight and strong UV rays. b. Please pay attention to a panel side of LCD module not to contact with other materials in

preserving it alone. c. For the packaging box, please pay attention to the followings;

(a) Packaging box and inner case for LCD are designed to protect the LCDs from the

damage or scratching during transportation. Please do not open except picking LCDs up from the box.

(b) Please do not pile them up more than 5 boxes. (They are not designed so.) And please do

not turn over.

And also please do not throw them up.

(d) Packaging box and inner case for LCDs are made of cardboard. So please pay attention

not to get them wet. (Such like keeping them in high humidity or wet place can occur getting them wet.)
