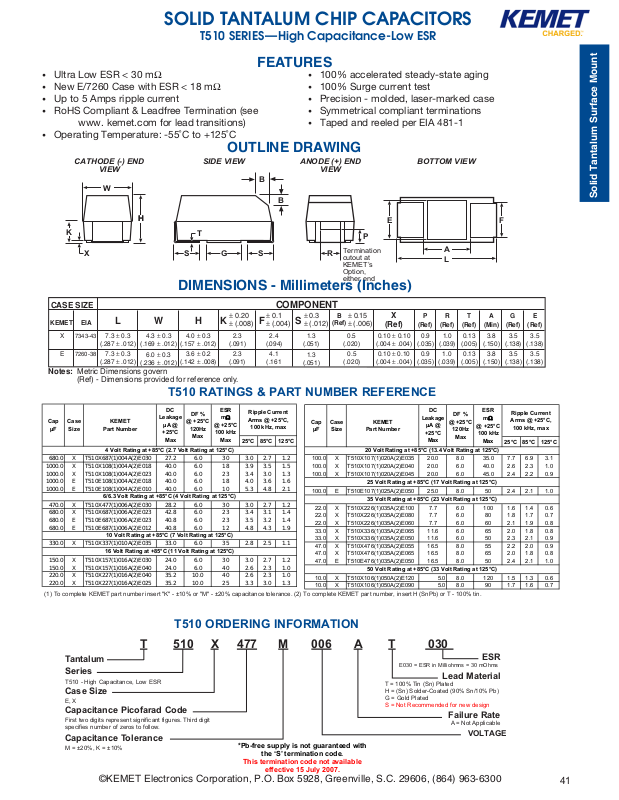

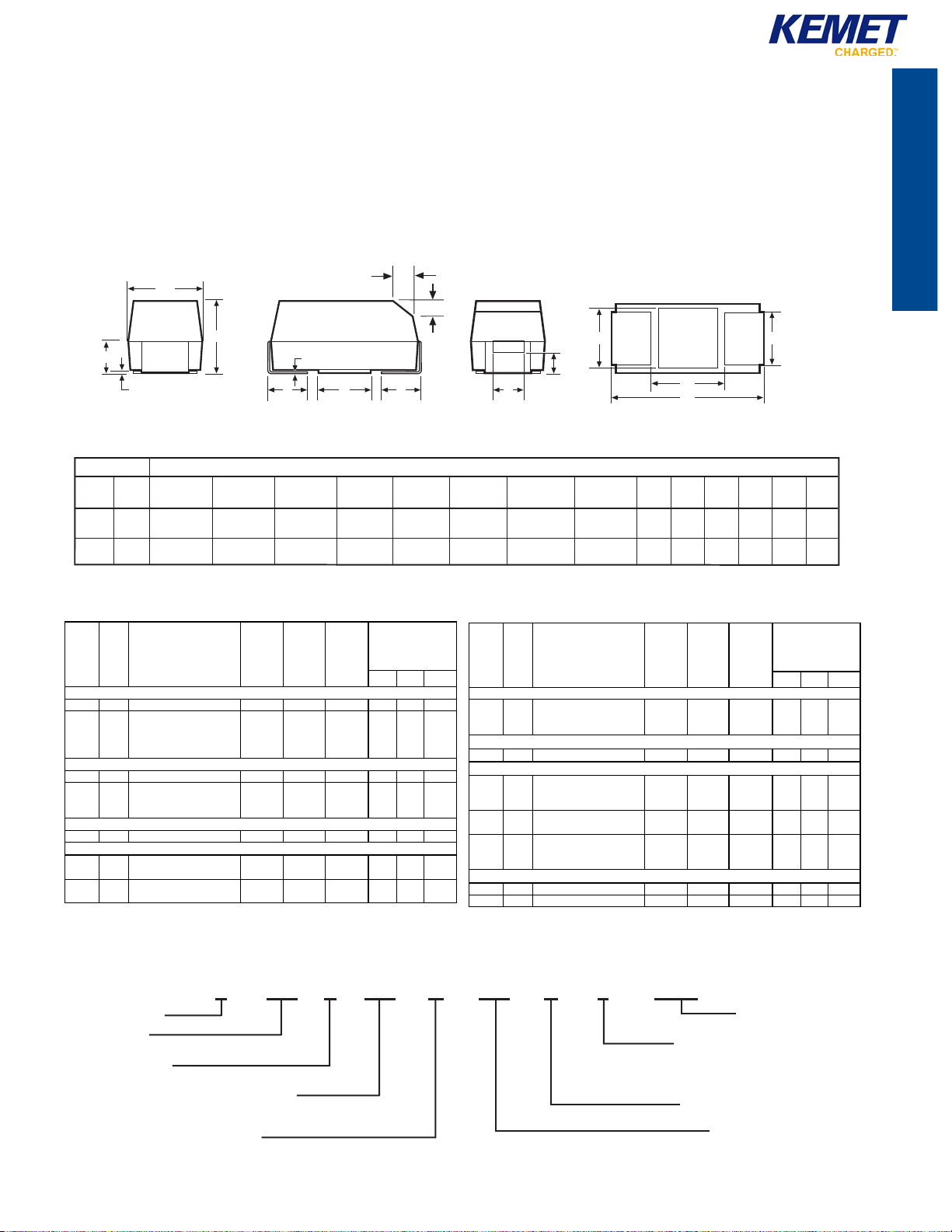

Page 1

SOLID TANTALUM CHIP CAPACITORS

T510 SERIES—High Capacitance-Low ESR

• Ultra Low ESR < 30 mΩ

• New E/7260 Case with ESR < 18 mΩ

• Up to 5 Amps ripple current

• RoHS Compliant & Leadfree Termination (see

www. kemet.com for lead transitions)

• Operating Temperature: -55˚C to +125˚C

OUTLINE DRAWING

CATHODE (-) END

VIEW

SIDE VIEW ANODE (+) END

FEATURES

• 100% accelerated steady-state aging

• 100% Surge current test

• Precision - molded, laser-marked case

• Symmetrical compliant terminations

• Taped and reeled per EIA 481-1

VIEW

BOTTOM VIEW

Solid Tantalum Surface Mount

Termination cutout at KEMETs Option, either end

E F

A L

DIMENSIONS - Millimeters (Inches)

CASE SIZE

± 0.20

KEMET EIA

7343-43

7260-38

Notes: Metric Dimensions govern (Ref) - Dimensions provided for reference only.

LWH

7.3 ± 0.3

(.287 ± .012)

7.3 ± 0.3

(.287 ± .012)

4.3 ± 0.3

(.169 ± .012)

6.0 ± 0.3

(.236 ± .012)

4.0 ± 0.3

(.157 ± .012)

3.6 ± 0.2

(.142 ± .008)

± (.008)

(.091)

2.3

T510 RATINGS & PART NUMBER REFERENCE

Case

DF %

Size

120Hz

Max

ESR

KEMET

mΩ

Part Number

@ +25°C

100 kHz

4 Volt Rating at +85°C (2.7 Volt Rating at 125°C)

Max

25°C 85°C 125°C

6/6.3 Volt Rating at +85°C (4 Volt Rating at 125°C)

10 Volt Rating at +85°C (7 Volt Rating at 125°C)

16 Volt Rating at +85°C (11 Volt Rating at 125°C)

20 Volt Rating at +85°C (13.4 Volt Rating at 125°C)

25 Volt Rating at +85°C (17 Volt Rating at 125°C)

35 Volt Rating at +85°C (23 Volt Rating at 125°C)

50 Volt Rating at +85°C (33 Volt Rating at 125°C)

Capaci-

Leakage

CapµFCase

Size

680.0 X T510X687(1)004A(2)E030 27.2 6.0 30 3.0 2.7 1.2

1000.0 X T510X108(1)004A(2)E018 40.0 6.0 18 3.9 3.5 1.5

1000.0 X T510X108(1)004A(2)E023 40.0 6.0 23 3.4 3.0 1.3

1000.0 E T510E108(1)004A(2)E018 40.0 6.0 18 4.0 3.6 1.6

1000.0 E T510E108(1)004A(2)E010 40.0 6.0 10 5.3 4.8 2.1

470.0 X T510X477(1)006A(2)E030 28.2 6.0 30 3.0 2.7 1.2

680.0 X T510X687(1)006A(2)E023 42.8 6.0 23 3.4 3.1 1.4

680.0 E T510E687(1)006A(2)E023 40.8 6.0 23 3.5 3.2 1.4

680.0 E T510E687(1)006A(2)E012 40.8 6.0 12 4.8 4.3 1.9

330.0 X T510X337(1)010A(2)E035 33.0 6.0 35 2.8 2.5 1.1

150.0 X T510X157(1)016A(2)E030 24.0 6.0 30 3.0 2.7 1.2

150.0 X T510X157(1)016A(2)E040 24.0 6.0 40 2.6 2.3 1.0

220.0 X T510X227(1)016A(2)E040 35.2 10.0 40 2.6 2.3 1.0

220.0 X T510X227(1)016A(2)E025 35.2 10.0 25 3.3 3.0 1.3

(1) To complete KEMET part number insert "K" - ±10% or "M" - ±20% capacitance tolerance. (2) To complete KEMET part number, insert H (SnPb) or T - 100% tin.

(1) To complete KEMET part number insert "K" - ±10% or "M" - ±20% capacitance tolerance. (2) To complete KEMET part number, insert H (SnPb) or T 100% tin.

KEMET

Part Number

4 Volt Rating at +85°C (2.7 Volt Rating at 125°C)

6/6.3 Volt Rating at +85°C (4 Volt Rating at 125°C)

10 Volt Rating at +85°C (7 Volt Rating at 125°C)

16 Volt Rating at +85°C (11 Volt Rating at 125°C)

tance µF

@ +25°C

µA @

+25°C

Max

680.0 X T510X687(1)004A(2)E030 27.2 6.0 30.0 3.0 2.7 1.2

Max

1000.0 X T510X108(1)004A(2)E018 40.0 6.0 18.0 3.9 3.5 1.5

1000.0 E T510E108(1)004A(2)E018 40.0 6.0 18.0 4.0 3.6 1.6

1000.0 E T510E108(1)004A(2)E010 40.0 6.0 10.0 5.3 4.8 2.1

470.0 X T510X477(1)006A(2)E030 28.2 6.0 30.0 3.0 2.7 1.2

680.0 E T510E687(1)006A(2)E023 40.8 6.0 23.0 3.5 3.2 1.4

680.0 E T510E687(1)006A(2)E012 40.8 6.0 12.0 4.8 4.3 1.9

330.0 X T510X337(1)010A(2)E035 33.0 6.0 35.0 2.8 2.5 1.1

150.0 X T510X157(1)016A(2)E040 24.0 6.0 40.0 2.6 2.3 1.0

220.0 X T510X227(1)016A(2)E040 35.2 10.0 40.0 2.6 2.3 1.0

220.0 X T510X227(1)016A(2)E025 35.2 10.0 25.0 3.3 3.0 1.3

100.0 X T510X107(1)020A(2)E040 20.0 6.0 40.0 2.6 2.3 1.0

100.0 E T510E107(1)025A(2)E050 25.0 8.0 50.0 2.4 2.1 1.0

22.0 X T510X226(1)035A(2)E080 7.7 6.0 80.0 1.8 1.7 0.7

33.0 X T510X336(1)035A(2)E065 11.6 6.0 65.0 2.0 1.8 0.8

33.0 X T510X336(1)035A(2)E050 11.6 6.0 50.0 2.3 2.1 0.9

47.0 X T510X476(1)035A(2)E055 16.5 8.0 55.0 2.2 2.0 0.9

47.0 E T510E476(1)035A(2)E050 16.5 8.0 50.0 2.4 2.1 1.0

10.0 X T510X106(1)050A(2)E120 5.0 8.0 120.0 1.5 1.3 0.6

10.0 X T510X106(1)050A(2)E090 5.0 8.0 90.0 1.7 1.6 0.7

T510 ORDERING INFORMATION

COMPONENT

± 0.1

± (.004)

2.4

(.094)

4.1

(.161

DC Leakage

Ripple Current

µA @ 25°C

Arms @ +25°C,

100 kHz, max

(Ref)

ESR m

@ 25°C 100 kHz

Case

Size

(.020)

Max

± 0.15 ± (.006)

0.5

(Ref)

0.10 ± 0.10

(.004 ± .004)

0.10 ± 0.10

(.004 ± .004)

Ripple Current A rms @ 25°C 100 kHz, max

KEMET

25°C 85°C 125°C

Part Number

20 Volt Rating at +85°C (13.4 Volt Rating at 125°C)

25 Volt Rating at +85°C (17 Volt Rating at 125°C)

35 Volt Rating at +85°C (23 Volt Rating at 125°C)

50 Volt Rating at +85°C (33 Volt Rating at 125°C)

(Ref)R(Ref)T(Ref)A(Min)G(Ref)E(Ref)

0.9

(.035)

0.9

(.035)

Leakage

µA @

+25°C

Max

1.0

(.039)

1.0

(.039)

0.13

(.005)

0.13

(.005)

DF %

@ +25°C

120Hz

Max

(.150)

ESR mΩ

@ +25°C

100 kHz

Max

± 0.3

± (.012)

1.3

(.051)

1.3

(.051)

DF %

@ 25°C

Max

Cap

µF

100.0 X T510X107(1)020A(2)E035 20.0 8.0 35.0 7.7 6.9 3.1

100.0 X T510X107(1)020A(2)E040 20.0 6.0 40.0 2.6 2.3 1.0

100.0 X T510X107(1)020A(2)E045 20.0 6.0 45.0 2.4 2.2 0.9

100.0 E T510E107(1)025A(2)E050 25.0 8.0 50 2.4 2.1 1.0

22.0 X T510X226(1)035A(2)E100 7.7 6.0 100 1.6 1.4 0.6

22.0 X T510X226(1)035A(2)E080 7.7 6.0 80 1.8 1.7 0.7

22.0 X T510X226(1)035A(2)E060 7.7 6.0 60 2.1 1.9 0.8

33.0 X T510X336(1)035A(2)E065 11.6 6.0 65 2.0 1.8 0.8

33.0 X T510X336(1)035A(2)E050 11.6 6.0 50 2.3 2.1 0.9

47.0 X T510X476(1)035A(2)E055 16.5 8.0 55 2.2 2.0 0.9

47.0 X T510X476(1)035A(2)E065 16.5 8.0 65 2.0 1.8 0.8

47.0 E T510E476(1)035A(2)E050 16.5 8.0 50 2.4 2.1 1.0

10.0 X T510X106(1)050A(2)E120 5.0 8.0 120 1.5 1.3 0.6

10.0 X T510X106(1)050A(2)E090 5.0 8.0 90 1.7 1.6 0.7

3.8 (.138)

25°C 85°C 125°C

3.5

(.138)

3.5

(.138)

Ripple Current Arms @ +25°C,

100 kHz, max

T 510 X 477 M

006 A T

Tantalum Series

T510 - High Capacitance, Low ESR

Case Size

E, X

Capacitance Picofarad Code

First two digits represent significant figures. Third digit specifies number of zeros to follow.

Capacitance Tolerance

*Part number example: T510X477M006AT (14 digits - no spaces). See www.kemet.com for Pb Free transition.

M = ±20%, K = ±10%

** “S” Termination codes are converting from 90 Sn/10 Pb to 100% tin finishes. Orders including “S” suffix termination codes do not quarantee Pb-free product.

*Pb-free supply is not guaranteed with

the ‘S’ termination code.

This termination code not available

effective 15 July 2007.

©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300

030

E030 = ESR in Milliohmns = 30 mOhms

T = 100% Tin (Sn) Plated H = (Sn) Solder-Coated (90% Sn/10% Pb) G = Gold Plated

S = Not Recommended for new design

Lead Material

Failure Rate

A = Not Applicable

ESR

VOLTAGE

Page 2

SOLID TANTALUM CHIP CAPACITORS

477

Polarity Indicator (+)

Lot Code

Picofarad Code

Voltage

Date

Code

V5 49

Date Code

Month

1 = Jan 7 = Jul 2 = Feb 8= Aug 3 = Mar 9 = Sep

4 = Apr 10 = Oct

5 = May 11 = Nov

6 = Jun 12 = Dec

Date Code

Year

S = 2004 T = 2005 U = 2006

V = 2007

W = 2008

X = 2009

M+

KEMET

Organic

T510 SERIES—High Capacitance

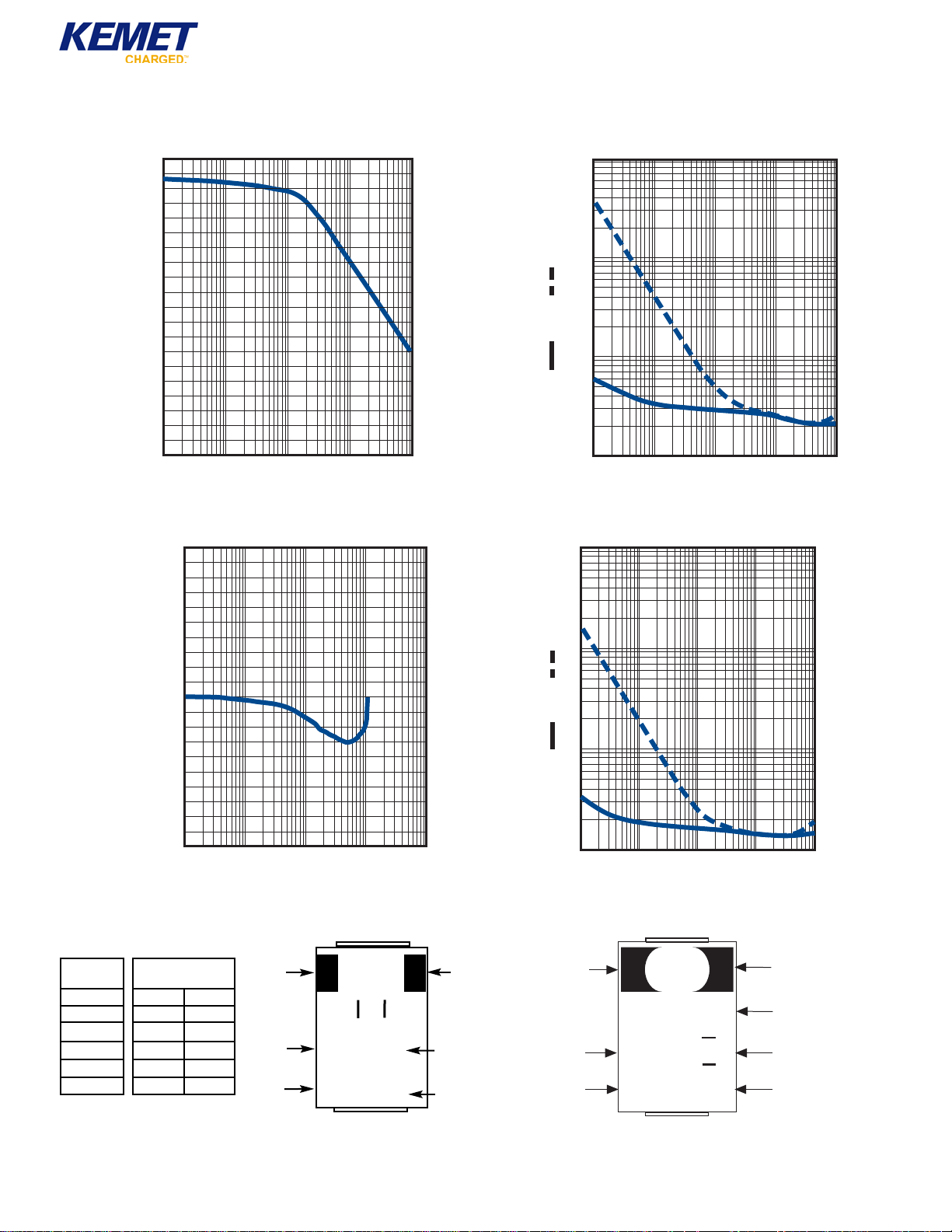

TYPICAL CAP FREQUENCY SCAN @25˚C

T510X477M006AS

500

450

400

350

300

250

200

Capacitance (μF)

150

100

100Hz 1kHz 10kHz 100kHz 1MHz

TYPICAL CAP FREQUENCY SCAN @ 25°C

T510E108M004AS

1500

TYPICAL ESR/Z FREQUENCY SCAN @25˚C

T510X477M006AS

ESR ( ) Z ( ) (Ω)

.01

100Hz 1kHz 10kHz 100kHz 1MHz

TYPICAL ESR/Z FREQUENCY SCAN @ 25°C

T510E108M004AS

1400

1300

1200

1100

1000

900

Capacitance (μF)

800

700

600

500

100Hz 1kHz 10kHz 100kHz 1MHz

CAPACITOR ALTERNATE MARKINGS

ESR ( ) Z ( ) (Ω)

.01

100Hz 1kHz 10kHz 100kHz 1MHz

Ultra-Low ESR Device

Rated

Voltage

1st Digit

=Year

T510

CAPACITOR MARKINGS

Polarity

M+

477

514

Indicator (+) (Solid Stripe)

Picofarad Code

KEMET I. D. Symbol

2nd & 3rd Digits

= Week

“514” = The 14th week

of 2005.

Page 3

TANTALUM AND ALUMINUM CHIP CAPACITORS

Packaging Information

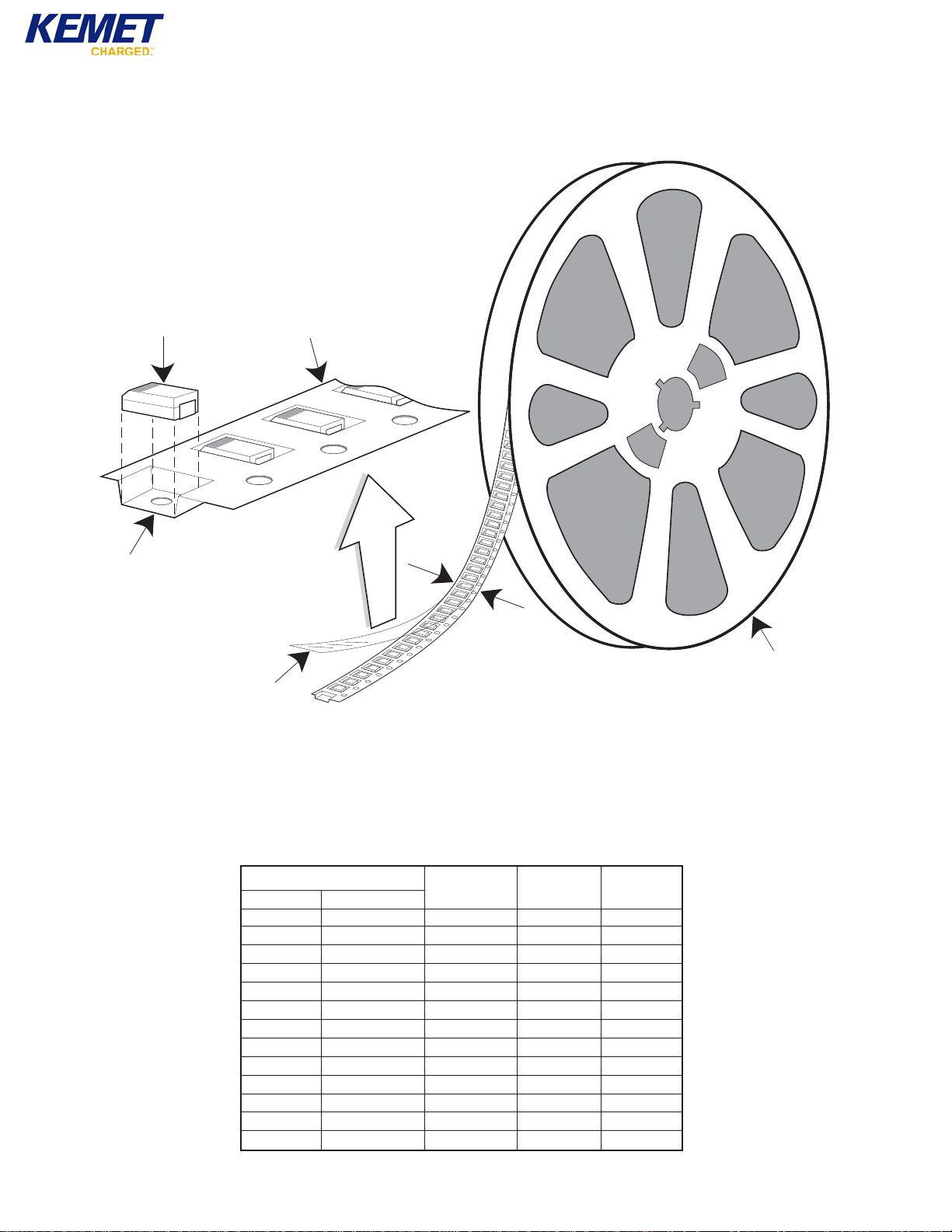

Tape & Reel Packaging

KEMET’s Molded Tantalum and Aluminum Chip Capacitor families are packaged in 8 mm and 12 mm plastic tape on 7" and 13" reels, in accordance with EIA Standard 481-1: Taping of Surface Mount Components for Automatic Handling. This packaging system is compatible with all tape fed automatic pick and place systems.

Right Hand Orientation

Only

Embossed Carrier

(+)

Embossment

.10mm (.004") Max Thickness

(–)

Top Tape Thickness

8mm ±.30

8mm (0.315")

(.315 ±.012")

12mm (0.472")

12mm ±.30

(.472 ±.012")

178mm (7.00")

180mm (7.0")

330mm (13.00")

330mm (13.0")

Labeling: Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes. Refer to EIA-556.

QUANTITIES PACKAGED PER REEL

Case Code

KEMET EIA Width-mm 7" Reel* 13" Reel*

R 2012-12 8 2,500 10,000 S 3216-12 8 2,500 10,000

T 3528-12 8 2,500 10,000 U 6032-15 12 1,000 5,000 W 7343-15 12 1,000 3,000

V 7343-20 12 1,000 3,000

A 3216-18 8 2,000 9,000

B 3528-21 8 2,000 8,000 C 6032-28 12 500 3,000

D 7343-31 12 500 2,500

Y 7343-40 12 500 2,000

X 7343-43 12 500 2,000

E 7260-38 12 500 2,000

* No c-spec required for 7" reel packaging. C-7280 required for 13" reel packaging.

* Standard reel packaging is not mandatory. * Bulk packaging also available using C-7610.

Tape

Packaging

Page 4

Performance Notes

1. Cover Tape Break Force: 1.0 Kg Minimum.

2. Cover Tape Peel Strength: The total peel strength of the cover tape from the carrier tape shall be: Tape Width Peel Strength

8 mm 0.1 Newton to 1.0 Newton (10g to 100g)

12 mm 0.1 Newton to 1.3 Newton (10g to 130g) The direction of the pull shall be opposite the direction of the carrier tape travel. The pull angle of the carrier tape shall be 165 to 180 from the plane of the carrier tape. During peeling, the carrier and/or cover tape shall be pulled at a velocity of 300 ±10 mm/minute.

3. Reel Sizes: Molded tantalum capacitors are available on either 180 mm (7") reels (standard) or 330 mm (13")

reels (with C-7280). Note that 13” reels are preferred.

4. Labeling: Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes.

Refer to EIA-556.

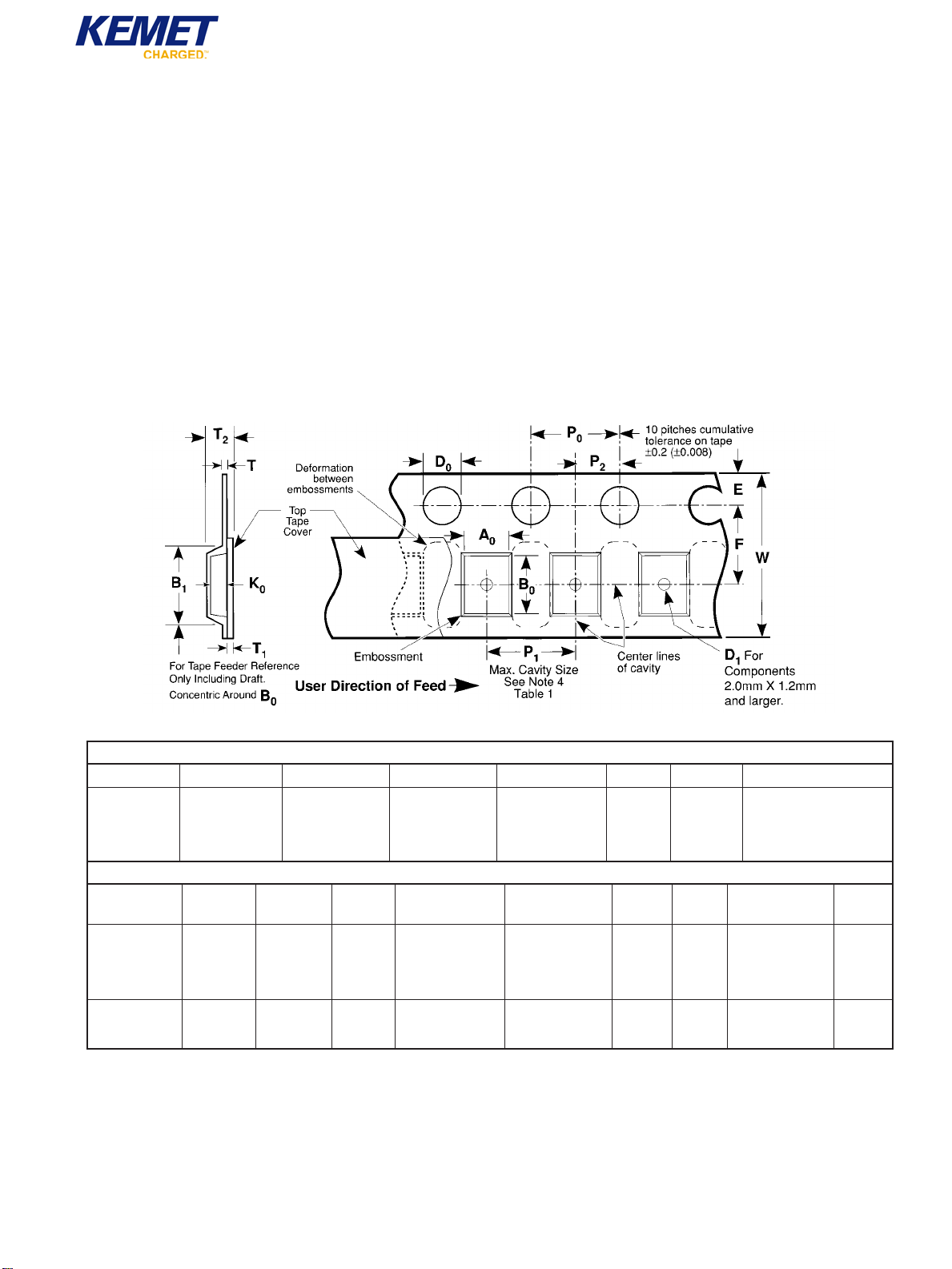

Embossed Carrier Tape Configuration: Figure 1

NOTES

1. B1 dimension is a reference dimension for tape feeder clearance only.

2. The embossment hole location shall be measured from the sprocket hole controlling the location of the embossment. Dimensions of embossment location and hole location shall be applied independent of each other.

3. Tape with components shall pass around radius “R” without damage (see sketch A). The minimum trailer length (Fig. 2) may require additional length to provide R min. for 12 mm embossed tape for reels with hub diameters approaching N min. (Table 2)

4. The cavity defined by A

, B0, and K0shall be configured to surround the part with sufficient clearance such that the chip does not pro- trude beyond the sealing plane of the cover tape, the chip can be removed from the cavity in a vertical direction without mechanical restriction, rotation of the chip is limited to 20 degrees maximum in all 3 planes, and lateral movement of the chip is restricted to 0.5 mm maximum in the pocket (not applicable to vertical clearance.)

Table 1 — EMBOSSED TAPE DIMENSIONS (Metric will govern)

Constant Dimensions — Millimeters (Inches)

Tape Size D

EP0P

T Max T1Max

8 mm 1.5 1.75 ±0.10 4.0 ±0.10 2.0 ±0.05 0.600 0.100

and +0.10 -0.0

12 mm (0.059 (0.069 ±0.004) (0.157 ±0.004) (0.079 ±0.002) (0.024) (0.004)

+0.004, -0.0)

Variable Dimensions — Millimeters (Inches)

Tape Size Pitch B1Max. D1Min. F P

R Min. T2Max W A0B0K

Note 1 Note 2 Note 3 Note 4

8 mm Single 4.4 1.0 3.5 ±0.05 4.0 ±0.10 25.0 2.5 8.0 ±0.30

(4 mm)

(0.173) (0.039) (0.138 ±0.002) (0.157 ±0.004) (0.984) (0.098) (.315 ±0.012)

12 mm Double 8.2 1.5 5.5 ±0.05 8.0 ±0.10 30.0 4.6 12.0 ±0.30

(8 mm) (0.323) (0.059) (0.217 ±0.002) (0.315 ±0.004) (1.181) (0.181) (0.472 ±0.012)

TANTALUM, CERAMIC AND

ALUMINUM CHIP CAPACITORS

Packaging Information

Page 5

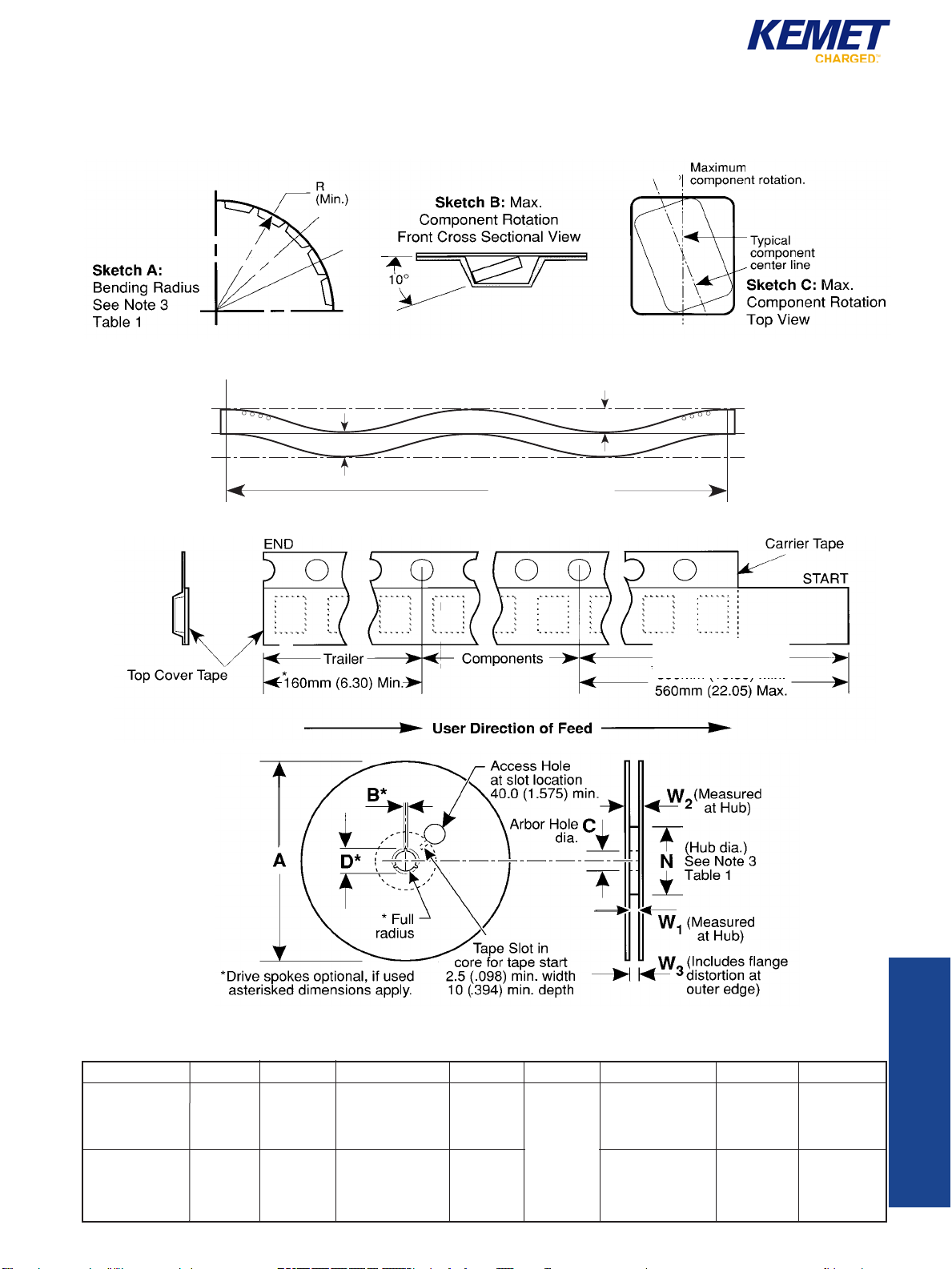

Embossed Carrier Tape Configuration (cont.)

Sketch D: Tape Camber (Top View)

Allowable camber to be 1 mm/250 mm.

Table 2 – REEL DIMENSIONS (Metric will govern)

Figure 3: Reel Dimensions (Metric Dimensions will govern)

Tape Size A Max B* Min C D* Min N Min W

W2Max W

8 mm 330.0 1.5 13.0 ± 0.20 20.2 50.0 8.4 14.4 7.9 Min

(12.992) (0.059) (0.512 ± 0.008) (0.795) (1.969) +1.5, -0.0 (0.567) (0.311)

See (0.331 10.9 Max

Note 3 +0.059, -0.0) (0.429)

12 mm 330.0 1.5 13.0 ± 0.20 20.2 Table 1 12.4 18.4 11.9 Min

(12.992) (0.059) (0.512 ± 0.008) (0.795) +2.0, -0.0 (0.724) (0.469)

(0.488 15.4 Max

+0.078, -0.0) (0.606)

TANTALUM, CERAMIC AND

ALUMINUM CHIP CAPACITORS

Packaging Information

Figure 2:

Tape Leader & Trailer Dimensions (Metric Dimensions Will Govern)

400mm (15.75) Min.

20°

1mm (0.039) Max.

250mm (9.843)

Packaging
