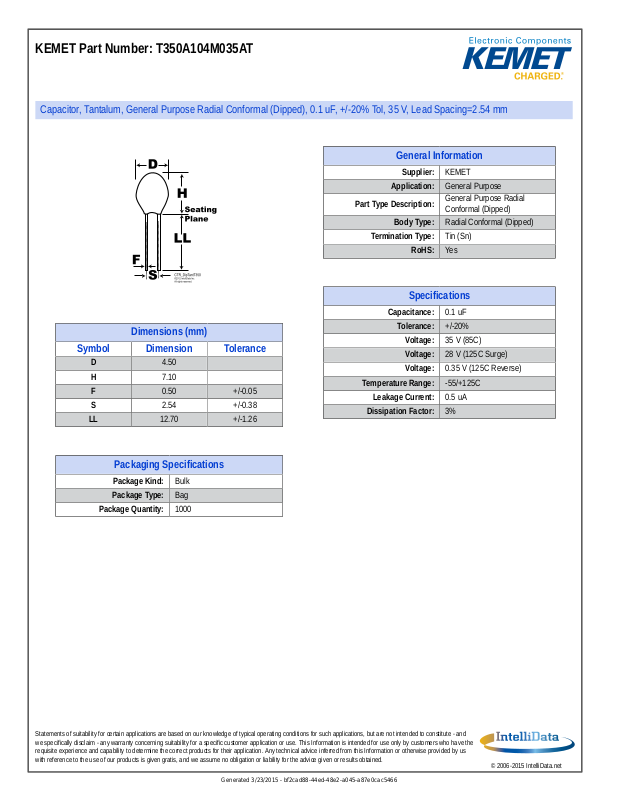

KEMET Part Number: T350A104M035AT
Capacitor, Tantalum, General Purpose Radial Conformal (Dipped), 0.1 uF, +/-20% Tol, 35 V, Lead Spacing=2.54 mm
General Information
Supplier: KEMET
Application: General Purpose
General Purpose Radial
Conformal (Dipped)
Dimensions (mm)
Symbol Dimension Tolerance
D 4.50
H 7.10
F 0.50 +/-0.05
S 2.54 +/-0.38
LL 12.70 +/-1.26
Part Type Description:
Body Type: Radial Conformal (Dipped)
Termination Type: Tin (Sn)
RoHS: Yes
Specifications
Capacitance: 0.1 uF
Tolerance: +/-20%
Voltage: 35 V (85C)
Voltage: 28 V (125C Surge)
Voltage: 0.35 V (125C Reverse)
Temperature Range: -55/+125C
Leakage Current: 0.5 uA
Dissipation Factor: 3%
Packaging Specifications
Package Kind: Bulk
Package Type: Bag
Package Quantity: 1000
