Page 1

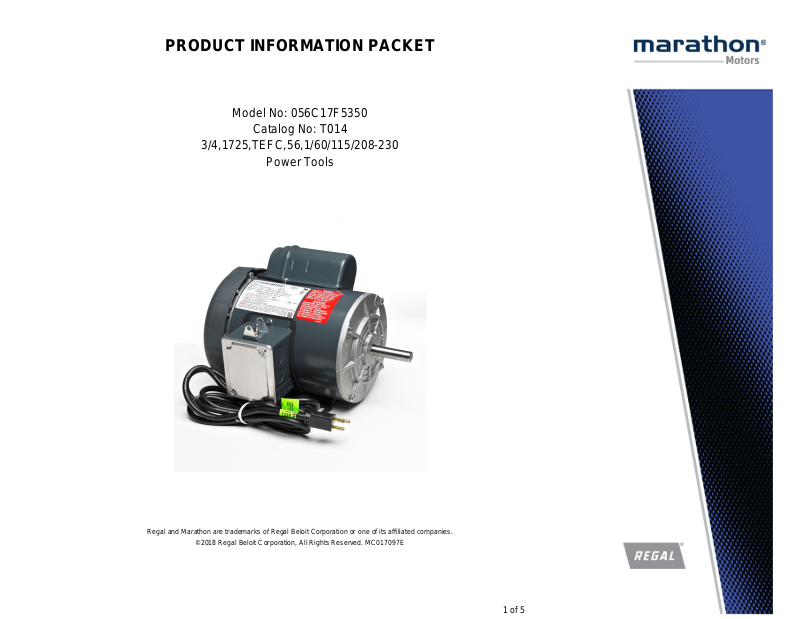

PRODUCT INFORMATION PACKET
Model No: 056C17F5350
Catalog No: T014
3/4,1725,TEFC,56,1/60/115/208-230
Power Tools
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: 056C17F5350, Catalog No:T014 3/4,1725,TEFC,56,1/60/115/208-230
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115/208-230 V
Current
Service Factor
Efficiency 71 % Duty Continous
Insulation Class
KVA Code L Frame 56
Enclosure Totally Enclosed Fan Cooled Overload Protector Manual
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.75 Hp
11.0/5.4-5.5 A
1.15
B
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.56 kW
1725 rpm
1
L
6203
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Selective Counterclockwise
Capacitor Start Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Extension 1.88 in Assembly/Box Mounting F1 Only

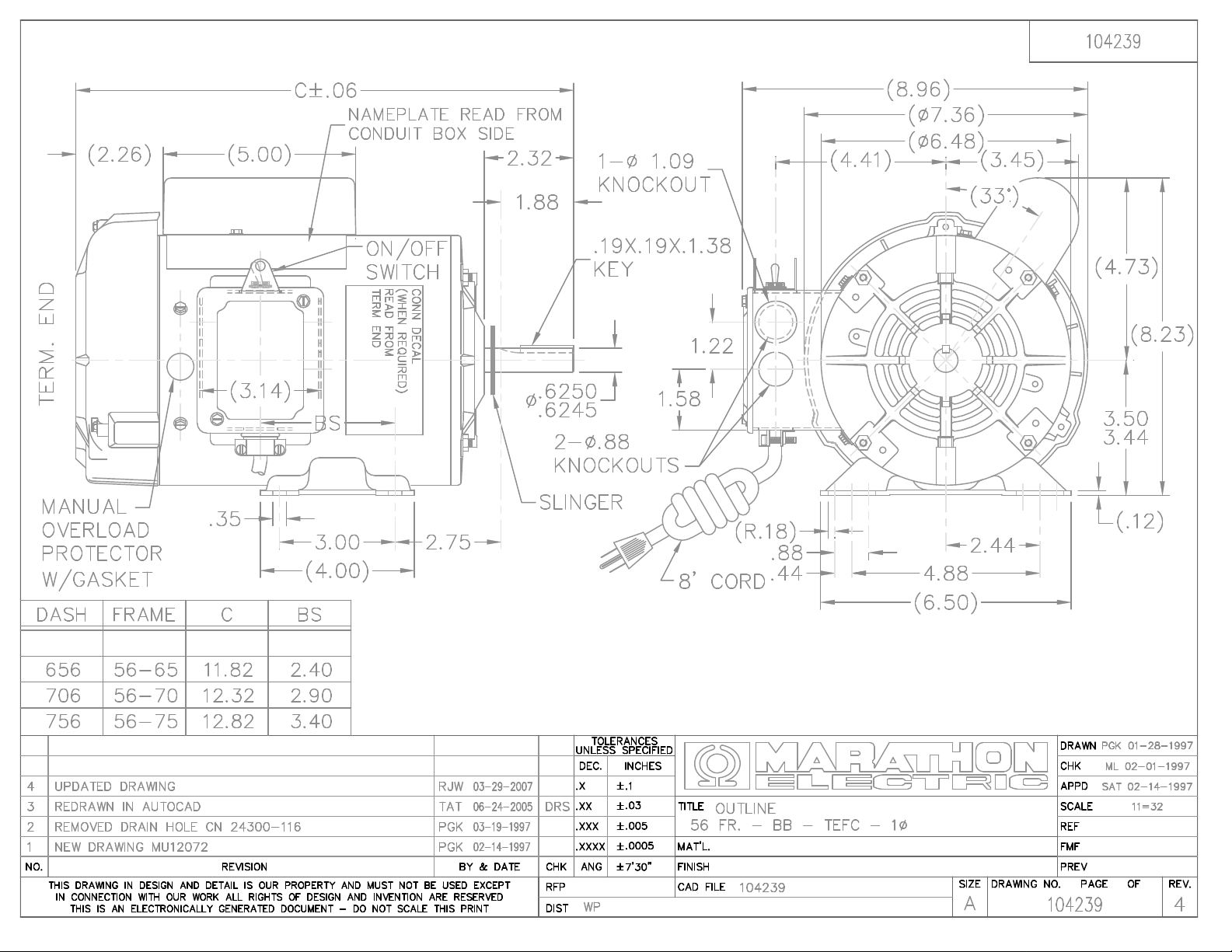

Outline Drawing
Rigid base
12.32 in
A-104239-706
Motor Orientation
Shaft Diameter

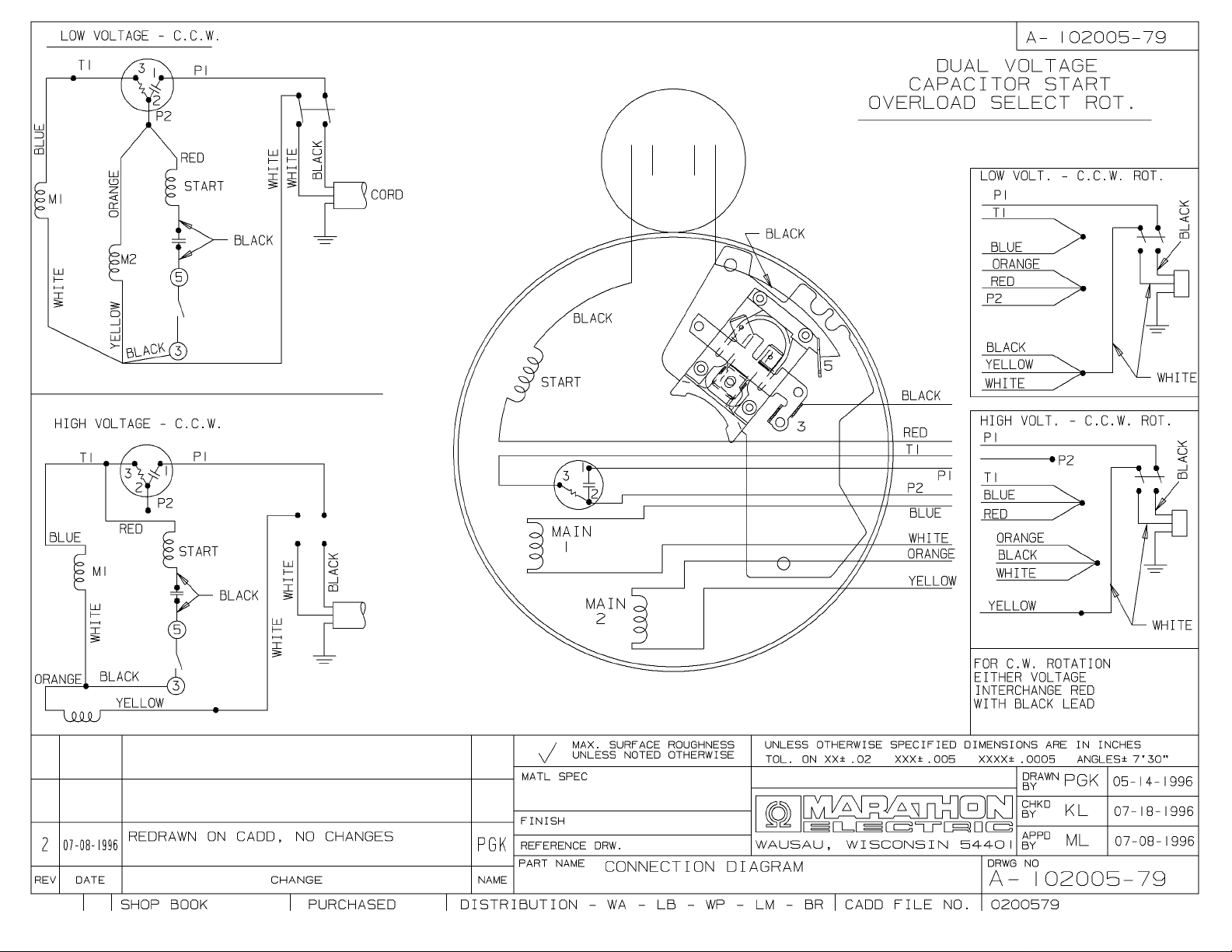

Connection Diagram
Horizontal
0.625 in
102005-79
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 5
Page 3
9/27/2008 8:38:08 AM
3 of 5
Page 4
8/24/2007 1:07:17 PM -
4 of 5
Page 5
CERTIFICATION DATA SHEET
Model#: 56C17F5350 D WINDING#: ZC469 NONE 3
CONN. DIAGRAM: 102005-79 ASSEMBLY: F1 ONLY
OUTLINE: A-104239-706
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
3/4 .56 1800 1725 56 TEFC L L
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60 115/208-230 11/5.4-5.5 ACROSS THE
LINE
CONTINUOUSB3 1.15 40 3300
FULL LOAD EFF: - 3/4 LOAD EFF: 69.4 1/2 LOAD EFF: 63.2 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: - 3/4 LOAD PF: 56.9 1/2 LOAD PF: 46.1 0 CAP START IND RUN 7.5 / 3.8
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
36 LB-FT 61 / 30.5 133 LB-FT 0 97.9 LB-FT 0 -
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
0 dBA 10 dBA 0 LB-FT^2 0 LB-FT^2 0 SEC. 0 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD BRAKE RIGID HORIZONTAL FALSE NONE FALSE NONE GRAY
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE MANUAL NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: PROVISIONS FOR KIT NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 07:07:11 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 5
