A
C
D
H
G E
F
K
B
J P
M
CBO
(BR)CBO
Millime
ter
Millimeter
Min. Max. Min. Max.
A 6.40 6.80 G 5.40 5.80
B 5.20 5.50 H 0.90 1.50
C 2.20 2.40 J 2.30
D 0.45 0.55 K 0.60 0.90
E 6.80 7.20 M 0.50 0.70
F 7.20 7.80 P 0.45 0.60
Elektronische Bauelemente
RoHS Compliant Product
A suffix of “-C” specifies halogen-free
DESCRIPTION
The SZD772 is signed for using in output stage of 10W
amplifier, voltage regulator, DC-DC converter and relay driver.
MARKING
772
Date Code
SZD772
PNP
Epitaxial Planar Transistors
TO-251
CLASSIFICATION OF h
Product-Rank SZD772-Q SZD772-P SZD772-E
FE (2)
Range 100~200 160~320 250~500
REF.
ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Ratings
Collector-Base Voltage V
Collector-Emitter Voltage V
Emitter-Base Voltage V
Collector Current IC -3 A
Collector Current (Pulse) ICP -7 A
Base Current IB -0.6 A
Total Power Dissipation(TC=25°C) PD 10 W
Junction & Storage temperature TJ, T
(TA = 25°C unless otherwise specified)
-40 V
-30 V
CEO
-5 V
EBO
150, -55~150 °C
STG
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise specified)
REF.
Unit
Parameter Symbol Min. Typ. Max. Unit Test Conditions
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage *V
Base-emitter saturation voltage
Transition frequency
Output Capacitance
*Pulse Test: Pulse Width≦380s, Duty Cycle≦2%
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
21-June-2011 Rev. A Page 1 of 3
V
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
*h
*h
CE(sat)
*V
BE(sat)
FE (1)
FE (2)
-40 - - V
-30 - - V
-5 - - V
-
- -1 µA
- - -1 µA
30 - 100 - 500
- -0.3 -0.5 V
- -1 -2 V
f T - 80 - MHz
Cob - 55 - pF
IC= -100µA, IE=0
IC= -1mA, IB=0
IE= -10µA, IC=0
VCB= -30V, IE=0
VEB= -3V, IC=0
VCE= -2V, IC= -20mA
VCE= -2V, IC= -1A
IC= -2A, IB= -0.2A
IC= -2A, IB= -0.2A
VCE= -5V, IC= -0.1A , f=100MHz
VCB= -10V, IE=0, f=1MHz
Page 2
Elektronische Bauelemente

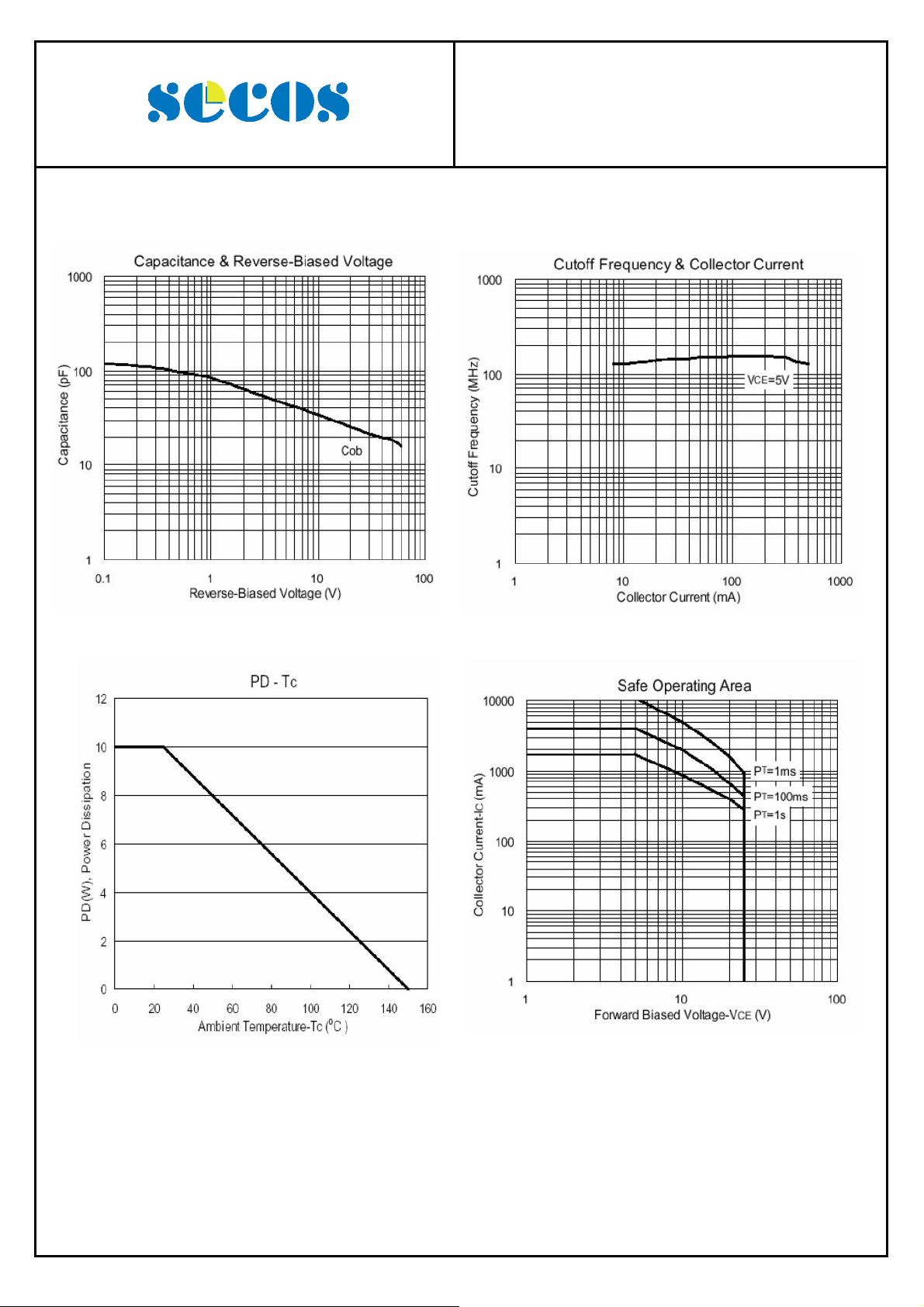

CHARACTERISTIC CURVES
SZD772
PNP
Epitaxial Planar Transistors
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
21-June-2011 Rev. A Page 2 of 3
Page 3
Elektronische Bauelemente

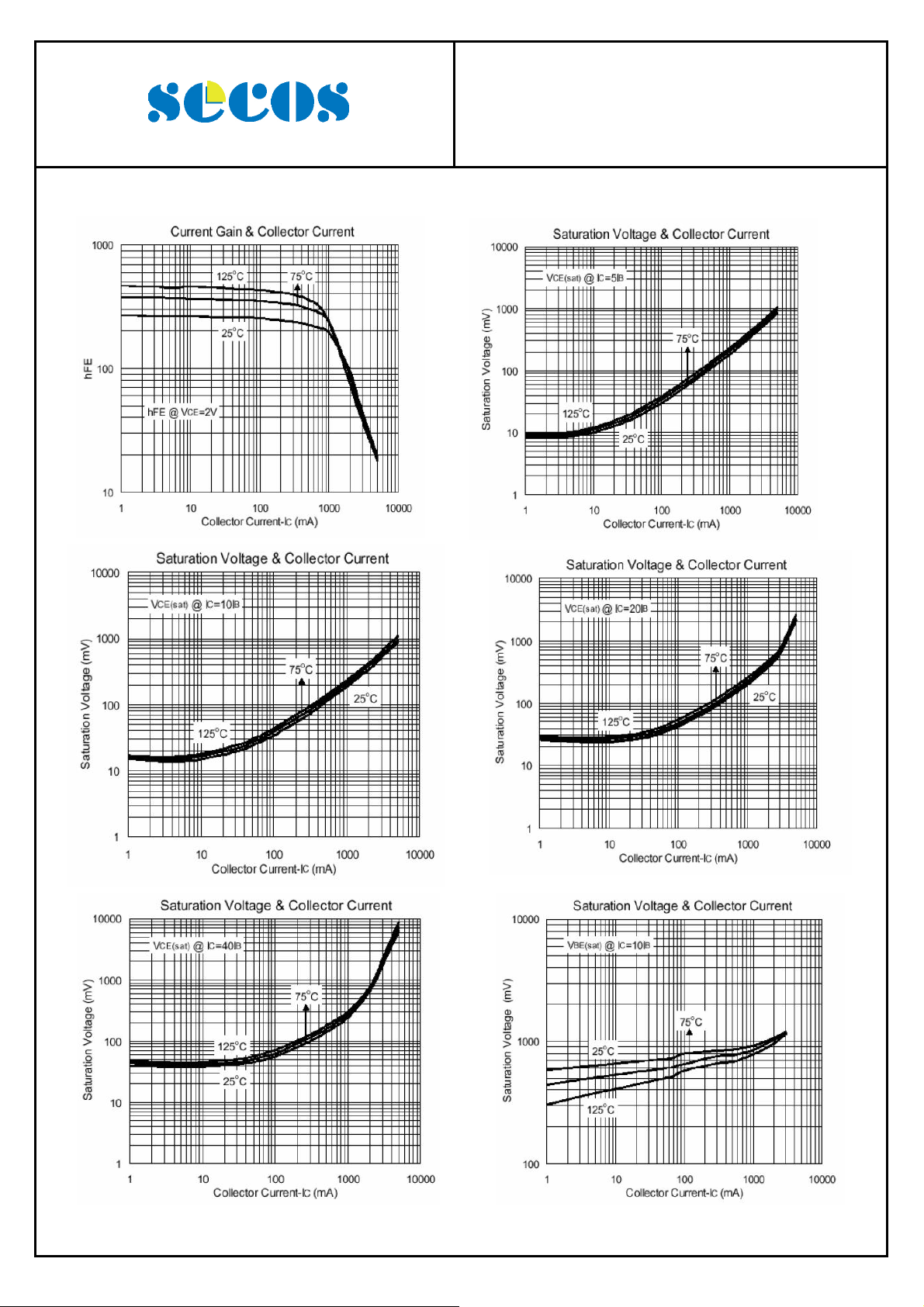

CHARACTERISTIC CURVES
