INTEGRATED CIRCUITS

DATA SH EET

SZA1000

QIC digital equalizer

Product specification
File under Integrated Circuits, IC01

1998 Feb 16

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

FEATURES

• 3-wire serial interface for programming and status
reading

• Suitable for MFM (Modified Frequency Modulation),
RLL 1,7 (Run Length Limited) and similar codes

• Transfer rates with MFM code from
250 kbits/s to 4 Mbits/s

• Transfer rates with RLL(1,7) code from
500 kbits/s to 12 Mbits/s

• Programmable FIR (Finite Impulse-Response) filter
makes it possible to equalize complex and asymmetric
channel impulse responses

• Programmable fixed and tracking qualification
thresholds provide reliable data recovery in read mode,
and reliable bad sector detection in verify mode

• Read pulse output for floppy tape drives

• Digital data synchronizer based on digital PLL with

maximum likelihood detector for a better error rate than
can be achieved with conventional analog circuits

• Data verification can be used (with the maximum
likelihood detector switched off) to find bad sectors on
drives with conventional read electronics

• Servo stripe detection for TR4, QIC3080 and similar
formats

• Gap detector

• 2 programmable current sources

• Peak-to-peak amplitude detector with lowpass filter for

servo burst reading

• Fully digital PLL for clock and data recovery:
– Fully programmable behaviour
– No external components, no tolerance problems
– Programmable window shift
– Fast run-in capability
– Ideal zero phase restart.

• Parallel 8-bit input and output for product development
and production testing

• Programmable WEQ (write equalization) circuit with
transfer rates of up to 2 Mbits/s for floppy tape drives
and up to 8 Mbits/s for drives with internal controllers.

GENERAL DESCRIPTION

The SZA1000 is a single chip digital equalizer for single
channel QIC (Quarter Inch Cartridge) systems with
MR (Magneto Resistive) heads. It can be used with
QIC 3010, QIC 3020, QIC 3080, QIC 3095, Travan 2, 3, 4
and 5, and similar formats.

It replaces a pulse detector, programmable filter and data
synchronizer, and adds a FIR filter to the conventional
analog solution. This makes it possible to equalize
yoke-type MR heads as well as SIG (Sensor In Gap)
MR heads.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

; V

DDD1

; V

V

DDA1

I

; I

DDD1

DDD2

I

; I

DDA1

DDA2

f

clk(CLKIN)

f

clk(WEQCLK)

T

amb

DDD2
DDA2

digital supply voltage 4.5 5.0 5.5 V
analog supply voltage 4.5 5.0 5.5 V
digital supply current fs=24MHz − 32 − mA
analog supply current − 50 − mA
read circuit clock frequency − 24 24 MHz
WEQ circuit clock frequency − 24 36 MHz
ambient operating temperature 0 − 70 °C

ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

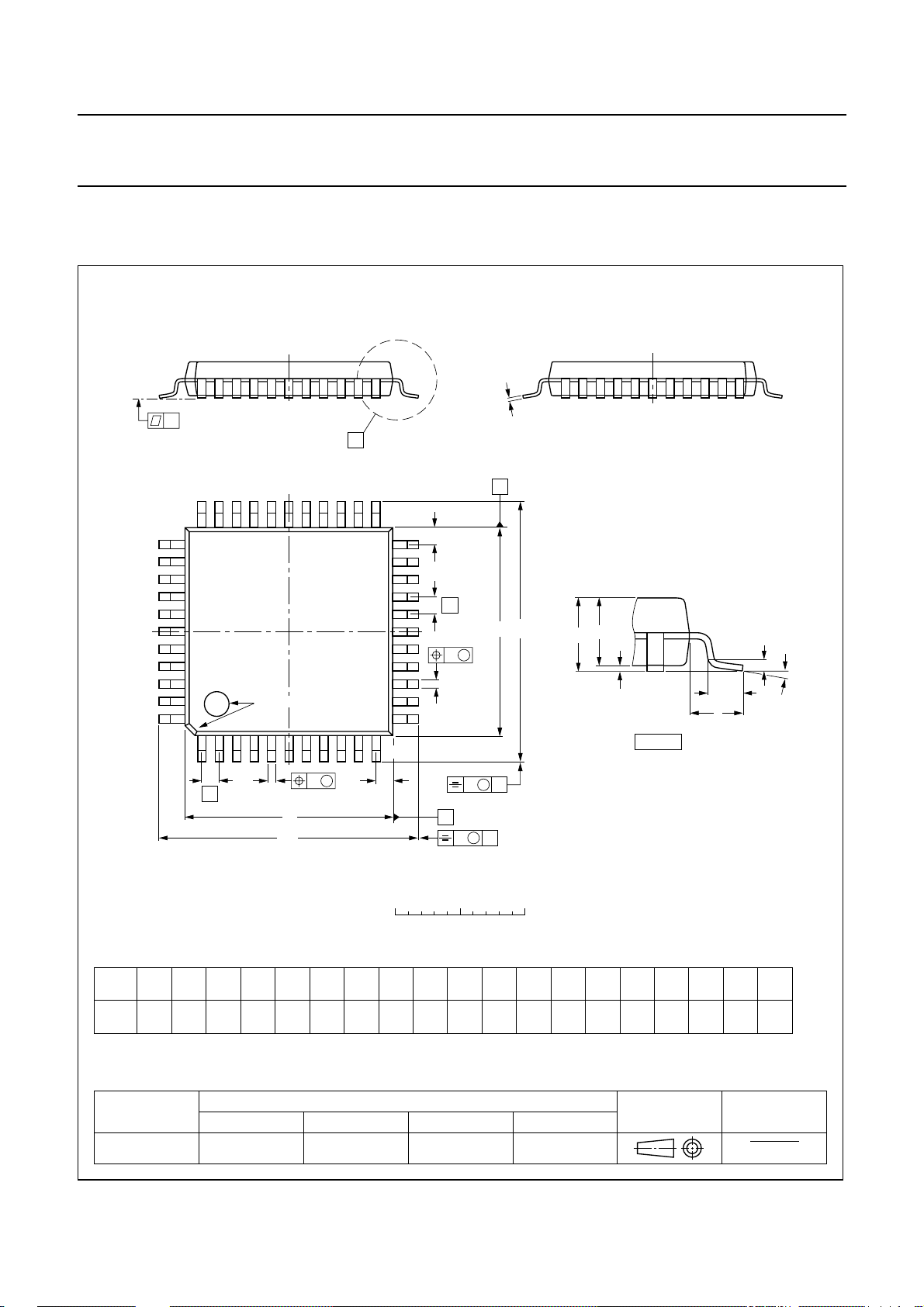

SZA1000H QFP44 plastic quad flat package; 44 leads (lead length 1.3 mm)

PACKAGE

SOT307-2

body 10 × 10 × 1.75 mm

1998 Feb 16 2

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

a

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1998 Feb 16 3

ndbook, full pagewidth

PACLK

BLOCK DIAGRAM

QIC digital equalizer SZA1000

Philips Semiconductors Product specification

V

ref

INA
INB

RESET

TEST

AUXBUS0/WDOUT

AUXBUS1

to

AUXBUS7

WDIN

WGATE

WEQCLK

WEQEN

WGX

SDEN

SCLK

SDIO

37
32

33

30
31

11 to 18

8

10
4
9
3

36

23
24
22

ADC

SZA1000

I/O

MUX

WRITE

EQUALIZATION

SERIAL

INTERFACE

R

ref

HPF

IDAC

38 1 2

IO2IO1

LPF
R

LPF

15 kHz

AMPL.

DETECTOR

DIFF

8, 28,
34, 41

44

V

SSD1VDDD1

V

SSD2VDDD2

V

SSA1VDDA1

V

SSA2VDDA2

5, 26,
35, 42

DAC

FIR

PLL

INTERPOL

AMPL.

QUALIFIER

+

GAP

DETECTOR

LPF

8 MHz

R

MAXIMUM

LIKELIHOOD

DETECTOR

39 44

CMPBEYEA

CMPAEYEB

29

7

CLK

DIV

STRIPE

DETECTOR

READ

PULSE

4340

XOSC/
CLK IN

MUX

MGG582

6

20
19

27

25

21

CLKOUT

CLKIN

RG
LTD

SRD/RD

RRC

GAP/STRIPE

Fig.1 Block diagram.

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

PINNING

SYMBOL PIN DESCRIPTION

IO1 1 programmable current source
IO2 2 programmable current source
WEQEN 3 write equalization circuit enable input
WGATE 4 write gate input; active LOW
V

DDD1

CLKIN 6 external clock or crystal oscillator input
CLKOUT 7 crystal oscillator output
V

SSD1

WEQCLK 9 write equalization circuit clock input
WDIN 10 write equalization circuit data input
AUXBUS0/WDOUT 11 bit 0 auxiliary I/O bus or write equalization output to write amplifier
AUXBUS1 12 bit 1 auxiliary I/O bus
AUXBUS2 13 bit 2 auxiliary I/O bus
AUXBUS3 14 bit 3 auxiliary I/O bus
AUXBUS4 15 bit 4 auxiliary I/O bus
AUXBUS5 16 bit 5 auxiliary I/O bus
AUXBUS6 17 bit 6 auxiliary I/O bus
AUXBUS7 18 bit 7 auxiliary I/O bus
LTD 19 fast lock to data input; active LOW
RG 20 read gate input
GAP/STRIPE 21 gap or stripe detector output
SDIO 22 serial interface data input and output
SDEN 23 serial interface enable input
SCLK 24 serial interface clock input
RRC 25 read reference clock output
V

DDD2

SRD/RD 27 synchronized read data or read data output
V

SSD2

PACLK 29 pre-amp clock output
RESET 30 reset input; active LOW
TEST 31 test input; connect to ground
INA 32 analog signal from read amplifier; positive input
INB 33 analog signal from read amplifier; negative input
V

SSA1

V

DDA1

WGX 36 extended write gate output for floppy tape drives; active LOW
V

ref

R

ref

EYEA 39 differentiated signal; positive output
CMPA 40 comparator for read pulse; positive input

5 digital supply voltage

8 digital ground

26 digital supply voltage

28 digital ground

34 analog ground
35 analog supply voltage

37 positive A/D reference voltage input
38 connect external resistor

1998 Feb 16 4

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

SYMBOL PIN DESCRIPTION

V

SSA2

V

DDA2

CMPB 43 comparator for read pulse; negative input
EYEB 44 differentiated signal; negative output

41 analog ground
42 analog supply voltage

handbook, full pagewidth

IO1
IO2

WEQEN

WGATE

V

DDD1

CLKIN

CLKOUT

V

SSD1

WEQCLK

WDIN

AUXBUS0/WDOUT

EYEB
44

1
2
3
4
5
6
7
8

9
10
11

12

AUXBUS1

DDA2VSSA2

CMPB

V

43

42

13

14

AUXBUS2

AUXBUS3

CMPA

41

40

SZA1000

15

16

AUXBUS4

AUXBUS5

ref

EYEA

R

39

38

17

18

AUXBUS6

AUXBUS7

ref

V
37

19

LTD

WGX

V

36

35

20

21

RG

GAP/STRIPE

DDA1VSSA1

34

22

MGD794

SDIO

33
32
31
30
29
28
27
26
25
24
23

INB
INA
TEST
RESET
PACLK
V

SSD2

SRD/RD
V

DDD2

RRC
SCLK
SDEN

Fig.2 Pin configuration.

1998 Feb 16 5

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

FUNCTIONAL DESCRIPTION
Clock oscillator and divider

The clock source for the SZA1000 can be a crystal
connected between pins 6 and 7, or an external clock
signal connected to pin 6. This clock frequency is divided
by a number programmable between 1 and 8
(see Tables 27 and 28). The resulting frequency, f

, is

s

used as clock input to all on-chip circuits except the write
equalizer. The frequency of the PACLK output signal
(pin 29) is equal to fs.

ADC

The 8-bit ADC has a differential input. The total ADC
conversion range is 1.6 V (p-p; differential). The ADC
sample rate is equal to f

.

s

High-pass filter after the ADC

f

This is a first order filter with a cut-off frequency of
It removes the DC component of the signal.

s

------------ ­1608

Low-pass filter

This low-pass filter is an even symmetrical FIR (Finite
Impulse Response) filter. The number of taps depends on
the sample rate reduction factor R (see Tables 30 and 31).
The filter has 8 taps for R = 1 or 14 taps for R = 2 (see
Table 7). The middle taps have a fixed coefficient value of
+128, the coefficients of the other taps are programmable
in the range −128 to +127 (see Table 6).

FIR

This transversal filter has 6 taps with the sample rate equal
to f

(R = 1), or 11 taps with the sample rate equal to1⁄2f

s

(R = 2). Tap 10 has a fixed coefficient value of +64, the
coefficients of the other taps are programmable between

−64 and +63 (see Table 2). The filter has 19 signal delay
sections. The position of each tap can be selected from a
subset of the 20 possible positions (see Tables 3 and 4).

Amplitude detector

This circuit has a separate rectifier and a positive and
negative peak detector.

Typical rise time (0 to 70%) for a normal MFM or
RLL 1,7 code input signal is , typical decay time

(100 to 30%) is programmable between and

1

--- ­f

s

500

--------- ­f

s

(see Tables 10 and 11).
The output is an 8-bit number that can be polled via the

serial interface. In addition, the peak-to-peak value is
calculated and filtered by a first order low-pass filter with a

f

cut-off frequency of

s

------------ ­3217

Both the filtered and unfiltered amplitudes can be read via
the serial interface (see Table 44) or via the parallel output
bus.

Amplitude qualifier

A peak is considered valid if its amplitude is above a
qualification threshold. Separate qualification thresholds
are used for the positive and negative peaks. Each
threshold is the greater of:

• a programmable level (QUAL_FIX_ POS and
QUAL_FIX_NEG; control register addresses 24 and 25)

• a programmable fraction (

1

⁄2,3⁄8,1⁄4,1⁄8 or 0;

see Tables 9 and 12) of the peak amplitude of the
incoming signal.

Gap detector

s

When the peak-to-peak amplitude of the measured signal
is below a preset limit (GAP_THRESH; control register
address 28), the gap detector output is HIGH, otherwise
LOW (GAP output on pin 21 must be selected; see
Table 22).

400

--------- ­f

s

Interpolator

1

If a sample rate of

⁄2fs has been selected for the FIR

(R = 2), it is increased once again to fs at the interpolator.

1998 Feb 16 6

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Stripe detector

This circuit is used to signal the stripes in QIC 3080,
QIC 3095 and TR4 servo formats (STRIPE output on
pin 21 must be selected; see Table 22). A frequency
detector counts the peaks above the qualification
threshold (see Table 29). An input signal containing
frequencies within ±25% of the programmable nominal
frequency will be detected as a stripe. The microcontroller
can then poll the amplitude of the following burst via the
serial interface.

Differentiator

This function is realized by subtracting samples. The delay
between samples is programmable between 1 and 6
periods of f

, split into two parts to provide a balanced

s

delay between the differentiated and non-differentiated
signals (see Tables 24 to 26).

The PLL

This is a fully digital PLL (Phase Lock Loop) with a
programmable nominal frequency (see Tables 35 and 36),
zero phase restart, programmable window shift
(WIN_SHIFT; control register address 42) and a loop filter
with two separate programmable settings.

The maximum likelihood detector

This detector calculates the most likely position of the
peaks in the signal. It checks for (d,k) code constraints,
and for alternating peaks. If an error is detected, the ‘most
likely’ correction is implemented.

Separate corrections can be enabled or disabled.
The SRD output of the maximum likelihood detector is
valid during the rising edge of the RRC signal (see Fig.4).

The maximum likelihood detector is used only to generate
the SRD signal, and not to generate the time continuous
RD pulse.

SRD

handbook, halfpage

RRC

MGG584

Fig.4 SRD/RRC timing.

The PLL output reference clock is the RRC signal (pin 25;
see Table 34). The frequency of this signal is rounded in
time to f

. The PLL is switched to the nominal frequency if

s

RG (pin 20) is LOW, and makes a zero phase restart at the
first detected peak after RG goes HIGH.

The LTD input (pin 19) is used to select between the two
loop filter settings (see Tables 37 to 42). This allows for
fast lock-in during preamble, before switching to a lower
loop bandwidth for maximum data reliability (see Fig.3).

INPUT

handbook, halfpage

SIGNALS

RG

LTD

PLL
MODE

nominal
frequency

preamble

zero phase restart

fast lock-in normal read mode

data

MGG583

Fig.3 PLL timing diagram.

The DAC

This is an internal differential 8-bit DAC operating at f

.

s

The LPF after the DAC

This analog LPF filters the time quantized signal from the
DAC to retain a time continuous signal. This provides more
accurate timing of the detected zero crossings in the RD
pulse output.

The LPF is a second order active filter with a cut-off
frequency of 8 MHz.

The read pulse circuit

A peak in the equalized signal at the interpolator output
generates a read pulse. The peak is detected if a zero
crossing occurs in the filtered signal after the DAC while
the non-differentiated signal is above the qualification
threshold.

Uncommitted current sources

Two uncommitted 5-bit programmable current sink DACs
(0 to 2 mA) are available as IO1 and IO2 (see Table 20 for
programming). These could be used, for example, to drive
the tape hole detector circuit.

1998 Feb 16 7

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Parallel state bus

All internal digital signals can be monitored via an 8-bit
parallel bus. An external DAC or an evaluation tool such as
a phase error logger for TIA (Time Interval Analyzer),
drop-out and symmetry measurements can be connected
to this bus for evaluation purposes (see Table 34).

Write equalization

This circuit has an independent clock input WEQCLK at
pin 9.

Write equalization can be programmed to conform to a
number of formats including QIC 3010, QIC 3020,
QIC 3080, QIC 3095, QIC 5010, Travan 2, Travan 3 and
Travan 4.

This is achieved by programming the circuit to divide a
channel bit-cell into 2, 3 or 6 time slots (see Tables 13
and 14). The external WEQ clock frequency should be
selected such that an integer number of between 1 and 8
clock periods fits in a time slot (see Tables 18 and 19).

The width and position of the inserted write pulse can be
programmed (see Tables 15 to 17).

The write equalization circuit input and output signals can
be independently programmed to be in either WD or WDI
format (see Table 15).

For QIC 3010 or 3020, the recording signal is typically
generated by a circuit that uses a separate crystal.
An input buffer with variable delay is used to prevent errors
occurring in the recorded signal. This buffer is set to its
nominal position when writing begins.

Signals longer than a data block can be recorded during
formatting. To avoid overloading the time buffer, the circuit
can resynchronize automatically during gaps in the
QIC 3010 or 3020 format.

Serial interface

The serial interface uses 8-bit addresses and 8-bit data.
Its timing is shown in Fig.5. IC mode settings, filter
coefficients, scale factors and thresholds can be loaded
via the serial interface.

Measured signal amplitude, for example Burst level
measurement at QIC 3095 or AGC control by the
microcontroller, and the actual PLL frequency can be read
via the serial interface. To read data from the status
registers, hex address FF must be transmitted along with
the required data code. The IC will then respond with the
contents of the appropriate 8-bit status register
(see Table 44).

1998 Feb 16 8

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

k

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

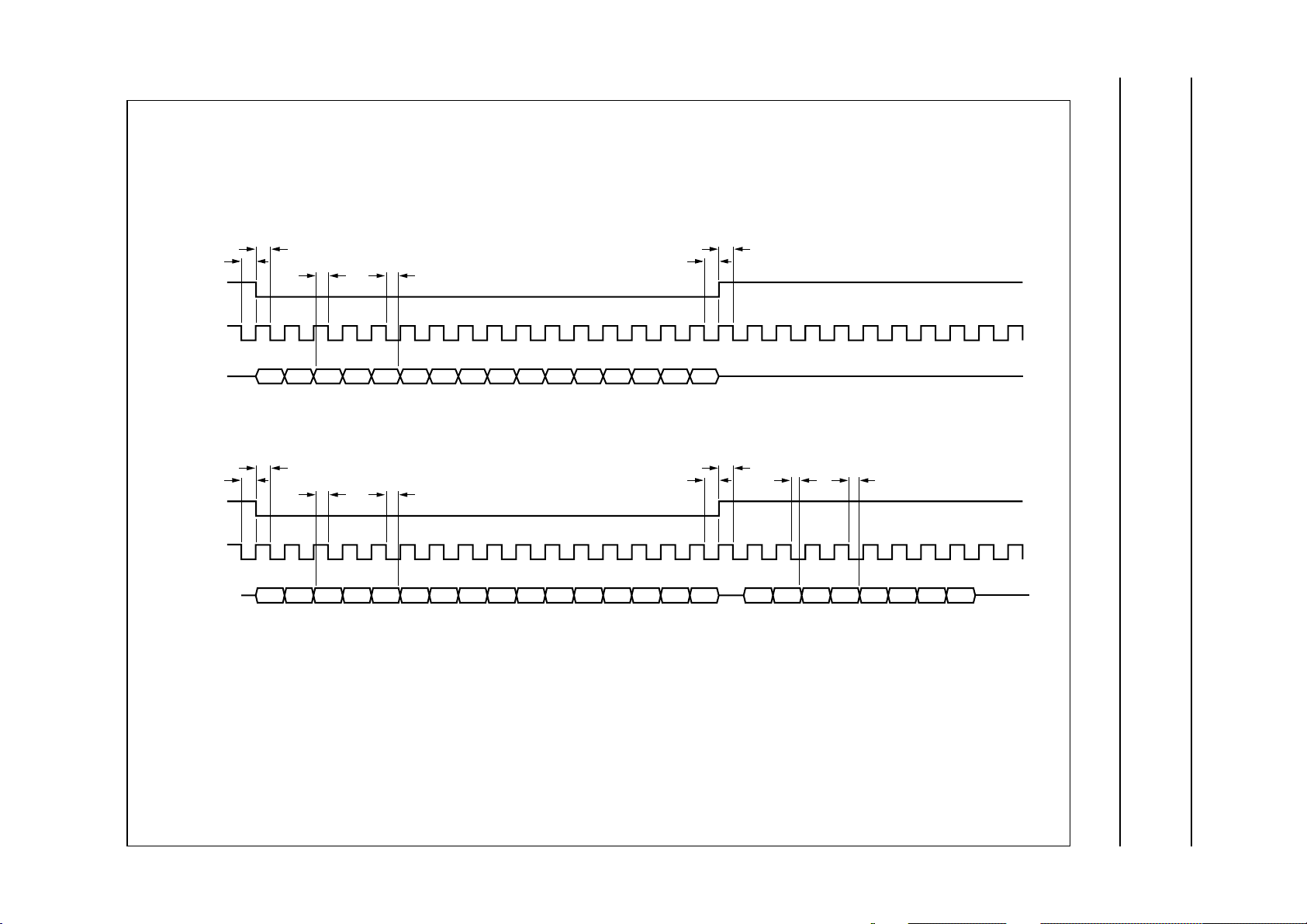

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1998 Feb 16 9

WRITE SETTINGS

SDEN

SCLK

, full pagewidth

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

SDIO

SDEN

SCLK

SDIO

A7 A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0

READ STATUS

A7 A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0

ADDRESS AND DATA FROM MICROCONTROLLER DATA OUT FROM DEVICE

3-STATE

3-STATE

MGG585

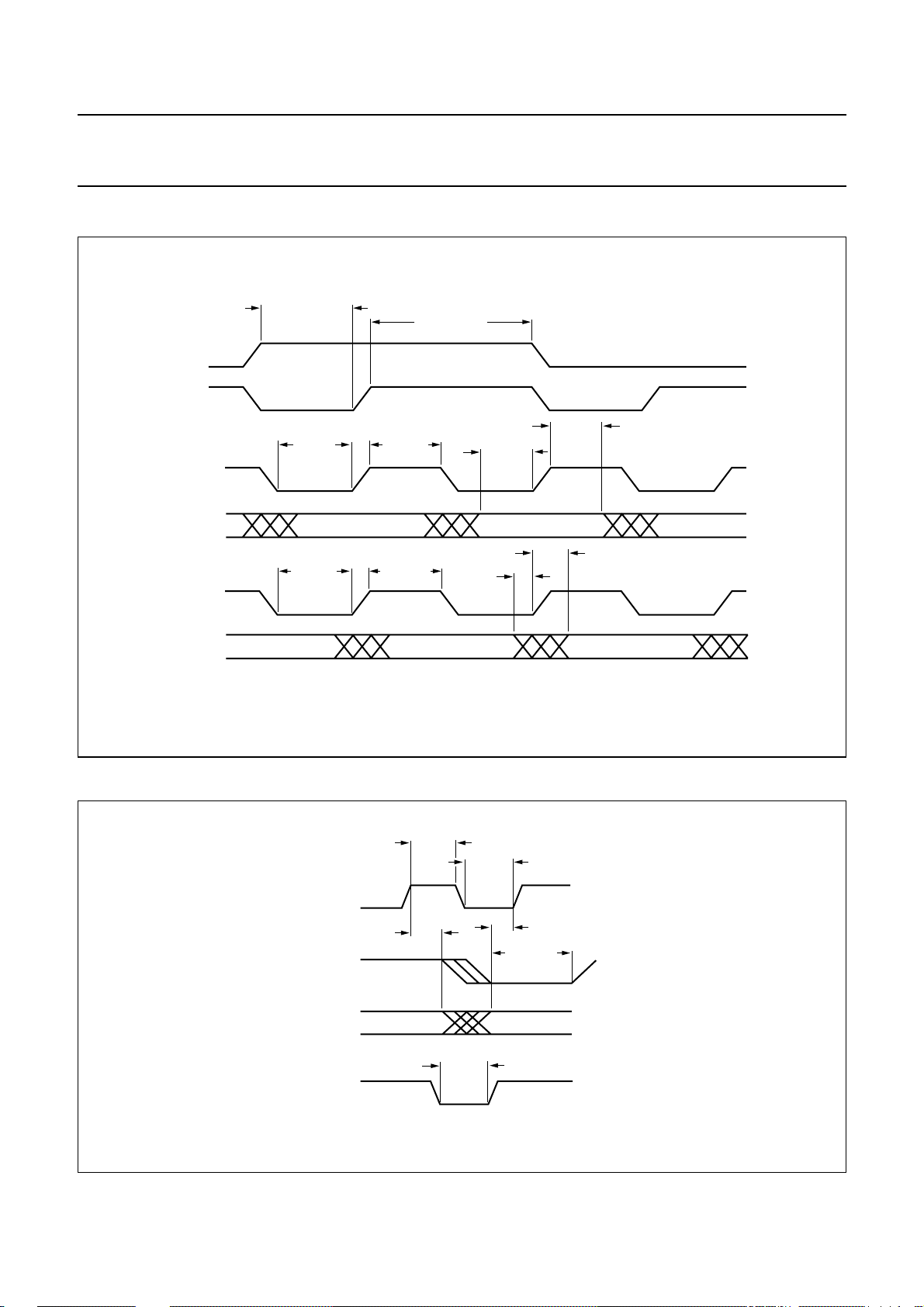

Fig.5 Serial I/O timing diagrams.

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

CONTROL REGISTER
Control register settings

The control register is accessible through the serial interface and contains 46 8-bit entries as shown in Table 1.

Table 1 Control register

ADDRESS NAME DESCRIPTION

0 FIR_VAL0 FIR tap 0 coefficient value (see Table 2)
1 FIR_VAL1 FIR tap 1 coefficient value
2 FIR_VAL2 FIR tap 2 coefficient value
3 FIR_VAL3 FIR tap 3 coefficient value
4 FIR_VAL4 FIR tap 4 coefficient value
5 FIR_VAL5 FIR tap 5 coefficient value
6 FIR_VAL6 FIR tap 6 coefficient value
7 FIR_VAL7 FIR tap 7 coefficient value
8 FIR_VAL8 FIR tap 8 coefficient value

9 FIR_VAL9 FIR tap 9 coefficient value
10 FIR_SEL05 FIR tap positions (see Tables 3 and 4)
11 FIR_SEL16 FIR tap positions
12 FIR_SEL27 FIR tap positions
13 FIR_SEL38 FIR tap positions
14 FIR_SEL49 FIR tap positions
15 FIR_SEL10 FIR tap positions
16 FIR_SHIFT FIR output scaling (see Table 5)
17 LPF_VAL1 LPF tap coefficient value (see Table 6)
18 LPF_VAL4 LPF tap coefficient value
19 LPF_VAL2 LPF tap coefficient value
20 LPF_VAL5 LPF tap coefficient value
21 LPF_VAL3 LPF tap coefficient value
22 LPF_VAL6 LPF tap coefficient value
23 LPF_SHIFT LPF output scaling (see Table 8)
24 QUAL_FIX_POS Amplitude qualifier positive fixed qualification threshold
25 QUAL_FIX_NEG Amplitude qualifier negative fixed qualification threshold
26 QUAL_VAR_GAIN Amplitude qualifier variable gain factors (see Tables 9 and 12)
27 QUAL_SLOPE_DEL Amplitude detector slope qualification delay (see Table 10)
28 GAP_THRESH Gap detector fixed threshold
29 WEQ_SET0 WEQ settings (see Tables 13 and 14)
30 WEQ_SET1 WEQ settings (see Tables 15, 16 and 17)
31 WEQ_CLK_DIV WEQ clock divider (see Tables 18 and 19)
32 − not used
33 IDAC1 IO1 DAC current (see Table 20)
34 IDAC2 IO2 DAC current (see Table 20)

1998 Feb 16 10

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

ADDRESS NAME DESCRIPTION

35 EQ MODE0 Mode setting for PACLK (pin 29) and GAP/STRIPE (pin 21)

(see Tables 21, 22 and 23)
36 DIFF differentiator settings (see Tables 24, 25 and 26)
37 CLK_DIV main clock divider (see Tables 27 and 28)
38 STRIPE_F stripe detector nominal frequency (see Table 29)
39 EQ_MODE1 equalizer mode settings
40 PLL_FREQL PLL nominal frequency bits 0 to 7
41 PLL_FREQH PLL nominal frequency bits 8 to 10
42 WIN_SHIFT PLL window shift
43 PLL_NI PLL loop filter integrating gain and range
44 PLL_NP PLL loop filter proportional gain
45 MLD_SET maximum likelihood detector settings

Control register functions

Control register functions are detailed in Tables 2 to 43.

FIR

FUNCTION

Addresses 0 to 9: FIR tap coefficient values

Table 2 Coefficient values: FIR_VAL0 to FIR_VAL9; note 1

D7 D6 D5 D4 D3 D2 D1 D0

− FIR_VALn.6 FIR_VALn.5 FIR_VALn.4 FIR_VALn.3 FIR_VALn.2 FIR_VALn.1 FIR_VALn.0

Note

1. These are 7-bit coefficient values in two’s complement notation; taps 5 to 9 are only used when R = 2; tap 10 has a
fixed coefficient value of +64.

Addresses 10 to 15: FIR tap position selection

Table 3 Tap position selection: FIR_SELnn; note 1

ADDR. NAME TAPS D7 D6 D5 D4 D3 D2 D1 D0

10 FIR_SEL05 0 and 5 −−FS0.2 FS0.1 FS0.0 FS5.2 FS5.1 FS5.0
11 FIR_SEL16 1 and 6 −−FS1.2 FS1.1 FS1.0 FS6.2 FS6.1 FS6.0
12 FIR_SEL27 2 and 7 −−FS2.2 FS2.1 FS2.0 FS7.2 FS7.1 FS7.0
13 FIR_SEL38 3 and 8 −−FS3.2 FS3.1 FS3.0 FS8.2 FS8.1 FS8.0
14 FIR_SEL49 4 and 9 −−FS4.2 FS4.1 FS4.0 FS9.2 FS9.1 FS9.0
15 FIR_SEL10 10 −−−−FS10.3 FS10.2 FS10.1 FS10.0

Note

1. See Table 4 for the value of FSn.n.

1998 Feb 16 11

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Table 4 Translation table: FS selection bits (FSn.n from Table 3) to tap position

FSn TAP 0,5 TAP 1,6 TAP 2,7 TAP 3,8 TAP 4,9 TAP 10

01296302
113107413
214118524
315129635
4 1613107 4 6
5171411857
6 1815129 6 8
7 19161310 7 9
8 −−−−−10

9 −−−−−11
10 −−−−−12
11 −−−−−13
12 −−−−−14
13 −−−−−15
14 −−−−−16
15 −−−−−17

Address 16: FIR output scaling

Table 5 Output scaling: FIR_SHIFT

FIR_SHIFT (BINARY) FIR OUTPUT SCALING GAIN FACTOR

00000001 1
00000010 2
00000100 4
00001000 8
00010000 16
00100000 32
01000000 64
10000000 128

OW-PASS FILTER FUNCTIONS

L

Addresses 17 to 22: LPF tap coefficient values

Table 6 Coefficient value: LPF_VAL1 to LPF_VAL6; notes1and2

D7 D6 D5 D4 D3 D2 D1 D0

LPF_VALn.7 LPF_VALn.6 LPF_VALn.5 LPF_VALn.4 LPF_VALn.3 LPF_VALn.2 LPF_VALn.1 LPF_VALn.0

Notes

1. These are 8-bit coefficient values in two’s complement notation; taps 4 to 6 are only used when R = 2.

2. See Table 7 for the values of LPF_VALn.n

1998 Feb 16 12

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Table 7 LPF tap positions

TAP POSITION COEFFICIENT VALUES R = 1 COEFFICIENT VALUES R = 2

0 LPF_VAL3 LPF_VAL6
1 LPF_VAL2 LPF_VAL5
2 LPF_VAL1 LPF_VAL4
3 +128 LPF_VAL3
4 +128 LPF_VAL2
5 LPF_VAL1 LPF_VAL1
6 LPF_VAL2 +128
7 LPF_VAL3 +128
8 0 LPF_VAL1

9 0 LPF_VAL2
10 0 LPF_VAL3
11 0 LPF_VAL4
12 0 LPF_VAL5
13 0 LPF_VAL6

Address 23: LPF output scaling

Table 8 Output scaling: LPF_SHIFT

LPF_SHIFT (BINARY) LPF OUTPUT SCALING GAIN FACTOR

00000001 1
00000010 2
00000100 4
00001000 8
00010000 16
00100000 32
01000000 64
10000000 128

A

MPLITUDE QUALIFIER/DETECTOR FUNCTIONS

Address 24: QUAL_FIX_POS and Address 25: QUAL_FIX_NEG

QUAL_FIX_POS and QUAL_FIX_NEG contain the positive and negative fixed threshold (8-bit signed) values.

Address 26: Variable gain factors

Table 9 Gain factors: QUAL_VAR_GAIN; note 1

D7 D6 D5 D4 D3 D2 D1 D0

−−GP.2 GP.1 GP.0 GN.2 GN.1 GN.0

Note

1. GP and GN set the factors of the measured amplitude that are to be used as variable qualifier thresholds: GP for the
positive peaks and GN for the negative peaks.

1998 Feb 16 13

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Address 27: Amplitude detector slope qualification delay

Table 10 Qualification delay: QUAL_SLOPE_DEL; notes 1 and 2

D7 D6 D5 D4 D3 D2 D1 D0

−−−−DEL.1 DEL.0 SL.1 SL.0

Notes

1. DEL is the programmable compensation delay, in cycles of f
the read pulse circuit; DEL is a 2-bit unsigned value

2. SL selects the decay time of the amplitude detectors.

, between the qualifier and the analog zero crossing of

s

Table 11 Amplitude detector decay time

500

--------- ­f

s

SL DECAY TIME

0

1

2

3

500

--------- ­f

s

1000

------------ ­f

s

2000

------------ ­f

s

4000

------------ ­f

s

GAP DETECTOR FUNCTIONS

Address 28: Fixed threshold: GAP_THRESH

Fixed threshold for the gap detector; 8-bit signed value.

W

RITE EQUALIZATION (WEQ) FUNCTIONS

Address 29: WEQ settings

Table 12 Variable qualifier threshold

GP, GN VARIABLE THRESHOLD

00
1
2
3

4, 5, 6, 7

1

⁄

8

1

⁄

4

3

⁄

8

1

⁄

2

Table 13 Time slots: WEQ_SET0; see Table 14

D7 D6 D5 D4 D3 D2 D1 D0

−−−−−N6 N3 N2

Table 14 Time slots in channel bit cell

NUMBER OF TIME SLOTS N6 N3 N2

2001
3010
6100

1998 Feb 16 14

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Address 30: WEQ settings

Table 15 WEQ_SET1; notes 1 to 4, see also Tables 16 and 17.

D7 D6 D5 D4 D3 D2 D1 D0

WDI_O WDI_I RESYNC TPS2 TPS1 TPS0 TWS1 TWS0

Notes

1. If bit WDI_O is HIGH, the circuit output is a WD signal, else a WDI signal.

2. If bit WDI_I is HIGH, the circuit expects a WD signal at the input, else a WDI signal.

3. If the RESYNC bit is HIGH, the WEQ circuit resynchronizes its time buffer during a gap in the QIC 3010 or QIC 3020
format; this setting is only permitted if 6 time slots in a bit-cell are selected (N6 = 1; see Table 14).

4. TPS sets the position of the inserted write equalization pulse, TWS sets its width.

handbook, halfpage

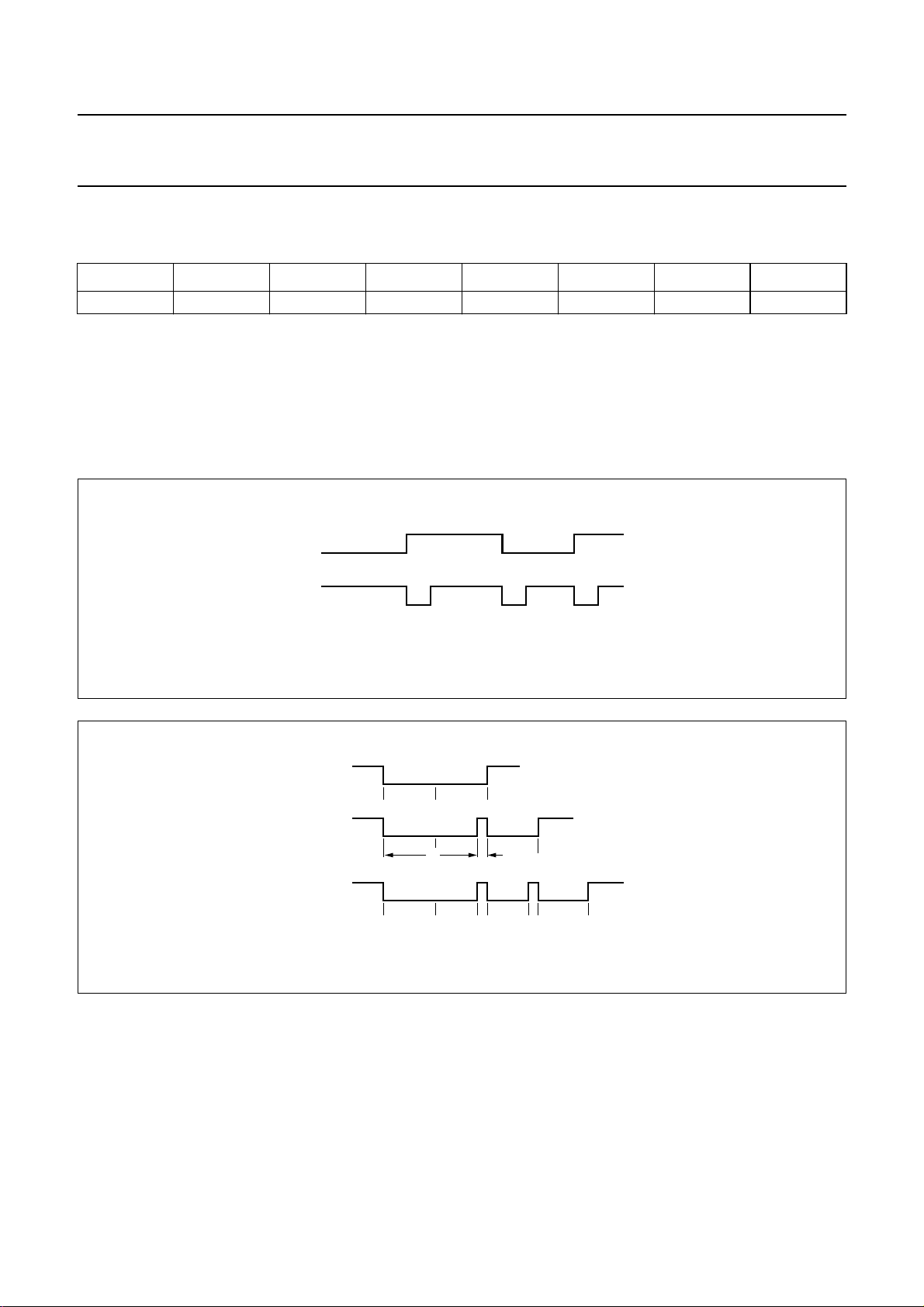

WD

WDI

Fig.6 WD/WDI signal timing.

handbook, halfpage

1 T

1.5 T

2 T, etc. to 4 T

101

10 1

t

d

100

0

t

w

01

MGG587

Fig.7 Position and width of write equalization pulse.

MGG586

1998 Feb 16 15

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Table 16 Write equalization pulse position

TPS POSITION IN TIME SLOTS

01
12
23
34
45
56
67
78

Table 17 Write equalization pulse width

TWS WIDTH IN TIME SLOTS

0 WEQ off
11
22
33

Address 31: WEQ circuit clock divider

Table 18 Division factor: WEQ_CLK_DIV; note 1

D7 D6 D5 D4 D3 D2 D1 D0

−−−−−WCD.2 WCD.1 WCD.0

Note

1. WCD sets the division factor between WEQCLK and the frequency of the time slot.

Table 19 WEQ clock division

WCD WEQ CLOCK DIVISION FACTOR

01
12
23
34
45
56
67
78

UNCOMMITTED CURRENT DAC FUNCTIONS

Addresses 33 and 34: Current DACs

Table 20 DAC current: IDAC1 and IDAC2; note 1

D7 D6 D5 D4 D3 D2 D1 D0

−−−IDn.4 IDn.3 IDn.2 IDn.1 IDn.0

Note

1. These are 5-bit unsigned numbers; the DAC current is mA.

IDn

--------- ­16

1998 Feb 16 16

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

O/P SIGNAL FUNCTION: PINS 21 AND 29

Address 35: O/P Select pins 21 and 29

Table 21 Output signal select: EQ MODE 0; see Tables 22 and 23

D7 D6 D5 D4 D3 D2 D1 D0

−−−−PA.1 PA.0 GAP.1 GAP.0

Table 22 Output signal: pin 21

GAP OUTPUT SIGNAL ON PIN 21

0 GAP

(1)

1 STRIPE
2 QUAL
3RD

(2)

(3)

Table 23 Output signal: pin 29

PA OUTPUT SIGNAL ON PIN 29

0f

- PACLK on

s

1 1 - PACLK off
2 0 - PACLK off
3 0 - PACLK off

Notes

1. GAP, STRIPE or QUAL may be selected to detect
gaps, stripes or valid signal peaks. All are active HIGH.

2. See also Table 34.

3. The RD output (read pulse): falling edge active.

DIFFERENTIATOR FUNCTIONS

Address 36: Differentiator settings

Table 24 DIFF; note 1

D7 D6 D5 D4 D3 D2 D1 D0

−−−DS DL2.1 DL2.0 DL1.1 DL1.0

Note

1. DL1 and DL2 are programmable delays for the differentiator; DS is the gain factor of the differentiated signal.

Table 25 Differentiator delay; notes 1 and 2

DLn DELAY IN fs CYCLES

00
11
22
33

Notes

1. DL1 and DL2 are added to provide a maximum delay
of 6 × fs cycles.

2. It is advisable to have DL1 and DL2 equal to avoid
adding unwanted delay in the differentiator.

1998 Feb 16 17

Table 26 Differentiator gain factor

DS OUTPUT SCALING GAIN FACTOR

04
12

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

CLOCK FUNCTIONS

Address 37: Main clock divider

Table 27 Clock divider: CLK_DIV; note 1

D7 D6 D5 D4 D3 D2 D1 D0

−−−−−CD.2 CD.1 CD.0

Note

1. CD selects the main clock division factor. The CLKIN frequency (pin 6) divided by this factor gives the IC’s operating
frequency f

Table 28 Clock division factor

(apart from the WEQ circuit).

s

CD CLOCK DIVISION

01
12
23
34
45
56
67
78

STRIPE DETECTOR FUNCTIONS

Address 38: Stripe detector nominal frequency

Table 29 Qualification threshold: STRIPE_F; note 1

D7 D6 D5 D4 D3 D2 D1 D0

−−−SF.4 SF.3 SF.2 SF.1 SF.0

Note

1. SF is an unsigned 5-bit value used to determine the detection threshold for the stripe detector. The nominal detection

f

frequency is

AUXBUS, PINS 25 AND 27, SAMPLE RATE REDUCTION AND STAND-BY FUNCTIONS

s

---------------------------------­3SF1+()×

Address 39: Equalizer mode settings

Table 30 EQ_MODE 1; note 1, see also Tables 31 to 34

D7 D6 D5 D4 D3 D2 D1 D0

− STBY2 ST.3 ST.2 ST.1 ST.0 STBY1 R1

Note

1. R1 selects the filter sample rate reduction factor; STBY1 and STBY2 are the DAC and ADC power on/off switches;
ST selects output signal modes for pins 25 and 27.

1998 Feb 16 18

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Table 31 FIR/LPF Sample Rate

Reduction Factor: R

Table 32 DAC power

Table 33 ADC power

R1 R

02
11

STBY1 D/A POWER

0on
1off

STBY2 A/D POWER

0on
1off

Table 34 Mode settings: pins 25, 27 and AUXBUS

ST IC MODE PIN 27 PIN 25 AUXBUS

0 PLL off RD QUAL
1 PLL off RD COMP

(1)

(2)

bit 0: WDOUT, bits 1 to 7 high-Z

bit 0: WDOUT, bits 1 to 7 high-Z
2 PLL on SRD RRC bit 0: WDOUT, bits 1 to 7 high-Z
3 ADC test SRD RRC ADC output
4 DAC test RD COMP DAC output
5 one shot test −− −
6 PLL off, AD bypass RD QUAL 8-bit input to HPF
7 PLL off, AD bypass RD COMP 8-bit input to HPF
8 PLL on, AD bypass SRD RRC 8-bit input to HPF
9 PLL on, LPF output SRD RRC LPF output after scaling

10 PLL on, FIR output SRD RRC FIR output after scaling and interpolator
11 PLL on, PLL phase output SRD RRC PLL phase error output
12 PLL on, PLL frequency output SRD RRC PLL frequency output
13 PLL on, peak-to-peak level output SRD RRC bits 7 to 1: LEVEL_ABS; bit 0:WDOUT
14 PLL on, filtered level output SRD RRC bits 7 to 1: LEVEL_FIL; bit 0:WDOUT
15 PLL on, differentiator output SRD RRC differentiator output after scaling

Notes

1. QUAL is a test signal (active HIGH) used to detect valid signal peaks (see also Table 22).

2. When COMP is selected, pin 25 is switched to the output of the read pulse circuit comparator for test purposes.

PLL

FUNCTIONS

Addresses 40 and 41: PLL nominal frequency

Table 35 PLL_FREQL (address 40)

D7 D6 D5 D4 D3 D2 D1 D0

PF.7 PF.6 PF.5 PF.4 PF.3 PF.2 PF.1 PF.0

Table 36 PLL_FREQH (address 41); note 1

D7 D6 D5 D4 D3 D2 D1 D0

−−−−−PF.10 PF.9 PF.8

Note

1. The nominal PLL frequency is

PF

f

×

------------ -

s

2048

1998 Feb 16 19

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Address 42: Phase comparator window shift

WIN_SHIFT is an 8-bit number in two’s complement format. The programmed phase shift is 180 × WIN_SHIFT degrees.

Address 43: PLL settings

Table 37 Address 43: PLL_NI; note 1

D7 D6 D5 D4 D3 D2 D1 D0

Q1 Q0 RNG.1 RNG.0 NI2.1 NI2.0 NI1.1 NI1.0

Note

1. If LTD (pin 19) is HIGH, NI2 is selected, else NI1.

Table 38 DL setting; note 1

DL SETTING Q1 Q0

DL1 = DL2 1 1
DL1 < DL2 1 0
DL1 > DL2 0 1

Note

1. The Differentiator Delay (DL) settings (see Table 25) determine the values of Q1 and Q0 that should be entered.

Table 39 Integrating gain factor KI

NI KI

0
1
2
3

1

⁄

64

1

⁄

128

1

⁄

256

1

⁄

512

Table 40 PLL range

RNG PLL RANGE

0 ±64
1 ±128
2 ±256
3 ±512

Address 44: PLL loop filter proportional gain

Table 41 PLL_NP; note 1

D7 D6 D5 D4 D3 D2 D1 D0

−−NP2.2 NP2.1 NP2.0 NP1.2 NP1. 1 NP1. 0

Note

1. If LTD (pin 19) is HIGH, NP2 is selected, else NP1.

1998 Feb 16 20

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Table 42 Proportional gain factor KP

NP KP

01

1

1
2
3
4
5
6 −
7 −

M

AXIMUM LIKELIHOOD DETECTOR FUNCTIONS

Address 45: Settings

Table 43 Address 45: MLD_SET

⁄

2

1

⁄

4

1

⁄

8

1

⁄

16

1

⁄

32

D7 D6 D5 D4 D3 D2 D1 D0

en_k

(1)

en_d

(2)

PR1

(3)

PR0

(4)

ks3

(5)

ks2

(5)

ks1

(5)

ks0

(5)

Notes

1. Check for k constraint: k is the maximum number of channel bit-cells allowed without a transition. For MFM code:
k = 3 (ks = 4), for RLL(1,7) code: k = 7 (ks = 8).

2. Check for d = 1 constraint: d is the minimum number of channel bit-cells without transitions that must come between
two bit cells with transitions. d = 1 for both MFM and RLL(1,7) codes

3. Check partial response constraints; delete incorrect peaks.

4. Check partial response constraints; add missing peaks.

5. ks=k+1.

TATUS REGISTER

S
The status register contains 5 status bytes. The contents of the status bytes can be read via the serial interface.

Table 44 Status bytes; notes 1 to 4

ADDRESS DATA NAME DESCRIPTION

255 0 FREQ actual frequency of PLL
255 1 LEVEL_POS positive peaks in measured level
255 2 LEVEL_NEG negative peaks in measured level
255 3 LEVEL_ABS measured peak-to-peak level
255 4 LEVEL_FIL low-pass filtered LEVEL_ABS

Notes

1. The levels are measured behind the re-sampling block (interpolator) (see Fig.1).

FREQ

f

2. Actual PLL frequency is an 8-bit unsigned number:

s

×

----------------- ­256

3. LEVEL_FIL can be used for reading of the burst levels, or in an AGC loop (with the TZA1000 preamplifier).

4. LEVEL_POS, LEVEL_NEG, LEVEL_ABS and LEVEL_FIL are 8-bit numbers in two’s complement format.

1998 Feb 16 21

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

DDD1

V

DDD2

V

DDA1

V

DDA2

V

i

I

I

I

I(n)

P

tot

T

amb

T

j

T

stg

V

ES(HB)

V

ES(MM)

digital supply voltage −0.3 +5.5 V
digital supply voltage −0.3 +5.5 V
analog supply voltage −0.3 +5.5 V
analog supply voltage −0.3 +5.5 V
input voltage −0.3 VDD+ 0.3 V
input current on supply pins −50 +50 mA
input current on remaining pins −10 +10 mA
maximum total power dissipation − +1100 mW
ambient temperature −30 +85 °C
junction temperature −30 +125 °C
storage temperature −50 +150 °C
electrostatic handling: human body model note 1 −3000 +3000 V
electrostatic handling: machine model note 2 −300 +300 V

Notes

1. Equivalent to discharging a 100 pF capacitor through a 1.5 kΩ series resistance.

2. Equivalent to discharging a 200 pF capacitor through a 25 Ω series resistance and a 2.5 µH series inductance.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

thermal resistance from junction to ambient in free air 70 K/W

QUALITY SPECIFICATION

In accordance with

“SNW-FQ-611-E”

.

1998 Feb 16 22

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

CHARACTERISTICS

V

DDD1=VDDD2=VDDA1=VDDA2

specified

.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

DDD1

V

DDD2

V

DDA1

V

DDA2

I

; I

DDD1

DDD2

I

; I

DDA1

DDA2

f

clk(CLKIN)

f

clk(WEQCLK)

V

IL

V

IH

V

OL

V

OH

C

i

digital supply voltage 4.5 5.0 5.5 V
digital supply voltage 4.5 5.0 5.5 V
analog supply voltage 4.5 5.0 5.5 V
analog supply voltage 4.5 5.0 5.5 V
digital supply current r = 2, no WEQ − 32 80 mA
analog supply current STBY1 = 0;

read circuit clock frequency − 24 24 MHz
WEQ circuit clock frequency N6 = 0;

LOW-level input voltage −−0.3V
HIGH-level input voltage 0.7V
LOW-level output voltage Io= −4mA −−0.5 V
HIGH-level output voltage Io=+4mA VDD− 0.5 −− V
input capacitance I/O pins high-Z;

=5V±5%; fs= f

clk(CLKIN)

= 24 MHz; V

STBY2 = 1;
see Table 30

STBY 1= 1;
STBY2 = 0

see Table 14;
(3080; 3095)

note 1

=2V±5%; R

ref

=10kΩ, unless otherwise

ref

− 50 65 mA

− 26 35 mA

−−36 MHz

V

DD

DD

−− V

−−5pF

Analog section

V

ref

I

ref

V

cnv(A/D)

V

CM(A/D)

R

i(A/D)

C

i(A/D)

I

I(32)

I

I(33)

V

38

I

O(1)

I

O(2)

V

o(dif)

V

CM(D/A)

reference voltage (pin 37) 1.8 2.0 2.2 V
reference current (pin 37) 1.0 1.7 2.1 mA
A/D conversion range − 1.6 − V
A/D common mode voltage 2 2.5 3 V
A/D input resistance 2.3 3.3 4.4 kΩ
A/D input capacitance − 35 pF
DC input current (INA) − 0.42 0.6 mA
DC input current (INB) − 0.13 0.2 mA
voltage on pin 38 (R
output current on pin 1 (IO1) IDAC1 = 0;

) − 2.0 − V

ref

− 0.0 0.05 mA

see Table 20
IDAC1 = 31 1.40 1.95 2.60 mA

output current on pin 2 (IO2) IDAC2 = 0;

− 0.0 0.05 mA

see Table 20
IDAC2 = 31 1.40 1.95 2.60 mA

D/A differential output range

note 2 1.5 1.72 1.8 V

(peak-to-peak)
D/A common mode voltage note 2 1.0 1.16 1.4 V

1998 Feb 16 23

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

f

−3dB(cutoff)(LPF)

V

CM(COMP)

R

i(COMP)

V

IO(COMP)

Serial interface

f

clk(SIO)

t

su(D-CLK)

t

h(D-CLK)

t

d(1)

t

d(2)

t

su(EN-CLK)

t

h(EN-CLK)

Digital read section

t

CLKINH

t

CLKINL

t

RDL

t

su(SRD-RRC)

t

h(SRD-RRC)

t

RRCL

t

su(AUX-CLKIN)

t

h(AUX-CLKIN)

t

PACLKH

t

PACLKL

t

d(AUX-PACLK)

t

d(PACLK-AUX)

−3dB cut-off frequency,

note 2 − 8 − MHz

analog LPF (DAC filter)
comparator common mode

note 3 1.0 1.16 1.4 V

voltage
comparator input resistance note 4 17 26 35 kΩ
comparator offset voltage note 4 −−45 mV

serial i/f clock −−

1

⁄

f

4

s

MHz
set-up time: data-to-clock 10 −− ns
hold time: data-to-clock note 5 ts+10 −− ns
delay clock: new data −−2ts +10 ns
delay clock: old data t

s

−− ns
set-up time: enable-to-clock ts+10 −− ns
hold time: enable-to-clock ts+10 −− ns

CLKIN HIGH time 15 −− ns
CLKIN LOW time 15 −− ns
RD LOW time t
set-up time: SRD-to-RRC note 6 t

hold time: SRD-to-RRC note 6 t

RRC LOW time note 6 t

input set-up time:

s

− 5

CLKINL

− 0.2C

o(L)(SRD)

− 2

CLKINH

− 0.2C

o(L)(RRC)

− 5

CLKINL

− 0.2C

o(L)(RRC)

−−−ns

− 2ts+10 ns

− t

−0.2C

CLKINL

+2

o(L)(RRC)

ns

−− ns

− t

CLKINL

ns

AUXBUS-to-CLKIN (pin 6)
input hold time:

−−−ns

AUXBUS-to-CLKIN (pin 6)
PACLK HIGH time note 7 t

− 0.2C

PACLK LOW time note 7 t

− 0.2C

delay:

note 8 −−10 +

AUXBUS-to-PACLK (pin 29)
delay: PACLK to AUXBUS notes 7 and 8 −−5+

CLKINH

CLKINL

− 2

o(L)(PACLK)

− 5

o(L)(PACLK)

− t

− t

CLKINH

CLKINL

0.2C

0.2C

ns

ns

ns

o(L)(AUX)

ns

o(L)(PACLK)

1998 Feb 16 24

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Write equalization section

f

clk(WEQ)

t

WEQL

t

WEQH

t

su(WD-WEQCLK)

t

h(WD-WEQCLK)

t

IL(WDIN)

t

OL(WDOUT)

∆f

o(WDIN-WEQCLK)

WEQ clock frequency N2 = 1 or N3 = 1;

see Table 14
N6 =1;

see Table 14
WEQ LOW time 10 −− ns
WEQ HIGH time 10 −− ns
setup time:

WDIN-to-WEQCLK

N2=1 or N3=1;

see Table 14
hold time: WD-to-WEQCLK N2 = 1 or N3 = 1;

see Table 14
WDIN input LOW time (WDI

mode)
WDOUT output LOW time

WDI_I = 0;

see Table 15

note 9 t
(WDI mode)

frequency offset
WDIN-WEQCLK

N6=1;

see Table 14

−−36 MHz

− 24 24 MHz

5 −− ns

10 −− ns

10 −− ns

− 2−0.2×

WEQH

C

o(L)(WDOUT)

− t

WEQH

ns

0.5 −− %

Notes

1. Pins 3, 4, 6, 9 to 20, 22, 23, 24, 30 and 31.

2. Measured at pins 39 and 44 with a 10 MΩ/15 pF load.

3. Measured at pins 40 and 43.

4. Differential pins 40 and 43.
1

t

5.

=

--- -

s

f

s

6. C

7. C

8. C

9. C

o(L)(SRD)

C

o(L)(RRC)
o(L)(PACLK)
o(L)(AUX)
o(L)(WDOUT)

is the external load (pF), at SRD (pin 27) for C

is the external load (pF), at RRC (pin 25) for C

is the external load (pF), at PACLK (pin 29) for C

is the external load (pF), at AUX0 to AUX7 (pins 11 to 18) for C

is the external load (pF), at WDOUT (pin 11) for C

o(L)(SRD)

o(L)(RRC)

o(L)(PACLK)

< 50 pF.

< 50 pF.

< 50 pF.

o(L)(WDOUT)

o(L)(AUX)

< 50 pF.

< 50 pF.

1998 Feb 16 25

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

u

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1998 Feb 16 26

Serial interface

ll pagewidth

TIMING DIAGRAMS

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

t

h(EN-CLK)

SDEN

SCLK

SDIO

t

h(EN-CLK)

SDEN

SCLK

SDIO

t

su(EN-CLK)

t

su(D-CLK)th(D-CLK)

A7 A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0

t

su(EN-CLK)

t

su(D-CLK)th(D-CLK)

A7 A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0

ADDRESS AND DATA FROM MICROCONTROLLER DATA OUT FROM DEVICE

WRITE SETTINGS

READ STATUS

t

h(EN-CLK)

t

h(EN-CLK)

t

su(EN-CLK)

t

su(EN-CLK)

3-STATE

t

d(1)

t

d(2)

3-STATE

MGG656

Fig.8 Serial I/O showing set-up, hold and delay timing.

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

Digital read section

handbook, full pagewidth

SRD

RRC

CLKIN

AUX0 to 7
INPUT

PACLK

AUX0 to 7
OUTPUT

t

su(SRD-RRC)

t

CLKINL

t

PACLKL

t

CLKINH

t

PACLKH

t

h(SRD-RRC)

t

d(PACLK-AUX)

t

su(AUX-CLKIN)

t

h(AUX-CLKIN)

t

d(AUX-PACLK)

Fig.9 Digital read section showing set-up, hold and delay timing.

MGG657

Write equalization section

handbook, full pagewidth

WEQCLK)

t

h(WD-WEQCLK)

WDIN
(WDI mode)

WDIN
(WD mode)

WDOUT
(WDI mode)

t

WEQH

t

OL(WDOUT)

Fig.10 WEQ section showing set-up and hold timing.

1998 Feb 16 27

t

WEQL

t

su(WD-WEQCLK)

t

IL(WDIN)

MGG658

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

PACKAGE OUTLINE

QFP44: plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 x 10 x 1.75 mm

c

y

X

A

33 23

34

pin 1 index

44

1

22

Z

E

e

H

E

E

w

M

b

p

12

11

A

2

A

A

1

detail X

SOT307-2

(A )

3

θ

L

p

L

w

b

e

p

M

D

H

D

Z

D

B

0 2.5 5 mm

scale

DIMENSIONS (mm are the original dimensions)

A

UNIT A1A2A3b

max.

0.25

mm

2.10

0.05

1.85

1.65

0.25

cE

p

0.40

0.25

0.20

0.14

(1)

(1) (1)(1)

D

10.1

9.9

eH

H

10.1

9.9

12.9

0.8 1.3

12.3

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE

VERSION

IEC JEDEC EIAJ

REFERENCES

SOT307-2

1998 Feb 16 28

v

M

A

v

M

B

D

E

12.9

12.3

LL

p

0.95

0.55

0.15 0.10.15

EUROPEAN

PROJECTION

Z

D

1.2

0.8

Zywv θ

E

1.2

0.8

o

10

o

0

ISSUE DATE

95-02-04
97-08-01

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Reflow soldering

Reflow soldering techniques are suitable for all QFP
packages.

The choice of heating method may be influenced by larger
plastic QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our

Reference Handbook”

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 50 and 300 seconds depending on heating
method. Typical reflow peak temperatures range from
215 to 250 °C.

(order code 9398 652 90011).

“Quality

(order code 9397 750 00192).

If wave soldering cannot be avoided, for QFP
packages with a pitch (e) larger than 0.5 mm, the
following conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used.

• The footprint must be at an angle of 45° to the board

direction and must incorporate solder thieves
downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

Wave soldering

Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

CAUTION

Wave soldering is NOT applicable for all QFP
packages with a pitch (e) equal or less than 0.5 mm.

1998 Feb 16 29

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1998 Feb 16 30

Philips Semiconductors Product specification

QIC digital equalizer SZA1000

NOTES

1998 Feb 16 31

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. [phone],

Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,

TEL AVIV 61180, Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1998 SCA57
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 545102/00/01/pp32 Date of release: 1998 Feb16 Document order number: 9397 750 01122
