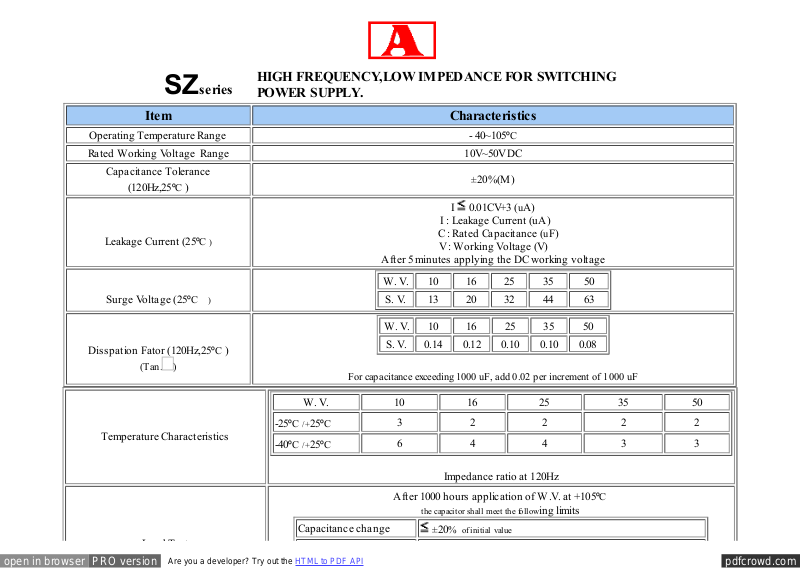

SZseries
HIGH FREQUENCY,LOW IMPEDANCE FOR SWITCHING
POWER SUPPLY.
Item Characteristics
Operating Temperature Range 40~105ºC
Rated Working Voltage Range 10V~50V DC
Capacitance Tolerance
(120Hz,25ºC )
±20%(M)
Leakage Current (25ºC )
I 0.01CV+3 (uA)
I : Leakage Current (uA)
C : Rated Capacitance (uF)
V : Working Voltage (V)
After 5 minutes applying the DC working voltage
Surge Voltage (25ºC )
W. V. 10 16 25 35 50
S. V. 13 20 32 44 63
Disspation Fator (120Hz,25ºC )
(Tan. )
W. V. 10 16 25 35 50
S. V. 0.14 0.12 0.10 0.10 0.08
For capacitance exceeding 1000 uF, add 0.02 per increment of 1000 uF
Temperature Characteristics
W. V. 10 16 25 35 50
25ºC /+25ºC
3 2 2 2 2
40ºC /+25ºC
6 4 4 3 3
Impedance ratio at 120Hz
After 1000 hours application of W.V. at +105ºC
the capacitor shall meet the following limits
Capacitance change
±20% of initial value
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 2
Load Test
Tan.
±150% of initial specified value
Leakage current initial specified value
Shelf Test
After 500 hours application of W.V. at +105ºC
the capacitor shall meet the following limits
Capacitance change
20% C of initial value
Tan.
200% C of initial specified value
Leakage current
200% of initial specified value
SZ

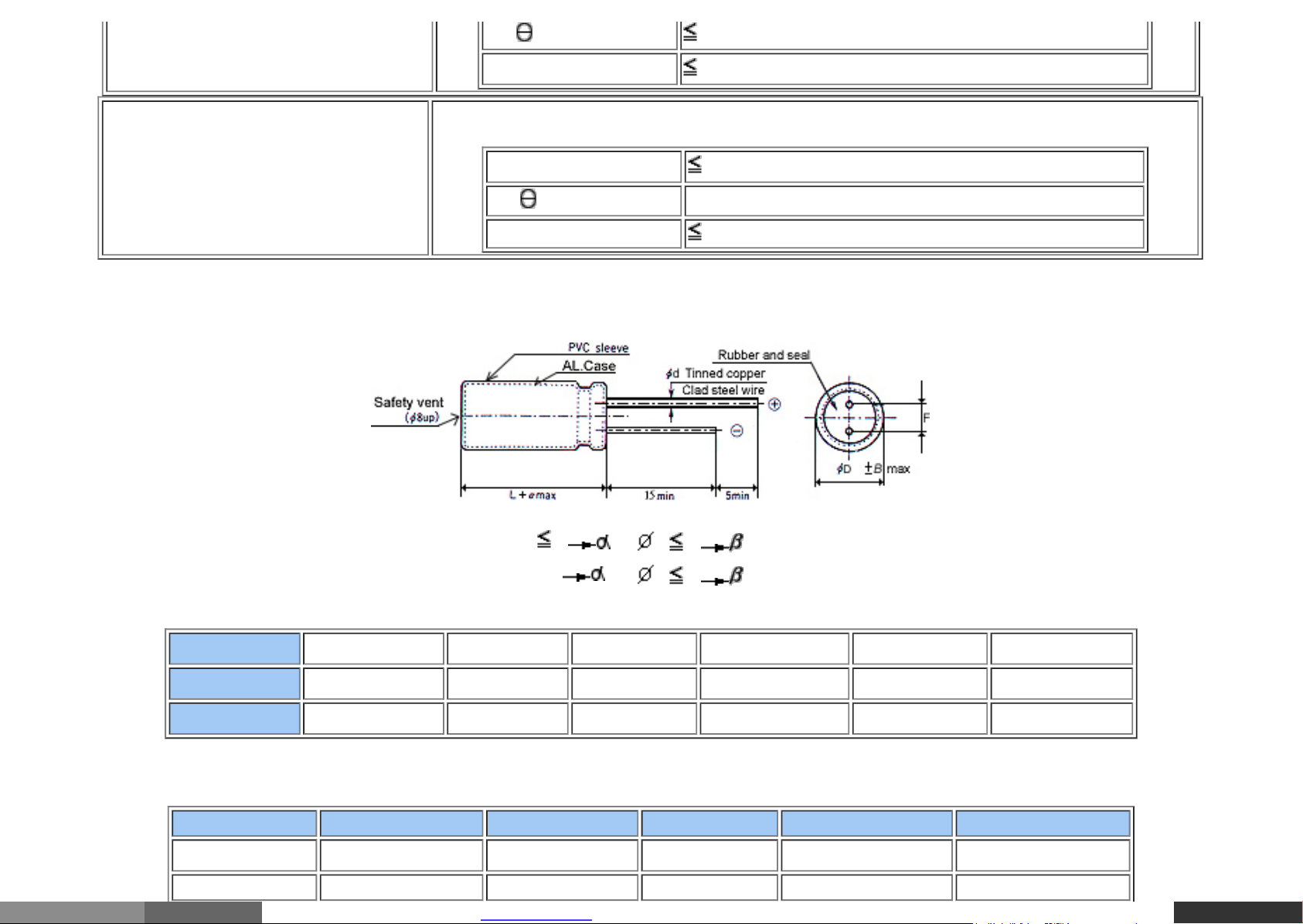

Dimensions
L 16 =1
D 10 =0.5
L>16 =2
D 10 =1.0
Unit(mm)
D
5 6 8 10 13 16
F ± 0.5
2 2.5 3.5 5 5 7.5
d ± 0.02
0.5 0.5 0.5 0.6 0.6 0.8
DxL(mm)
uF\WV 10V 16V 25V 35V 50V
10
5x11
22 511 5x11 5x11 6x12 6x12
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 3
33 5x11 5x11 5x11 6x12 6x12
47 5x11 5x11 6x12 6x12 6x12
100 6x12 6x12 6x12 8x12 8x12
220 6x12 8x12 8x12 10x17 13x21
330 8x12 8x12 10x15 10x20 13x26
470 8x12 8x12 10x15 10x15 13x26
1000 10x20 10x20 10x20 13x21 16x26
2200 10x24 13x26 16x26 16x26 18x36
3300 13x31 13x31 16x26
4700 13x31 16x26
WV 10V 16V 25V 35V 50V
ITEM\
uF
PERMISS
IBLERIP
PLECUR
REN(mA)
IMPEDAN
CE 20 C
100KHz
MAX(Ω)
PERMISS
IBLE
RIPPLECU
R REN(mA)
IMPEDA
NCE20 C
100KHz
MAX(Ω)
PERMIS
SIBLE
RIPPLE
CURRE N
(mA)
IMPEDAN
CE
20 C 100KHz
MAX(Ω)
PERMISS
IBLE
RIPPLECU
R REN(mA)
IMPEDAN
CE 20 C
100KHz
MAX(Ω)
PERMISS
IBLE
RIPPLECU
R REN(mA)
IMPEDAN
CE20 C
100KHz
MAX(Ω)
10
40 2.5
22 33 2.4 38 2.0 40 1.9 45 1.30 66 0.90
33 40 2.0 45 1.5 50 1.4 64 0.85 80 0.78
47 55 1.5 60 1.3 65 0.77 82 0.68 120 0.52
100 85 1.0 100 0.85 170 0.40 210 0.45 240 0.25
220 140 0.61 210 0.44 270 0.30 350 0.18 500 0.16
330 230 0.50 300 0.30 370 0.21 470 0.14 640 0.11
470 310 0.32 400 0.08 500 0.14 700 0.08 760 0.08
1000 560 0.12 760 0.10 880 0.08 960 0.05 1400 0.05
2200 900 0.07 1200 0.06 1300 0.05 1600 0.045
3300 1200 0.061 1400 0.045 1600 0.045
4700 1500 0.05 1700 0.042
