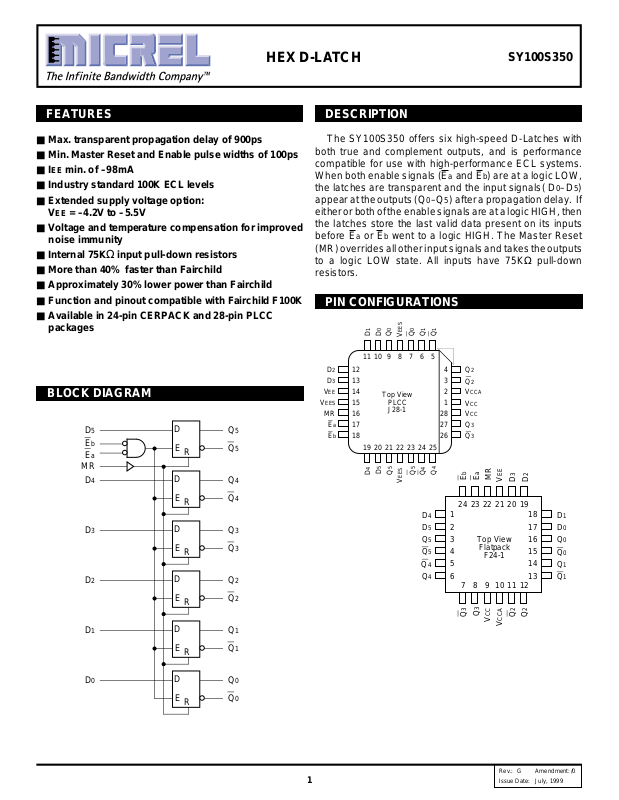

Page 1
HEX D-LATCH
R
SY100S350
FEATURES
■ Max. transparent propagation delay of 900ps
■ Min. Master Reset and Enable pulse widths of 100ps
■ IEE min. of –98mA
■ Industry standard 100K ECL levels
■ Extended supply voltage option:
VEE = –4.2V to –5.5V
■ Voltage and temperature compensation for improved
noise immunity
■ Internal 75KΩ input pull-down resistors
■ More than 40% faster than Fairchild
■ Approximately 30% lower power than Fairchild
■ Function and pinout compatible with Fairchild F100K
■ Available in 24-pin CERPACK and 28-pin PLCC
packages
BLOCK DIAGRAM
D
E
E
MR
D
5
b
a
4
D
E Q
R
D
Q
5
5
Q
4
DESCRIPTION
The SY100S350 offers six high-speed D-Latches with
both true and complement outputs, and is performance
compatible for use with high-performance ECL systems.
When both enable signals (E
a and Eb) are at a logic LOW,
the latches are transparent and the input signals( D0–D5)
appear at the outputs (Q0–Q5) after a propagation delay. If
either or both of the enable signals are at a logic HIGH, then
the latches store the last valid data present on its inputs
before Ea or Eb went to a logic HIGH. The Master Reset
(MR) overrides all other input signals and takes the outputs
to a logic LOW state. All inputs have 75KΩ pull-down
resistors.
PIN CONFIGURATIONS
D1
D0
Q0
Q0Q1Q1
VEES
6
5
D2
D
VEE
VEES
MR
Ea
12
13
3
14
Top View
15
16
17
PLCC
J28-1
1911201021922823724
D5
Q5
D4
Q5
VEES
25
Q4
Q2
4
3
Q2
2
VCCA
1
VCC
28
VCC
27
Q3
2618
Q
3Eb
Q4
EbEaM
VEED3D
2
E Q
R
D
3
D
2
D
1
0
D
D
E Q
R
D
E Q
R
D
E Q
R
D
E Q
R
4
1
D
4
D
5
Q
3
3
Q
2
2
Q
1
1
Q
0
0
2
3
Q
5
Q
5
Q
4
Q
4
Top View
Flatpack
4
F24-1
5
6
7248239221021112012
3
3
Q
Q
1
19
18
17
16
15
14
13
2
CC
V
2
Q
Q
CCA
V
Rev.: G Amendment: /0
Issue Date: July, 1999
D
1
D
0
Q
0
Q
0
Q
1
Q
1
Page 2
Micrel
PIN NAMES
Pin Function
D0 — D5 Data Inputs
Ea, Eb Common Enable Inputs (Active LOW)
MR Asynchronous Master Reset Input
Q0 — Q5 Data Outputs
Q0 — Q5 Complementary Data Outputs
VEES VEE Substrate
CCA VCCO for ECL Outputs
V
SY100S350
TRUTH TABLE
(1)
Each Latch
Inputs Outputs
Dn Ea Eb MR Qn Qn Operating Mode
H L L L H L Latch
LLLLLH
X X H L Latched
X H X L Latched
(2)
Latched
(2)
Latched
(2)
(2)
X X X H L H Asynchronous
NOTES:
1. H = HIGH State
L = LOW State
X = Don't Care
2. Retains data that is present before E positive transition.
DC ELECTRICAL CHARACTERISTICS
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
Symbol Parameter Min. Typ. Max. Unit Condition
I
IH Input HIGH Current µAVIN = VIH (Max.)
MR ——250
Dn ——250
Ea, Eb ——250
EE Power Supply Current –98 –78 –49 mA Inputs Open
I
2
Page 3
Micrel
SY100S350
AC ELECTRICAL CHARACTERISTICS
CERPACK
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
TA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
t
PLH Propagation Delay 300 1000 300 1000 300 1000 ps
tPHL Dn to Output
PLH Propagation Delay 300 1100 300 1100 300 1100 ps
t
tPHL Ea, Eb to Output
PLH Propagation Delay 300 1250 300 1250 300 1250 ps
t
tPHL MR to Output
TLH Transition Time 300 900 300 900 300 900 ps
t
tTHL 20% to 80%, 80% to 20%
tS Set-up Time, Dn to En 500 — 500 — 500 — ps
tH Hold Time, Dn to En 500 — 500 — 500 — ps
tr Release Time, MR to En 1000 — 1000 — 1000 — ps
tPW (L) Pulse Width, Ea, Eb 1000 — 1000 — 1000 — ps
PW (H) Pulse Width, MR 1000 — 1000 — 1000 — ps
t
PLCC
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
A = 0°CTA = +25°CTA = +85°C
T
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
PLH Propagation Delay 300 900 300 900 300 900 ps
t
tPHL Dn to Output
t
PLH Propagation Delay 300 1000 300 1000 300 1000 ps
tPHL Ea, Eb to Output
PLH Propagation Delay 300 1200 300 1200 300 1200 ps
t
tPHL MR to Output
TLH Transition Time 300 900 300 900 300 900 ps
t
tTHL 20% to 80%, 80% to 20%
tS Set-up Time, Dn to En 500 — 500 — 500 — ps
tH Hold Time, Dn to En 500 — 500 — 500 — ps
tr Release Time, MR to En 1000 — 1000 — 1000 — ps
tPW (L) Pulse Width, Ea, Eb 1000 — 1000 — 1000 — ps
PW (H) Pulse Width, MR 1000 — 1000 — 1000 — ps
t
3
Page 4
Micrel
TIMING DIAGRAMS
SY100S350
DATA
ENABLE
OUTPUT
TRANSPARENT
tPHL, tPLH
NOTE:
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
0.7 ± 0.1 ns
tW(L)
TRANSPARENTLATCHES
tPHL, tPLH tPHL, tPLH
80%
50%
20%
tTHL, tTLH
Enable Timing
–0.95V
–1.69V
–0.95V
–1.69V
DATA
ENABLE
MR
OUTPUT
tPHL, tPLH
TRANSPARENT
tW(L)
tR RELEASE TIME
tPHL, tPLH
Reset Timing
LATCHED
TRANSPARENT
tPHL, tPLH
4
Page 5
Micrel
TIMING DIAGRAMS
DATA
t
S
ENABLE
Data Set-up and Hold Times
NOTES:
tS is the minimum time before the transition of the clock that information must be present at the data input.
tH is the minimum time after the transition of the clock that information must remain unchanged at the data input.
t
h
SY100S350
PRODUCT ORDERING CODE
Ordering Package Operating
Code Type Range
SY100S350FC F24-1 Commercial
SY100S350JC J28-1 Commercial
SY100S350JCTR J28-1 Commercial
5
Page 6
Micrel

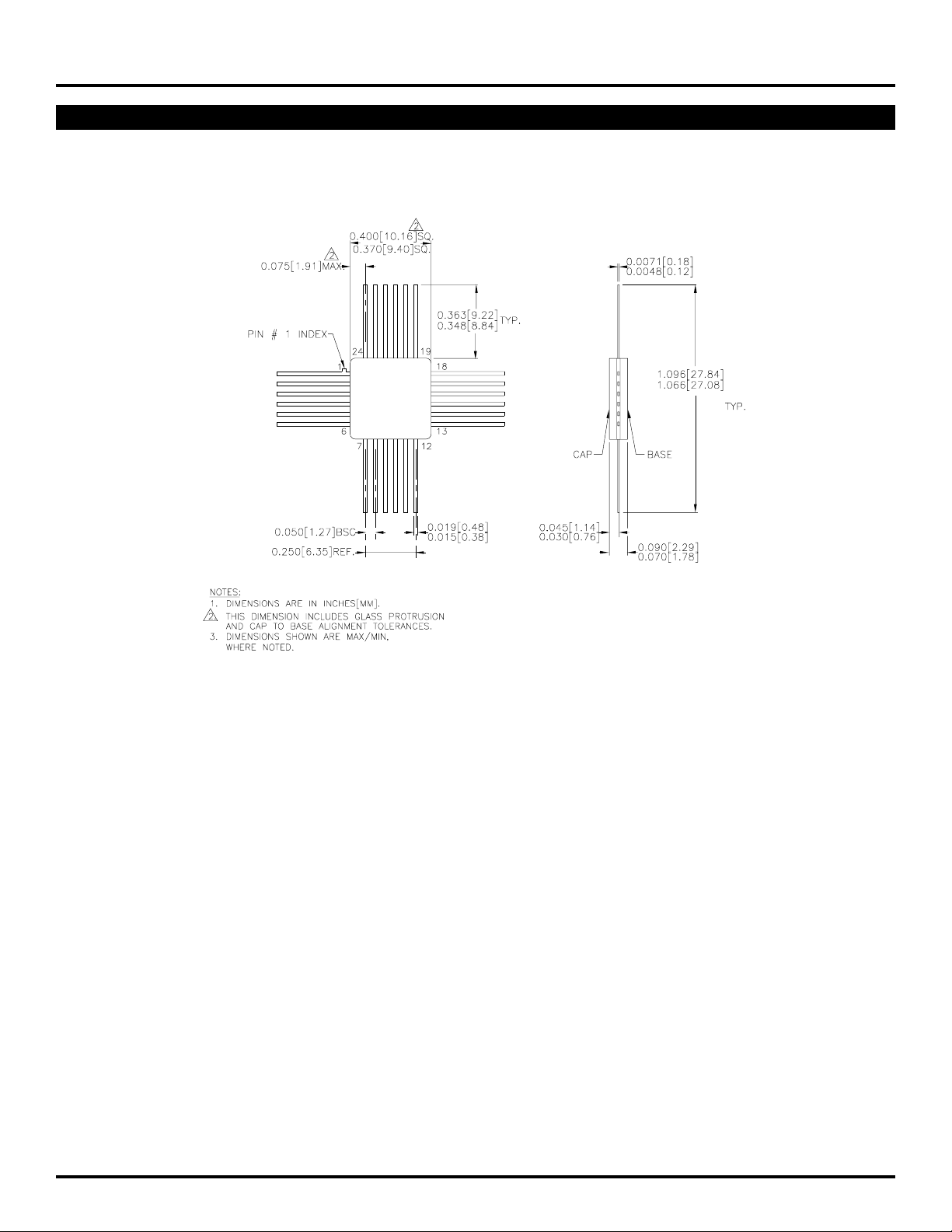

24 LEAD CERPACK (F24-1)
SY100S350
Rev. 03
6
Page 7
Micrel

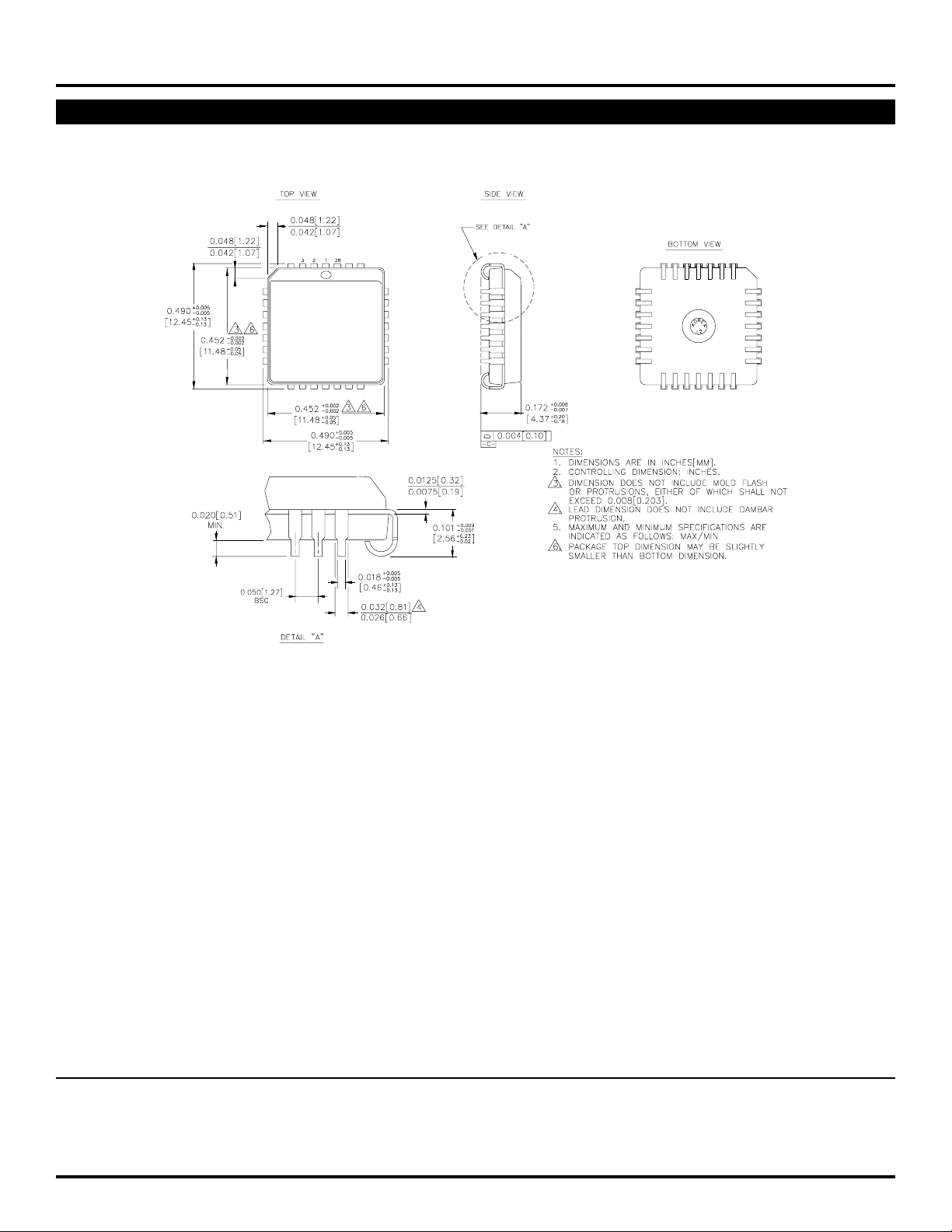

28 LEAD PLCC (J28-1)
SY100S350
Rev. 03
MICREL-SYNERGY 3250 SCOTT BOULEVARD SANTA CLARA CA 95054 USA
TEL + 1 (408) 980-9191 FAX + 1 (408) 914-7878 WEB http://www.micrel.com
This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or
other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc.
© 2000 Micrel Incorporated
7
