REGISTERED HEX
PECL-TO-TTL
SY10H607
SY100H607
FEATURES
■ Differential PECL data and clock inputs
■ 48mA sink, 15mA source TTL outputs
■ Single +5V power supply
■ Multiple power and ground pins to minimize noise
■ Specified within-device skew
■ VBB output for single-ended use
■ Fully compatible with Motorola MC10H/100H607
■ Available in 28-pin PLCC package
DESCRIPTION
The SY10/100H607 are 6-bit, registered, dual supply
PECL-to-TTL translators. The devices feature differential
PECL inputs for both data and clock. The TTL outputs
feature 48mA sink, 15mA source drive capability for
driving high fanout loads. The asynchronous master reset
control is a PECL level input.
With its differential PECL inputs and TTL outputs, the
H607 device is ideally suited for the receive function of a
HPPI bus-type board-to-board interface application. The
on-chip registers simplify the task of synchronizing the
data between the two boards.
The device is available in either ECL standard: the
10H device is compatible with 10K logic levels, while the
100H device is compatible with 100K logic levels.
BLOCK DIAGRAM PIN CONFIGURATION
Q3
25
24 23 22 21 20 19
26
27
28
1
2
3
4
567891011
D0
D
D
CLK
CLK
1 OF 6 BITS
n
n
DQ
CLK
R
Q
n
Q2
Q1
Q0
TGND
CLK
CLK
V
BB
TGND
VCCT
Q4
TOP VIEW
PLCC
0
D1
D
EGND
5
VCCT
MR
Q
1
D5
D5
D4
15
D4
1
VCCE
D3
12
D3
D2
D1
D2
MR
V
BB
PIN NAMES
Pin Function
D0 – D5 True PECL Data Inputs
D0 – D5 Inverted PECL Data Inputs
CLK, CLK Differential PECL Clock Input
MR PECL Master Reset Input
Q0 – Q5 TTL Outputs
VCCE PECL VCC (5.0V)
VCCT TTL VCC (5.0V)
TGND TTL Ground
EGND PECL Ground
BB VBB Reference Output (PECL)
V
1
Rev.: F Amendment: /1
Issue Date: February, 1998
Page 2
SY10H607
Micrel
SY100H607
TRUTH TABLE
Dn MR TCLK/CLK Qn + 1
LLZL
HLZH
XHXL
Z = Low to High Transition.
DC ELECTRICAL CHARACTERISTICS
VCCT = VCCE = 5.0V ±5%
TA= 0°CTA= +25°CTA= + 85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit Condition
I
EE PECL Power Supply Current mA
10H — 70 85 — 70 85 — 70 85
100H — 65 80 — 70 85 — 75 95
ICCL TTL Supply Current — 100 120 — 100 120 — 100 120 mA
ICCH TTL Supply Current — 100 120 — 100 120 — 100 120 mA
IOS Output Short Circuit Current –100 — –225 –100 — –225 –100 — –225 mA
10H PECL DC ELECTRICAL CHARACTERISTICS
(1)
VCCT = VCCE = 5.0V ±5%
TA= 0°CTA= +25°CTA= + 85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
IIH Input HIGH Current — 225 — 145 — 145 µA
IIL Input LOW Current 0.5 — 0.5 — 0.5 — µA
VIH Input HIGH Voltage 3830 4160 3870 4190 3930 4280 mV VCCT = 5.0V
VIL Input LOW Voltage 3050 3520 3050 3520 3050 3555 mV VCCT = 5.0V
VBB Output Bias Voltage 3620 3730 3650 3750 3690 3810 mV VCCT = 5.0V
NOTE:
1. PECL VIL, VIH, VOL, VOH, VBB are given for VCCT = VCCE = 5.0V and will vary 1:1 with power supply.
100H PECL DC ELECTRICAL CHARACTERISTICS
(1)
VCCT = VCCE = 5.0V ±5%
TA= 0°CTA= +25°CTA= + 85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
IIH Input HIGH Current — 225 — 145 — 145 µA
IIL Input LOW Current 0.5 — 0.5 — 0.5 — µA
VIH Input HIGH Voltage 3835 4120 3835 4120 3835 4120 mV VCCT = 5.0V
VIL Input LOW Voltage 3190 3525 3190 3525 3190 3525 mV VCCT = 5.0V
BB Output Bias Voltage 3620 3740 3620 3740 3620 3740 mV VCCT = 5.0V
V
NOTE:
1. PECL VIL, VIH, VOL, VOH, VBB are given for VCCT = VCCE = 5.0V and will vary 1:1 with power supply.
2
Page 3
Micrel
SY10H607
SY100H607
10H/100H TTL DC ELECTRICAL CHARACTERISTICS
(1)
VCCT = VCCE = 5.0V ±5%
TA= 0°CTA= +25°CTA= + 85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
OH Output HIGH Voltage 2.5 — 2.5 — 2.5 — V IOH = –15mA
V
2.0 — 2.0 — 2.0 — IOH = –24mA
OL Output LOW Voltage — 0.55 — 0.55 — 0.55 V IOL = 48mA
V
NOTE:
1. DC levels such as V
AC ELECTRICAL CHARACTERISTICS
OH, VOL, etc., are standard for PECL and FAST devices, with the exceptions of: IOL =48mA at 0.5 VOL; and IOH = 24mA at 2.0 VOH.
(1)
VCCT = VCCE = 5.0V ±5%
TA= 0°CTA= +25°CTA= + 85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit Condition
PLH Propagation Delay ns CL = 50 pF
t
tPHL to Output CLK to Q — — 6.0 — — 6.0 — — 6.0
MR to Q — — 6.0 — — 6.0 — — 6.0
tskpp Part-to-Part Skew
tskew++ Within-Device Skew
tskew– – Within-Device Skew
tS Set-up Time 0.200 — — 0.200 — — 0.200 — — ns
tH Hold Time 0.500 — — 0.500 — — 0.500 — — ns
PW Minimum Pulse Width ns
t
CLK, MR 1.0 — — 1.0 — — 1.0 — —
VPP Minimum Input Swing 200 150 — 200 150 — 200 150 — mV
r Rise/Fall Time — — 1.5 — — 1.5 — — 1.5 ns CL = 50pF
t
tf 1.0V to 2.0V
MAX Max. Input Frequency
f
NOTES:
1. Device-to-Device Skew considering HIGH-to-HIGH transitions at common VCC level.
2. Within-Device Skew considering HIGH-to-HIGH transitions at common VCC level.
3. Within-Device Skew considering LOW-to-LOW transitions at common VCC level.
4. All skew parameters are guaranteed but not tested.
5. Frequency at which output levels will meet a 0.8V to 2.0V minimum swing.
6. The fMAX value is specified as the minimum guaranteed maximum frequency. Actual operational maximum frequency may be greater.
(1,4)
(2,4)
(3,4)
(5,6)
— — 0.5 — — 0.5 — — 0.5 ns CL = 50pF
— — 0.3 — — 0.3 — — 0.3 ns CL = 50pF
— — 0.3 — — 0.3 — — 0.3 ns CL = 50pF
160 — — 160 — — 160 — — MHz
PRODUCT ORDERING CODE
Ordering Package Operating
Code Type Range
SY10H607JC J28-1 Commercial
SY10H607JCTR J28-1 Commercial
SY100H607JC J28-1 Commercial
SY100H607JCTR J28-1 Commercial
3
Page 4
Micrel

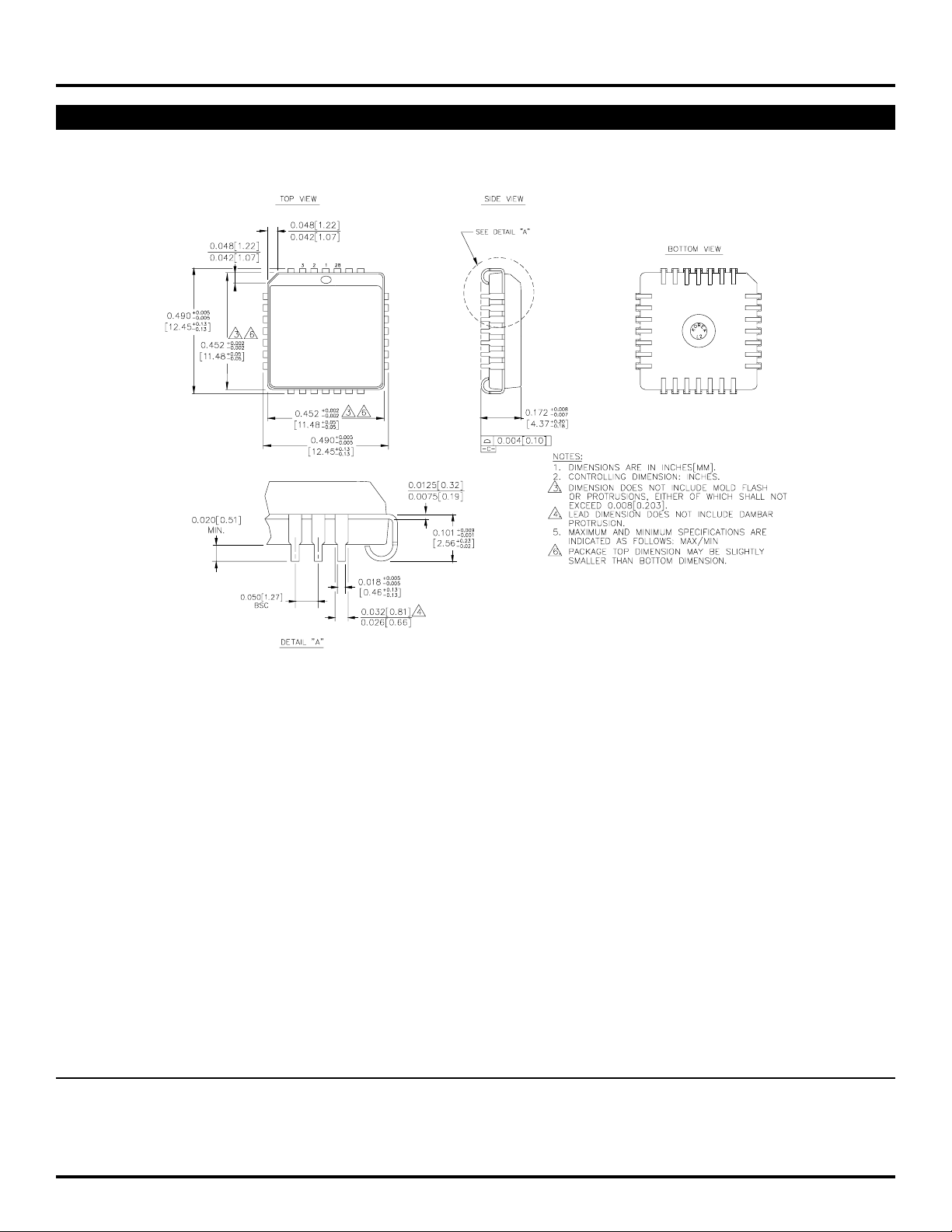

28 LEAD PLCC (J28-1)
SY10H607
SY100H607
Rev. 03
MICREL-SYNERGY 3250 SCOTT BOULEVARD SANTA CLARA CA 95054 USA
TEL + 1 (408) 980-9191 FAX + 1 (408) 914-7878 WEB http://www.micrel.com
