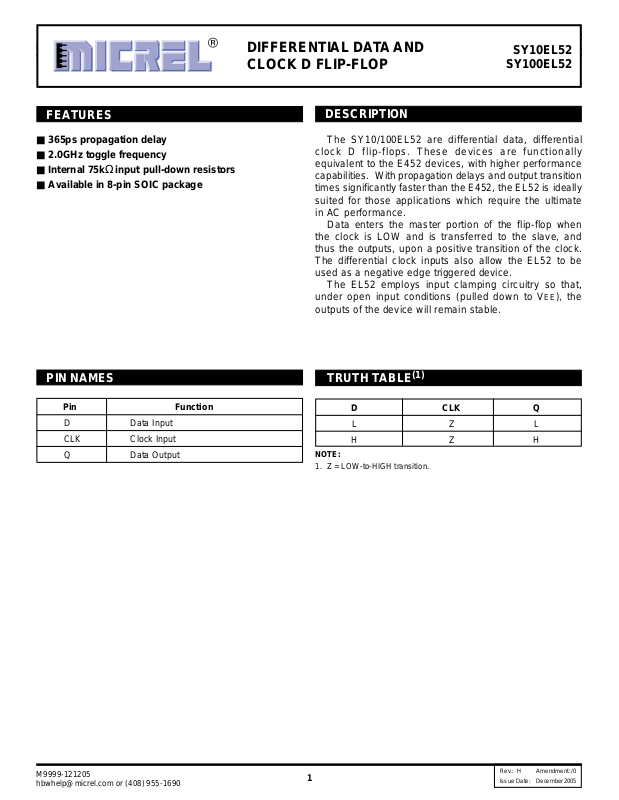

Page 1
Micrel, Inc.
DIFFERENTIAL DATA AND
CLOCK D FLIP-FLOP
SY10EL52
SY100EL52
SY10EL52
SY100EL52
FEATURES
■ 365ps propagation delay
■ 2.0GHz toggle frequency
■ Internal 75kΩ input pull-down resistors
■ Available in 8-pin SOIC package
PIN NAMES
Pin Function
D Data Input
CLK Clock Input
Q Data Output
DESCRIPTION
The SY10/100EL52 are differential data, differential
clock D flip-flops. These devices are functionally
equivalent to the E452 devices, with higher performance
capabilities. With propagation delays and output transition
times significantly faster than the E452, the EL52 is ideally
suited for those applications which require the ultimate
in AC performance.
Data enters the master portion of the flip-flop when
the clock is LOW and is transferred to the slave, and
thus the outputs, upon a positive transition of the clock.
The differential clock inputs also allow the EL52 to be
used as a negative edge triggered device.
The EL52 employs input clamping circuitry so that,
under open input conditions (pulled down to VEE), the
outputs of the device will remain stable.
TRUTH TABLE
D CLK Q
LZL
HZH
NOTE:
1. Z = LOW-to-HIGH transition.
(1)
M9999-121205
[email protected] or (408) 955-1690
1
Rev.: H Amendment: /0
Issue Date:
December 2005
Page 2
Micrel, Inc.
PACKAGE/ORDERING INFORMATION
SY10EL52
SY100EL52
1
DVCC
2
D
3
45
CLK
D
Flip-Flop
8
7
Q
6
QCLK
EE
V
8-Pin SOIC (Z8-1)
Ordering Information
(1)
Package Operating Package Lead
Part Number Type Range Marking Finish
SY10EL52ZC Z8-1 Commercial HEL52 Sn-Pb
SY10EL52ZCTR
(2)
Z8-1 Commercial HEL52 Sn-Pb
SY100EL52ZC Z8-1 Commercial XEL52 Sn-Pb
SY100EL52ZCTR
(2)
Z8-1 Commercial XEL52 Sn-Pb
SY10EL52ZI Z8-1 Industrial HEL52 Sn-Pb
SY10EL52ZITR
(2)
Z8-1 Industrial HEL52 Sn-Pb
SY100EL52ZI Z8-1 Industrial XEL52 Sn-Pb
(3)
(2)
Z8-1 Industrial XEL52 Sn-Pb
Z8-1 Industrial HEL52 with Pb-Free
SY100EL52ZITR
SY10EL52ZG
Pb-Free bar-line indicator NiPdAu
SY10EL52ZGTR
(2, 3)
Z8-1 Industrial HEL52 with Pb-Free
Pb-Free bar-line indicator NiPdAu
SY100EL52ZG
(3)
Z8-1 Industrial XEL52 with Pb-Free
Pb-Free bar-line indicator NiPdAu
SY100EL52ZGTR
(2, 3)
Z8-1 Industrial XEL52 with Pb-Free
Pb-Free bar-line indicator NiPdAu
Notes:
1. Contact factory for die availability. Dice are guaranteed at TA = 25°C, DC Electricals only.
2. Tape and Reel.
3. Pb-Free package is recommended for new designs.
M9999-121205
[email protected] or (408) 955-1690
2
Page 3
Micrel, Inc.
SY100EL52
DC ELECTRICAL CHARACTERISTICS
SY10EL52
VEE = VEE (Min.) to VEE (Max.); VCC = GND
TA = –40°CTA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit
EE Power Supply 10EL — 21 25 17 21 25 17 21 25 17 21 25 mA
I
Current 100EL — 21 25 17 21 25 17 21 25 19 24 29
VEE Power Supply 10EL –4.75 –5.2 –5.5 –4.75 –5.2 –5.5 –4.75 –5.2 –5.5 –4.75 –5.2 –5.5 V
Voltage 100EL –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5
IH Input HIGH Current — — 150 — — 150 — — 150 — — 150 µA
I
AC ELECTRICAL CHARACTERISTICS
VEE = VEE (Min.) to VEE (Max.); VCC = GND
TA = –40°CTA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit
MAX Maximum Toggle 1.8 2.5 — 2.2 2.8 — 2.2 2.8 — 2.2 2.8 — GHz
f
Frequency
PD Propagation Delay to ps
t
Output CLK 235 335 515 275 365 465 275 365 465 320 410 510
tS Set-up Time 125 0 — 125 0 — 125 0 — 125 0 — ps
tH Hold Time 150 50 — 150 50 — 150 50 — 150 50 — ps
tPW Minimum Pulse Width 400 — — 400 — — 400 — — 400 — — ps
VPP Minimum Input Swing
CMR Common Mode Range
V
D (10EL) –0.4 — –1.6 –0.4 — –1.6 –0.4 — –1.6 –0.4 — –1.6
D (100EL) –0.4 — –1.2 –0.4 — –1.2 –0.4 — –1.2 –0.4 — –1.2
CLK (10EL) –0.6 —
CLK (100EL) –0.8 —
tr Output Rise/Fall Times Q 100 225 350 100 225 350 100 225 350 100 225 350 ps
tf (20% to 80%)
(1)
150 — — 150 — — 150 — — 150 — — mV
(2)
(3)
(3)
–0.6 —
–0.8 —
(3)
(3)
–0.6 —
–0.8 —
(3)
(3)
–0.6 —
–0.8 —
(3)
(3)
V
NOTES:
1. Minimum input swing for which AC parameters are guaranteed.
2. The CMR range is referenced to the most positive side of the differential input signal. Normal operation is obtained if the HIGH level falls within the specified
range and the peak-to-peak voltage lies between VPP min. and 1V.
3. The lower end of the CMR range is dependent on VEE and is equal to VEE + 3.0V.
M9999-121205
[email protected] or (408) 955-1690
3
Page 4
Micrel, Inc.

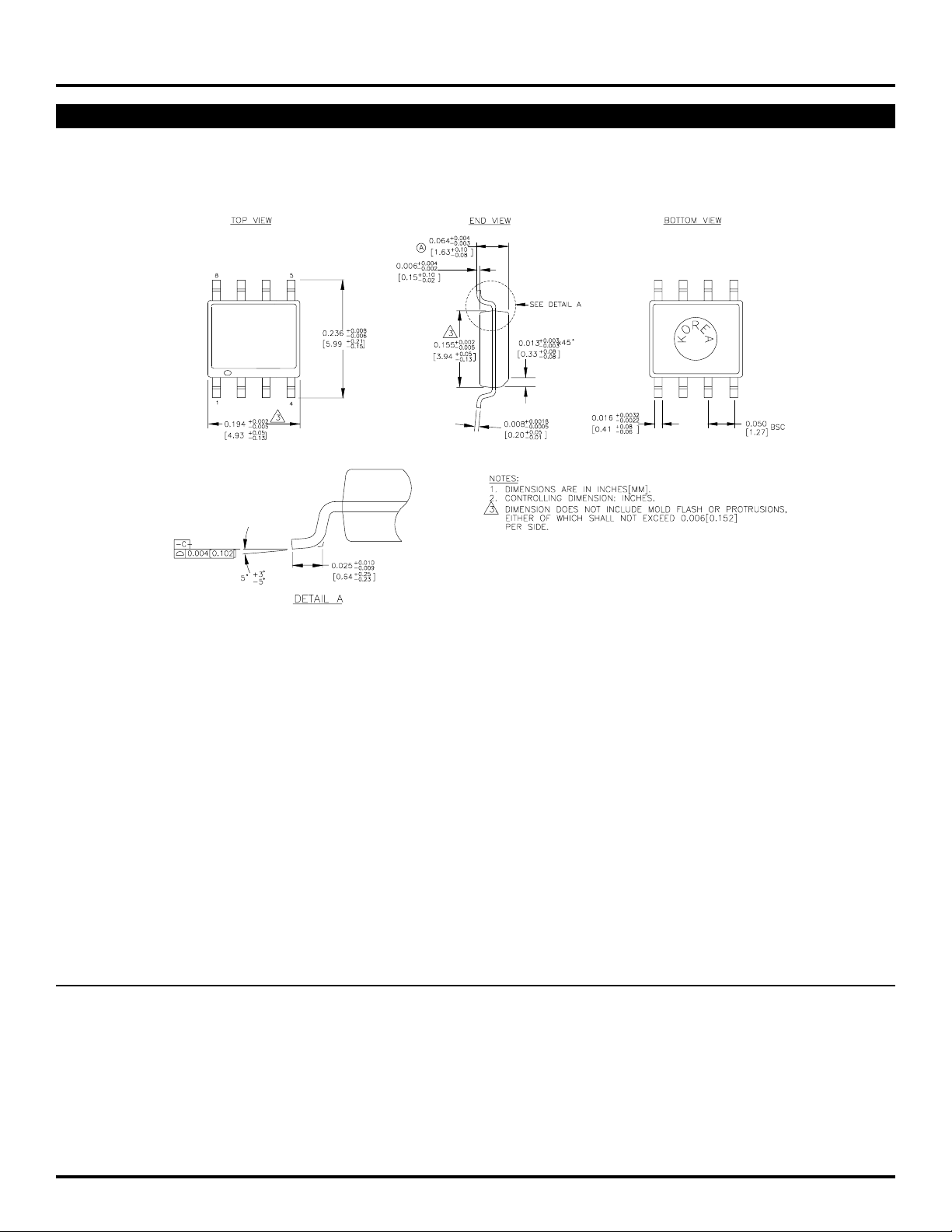

8-PIN SOIC .150" WIDE (Z8-1)
SY10EL52
SY100EL52
Rev. 03
MICREL, INC. 2180 FORTUNE DRIVE SAN JOSE, CA 95131 USA
TEL + 1 (408) 944-0800 FAX + 1 (408) 474-1000 WEB http://www.micrel.com
The information furnished by Micrel in this datasheet is believed to be accurate and reliable. However, no responsibility is assumed by Micrel for its use.
Micrel reserves the right to change circuitry and specifications at any time without notification to the customer.
Micrel Products are not designed or authorized for use as components in life support appliances, devices or systems where malfunction of a product can
reasonably be expected to result in personal injury. Life support devices or systems are devices or systems that (a) are intended for surgical implant into
the body or (b) support or sustain life, and whose failure to perform can be reasonably expected to result in a significant injury to the user. A Purchaser’s
use or sale of Micrel Products for use in life support appliances, devices or systems is at Purchaser’s own risk and Purchaser agrees to fully indemnify
M9999-121205
[email protected] or (408) 955-1690
Micrel for any damages resulting from such use or sale.
© 2005 Micrel, Incorporated.
