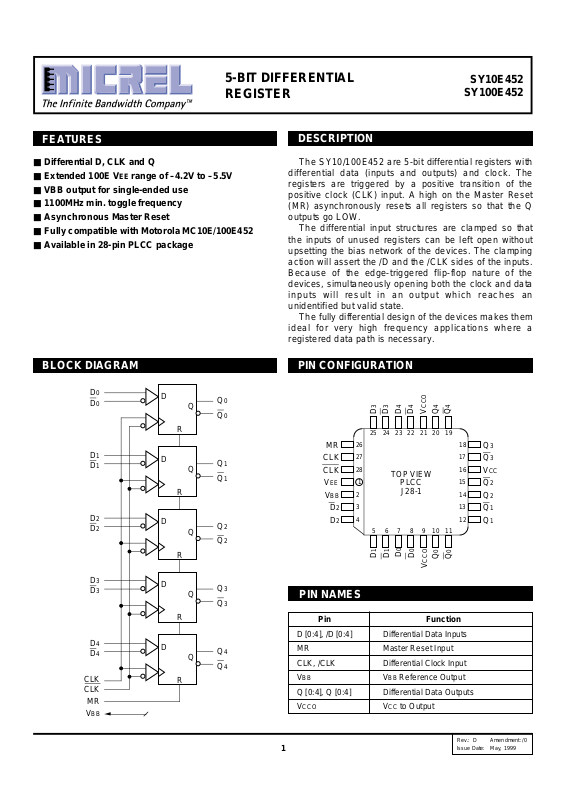

Page 1

Pin Function

D [0:4], /D [0:4] Differential Data Inputs MR Master Reset Input CLK, /CLK Differential Clock Input VBB VBB Reference Output Q [0:4], Q [0:4] Differential Data Outputs V

CCO VCC to Output

DESCRIPTION

FEATURES

■ Differential D, CLK and Q

■ Extended 100E VEE range of –4.2V to –5.5V

■ VBB output for single-ended use

■ 1100MHz min. toggle frequency

■ Asynchronous Master Reset

■ Fully compatible with Motorola MC10E/100E452

■ Available in 28-pin PLCC package

The SY10/100E452 are 5-bit differential registers with differential data (inputs and outputs) and clock. The registers are triggered by a positive transition of the positive clock (CLK) input. A high on the Master Reset (MR) asynchronously resets all registers so that the Q outputs go LOW.

The differential input structures are clamped so that the inputs of unused registers can be left open without upsetting the bias network of the devices. The clamping action will assert the /D and the /CLK sides of the inputs. Because of the edge-triggered flip-flop nature of the devices, simultaneously opening both the clock and data inputs will result in an output which reaches an unidentified but valid state.

The fully differential design of the devices makes them ideal for very high frequency applications where a registered data path is necessary.

5-BIT DIFFERENTIAL REGISTER

SY10E452

SY100E452

Rev.: D Amendment: /0 Issue Date: May, 1999

BLOCK DIAGRAM

CLK CLK

PIN CONFIGURATION

PIN NAMES

18 17 16 15 14 13 12

567891011

26 27 28

1 2 3 4

TOP VIEW

PLCC

J28-1

24 23 22 21 20 19

CLK

CCO

D1D

CCO

Page 2

SY10E452

SY100E452

Micrel

DC ELECTRICAL CHARACTERISTICS

VEE = VEE (Min.) to VEE (Max.); VCC = VCCO = GND

TA = -40°CTA = 0°CTA = +25°CTA = +85°C

Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit

BB Output Reference 10E -1.43 — -1.30 -1.38 — -1.27 -1.35 — -1.25 -1.31 — -1.19 V

Voltage 100E -1.38 — -1.26 -1.38 — -1.26 -1.38 — -1.26 -1.38 — -1.26 IIH Input HIGH Current — — 150 — — 150 — — 150 — — 150 µA I

EE Power Supply 10E — 74 89 — 74 89 — 74 89 — 74 89 mA

Current 100E — 74 89 — 74 89 — 74 89 — 85 102 V

CMR Common Mode Range

(1)

-2.0 — -0.4 -2.0 — -0.4 -2.0 — -0.4 -2.0 — -0.4 V

NOTE:

1. VCMR is referenced to the most positive side of the differential input signal. Normal operation is obtained when the input signals are within the VCMR range and the input swing is greater than VPP (min.) and <1V.

AC ELECTRICAL CHARACTERISTICS

VEE = VEE (Min.) to VEE (Max.); VCC = VCCO = GND

TA = -40°CTA = 0°CTA = +25°CTA = +85°C

Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit

fMAX Max. Toggle Frequency 1000 1400 — 1100 1400 — 1100 1400 — 1100 1400 — MHz t

PLH Propagation Delay to ps

tPHL Output CLK (Diff) 425 600 850 475 600 800 475 600 800 475 600 800

CLK (SE) 375 600 900 425 600 850 425 600 850 425 600 850

MR 375 625 900 425 625 850 425 625 850 425 625 850 tS Set-up Time, D 175 –50 — 150 –50 — 150 –50 — 150 –50 — ps tH Hold Time, D 225 50 — 200 50 — 200 50 — 200 50 — ps tRR Reset Recovery Time 750 450 — 700 450 — 700 450 — 700 450 — ps t

PW Minimum Pulse Width ps

CLK 400 — — 400 — — 400 — — 400 — —

MR 400 — — 400 — — 400 — — 400 — — tskew Within-Device Skew

(1)

—50——50——50——50—ps

VPP (AC) Minimum Input Swing

(2)

150 — — 150 — — 150 — — 150 — — mV

r Rise/Fall Time 250 475 725 275 475 675 275 475 675 275 475 675 ps

tf 20–80%

NOTES:

1. Within-device skew is defined as identical transitions on similar paths through a device.

2. Minimum input swing for which AC parameters are guaranteed.

Ordering Package Operating

Code Type Range

SY10E452JI J28-1 Industrial SY10E452JITR J28-1 Industrial SY100E452JI J28-1 Industrial SY100E452JITR J28-1 Industrial

PRODUCT ORDERING CODE

Ordering Package Operating

Code Type Range

SY10E452JC J28-1 Commercial SY10E452JCTR J28-1 Commercial SY100E452JC J28-1 Commercial SY100E452JCTR J28-1 Commercial

Page 3

SY10E452

SY100E452

Micrel

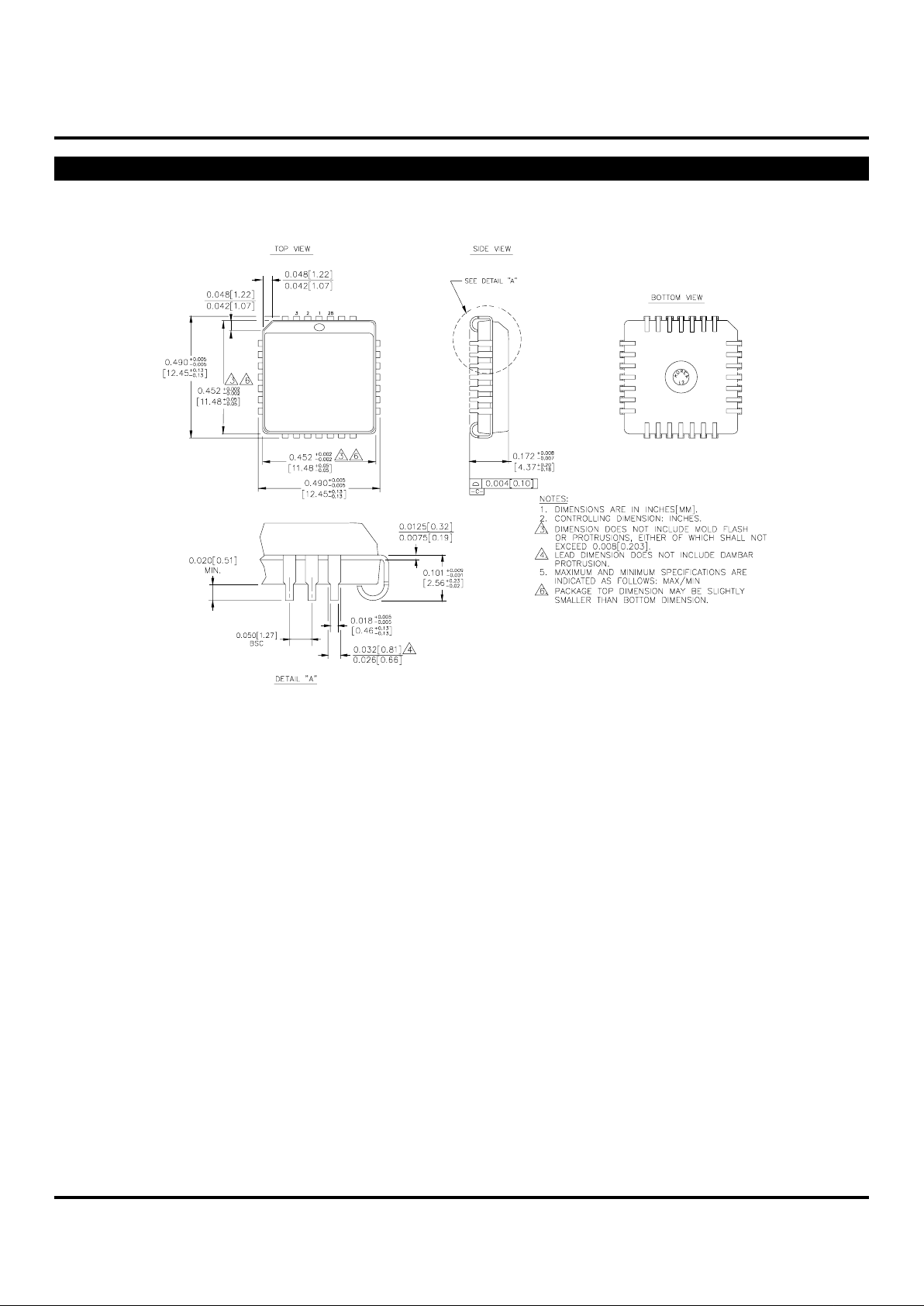

28 LEAD PLCC (J28-1)

Rev. 03

Page 4

SY10E452

SY100E452

Micrel

MICREL-SYNERGY 3250 SCOTT BOULEVARD SANTA CLARA CA 95054 USA

TEL + 1 (408) 980-9191 FAX + 1 (408) 914-7878 WEB http://www.micrel.com

This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or

other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc.
