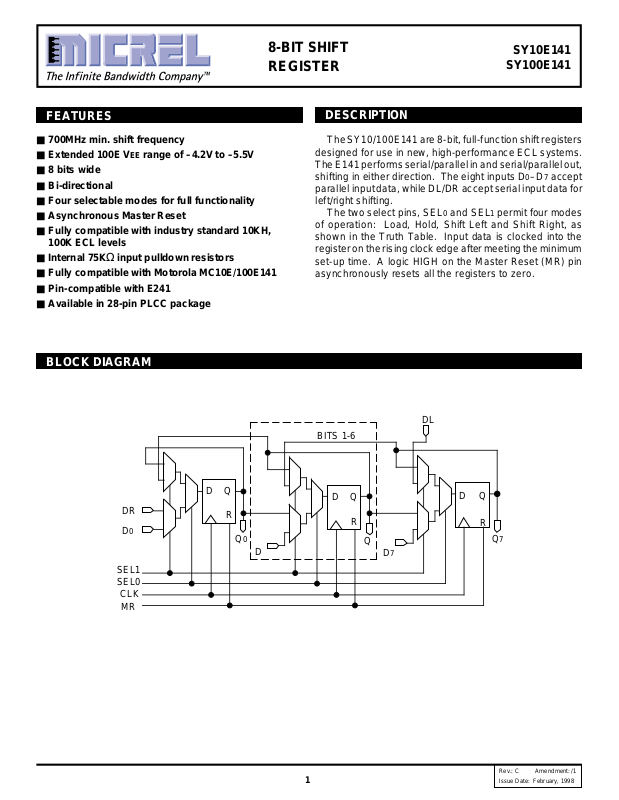

8-BIT SHIFT
REGISTER
SY10E141
SY100E141
FEATURES
■ 700MHz min. shift frequency
■ Extended 100E VEE range of –4.2V to –5.5V
■ 8 bits wide
■ Bi-directional
■ Four selectable modes for full functionality
■ Asynchronous Master Reset
■ Fully compatible with industry standard 10KH,
100K ECL levels
■ Internal 75KΩ input pulldown resistors
■ Fully compatible with Motorola MC10E/100E141
■ Pin-compatible with E241
■ Available in 28-pin PLCC package
BLOCK DIAGRAM
DESCRIPTION
The SY10/100E141 are 8-bit, full-function shift registers
designed for use in new, high-performance ECL systems.
The E141 performs serial/parallel in and serial/parallel out,
shifting in either direction. The eight inputs D0–D7 accept
parallel input data, while DL/DR accept serial input data for
left/right shifting.
The two select pins, SEL0 and SEL1 permit four modes
of operation: Load, Hold, Shift Left and Shift Right, as
shown in the Truth Table. Input data is clocked into the
register on the rising clock edge after meeting the minimum
set-up time. A logic HIGH on the Master Reset (MR) pin
asynchronously resets all the registers to zero.
DR
D
0
SEL1
SEL0
CLK
MR
DQ
R
DL
BITS 1-6
Q
DQ
R
Q
0
D
Q
D
7
D
R
Q
7
Rev.: C Amendment: /1
1
Issue Date: February, 1998
Page 2
Micrel
SY10E141
SY100E141
PIN CONFIGURATION
0
7
SEL
DL
25 24 23 22 21 20 19
SEL
1
26
CLK
MR
V
DR
EE
D
D
27
28
1
2
0
3
1
4
567891011
3
2
D
D
PLCC
TOP VIEW
J28-1
4
D
TRUTH TABLE
D6D
CCO
V
PIN NAMES
7
5
CCO
Q
V
D
18
Q
6
17
Q
5
16
V
CC
NC
15
14
13
12
1
0
2
Q
Q
Q
V
Q
Q
CCO
4
3
Pin Function
D0-D7 Parallel Data Inputs
DL, DR Serial Data Inputs
SEL0, SEL1 Mode Select Inputs
CLK Clock
Q0-Q7 Data Outputs
MR Master Reset
V
CCO VCC to Output
Function DL DR SEL0 SEL1 MR CLK Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7
Load X X L L L Z D0 D1 D2 D3 D4 D5 D6 D7
Shift Right X L L H L Z L Q0 Q1 Q2 Q3 Q4 Q5 Q6
XHLHLZ HLQ0 Q1 Q2 Q3 Q4 Q5
Shift Left L X H L L Z L Q0 Q1 Q2 Q3 Q4 Q5 L
HXHLLZQ0 Q1 Q2 Q3 Q4 Q5 LH
Hold X X H H L Z Q
0 Q1 Q2 Q3 Q4 Q5 LH
XXHHLZQ0 Q1 Q2 Q3 Q4 Q5 LH
Reset XXXXHX LLLLLLLL
DC ELECTRICAL CHARACTERISTICS
VEE = VEE (Min.) to VEE (Max.); VCC = VCCO = GND
TA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit Condition
IIH Input HIGH Current ——150 ——150 ——150 µA —
EE Power Supply Current mA —
I
10E — 131 157 — 131 157 — 131 157
100E — 131 157 — 131 157 — 151 181
2
Page 3
Micrel
SY100E141
AC ELECTRICAL CHARACTERISTICS
VEE = VEE (Min.) to VEE (Max.); VCC = VCCO = GND
TA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit Condition
fSHIFT Max. Shift Frequency 700 900 — 700 900 — 700 900 — MHz —
PLH Propagation Delay to Output ps —
t
t
PHL CLK 625 750 975 625 750 975 625 750 975
MR 600 725 975 600 725 975 600 725 975
S Set-up Time ps —
t
D17525— 175 25 — 175 25 —
SEL0 350 200 — 350 200 — 350 200 —
SEL1 300 150 — 300 150 — 300 150 —
H Hold Time ps —
t
D200–25 — 200 –25 — 200 –25 —
SEL0 100 –200 — 100 –200 — 100 –200 —
SEL1 100 –150 — 100 –150 — 100 –150 —
tRR Reset Recovery Time 900 700 — 900 700 — 900 700 — ps —
t
PW Minimum Pulse Width 400 ——400 ——400 ——ps —
CLK, MR
tskew Within-Device Skew — 60 ——60 ——60 — ps 1
r Rise/Fall Time 300 525 800 300 525 800 300 525 800 ps —
t
tf 20% to 80%
NOTE:
1. Within-device skew is defined as identical transitions on similar paths through a device.
SY10E141
PRODUCT ORDERING CODE
Ordering Package Operating
Code Type Range
SY10E141JC J28-1 Commercial
SY10E141JCTR J28-1 Commercial
SY100E141JC J28-1 Commercial
SY100E141JCTR J28-1 Commercial
3
Page 4
Micrel

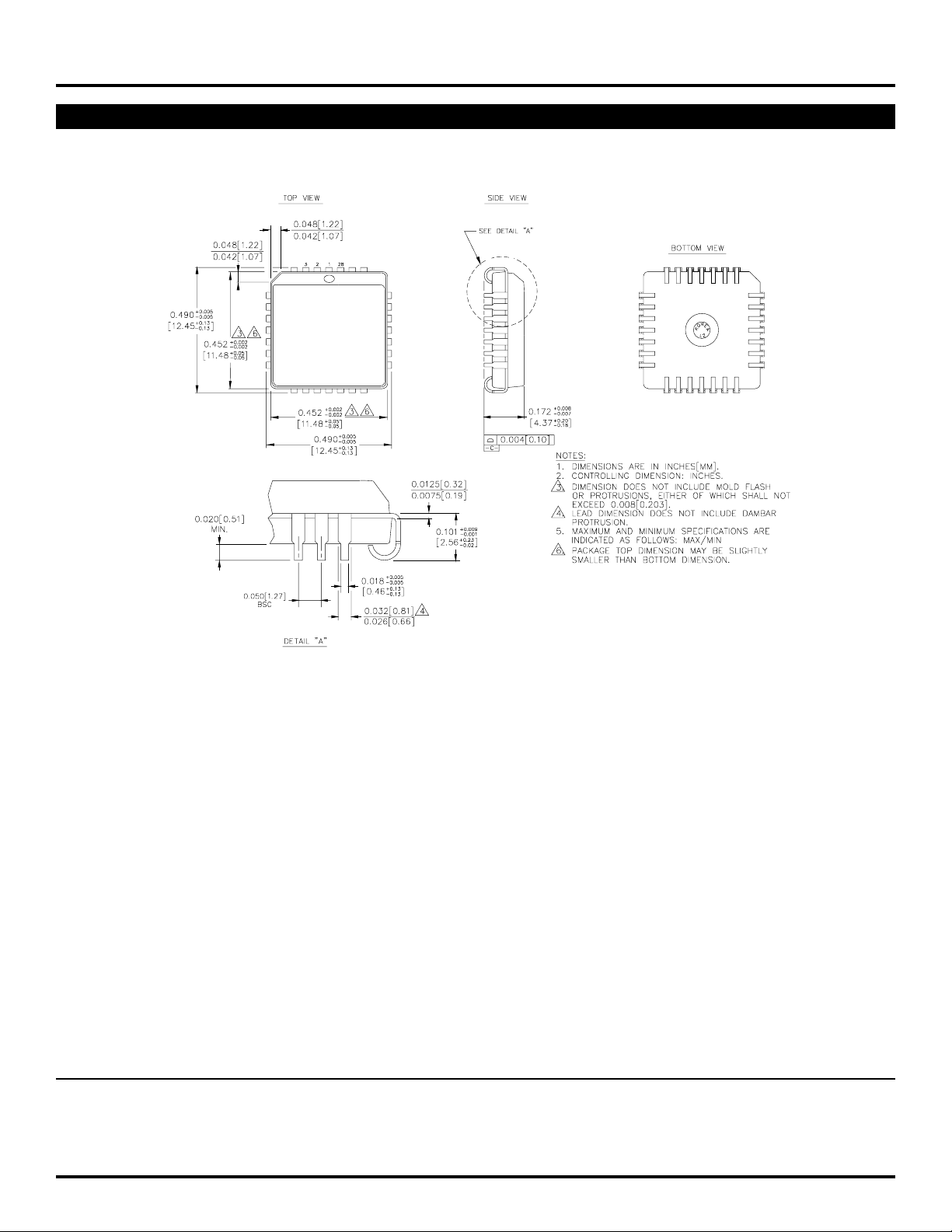

28 LEAD PLCC (J28-1)
SY10E141
SY100E141
Rev. 03
MICREL-SYNERGY 3250 SCOTT BOULEVARD SANTA CLARA CA 95054 USA
TEL + 1 (408) 980-9191 FAX + 1 (408) 914-7878 WEB http://www.micrel.com
This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or
other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc.
© 2000 Micrel Incorporated
4
