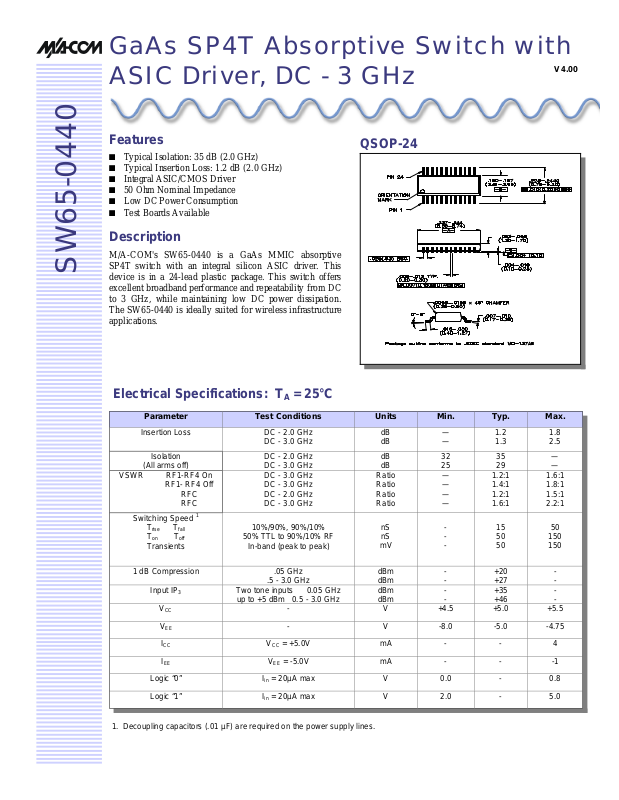

GaAs SP4T Absorptive Switch with

V 4.00

ASIC Driver, DC - 3 GHz

SW65-0440

Features

n Typical Isolation: 35 dB (2.0 GHz)
n Typical Insertion Loss: 1.2 dB (2.0 GHz)
n Integral ASIC/CMOS Driver
n 50 Ohm Nominal Impedance
n Low DC Power Consumption
n Test Boards Available

Description

M/A-COM's SW65-0440 is a GaAs MMIC absorptive
SP4T switch with an integral silicon ASIC driver. This
device is in a 24-lead plastic package. This switch offers
excellent broadband performance and repeatability from DC
to 3 GHz, while maintaining low DC power dissipation.
The SW65-0440 is ideally suited for wireless infrastructure
applications.

Electrical Specifications: TA = 25°C

Parameter Test Conditions Units Min. Typ. Max.

Insertion Loss DC - 2.0 GHz

Isolation

(All arms off)

VSWR RF1-RF4 On

RF1- RF4 Off

RFC
RFC

Switching Speed 1

T

T

rise

Ton T
Transients

fall
off

DC - 3.0 GHz
DC - 2.0 GHz

DC - 3.0 GHz
DC - 3.0 GHz
DC - 3.0 GHz
DC - 2.0 GHz
DC - 3.0 GHz

10%/90%, 90%/10%

50% TTL to 90%/10% RF

In-band (peak to peak)

QSOP-24

dB
dB

dB

dB
Ratio
Ratio
Ratio
Ratio

nS

nS

mV

—
—

32
25
—
—
—
—

-

-

-

1.2

1.3
35

29

1.2:1

1.4:1

1.2:1

1.6:1

15
50
50

1.8

2.5
—

—

1.6:1

1.8:1

1.5:1

2.2:1

50

150
150

1 dB Compression .05 GHz

Input IP

3

V

CC

V

EE

I

CC

I

EE

Logic “0” I
Logic “1” I

1. Decoupling capacitors (.01 µF) are required on the power supply lines.

Two tone inputs 0.05 GHz

.5 - 3.0 GHz

up to +5 dBm 0.5 - 3.0 GHz

- V +4.5 +5.0 +5.5

- V -8.0 -5.0 -4.75

V

= +5.0V mA - - 4

CC

V

= -5.0V mA - - -1

EE

= 20µA max V 0.0 - 0.8

in

= 20µA max V 2.0 - 5.0

in

dBm
dBm
dBm
dBm

-

-

-

-

+20
+27
+35
+46

-

-

-

-

GaAs SP4T Absorptive Switch with ASIC Driver, DC - 3 GHz

SW65-0440

V 4.00

Recommended PCB Layout—SP4T

Recommended PCB Layout—SP2T

Pin Configuration

Pin No. Function Pin No. Function

1 RFC 13 C4
2 GND 14 C3
3 RF1 15 GND
4 GND 16 GND
5 RF2 17 GND
6 N/C 18 N/C
7 N/C 19 N/C
8 N/C 20 RF3

9 V
10 V
11 C1 23 GND
12 C2 24 GND

N/C = No Connection

EE

CC

Absolute Maximum Ratings

Parameter Absolute Maximum

Max. Input Power

0.05 GHz

0.5 - 4.0 GHz

Bias Voltages

VEE
VCC

Control Voltage 4

Storage Temperature -65°C to +125°C

Operating Temperature -40°C to +85°C

21 GND
22 RF4

2,3

+27 dBm
+34 dBm

-8.5V

+5.5V

-0.5V to VCC +0.5V

Specifications subject to change without notice.

n North America: Tel. [phone]
n Asia/Pacific: Tel.[phone], Fax [phone]
n Europe: Tel. [phone], Fax[phone]

Visit www.macom.com for additional data sheets and product information.

2. Operation of this device above any one of these
parameters may cause permanent damage.

3. When the RF input is applied to the terminated port, the
absolute maximum power is +30 dBm.

4. Standard CMOS TTL interface, latch-up will occur if logic
signal is applied prior to power supply.

Truth Table

TTL

C1 C2 C3 C4 RF1 RF2 RF3 RF4

1 0 0 0 On Off Off Off
0 1 0 0 Off On Off Off
0 0 1 0 Off Off On Off
0 0 0 1 Off Off Off On

RF Common To:

2

GaAs SP4T Absorptive Switch with ASIC Driver, DC - 3 GHz

Typical Performance Curves

Loss Variation Over Temp. (dB) Insertion Loss (dB) @ +25°C

RF4RF3RF2 RF1

3

3

SW65-0440

V 4.00

-40 °C+25 °C +85 °C

2

Loss (dB)

1

0

0.003 1 2 3 4

Frequency (GHz)

RF1 - RF4 On VSWR @ +25°C

RF1 RF2 RF3RF4

2.5

2.0

1.5

VSWR (Ratio)

1.0

0.003 1 2 3 4

Frequency (GHz)

2

Loss (dB)

1

0

0.003 1 2 3 4

Frequency (GHz)

RF1 - RF4 On VSWR Temp. Variation

+25 °C+85 °C -40 °C

2.5

2.0

1.5

VSWR (Ratio)

1.0

0.003 1 2 3 4

Frequency (GHz)

RFC On VSWR @ +25°C

RF1 RF2 RF3 RF4

2.5

2.0

1.5

VSWR (Ratio)

1.0

0.003 1 2 3 4

Frequency (GHz)

Specifications subject to change without notice.

n North America: Tel. [phone]
n Asia/Pacific: Tel.[phone], Fax [phone]
n Europe: Tel. [phone], Fax[phone]

Visit www.macom.com for additional data sheets and product information.

RFC On VSWR Temp. Variation

+85°C

2.5

2.0

1.5

VSWR (Ratio)

1.0

0.003 1 2 3 4

Frequency (GHz)

+25°C -40°C

3

GaAs SP4T Absorptive Switch with ASIC Driver, DC - 3 GHz

Typical Performance Curves

RF1 - RF4 Off VSWR Temp. Variation RF1 - RF4 Off VSWR @ +25°C

2.5

2.5

SW65-0440

V 4.00

-40°C +85°C+25°C

2.0

1.5

VSWR (Ratio)

1.0

0.003 1 2 3 4

Frequency (GHz)

Isolation (dB) @ +25°C

RF1RF2 RF3 RF4

100

80

60

40

Isolation (dB)

20

0

0.003 1 2 3 4

Frequency (GHz)

2.0

1.5

VSWR (Ratio)

1.0

0.003 1 2 3 4

Frequency (GHz)

Isolation Temp. Variation (dB)

+25°C, 40°C, +85°C

100

80

60

40

Isolation (dB)

20

0

0.003 1 2 3 4

Frequency (GHz)

Evaluation Board
P/N SW65-0440-TB

Specifications subject to change without notice.

n North America: Tel. [phone]
n Asia/Pacific: Tel.[phone], Fax [phone]
n Europe: Tel. [phone], Fax[phone]

Visit www.macom.com for additional data sheets and product information.

Ordering Information

Part Number Package

SW65-0440 Bulk Packaging

SW65-0440TR Tape and Reel (1K Reel)

SW65-0440-TB Unit Mounted on Test Board

4
