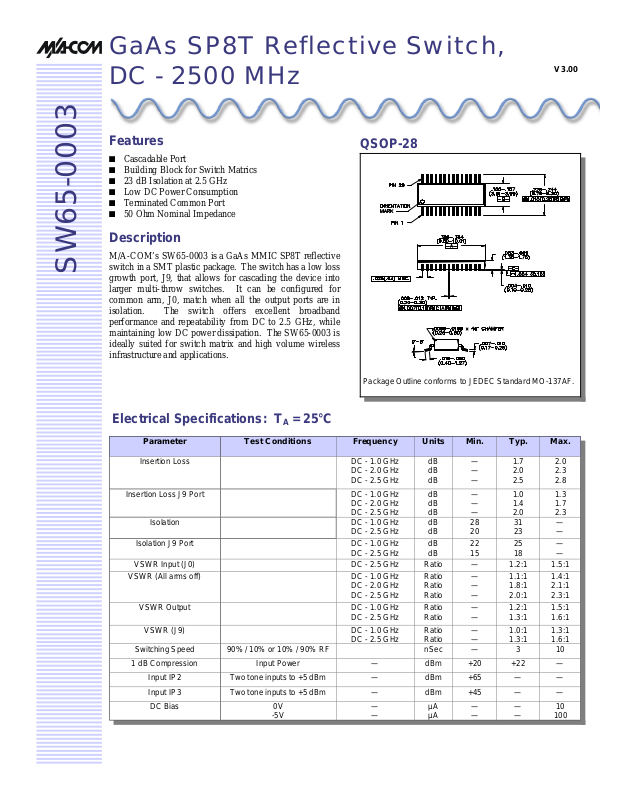

GaAs SP8T Reflective Switch,
DC - 2500 MHz

V 3.00

SW65-0003

Features

n Cascadable Port
n Building Block for Switch Matrics
n 23 dB Isolation at 2.5 GHz
n Low DC Power Consumption
n Terminated Common Port
n 50 Ohm Nominal Impedance

Description

M/A-COM’s SW65-0003 is a GaAs MMIC SP8T reflective
switch in a SMT plastic package. The switch has a low loss
growth port, J9, that allows for cascading the device into
larger multi-throw switches. It can be configured for
common arm, J0, match when all the output ports are in
isolation. The switch offers excellent broadband
performance and repeatability from DC to 2.5 GHz, while
maintaining low DC power dissipation. The SW65-0003 is
ideally suited for switch matrix and high volume wireless
infrastructure and applications.

Electrical Specifications: TA = 25°C

QSOP-28

Package Outline conforms to JEDEC Standard MO-137AF.

Parameter Test Conditions Frequency Units Min. Typ. Max.

Insertion Loss DC - 1.0 GHz

Insertion Loss J9 Port

Isolation

Isolation J9 Port DC - 1.0 GHz

VSWR Input (J0) DC - 2.5 GHz Ratio — 1.2:1 1.5:1

VSWR (All arms off) DC - 1.0 GHz

VSWR Output DC - 1.0 GHz

VSWR (J9) DC - 1.0 GHz

Switching Speed 90% / 10% or 10% / 90% RF nSec — 3 10

1 dB Compression Input Power — dBm +20 +22 —

Input IP2 Two tone inputs to +5 dBm — dBm +65 — —
Input IP3 Two tone inputs to +5 dBm — dBm +45 — —

DC Bias 0V

-5V

DC - 2.0 GHz
DC - 2.5 GHz

DC - 1.0 GHz
DC - 2.0 GHz
DC - 2.5 GHz
DC - 1.0 GHz
DC - 2.5 GHz

DC - 2.5 GHz

DC - 2.0 GHz
DC - 2.5 GHz

DC - 2.5 GHz

DC - 2.5 GHz

—
—

dB
dB
dB

dB
dB
dB
dB
dB

dB
dB

Ratio
Ratio
Ratio

Ratio
Ratio

Ratio
Ratio

µA
µA

—
—
—

—
—
—
28
20

22
15

—
—
—

—
—

—
—

—
—

1.7

2.0

2.5

1.0

1.4

2.0
31
23

25
18

1.1:1

1.8:1

2.0:1

1.2:1

1.3:1

1.0:1

1.3:1

—
—

2.0

2.3

2.8

1.3

1.7

2.3
—
—

—
—

1.4:1

2.1:1

2.3:1

1.5:1

1.6:1

1.3:1

1.6:1

10

100

GaAs SP8T Reflective Switch, DC - 2500 MHz

Truth Table

Control Inputs

C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 J1 J2 J3 J4 J5 J6 J7 J8 J9 J10 Match

L H H H H H H H H H On Off Off Off Off Off Off Off Off Off
H L H H H H H H H H Off On Off Off Off Off Off Off Off Off
H H L H H H H H H H Off Off On Off Off Off Off Off Off Off
H H H L H H H H H H Off Off Off On Off Off Off Off Off Off
H H H H L H H H H H Off Off Off Off On Off Off Off Off Off
H H H H H L H H H H Off Off Off Off Off On Off Off Off Off
H H H H H H L H H H Off Off Off Off Off Off On Off Off Off
H H H H H H H L H H Off Off Off Off Off Off Off On Off Off
H H H H H H H H L H Off Off Off Off Off Off Off Off On Off
H H H H H H H H H L Off Off Off Off Off Off Off Off Off On

VIN Low = 0 to -0.2V @ 10µA VIN High = -5V @ 90µA

SW65-0003

V 3.00

Condition of Switch

Pin Configuration

Pin No. Function Pin No. Function

1 J8 15 J2
2 Ground 16 Ground
3 C8 17 J3
4 C7 18 Ground
5 C6 19 J4
6 C5 20 J9
7 C10 21 Ground
8 C9 22 J0

9 C4 23 Ground
10 C3 24 J5
11 C2 25 Ground
12 C1 26 J6
13 Ground 27 Ground
14 J1 28 J7

Cascadable Application

Absolute Maximum Ratings 1

Parameter Absolute Maximum

Input Power +34 dBm

Control Voltage -8.5 volts

Storage Temperature -65°C to +125°C

Operating Temperature -40° to +85°C

1. Operation of this device above any one of these
parameters may cause permanent damage.

PCB Layout

Specifications subject to change without notice.

n North America: Tel. [phone]
n Asia/Pacific: Tel.[phone], Fax [phone]
n Europe: Tel. [phone], Fax[phone]

Visit www.macom.com for additional data sheets and product information.

2

GaAs SP8T Reflective Switch, DC - 2500 MHz

SW65-0003

V 3.00

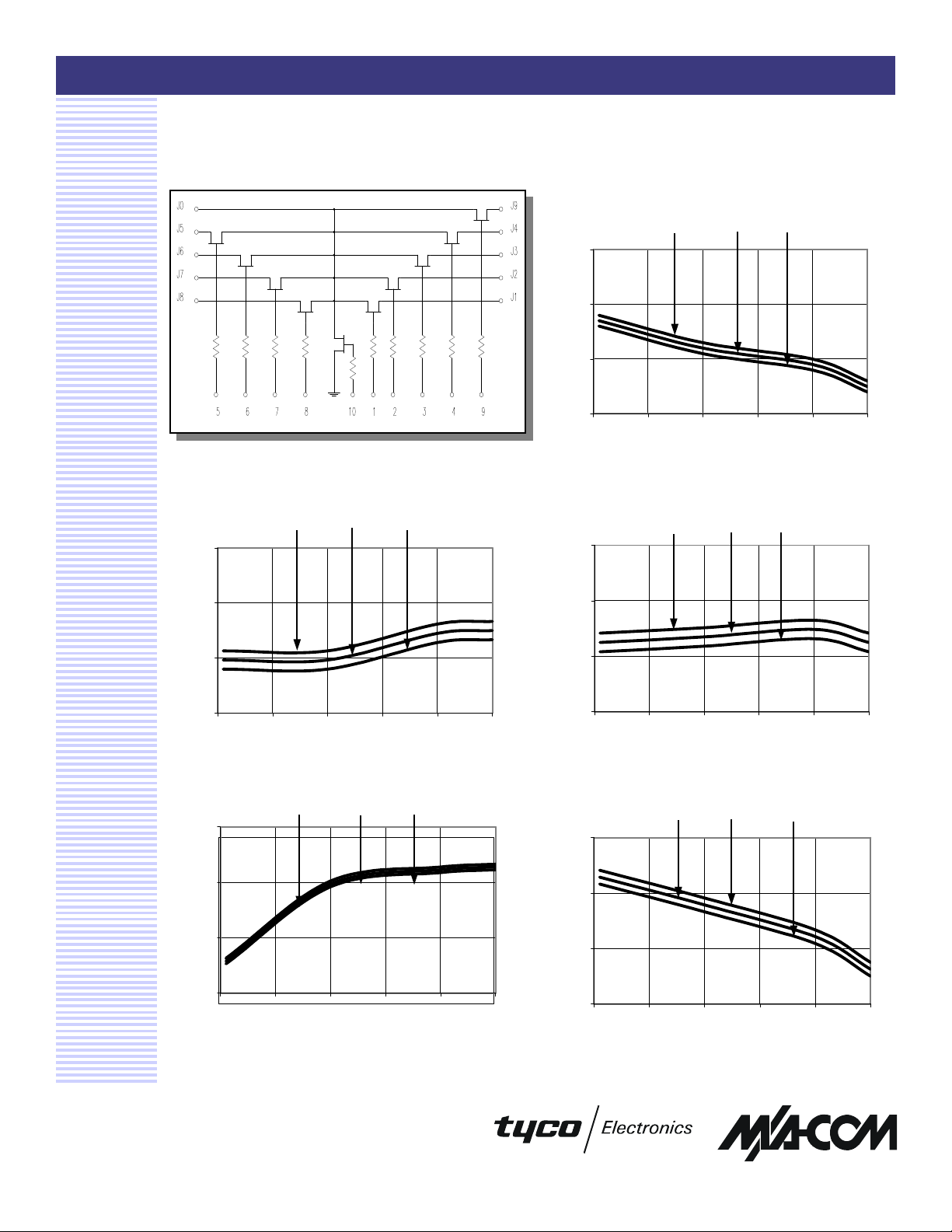

Switch Schematic

VSWR vs. Frequency

+85°C +25°C

2.4

-40°C

Typical Performance Curves

Insertion Loss vs. Frequency

+25°C-40°C +85°C

0

-1

Loss (dB)

-2

-3
0 500 1000 1500 2000 2500

Frequency (MHz)

Output VSWR vs. Frequency

+85°C

2.4

+25°C -40°C

1.8

1.2

VSWR (Ratio)

0.6
0 500 1000 1500 2000 2500

Frequency (MHz)

Isolation vs. Frequency

+25°C -40°C+85°C

-10

-30

Isolation (dB)

-50

-70

0 500 1000 1500 2000 2500

Frequency (MHz)

1.8

1.2

VSWR (Ratio)

0.6
0 500 1000 1500 2000 2500

Frequency (MHz)

Growth Insertion Loss vs. Frequency

+25°C +85°C-40°C

-0.2

-1

-1.8

Insertion Loss (dB)

-2.6
0 500 1000 1500 2000 2500

Frequency (MHz)

Specifications subject to change without notice.

n North America: Tel. [phone]
n Asia/Pacific: Tel.[phone], Fax [phone]
n Europe: Tel. [phone], Fax[phone]

Visit www.macom.com for additional data sheets and product information.

3

GaAs SP8T Reflective Switch, DC - 2500 MHz

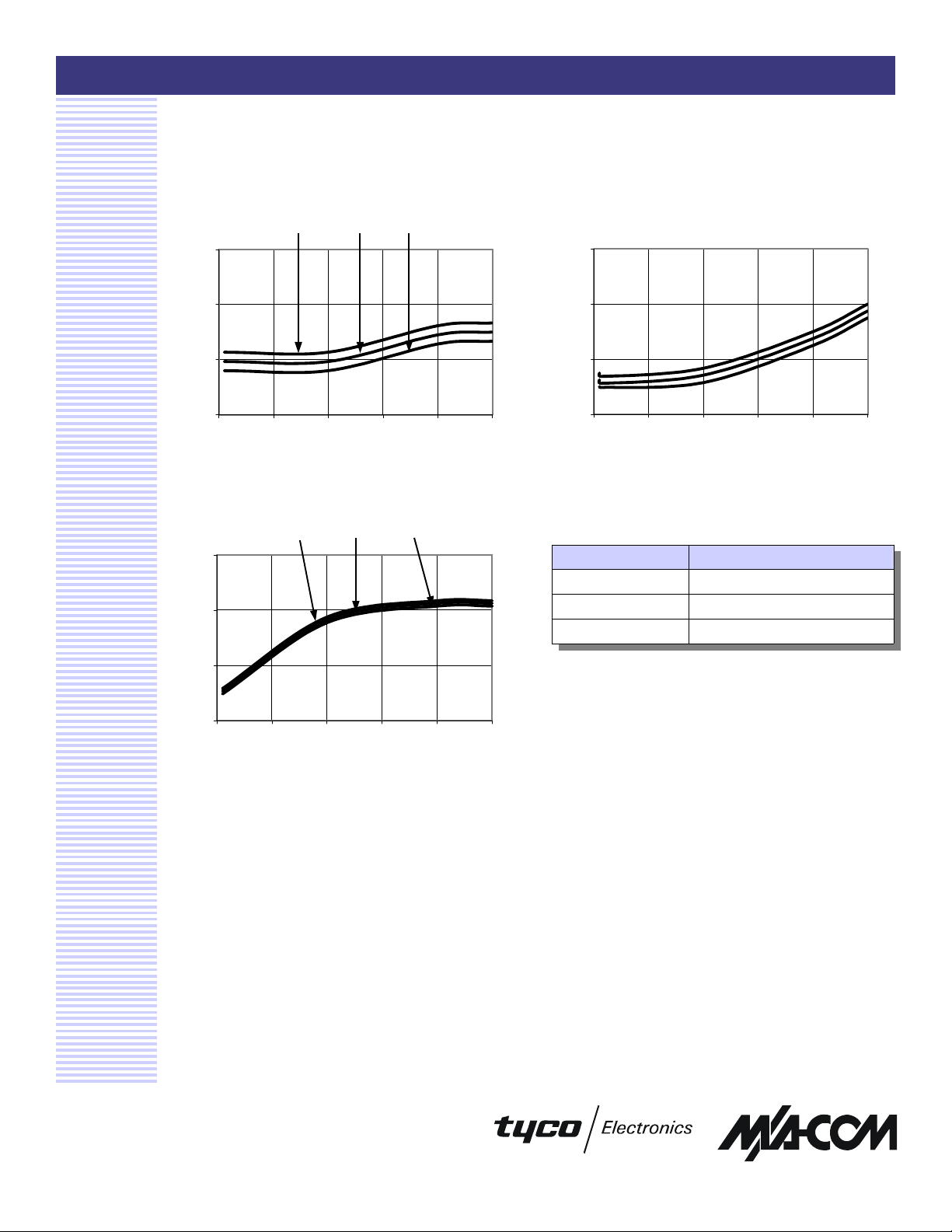

Typical Performance Curves

SW65-0003

V 3.00

Growth VSWR vs. Frequency

+85°C +25°C -40°C

2.4

1.8

1.2

J9 VSWR (Ratio)

0.6
0 500 1000 1500 2000 2500

Frequency (MHz)

Growth Isolation vs. Frequency

-40°C+25°C+85°C

0

-20

J0 VSWR All Arms off vs. Frequency

3

2.2

1.4

Jo VSWR (Ratio)

0.6
0 500 1000 1500 2000 2500

Frequency (MHz)

Ordering Information

Part Number Package

SW65-0003 QSOP-28 Lead Plastic

SW65-0003TR Tape and Reel (1K Reel)

SW65-0003-TB Unit mounted on a test board

-40

Growth Iso (dB)

-60
0 500 1000 1500 2000 2500

Frequency (MHz)
