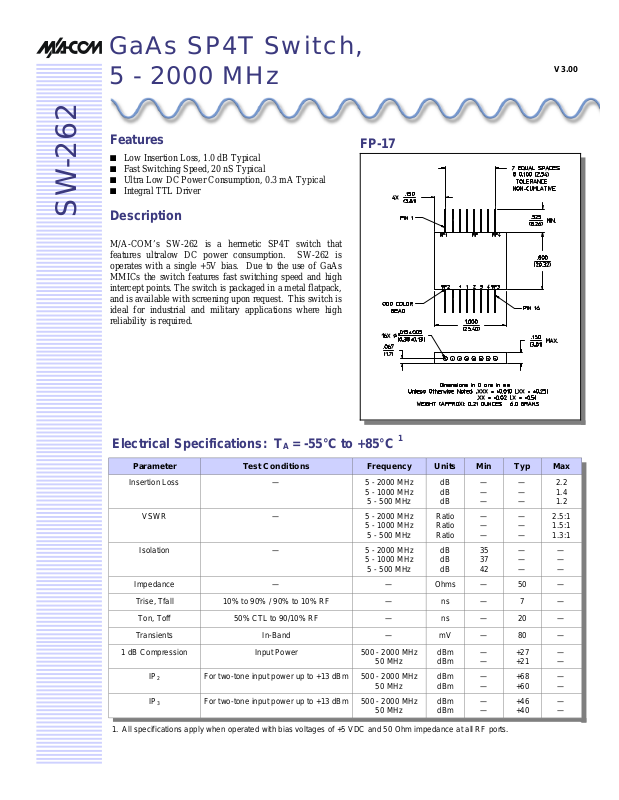

GaAs SP4T Switch,
5 - 2000 MHz

V 3.00

SW-262

Features

n Low Insertion Loss, 1.0 dB Typical
n Fast Switching Speed, 20 nS Typical
n Ultra Low DC Power Consumption, 0.3 mA Typical
n Integral TTL Driver

Description

M/A-COM’s SW-262 is a hermetic SP4T switch that
features ultralow DC power consumption. SW-262 is
operates with a single +5V bias. Due to the use of GaAs
MMICs the switch features fast switching speed and high
intercept points. The switch is packaged in a metal flatpack,
and is available with screening upon request. This switch is
ideal for industrial and military applications where high
reliability is required.

FP-17

Electrical Specifications: TA = -55°C to +85°C 1

Parameter Test Conditions Frequency Units Min Typ Max

Insertion Loss — 5 - 2000 MHz

5 - 1000 MHz

5 - 500 MHz

VSWR — 5 - 2000 MHz

5 - 1000 MHz

5 - 500 MHz

Isolation — 5 - 2000 MHz

5 - 1000 MHz

5 - 500 MHz

Impedance — — Ohms — 50 —

Trise, Tfall 10% to 90% / 90% to 10% RF — ns — 7 —

Ton, Toff 50% CTL to 90/10% RF — ns — 20 —

Transients In-Band — mV — 80 —

1 dB Compression Input Power 500 - 2000 MHz

50 MHz

IP2 For two-tone input power up to +13 dBm 500 - 2000 MHz

50 MHz

IP3 For two-tone input power up to +13 dBm 500 - 2000 MHz

50 MHz

1. All specifications apply when operated with bias voltages of +5 VDC and 50 Ohm impedance at all RF ports.

dB
dB
dB

Ratio
Ratio
Ratio

dB
dB
dB

dBm
dBm

dBm
dBm

dBm
dBm

—
—
—

—
—
—

35
37
42

—
—

—
—

—
—

—
—
—

—
—
—

—
—
—

+27
+21

+68
+60

+46
+40

2.2

1.4

1.2

2.5:1

1.5:1

1.3:1
—

—
—

—
—

—
—

—
—

GaAs SP4T Switch, 5 - 2000 MHz

Electrical Specifications: TA = -55°C to +85°C 1

Parameter Test Conditions Frequency Units Min Typ Max

+Vcc — — V 4.75 5.0 5.25

Logic “0” Sink Current is 20 µA Max.

CTL1 through CTL4

Logic “1” Source Current is 20 µA Max.

CTL1 through CTL4

Icc 4.75 < Vcc < 5.25V — mA — 0.3 1

SW-262

V 3.00

— V 0.0 — 0.8

— V 2.0 - 5.0

Truth Table

Control Input Condition of Switch

“1” = TTL High

“0” = TTL Low

RF Common to Each RF

Port

CTL1 CTL2 CTL3 CTL4 RF1 RF2 RF3 RF4

1 0 0 0 On Off Off Off
0 1 0 0 Off On Off Off
0 0 1 0 Off Off On Off
0 0 0 1 Off Off Off On

Absolute Maximum Ratings 2

Parameter

Max Input Power

0.05 GHz

0.5 - 2.0 GHz
+Vcc +7.0V

Logic Values -0.5 to +Vcc +0.5V

Operating Temperature -55°C to +85°C

Storage Temperature -65°C to +125°C

Absolute Maximum

+27 dBm
+34 dBm

Schematic

RF4

GND

GND

RF

Common

GND

GND

GND

RF1

RF3

CTL4

CTL3

CTL2

CTL1

+Vcc

NC

RF2

2. Operation of this device above any one of these parameters
may cause permanent damage.

Specifications subject to change without notice.

n North America: Tel. [phone]
n Asia/Pacific: Tel.[phone], Fax [phone]
n Europe: Tel. [phone], Fax[phone]

Visit www.macom.com for additional data sheets and product information.

2

GaAs SP4T Switch, 5 - 2000 MHz

Typical Performance Curves

-55°C +85°C+25°C

2.0

SW-262

V 3.00

Isolation Insertion Loss

80

1.5

1.0

Loss (dB)

0.5

0.0

0.0 0.5 1.0 1.5 2.0

Frequency (GHz)

VSWR

2.0

1.8

1.6

1.4

VSWR

1.2

1.0

0.0 0.5 1.0 1.5 2.0

Frequency (GHz)

70

60

50

40

Isolation (dB)

30

20

0.0 0.5 1.0 1.5 2.0

Frequency (GHz)

Ordering Information

Part Number Package

SW-262 PIN FP-17
