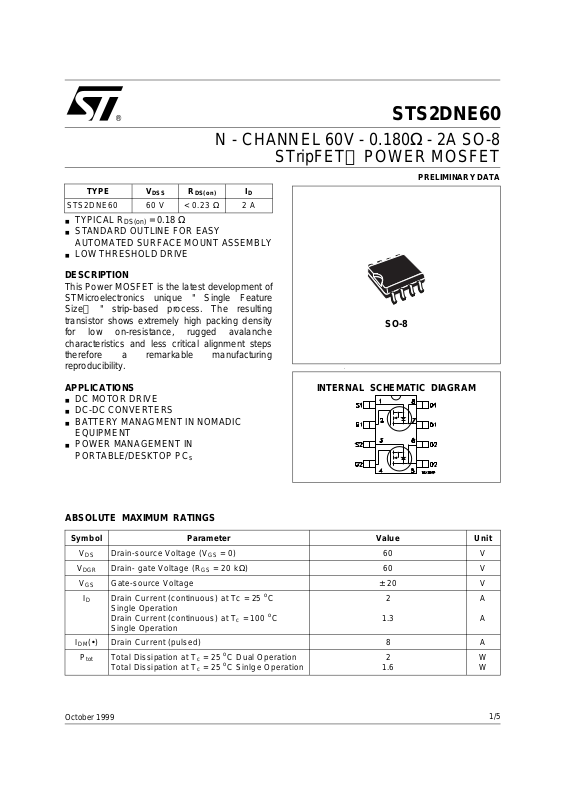

N - CHANNEL 60V - 0.180Ω - 2A SO-8
TYPE V
STS2DNE60 60 V < 0.23 Ω 2 A
■
TYPICAL R
■
STANDARD OUTLINE FOR EASY
DS(on)
DSS
= 0.18
AUTOMATED SUR F ACE MOUNT ASSEMBLY
■
LOW THRESHOLD DRIVE
DESCRIPTION
This Power MOSFET is the latest development of
STMicroelectronics unique " Single Feature
Size " strip-based process. The resulting
transistor shows extremely high packing density
for low on-resistance, rugged avalanche
characteristics and less critical alignment steps
therefore a remarkable manufacturing
reproducibility.
R
DS(on)
I
D
Ω
STS2DNE60
STripFET POWER MOSFET
PRELIMINARY DATA
SO-8
APPLICATIONS
■
DC MOTOR DRIVE
■
DC-DC CONVERTERS
■
BATTERY MANAGM ENT IN NOMADI C
INTERNAL SCHEMATIC DIAGRAM
EQUIPMENT
■
POWER MANAGEMENT IN
PORTABLE/DESKTOP PC
s
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
V
V
I
DM
P
Drain-source Voltage (VGS = 0) 60 V
DS
Drain- gate Voltage (RGS = 20 kΩ)60V
DGR
Gate-source Voltage ± 20 V
GS
I
Drain Current (continuous) at Tc = 25 oC
D
Single Operation
Drain Current (continuous) at T
Single Operation
(•) Drain Current (pulsed) 8 A
Total Dissipation at Tc = 25 oC Dual Operation
tot
Total Dissipation at T
= 25 oC Sinlge Operation
c
= 100 oC
c
2
1.3
2
1.6
A
A
W
W
October 1999
1/5
Page 2
STS2DNE60
THERMAL DATA
R
thj-amb
T
T
*Thermal Resistance Junction-ambient Single Operation
Dual Operation
Maximum Operating Junction Temperature
j
Storage Temperature
stg
78
62.5
150
-55 to 150
o
C/W
o
C/W
o
o
C
C
(*)
Mounted on FR-4 board (t
ELECTRICAL CHARACTERISTICS
≤ 10
sec)
= 25 oC unless otherwise specified)
(T
case
OFF
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
(BR)DSS
Drain-source
ID = 250 µA V
= 0 60 V
GS
Breakdown Voltage
I
I
ON (∗
DSS
GSS
Zero Gate Voltage
Drain Current (V
Gate-body Leakage
Current (V
)
DS
= 0)
GS
= 0)
= Max Rating
V
DS
V
= Max Rating Tc = 125 oC
DS
= ± 20 V ± 100 nA
V
GS
1
10
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
GS(th)
R
DS(on)
Gate Threshold Voltage V
Static Drain-source On
= VGS ID = 250 µA23.34V
DS
VGS = 10 V ID = 1 A 0.180 0.23 Ω
Resistance
I
D(on)
On State Drain Current VDS > I
V
= 10 V
GS
D(on)
x R
DS(on)max
2A
DYNAMIC
µA
µA
Symbol Parameter Test Conditions Min. Typ. Max. Unit
g
(∗) Forward
fs
VDS > I
D(on)
x R
DS(on)max
ID = 1 A 1.8 S
Transconductance
C
C
C
Input Capacitance
iss
Output Capacitance
oss
Reverse Transfer
rss
V
= 25 V f = 1 MHz V
DS
= 0 V 310
GS
45
12
Capacitance
2/5
pF
pF
pF
Page 3
STS2DNE60
ELECTRICAL CHARACTERISTICS (continued)
SWITCHING ON
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
d(on)
Turn-on Delay Time
Rise Time
t
r
V
= 30 V ID = 1 A
DD
R
= 4.7 Ω VGS = 10 V
G
(Resistive Load, see fig. 3)
Q
Q
Q
Total Gate Charge
g
Gate-Source Charge
gs
Gate-Drain Charge
gd
V
= 24 V ID = 2 A V
DD
= 4.5 V 12
GS
SWITCHING OFF
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
d(off)
Turn-off Delay Time
Fall Time
t
f
V
= 30 V ID = 1 A
DD
R
= 4.7 Ω VGS = 10 V
G
(Resistive Load, see fig. 3)
t
r(Voff)
t
t
Off-voltage Rise Time
Fall Time
f
Cross-over Time
c
V
= 48 V ID = 2 A
clamp
R
= 4.7 Ω VGS = 10 V
G
(Inductive Load, see fig. 5)
SOURCE DRAIN DIODE
9
10
16 nC
5.1
2.7
25
5
4.5
5
12
ns
ns
nC
nC
ns
ns
ns
ns
ns
Symbol Parameter Test Conditions Min. Typ. Max. Unit
I
SDM
I
SD
Source-drain Current
(•)
Source-drain Current
2
8
(pulsed)
(∗) Forward On Voltage ISD = 2 A VGS = 0 1.2 V
V
SD
t
Reverse Recovery
rr
Time
Q
Reverse Recovery
rr
I
= 2 A di/dt = 100 A/µs
SD
V
= 25 V Tj = 150 oC
DD
(see test circuit, fig. 5)
40
50
Charge
I
RRM
Reverse Recovery
2.5
Current
(∗) Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %
(•) Pulse width limited by safe operating area
A
A
ns
nC
A
3/5
Page 4
STS2DNE60
SO-8 MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A1.750.068
a1 0.1 0.25 0.003 0.009
a2 1.65 0.064
a3 0.65 0.85 0.025 0.033
b 0.35 0.48 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.25 0.5 0.010 0.019
c1 45 (typ.)
D 4.8 5.0 0.188 0.196
E 5.8 6.2 0.228 0.244
e1.27 0.050
e3 3.81 0.150
F 3.8 4.0 0.14 0.157
L 0.4 1.27 0.015 0.050
M0.60.023
S 8 (max.)
mm inch
4/5
0016023
