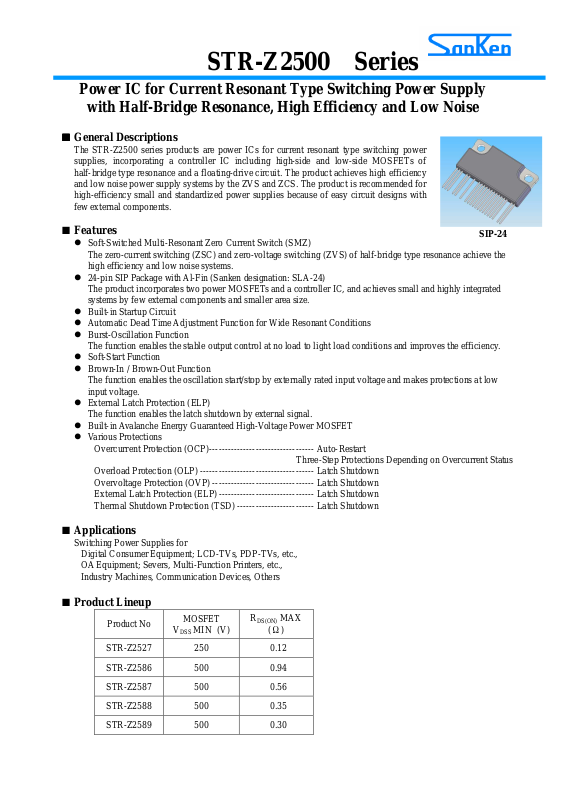

Page 1
STR-Z2500 Series
Power IC for Current Resonant Type Switching Power Supply
with Half-Bridge Resonance, High Efficiency and Low Noise
■■■■
General Descriptions
The STR-Z2500 series products are power ICs for current resonant type switching power
supplies, incorporating a controller IC including high-side and low-side MOSFETs of
half-bridge type resonance and a floating-drive circuit. The product achieves high efficiency
and low noise power supply systems by the ZVS and ZCS. The product is recommended for
high-efficiency small and standardized power supplies because of easy circuit designs with
few external components.
■
Features
Soft-Switched Multi-Resonant Zero Current Switch (SMZ)
The zero-current switching (ZSC) and zero-voltage switching (ZVS) of half-bridge type resonance achieve the
high efficiency and low noise systems.
24-pin SIP Package with Al-Fin (Sanken designation: SLA-24)
The product incorporates two power MOSFETs and a controller IC, and achieves small and highly integrated
systems by few external components and smaller area size.
Built-in Startup Circuit
Automatic Dead Time Adjustment Function for Wide Resonant Conditions
Burst-Oscillation Function
The function enables the stable output control at no load to light load conditions and improves the efficiency.
Soft-Start Function
Brown-In / Brown-Out Function
The function enables the oscillation start/stop by externally rated input voltage and makes protections at low
input voltage.
External Latch Protection (ELP)
The function enables the latch shutdown by external signal.
Built-in Avalanche Energy Guaranteed High-Voltage Power MOSFET
Various Protections
Overcurrent Protection (OCP)---------------------------------- Auto-Restart
Three-Step Protections Depending on Overcurrent Status
Overload Protection (OLP) ------------------------------------- Latch Shutdown
Overvoltage Protection (OVP) --------------------------------- Latch Shutdown
External Latch Protection (ELP)------------------------------- Latch Shutdown
Thermal Shutdown Protection (TSD) ------------------------- Latch Shutdown
■
Applications
Switching Power Supplies for
Digital Consumer Equipment; LCD-TVs, PDP-TVs, etc.,
OA Equipment; Severs, Multi-Function Printers, etc.,
Industry Machines, Communication Devices, Others
■
Product Lineup
Product No
SIP-24
R
MOSFET
V
MIN (V)
DSS
DS(ON)
(Ω)
MAX
STR-Z2527 250 0.12
STR-Z2586 500 0.94
STR-Z2587 500 0.56
STR-Z2588 500 0.35
STR-Z2589 500 0.30
Page 2
■
2
00V/D
Typical Application Circuit
VVVV
DDDDCCCC
SSSSTTTTRRRR----ZZZZ2222555500000000
DDDD((((HHHH))))
5555
VVVVBBBB
8888
CCCCoooonnnntttt....
DDDD((((LLLL))))
1111
rrrreeeegggg
11117777
VVVVsssseeeennnn
11110000
VVVVcccccccc
1111222211111111
FFFFBBBB
////OOOOLLLLPPPP
RRRRCCCC
GGGGNNNNDDDD OOOOCCCC
CCCCssssssss
11113333
11114444
RRRRVVVV
CCCCOOOOMMMM
11116666
11115555
22221111
11118888
■
Typical Electrical Characteristics & Operation Waveforms
STR-Z2587 Power Supply Characteristics
Input: 380VDC, Output: 24V/8.5A (204W)
Efficiency η
1 0 0 %
9 8 %
9 6 %
9 4 %
9 2 %
9 0 %
8 8 %
8 6 %
8 4 %
(%)
0 5 0 1 0 0 1 5 0 2 0 0
No Load
Efficiency η －－－－ Output PowerP
CCCCvvvv
VVVV
OOOOUUUUTTTT
GGGGNNNNDDDD
CCCCiiii
OUT
Output Power
P
(W)
OUT
Heavy Load
VDS(Lo-side)
ID(Hi-side)
2A/D
2us/D
