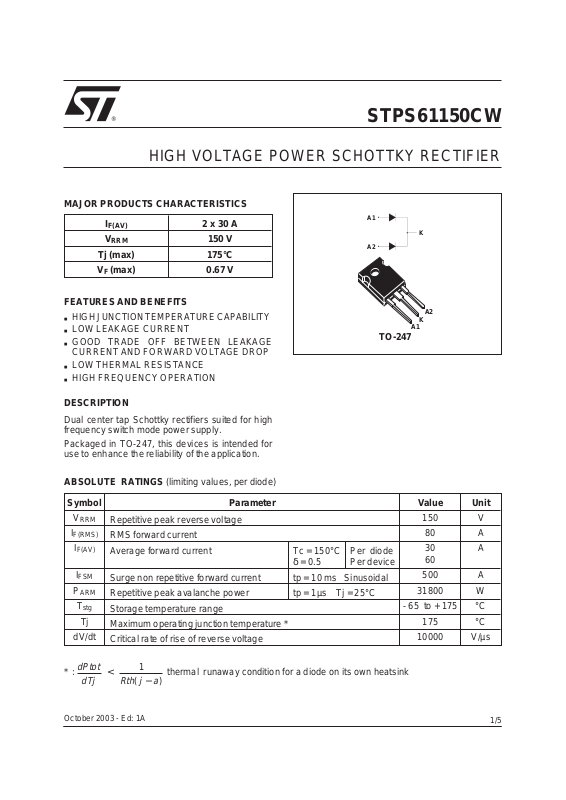

Page 1
®
HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
MAJOR PRODUCTS CHARACTERISTICS
I
F(AV)
V
RRM
Tj (max) 175°C
(max) 0.67 V
V
F
2x30A
150 V
STPS61150CW
A1
K
A2
FEATURES AND BENEFITS
HIGHJUNCTIONTEMPERATURECAPABILITY
■
LOW LEAKAGE CURRENT
■
GOOD TRADE OFF BETWEEN LEAKAGE
■
TO-247
A1
A2
K
CURRENT AND FORWARD VOLTAGE DROP
LOW THERMAL RESISTANCE
■
■ HIGH FREQUENCY OPERATION
DESCRIPTION
Dual center tap Schottky rectifiers suited for high
frequency switch mode power supply.
Packaged in TO-247, this devices is intended for
use to enhance the reliability of the application.
ABSOLUTE RATINGS (limiting values, per diode)
Symbol Parameter Value Unit
V
RRM
I
F(RMS)
I
F(AV)
I
FSM
P
ARM
T
stg
Tj
dV/dt
Repetitive peak reverse voltage
RMS forward current
Average forward current Tc = 150°C
δ = 0.5
Per diode
Per device
Surge non repetitive forward current tp = 10 ms Sinusoidal
Repetitive peak avalanche power tp = 1µs Tj = 25°C
Storage temperature range
Maximum operating junction temperature *
Critical rate of rise of reverse voltage
150 V
80 A
30
60
500 A
31800 W
- 65 to + 175 °C
175 °C
10000 V/µs
A
dPtot
*:
<
dTj Rth j a
October 2003 - Ed: 1A
thermal runaway condition for a diode on its own heatsink
−1()
1/5
Page 2
STPS61150CW
THERMAL RESISTANCES
Symbol Parameter Value Unit
R
th(j-c)
Junction to case
Per diode
Total
R
th(j-c)
Junction to case
Coupling 0.3 °C/W
When the diodes 1 and 2 are used simultaneously :
∆ Tj(diode 1) = P(diode1) x R
(Per diode) + P(diode 2) x R
th(j-c)
th(c)
STATIC ELECTRICAL CHARACTERISTICS (per diode)
Symbol Parameter Tests Conditions Min. Typ. Max. Unit
*
I
R
V
F
Pulse test : *tp = 380 µs, δ <2%
To evaluate the conduction losses use the following equation :
P=0.54xI
Reverse leakage
current
*
Forward voltage drop Tj = 25°CI
Tj = 25°C VR=V
Tj = 125°C
Tj = 125°C I
Tj=25°CI
Tj = 125°C I
+ 0.0043 I
F(AV)
F2(RMS)
=30A
F
=30A
F
=60A
F
=60A
F
RRM
0.9
°C/W
0.6
720µA
725mA
0.84 V
0.63 0.67
0.92
0.76 0.8
Fig. 1: Conduction losses versus average current
(per diode).
P (W)
F(AV)
30
25
20
15
10
5
0
0 5 10 15 20 25 30 35 40
δ = 0.05
δ = 0.1
δ = 0.2
I (A)
F(AV)
δ = 0.5
δ
=tp/T
δ = 1
T
tp
Fig. 3: Normalized avalanche power derating
versus junction temperature.
P(t)
ARM p
P (25°C)
ARM
1.2
1
0.8
0.6
0.4
0.2
0
25 50 75 100 125 150
T (°C)
j
Fig. 2: Normalized avalanche power derating
versus pulse duration.
P(t)
ARM p
P (1µs)
ARM
1
0.1
0.01
t (µs)
0.001
0.10.01 1
p
10 100 1000
Fig. 4: Average forward current versus ambient
temperature (δ=0.5, per diode).
I (A)
F(AV)
35
30
25
20
15
10
5
0
0 25 50 75 100 125 150 175
δ
=tp/T
T
tp
R=R
th(j-a) th(j-c)
R =15°C/W
th(j-a)
T (°C)
amb
2/4
Page 3
STPS61150CW
Fig. 5: Non repetitive surge peak forward current
versus overload duration (maximum values, per
diode).
I (A)
M
400
350
300
250
200
150
100
IM
50
0
1.E-03 1.E-02 1.E-01 1.E+00
δ=0.5
t
t(s)
T =50°C
c
T =75°C
c
T =125°C
c
Fig. 7: Reverse leakage current versus reverse
voltage applied (typical values, per diode).
I (µA)
R
1.E+05
T=150°C
1.E+04
1.E+03
1.E+02
1.E+01
1.E+00
1.E-01
10 30 50 70 90 110 130 150
j
T=125°C
j
T=100°C
j
T=75°C
j
T=50°C
j
T=25°C
j
V (V)
R
Fig. 6: Relative variation of thermal impedance
junction to case versus pulse duration.
Z/R
th(j-c) th(j-c)
1.0
0.9
0.8
0.7
δ = 0.5
0.6
0.5
0.4
δ = 0.2
δ = 0.1
0.3
0.2
Single pulse
0.1
0.0
1.E-03 1.E-02 1.E-01 1.E+00
t (s)
p
δ
=tp/T
T
tp
Fig. 8: Junction capacitance versus reverse
voltage applied (typical values, per diode).
C(pF)
10000
1000
V (V)
100
1 10 100 1000
R
F=1MHz
V =30mV
OSC RMS
T=25°C
j
Fig. 9: Forward voltage drop versus forward
current (per diode).
I (A)
FM
100.0
T=125°C
j
(maximum values)
T=125°C
j
10.0
1.0
0.1
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2
(typical values)
V (V)
FM
T=25°C
j
(maximum values)
3/4
Page 4
STPS61150CW
PACKAGE MECHANICAL DATA
TO-247
V
V
H
L5
L
F2
F4
L1
F3
L3
F1
V2
F(x3)
G
= =
Dia.
L4L2
D
ME
A
DIMENSIONS
REF.
Millimeters Inches
Min. Typ. Max. Min. Typ. Max.
A 4.85 5.15 0.191 0.203
D 2.20 2.60 0.086 0.102
E 0.40 0.80 0.015 0.031
F 1.00 1.40 0.039 0.055
F1 3.00 0.118
F2 2.00 0.078
F3 2.00 2.40 0.078 0.094
F4 3.00 3.40 0.118 0.133
G 10.90 0.429
H 15.45 15.75 0.608 0.620
L 19.85 20.15 0.781 0.793
L1 3.70 4.30 0.145 0.169
L2 18.50 0.728
L3 14.20 14.80 0.559 0.582
L4 34.60 1.362
L5 5.50 0.216
M 2.00 3.00 0.078 0.118
V5° 5°
V2 60° 60°
Dia. 3.55 3.65 0.139 0.143
■ Cooling method : C
■
Recommended torque value : 0.8m.N
■
Maximum torque value : 1.0m.N
Ordering type Marking Package Weight Base qty Delivery mode
STPS61150CW STPS61150CW TO-247 4.4g 30 Tube
■
Epoxy meets UL94,V0
