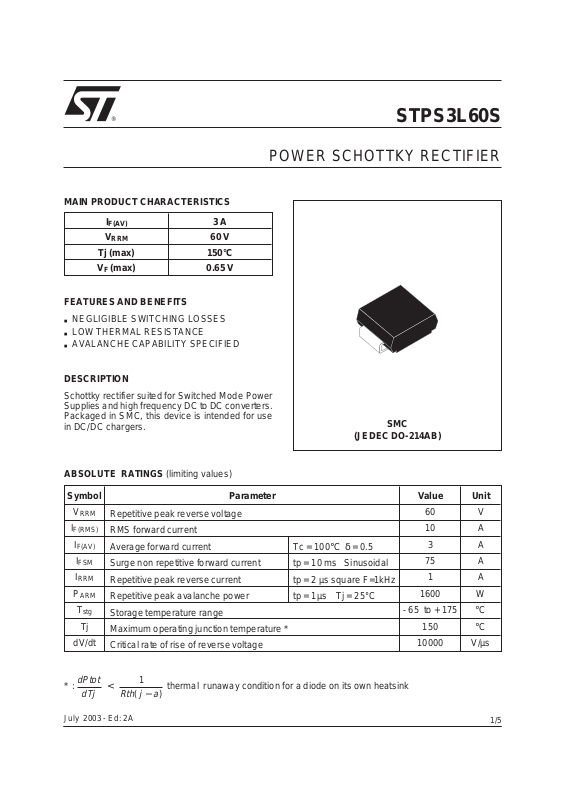

MAIN PRODUCT CHARACTERISTICS
STPS3L60S
POWER SCHOTTKY RECTIFIER
I
F(AV)
V
RRM
3A
60 V
Tj (max) 150°C
(max) 0.65 V
V
F
FEATURES AND BENEFITS
NEGLIGIBLE SWITCHING LOSSES
■
LOW THERMAL RESISTANCE
■
AVALANCHE CAPABILITY SPECIFIED
■
DESCRIPTION
Schottky rectifier suited for Switched Mode Power
Supplies andhighfrequencyDCtoDCconverters.
Packaged in SMC, this device is intended for use
in DC/DC chargers.
SMC
(JEDEC DO-214AB)
ABSOLUTE RATINGS (limiting values)
Symbol Parameter Value Unit
V
RRM
I
F(RMS)
I
F(AV)
I
FSM
I
RRM
P
ARM
T
Tj
dV/dt
Repetitive peak reverse voltage
RMS forward current
Average forward current Tc = 100°C δ = 0.5
Surge non repetitive forward current tp = 10 ms Sinusoidal
Repetitive peak reverse current tp=2µssquare F=1kHz
Repetitive peak avalanche power tp = 1µs Tj = 25°C
stg
Storage temperature range
Maximum operating junction temperature *
Critical rate of rise of reverse voltage
60 V
10 A
3A
75 A
1A
1600 W
-65 to+175 °C
150 °C
10000 V/µs
dPtot
*:
<
dTj Rth j a
July 2003 - Ed: 2A
thermal runaway condition for a diode on its own heatsink
−1()
1/5
Page 2
STPS3L60S
THERMAL RESISTANCES
Symbol Parameter Value Unit
R
th(j-l)
Junction to leads
STATIC ELECTRICAL CHARACTERISTICS
Symbol Parameter Tests conditions Min. Typ. Max. Unit
*
I
R
Reverse leakage current Tj = 25°CV
R=VRRM
Tj = 125°C
V
*
F
Forward voltage drop Tj = 25°CI
Tj = 125°CI
Tj=25°CI
Tj = 125°CI
=3A
F
=3A
F
=6A
F
=6A
F
Pulse test : * tp = 380 µs, δ <2%
To evaluate the conduction losses use the following equation :
P=0.54xI
F(AV)
+ 0.037 I
F2(RMS)
20 °C/W
55 µA
10 15 mA
0.7 V
0.56 0.65
0.94
0.67 0.76
Fig. 1: Average forward power dissipation versus
average forward current.
PF(av)(W)
2.5
2.0
1.5
1.0
0.5
0.0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
δ = 0.05
δ = 0.1
IF(av) (A)
δ = 0.2
δ = 0.5
δ
=tp/T
δ = 1
T
tp
Fig. 2: Average forward current versus ambient
temperature(δ = 0.5).
IF(av)(A)
3.5
3.0
2.5
2.0
1.5
δ
=tp/T
T
tp
1.0
0.5
0.0
0 25 50 75 100 125 150
Rth(j-a)=Rth(j-l)
Rth(j-a)=75°C/W
Tamb(°C)
2/5
Page 3
STPS3L60S

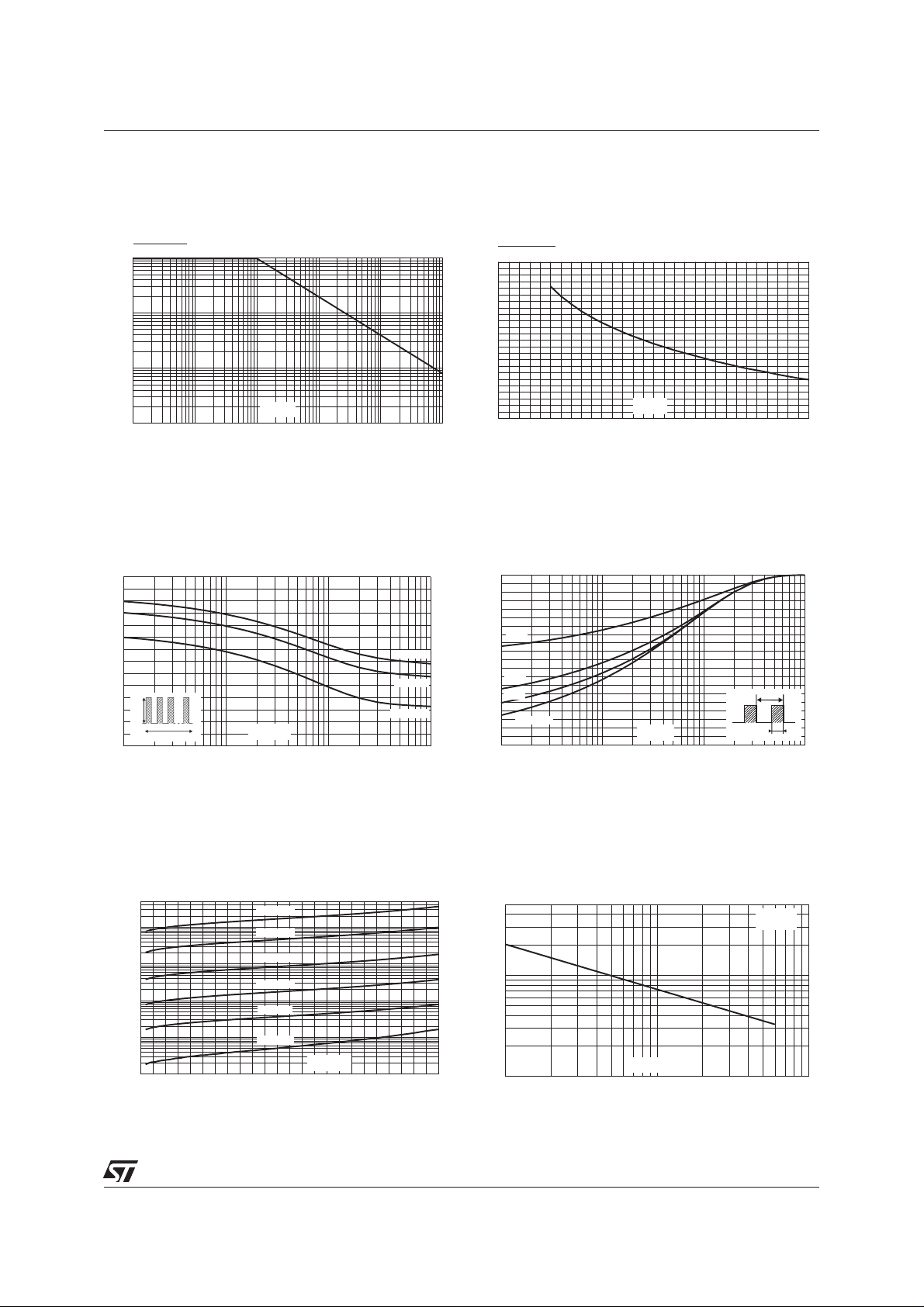

Fig. 3: Normalized avalanche power derating
versus pulse duration.
P(t)
ARM p
P (1µs)
ARM
1
0.1
0.01
t (µs)
0.001
0.10.01 1
p
10 100 1000
Fig. 5: Non repetitive surge peak forward
current versus overload duration (maximum
values).
IM(A)
14
12
10
8
6
4
IM
2
0
1E-3 1E-2 1E-1 1E+0
δ=0.5
t
t(s)
Tc=25°C
Tc=50°C
Tc=100°C
Fig. 4: Normalized avalanche power derating
versus junction temperature.
P(t)
ARM p
P (25°C)
ARM
1.2
1
0.8
0.6
0.4
0.2
0
0 25 50 75 100 125 150
T (°C)
j
Fig. 6: Relative variation of thermal impedance
junction to lead versus pulse duration.
Zth(j-l)/Rth(j-l)
1.0
0.9
0.8
0.7
δ = 0.5
0.6
0.5
δ = 0.2
0.4
0.3
δ = 0.1
0.2
Single pulse
0.1
0.0
1E-3 1E-2 1E-1 1E+0
tp(s)
δ
=tp/T
T
tp
Fig. 7: Reverse leakage current versus reverse
voltage applied (typical values).
IR(mA)
5E+1
1E+1
1E+0
1E-1
1E-2
1E-3
0 5 10 15 20 25 30 35 40 45 50 55 60
Tc=150°C
Tc=125°C
Tc=100°C
Tc=75°C
Tc=50°C
Tc=25°C
VR(V)
Fig. 8: Junction capacitance versus reverse
voltage applied (typical values).
C(pF)
500
200
100
50
20
VR(V)
10
1 10 100
F=1MHz
Tj=25°C
3/5
Page 4
STPS3L60S

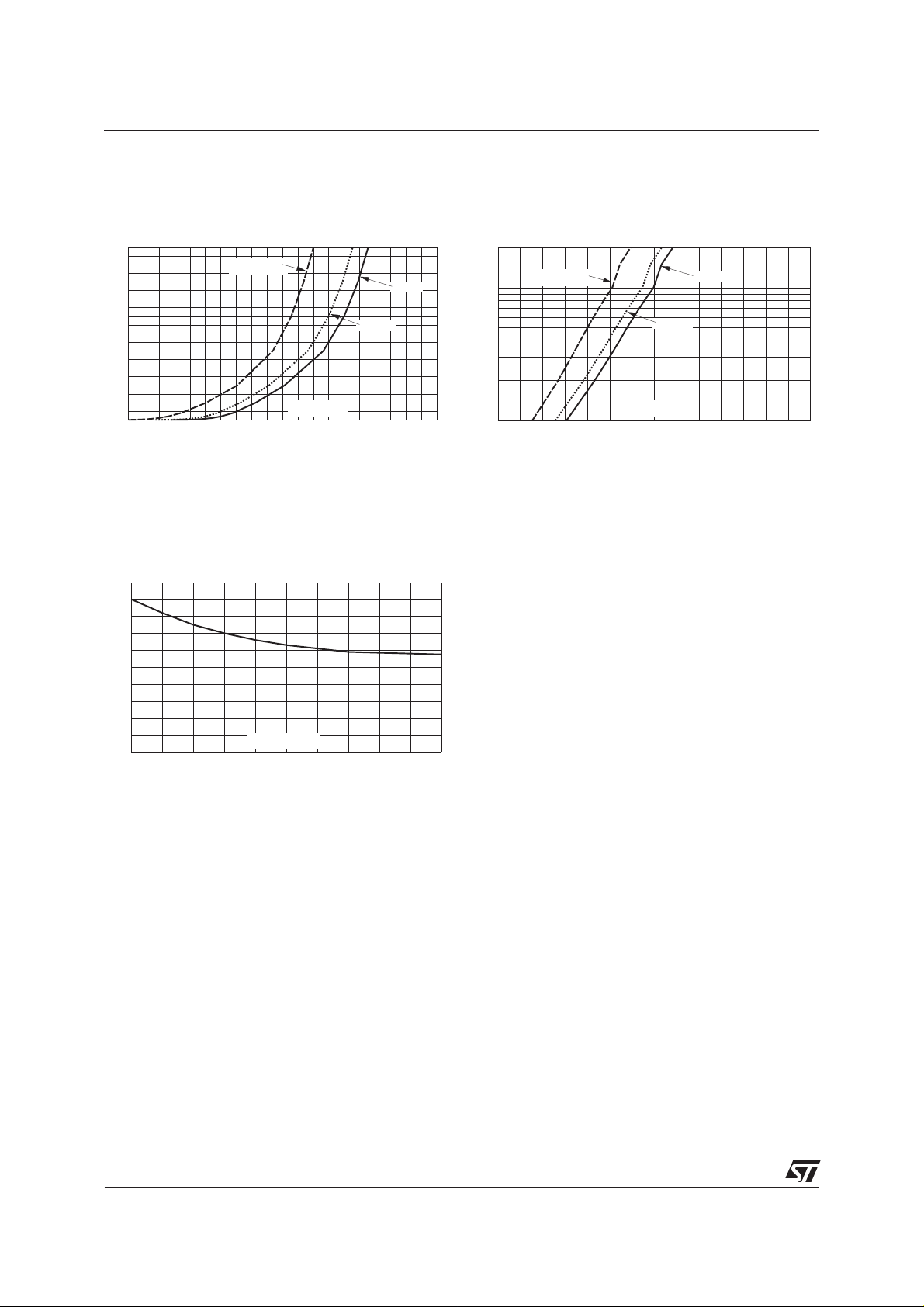

Fig. 9-1: Forward voltage drop versus forward
current (low level, maximum values).
IFM(A)
5.0
4.5
4.0
Tj=150°C
(typical values)
Tj=25°C
3.5
3.0
2.5
Tj=125°C
2.0
1.5
1.0
0.5
0.0
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
VFM(V)
Fig. 10: Thermal resistance junction to ambient
versus copper surface under each lead (Epoxy
printedcircuit board FR4, copper thickness: 35µm)
Rth(j-a) (°C/W)
100
80
Fig. 9-2: Forward voltage drop versus forward
current (high level, maximum values).
IFM(A)
20
Tj=150°C
10
(typical values)
5
2
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6
VFM(V)
Tj=25°C
Tj=125°C
60
40
20
0
012345
S(Cu) (cm²)
4/5
Page 5

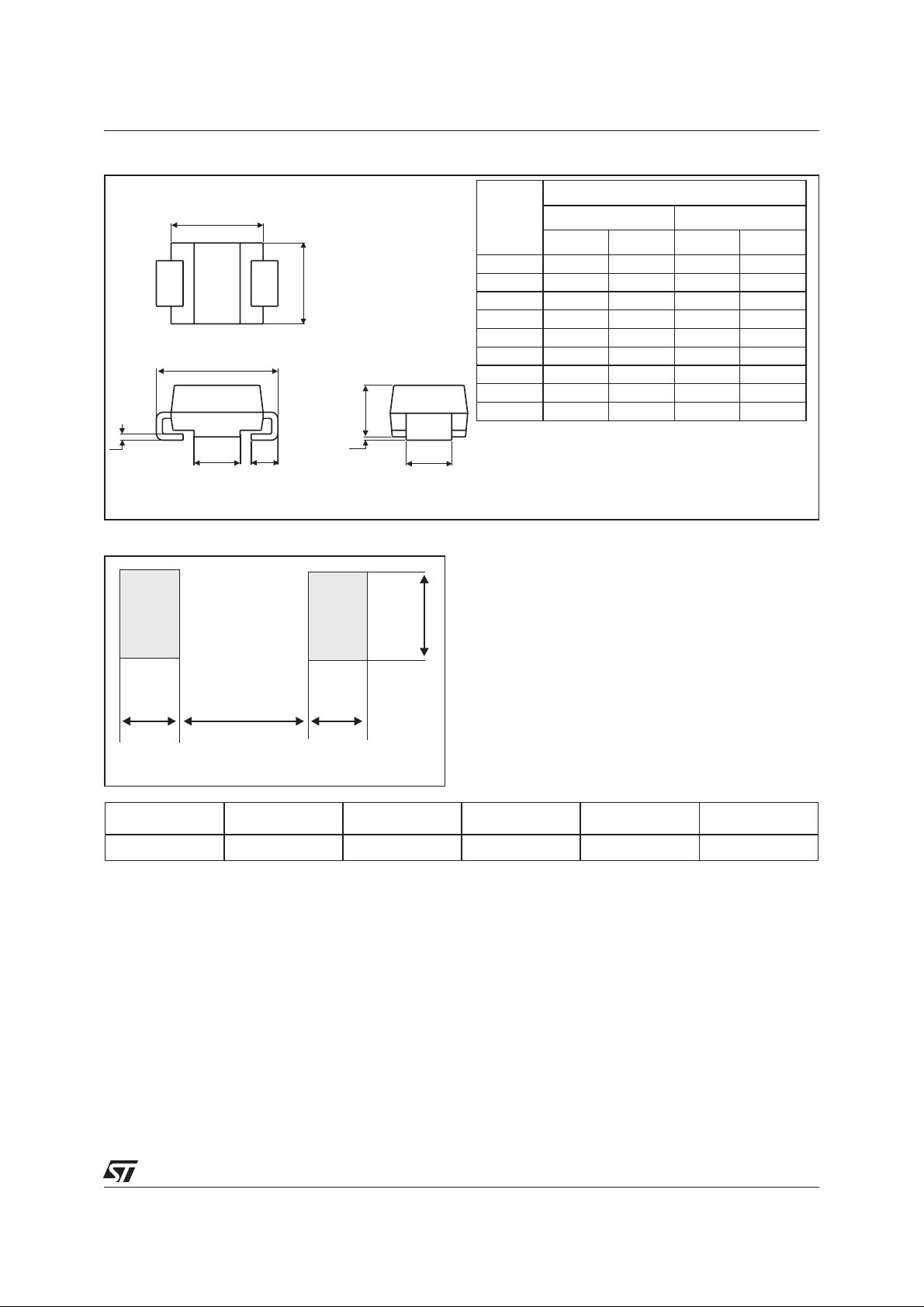

PACKAGE MECHANICAL DATA
SMC
E1
D
E
STPS3L60S
DIMENSIONS
REF.
A1 1.90 2.45 0.075 0.096
A2 0.05 0.20 0.002 0.008
b 2.90 3.2 0.114 0.126
c 0.15 0.41 0.006 0.016
E 7.75 8.15 0.305 0.321
E1 6.60 7.15 0.260 0.281
E2 4.40 4.70 0.173 0.185
A1
D 5.55 6.25 0.218 0.246
L 0.75 1.60 0.030 0.063
Millimeters Inches
Min. Max. Min. Max.
C
E2
L
A2
b
FOOT PRINT ( in millimeters)
3.3
2.0 4.2 2.0
Ordering type Marking Package Weight Base qty Delivery mode
STPS3L60S S36 SMC 0.24g 2500 Tape and reel
■
EPOXY MEETS UL94,V0
Informationfurnishedisbelievedtobeaccurateand reliable. However, STMicroelectronics assumes no responsibility for the consequences of
useofsuch information nor for any infringement of patents or other rights of third parties which mayresultfrom its use. No license is granted by
implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to
change without notice. This publication supersedes and replaces all information previously supplied.
STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written
approval of STMicroelectronics.
The ST logo is a registered trademark of STMicroelectronics
© 2003 STMicroelectronics - Printed in Italy - All rights reserved.
STMicroelectronics GROUP OF COMPANIES
Australia - Brazil - Canada - China - Finland - France - Germany
Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco - Singapore
Spain - Sweden - Switzerland - United Kingdom - United States.
http://www.st.com
5/5
