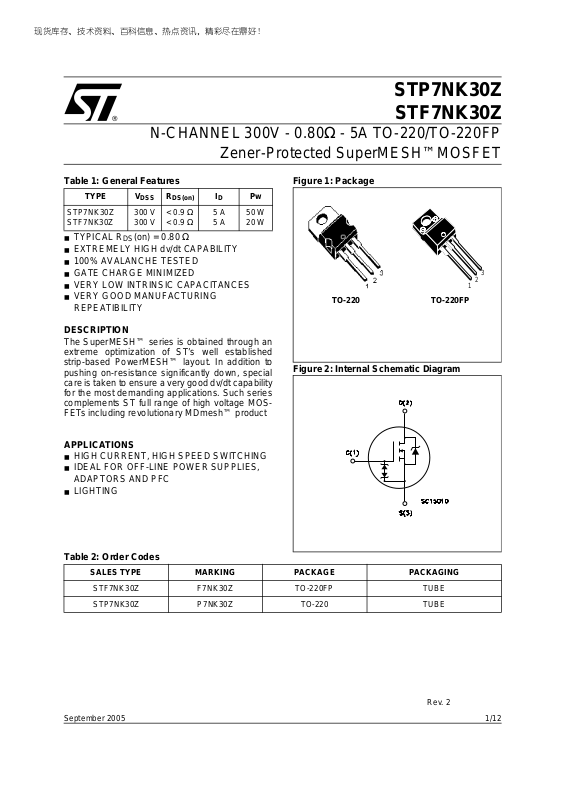

N-CHANNEL 300V - 0.80Ω - 5A TO-220/TO-220FP

Zener-Protected SuperMESH™MOSFET

STP7NK30Z

STF7NK30Z

Table 1: General Features

TYPE V

STP7NK30Z
STF7NK30Z

■ TYPICAL R

■ EXTREMELY HIGH dv /d t CAPABILITY

■ 100% AVALANCHE TESTED

■ GATE CHARGE MINIMIZED

■ VERY LOW INTRINSIC CAPACITANCES

■ VERY GOOD MANUFACTURING

DSSRDS(on)

300 V
300 V

(on) = 0.80 Ω

DS

< 0.9 Ω
< 0.9 Ω

I

D

5 A
5 A

Pw

50 W
20 W

REPEATIBILITY

DESCRIPTION

The SuperMESH™ series is obtained through an
extreme optimization of ST’s well established
strip-based PowerMESH™ layout. In addition to
pushing on-resistance significantly down, special
care is taken to ensure a very good dv/dt capability
for the most demanding applications. Such series
complements ST full range of high voltage MOS­FETs including revolutionary MDmesh™ product

APPLICATIONS

■ HIGH CURRENT, HIGH SPEED SWITCHING

■ IDEAL F OR OFF-LINE POWER SUP PLIE S,

ADAPTORS AND PFC

■ LIGHTING

Figure 1: Package

TO-220

TO-220FP

Figure 2: Internal Schematic Diagram

3

2

1

Table 2: Order Codes

SALES TYPE MARKING PACKAGE PACKAGING

STF7NK30Z F7NK30Z TO-220FP TUBE
STP7NK30Z P7NK30Z TO-220 TUBE

Rev. 2

1/12September 2005

STP7NK30Z - STF7NK30Z

Table 3: Absolute Maximum ratings

Symbol Parameter Value Unit

STP7NK30Z STF7NK30Z

V

DS

V

DGR

V

GS

I

D

I

D

I

()

DM

P

TOT

V

ESD(G-S)

dv/dt (1) Peak Diode Recovery voltage slope 4.5 V/ns

V

ISO

T

j

T

stg

() Pulse width limited by safe operat i ng area
(1) I

≤5.7A, di/dt ≤200A/µs, VDD ≤ V

SD

(*) Limited only by maximum temperature allowed

Drain-source Voltage (VGS = 0)
Drain-gate Voltage (RGS = 20 kΩ)

300 V

300 V
Gate- source Voltage ± 30 V
Drain Current (continuous) at TC = 25°C
Drain Current (continuous) at TC = 100°C

55 (*)A

3.2 3.2 (*) A
Drain Current (pulsed) 20 20 (*) A
Total Dissipation at TC = 25°C

50 20 W
Derating Factor 0.4 0.16 W/°C
Gate source ESD(HBM-C=100pF, R=1.5KΩ) 2800 V

Insulation Withstand Voltage (DC) - 2500 V
Operating Junction Temperature

Storage Temperature

, Tj ≤ T

(BR)DSS

JMAX.

-55 to 150

-55 to 150

°C
°C

Table 4: Thermal Data

TO-220 TO-220FP

Rthj-case Thermal Resistance Junction-case Max 2.50 6.25 °C/W

Rthj-amb Thermal Resistance Junction-ambient Max 62.5 °C/W

T

l

Maximum Lead Temperature For Soldering Purpose

300 °C

Table 5: Avalanche Characteristics

Symbol Parameter Max Value Unit

I

AR

E

AS

Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by T

max)

j

Single Pulse Avalanche Energy
(starting T

= 25 °C, ID = IAR, VDD = 50 V)

j

5A

130 mJ

Table 6: Gate-Source Zener Diode

Symbol Parame ter Test Conditions Min. Typ. Max. Unit

BV

GSO

Gate-Source Breakdown

Igs=± 1mA (Open Drain) 30 V

Voltage

PROTECTION FEATURES OF GATE-TO-SOURCE ZENER DIODES

The built-in back-to-back Zener diodes have specifically been designed t o enhance not only t he device’s
ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be
applied from gate to source. In this respect the Zener voltage is appropriate to achieve an efficient and
cost-effective intervention to p r otect the device’s integrity. These integrated Zener diodes thus avoid the
usage of external components.

2/12

STP7NK30Z - STF7NK30Z

ELECTRICAL CHARACTERISTICS (T

=25°C UNLESS OTHERWISE SPECIFIED)

CASE

Table 7: On /Off

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

(BR)DSS

Drain-source

ID =1 mA, VGS = 0 300 V

Breakdown Voltage

I

DSS

I

GSS

V

GS(th)

R

DS(on)

Zero Gate Voltage
Drain Current (V

GS

= 0)

Gate-body Leaka ge
Current (V

DS

= 0)
Gate Threshold Voltage
Static Drain-source On

V

= Max Rating

DS

V

= Max Rating, TC = 125 °C

DS

V

= ± 20V ±10 µA

GS

V

= VGS, ID = 50µA

DS

3 3.75 4.5 V

1

50

VGS = 10V, ID = 2.5 A 0.80 0.90 Ω

Resistance

Table 8: Dynamic

Symbol Parameter Test Conditions Min. Typ. Max. Unit

g

(1) Forward Transconductance VDS =15 V, ID=2.5 A 2.5 S

fs

C

oss eq.

C
C
C

t

d(on)

t

d(off)

t

r(Voff)

t

Q
Q
Q

iss

oss

rss

t

r

t

f

t

f

c

gs

gd

Input Capacitance
Output Capacitance
Reverse Transfer Capacitance

(3)

Equivalent Outpu t Capacitance
Turn-on Delay Time

Rise Time
Turn-off-Delay Time
Fall Time

Off-voltage Rise Time
Fall Time
Cross-over Time

g

Total Gate Charge
Gate-Source Charge
Gate-Drain Charge

= 25V, f = 1 MHz, VGS = 0 380

V

DS

74
15

VGS = 0V, VDS = 0V to 400V 30 pF

= 425 V, ID = 2.8 A,

V

DD

RG = 4.7 Ω, V

GS

(see Figure 18)

= 10 V

11
25
20
10

= 320V, ID = 5A,

V

DD

RG=4.7Ω, V

GS

(see Figure 17)

= 320V, ID = 5 A,

V

DD

V

= 10V

GS

(see Figure 21)

= 10V

8.5

8.5
20

13

4.5

7.6

17 nC

µA
µA

pF
pF
pF

ns
ns
ns
ns

ns
ns
ns

nC
nC

Table 9: Source Drain Diode

Symbol Parameter Test Conditions Min. Typ. Max. Unit

I

SD

I

SDM

VSD (1)

t

rr

Q

rr

I

RRM

(1) Pulsed: Pulse du rat i on = 300 µs, du ty cycle 1.5 % .
(2) Pulse width limited by safe operating area.
(3) C

oss eq.

Source-drain Current

(2)

Source-drain Current (pulsed)
Forward On Voltage
Reverse Recovery Time

Reverse Recovery Charge
Reverse Recovery Current

is defined as a constant equivalent capacitance giving the same charging time as C

ISD = 5 A, VGS = 0

= 5 A, di/dt = 100A/µs

I

SD

VDD = 40, Tj = 150°C
(see Figure 19)

154
716

9.3

when VDS increase s from 0 to 80% V

oss

5

20

1.6 V

A
A

ns

nC

A

DSS

3/12

.

STP7NK30Z - STF7NK30Z

Figure 3: Safe Operating Area for TO-220

Figure 4: Safe Operating Area for TO-220FP

Figure 6: Thermal Impedan ce for TO -2 20

Figure 7: Thermal Impedan ce for TO -2 20FP

Figure 5: Output Characteristics

4/12

Figure 8: Transfer Characteristics

STP7NK30Z - STF7NK30Z

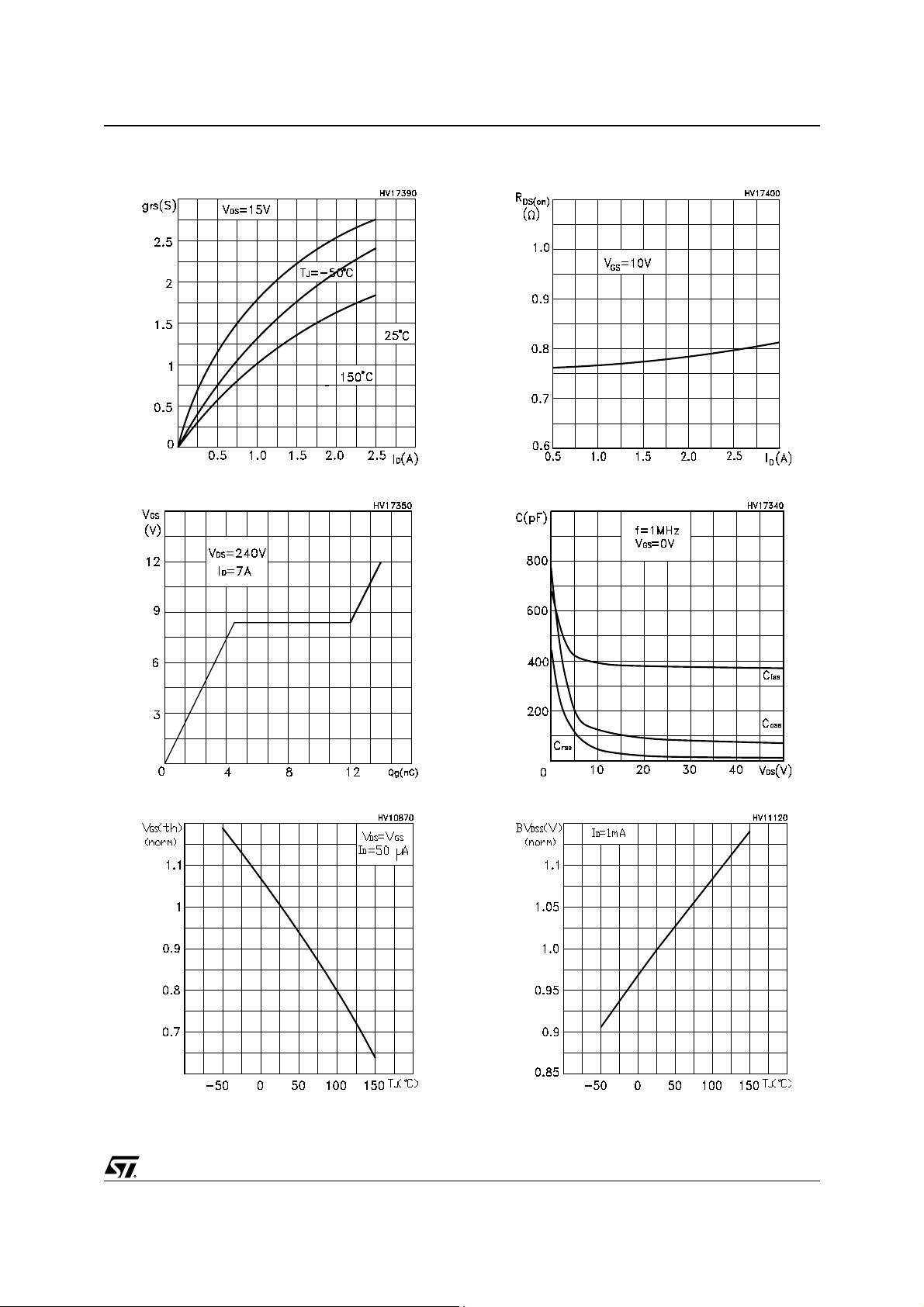

Figure 9: Transconductance

Figure 10: Gate Charge vs Gate-source Voltage

Figure 12: Static Drain-source On Resistance

Figure 13: Capacitance Variations

Figure 11: Normalized Gate Thereshold Volt­age vs Temperature

Figure 14: Normalized BVDSS vs Temperature

5/12

STP7NK30Z - STF7NK30Z

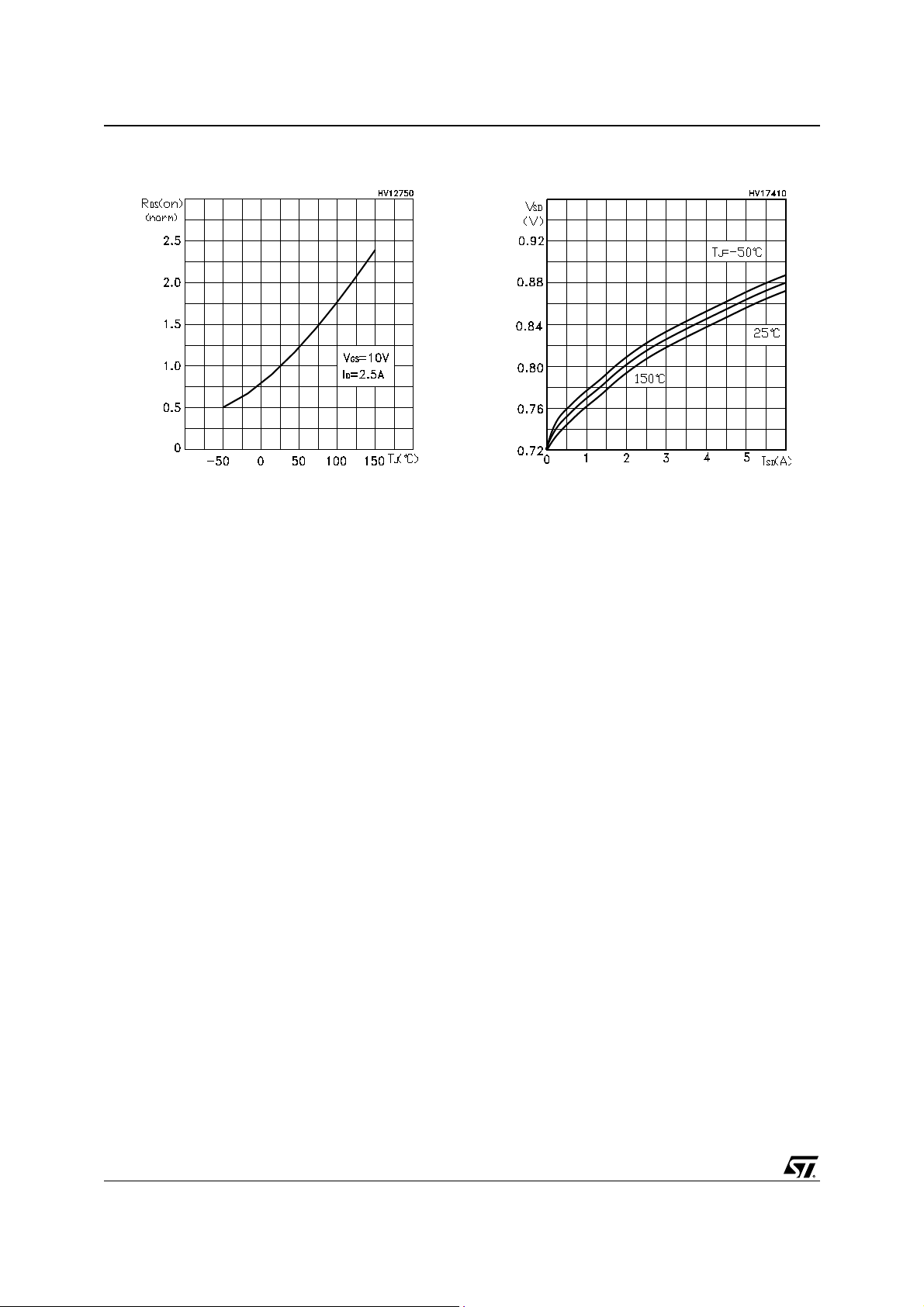

Figure 15: Norm alized O n Resis tance vs T em­peratureS

Figure 16: S ource-Drain Diode Forw ard Char­acteristics

6/12

STP7NK30Z - STF7NK30Z

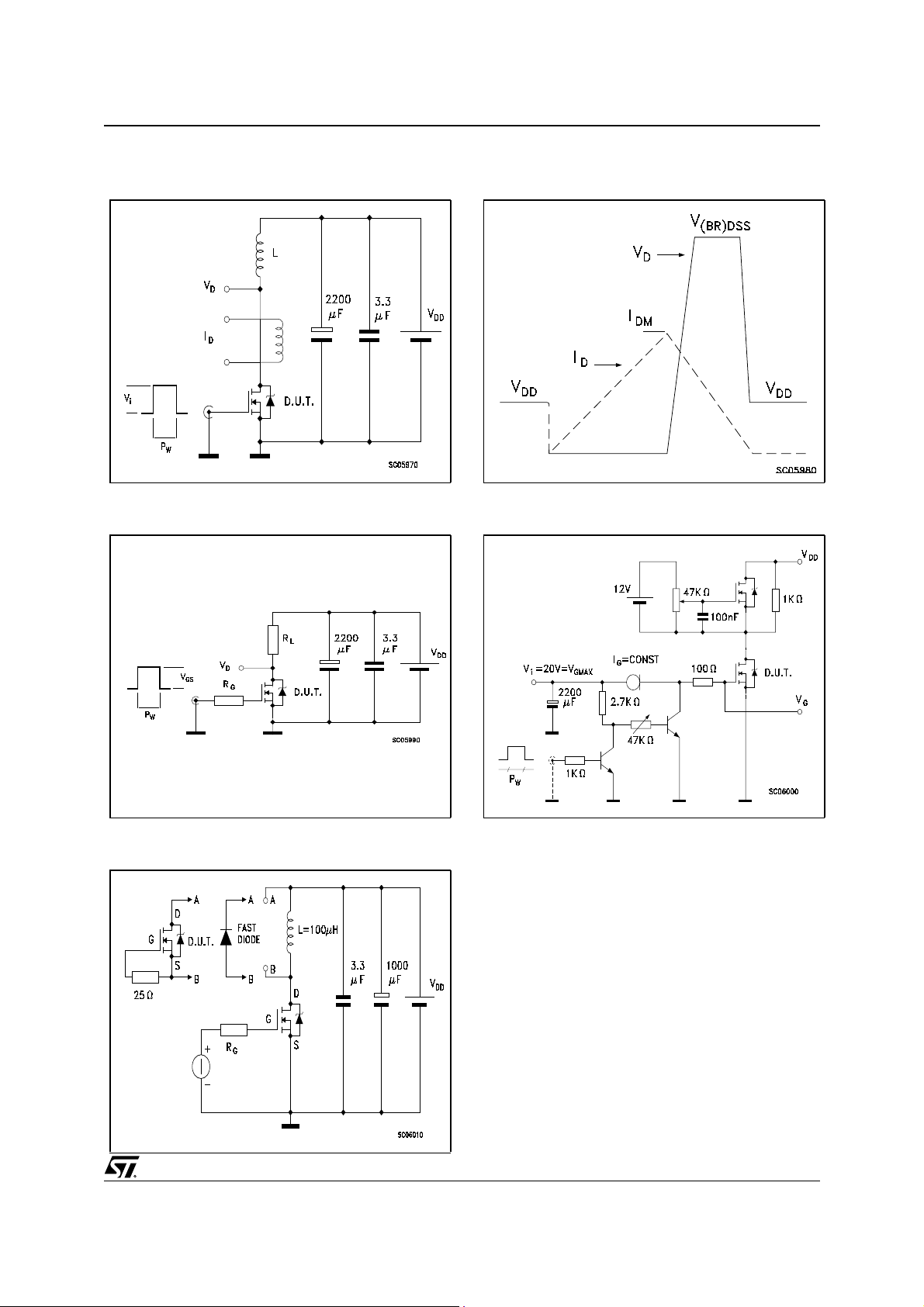

Figure 17: Unclamped Inductive Load Test Cir­cuit

Figure 18: Switching Times Test Circuit For
Resistive Load

Figure 20: Unclamped Inductive Wafeform

Figure 21: Gate Charge Test Circuit

Figure 19: Test Circuit For Inductive Load
Switching and Diode Recovery Times

7/12

STP7NK30Z - STF7NK30Z

In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. These
packages have a Lead-free second level interconnect . The category of second level interconnect is
marked on the package and on the inner box label, i n compliance with JEDEC Standard JESD97. The
maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an
ST trademark. ECOPACK specifications are available at: www.st.com

8/12

TO-220FP MECHANICAL DATA

STP7NK30Z - STF7NK30Z

DIM.

A 4.4 4.6 0.173 0.181
B 2.5 2.7 0.098 0.106
D 2.5 2.75 0.098 0.108
E 0.45 0.7 0.017 0.027

F 0.75 1 0.030 0.039
F1 1.15 1.7 0.045 0.067
F2 1.15 1.7 0.045 0.067

G 4.95 5.2 0.195 0.204
G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409
L2 16 0.630
L3 28.6 30.6 1.126 1.204
L4 9.8 10.6 .0385 0.417
L5 2.9 3.6 0.114 0.141
L6 15.9 16.4 0.626 0.645
L7 9 9.3 0.354 0.366

Ø 3 3.2 0.118 0.126

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

E

A

D

B

L3

L6

L7

F1

F

G1

H

F2

123

L4

L2

L5

G

9/12

STP7NK30Z - STF7NK30Z

TO-220 MECHANICAL DATA

DIM.

A 4.40 4.60 0.173 0.181

b 0.61 0.88 0.024 0.034

b1 1.15 1.70 0.045 0.066

c 0.49 0.70 0.019 0.027
D 15.25 15.75 0.60 0.620
E 10 10.40 0.393 0.409

e 2.40 2.70 0.094 0.106

e1 4.95 5.15 0.194 0.202

F 1.23 1.32 0.048 0.052

H1 6.20 6.60 0.244 0.256
J1 2.40 2.72 0.094 0.107

L 13 14 0.511 0.551

L1 3.50 3.93 0.137 0.154
L20 16.40 0.645
L30 28.90 1.137

øP

Q 2.65 2.95 0.104 0.116

MIN. TYP MAX. MIN. TYP. MAX.

3.75 3.85 0.147 0.151

mm. inch

10/12

Table 10: Revision History

Date Revision Description of Change s

10-May-2005 1 New stylesheet
05-Sep-2005 2 Inserted Ecopack indication

STP7NK30Z - STF7NK30Z

11/12

STP7NK30Z - STF7NK30Z
