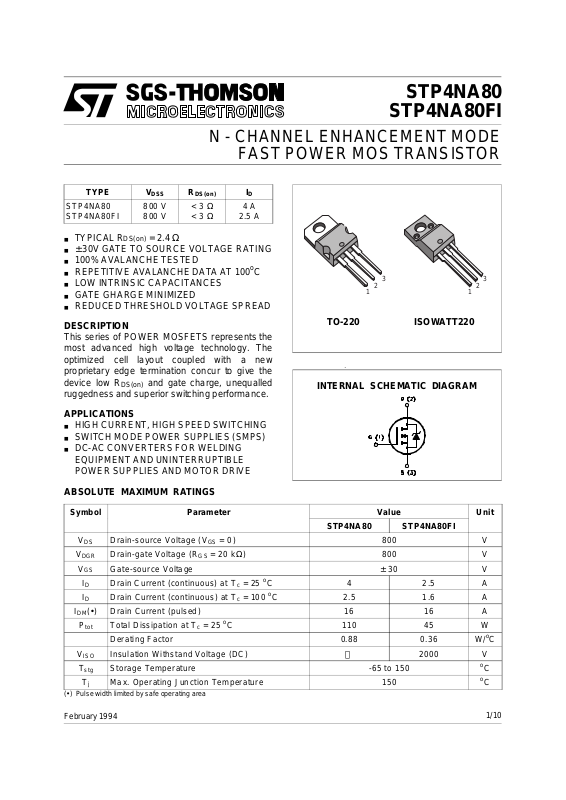

STP4NA80
STP4NA80FI
N - CHANNEL ENHANCEMENT MODE
FAST POWER MOS TRANSISTOR
TYPE V
STP4NA80
STP4NA80FI
■ TYPICAL R
■ ± 30V GATE TO SOURCE VOLTAGE RATING
■ 100% AVALANCHE TESTED
■ REPETITIVE AVALANCHE DATA AT 100
■ LOW INTRINSIC CAPACITANCES
■ GATE GHARGE MINIMIZED
■ REDUCED THRESHOLD VOLTAGE SPREAD
DS(on)
DSS
800 V
800 V
= 2.4 Ω
R
DS(on)
< 3 Ω
< 3 Ω
I
D
4 A
2.5 A
o
C
DESCRIPTION
This series of POWER MOSFETS represents the
most advanced high voltage technology. The
optimized cell layout coupled with a new
proprietary edge termination concur to give the
device low R
and gate charge, unequalled
DS(on)
ruggedness and superior switching performance.
APPLICATIONS
■ HIGH CURRENT, HIGH SPEED SWITCHING
■ SWITCH MODE POWER SUPPLIES (SMPS)
■ DC-AC CONVERTERS FOR WELDING
EQUIPMENT AND UNINTERRUPTIBLE
POWER SUPPLIES AND MOTOR DRIVE
3
2
1
1
TO-220 ISOWATT220
INTERNAL SCHEMATIC DIAGRAM
3
2
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
STP4NA80 STP4NA80FI
V
V
V
I
DM
P
V
T
(•) Pulse width limited by safe operating area
February 1994
Drain-source Voltage (VGS = 0) 800 V
DS
Drai n -ga te V ol t ag e ( RGS = 20 kΩ)800V
DGR
Gate-source Voltage ± 30 V
GS
I
Drain Current (continuous) at Tc = 25 oC42.5A
D
I
Drain Current (continuous) at Tc = 100 oC2.5 1.6A
D
(•) Drain Current (pulsed) 16 16 A
Total Dissipation at Tc = 25 oC11045W
tot
Dera tin g Fact or 0.88 0.36 W/
Insulation Withstand Voltage (DC) 2000 V
ISO
Stor age Tempe rat ure -65 to 15 0
stg
T
Max. Operating Junction Temperature 150
j
o
C
o
C
o
C
1/10
Page 2
STP4NA80/FI
THERMAL DATA
TO-220 ISOWATT220
R
thj-case
R
thj-amb
R
th c-sink
T
AVALANCHE CHARACTERISTICS
Symbol Parameter Max Value Unit
I
AR
E
E
I
AR
Thermal Resistance Junction-case Max 1.13 2.77
Thermal Resistance Junction-ambient Max
Thermal Resistance Case-sink Typ
Max im u m Le ad T em perature F or So l de rin g P ur p ose
l
Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by Tj max, δ < 1%)
Sing le Pul se Ava lan che Energy
AS
(starting Tj = 25 oC, ID = IAR, V
Repet iti ve Av alan che En erg y
AR
DD
= 50 V)
(pulse width limited by Tj max, δ < 1%)
Avalanche Current, Repetitive or Not-Repetitive
(Tc = 100 oC, pulse width limited by Tj max, δ < 1%)
62.5
0.5
300
4A
80 mJ
3.1 mJ
2.5 A
o
C/W
o
C/W
o
C/W
o
C
ELECTRICAL CHARACTERISTICS (T
= 25 oC unless otherwise specified)
case
OFF
Symbol Parameter Test Condition s Min. Typ. Max. U nit
V
(BR) DSS
Drain-source
ID = 250 µA V
= 0 800 V
GS
Bre akdow n Vol tage
I
DSS
I
GSS
Zero Ga te V ol t ag e
Drain Current (V
GS
Gate -body Leaka ge
VDS = Max Rating
= 0)
VDS = Max Rating x 0.8 Tc = 125 oC
VGS = ± 30 V ± 10 0 nA
250
1000µAµA
Current (VDS = 0)
ON (∗)
Symbol Parameter Test Condition s Min. Typ. Max. U nit
V
R
I
GS(th)
DS(on)
D(on)
Gate Threshold Voltage V
Stat ic Dra in-s ourc e On
Resistance
= VGS ID = 250 µA 2.25 3 3.75 V
DS
VGS = 10V ID = 2 A
V
= 10V ID = 2 A Tc = 100oC
GS
On State Dra in C urr e nt VDS > I
V
= 10 V
GS
D(on)
x R
DS(on)max
2.4 3
6
4A
DYNAMIC
Symbol Parameter Test Condition s Min. Typ. Max. U nit
g
(∗)Forward
fs
Transconductance
C
C
C
Input Capacitance
iss
Output Capacitance
oss
Reverse Transfer
rss
Capacitance
VDS > I
V
DS
x R
D(on)
DS(on)max
= 25 V f = 1 MHz V
ID = 2 A 2.5 4.3 S
= 0 955
GS
105
24
1350
150
35
Ω
Ω
pF
pF
pF
2/10
Page 3
STP4NA80/FI
ELECTRICAL CHARACTERISTICS (continued)
SWITCHING ON
Symbol Parameter Test Condition s Min. Typ. Max. U nit
t
d(on)
(di/dt)
Q
Q
Q
SWITCHING OFF
Symbol Parameter Test Condition s Min. Typ. Max. U nit
t
r(Voff)
t
SOURCE DRAIN DIODE
Turn-on Time
t
Rise Time
r
Turn-on Current Slope V
on
Tot al G a te C ha r ge
g
Gate -Sou rce Ch arge
gs
Gate-Drain Charge
gd
Off-voltage Rise Time
t
Fall Time
f
Cross-over Time
c
V
= 400 V ID = 2 A
DD
RG = 47 Ω VGS = 10 V
(see test circuit, figure 3)
= 640 V ID = 4 A
DD
RG = 47 Ω VGS = 10 V
(see te s t ci r cui t, fi g ure 5 )
VDD = 640 V ID = 4 A V
V
= 640 V ID = 4 A
DD
RG = 47 Ω VGS = 10 V
(see test circuit, figure 5)
= 10 V 44
GS
27
70
40
100
170 A/µs
65 nC
7
18
60
20
90
85
30
130
ns
ns
nC
nC
ns
ns
ns
Symbol Parameter Test Condition s Min. Typ. Max. U nit
I
I
SDM
SD
Source-drain Current
(•)
Source-drain Current
4
16
(pulsed)
V
(∗) F or w ar d On V ol t ag e ISD = 4 A VGS = 0 1.6 V
SD
t
Q
Reverse Recovery
rr
Time
Reverse Recovery
rr
I
= 4 A di/dt = 100 A/µ s
SD
VDD = 100 V Tj = 150 oC
(see test circuit, figure 5)
680
10.5
Charge
I
RRM
Reverse Recovery
31
Current
(∗) Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %
(•) Pulse width limited by safe operating area
Safe Operating Areas for TO-220 Safe Operating Areas for ISOWATT220
A
A
ns
µC
A
3/10
Page 4
STP4NA80/FI

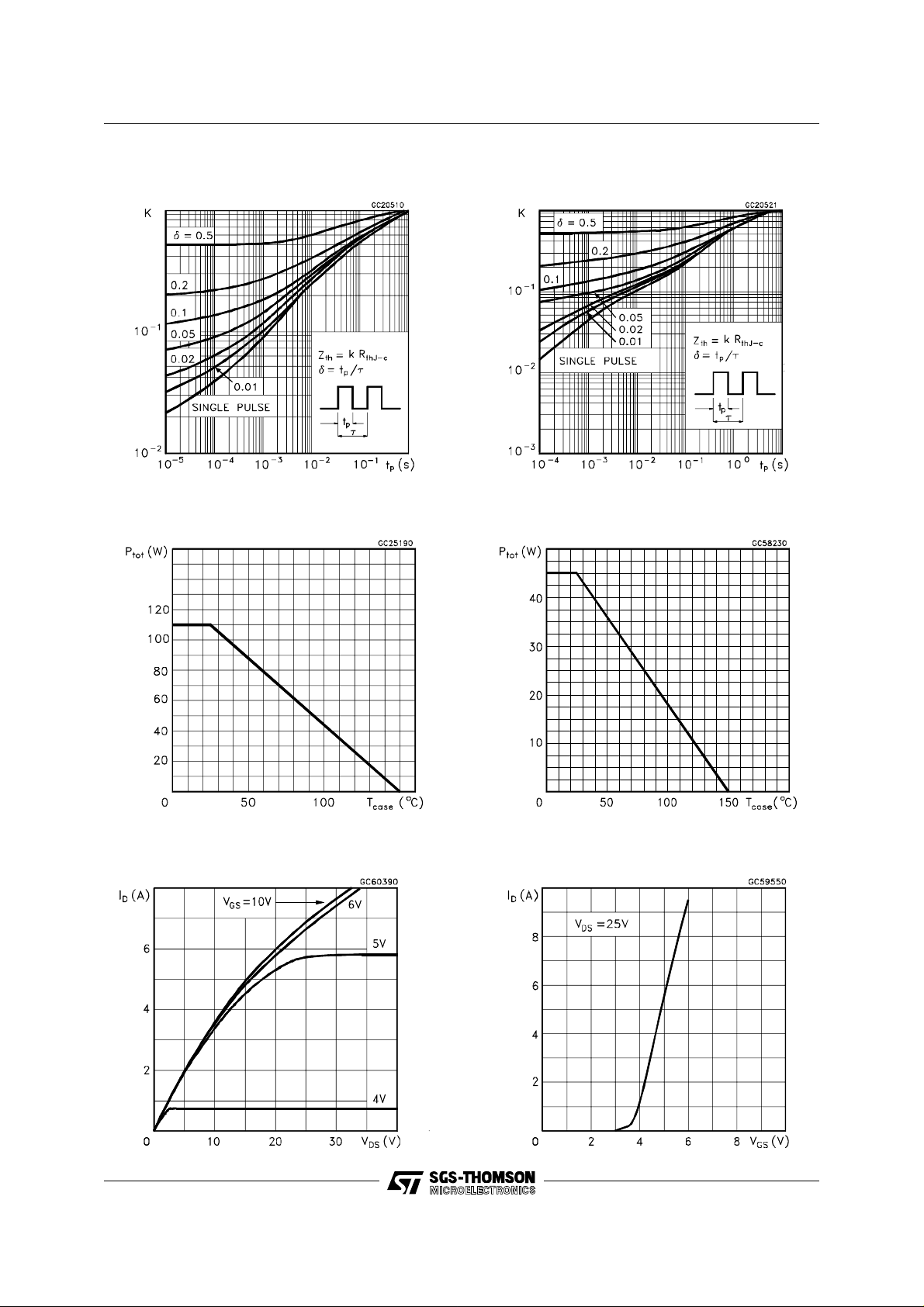

Thermal Impedeance For TO-220
Derating Curve For TO-220
Thermal Impedance For ISOWATT220
Derating Curve For ISOWATT220
Output Characteristics
4/10
Transfer Characteristics
Page 5

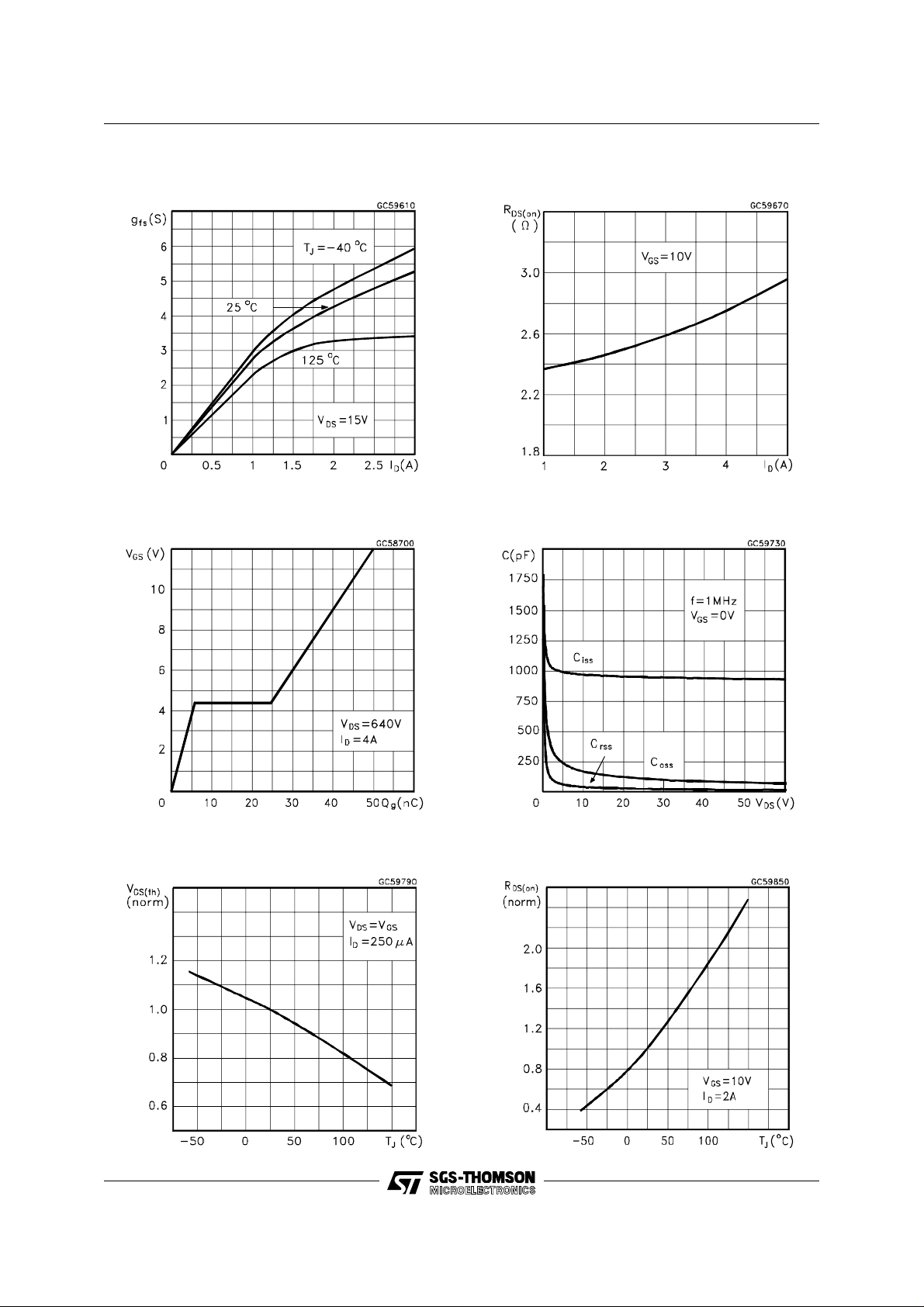

Transconductance Static Drain-source On Resistance
Gate Charge vs Gate-source Voltage Capacitance Variations
STP4NA80/FI
Temperature
Normalized On Resistance vs TemperatureNormalized Gate Threshold Voltage vs
5/10
Page 6
STP4NA80/FI

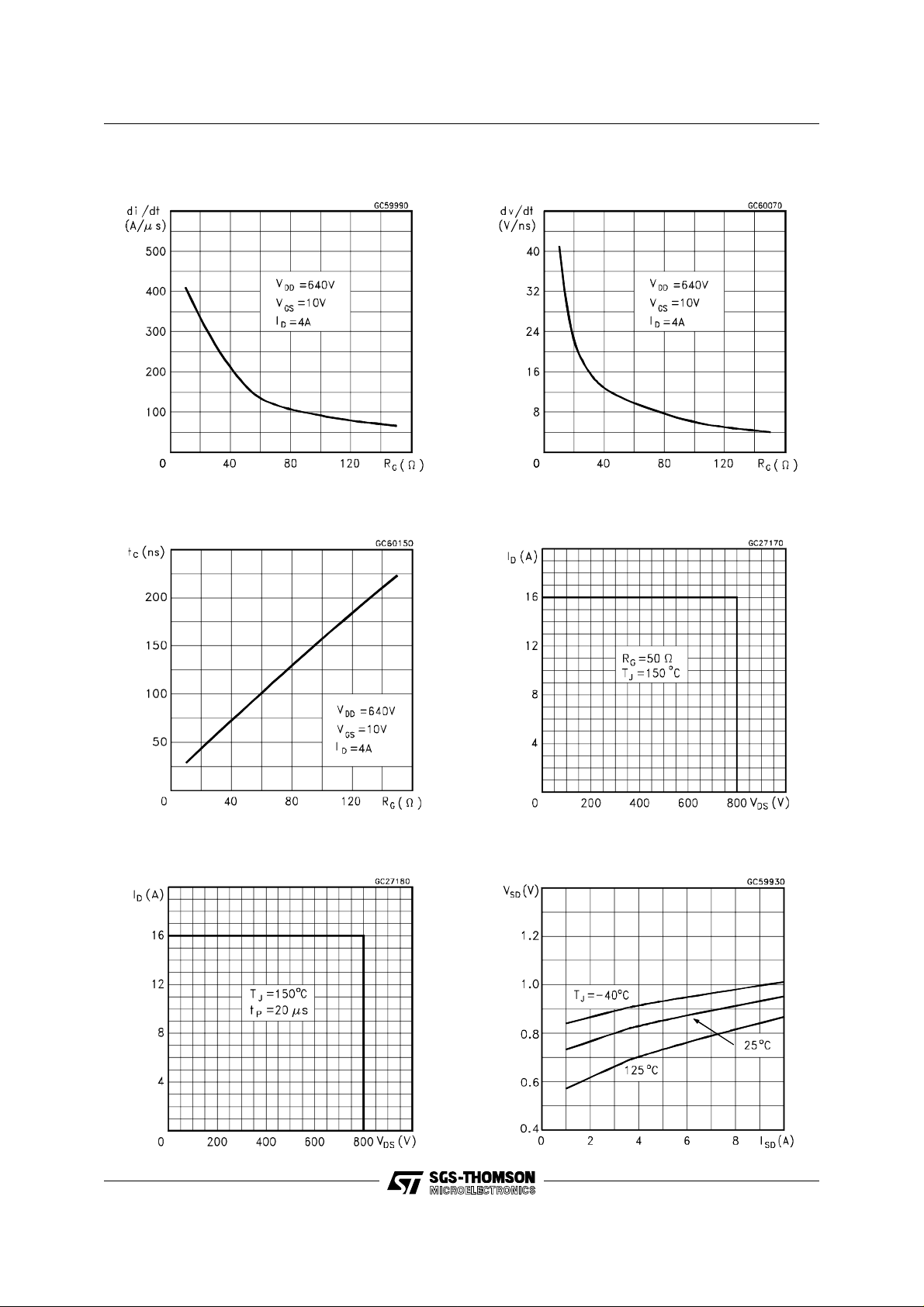

Turn-on Current Slope Turn-off Drain-source Voltage Slope
Cross-over Time Switching Safe Operating Area
Accidental Overload Area Source-drain Diode Forward Characteristics
6/10
Page 7
STP4NA80/FI

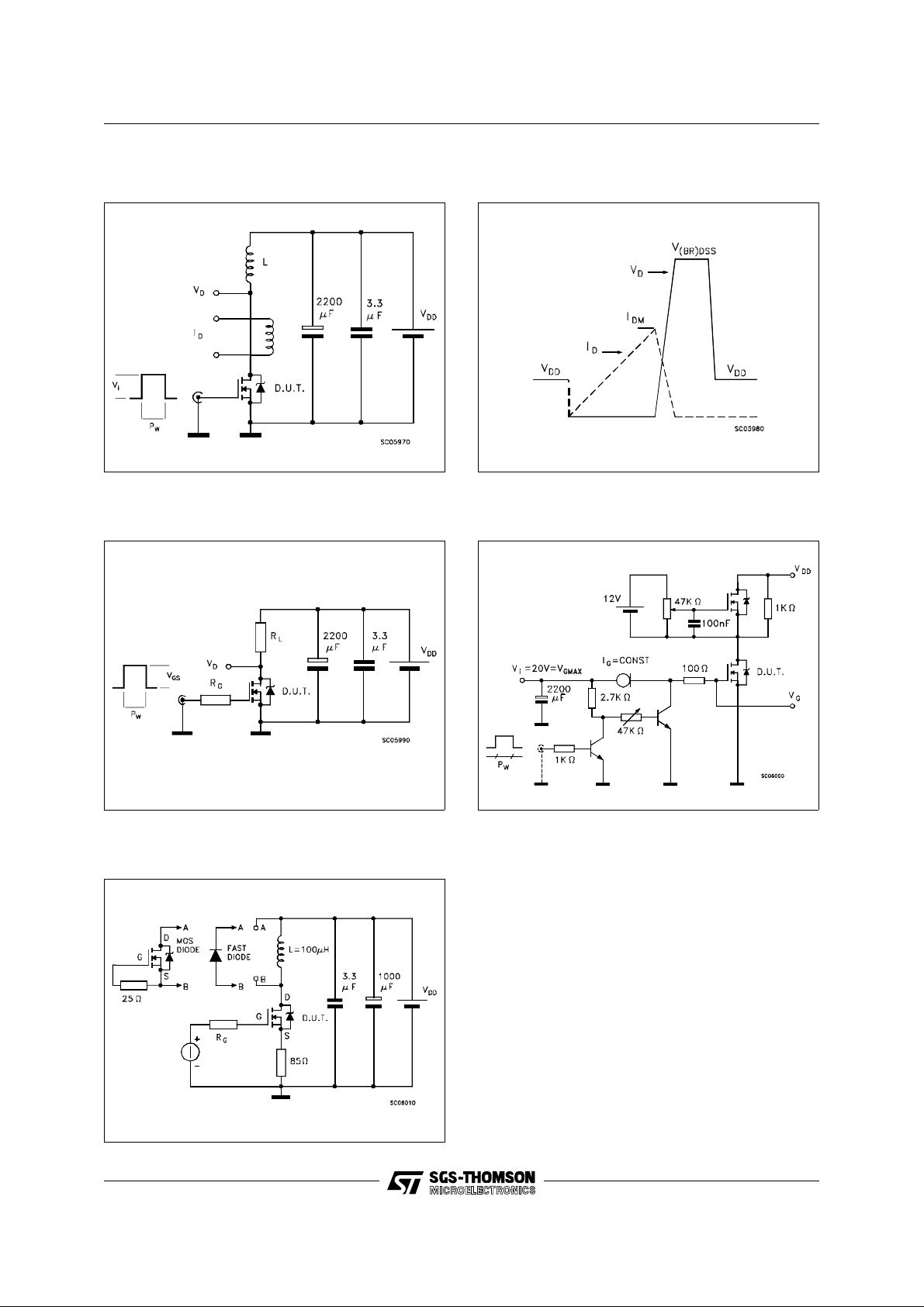

Fig. 1: Unclamped Inductive Load Test Circuits
