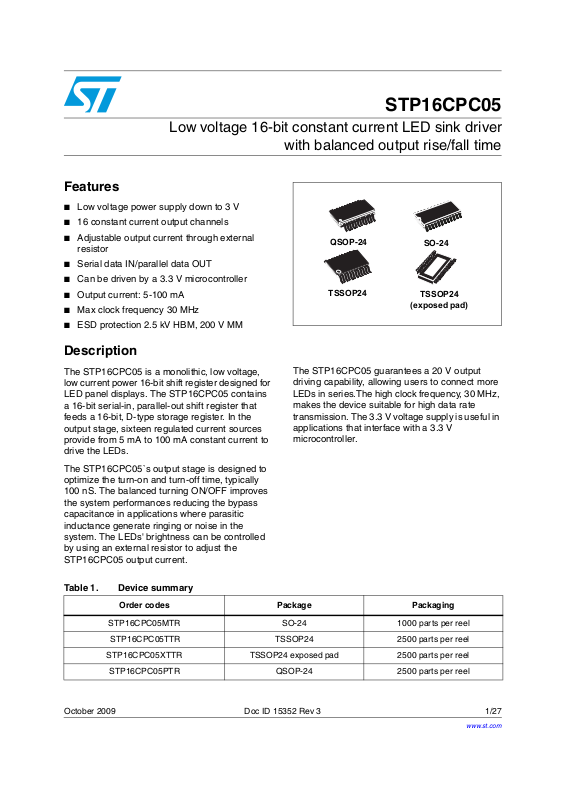

Low voltage 16-bit constant current LED sink driver
Features
■ Low voltage power supply down to 3 V
■ 16 constant current output channels
■ Adjustable output current through external
resistor
■ Serial data IN/parallel data OUT
■ Can be driven by a 3.3 V microcontroller
■ Output current: 5-100 mA
■ Max clock frequency 30 MHz
■ ESD protection 2.5 kV HBM, 200 V MM
Description
STP16CPC05
with balanced output rise/fall time
QSOP-24
TSSOP24
SO-24
TSSOP24
(exposed pad)
The STP16CPC05 is a monolithic, low voltage,
low current power 16-bit shift register designed for
LED panel displays. The STP16CPC05 contains
a 16-bit serial-in, parallel-out shift register that
feeds a 16-bit, D-type storage register. In the
output stage, sixteen regulated current sources
provide from 5 mA to 100 mA constant current to
drive the LEDs.
The STP16CPC05`s output stage is designed to
optimize the turn-on and turn-off time, typically
100 nS. The balanced turning ON/OFF improves
the system performances reducing the bypass
capacitance in applications where parasitic
inductance generate ringing or noise in the
system. The LEDs' brightness can be controlled
by using an external resistor to adjust the
STP16CPC05 output current.
Table 1. Device summary
Order codes Package Packaging
STP16CPC05MTR SO-24 1000 parts per reel
STP16CPC05TTR TSSOP24 2500 parts per reel
The STP16CPC05 guarantees a 20 V output
driving capability, allowing users to connect more
LEDs in series.The high clock frequency, 30 MHz,
makes the device suitable for high data rate
transmission. The 3.3 V voltage supply is useful in
applications that interface with a 3.3 V
microcontroller.
STP16CPC05XTTR TSSOP24 exposed pad 2500 parts per reel
STP16CPC05PTR QSOP-24 2500 parts per reel
October 2009 Doc ID 15352 Rev 3 1/27
www.st.com
27
Page 2
Contents STP16CPC05
Contents
1 Summary description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Pin connection and description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Equivalent circuit and outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Timing diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Typical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2/27 Doc ID 15352 Rev 3
Page 3
STP16CPC05 Summary description
1 Summary description
Table 2. Typical current accuracy
Output voltage
Current accuracy
Between bits Between ICs
≥ 1.3 V ±1.5% ±5% ≥ 20 to 100 mA 3.3 V to 5 V 25 °C
1.1 Pin connection and description
Figure 2. Pin connection
Output current
V
DD
Temper atur e
Note: Exposed-pad should be electrically connected to a metal land electrically isolated or
connected to ground
Table 3. Pin description
Pin N° Symbol Name and function
1 GND Ground terminal
2 SDI Serial data input terminal
3 CLK Clock input terminal
4 LE Latch input terminal
5-20 OUT 0-15 Output terminal
21 OE Input terminal of output enable (active low)
22 SDO Serial data out terminal
23 R-EXT Input terminal of an external resistor for constant current programing
24 V
DD
Supply voltage terminal
Doc ID 15352 Rev 3 3/27
Page 4
Electrical ratings STP16CPC05
2 Electrical ratings
2.1 Absolute maximum ratings
Stressing the device above the rating listed in the “absolute maximum ratings” table may
cause permanent damage to the device. These are stress ratings only and operation of the
device at these or any other conditions above those indicated in the operating sections of
this specification is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.
Table 4. Absolute maximum ratings
Symbol Parameter Value Unit
V
V
I
V
I
GND
f
CLK
DD
O
Supply voltage 0 to 7 V
Output voltage -0.5 to 20 V
O
Output current 100 mA
Input voltage -0.4 to VDD+0.4 V
I
GND terminal current 1600 mA
Clock frequency 50 MHz
2.2 Thermal data
Table 5. Thermal data
Symbol Parameter Value Unit
T
OPR
T
STG
R
thJC
1. The exposed pad should be soldered directly to the PCB to realize the thermal benefits.
Operating temperature range -40 to +125 °C
Storage temperature range -55 to +150 °C
Thermal resistance junction-case
SO-24 60 °C/W
TSSOP24 85 °C/W
(1)
TSSOP24
exposed pad
37.5 °C/W
QSOP-24 72 °C/W
4/27 Doc ID 15352 Rev 3
Page 5
STP16CPC05 Electrical ratings
2.3 Recommended operating conditions
Table 6. Recommended operating conditions TA = 25 °C
Symbol Parameter Test conditions Min Typ Max Unit
V
V
I
I
V
V
t
wLAT
t
wCLK
t
wEN
t
SETUP(D)
t
HOLD(D)
t
SETUP(L)
f
CLK
Supply voltage 3.0 - 5.5 V
DD
Output voltage - 20 V
O
Output current OUTn 3 - 100 mA
I
O
Output current SERIAL-OUT - +1 mA
OH
Output current SERIAL-OUT - -1 mA
OL
Input voltage 0.7V
IH
Input voltage -0.3 - 0.3V
IL
LE pulse width
DD
20 - ns
-VDD+0.3 V
CLK pulse width 16 - ns
OE pulse width 200 - ns
= 3.3 V to 5.0 V
V
Setup time for DATA 8 - ns
DD
Hold time for DATA 4 - ns
Setup time for LATCH 5 - ns
(1)
-30MHz
Clock frequency
Cascade operation
VDD = 5 V
DD
1. If the device is connected in cascade, it may not be possible achieve the maximum data transfer. Please
considered the timings carefully.
V
Doc ID 15352 Rev 3 5/27
Page 6
Electrical characteristics STP16CPC05
3 Electrical characteristics
V
= 3.3 V to 5 V, TA = 25 °C, unless otherwise specified
DD
Table 7. Electrical characteristics
Symbol Parameter Test conditions Min Typ Max Unit
V
V
I
OH
V
V
I
OL1
OL2
I
OL3
ΔI
OL1
OL2
ΔI
OL3
R
SIN(up)
R
SIN(down)
I
DD(OFF1)
Input voltage high level 0.7V
IH
Input voltage low level GND 0.3V
IL
DD
Output leakage current VOH = 20 V 10 μA
Output voltage
OL
(Serial-OUT)
Output voltage
OH
(Serial-OUT)
Output current
Output current error
between bit
(All Output ON)
I
= 1 mA 0.4 V
OL
= -1 mA VDD-0.4V V
I
OH
= 0.3 V, R
V
O
VO = 0.3 V, R
VO = 1.3 V, R
V
= 0.3 V, R
O
VO = 0.3 V, R
VO = 1.3 V, R
= 4.2 kΩ 4.25 5 5.75
ext
= 1 kΩ 19 20 21
ext
= 200 Ω 96 100 104
ext
= 4.2 kΩ ± 5 ± 8
ext
= 1 kΩ ± 1.5 ± 3
ext
= 200 Ω ± 1.2 ± 3
ext
Pull-up resistor 150 300 600 kΩ
Pull-down resistor 100 200 400 kΩ
R
= 1 kΩ
EXT
OUT 0 to 15 = OFF
4
V
DD
DD
Supply current (OFF)
I
DD(OFF2)
I
DD(ON1)
EXT
OUT 0 to 15 = OFF
R
= 1 kΩ
EXT
OUT 0 to 15 = ON
11.2
4.5
R
= 250 Ω
Supply current (ON)
R
= 250 Ω
I
DD(ON2)
EXT
OUT 0 to 15 = ON
11.7
Thermal Thermal protection 170 °C
V
V
mAI
%ΔI
mA
6/27 Doc ID 15352 Rev 3
Page 7
STP16CPC05 Electrical characteristics
V
= 5 V, TA = 25 °C, unless otherwise specified
DD
Table 8. Switching characteristics
Symbol Parameter Test conditions Min Typ Max Unit
t
PLH1
t
PLH2
t
PLH3
t
PLH
t
PHL1
t
PHL2
t
PHL3
t
PHL
t
ON
t
OFF
t
r
t
f
1. In order to achieve high cascade data transfer, please consider tr/tf timings carefully.
Propagation delay time,
CLK-OUTn
, LE = H, OE = L
Propagation delay time,
LE-OUTn, OE = L
Propagation delay time,
OE-OUTn, LE = H
Propagation delay time,
CLK-SDO
Propagation delay time,
CLK-OUTn, LE = H,
= L
OE
Propagation delay time,
LE-OUTn
, OE = L
Propagation delay time,
OE-OUTn, LE = H
Propagation delay time,
CLK-SDO
Output rise time
10~90% of voltage
waveform
Output fall time
90~10% of voltage
waveform
CLK rise time
CLK fall time
(1)
(1)
V
= V
IH
DD
VIL = GND CL = 10 pF
= 20 mA VL = 3.0 V
I
O
R
= 1 kΩ RL = 60 Ω
EXT
V
= 3.3 V - 175 227
DD
= 5 V - 159 206
V
DD
= 3.3 V - 176 228
V
DD
= 5 V - 158 205
V
DD
= 3.3 V - 235 305
V
DD
= 5 V - 192 250
V
DD
= 3.3 V - 20 26
V
DD
= 5 V - 14 18
V
DD
V
= 3.3 V - 70 91
DD
= 5 V - 68 88
V
DD
VDD = 3.3 V - 56 73
= 5 V - 54 70
V
DD
= 3.3 V - 102 132
V
DD
= 5 V - 100 130
V
DD
= 3.3 V - 25 32
V
DD
= 5 V - 17 22
V
DD
VDD = 3.3 V - 116 150
= 5 V - 108 140
V
DD
VDD = 3.3 V - 80 104
= 5 V - 80 104
V
DD
- 5000 ns
- 5000 ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Doc ID 15352 Rev 3 7/27
Page 8
Equivalent circuit and outputs STP16CPC05
4 Equivalent circuit and outputs
Figure 3. OE terminal
Figure 4. LE terminal
Figure 5. CLK, SDI terminal
8/27 Doc ID 15352 Rev 3
Page 9
STP16CPC05 Equivalent circuit and outputs
Figure 6. SDO terminal
Figure 7. Block diagram
Doc ID 15352 Rev 3 9/27
Page 10
Timing diagrams STP16CPC05
5 Timing diagrams
Table 9. Truth table
CLOCK LE OE Serial-IN OUT0 ............. OUT7 ................ OUT15 SDO
H L Dn Dn ..... Dn - 7 ..... Dn -15 Dn - 15
L L Dn + 1 No change Dn - 14
H L Dn + 2 Dn + 2 ..... Dn - 5 ..... Dn -13 Dn - 13
X L Dn + 3 Dn + 2 ..... Dn - 5 ..... Dn -13 Dn - 13
X H Dn + 3 OFF Dn - 13
Note: OUTn = ON when Dn = H OUTn = OFF when Dn = L

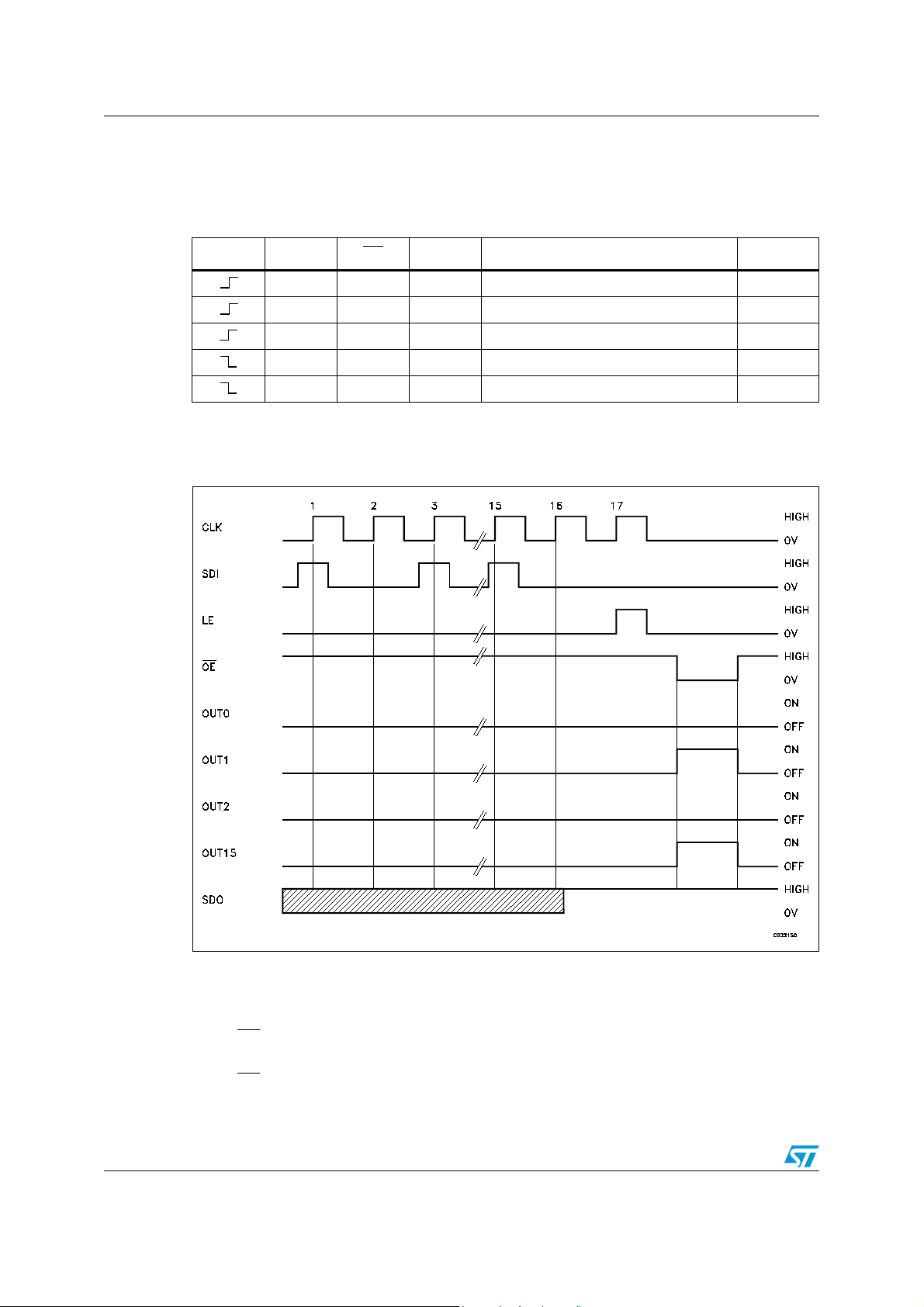

Figure 8. Timing diagram
Note: The latches circuit holds data when the LE terminal is Low.
1 When LE terminal is at high level, latch circuit does not hold the data it passes from the input
to the output.
2 When OE
terminal is at low level, output terminals OUT0 to OUT15 respond to the data,
either ON or OFF.
3 When OE
10/27 Doc ID 15352 Rev 3
terminal is at high level, it switches off all the data on the output terminal.
Page 11
STP16CPC05 Timing diagrams

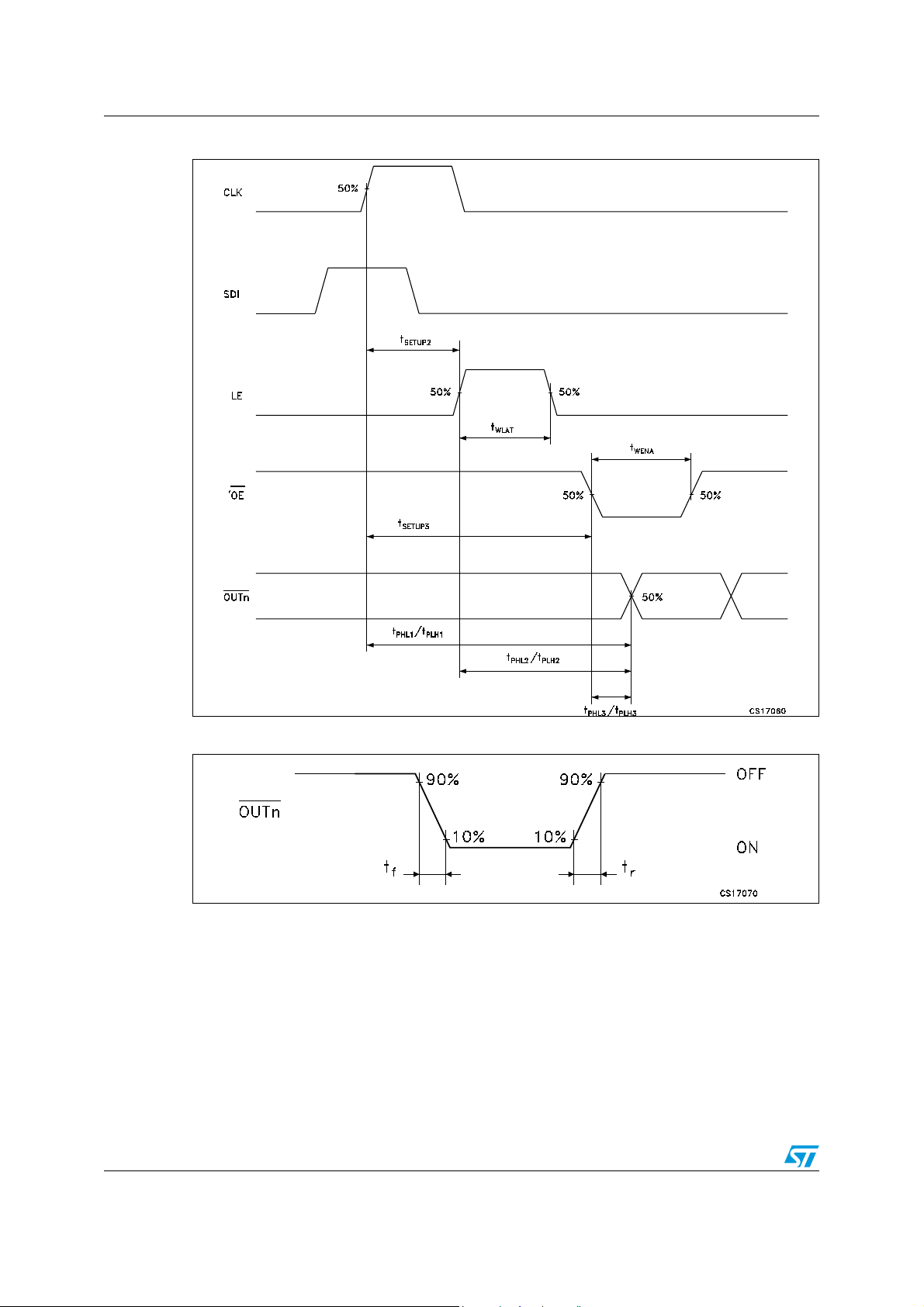

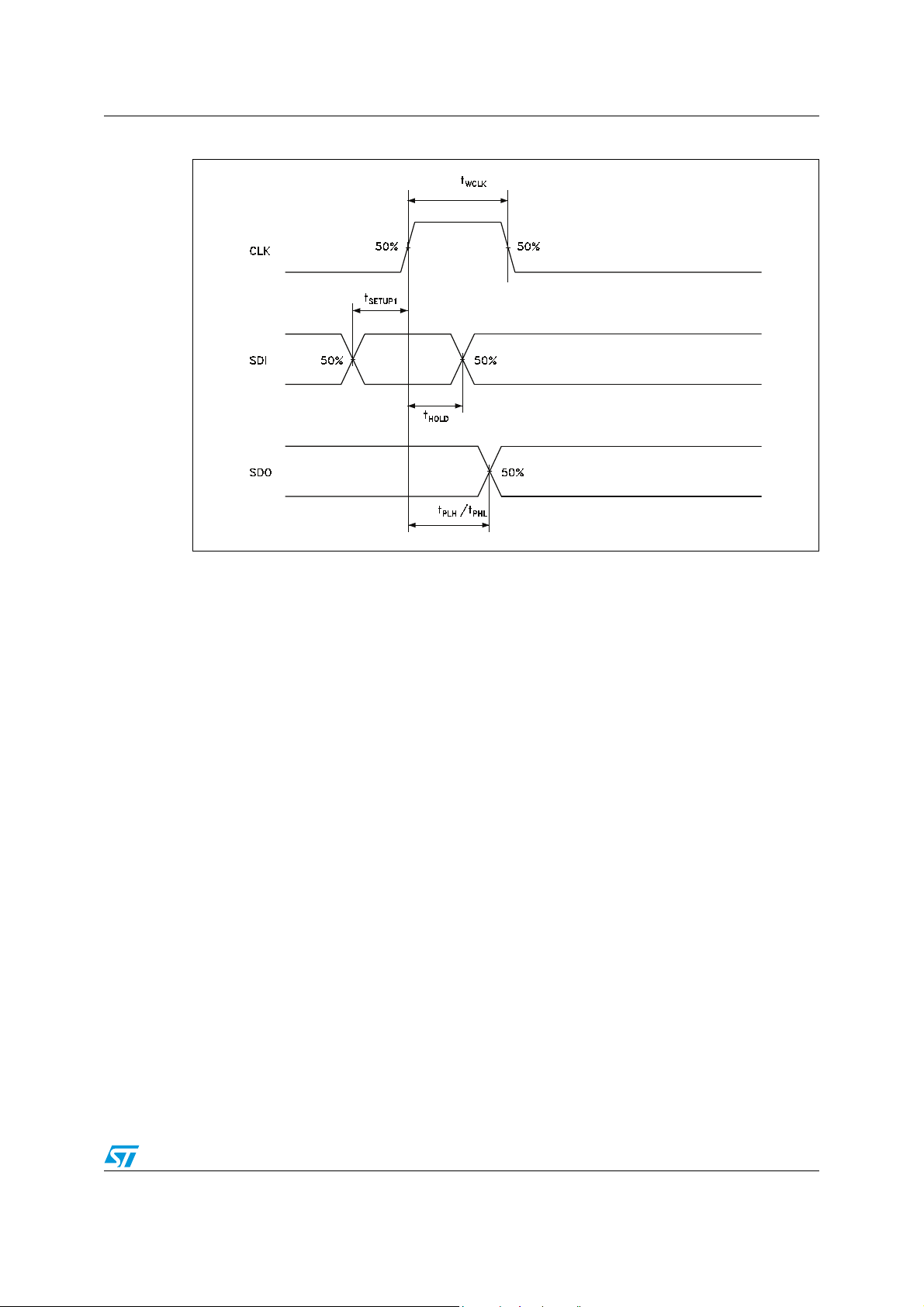

Figure 9. Clock, serial-in, serial-out
Doc ID 15352 Rev 3 11/27
Page 12
Timing diagrams STP16CPC05

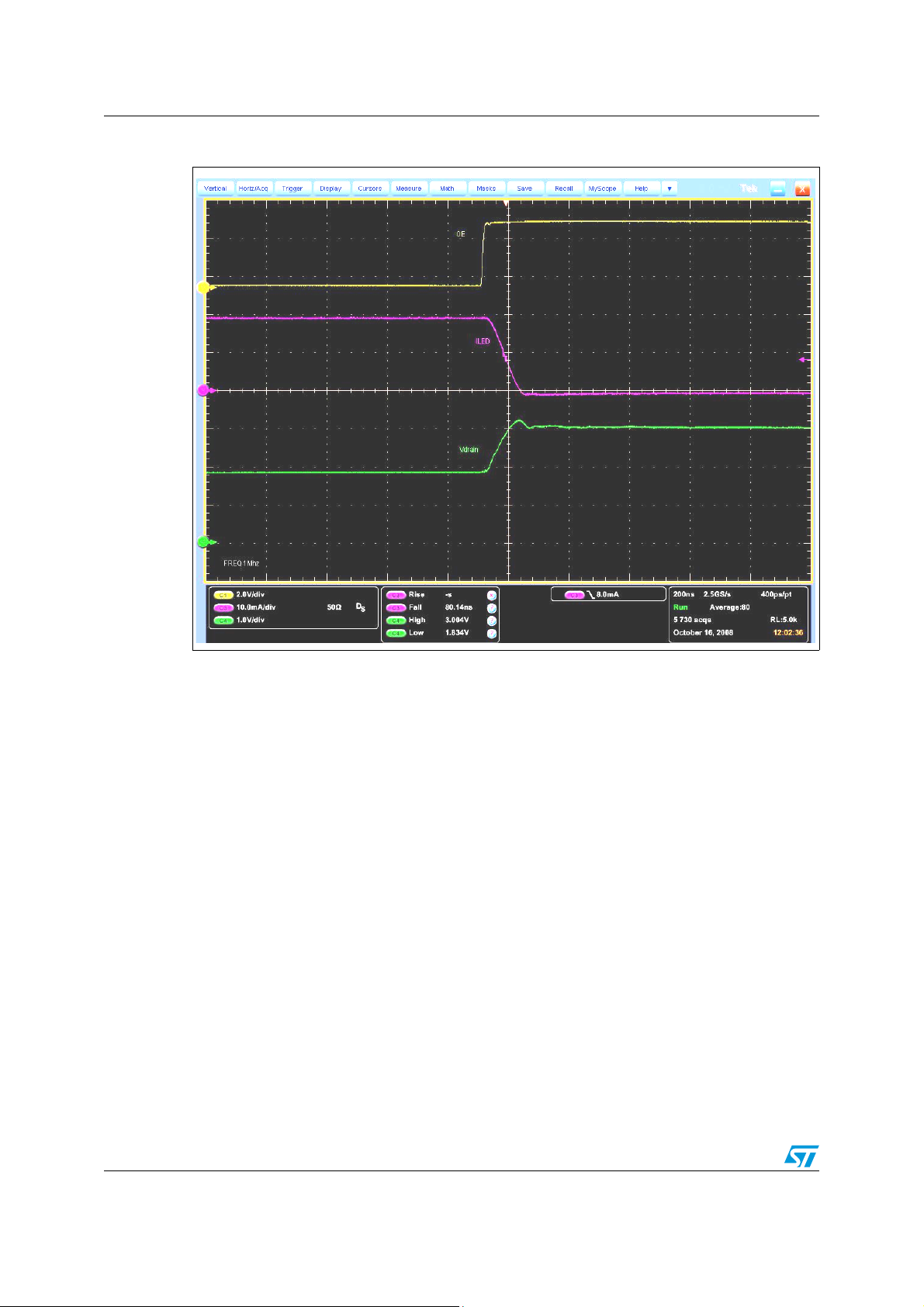

Figure 10. Clock, serial-in, latch, enable, outputs

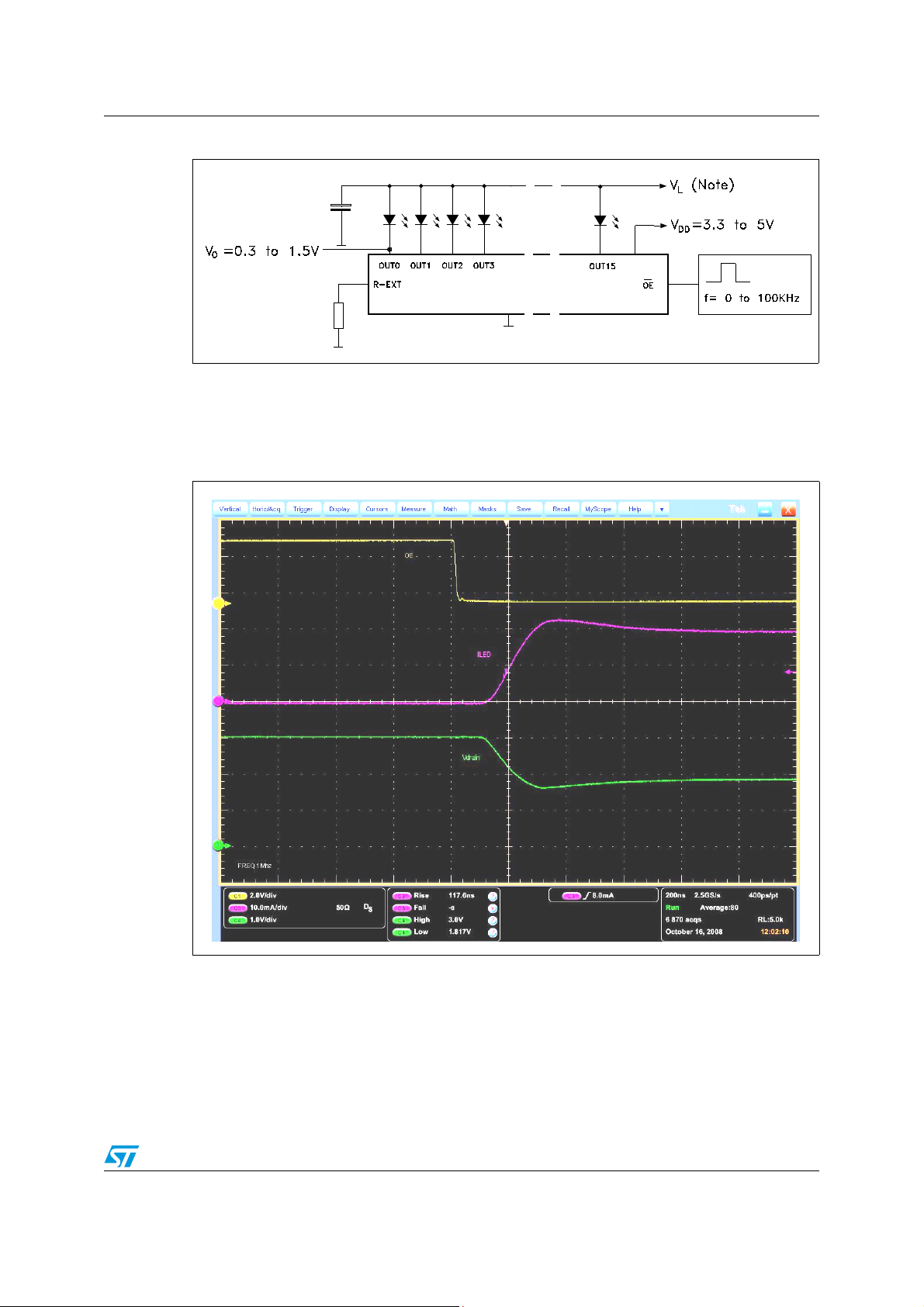

Figure 11. Outputs
12/27 Doc ID 15352 Rev 3
Page 13
STP16CPC05 Typical characteristics
6 Typical characteristics

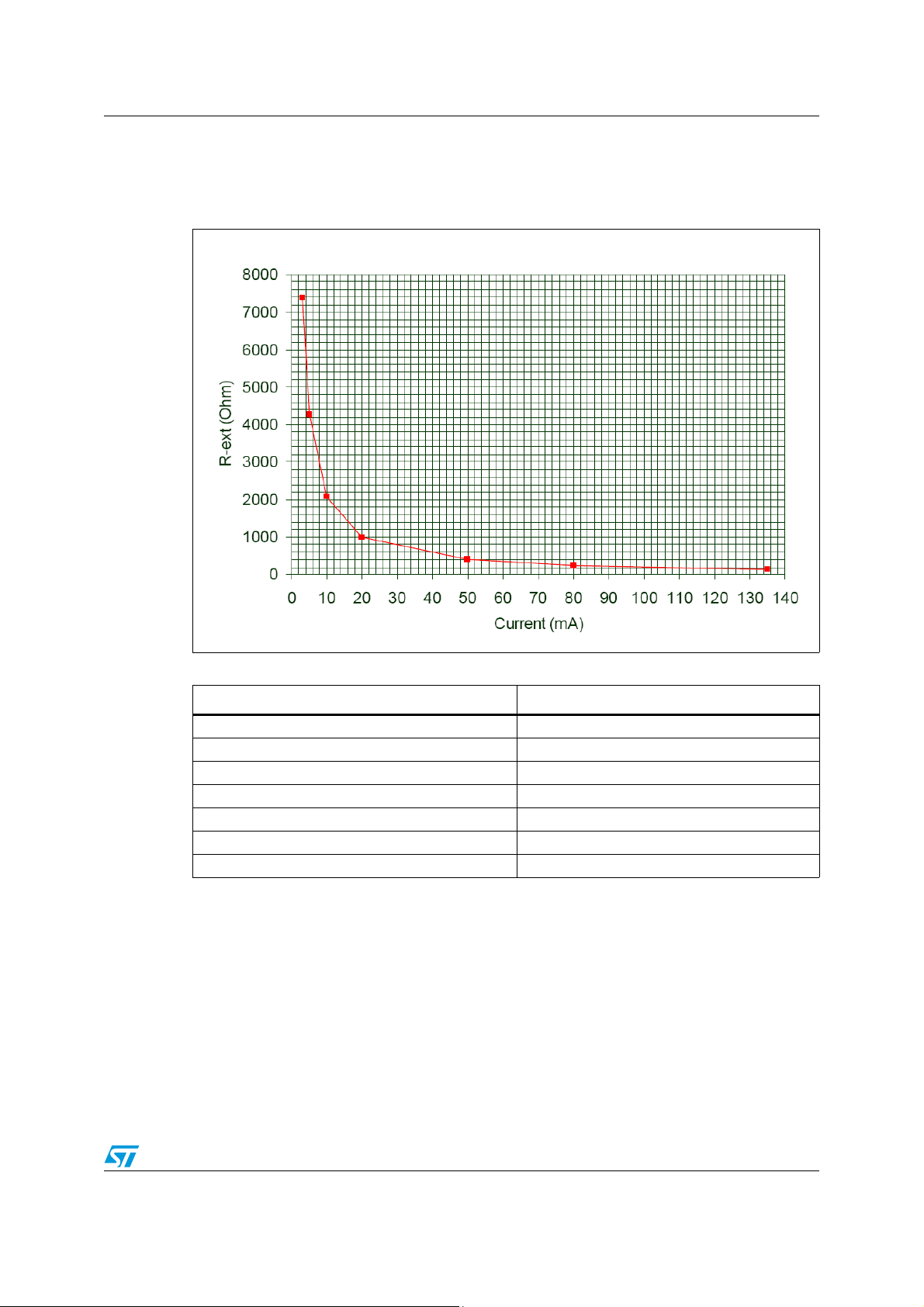

Figure 12. Output current-R
EXT
resistor
Table 10. Output current-R
EXT
resistor
Rext (Ω) Output current (mA)
7370 3
4270 5
2056 10
1006 20
382 50
251 80
200 100
Doc ID 15352 Rev 3 13/27
Page 14
Typical characteristics STP16CPC05

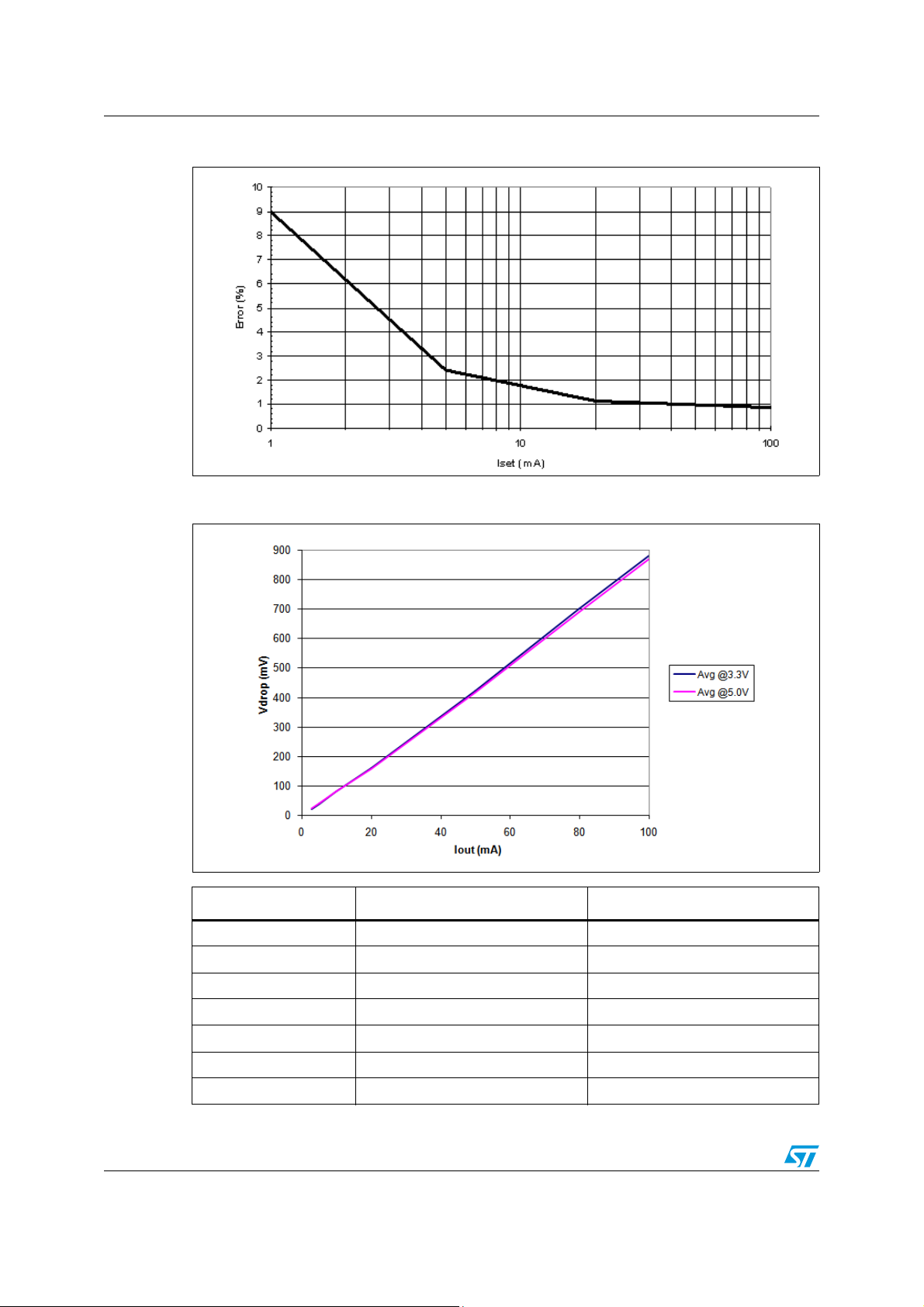

Figure 13. Output current vs ± ΔIOL(%) TA = 25 °C
Figure 14. I
vs drop out voltage (V
SET
) TA = 25 °C
drop
Iout (mA) Avg @3.3 V Avg @5.0 V
320 22
537 40
10 79 79
20 160 158
50 422 415
80 700 690
100 880 870
14/27 Doc ID 15352 Rev 3
Page 15
STP16CPC05 Typical characteristics

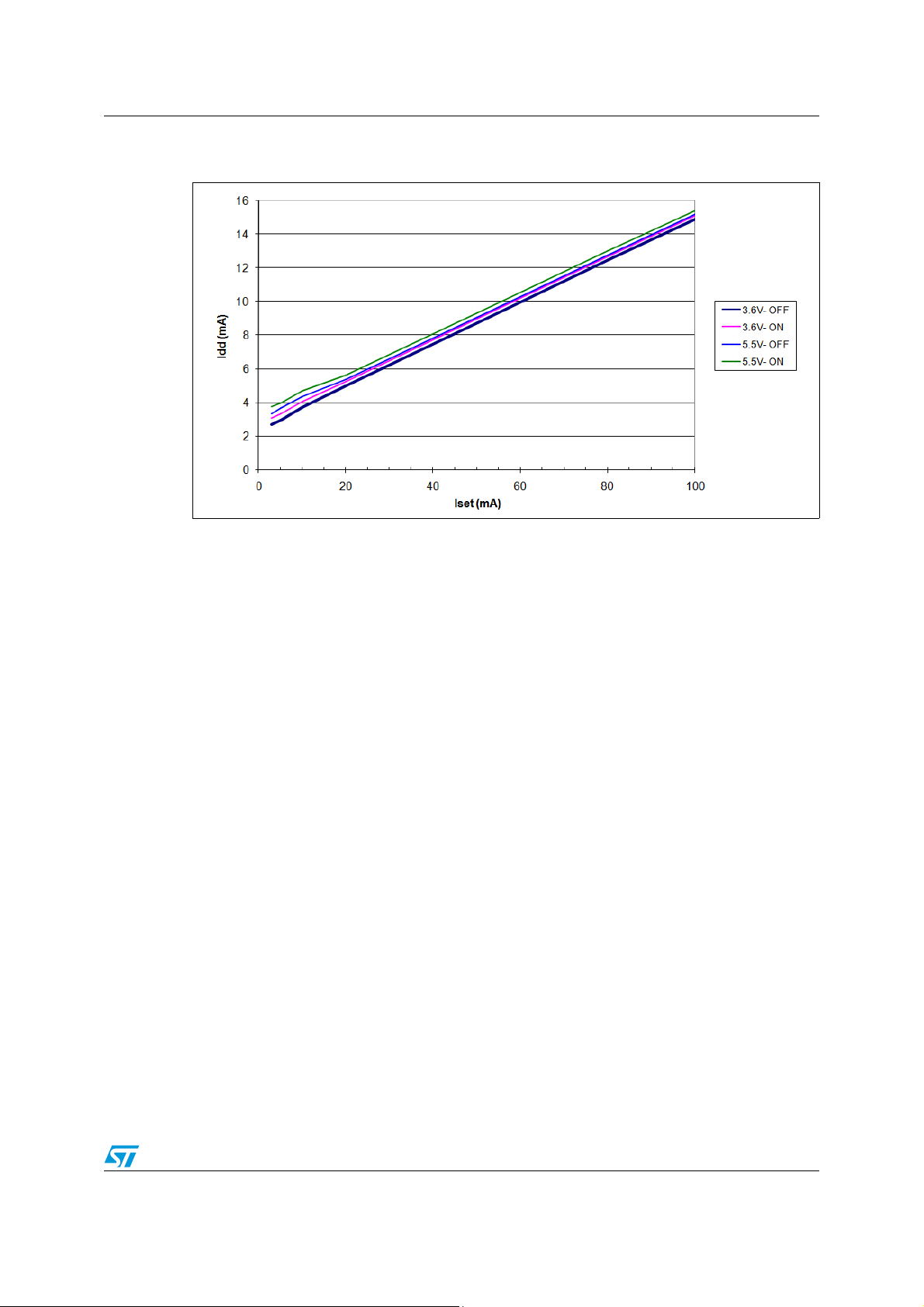

Figure 15. IDD ON/OFF, TA = 25 °C
Doc ID 15352 Rev 3 15/27
Page 16

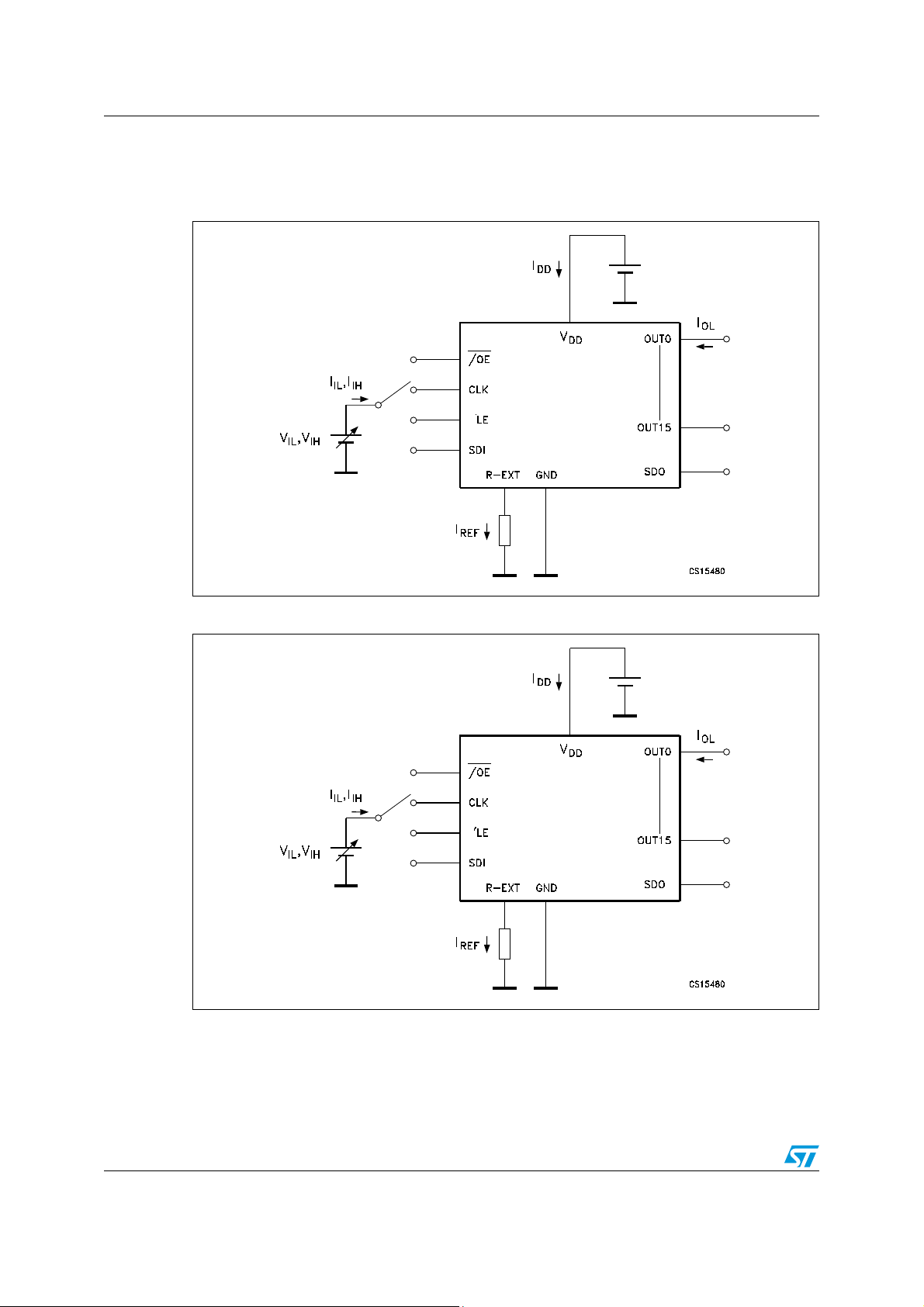

Test circuit STP16CPC05
7 Test circuit
Figure 16. DC characteristic
Figure 17. AC characteristic
16/27 Doc ID 15352 Rev 3
Page 17
STP16CPC05 Test circuit
Figure 18. Typical application schematic
Note: V
C = 10μF
+
STP16CPC05
will be determined by the VF of the LEDs
L
Test condition: Temp. = 25 °C, V
Figure 19. Turn ON output current setup
= 3.3 V, CL = 10 pF, Freq. = 1 MHz,
DD
Doc ID 15352 Rev 3 17/27
Page 18
Test circuit STP16CPC05
Figure 20. Turn OFF output current setup
18/27 Doc ID 15352 Rev 3
Page 19
STP16CPC05 Package mechanical data
8 Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK
®
packages, depending on their level of environmental compliance. ECOPACK®
®
is an ST trademark.
Table 11. QSOP-24 mechanical data
mm. inch
Dim.
Min Typ Max Min Typ Max
A 1.54 1.62 1.73 0.061 0.064 0.068
A1 0.1 0.15 0.25 0.004 0.006 0.010
A2 1.47 0.058
b 0.31 0.2 0.012 0.008
c 0.254 0.17 0.010 0.007
D 8.56 8.66 8.76 0.337 0.341 0.345
E 5.8 6 6.2 0.228 0.236 0.244
E1 3.8 3.91 4.01 0.150 0.154 0.158
e 0.635 0.025
L 0.4 0.635 0.89 0.016 0.025 0.035
h 0.25 0.33 0.41 0.010 0.013 0.016
< 8° 0°
Doc ID 15352 Rev 3 19/27
Page 20
Package mechanical data STP16CPC05

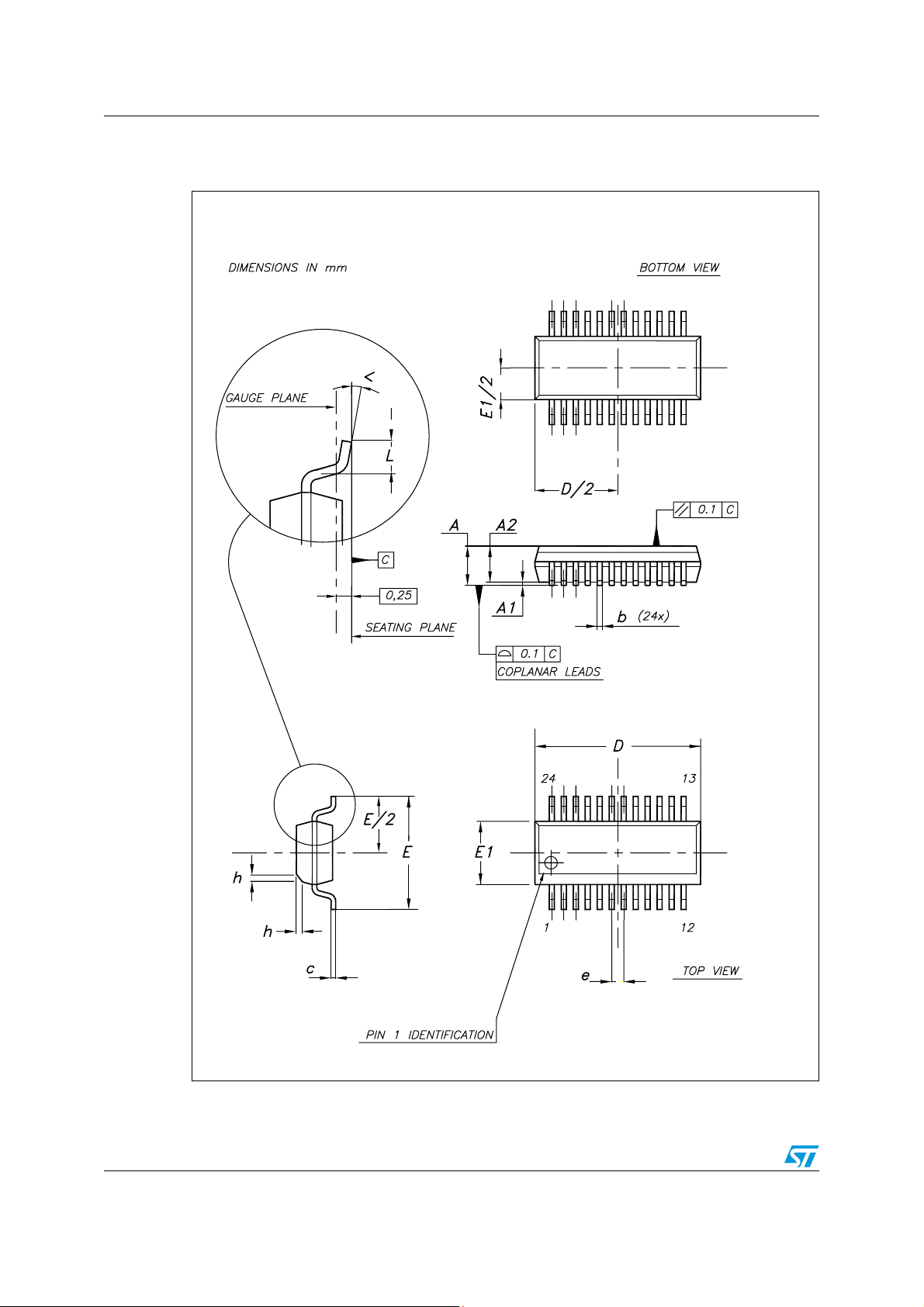

Figure 21. QSOP-24 package dimensions
20/27 Doc ID 15352 Rev 3
Page 21
STP16CPC05 Package mechanical data
Table 12. TSSOP24 mechanical data
mm. inch
Dim.
Min Typ Max Min Typ Max
A 1.1 0.043
A1 0.05 0.15 0.002 0.006
A2 0.9 0.035
b 0.19 0.30 0.0075 0.0118
c 0.09 0.20 0.0035 0.0079
D 7.7 7.9 0.303 0.311
E 4.3 4.5 0.169 0.177
e 0.65 BSC 0.0256 BSC
H 6.25 6.5 0.246 0.256
K 0° 8° 0° 8°
L 0.50 0.70 0.020 0.028

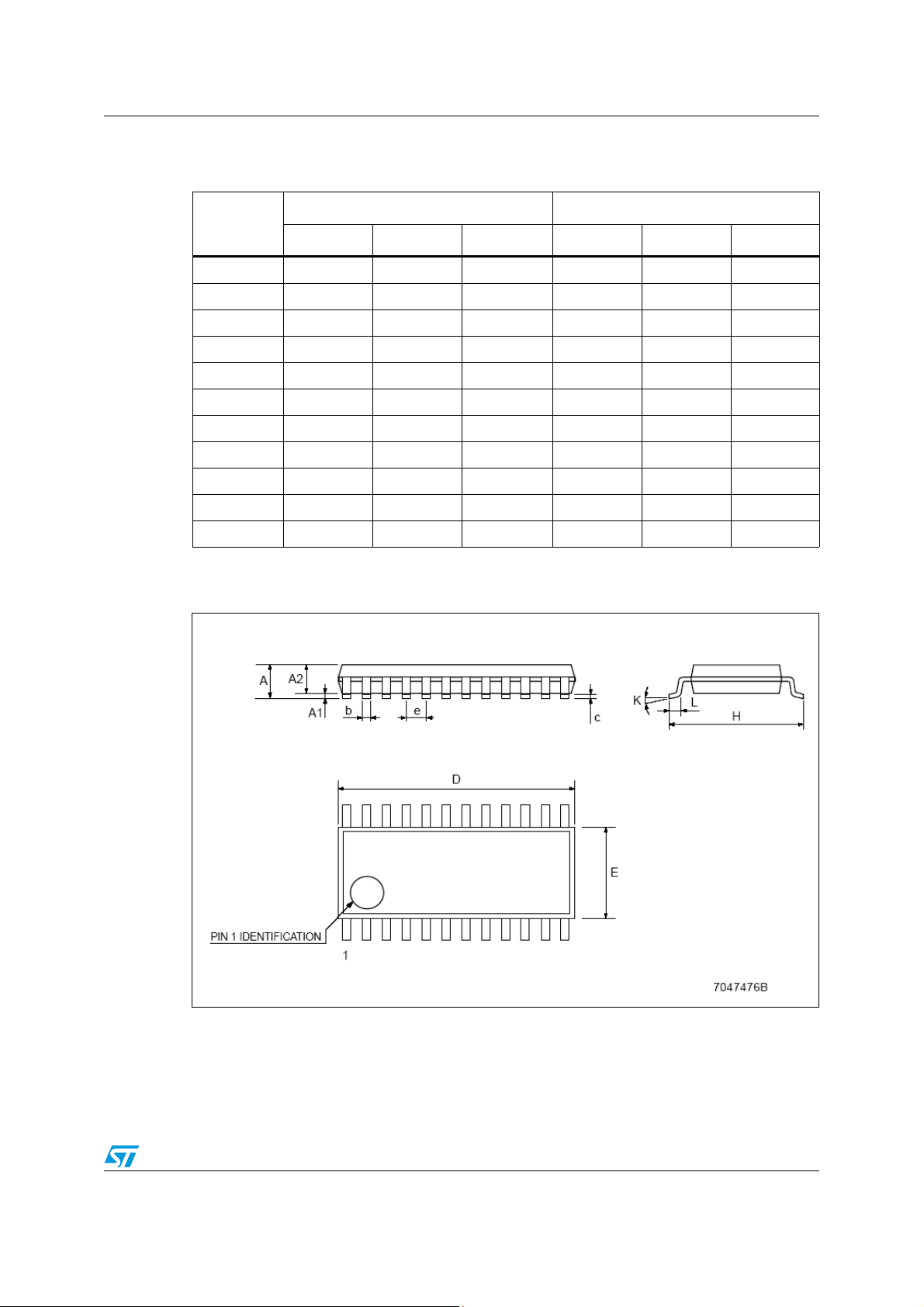

Figure 22. TSSOP24 package dimensions
Doc ID 15352 Rev 3 21/27
Page 22
Package mechanical data STP16CPC05
Table 13. Tape and reel TSSOP24
mm. inch
Dim.
Min Typ Max Min Typ Max
A - 330 - 12.992
C 12.8 - 13.2 0.504 - 0.519
D 20.2 - 0.795 -
N 60 - 2.362 -
T - 22.4 - 0.882
Ao 6.8 - 7 0.268 - 0.276
Bo 8.2 - 8.4 0.323 - 0.331
Ko 1.7 - 1.9 0.067 - 0.075
Po 3.9 - 4.1 0.153 - 0.161
P 11.9 - 12.1 0.468 - 0.476

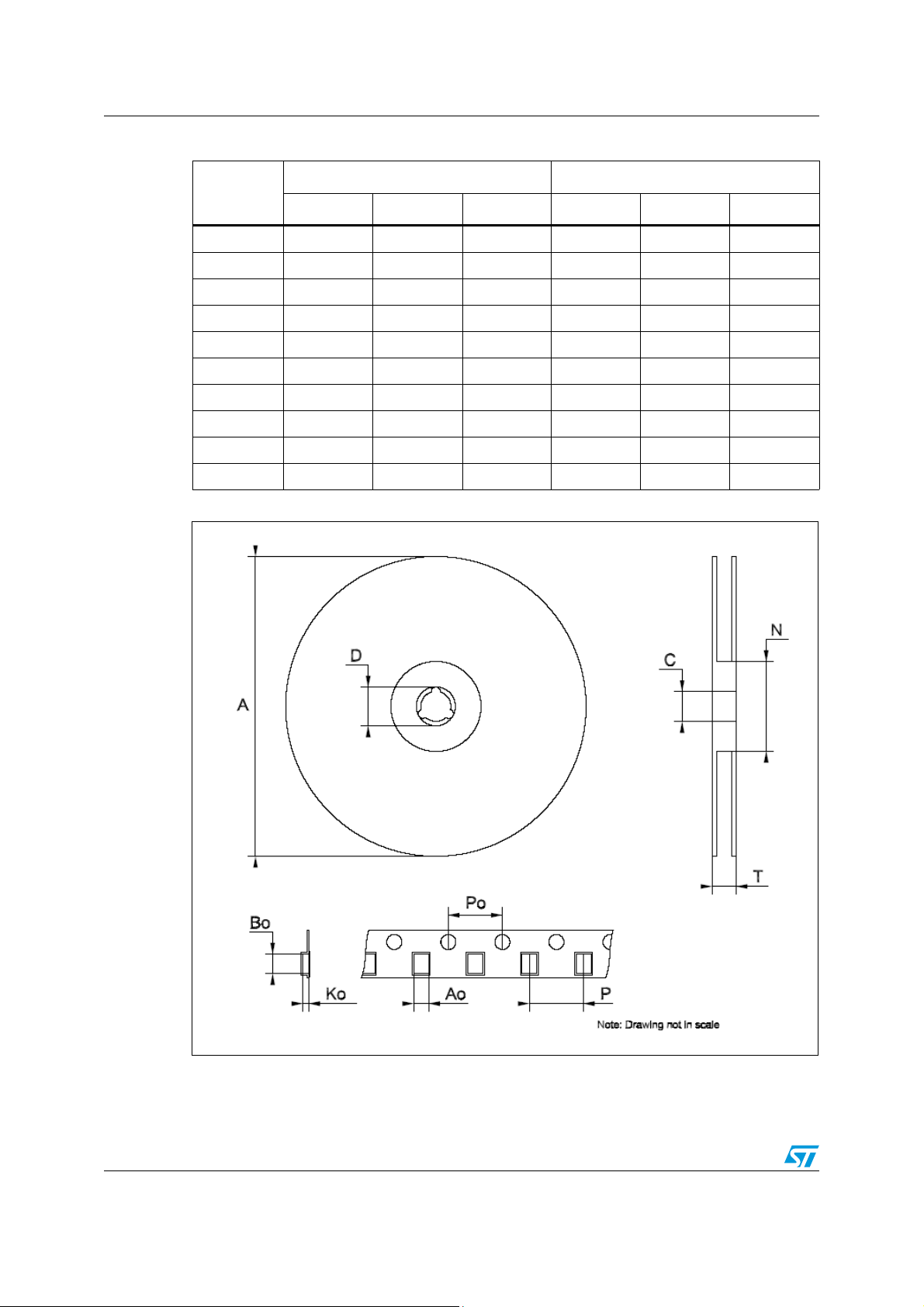

Figure 23. Reel dimensions
22/27 Doc ID 15352 Rev 3
Page 23
STP16CPC05 Package mechanical data
Table 14. SO-24 mechanical data
mm. inch
Dim.
Min Typ Max Min Typ Max
A 2.65 0.104
a1 0.1 0.2 0.004 0.008
a2 2.45 0.096
b 0.35 0.49 0.014 0.019
b1 0.23 0.32 0.009 0.012
C 0.5 0.020
c1 45°(typ.)
D 15.20 15.60 0.598 0.614
E 10.00 10.65 0.393 0.419
e 1.27 0.050
e3 13.97 0.550
F 7.40 7.60 0.291 0.300
L 0.50 1.27 0.020 0.050
S °(max.) 8

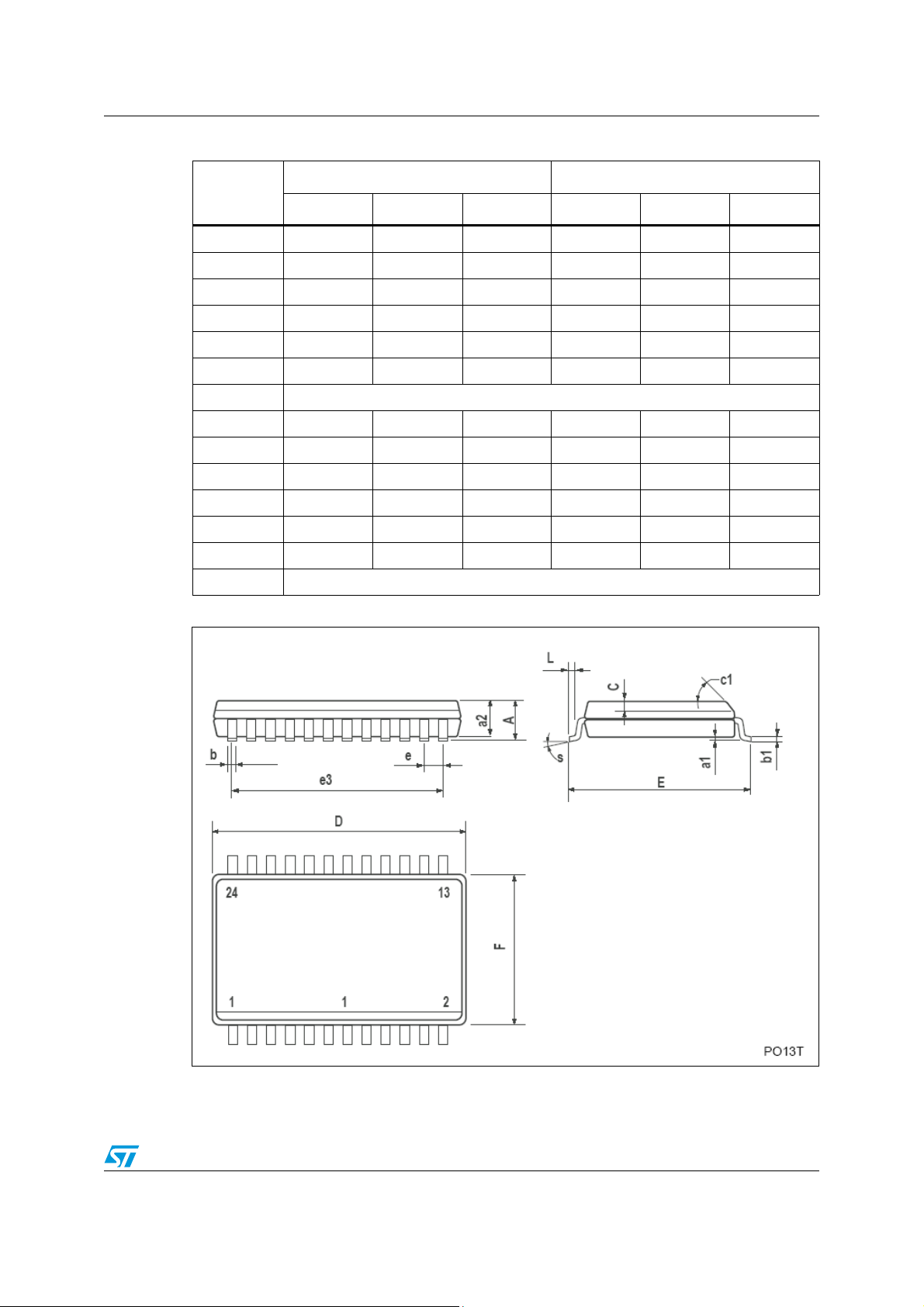

Figure 24. SO-24 package dimensions
Doc ID 15352 Rev 3 23/27
Page 24
Package mechanical data STP16CPC05
Table 15. Tape and reel SO-24
mm. inch
Dim.
Min Typ Max Min Typ Max
A - 330 - 12.992
C 12.8 - 13.2 0.504 - 0.519
D 20.2 - 0.795 -
N 60 - 2.362 -
T - 30.4 - 1.197
Ao 10.8 - 11.0 0.425 - 0.433
Bo 15.7 - 15.9 0.618 - 0.626
Ko 2.9 - 3.1 0.114 - 0.122
Po 3.9 - 4.1 0.153 - 0.161
P 11.9 - 12.1 0.468 - 0.476

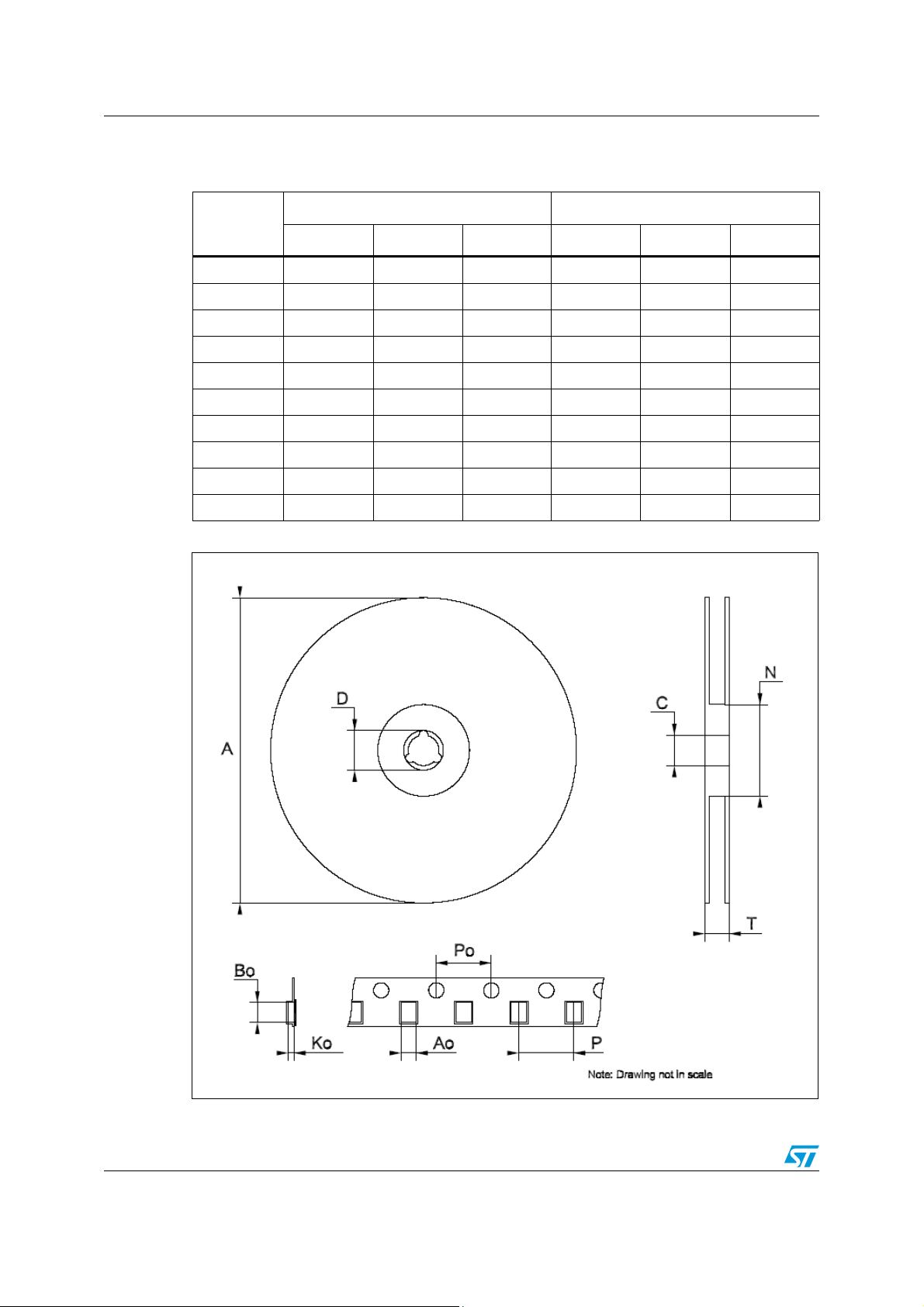

Figure 25. Reel dimensions
24/27 Doc ID 15352 Rev 3
Page 25
STP16CPC05 Package mechanical data
Table 16. TSSOP24 exposed-pad
mm inch
Dim.
Min Typ Max Min Typ Max
A 1.2 0.047
A1 0.15 0.004 0.006
A2 0.8 1 1.05 0.031 0.039 0.041
b 0.19 0.30 0.007 0.012
c 0.09 0.20 0.004 0.0089
D 7.7 7.8 7.9 0.303 0.307 0.311
D1 4.7 5.0 5.3 0.185 0.197 0.209
E 6.2 6.4 6.6 0.244 0.252 0.260
E1 4.3 4.4 4.5 0.169 0.173 0.177
E2 2.9 3.2 3.5 0.114 0.126 0.138
e 0.65 0.0256
K 0° 8° 0° 8°
L 0.45 0.60 0.75 0.018 0.024 0.030

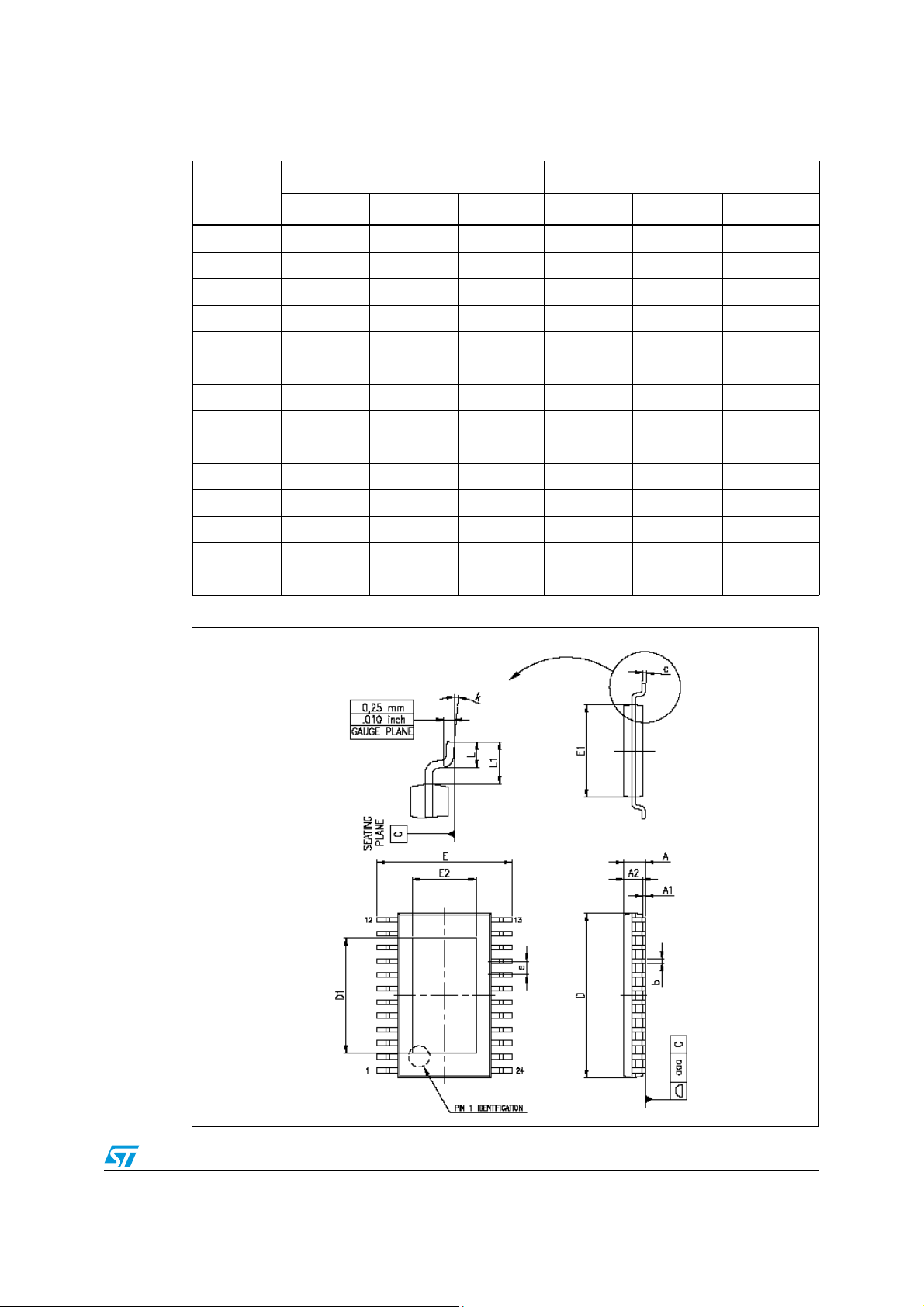

Figure 26. TSSOP24 dimensions
Doc ID 15352 Rev 3 25/27
Page 26
Revision history STP16CPC05
9 Revision history
Table 17. Document revision history
Date Revision Changes
30-Jan-2009 1 First release
12-May-2009 2 Updated Table 6 on page 5
29-Oct-2009 3 Updated Note: on page 3
26/27 Doc ID 15352 Rev 3
Page 27
STP16CPC05
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2009 STMicroelectronics - All rights reserved
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
STMicroelectronics group of companies
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 15352 Rev 3 27/27
Loading...
