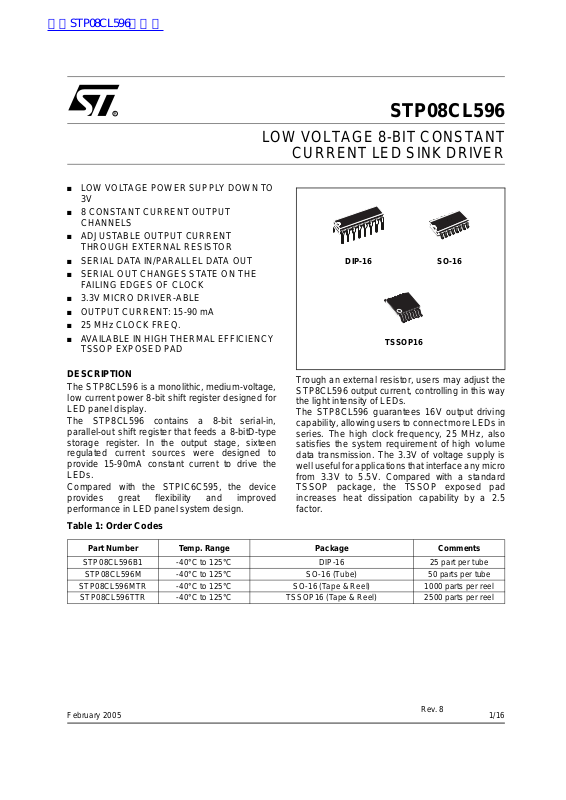

Page 1
查询STP08CL596供应商
STP08CL596
LOW VOLTAGE 8-BIT CONSTANT
CURRENT LED SINK DRIVER
■ LOW VOLTAGE POWER SUPPLY DOWN T O
3V
■ 8 CONSTANT CURRENT OUTPUT
CHANNELS
■ ADJUST ABLE OUTPUT CURRENT
THROUGH EXTERNAL RESISTOR
■ SERIAL DATA IN/PARALLEL DATA OUT
■ SERIAL OUT CHANGES STATE ON THE
FAILING EDGES OF CLOCK
■ 3.3V MICRO DRIVER-ABLE
■ OUTPUT CURRENT: 15-90 mA
■ 25 MHz CLOCK FREQ.
■ A V AILABL E IN HIGH T HERMAL EFFI CIENCY
TSSOP EXPOSED PAD
DESCRIPTION
The STP8CL596 is a monolithic, medium-voltage,
low current power 8-bit shift register designed for
LED panel display.
The STP8CL596 contains a 8-bit serial-in,
parallel-out shift register that feeds a 8-bitD-type
storage register. In the output stage, sixteen
regulated current sources were designed to
provide 15-90mA constant current to drive the
LEDs.
Compared with the STPIC6C595, the device
provides great flexibility and improved
performance in LED panel system design.
SO-16DIP-16
TSSOP16
Trough an external resistor, users m ay adjust the
STP8CL596 output current, controlling in this way
the light intensity of LEDs.
The STP8CL596 guarantees 16V output driving
capability, allowing users to connect more LEDs in
series. The high clock frequency, 25 MHz, also
satisfies the system requirement of high volume
data transmission. The 3.3V of voltage supply is
well useful for applications that interface any micro
from 3.3V to 5.5V. Compared with a standard
TSSOP package, the TSSOP exposed pad
increases heat dissipation capability by a 2.5
factor.
Table 1: Order Codes
Part Number Temp. Range Package Comments
STP08CL596B1 -40°C to 125°C DIP-16 25 part per tube
STP08CL596M -40°C to 125°C SO-16 (Tube) 50 parts per tube
STP08CL596MTR -40°C to 125°C SO-16 (Tape & Reel) 1000 parts per reel
STP08CL596TTR -40°C to 125°C TSSOP16 (Tape & Reel) 2500 parts per reel
Rev. 8
1/16February 2005
Page 2
STP08CL596
Table 2: Current Accuracy
Output Voltage
≥ 0.7V ± 3% ± 10% 15 to 90 mA
Figure 1: Pin Con nection
Table 3: Pin Description
Current accuracy
Output Current
Between bits Between ICs
PIN N° Symbol Name and Function
1 GND Ground Terminal
2 SDI Serial data input terminal
3 CLK Clock input terminal
4 /LE Latch input terminal
5-12 OUT 0-7 Output terminal
13 /OE
Output enable input terminal (active low)
14 SDO Serial data out terminal
15 R-EXT Constant Current programming
16 V
DD
5V Supply voltage terminal
Table 4: Absolute Maximum Ratings
Symbol Parameter Value Unit
V
I
f
T
T
V
I
V
GND
CLK
OPR
STG
Supply Voltage
DD
Output Voltage
O
Output Current
O
Input Voltage -0.4 to VDD+0.4
I
GND Terminal Current
Clock Frequency
Operating Temperature Range
Storage Temperature Range
0 to 7 V
-0.5 to 16 V
90 mA
720 mA
25 MHz
-40 to +125 °C
-65 to +150 °C
V
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is
not implied.
2/16
Page 3
STP08CL596
Table 5: Thermal Data
Symbol Parameter DIP-16 SO-16 TSSOP16 Unit
R
thj-amb
Table 6: Recommended Operating Conditions
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
DD
V
O
I
O
I
OH
I
OL
V
IH
V
IL
t
wLAT
t
wCLK
t
wEN
t
SETUP(D)
t
HOLD(D)
t
SETUP(L)
f
CLK
Thermal Resistance Junction-ambient
90 125 140 °C/W
Supply Voltage 3.0 3.3 3.6 V
Output Voltage 16.0 V
Output Current OUTn 15 120 mA
Output Current SERIAL-OUT +1 mA
Output Current SERIAL-OUT -1 mA
Input Voltage 0.7V
DD
Input Voltage -0.3 0.3V
VDD+0.3 V
DD
/LE Pulse Width VDD = 3.0 to 3.6V 20 ns
CLK Pulse Width 20 ns
/OE Pulse Width 400 ns
Setup Time for DATA 20 ns
Hold Time for DATA 15 ns
Setup Time for LATCH 15 ns
Clock Frequency Cascade Operation 25 MHz
V
Table 7: Electrical Characteristics (V
=3V, T = 25°C, unless otherwise specified.)
DD
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
IH
V
IL
I
OH
V
OL
V
OH
I
OL1
I
OL2
∆I
OL1
∆I
OL2
R
SIN(up)
R
SIN(down)
I
DD(OFF1)
I
DD(OFF2)
I
DD(OFF3)
I
DD(ON1)
I
DD(ON2)
Input Voltage High Level 0.7V
DD
Input Voltage Low Level GND 0.3V
Output Leakage Current VOH = 16 V 10 µA
Output Voltage (Serial-OUT) IOL = 1mA 0.4 V
Output Voltage (Serial-OUT) IOH = -1mA VDD-0.4V V
Output Current VO = 0.7V R
VO = 0.7V R
Output Current Error
between bit (All Output ON)
VO = 0.7V R
VO = 0.7V R
= 910 Ω 20.0 20.1 20.3 mA
EXT
= 360 Ω 49.7 50.2 50.7 mA
EXT
= 910 Ω ± 3 %
EXT
= 360 Ω ± 3 %
EXT
Pull-up Resistor 150 300 600 KΩ
Pull-down Resistor 100 200 400 KΩ
Supply Current (OFF) R
Supply Current (ON) R
= OPEN OUT 0 to 7 = OFF 0.3 0.6 mA
EXT
R
= 470 Ω OUT 0 to 7 = OFF 5.5 7.7
EXT
R
= 250 Ω OUT 0 to 7 = OFF 10.1 14.1
EXT
= 470 Ω OUT 0 to 7 = ON 5.5 7.7
EXT
R
= 250 Ω OUT 0 to 7 = ON 10.1 14.1
EXT
V
DD
DD
V
V
3/16
Page 4
STP08CL596
Table 8: Switching Characteristics (VDD=3V, T = 25°C, unless otherwise specified.)
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
PLH1
t
PLH2
t
PLH3
t
PLH
t
PHL1
t
PHL2
t
PHL3
t
PHL
Propagation Delay Time,
CLK-OUTn
, /LE = H, /OE = L
Propagation Delay Time,
-OUTn, /OE = L
/LE
Propagation Delay Time,
-OUTn, /LE = H
/OE
Propagation Delay Time,
CLK-SDO
Propagation Delay Time,
CLK-OUTn
, /LE = H, /OE = L
Propagation Delay Time,
-OUTn, /OE = L
/LE
Propagation Delay Time,
-OUTn, /LE = H
/OE
Propagation Delay Time,
CLK-SDO
t
Output Rise Time 200 250 ns
r
Output Fall Time 17 25 ns
t
f
V
= 3 V VIH = V
DD
DD
VIL = GND CL = 13pF
= 40mA VL = 3 V
I
O
= 470 Ω RL = 65 Ω
R
EXT
250 280 ns
220 250 ns
200 250 ns
25 50 ns
25 50 ns
25 50 ns
50 70 ns
25 50 ns
EQUIVALENT CIRCUIT OF INPUTS AND OUTPUTS
Figure 2: /OE
Terminal
4/16
Page 5
Figure 3: /LE Terminal
Figure 4: CLK, SDI Terminal
STP08CL596
Figure 5: SDO Terminal
5/16
Page 6
STP08CL596

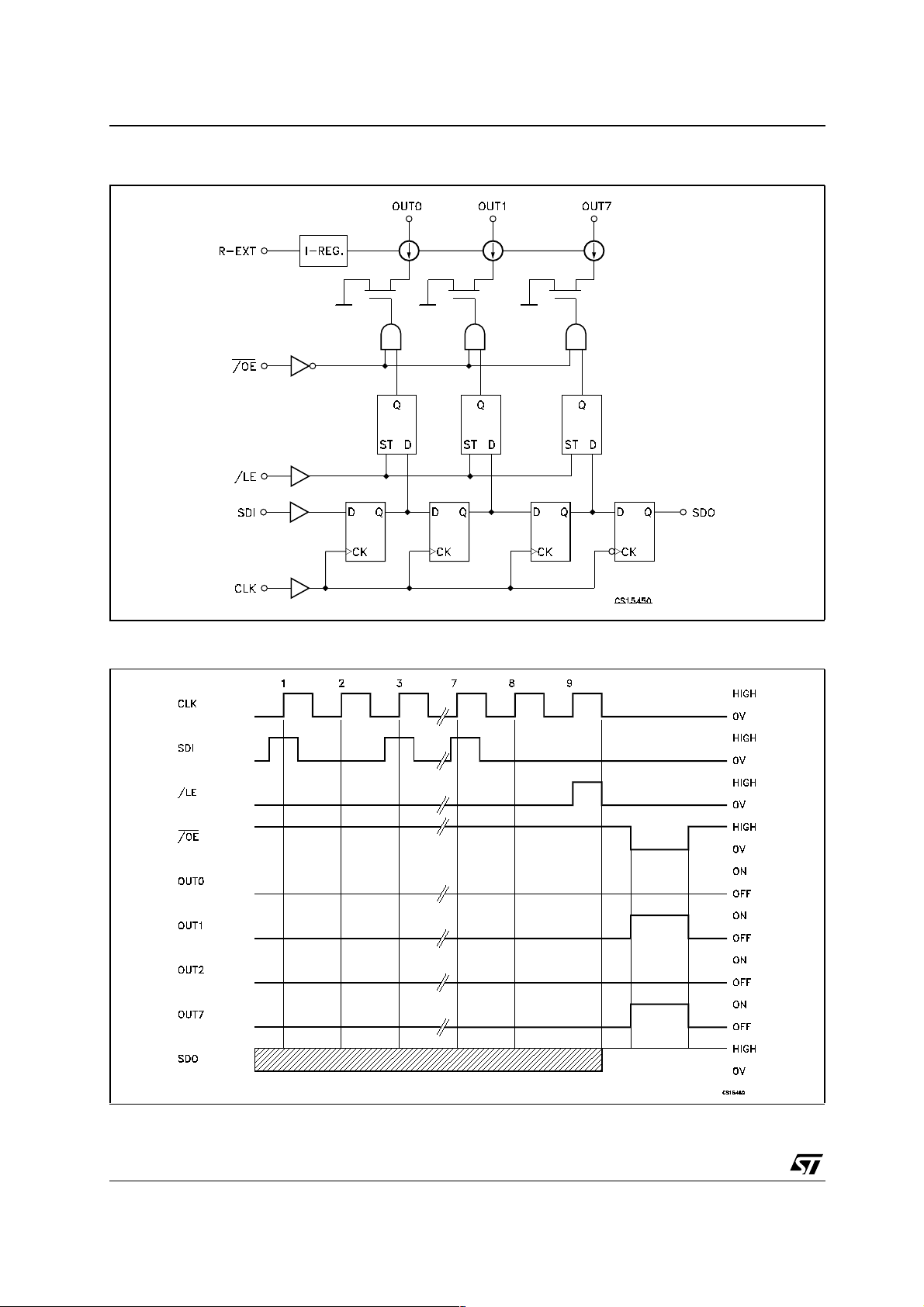

Figure 6: Block Diagram
Figure 7: Timi ng Diagram
6/16
Page 7

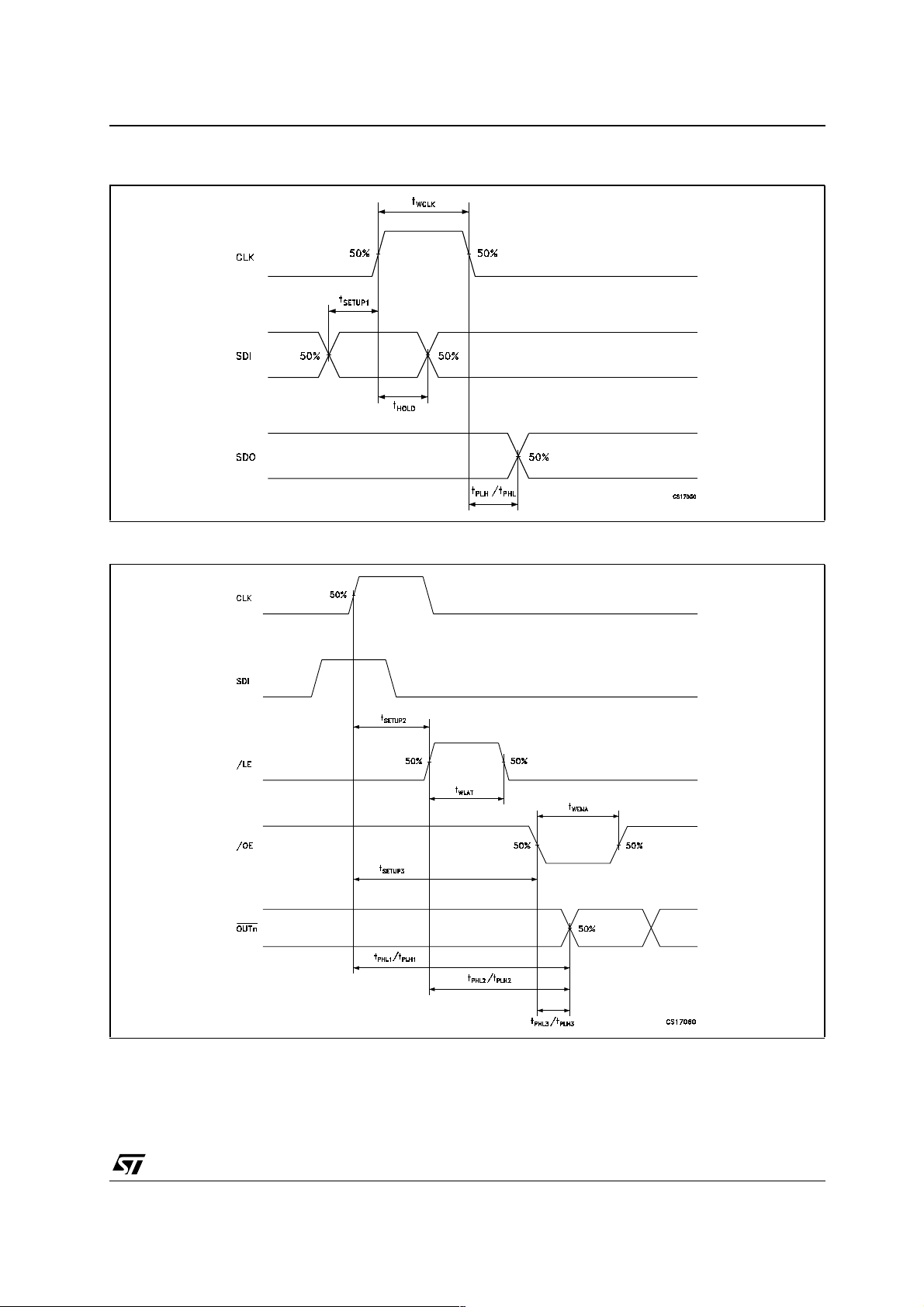

Figure 8: Clock, Serial-In, Serial-Out
Figure 9: Clock, Serial-in, Latch, Enable, Outputs
STP08CL596
7/16
Page 8
STP08CL596

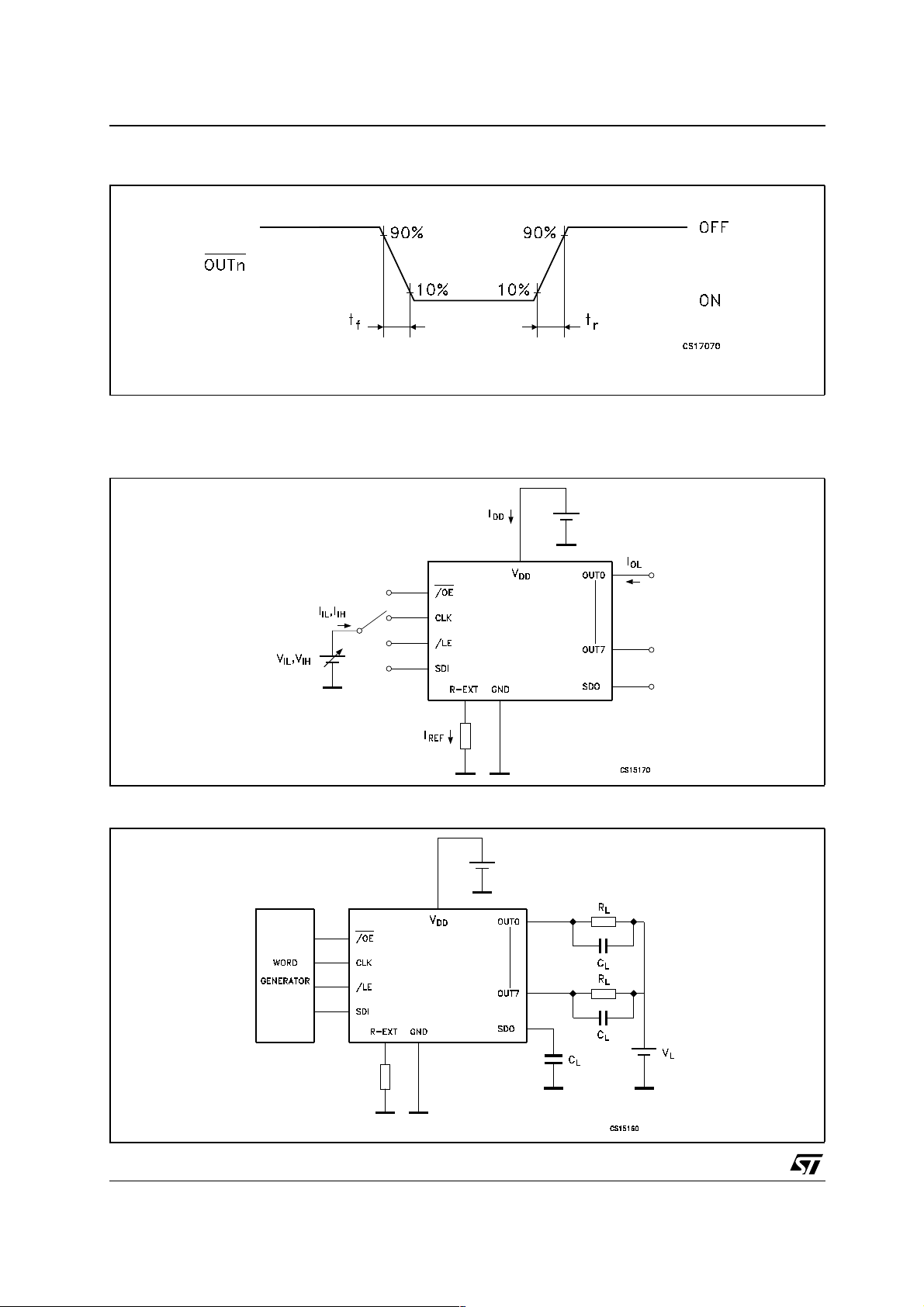

Figure 10: Outp uts
TEST CIRCUIT
Figure 11: DC Characteristic
Figure 12: AC Characteristic
8/16
Page 9
STP08CL596

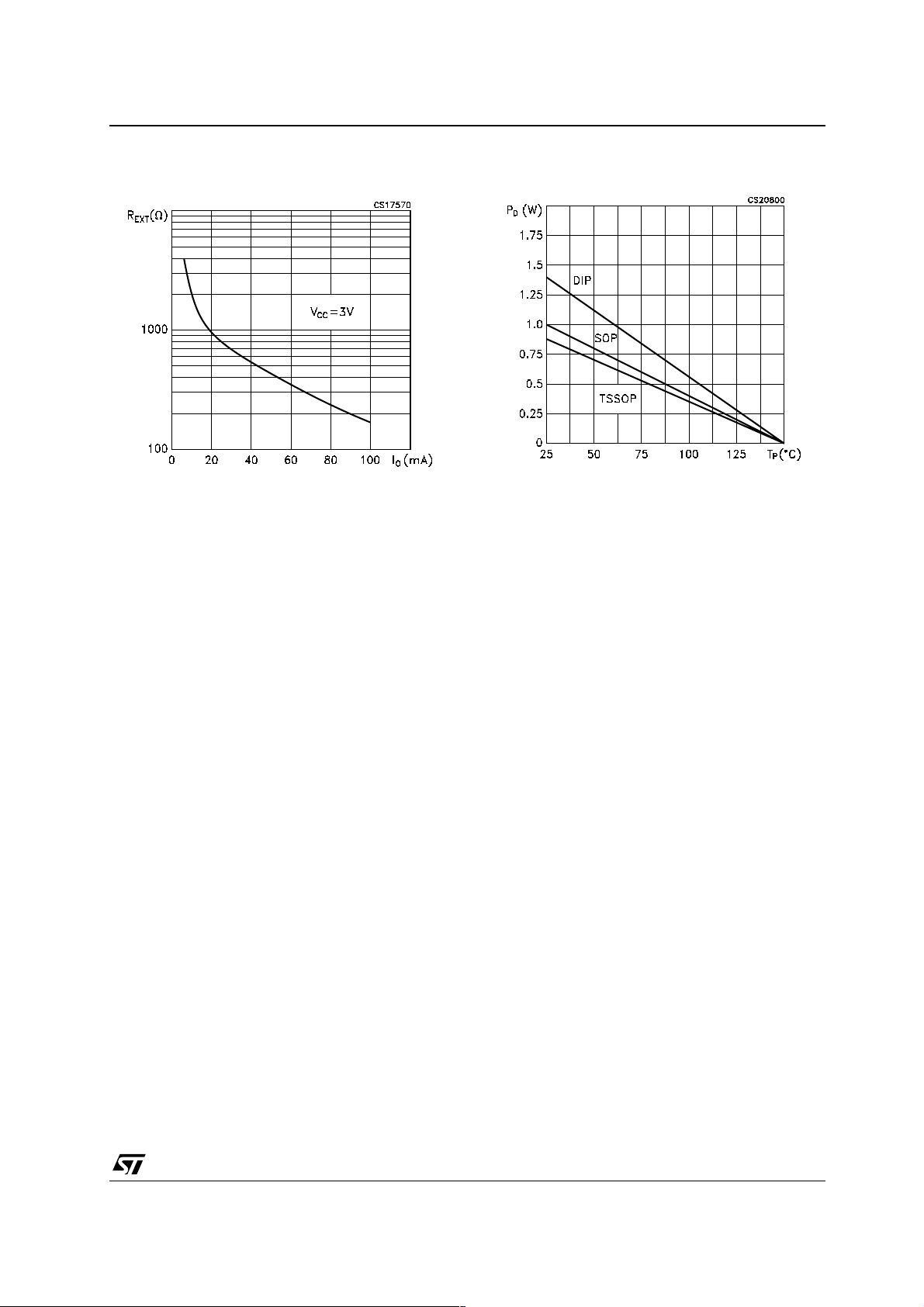

Figure 13: Output Current-R
Resistor
EXT
Figure 14: Power Dissipation vs Temperature
Package
9/16
Page 10
STP08CL596
Plastic DIP-16 (0.25) MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
a1 0.51 0.020
B 0.77 1.65 0.030 0.065
b 0.5 0.020
b1 0.25 0.010
D 20 0.787
E 8.5 0.335
e 2.54 0.100
e3 17.78 0.700
F 7.1 0.280
I 5.1 0.201
L 3.3 0.130
Z 1.27 0.050
10/16
P001C
Page 11
SO-16 MECHANICAL DATA
STP08CL596
DIM.
A 1.75 0.068
a1 0.1 0.25 0.004 0.010
a2 1.64 0.063
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45° (typ.)
D 9.8 10 0.385 0.393
E 5.8 6.2 0.228 0.244
e 1.27 0.050
e3 8.89 0.350
F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050
M 0.62 0.024
S8° (max.)
MIN. TYP MAX. MIN. TYP. MAX.
mm. inch
0016020D
11/16
Page 12
STP08CL596
TSSOP16 MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 1.2 0.047
A1 0.05 0.15 0.002 0.004 0.006
A2 0.8 1 1.05 0.031 0.039 0.041
b 0.19 0.30 0.007 0.012
c 0.09 0.20 0.004 0.0079
D 4.9 5 5.1 0.193 0.197 0.201
E 6.2 6.4 6.6 0.244 0.252 0.260
E1 4.3 4.4 4.48 0.169 0.173 0.176
e 0.65 BSC 0.0256 BSC
K0˚ 8˚0˚ 8˚
L 0.45 0.60 0.75 0.018 0.024 0.030
A2
A
A1
b
e
c
K
L
E
D
E1
PIN 1 IDENTIFICATION
12/16
1
0080338D
Page 13
STP08CL596
Tape & Reel SO-16 MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 330 12.992
C 12.8 13.2 0.504 0.519
D 20.2 0.795
N 60 2.362
T 22.4 0.882
Ao 6.45 6.65 0.254 0.262
Bo 10.3 10.5 0.406 0.414
Ko 2.1 2.3 0.082 0.090
Po 3.9 4.1 0.153 0.161
P 7.9 8.1 0.311 0.319
13/16
Page 14
STP08CL596
Tape & Reel TSSOP16 MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 330 12.992
C 12.8 13.2 0.504 0.519
D 20.2 0.795
N 60 2.362
T 22.4 0.882
Ao 6.7 6.9 0.264 0.272
Bo 5.3 5.5 0.209 0.217
Ko 1.6 1.8 0.063 0.071
Po 3.9 4.1 0.153 0.161
P 7.9 8.1 0.311 0.319
14/16
Page 15
Table 9: Revision History
Date Revision Description of Change s
03-Aug-2004 7
23-Feb-2005 8
STP08CL596
Package TSSOP (Exposed Pad) removed. Table 8 - pag. 4 data changed.
Figure 14 - pag. 10 changed.
Mistake on Table 7 - I
DDOFF
and I
OUT 0 to 15 ==> OUT 0 to 7.
DDON
