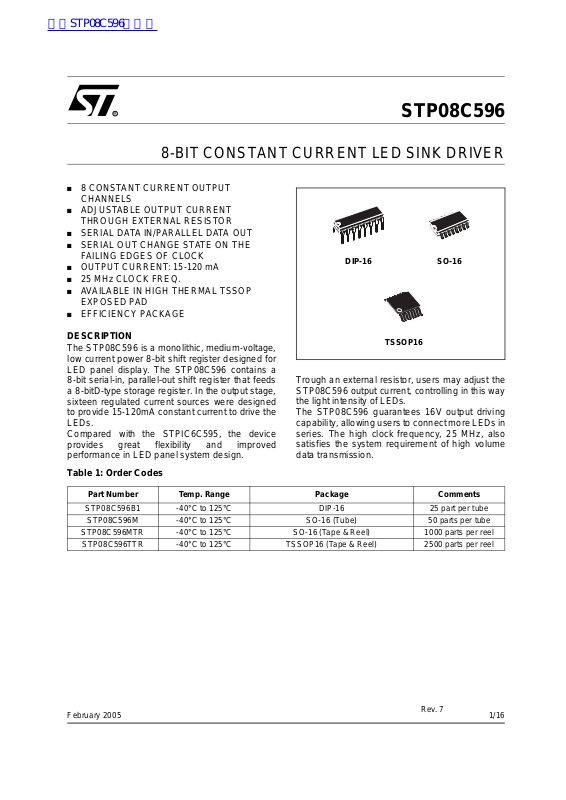

Page 1
查询STP08C596供应商
STP08C596
8-BIT CONSTANT CURRENT LED SINK DRIVER
■ 8 CONSTANT CURRENT OUTPUT
CHANNELS
■ ADJUST ABLE OUTPUT CURRENT
THROUGH EXTERNAL RESISTOR
■ SERIAL DATA IN/PARALLEL DATA OUT
■ SERIAL OUT CHANGE STATE ON THE
FAILING EDGES OF CLOCK
■ OUTPUT CURRENT: 15-120 mA
■ 25 MHz CLOCK FREQ.
■ A VAILABLE IN HIGH THERMAL TSSO P
EXPOSED PAD
■ EFFICIENCY PACK AGE
DESCRIPTION
The STP08C596 is a monolithic, medium-voltage,
low current power 8-bit shift register designed for
LED panel display. The STP08C596 contains a
8-bit serial-in, parallel-out shift register that feeds
a 8-bitD-type storage register. In the output stage,
sixteen regulated current sources were des igned
to provide 15-120mA constant current to drive the
LEDs.
Compared with the STPIC6C595, the device
provides great flexibility and improved
performance in LED panel system design.
SO-16DIP-16
TSSOP16
Trough an external resistor, users m ay adjust the
STP08C596 output current, controlling in this way
the light intensity of LEDs.
The STP08C596 guarantees 16V output driving
capability, allowing users to connect more LEDs in
series. The high clock frequency, 25 MHz, also
satisfies the system requirement of high volume
data transmission.
Table 1: Order Codes
Part Number Temp. Range Package Comments
STP08C596B1 -40°C to 125°C DIP-16 25 part per tube
STP08C596M -40°C to 125°C SO-16 (Tube) 50 parts per tube
STP08C596MTR -40°C to 125°C SO-16 (Tape & Reel) 1000 parts per reel
STP08C596TTR -40°C to 125°C TSSOP16 (Tape & Reel) 2500 parts per reel
Rev. 7
1/16February 2005
Page 2
STP08C596
Table 2: Current Accuracy
Output Voltage
≥ 0.7V TYP. ± 3% ± 10% 15 to 120 mA

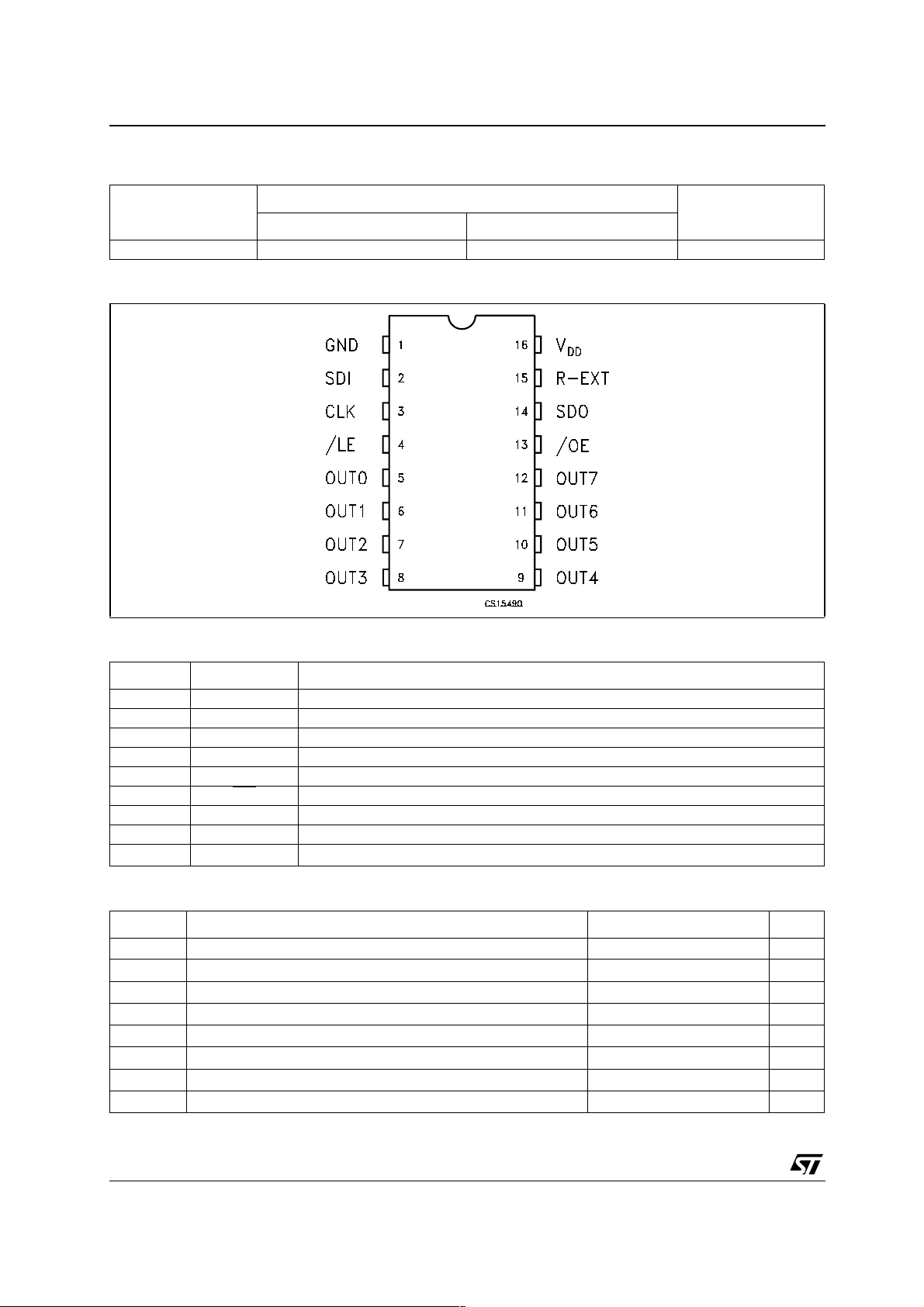

Figure 1: Pin Connec t ion
Table 3: Pin Description
Current accuracy
Output Current
Between bits Between ICs
PIN N° Symbol Name and Function
1 GND Ground Terminal
2 SDI Serial data input terminal
3 CLK Clock input terminal
4 /LE Latch input terminal
5-12 OUT 0-7 Output terminal
13 /OE
Output enable input terminal (active low)
14 SDO Serial data out terminal
15 R-EXT Constant Current programming
16 V
DD
5V Supply voltage terminal
Table 4: Absolute Maximum Ratings
Symbol Parameter Value Unit
V
I
f
T
T
V
I
V
GND
CLK
OPR
STG
Supply Voltage
DD
Output Voltage
O
Output Current
O
Input Voltage -0.4 to VDD+0.4
I
GND Termin al Current
Clock Frequency
Operating Temperature Range
Storage Temperature Range
0 to 7 V
-0.5 to 16 V
120 mA
980 mA
25 MHz
-40 to +125 °C
-55 to +150 °C
V
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is
not implied.
2/16
Page 3
STP08C596
Table 5: Thermal Data
Symbol Parameter DIP-16 SO-16 TSSOP16 Unit
R
thj-amb
Table 6: Recommended Operating Conditions
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
DD
V
O
I
O
I
OH
I
OL
V
IH
V
IL
t
wLAT
t
wCLK
t
wEN
t
SETUP(D)
t
HOLD(D)
t
SETUP(L)
f
CLK
Thermal Resistance Junction-ambient
90 125 140 °C/W
Supply Voltage 4.5 5.0 5.5 V
Output Voltage 16.0 V
Output Current OUTn 15 120 mA
Output Current SERIAL-OUT +1 mA
Output Current SERIAL-OUT -1 mA
Input Voltage 0.7V
DD
Input Voltage -0.3 0.3V
VDD+0.3 V
DD
/LE Pulse Width VDD = 3.0 to 3.6V 20 ns
CLK Pulse Width 20 ns
/OE Pulse Width 400 ns
Setup Time for DATA 20 ns
Hold Time for DATA 15 ns
Setup Time for LATCH 15 ns
Clock Frequency Cascade Operation 25 MHz
V
Table 7: Electrical Characteristics (V
=5V, T = 25°C, unless otherwise specified.)
DD
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
IH
V
IL
I
OH
V
OL
V
OH
I
OL1
I
OL2
∆I
OL1
∆I
OL2
R
SIN(up)
R
SIN(down)
I
DD(OFF1)
I
DD(OFF2)
I
DD(OFF3)
I
DD(ON1)
I
DD(ON2)
Input Voltage High Level 0.7V
DD
Input Voltage Low Level GND 0.3V
Output Leakage Current VOH = 16 V 10 µA
Output Voltage (Serial-OUT) IOL = 1mA 0.4 V
Output Voltage (Serial-OUT) IOH = -1mA VDD-0.4V V
Output Current VO = 0.7V R
VO = 0.7V R
Output Current Error
between bit (All Output ON)
VO = 0.7V R
VO = 0.7V R
= 910 Ω 20.6 20.7 20.9 mA
EXT
= 360 Ω 50.6 51.0 51.5 mA
EXT
= 910 Ω ± 3 %
EXT
= 360 Ω ± 3 %
EXT
Pull-up Resistor 150 300 600 KΩ
Pull-down Resistor 100 200 400 KΩ
Supply Current (OFF) R
Supply Current (ON) R
= OPEN OUT 0 to 7 = OFF 0.3 0.6 mA
EXT
R
= 470 Ω OUT 0 to 7 = OFF 5.5 7.7
EXT
R
= 250 Ω OUT 0 to 7 = OFF 10.1 14.1
EXT
= 470 Ω OUT 0 to 7 = ON 5.5 7.7
EXT
R
= 250 Ω OUT 0 to 7 = ON 10.1 14.1
EXT
V
DD
DD
V
V
3/16
Page 4
STP08C596
Table 8: Switching Characteristics (VDD=5V, T = 25°C, unless otherwise specified.)
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
PLH1
t
PLH2
t
PLH3
t
PLH
t
PHL1
t
PHL2
t
PHL3
t
PHL
Propagation Delay Time,
CLK-OUTn
, /LE = H, /OE = L
Propagation Delay Time,
-OUTn, /OE = L
/LE
Propagation Delay Time,
-OUTn, /LE = H
/OE
Propagation Delay Time,
CLK-SDO
Propagation Delay Time,
CLK-OUTn
, /LE = H, /OE = L
Propagation Delay Time,
-OUTn, /OE = L
/LE
Propagation Delay Time,
-OUTn, /LE = H
/OE
Propagation Delay Time,
CLK-SDO
t
Output Rise Time 160 200 ns
r
Output Fall Time 15 25 ns
t
f
V
= 5 V VIH = V
DD
DD
VIL = GND CL = 13pF
= 40mA VL = 3 V
I
O
= 470 Ω RL = 65 Ω
R
EXT
200 280 ns
160 250 ns
145 200 ns
15 30 ns
15 30 ns
15 30 ns
45 60 ns
15 300 ns

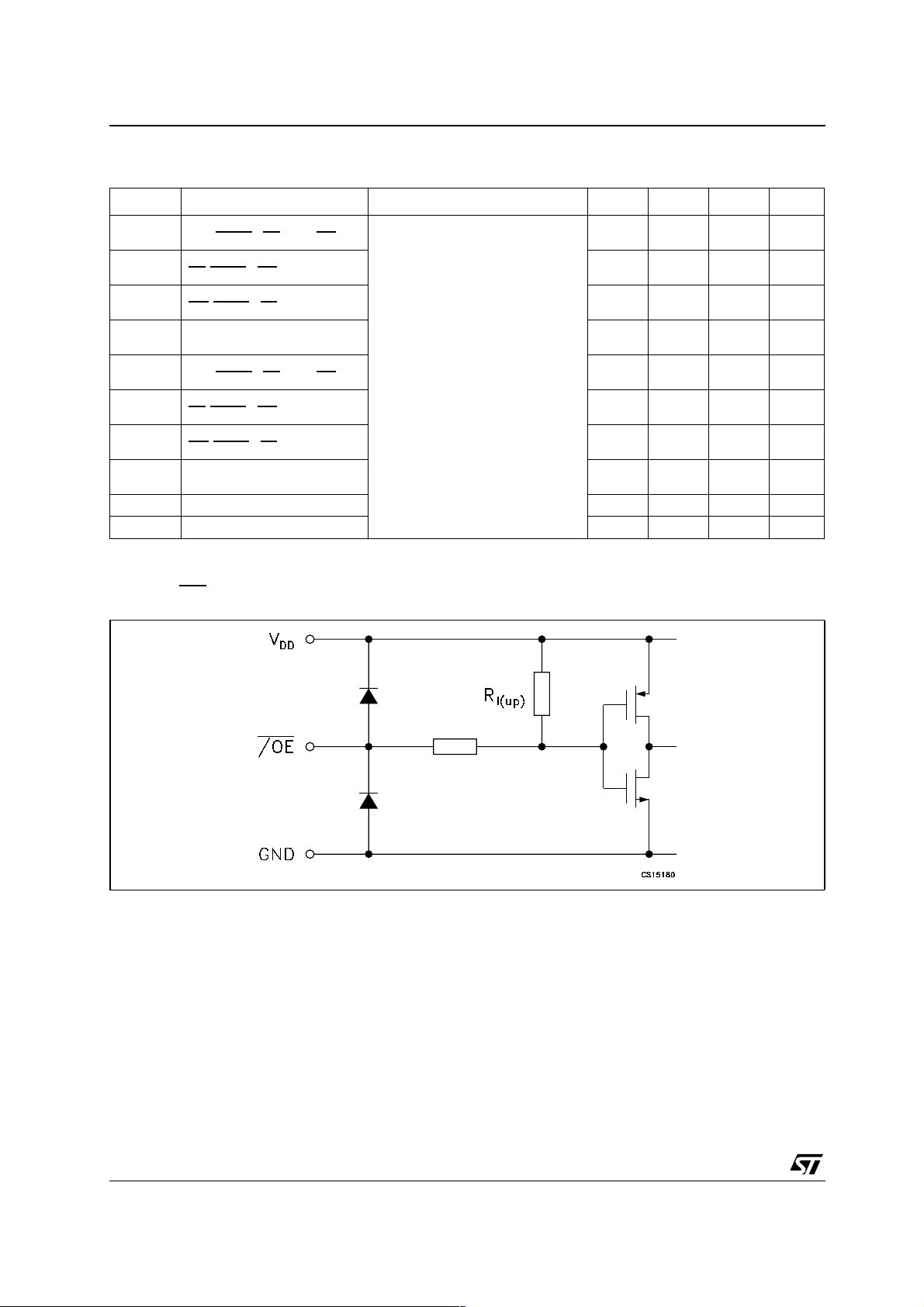

EQUIVALENT CIRCUIT OF INPUTS AND OUTPUTS
Figure 2: /OE
Terminal
4/16
Page 5

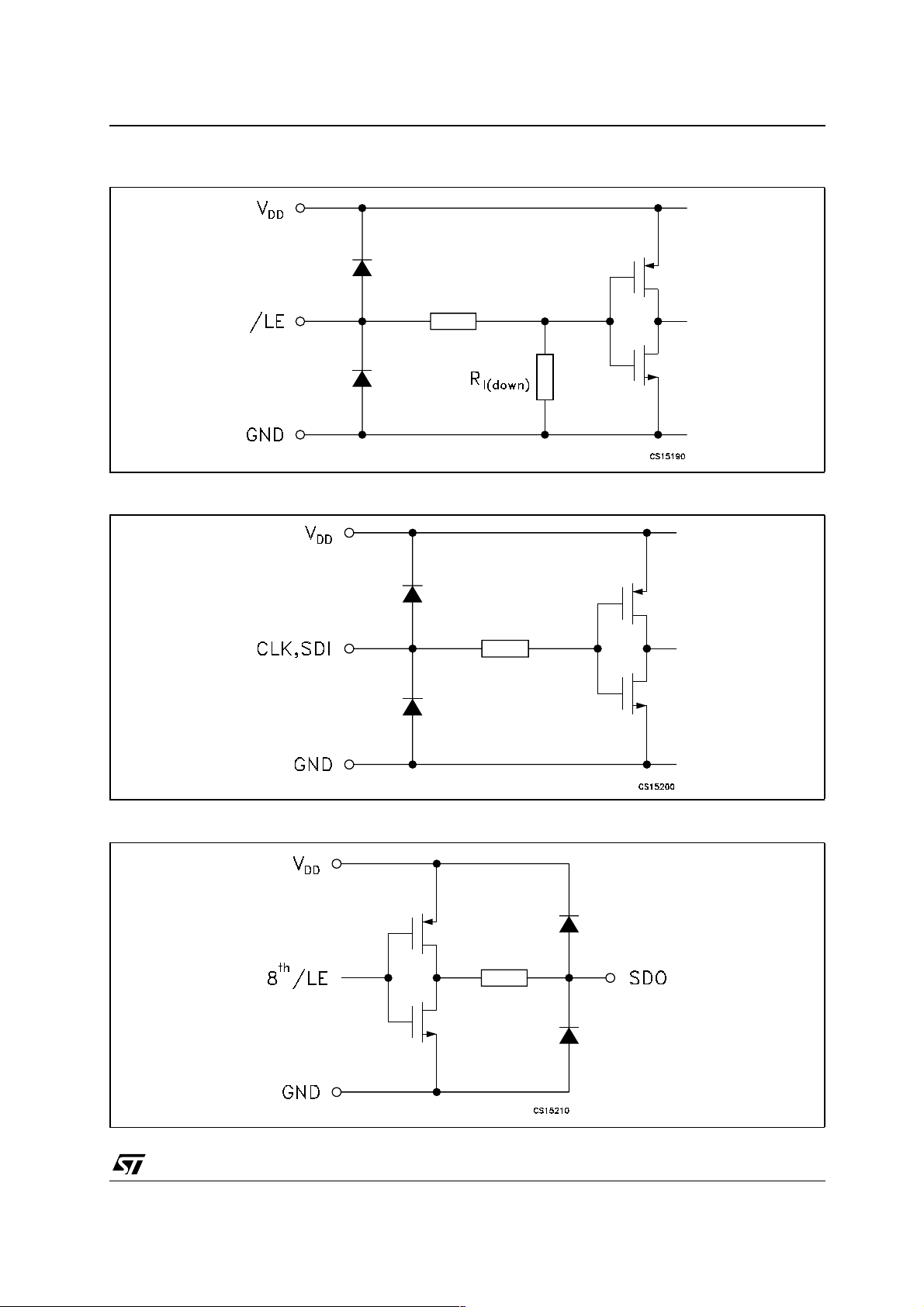

Figure 3: /LE Termin al
Figure 4: CLK, SDI Terminal
STP08C596
Figure 5: SDO Terminal
5/16
Page 6
STP08C596

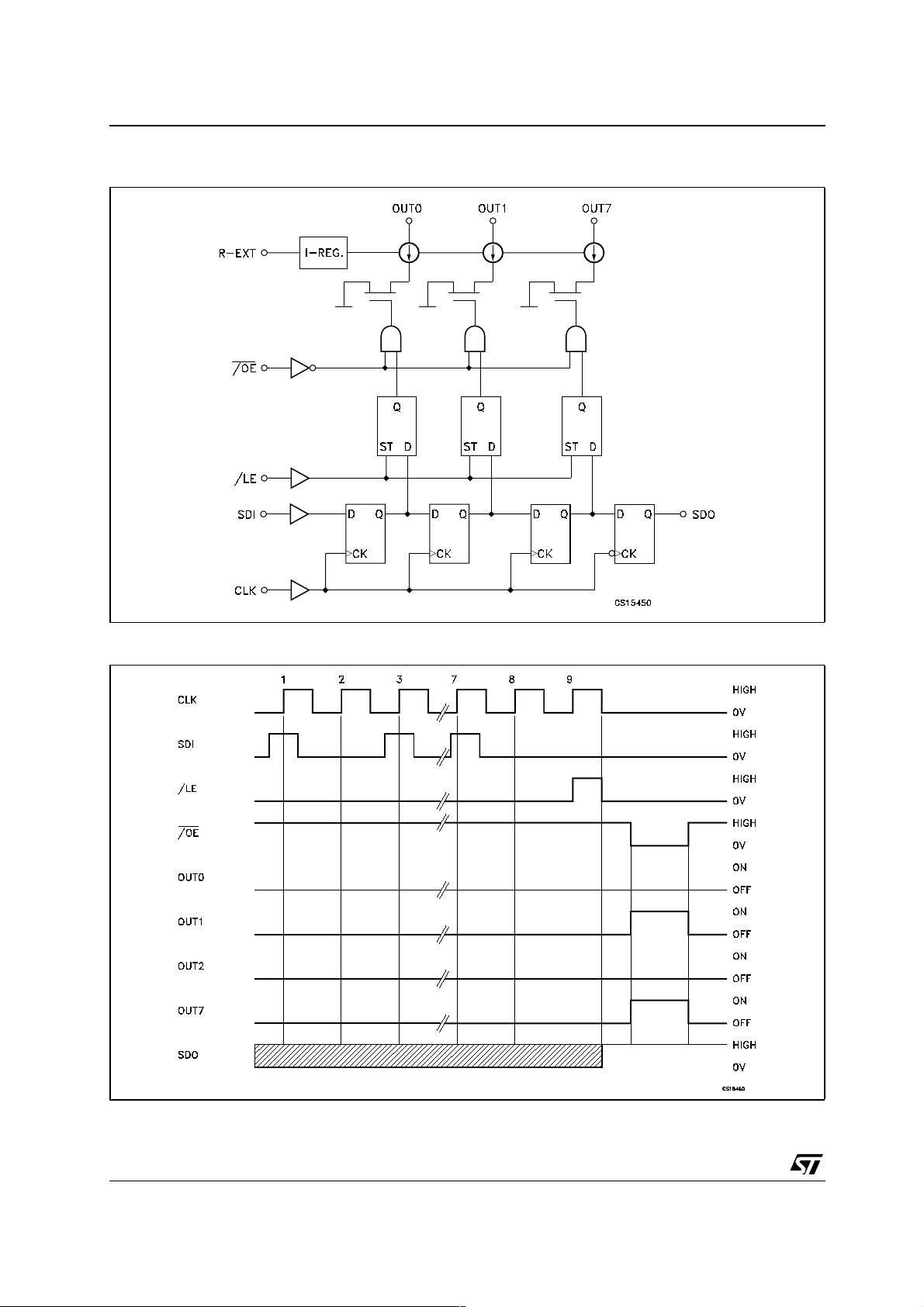

Figure 6: Block Diagram
Figure 7: Timing Dia gram
6/16
Page 7

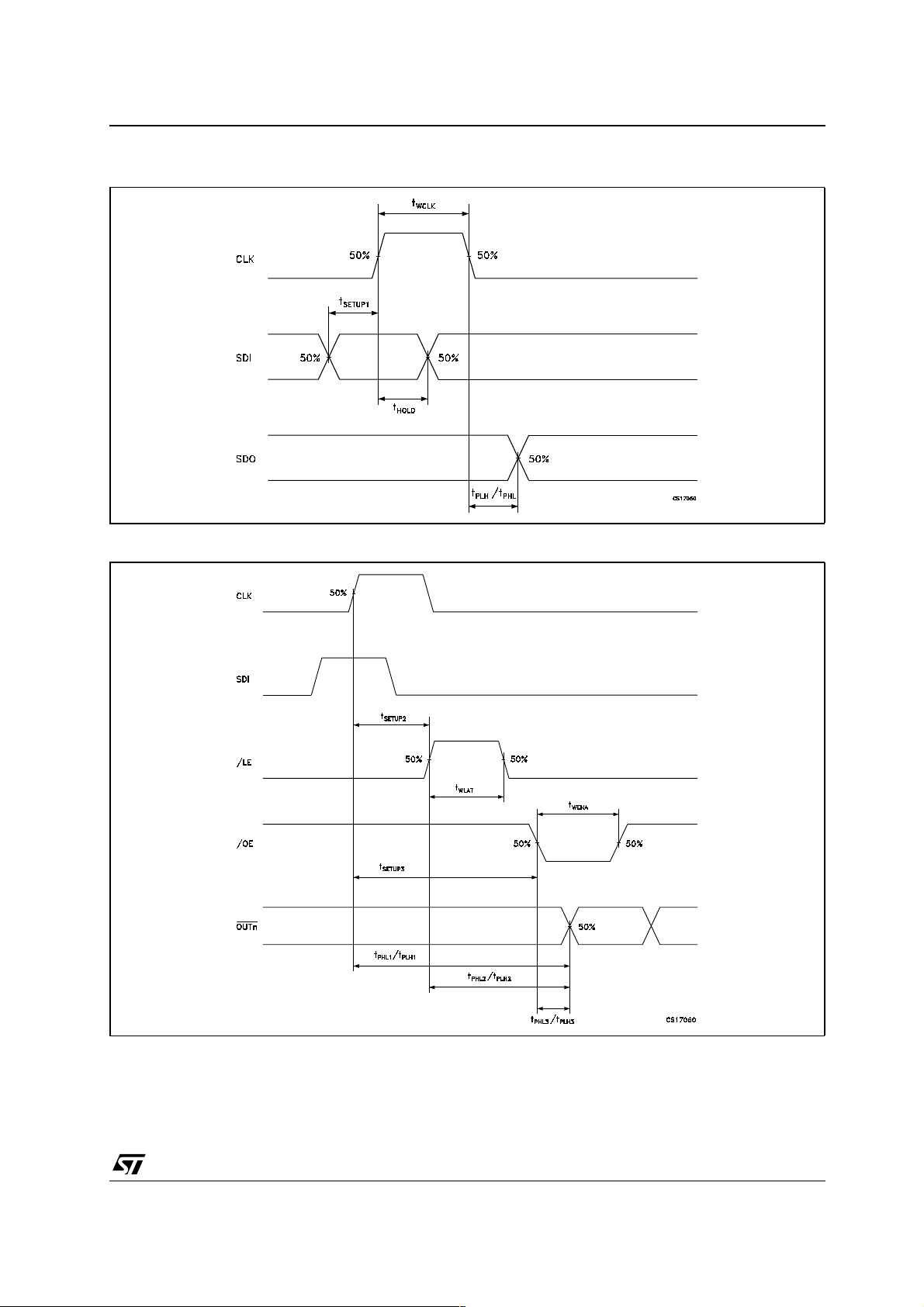

Figure 8: Clock, Serial-In, Serial-Out
Figure 9: Clock, Serial-In, Latch, Enable, Outputs
STP08C596
7/16
Page 8
STP08C596

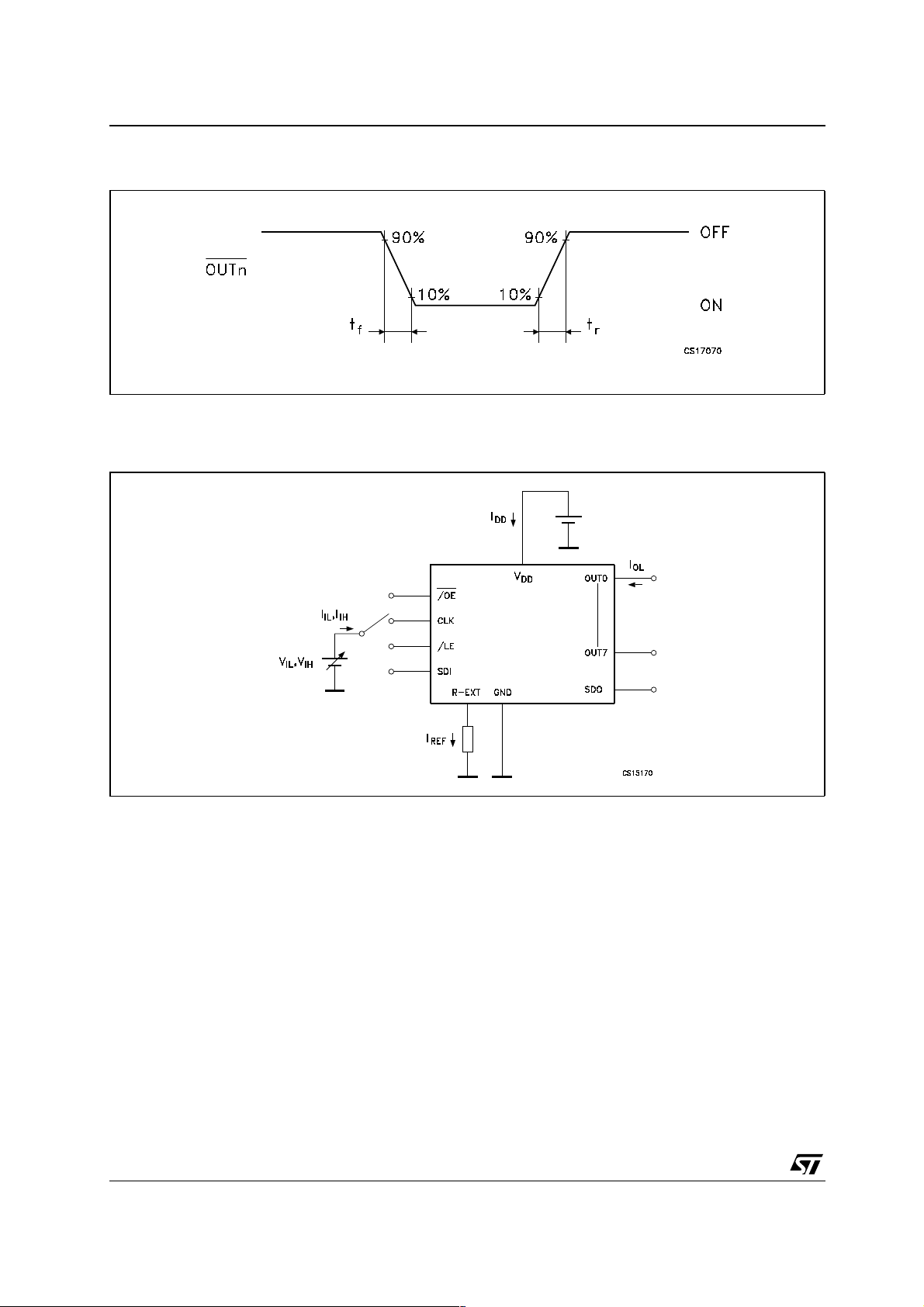

Figure 10: Output s
TEST CIRCUIT
Figure 11: DC Characteristic
8/16
Page 9

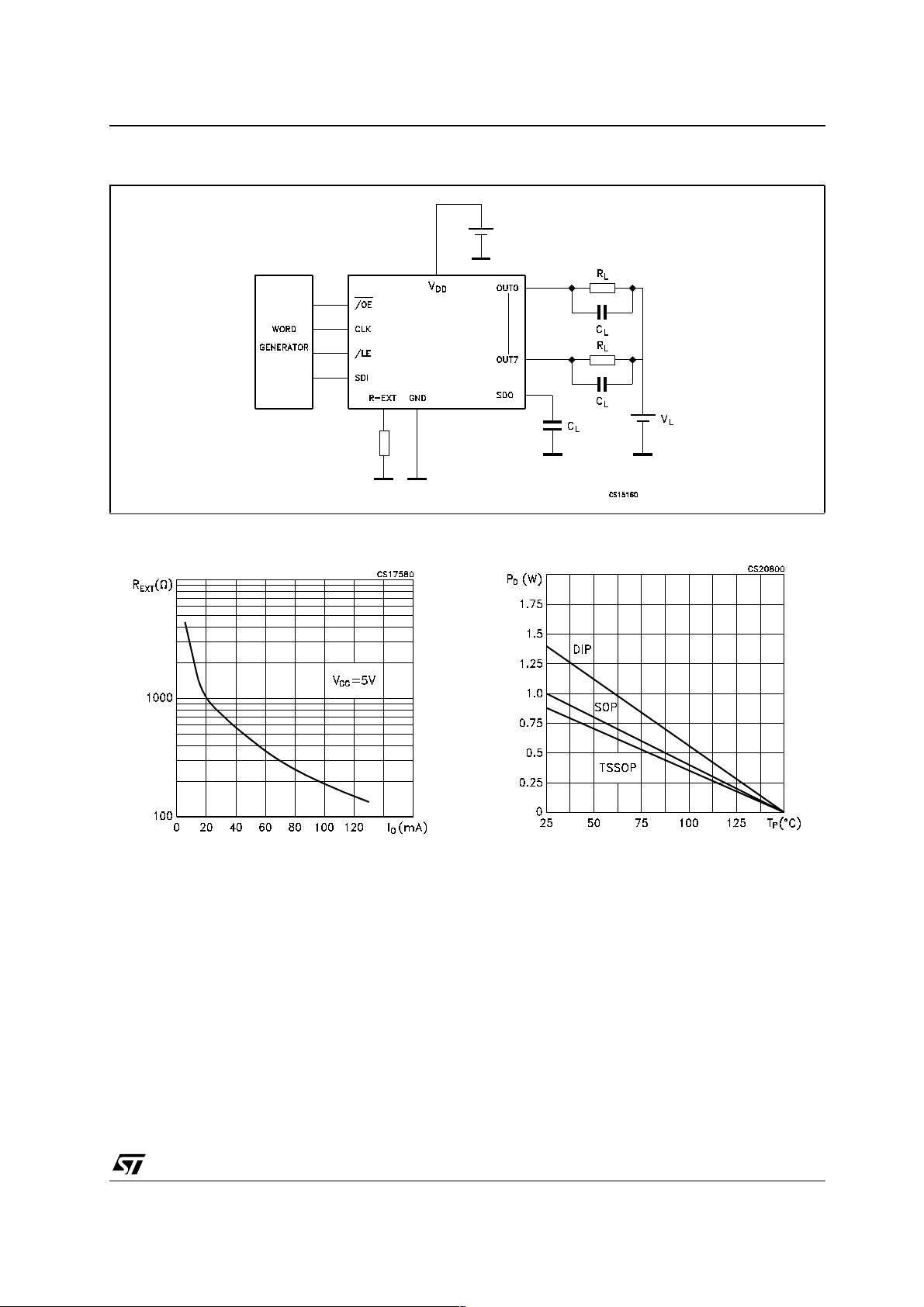

Figure 12: AC Characteristic
STP08C596
Figure 13: Output Current-R
Resistor
EXT
Figure 14: Power Dissipation vs Temperature
Package
9/16
Page 10
STP08C596

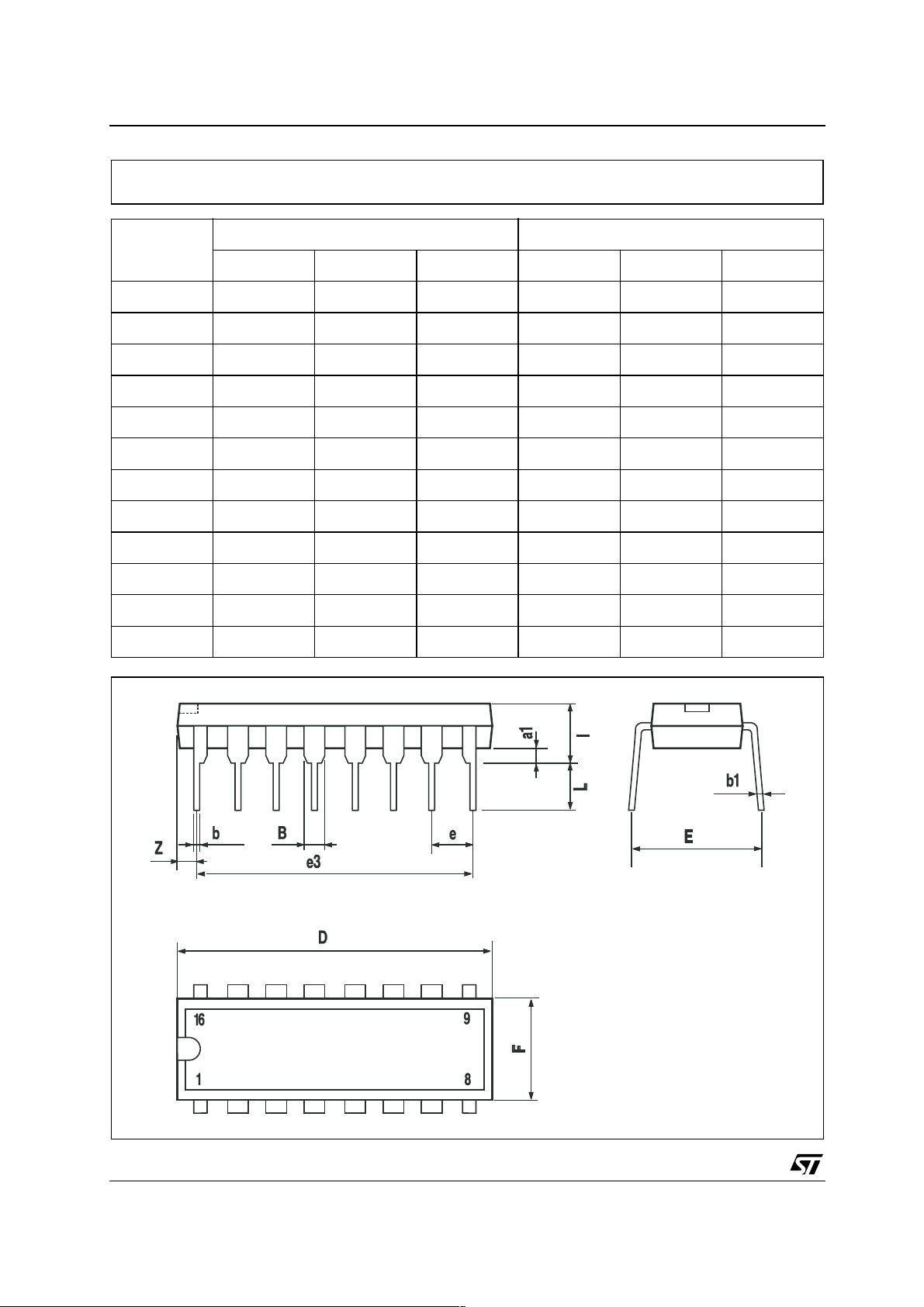

Plastic DIP-16 (0.25) MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
a1 0.51 0.020
B 0.77 1.65 0.030 0.065
b 0.5 0.020
b1 0.25 0.010
D 20 0.787
E 8.5 0.335
e 2.54 0.100
e3 17.78 0.700
F 7.1 0.280
I 5.1 0.201
L 3.3 0.130
Z 1.27 0.050
10/16
P001C
Page 11

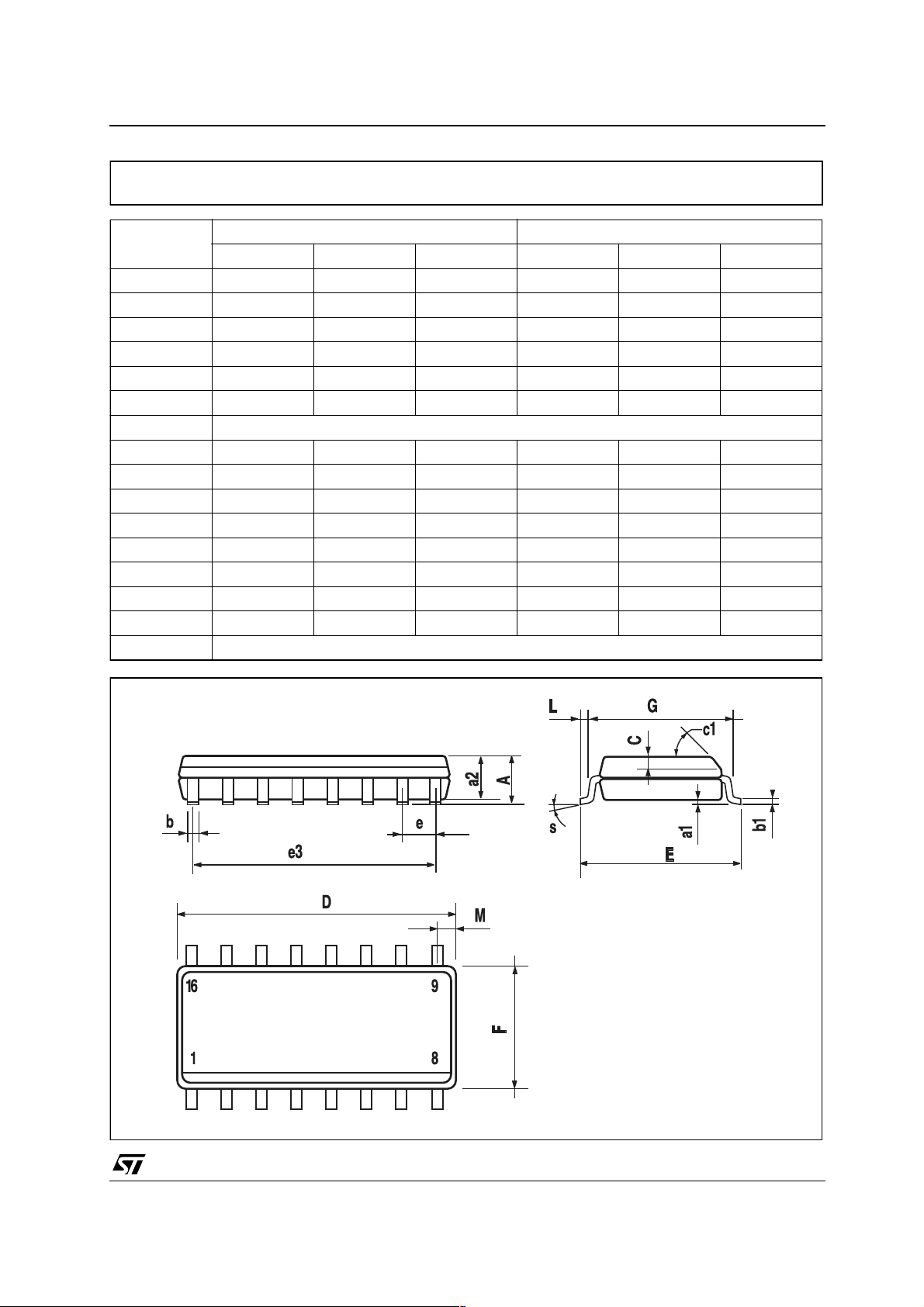

SO-16 MECHANICAL DATA
STP08C596
DIM.
A 1.75 0.068
a1 0.1 0.25 0.004 0.010
a2 1.64 0.063
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45° (typ.)
D 9.8 10 0.385 0.393
E 5.8 6.2 0.228 0.244
e 1.27 0.050
e3 8.89 0.350
F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050
M 0.62 0.024
S8° (max.)
MIN. TYP MAX. MIN. TYP. MAX.
mm. inch
0016020D
11/16
Page 12
STP08C596

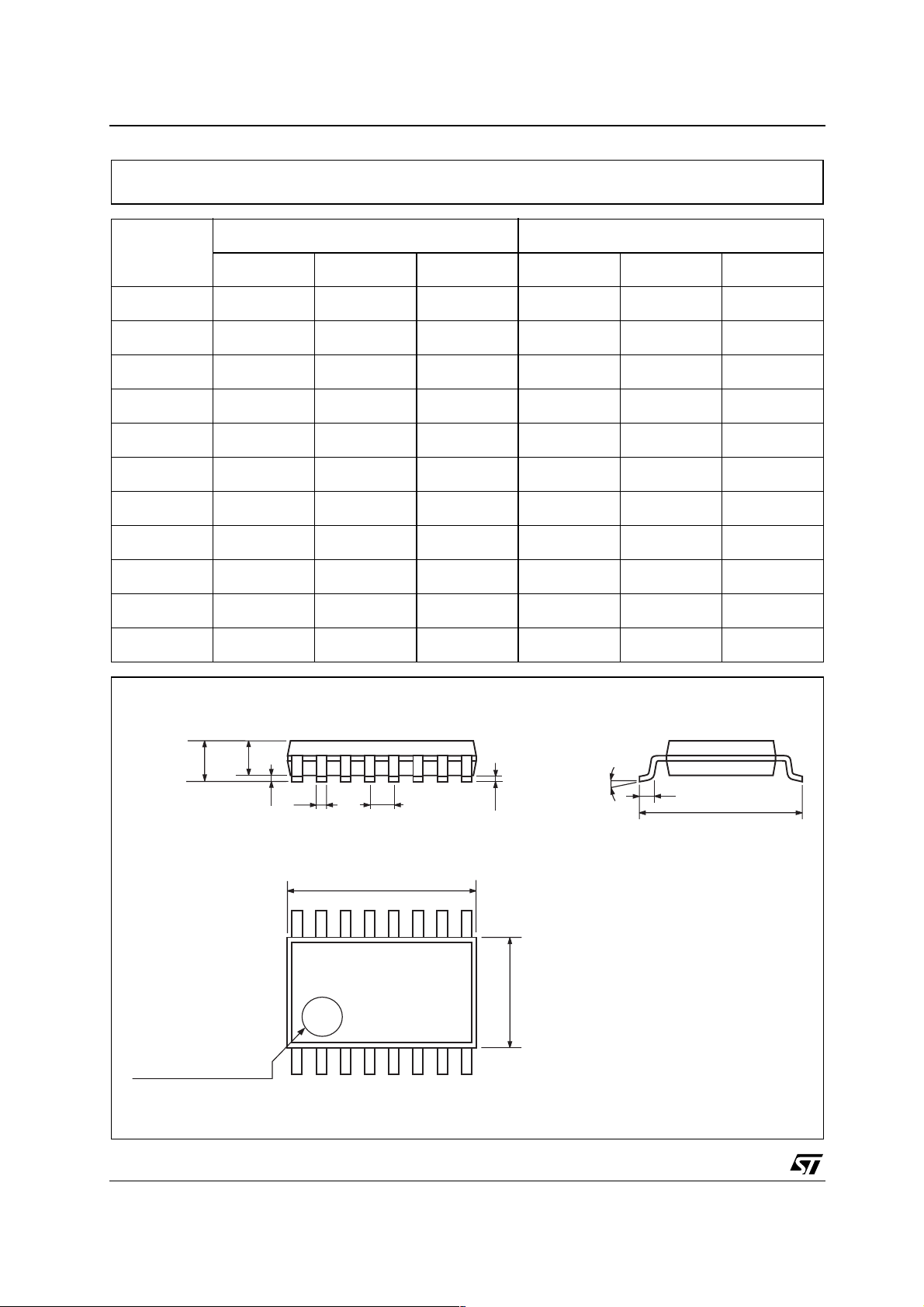

TSSOP16 MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 1.2 0.047
A1 0.05 0.15 0.002 0.004 0.006
A2 0.8 1 1.05 0.031 0.039 0.041
b 0.19 0.30 0.007 0.012
c 0.09 0.20 0.004 0.0079
D 4.9 5 5.1 0.193 0.197 0.201
E 6.2 6.4 6.6 0.244 0.252 0.260
E1 4.3 4.4 4.48 0.169 0.173 0.176
e 0.65 BSC 0.0256 BSC
K0˚ 8˚0˚ 8˚
L 0.45 0.60 0.75 0.018 0.024 0.030
A2
A
A1
b
e
c
K
L
E
D
E1
PIN 1 IDENTIFICATION
12/16
1
0080338D
Page 13
STP08C596

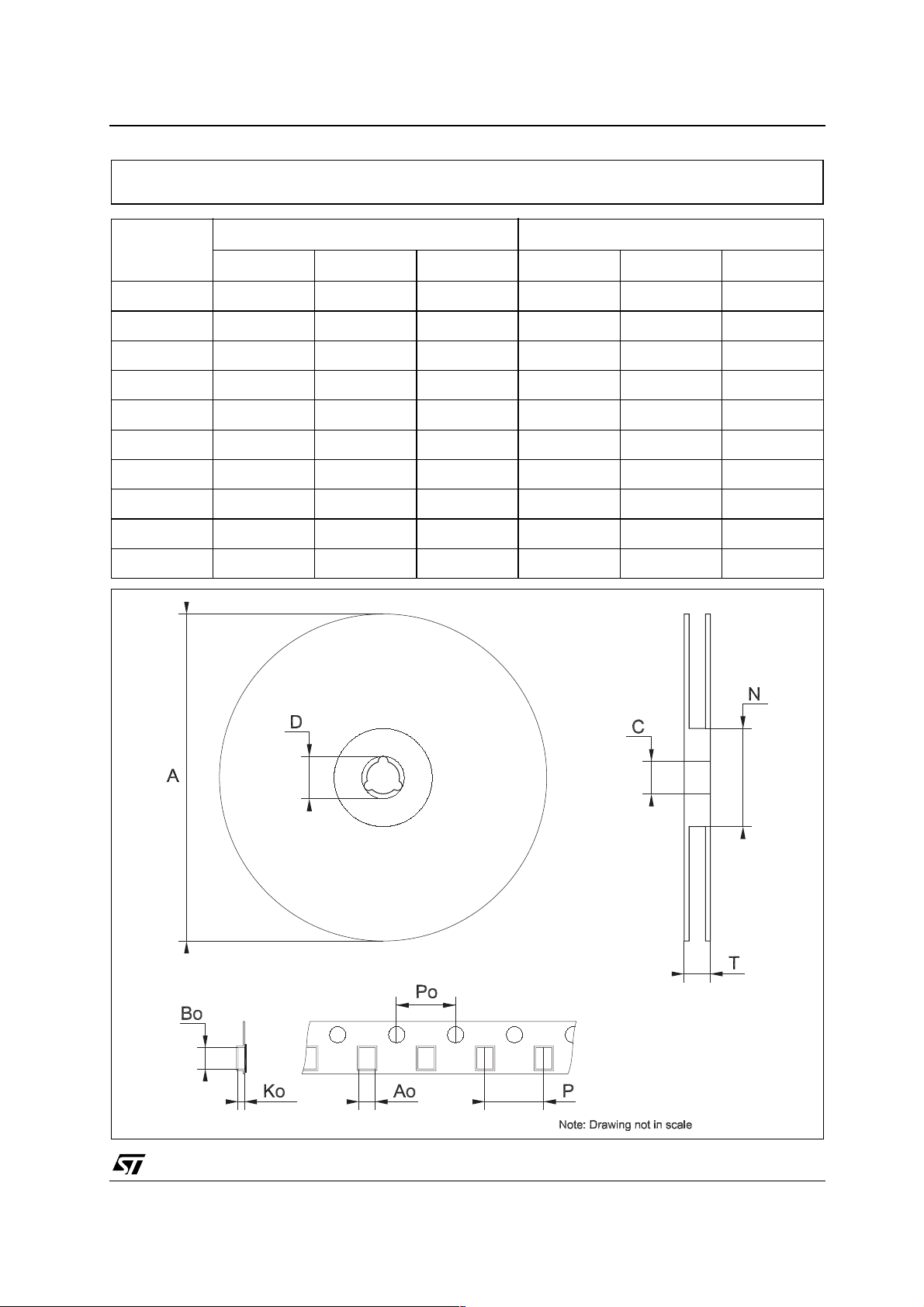

Tape & Reel SO-16 MECHANICAL DAT A
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 330 12.992
C 12.8 13.2 0.504 0.519
D 20.2 0.795
N 60 2.362
T 22.4 0.882
Ao 6.45 6.65 0.254 0.262
Bo 10.3 10.5 0.406 0.414
Ko 2.1 2.3 0.082 0.090
Po 3.9 4.1 0.153 0.161
P 7.9 8.1 0.311 0.319
13/16
Page 14
STP08C596
Tape & Reel TSSOP16 MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 330 12.992
C 12.8 13.2 0.504 0.519
D 20.2 0.795
N 60 2.362
T 22.4 0.882
Ao 6.7 6.9 0.264 0.272
Bo 5.3 5.5 0.209 0.217
Ko 1.6 1.8 0.063 0.071
Po 3.9 4.1 0.153 0.161
P 7.9 8.1 0.311 0.319
14/16
Page 15
Table 9: Revision History
Date Revision Description of Change s
03-Aug-2004 6
23-Feb-2005 7
STP08C596
Package TSSOP (Exposed Pad) removed. Table 8 - pag. 4 data changed.
Figure 14 - pag. 10 changed.
Mistake on Table 7 - I
DDOFF
and I
OUT 0 to 15 ==> OUT 0 to 7.
DDON
15/16
Page 16
STP08C596
Information furnished is believed to be accurate and reliable. Howe ver, STMicroelectronics assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is gra nted
by implic ati o n or ot h er wis e und er an y pat ent or pa te nt r igh ts of STMi cr oe l ect ro ni cs . Sp ec if i cat i on s ment i o ned i n th is p ub li c ati on ar e s ubj ec t
to change without not ice. This publication supersedes and replaces all information previously supplied. STMicroelectr onics products are not
authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.
The ST logo is a registered trademark of STMicroelectronics
All other names are the property of their respective owners
© 2005 STMicroelectronics - All Rights Reserved
