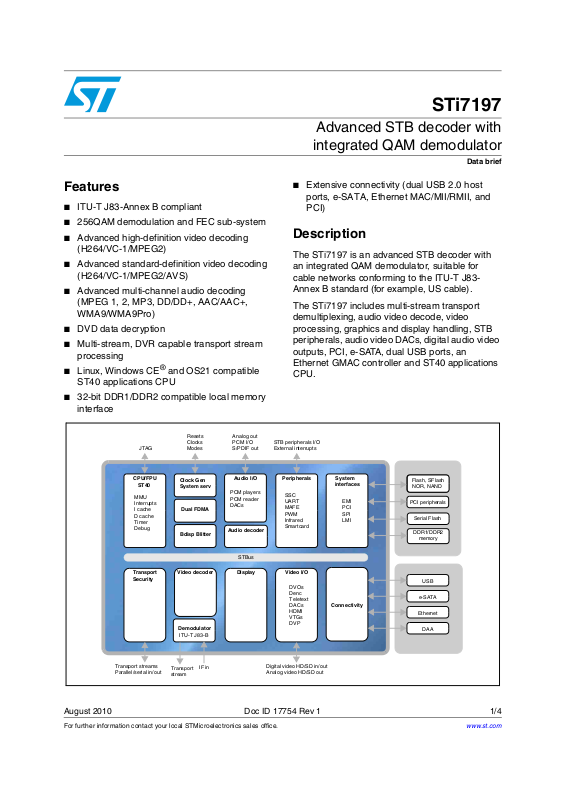

STi7197
STB peripherals I/O
Digital video HD/SD in/out
Resets Analog out
Clocks
Modes
PCM I/O
S/PDIF out External interrupts
Clock Gen
System serv
Peripherals
SSC
UART
MAFE
PWM
Infrared
Smartcard
Connectivity
Transport
Security
DVOs
Denc
Teletext
DACs
HDMI
VTGs
Analog video HD/SD out
Audio I/O
Display
DVP
Video I/O
Transport streams
Parallel/serial in/out
Audio decoder
Video decoder
EMI
PCI
SPI
System
interfaces
CPU/FPU
MMU
Interrupts
I cache
D cache
Timer
ST40
Debug
STBus
PCM players
PCM reader
DACs
Dual FDMA
Bdisp Blitter
Flash, SFlash
NOR, NAND
USB
e-SATA
Ethernet
DAA
DDR1/DDR2
Serial Flash
memory
Flash, SFlash
NOR, NAND
JTAG
PCI peripherals
LMI
Demodulator
ITU-T J83-B
IF in
Transport
stream
Advanced STB decoder with
integrated QAM demodulator
Data brief
Features
■ ITU-T J83-Annex B compliant
■ 256QAM demodulation and FEC sub-system
■ Advanced high-definition video decoding
(H264/VC-1/MPEG2)
■ Advanced standard-definition video decoding
(H264/VC-1/MPEG2/AVS)
■ Advanced multi-channel audio decoding
(MPEG 1, 2, MP3, DD/DD+, AAC/AAC+,
WMA9/WMA9Pro)
■ DVD data decryption
■ Multi-stream, DVR capable transport stream
processing
■ Linux, Windows CE
ST40 applications CPU
■ 32-bit DDR1/DDR2 compatible local memory
interface
®
and OS21 compatible
■ Extensive connectivity (dual USB 2.0 host
ports, e-SATA, Ethernet MAC/MII/RMII, and
PCI)
Description
The STi7197 is an advanced STB decoder with
an integrated QAM demodulator, suitable for
cable networks conforming to the ITU-T J83Annex B standard (for example, US cable).
The STi7197 includes multi-stream transport
demultiplexing, audio video decode, video
processing, graphics and display handling, STB
peripherals, audio video DACs, digital audio video
outputs, PCI, e-SATA, dual USB ports, an
Ethernet GMAC controller and ST40 applications
CPU.
August 2010 Doc ID 17754 Rev 1 1/4
For further information contact your local STMicroelectronics sales office.
www.st.com
4
Page 2
Introduction STi7197
1 Introduction
The STi7197 is targeted at the latest operator and CE manufacturer requirements for STBs
that use advanced HD decoding (H264/VC-1/MPEG2). The STi7197 conforms to DVB,
ISMA, ATIS-IIF, SCTE, ATSC, ARIB, CEA, ITU and OpenCable specifications.
The STi7197 provides a solution for operators to specify a range of cost-effective, high
performance HD STBs including cost-effective zappers, IP clients, interactive STBs, DVR
standalone and DVR server/home network-capable STBs. Content delivery is possible using
broadcast or broadband networks, or both (hybrid STBs). The STi7197 incorporates the
latest generation of advanced security features.
The STi7197 offers current users of ST’s growing family of advanced decoding ICs
enhancements in performance and features, while reducing cost and time-to-market for the
next generation deployments.
Features Benefits
Combines a QAM demodulator with STB
decoding and display functions
ST40 applications CPU,
32K I cache, 32K D cache
STMicroelectronics' video decoding system Decoding of advanced high definition standards for
Dual USB 2.0 hosts, e-SATA,
Ethernet MAC with MII/RMII and TMII,
interfaces, PCI interface
Low-power process, design and architecture Best-in-class, low-power standby mode, to meet
Advanced 2D graphics and display subsystem
which also supports 3D user interface effects
and 1080p60 display output
This highly integrated SoC helps to reduce board
area and manufacturing cost, allowing low-cost
and small size STBs to be designed.
Superscalar performance from a single CPU core,
using standard tools and operating systems (Linux,
OS21).
MPEG2, H264, VC-1 broadcast, with the
performance and flexibility for web-based content
decoding such as Flash, DivX, MJPEG and Real.
Extensive high speed connectivity for the widest
range of STB peripherals, such as Flash drives,
external HDDs, home network controllers (for
example MoCA, Wi-Fi), DOCSIS modem and so
on.
emerging energy standards for STBs. Dynamic
configuration of power to individual sub-systems
enables power-efficient active standby modes.
Allows visually appealing user interfaces and video
rich navigation to be offered to consumers, while
high quality progressive output can be watched on
the latest high-definition displays.
2/4 Doc ID 17754 Rev 1
Page 3
STi7197 Revision history
2 Revision history
Table 1. Document revision history
Date Revision Changes
11-Aug-2010 1 Initial release.
Doc ID 17754 Rev 1 3/4
