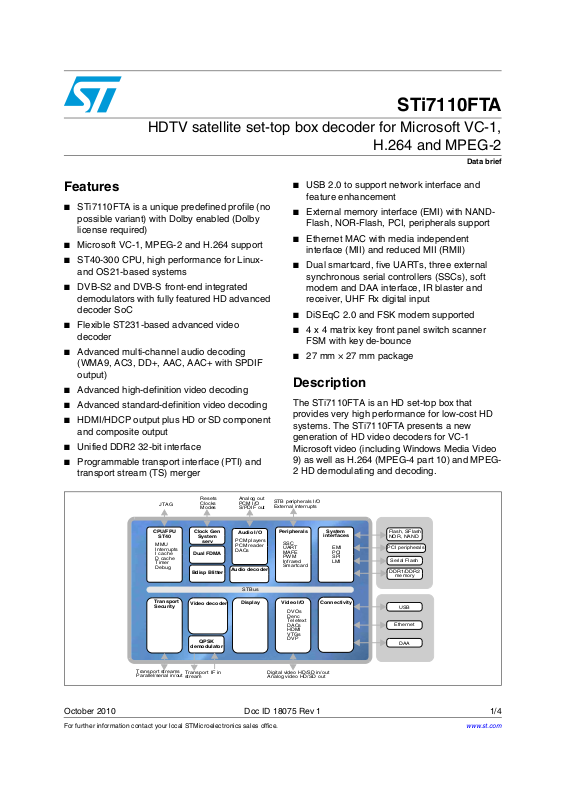

STi7110FTA
STB peripherals I/O
Digital video HD/SD in/out
Resets Analog out
Clocks
Modes
PCM I/O
S/PDIF out
External interrupts
Clock Gen
System
Peripherals
SSC
UART
MAFE
PWM
Infrared
Smartcard
Connectivity
Transport
Security
DVOs
Denc
Teletext
DACs
HDMI
VTGs
Analog video HD/SD out
Audio I/O
Display
DVP
Video I/O
Transport streams
Parallel/serial in/out
Audio decoder
Video decoder
EMI
PCI
SPI
System
interfaces
CPU/FPU
MMU
Interrupts
I cache
D cache
Timer
ST40
Debug
STBus
PCM players
PCM reader
DACs
Dual FDMA
Bdisp Blitter
Flash, SFlash
NOR, NAND
USB
Ethernet
DAA
DDR1/DDR2
Serial Flash
memory
JTAG
PCI peripherals
LMI
QPSK
IF in
Transport
stream
demodulator
serv
HDTV satellite set-top box decoder for Microsoft VC-1,
H.264 and MPEG-2
Data brief
Features
■ STi7110FTA is a unique predefined profile (no
possible variant) with Dolby enabled (Dolby
license required)
■ Microsoft VC-1, MPEG-2 and H.264 support
■ ST40-300 CPU, high performance for Linux-
and OS21-based systems
■ DVB-S2 and DVB-S front-end integrated
demodulators with fully featured HD advanced
decoder SoC
■ Flexible ST231-based advanced video
decoder
■ Advanced multi-channel audio decoding
(WMA9, AC3, DD+, AAC, AAC+ with SPDIF
output)
■ Advanced high-definition video decoding
■ Advanced standard-definition video decoding
■ HDMI/HDCP output plus HD or SD component
and composite output
■ Unified DDR2 32-bit interface
■ Programmable transport interface (PTI) and
transport stream (TS) merger
■ USB 2.0 to support network interface and
feature enhancement
■ External memory interface (EMI) with NAND-
Flash, NOR-Flash, PCI, peripherals support
■ Ethernet MAC with media independent
interface (MII) and reduced MII (RMII)
■ Dual smartcard, five UARTs, three external
synchronous serial controllers (SSCs), soft
modem and DAA interface, IR blaster and
receiver, UHF Rx digital input
■ DiSEqC 2.0 and FSK modem supported
■ 4 x 4 matrix key front panel switch scanner
FSM with key de-bounce
■ 27 mm × 27 mm package
Description
The STi7110FTA is an HD set-top box that
provides very high performance for low-cost HD
systems. The STi7110FTA presents a new
generation of HD video decoders for VC-1
Microsoft video (including Windows Media Video
9) as well as H.264 (MPEG-4 part 10) and MPEG2 HD demodulating and decoding.
October 2010 Doc ID 18075 Rev 1 1/4
For further information contact your local STMicroelectronics sales office.
www.st.com
4
Page 2
Introduction STi7110FTA
1 Introduction
The STi7110FTA uses ST’s state-of-the-art process technology to provide a low-cost, fullfeatured advanced decoding HD set-top box SoC. It is a highly integrated solution suitable
for DVB-S2 and DVB-S set-top box markets worldwide.
The STi7110FTA provides a solution for operators to specify a range of low-cost HD STBs
including low-cost DVB-S2 Zappers, interactive STBs and DVR capable STBs. The
STi7110FTA is optimized for IP-TV and home networking applications with integrated DVB,
DES, AES and Multi2 descramblers and smartcard interfaces. The STi7110FTA offers
enhancements in performance, features and integration to current users of ST’s HD AVC
family of audio/video decoders, whilst reducing cost and time-to-market for the next
generation of deployments.
Features Benefits
Combines a QPSK demodulator with STB
decoding and display functions
ST40-300 applications CPU,
32K I cache, 32K D cache
STMicroelectronics' video decoding system Decoding of advanced high-definition standards for
USB 2.0 hosts, Ethernet MAC with MII/RMII and
TMII, interfaces, PCI interface
Low-power process, design and architecture Best in class, low-power standby mode, to meet
Advanced 2D graphics and display subsystem Allows visually appealing user interfaces and video
This highly integrated SoC helps to reduce board
area and manufacturing cost, allowing low-cost
and small size STBs to be designed.
Superscalar performance from a single CPU core,
using standard tools and operating systems (Linux,
OS21).
MPEG2, H264, VC-1 broadcast, with the
performance and flexibility for web-based content
decoding such as Flash, DivX, MJPEG and Real.
Extensive high-speed connectivity for the widest
range of STB peripherals, such as Flash drives,
external HDDs, home network controllers (for
example MoCA, Wi-Fi), DOCSIS modem and so
on.
emerging energy standards for STBs. Dynamic
configuration of power to individual subsystems
enables power-efficient active standby modes.
rich navigation to be offered to consumers, while
high-quality progressive output can be watched on
the latest high-definition displays.
2/4 Doc ID 18075 Rev 1
Page 3
STi7110FTA Revision history
2 Revision history
Table 1. Document revision history
Date Revision Changes
20-Oct-2010 1 Initial release.
