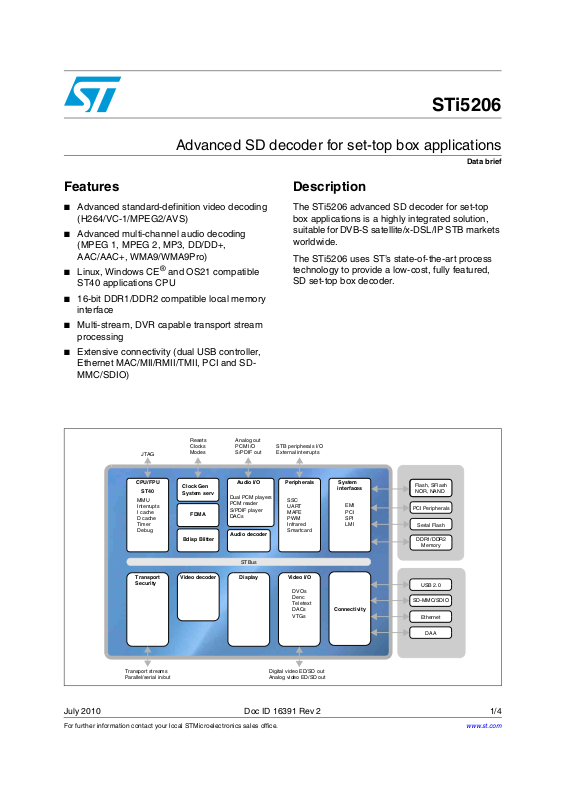

STi5206
Advanced SD decoder for set-top box applications
Data brief
Features
■ Advanced standard-definition video decoding
(H264/VC-1/MPEG2/AVS)
■ Advanced multi-channel audio decoding
(MPEG 1, MPEG 2, MP3, DD/DD+,
AAC/AAC+, WMA9/WMA9Pro)
■ Linux, Windows CE
ST40 applications CPU
■ 16-bit DDR1/DDR2 compatible local memory
interface
■ Multi-stream, DVR capable transport stream
processing
■ Extensive connectivity (dual USB controller,
Ethernet MAC/MII/RMII/TMII, PCI and SDMMC/SDIO)
®
and OS21 compatible
Resets Analog out
Clocks
JTAG
Modes
PCM I/O
S/PDIF out External interrupts
Description
The STi5206 advanced SD decoder for set-top
box applications is a highly integrated solution,
suitable for DVB-S satellite/x-DSL/IP STB markets
worldwide.
The STi5206 uses ST’s state-of-the-art process
technology to provide a low-cost, fully featured,
SD set-top box decoder.

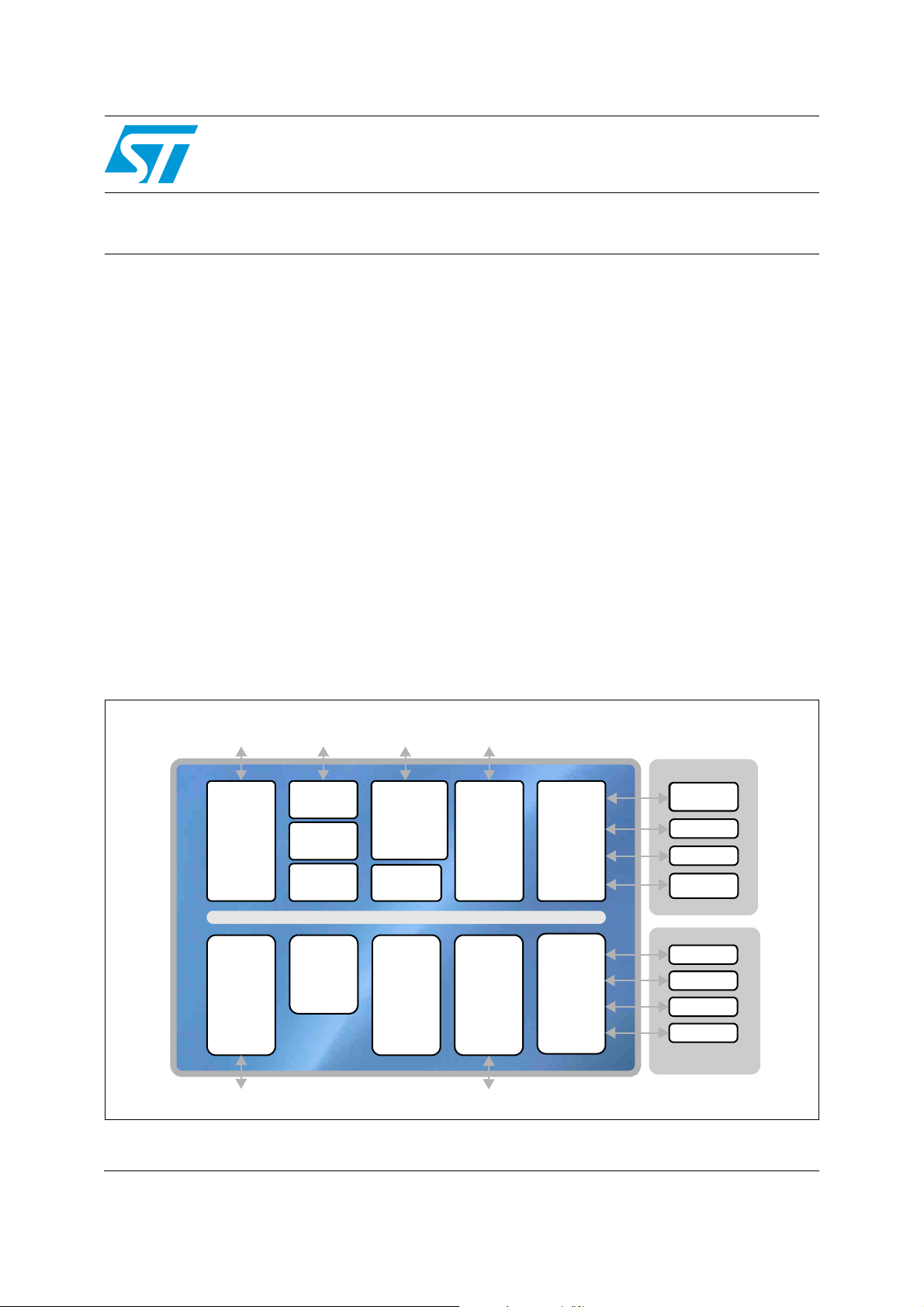

STB peripherals I/O
CPU/FPU
ST40
MMU
Interrupts
I cache
D cache
Timer
Debug
Transport
Security
PTI
TS merger
Transport streams
Parallel/serial in/out
Clock Gen
System serv
FDMA
Bdisp Blitter
Video decoder
ST231 CPU
Delta Mu
Audio I/O
Dual PCM players
PCM reader
S/PDIF player
DACs
Audio decoder
STBus
Display Video I/O
Video planes
Graphic planes
Cursor plane
Main VDP
Aux VDP
Deinterlacer
Capture
Peripherals
SSC
UART
MAFE
PWM
Infrared
Smartcard
DVOs
Denc
Teletext
DACs
VTGs
Digital video ED/SD out
Analog video ED/SD out
System
interfaces
EMI
PCI
SPI
LMI
Connectivity
Flash, SFlash
Flash, SFlash
NOR, NAND
NOR, NAND
PCI Peripherals
Serial Flash
DDR1/DDR2
Memory
USB 2.0
SD-MMC/SDIO
Ethernet
DAA
July 2010 Doc ID 16391 Rev 2 1/4
For further information contact your local STMicroelectronics sales office.
www.st.com
4
Page 2
Introduction STi5206
1 Introduction
The STi5206 is targeted at the latest operator and CE manufacturer requirements for STB
markets across all networks (cable/satellite/DTT/x-DSL/IP) worldwide.
The STi5206 provides a solution for operators to specify a range of low-cost SD STBs
including low-cost zappers, interactive STBs and DVR-capable STBs, with content delivery
possible using satellite broadcast or broadband networks, or both (Hybrid STBs).
The STi5206 is optimized for secure Pay-TV applications with integrated DVB, DES, AES,
Multi-2 and ICAM descramblers and smartcard interfaces.
The STi5206 offers enhancements in performance, features and integration to current users
of ST’s SD AVC family of audio/video decoders, while reducing cost and time-to-market for
the next generation deployments.
Features Benefits
Serial Flash based secure boot and code
storage, integrated voltage regulator,
23 mm × 23 mm PBGA package
ST40 applications CPU,
32K I cache, 32K D cache
STMicroelectronics’ video decoding system Decoding of advanced standard definition MPEG2,
Dual USB 2.0 hosts, Ethernet MAC with
MII/RMII and TMII, PCI, SD-MMC/SDIO
Low-power process, design and architecture Best-in-class, low-power standby mode, to meet
Advanced 2D graphics and display subsystem
and 480p/576p display output
Enables further BOM optimization and cost
reduction of advanced decoding SD STBs
Superscalar performance from a single CPU core,
using standard tools and operating systems (Linux,
OS21)
H264 and VC-1/WMV9 streams, with the
performance and flexibility for web-based content
decoding such as Flash, DivX, MJPEG and Real
Extensive high speed connectivity for the widest
range of STB peripherals, such as Flash drives,
external HDDs, home network controllers (for
example MoCA, Wi-Fi), memory cards
emerging energy standards for STBs. Dynamic
configuration of power to individual sub-systems
enables power-efficient active standby modes
Allows visually appealing user interfaces and video
rich navigation to be offered to consumers, while
high quality progressive output can be watched on
the latest displays
2/4 Doc ID 16391 Rev 2
Page 3
STi5206 Revision history
2 Revision history
Table 1. Document revision history
Date Revision Changes
29-Sep-2009 1 Initial release.
23-Jul-2010 2 Simplified content.
