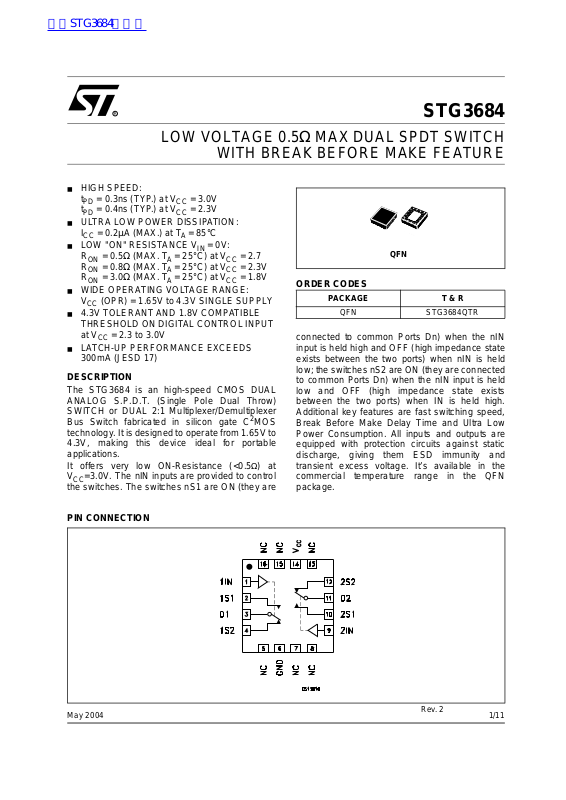

LOW VOLTAGE 0.5Ω MAX DUAL SPDT SWITCH

WITH BREAK BEFORE MAKE FEATURE

■ HIGH SPEED:

t

= 0.3ns (TYP.) at VCC=3.0V

PD

t

= 0.4ns (TYP.) at VCC=2.3V

PD

■ ULTRA LOW POWER DISSIPATION:

I

=0.2µA (MAX.)at TA= 85°C

CC

■ LOW "ON" RESISTANCE V

R

=0.5Ω (MAX. TA= 25°C) at VCC=2.7

ON

R

=0.8Ω (MAX. TA= 25°C) at VCC=2.3V

ON

R

=3.0Ω (MAX. TA= 25°C) at VCC=1.8V

ON

■ WIDE OPERATING VOLTAGE RANGE:

V

(OPR) = 1.65V to 4.3V SINGLE SUPPLY

CC

■ 4.3V TOLERANT AND 1. 8V COMPATIBLE

THRESHOLD ON DIGITALCONTROL I NPUT at V

■ LATCH-UP PERFORMANCE EXCEE DS

= 2.3 to 3. 0V

CC

300mA (JESD 17)

DESCRIPTION

The STG3684 is an high-speed CMOS DUAL ANALOG S.P.D.T. (Single Pole Dual T hrow) SWITCH or DUAL 2:1 Multiplexer/Demultiplexer Bus Switch fabricated in silicon gate C technology. It is designed t o operate from 1.65V to

4.3V, making this device ideal f or portable applications.

It offers very l ow ON-Resistance (<0.5 V

=3.0V. The nIN inputs are provided to control

CC

the swi tches. The switches nS1 are ON (they are

IN

=0V:

2

MOS

Ω)at

STG3684

QFN

ORDER CODES

PACKAGE T & R

QFN STG3684QTR

connected to common Ports Dn) when the nIN input is held high and OFF (high impedance state exists between the two ports) when nIN is held low; the switches nS2 are ON (they are connected to common Ports Dn) when th e nIN input is hel d low and OFF (high impedance state exists between the two ports) when IN is held high. Additional key features are fast switching speed, Break Before Make Delay Time and Ultra Low Power Cons umption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity a nd transient excess voltage. It’s available in the commercial temperature range in the QF N package.

PIN CONNECTION

Rev. 2

1/11May 2004

STG3684

Figure 1: Input Equivalent Circuit Table 1: Pin Description

QFN

PIN N°

SYMBOL

NAME AND

FUNCTION

1, 9 1IN, 2IN Controls

2, 10 4, 12

1S1 to 2S1 1S2 to 2S2

Independent Channels

3, 11 D1, D2 Common Channels

5,7,8,13,15,16 NC Not Connected

6 GND Ground (0V)

14 V

CC

PositiveSupply Voltage

Table 2: Truth Table

IN SWITCH S1 SWITCH S2

H ON OFF(*)

L OFF(*) ON

(*) High Impedance

Table 3: Absolute Maximum Ratings

Symbol Parameter Value Unit

V

I

IKC

I

OK

I

OP

or I

I

CC

P

T

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied. (1) Derate above 70°C: by 18.5mW/°C.

Supply Voltage

CC

DC Input Voltage -0.5 to VCC+0.5

I

DC Control Input Voltage

IC

DC Output Voltage -0.5 to VCC+0.5

O

DC Input Diode Current on control pin (VIN<0V) DC InputDiode Current (VIN<0V)

IK

DC Output Diode Current DC Output Current

O

DC Output Current Peak (pulse at 1ms, 10% duty cycle) DC VCCor Ground Current

GND

Power Dissipation at Ta=70°C (1)

D

Storage Temperature

stg

Lead Temperature (10 sec)

L

-0.5 to 4.6 V V

− 50 mA ± 50 mA

± 20 mA ± 300 mA ± 500 mA ± 100 mA

1120 mW

-65 to 150 °C 300 °C

Table 4: Recommended Operating Conditions

Symbol Parameter Value Unit

V

T

dt/dv

1) Truth Table guaranteed: 1.2V to 4.3V.

Supply Voltage (note 1)

CC

Input Voltage 0 to V

I

Control Input Voltage

IC

Output Voltage 0 to V

O

Operating Temperature

op

Input Rise and Fall Time Control Input V

= 1.65V to 2.7V

CC

= 3.0V to 4.3V

V

CC

1.65 to 4.3 V

CC

0to4.3 V

CC

-55 to 125 °C 0to20 0to10

2/11

V

ns/V

Table 5: DC Specifications

Test Conditions Value

Symbol Parameter

V

High Level

IH

Input Voltage

V

Low Level

IL

Input Voltage

R

Switch ON

ON

Resistance (1)

∆R

ON

ON Resistance Match between channels (1,2)

R

FLAT

ON Resistance FLATNESS (3)

I

OFF State

OFF

Leakage Current (nSn), (Dn)

Input

I

IN

Leakage Current

Quiescent

I

CC

Supply Current (1)

V

CC

(V)

1.65-1.95 0.65V

2.3-2.5

2.7-3.0

3.3 1.5

3.6

4.3

1.65-1.95 0.40 0.40 0.40

2.3-2.5

2.7-3.6

3.3 0.50 0.50 0.50

3.6

4.3

3.0 0.40 0.50 0.60

2.7 0.40 0.50 0.60

2.3 0.50 0.80 0.80

1.8 0.70 3.0 4.0

1.65 0.80 3.0 4.0

2.7

4.3

3.0

2.7 0.07 0.15 0.15

2.3

1.65 V

4.3

0-4.3 VIN=0to4.3V ±0.1 ± 1 µA

1.65-4.3 VIN=VCCor

STG3684

=25°C

T

A

Min. Typ. Max. Min. Max. Min. Max.

CC

1.4 1.4 1.4

1.7 1.7 1.7

2.2 2.2 2.2

0.50 0.50 0.50

1.3 1.3 1.3

0.40 0.50 0.50

V

=0V to V

S

CC

IS=100mA

=1.5V

V

S

I

=100mA

S

=1.5V

V

S

I

=100mA

S

=0.8V

S

I

=100mA

S

0.06 Ω

VS=0.3or 4V ±10 ± 100 nA

±0.05 ±0.2 ±1 µA

GND

-40 to 85°C -55 to 125°C

0.65V

CC

0.65V

CC

1.5 1.5

Unit

V

Ω

Note 1:Guaranteedbydesign Note 2:∆R Note 3: Flatness is defined as the difference between the maximum and minimum value of on-resistance as measured over the specified analog signal ranges.

ON=RON(MAX)-RON(MIN)

.

3/11

STG3684

Table 6: AC Electrical Characteristics (CL=35pF,RL=50Ω, tr=tf≤ 5ns)

Test Condition Value

= 25°C

Symbol Parameter

t

PLH,tPHL

t

Propagation Delay 1.65-1.95

TURN-ON time 1.65-1.95 VS=0.8V

ON

TURN-OFF time 1.65-1.95 VS=0.8V

OFF

Break Before Make Time Delay

t

D

Q Charge injection 1.65-1.95

T

V

CC

(V)

2.3-2.7 0.40

3.0-3.6 0.30

=OPEN

V

I

A

Min. Typ. Max. Min. Max. Min. Max.

3.6-4.3 0.30

2.3-2.7 V

3.0-3.6 V

3.6-4.3 V

2.3-2.7 V

3.0-3.6 V

3.6-4.3 V

1.65-1.95

2.3-2.7 2 15

3.0-3.6 2 15

3.6-4.3 2 15

2.3-2.7 200

3.0-3.6 200

3.6-4.3 200

S S S

C

=35pF

L

R

L

V

S

C

= 100pF

L

R

=1MΩ

L

V

GEN

R

GEN

=1.5V =1.5V =1.5V

=50Ω

=1.5V

=0V =0Ω

0.45

70 30 50 60 30 50 60 30 50 60 45 25 30 40 25 30 40 25 30 40

-40 to 85°C -55 to 125°C

Unit

ns

pC

Table 7: An alog Switch Characteristics (C

= 5pF, RL=50Ω,TA= 25°C)

L

Test Condition Value

Symbol Parameter

OIRR Off Isolation (1) 1.65-4.3 V

V

(V)

CC

=1V

S

Min. Typ. Max. Min. Max. Min. Max.

RMS

f= 100KHz

Xtalk Crosstalk 1.65-4.3 V

=1V

S

RMS

f= 100KHz

THD Total Harmonic

Distortion

2.3-4.3 R

L

V

IN

=600Ω

=2V

PP

f= 20Hz to 20kHz

BW -3dB Bandwidth 1.65-4.3 R

IN

Sn

C

D

Control Pin Input Capacitance

Sn Port Capacitance

D Port Capacitance when

3.3

C

=50Ω

L

f= 1MHz 37

f= 1MHz 84

Switch is Enabled

Note 1: Off Isolation=20Log10(VD/VS), VD= output. VS= input at off switch

= 25°C

T

A

-40 to 85°C -55 to 125°C

-64 dB

-54 dB

0.03 %

50 MHz

5

Unit

pF

4/11

STG3684

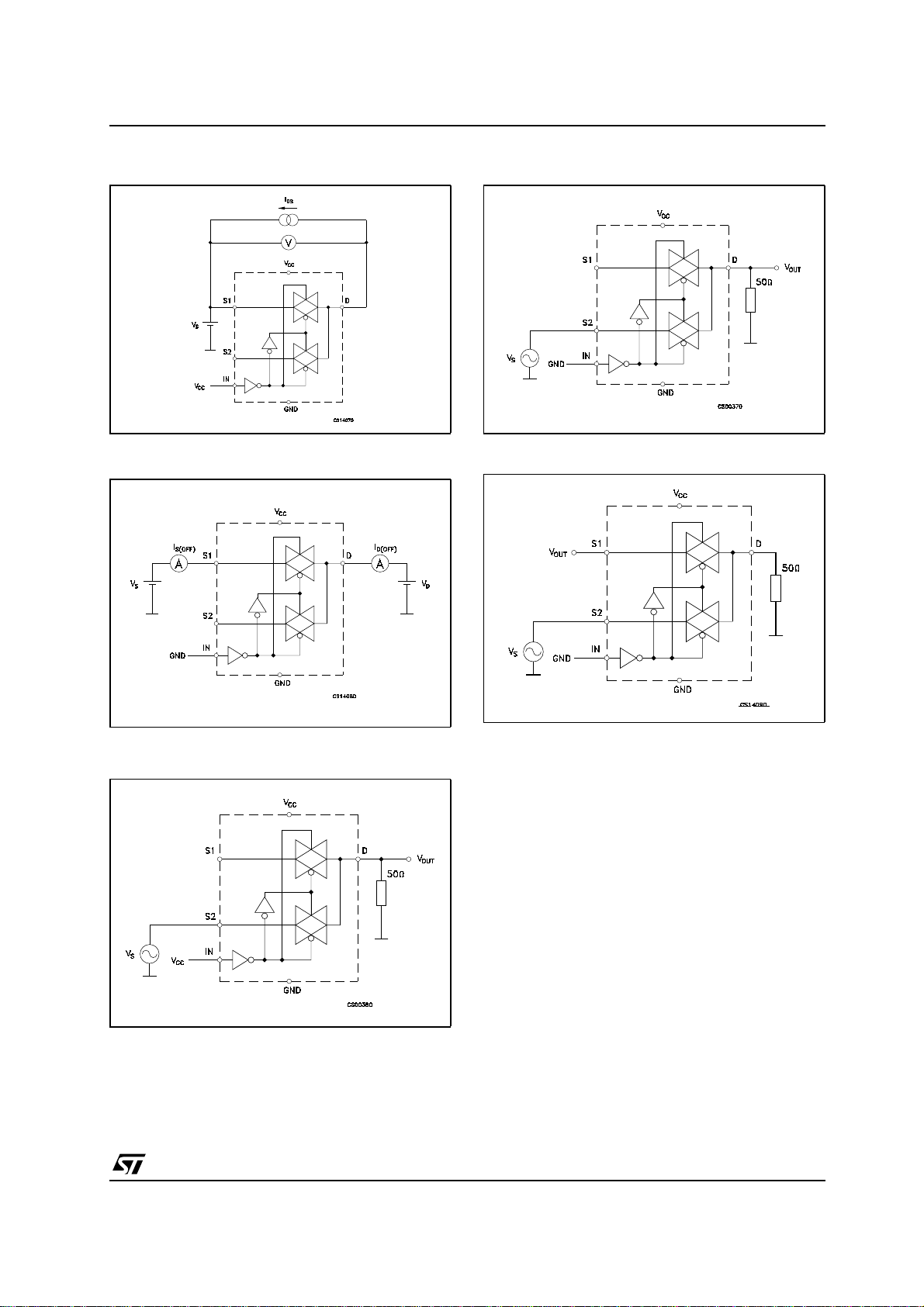

Figure 2: ON Resi stance

Figure 3: OFF Leakage

Figure4: Bandwidth

Figure 5: Channel To Channel Crosstalk

OFF Isolation

5/11

STG3684

Table 8: Test Circuit

CL= 5/35pF or equivalent (includes jig and probe capacitance)

=50Ω or equivalent

R

L

RT=Z

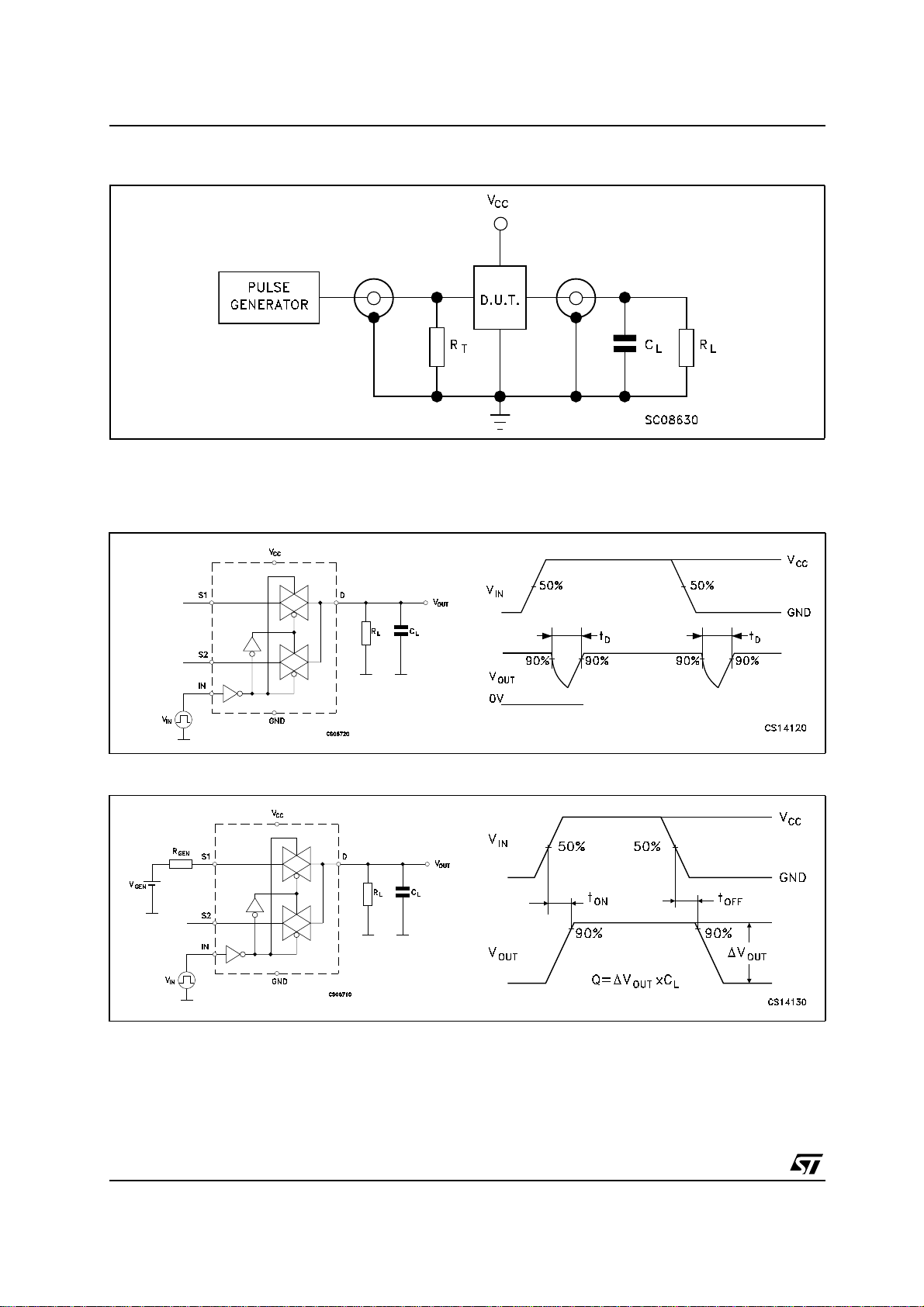

Figure6: Break Before Make Time Delay

of pulse generator (typically 50Ω)

OUT

Figure 7: Charge Injection (V

6/11

GEN

=0V, R

=0Ω,RL=1MΩ,CL=100pF)

GEN

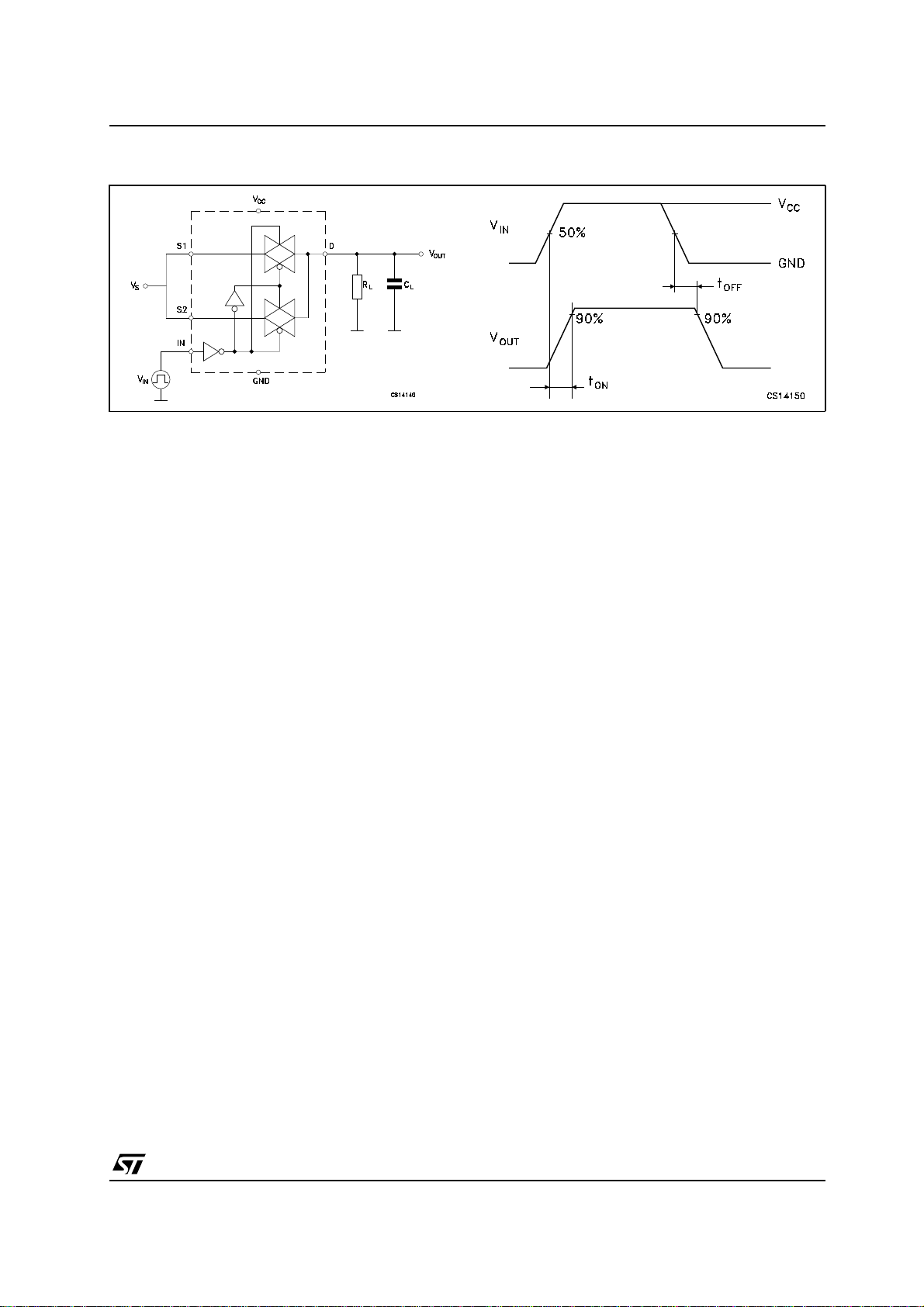

Table 9: Turn On, Turn Off Delay Time

STG3684

7/11

STG3684

QFN16 (3x3) MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 0.80 0.90 1.00 0.032 0.035 0.039 A1 0.02 0.05 0.001 0.002 A3 0.20 0.008

b 0.18 0.25 0.30 0.007 0.010 0.012

D 3.00 0.118 D2 1.55 1.70 1.80 0.061 0.067 0.071

E 3.00 0.118 E2 1.55 1.70 1.80 0.061 0.067 0.071

e 0.50 0.020

K 0.20 0.008

L 0.30 0.40 0.50 0.012 0.016 0.020

r 0.09 0.006

E

A

E2

K

A1

e

D

b

D2

K

8/11

A3

L

r

STG3684

Tape & Reel QFNxx/DFNxx (3x3) MECHANICAL DATA

mm. inch

DIM.

A 330 12.992

C 12.8 13.2 0.504 0.519

D20.2 0.795

N60 2.362

T 18.4 0.724 Ao 3.3 0.130 Bo 3.3 0.130 Ko 1.1 0.043 Po 4 0.157

P 8 0.315

MIN. TYP MAX. MIN. TYP. MAX.

9/11

STG3684

Table 10: Revision History

Date Revision Description of Changes

18-May-2004 2

Characteristics at V

= 4.3 V Added on Tables 3, 4, 5, 6 and 7.

CC

10/11

STG3684
