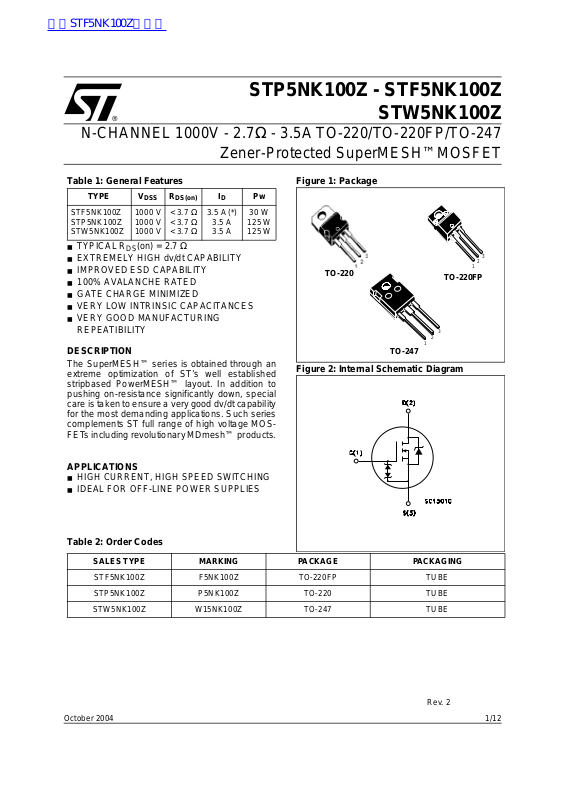

N-CHANNEL 1000V - 2.7Ω - 3.5A TO-220/TO-220FP/TO-247

STP5NK100Z - STF5NK100Z

STW5NK100Z

Zener-Protected SuperMESH™MOSFET

Table 1: Ge neral Features

TYPE V

STF5NK100Z
STP5NK100Z
STW5NK100Z

■ TYPICAL R

■ EXTREMELY HIGH dv/d t C APABILITY

■ IMPROVED ESD CAPABILITY

■ 100% AVALANCHE RATED

■ GATE CHARGE MINIMIZED

■ VERY LOW INTRINSIC CAPACITANCES

■ VERY GOOD MANUFACTURING

DSSRDS(on)

1000 V
1000 V
1000 V

(on) = 2.7 Ω

DS

< 3.7 Ω
< 3.7 Ω
< 3.7 Ω

I

D

3.5 A (*)

3.5 A

3.5 A

Pw

30 W
125 W
125 W

REPEATIBILITY

DESCRIPTION

The SuperMESH™ se ries is obtained through an
extreme optimization of ST’s well established
stripbased PowerMESH™ layout. In addition to
pushing on-resistance significantly down , special
care is taken to ensure a very good dv/dt capability
for the most demanding applications. Such series
complements ST full range of high voltage MOS ­FET s including revolutionary MDmesh™ products.

Figure 1: Package

TO-220

TO-247

2

1

TO-220FP

3

Figure 2: Internal Schematic Diagram

3

2

1

APPLICATIONS

■ HIGH CURRENT, HIGH SPEED SWITCHING

■ IDEAL FOR OFF-L INE POWER SUPPL IES

Table 2: Order Codes

SALES TYPE MARKING PACKAGE PACKAGING

STF5NK100Z F5NK100Z TO-220FP TUBE
STP5NK100Z P5NK100Z TO-220 TUBE

STW5NK100Z W15NK100Z TO-247 TUBE

Rev. 2

1/12October 2004

STP5NK100Z - STF5NK100Z - STW5NK100Z

Table 3: Absolute Maximum ratings

Symbol Parameter Value Unit

STP5NK100Z

STW5NK100Z

V

I

V

V

DM

P

DS

DGR

GS

I

D

I

D

TOT

Drain-source Voltage (VGS = 0)
Drain-gate Voltage (RGS = 20 kΩ)
Gate- source Voltage ± 30 V
Drain Current (continuous) at TC = 25°C
Drain Current (continuous) at TC = 100°C

()

Drain Current (pulsed) 14 14 (*) A
Total Dissipation at TC = 25°C

3.5 3.5 (*) A

2.2 2.2 (*) A

125 30 W

Derating Factor 1 0.24 W/°C

V

ESD(G-S)

Gate source ESD(HBM-C=100pF, R=1.5KΩ) 4000 V

dv/dt (1) Peak Diode Recovery voltage slope 4.5 V/ns

V

ISO

T

j

T

stg

() Pulse width limited by saf e operating area

≤3.5A, di/dt ≤200A/µs, VDD ≤ V

(1) I

SD

(*) Limited only by maximum temperature allowed

Insulation Withstand Voltage (DC) - 2500 V
Operating Junction Temperature

Storage Temperature

, Tj ≤ T

(BR)DSS

JMAX.

-55 to 150

-55 to 150

Table 4: Thermal Data

TO-220
TO-247

Rthj-case Thermal Resistance Junction-case Max 1 4.2 °C/W

Rthj-amb Thermal Resistance Junction-ambient Max 62.5 °C/W

T

l

Maximum Lead Temperature For Soldering Purpose

STF5NK100Z

1000 V
1000 V

TO-220FP

300 °C

°C
°C

Table 5: Avalanche Characteristics

Symbol Parameter Max Value Unit

I

AR

E

AS

Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by T

max)

j

Single Pulse Avalanche Energy
(starting T

= 25 °C, ID = IAR, VDD = 50 V)

j

3.5 A

250 mJ

Table 6: Gate-Source Zener Diode

Symbol Parameter Test Conditions Min. Typ. Max. Unit

BV

GSO

Gate-Source Breakdown

Igs=± 1mA (Open Drain) 30 V

Voltage

PROTECTION FEATURES OF GATE-TO-SOURCE ZENER DIODES

The built-in back-to-back Zener diodes have specifically been designed t o enhance not only t he device’s
ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be
applied from gate to source. In this respect the Zener voltage is appropriate to achieve an efficient and
cost-effective intervention to p r otect the device’s integrity. These integrated Zener diodes thus avoid the
usage of external components.

2/12

STP5NK100Z - STF5NK100Z - ST W5NK100Z

ELECTRICAL CHARACTERISTICS (T

=25°C UNLESS OTHERWISE SPECIFIED)

CASE

Table 7: On /Off

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

(BR)DSS

Drain-source Breakdown

ID = 1 mA, VGS = 0 1000 V

Voltage

I

DSS

Zero Gate Voltage
Drain Current (V

GS

= 0)

V

= Max Rating

DS

V

= Max Rating,

DS

1

50

TC = 125°C

I

GSS

V

GS(th)

R

DS(on)

Gate-body Leaka ge
Current (V

DS

= 0)
Gate Threshold Voltage
Static Drain-source On

V

= ± 20 V ± 10 µA

GS

V

= VGS, ID = 100 µA 3

DS

3.75

4.5 V

VGS = 10 V, ID = 1.75 A 2.7 3.7 Ω

Resistance

Table 8: Dynamic

Symbol Parameter Test Conditions Min. Typ. Max. Unit

g

(1) Forward Transconductance VDS = 15 V , ID = 1.75 A 4 S

fs

C

oss eq

C
C
C

t

d(on)

t

d(off)

Q
Q
Q

iss

oss

rss

t

r

t

gs
gd

f

g

Input Capacitance
Output Capacitance
Reverse Transfer Capacitance

= 25 V, f = 1 MHz,

V

DS

VGS = 0

1154

106

21.3

(3).Equivalent Outpu t Capacitance VGS = 0 V, VDS = 0 to 800 V 46.8 pF

Turn-on Delay Time
Rise Time
Turn-off-Delay Time
Fall Time

Total Gate Charge
Gate-Source Charge
Gate-Drain Charge

= 500 V, ID = 1.75 A,

V

DD

R

= 4.7 Ω, V

G

GS

(see Figure 21)

= 800 V, ID = 3.5 A,

V

DD

V

= 10 V

GS

(see Figure 24)

= 10 V

22.5

7.7

51.5
19

42

7.3

21.7

59 nC

µA
µA

pF
pF
pF

ns
ns
ns
ns

nC
nC

Table 9: Source Drain Diode

Symbol Parameter Test Conditions Min. Typ. Max. Unit

I

SD

I

SDM

VSD (1)

t

rr

Q

rr

I

RRM

t

rr

Q

rr

I

RRM

(1) Pulsed: Pulse durat ion = 300 µs, duty cycle 1.5 %.
(2) Pulse width limite d by safe operatin g area.
(3) C

oss eq.

Source-drain Current

(2)

Source-drain Current (pulsed)
Forward On Voltage
Reverse Recovery Time

Reverse Recovery Charge
Reverse Recovery Current

Reverse Recovery Time
Reverse Recovery Charge
Reverse Recovery Current

is defined as a constant equivalent capacitance giving the same charging time as C

ISD = 3.5 A, VGS = 0

= 3.5 A, di/dt = 100 A/µs

I

SD

V

= 35V

DD

(see Figure 22)

= 3.5 A, di/dt = 100 A/µs

I

SD

VDD = 35V, Tj = 150°C
(see Figure 22)

605

3.09

10.5
742

4.2

11.2

when VDS increase s from 0 to 80% V

oss

3.5
14

1.6 V

A
A

ns

µC

A

ns

µC

A

DSS

3/12

.

STP5NK100Z - STF5NK100Z - STW5NK100Z

Figure 3: Safe Operating Area For TO-220

Figure 4: Safe Operating Area For TO-220FP

Figure 6: Thermal Impedance TO-220

Figure 7: Thermal Impedance For TO-220FP

Figure 5: Safe Operating Area For TO-247

4/12

Figure 8: Thermal Impedance For TO-247

STP5NK100Z - STF5NK100Z - ST W5NK100Z

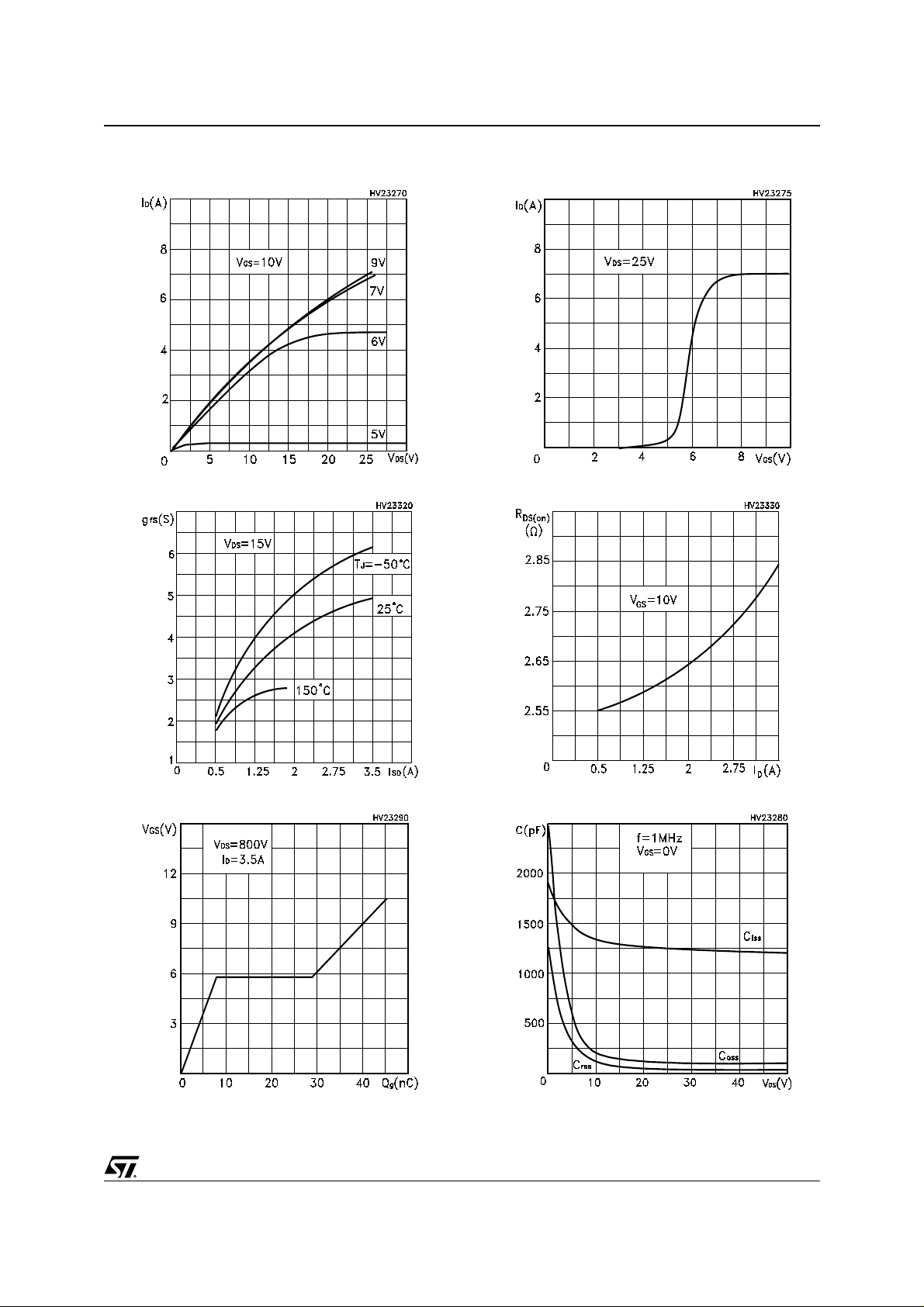

Figure 9: Output Characteristics

Figure 10: Transconductance

Figure 12: Transfer Characteristics

Figure 13: Static Drain-Source On Resis tance

Figure 11: Gate Charge vs Gate-source Voltage

Figure 14: Capacitance Variations

5/12

STP5NK100Z - STF5NK100Z - STW5NK100Z

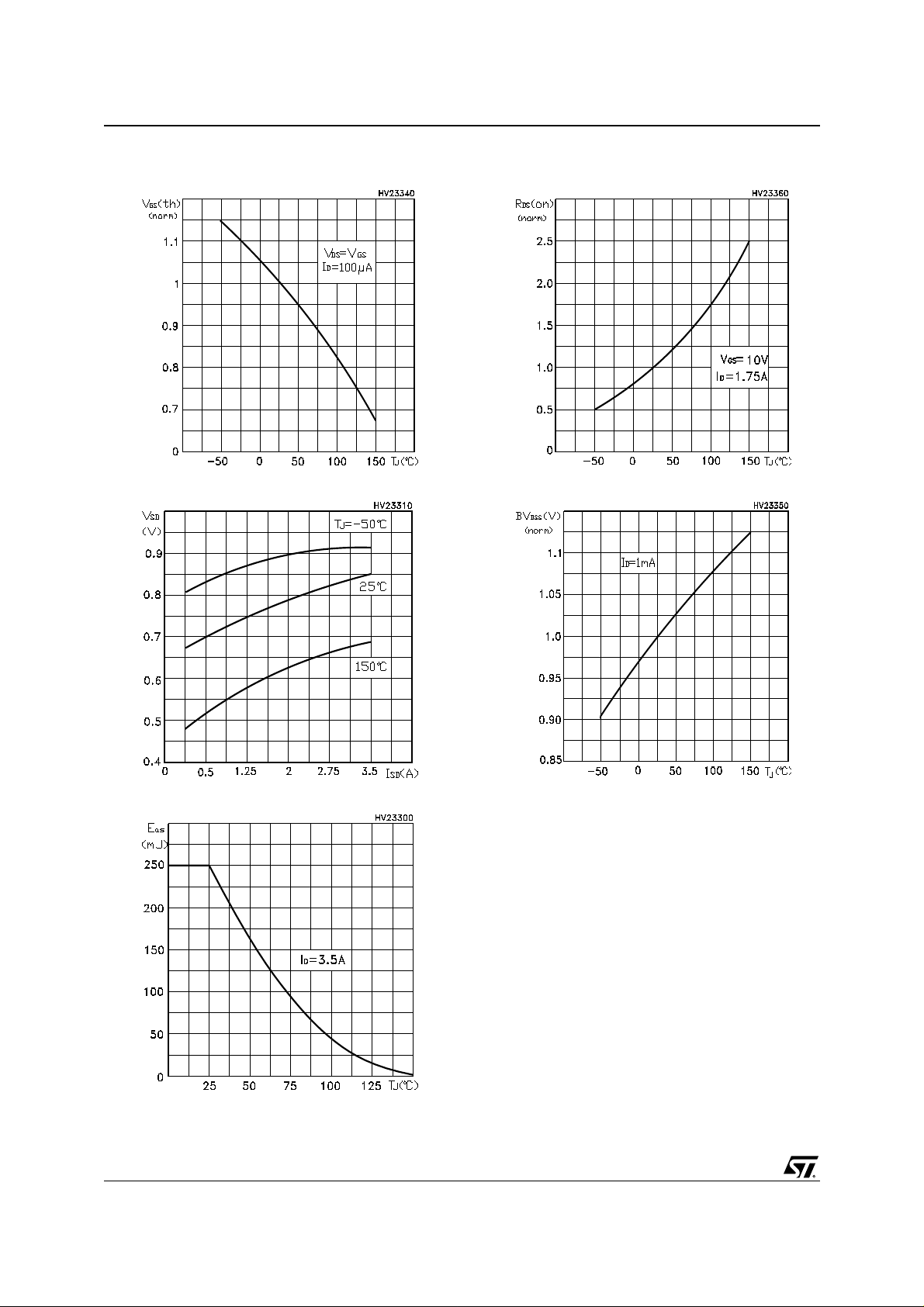

Figure 15: Normalized Gate Threshold Voltage
vs Tem pera tur e

Figure 16: S ource-Drain Forward Char acteris­tics

Figure 18: Normal ized On R esistance vs Tem­perature

Figure 19: Normalized BV

vs Temperature

DSS

Figure 17: Maximum Avalanche Energy vs
Temperature

6/12

STP5NK100Z - STF5NK100Z - ST W5NK100Z

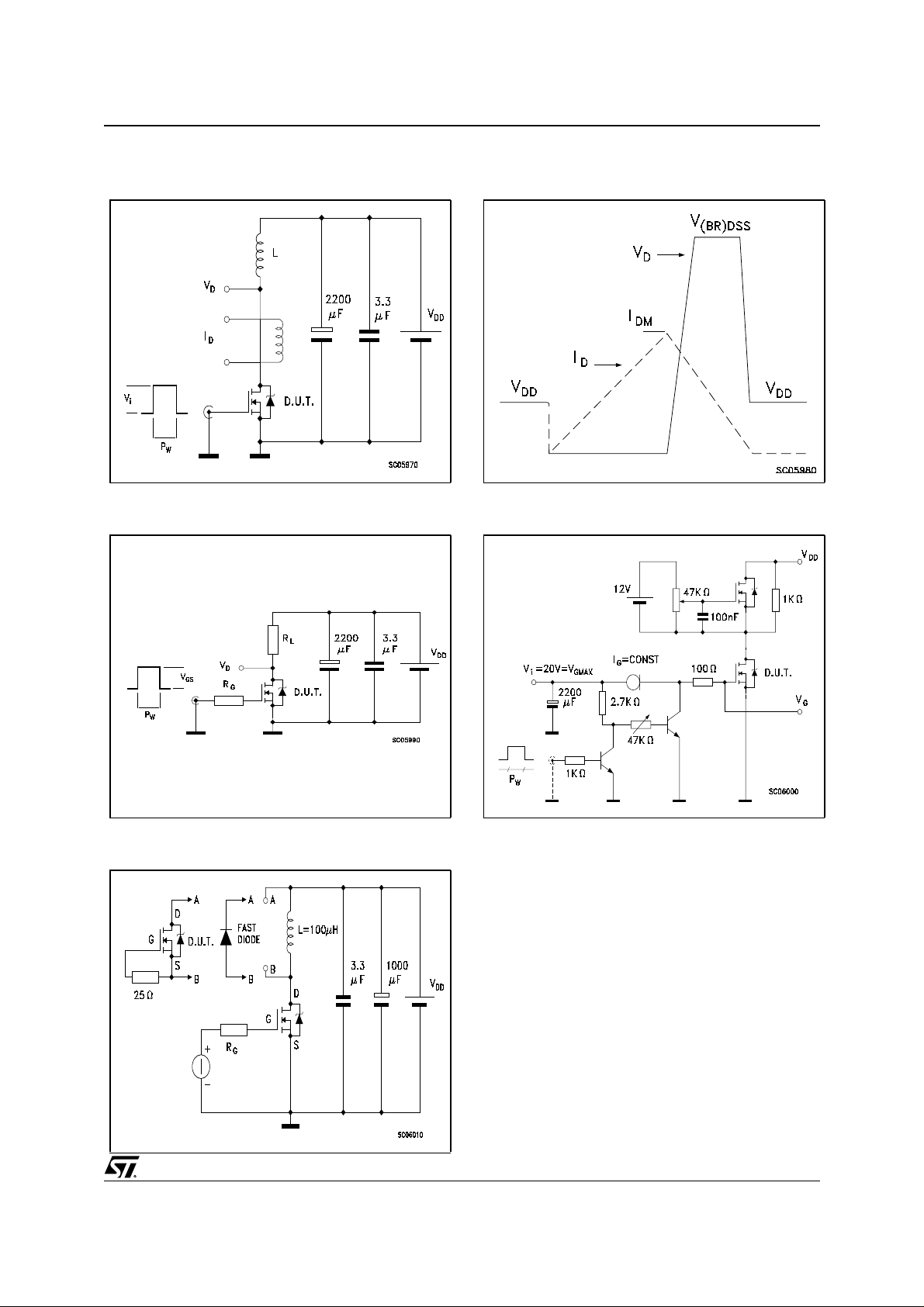

Figure 20: Unclamped Inductive Load Test Cir­cuit

Figure 21: Switching Times Test Circuit For
Resistive Load

Figure 23: Unclamped Inductive Wafeform

Figure 24: Gate Charge Test Circuit

Figure 22: Test Circuit For Inductive Load
Switching and Diode Recovery Times

7/12

STP5NK100Z - STF5NK100Z - STW5NK100Z

TO-220 MECHANICAL DATA

DIM.

A 4.40 4.60 0.173 0.181

b 0.61 0.88 0.024 0.034

b1 1.15 1.70 0.045 0.066

c 0.49 0.70 0.019 0.027
D 15.25 15.75 0.60 0.620
E 10 10.40 0.393 0.409

e 2.40 2.70 0.094 0.106

e1 4.95 5.15 0.194 0.202

F 1.23 1.32 0.048 0.052

H1 6.20 6.60 0.244 0.256
J1 2.40 2.72 0.094 0.107

L 13 14 0.511 0.551

L1 3.50 3.93 0.137 0.154
L20 16.40 0.645
L30 28.90 1.137

øP 3.75 3.85 0.147 0.151

Q 2.65 2.95 0.104 0.116

MIN. TYP MAX. M IN. TYP. MAX.

mm. inch

8/12

STP5NK100Z - STF5NK100Z - ST W5NK100Z

TO-220FP MECHANICAL DATA

DIM.

A 4.4 4.6 0.173 0.181
B 2.5 2.7 0.098 0.106
D 2.5 2.75 0.098 0.108
E 0.45 0.7 0.017 0.027

F 0.75 1 0.030 0.039
F1 1.15 1.7 0.045 0.067
F2 1.15 1.7 0.045 0.067

G 4.95 5.2 0.195 0.204

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409
L2 16 0.630
L3 28.6 30.6 1.126 1.204
L4 9.8 10.6 .0385 0.417
L5 2.9 3.6 0.114 0.141
L6 15.9 16.4 0.626 0.645
L7 9 9.3 0.354 0.366

Ø 3 3.2 0.118 0.126

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

E

A

D

B

L3

L6

L7

F1

F

G1

H

F2

123

L4

L2

L5

G

9/12

STP5NK100Z - STF5NK100Z - STW5NK100Z

TO-247 MECHANICAL DATA

DIM.

A 4.85 5.15 0.19 0.20

A1 2.20 2.60 0.086 0.102

b 1.0 1.40 0.039 0.055
b1 2.0 2.40 0.079 0.094
b2 3.0 3.40 0.118 0.134

c 0.40 0.80 0.015 0.03

D 19.85 20.15 0.781 0.793
E 15.45 15.75 0.608 0.620

e5.45 0.214

L 14.20 14.80 0.560 0.582
L1 3.70 4.30 0.14 0.17
L2 18.50 0.728

øP 3.55 3.65 0.140 0.143
øR 4.50 5.50 0.177 0.216

S5.50 0.216

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

10/12

Table 10: Revision History

Date Revision Description of Change s

27-Sep-2004 1 First release.

08-Oct-2004 2 Final datasheet

STP5NK100Z - STF5NK100Z - ST W5NK100Z

11/12

STP5NK100Z - STF5NK100Z - STW5NK100Z
