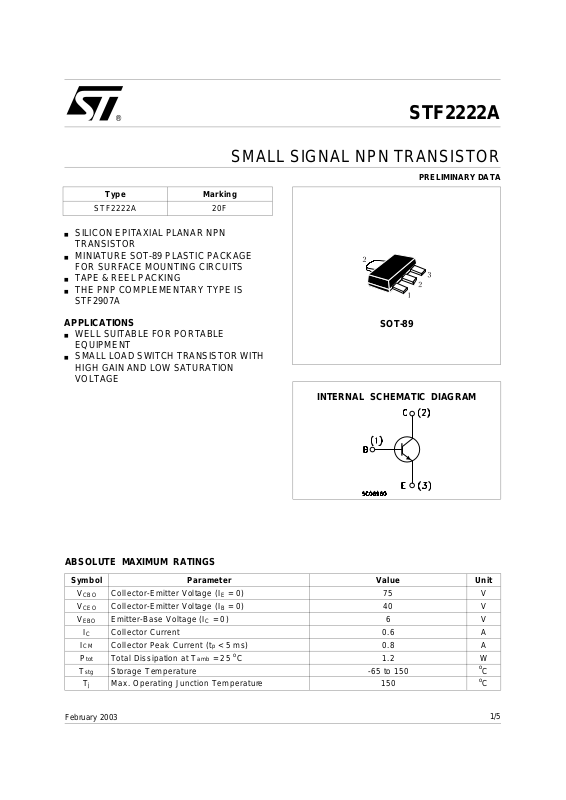

STF2222A
SMALL SIGNAL NPN TRANSISTOR
PRELIMINARY DATA
■ SILICON EPI TAX IA L PLANAR N PN
TRANSISTOR
■ MINIATURE SOT- 89 PLAS TIC PA CKA GE
FOR SURFACE MOUNTING CIRCUITS
■ TAPE & REEL PA C K ING
■ THE PNP COMPLEMENTARY TYPE IS
STF2907A
APPLICATIONS
■ WELL SUITABLE FOR PORT AB LE
EQUIPME NT
■ SMALL LOAD SW ITCH TR A NS IS TOR WITH
HIGH GAIN AND LOW SATURATION
VOLTAGE
INTERNAL SCHEMATIC DIAGRAM
February 2003
Type Marking
STF2222A 20F
ABSOL UT E MAXIMU M RATINGS
Symbol Parameter Value Unit
V
CBO
Collector-Emitter Voltage (IE = 0) 75 V
V
CEO
Collector-Emitter Voltage (IB = 0) 40 V
V
EBO
Emitter-Base Voltage (IC = 0) 6 V
I
C
Collector Current 0.6 A
I
CM
Collector Peak Current (tp < 5 ms) 0.8 A
P
tot
Total Dissipation at T
amb
= 25 oC 1.2 W
T
stg
Storage Temperature -65 to 150
o
C
T
j
Max. Operating Junction Temperature 150
o
C
®
SOT-89
1/5
Page 2
THERMAL DATA
R
thj-amb
• Thermal Resistance Junction-Ambient Max 104.1
o
C/W
• Device mounted on a PCB area of 1 cm2 .
ELECTRICAL CHARACTERISTICS (T
case
= 25 oC unless otherwise specified)
Symbol Parameter Test Conditions Min. Typ. Max. Unit
I
CEX
Collector Cut-off
Current (V
BE
= -3 V)
V
CE
= 60 V 10 nA
I
BEX
Base Cut-off Current
(V
BE
= -3 V)
V
CE
= 60 V 20 nA
I
CBO
Collector Cut-off
Current (I
E
= 0)
V
CB
= 75 V
V
CB
= 75 V Tj = 150
o
C
10
10
nA
µA
I
EBO
Emitter Cut-off Current
(I
C
= 0)
V
EB
= 3 V 15 nA
V
(BR)CEO
∗ Collector-Emitter
Breakdown Voltage
(I
B
= 0)
I
C
= 10 mA 40 V
V
(BR)CBO
Collector-Base
Breakdown Voltage
(I
E
= 0)
I
C
= 10 µA
75 V
V
(BR)EBO
Emitter-Base
Breakdown Voltage
(I
C
= 0)
I
E
= 10 µA
6V
V
CE(sat)
∗ Collector-Emitter
Saturation Voltage
IC = 150 mA IB = 15 mA
I
C
= 500 mA IB = 50 mA
0.3
1
V
V
V
BE(sat)
∗ Collector-Base
Saturation Voltage
IC = 150 mA IB = 15 mA
I
C
= 500 mA IB = 50 mA
0.6 1.2
2
V
V
h
FE
∗ DC Current Gain IC = 0.1 mA VCE = 10 V
I
C
= 1 mA VCE = 10 V
I
C
= 10 mA VCE = 10 V
I
C
= 150 mA VCE = 10 V
I
C
= 150 mA VCE = 1 V
I
C
= 500 mA VCE = 10 V
35
50
75
100
50
40
300
f
T
Transition Frequency IC = 20 mA VCE = 20V f = 100MHz 270 MHz
C
CBO
Collector-Base
Capacitance
IE = 0 VCB = 10 V f = 1 MHz 4 8 pF
C
EBO
Emitter-Base
Capacitance
IC = 0 VEB = 0.5 V f = 1MHz 20 25 pF
NF Noise Figure I
C
= 0.1 mA VCE = 10 V f = 1 KHz
∆f = 200 Hz R
G
= 1 KΩ
4dB
h
ie
∗ Input Impedance VCE = 10 V IC = 1 mA f = 1 KHz
V
CE
= 10 V IC = 10 mA f = 1 KHz20.25
8
1.25KΩKΩ
h
re
∗ Reverse Voltage Ratio VCE = 10 V IC = 1 mA f = 1 KHz
V
CE
= 10 V IC = 10 mA f = 1 KHz
8
4
10
-4
10
-4
hfe∗ Small Signal Current
Gain
VCE = 10 V IC = 1 mA f = 1 KHz
V
CE
= 10 V IC = 10 mA f = 1 KHz
50
75
300
375
h
oe
∗ Output Admittance VCE = 10 V IC = 1 mA f = 1 KHz
V
CE
= 10 V IC = 10 mA f = 1 KHz
5
25
35
200
µS
µS
∗ Pulsed: Pulse duration = 300 µs, duty cycle ≤ 2 %
STF2222A
2/5
Page 3
ELECTRICAL CHARACTERISTICS (Continued)
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
d
Delay Time IC = 150 mA IB = 15 mA
V
CC
= 30 V
510ns
t
r
Rise Time 12 25 ns
t
s
Storage Time IC = 150 mA IB1 = - IB2 = 15 mA
V
CC
= 30 V
185 225 ns
t
f
Fall Time 24 60 ns
∗ Pulsed: Pulse duration = 300 µs, duty cycle ≤ 2 %
STF2222A
3/5
Page 4
DIM.
mm mils
MIN. TYP. MAX. MIN. TYP. MAX.
A 1.4 1.6 55.1 63.0
B 0.44 0.56 17.3 22.0
B1 0.36 0.48 14.2 18.9
C 0.35 0.44 13.8 17.3
C1 0.35 0.44 13.8 17.3
D 4.4 4.6 173.2 181.1
D1 1.62 1.83 63.8 72.0
E 2.29 2.6 90.2 102.4
e 1.42 1.57 55.9 61.8
e1 2.92 3.07 115.0 120.9
H 3.94 4.25 155.1 167.3
L 0.89 1.2 35.0 47.2
P025H
SOT-89 MECHANICAL DATA
STF2222A
4/5
Page 5
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such inform ation nor for any infringe ment o f patents or other rig hts o f third par ties which ma y resul t from i ts use. N o li cen se is
granted by implicatio n or otherwise under any patent or patent rights of STMicroelectronics. Specification mentioned in this publication are
subject to change without notice. This publication supersedes and replac es all information previously supplied. STMicroelectronics products
are not authorized for use as critical compo nents in life support devices or systems without express written approval of STMicroelectronics.
The ST logo is a trademark of STMicroelectronics
© 2003 STMicroelectro nics – Printed in Italy – All Rights Reserved
STMicroelectronics GROUP OF COMPANIES
Australia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco -
Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.
http://www.st.com
STF2222A
5/5
