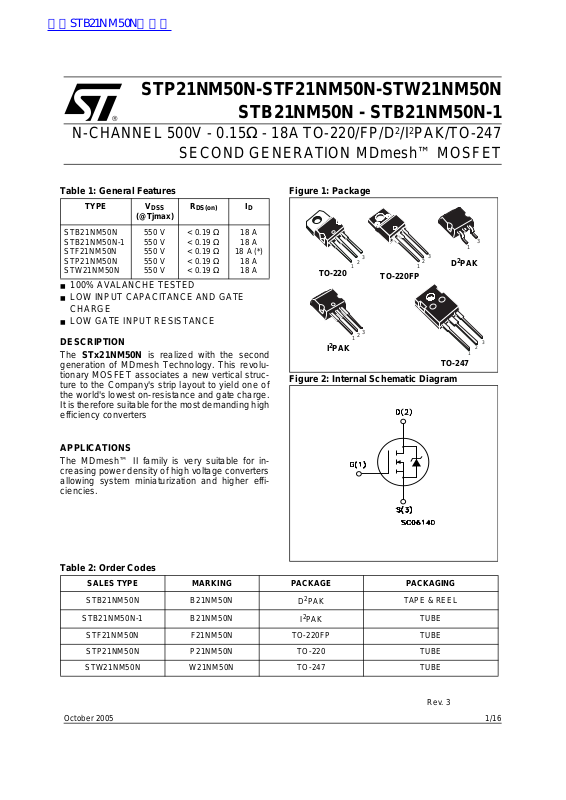

Datasheet STP21NM50N, STF21NM50N, STW21NM50N, STB21NM50N, STB21NM50N-1 Datasheet (ST)

1

3

1

3

3

3

1

3

查询STB21NM50N供应商

STP21NM50N-STF21NM50N-STW21NM50N

STB21NM50N - STB21NM50N-1

N-CH A NNEL 500V - 0.15Ω - 18A TO-220/FP/D2/I2PAK/TO-247

SECOND GENERATION MDmesh™ MOSFET

Table 1: General Features

TYPE V

STB21NM50N
STB21NM50N-1
STF21NM50N
STP21NM50N
STW21NM50N

■ 100% AVALANCHE TESTED

■ LOW INPUT CAPACITANCE AND GATE

DSS

(@Tjmax)

550 V
550 V
550 V
550 V
550 V

R

DS(on)

< 0.19 Ω
< 0.19 Ω
< 0.19 Ω
< 0.19 Ω
< 0.19 Ω

I

D

18 A
18 A

18 A (*)

18 A
18 A

CHARGE

■ LOW GATE INPUT RESISTANCE

DESCRIPTION

The STx21NM50N is realized with the second
generation of MDmesh Techno logy. This revolu

­tionary MOSFET associates a new vertical struc­ture to the Comp any's strip layout to yield one of
the world's lowest on-resistance and gate charge.
It is therefore suitable for the most demanding high
efficiency converters

APPLICATIONS

The MDmesh™ II family is very suitable for in­creasing power density of high voltage converters
allowing system miniaturization and higher effi

­ciencies.

Figure 1: Package

2

TO-247

TO-220

I2PAK

1

2

TO-220FP

2

Figure 2: Internal Schematic Diagram

D

2

PAK

1

2

Table 2: Order Codes

SALES TYPE MARKING PACKAGE PACKAGING

STB21NM50N B21NM50N

STB21NM50N-1 B21NM50N

STF21NM50N F21NM50N TO-220FP TUBE
STP21NM50N P21NM50N TO-220 TUBE

STW21NM50N W21NM50N TO-247 TUBE

D2PAK

I2PAK

TAPE & REEL

TUBE

Rev. 3

1/16October 2005

STP21NM50N - STF21NM50N - STB21NM 50N - STB21NM50N-1 - STW21NM50N

Table 3: Absolute Maximum ratings

Symbol Parameter Value Unit

TO-220 / D2PAK / I2PAK

/ TO-247

V

DS

V

DGR

V

GS

I

D

I

D

IDM ()

P

TOT

Drain-source Voltage (VGS = 0) 500 V
Drain-gate Voltage (RGS = 20 kΩ) 500 V
Gate- source Voltage ±25 V
Drain Current (continuous) at TC = 25°C
Drain Current (continuous) at TC = 100°C

18 18 (*) A

11 11 (*) A
Drain Current (pulsed) 72 72 (*) A
Total Dissipation at TC = 25°C

140 30 W

Derating Factor 1.12 0.23 W/°C

dv/dt(1) Peak Diode Recovery voltage slope 15 V/ns

Viso Insulation Winthstand Voltage (DC) -- 2500 V

T

stg

T

Storage Temperature
Max. Operating Junction Temperature

j

–55 to 150

150

() Pulse width l i mited by safe operating area

(*) Limited only by maximum temperature allowed
(1) ISD ≤ 18 A, di/dt ≤ 40 0 A / µs, VDD =80% V

(BR)DSS

TO-220FP

°C

Table 4: Thermal Data

TO-220 / D²PAK / I²PAK

/ TO-247

Rthj-case Thermal Resistance Junction-case Max 0.89 4.21 °C/W

Rthj-amb Thermal Resistance Junction-ambient Max 62.5 °C/W

T

Table 5: Avalanche Characteristics

Maximum Lead T emperature For Soldering

l

Purpose

300 °C

Symbol Parameter Max Value Unit

I

AS

Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by Tj max)

E

AS

Single Pulse Avalanche Energy
(starting Tj = 25 °C, ID = IAR, VDD = 50 V)

TO-220FP

9 A

480 mJ

2/16

STP21NM50N - STF21NM50N - ST B21NM50N - STB21NM50N-1 - STW21NM50N

ELECTRICAL CHARACTERISTICS (T

=25°C UNLESS OTHERWISE SPECIFIED)

CASE

Table 6: On/Off

Symbol Parameter Test Conditions Value Unit

Min. Typ. Max.

V

(BR)DSS

Drain-source

ID = 1mA, VGS = 0 500 V

Breakdown Voltage

dv/dt(2) Drain Source Voltage

Vdd=400V, Id=25A, Vgs=10V 44 V/ns

Slope

I

DSS

Zero Gate Voltage
Drain Current (VGS = 0)

VDS = Max Rating
VDS = Max Rating

1

10

TC = 125 °C

I

GSS

Gate-body Leaka ge

VGS = ± 20V 100 nA

Current (VDS = 0)

V

GS(th)

R

DS(on)

Gate Threshold Voltage VDS = VGS, ID = 250 µA 2 3 4 V
Static Drain-source On

VGS = 10V, ID = 9 A 0.150 0.190 Ω

Resistance

(2) Cha rac teristic va l ue at turn off on inductive loa d

Table 7: Dynamic

Symbol Parameter Test Conditions Min. Typ. Max. Unit

g

(1) Forward Transconductance VDS = 15 V, ID = 9 A

fs

C

oss eq.

C

iss

C

oss

C

rss

Input Capacitance
Output Capacitance
Reverse Transfer
Capacitance

(*) E quiv alent Outpu t

VDS = 25V, f = 1 MHz, VGS = 0 1950

VGS = 0V, VDS = 0V to 400V 270 pF

Capacitance

t

d(on)

t

d(off)

Q
Q
Q

R

t

r

t

f

g

gs

gd

g

Turn-on Delay Time
Rise Time
Off-voltageRise Time

VDD =250 V, ID = 9 A
RG = 4.7Ω VGS = 10 V
(see Figure 18)

Fall Time
Total Gate Charge

Gate-Source Charge
Gate-Drain Charge

VDD = 400V, ID = 18 A,
VGS = 10V,
(see Figure 21)

Gate Input Resistance f=1MHz Gate DC Bias=0

Test Signal Level=20mV
Open Drain

(*) C

is defined as a co nstant equi valent capaci tance giving the same charging time as C

oss eq.

when VDS increases from 0 to 80% V

oss

12 S

420

60

22
18
90
30

65
10
30

1.6 Ω

µA
µA

pF
pF
pF

ns
ns
ns
ns

nC
nC
nC

DSS

Table 8: Source Drain Diode

Symbol Parameter Test Conditions Min. Typ. Max. Unit

I

SD

I

SDM

VSD (1)

t

rr

Q

rr

I

RRM

t

rr

Q

rr

I

RRM

Note: 1. Puls ed: Pulse du rat i on = 300 µs, d uty cycle 1.5 % .

Source-drain Current
Source-drain Current (pulsed)

Forward On Voltage
Reverse Recovery Time

Reverse Recovery Charge
Reverse Recovery Current

Reverse Recovery Time
Reverse Recovery Charge
Reverse Recovery Current

ISD = 18 A, VGS = 0
ISD = 18 A, di/dt = 100 A/µs

VDD = 100 V, Tj = 25°C
(see Figure 19)

ISD = 18A, di/dt = 100 A/µs
VDD = 100 V, Tj = 150°C
(see Figure 19)

360

5

27

640

6.5
27

18
72

1.5 V

A
A

ns

µC

A

ns

µC

A

3/16

STP21NM50N - STF21NM50N - STB21NM 50N - STB21NM50N-1 - STW21NM50N

Figure 3: Safe Operating Area For TO-220

Figure 4: Safe Operating Area For TO-220FP

Figure 6: Thermal Impedance For TO-220

Figure 7: Thermal Impedance For TO-220FP

Figure 5: Output Characteristics

4/16

Figure 8: Transfer Characteristics

STP21NM50N - STF21NM50N - ST B21NM50N - STB21NM50N-1 - STW21NM50N

Figure 9: Transconductance

Figure 10: Gate Charge vs Gate-source Voltage

Figure 12: Static Drain-source On Resistance

Figure 13: Capacitance Variations

Figure 11: Normalized Gate Threshold Voltage
vs Tem pera tur e

Figure 14: Normal ized On R esistance vs Tem­perature

5/16

STP21NM50N - STF21NM50N - STB21NM 50N - STB21NM50N-1 - STW21NM50N

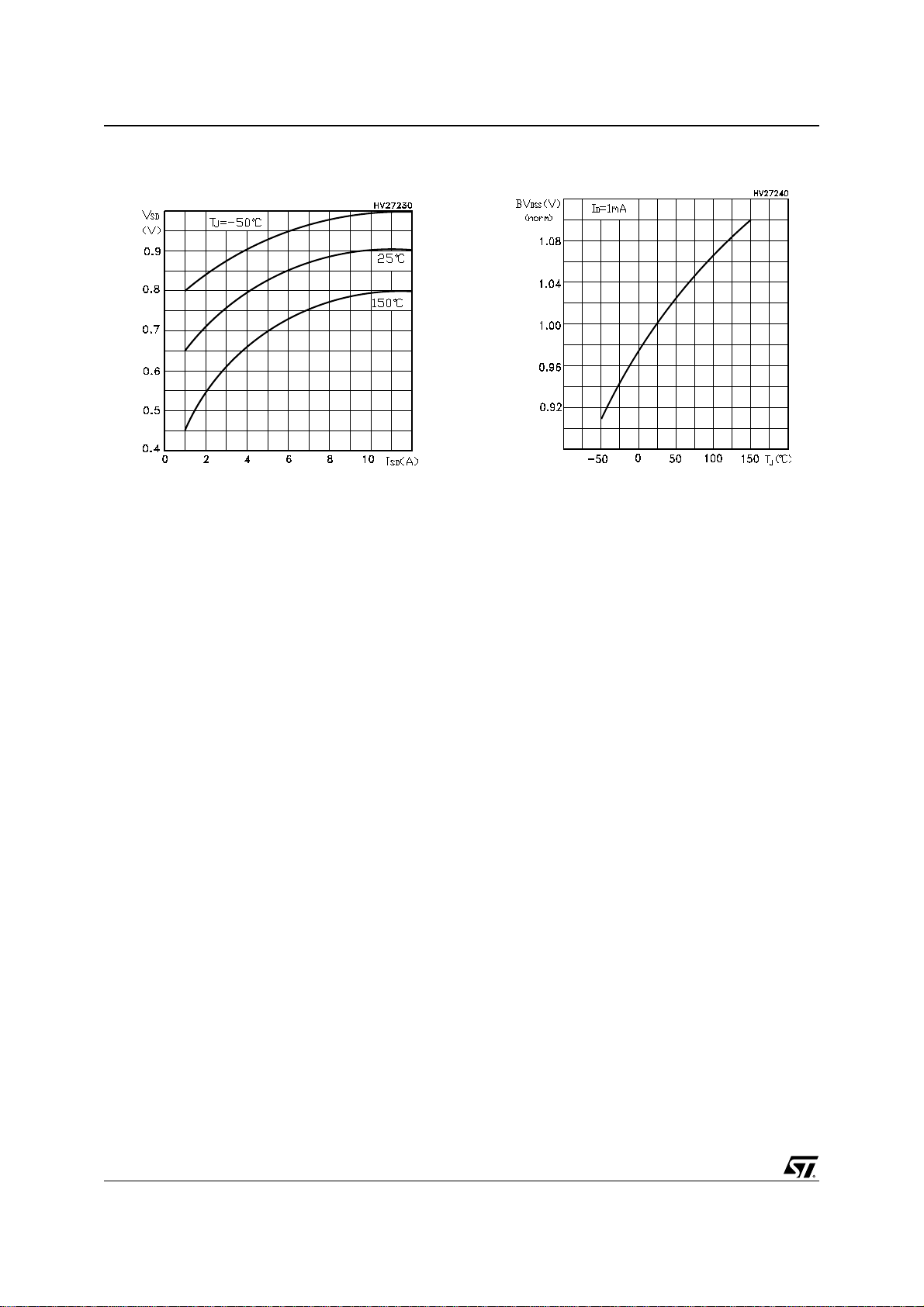

Figure 15: S ource-Drain Forward Char acteris­tics

Figure 16: Normalized BVdss vs Temperature

6/16

STP21NM50N - STF21NM50N - ST B21NM50N - STB21NM50N-1 - STW21NM50N

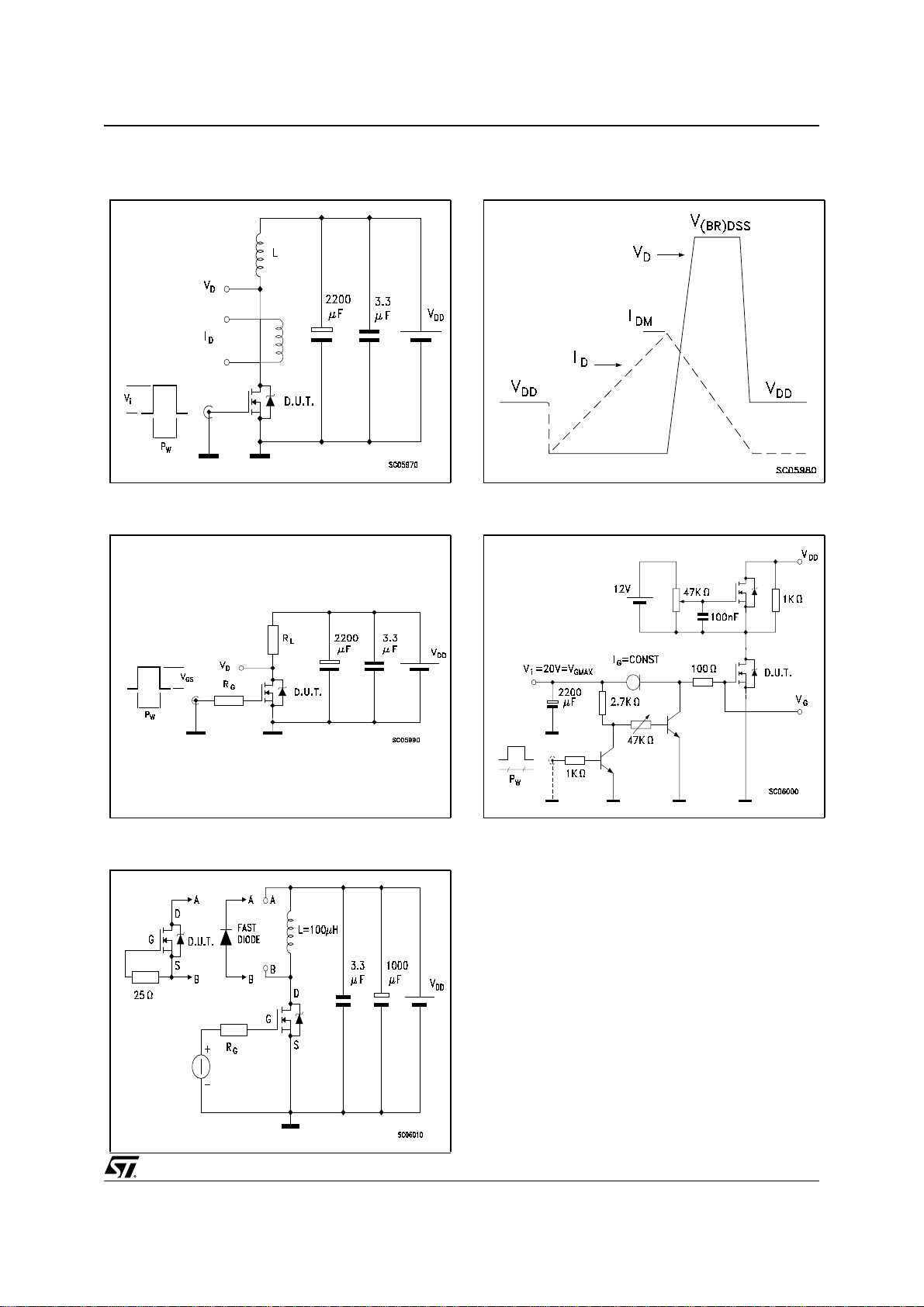

Figure 17: Unclamped Inductive Load Test Cir­cuit

Figure 18: Switching Times Test Circuit For
Resistive Load

Figure 20: Unclamped Inductive Wafeform

Figure 21: Gate Charge Test Circuit

Figure 19: Test Circuit For Inductive Load
Switching and Diode Recovery Times

7/16

STP21NM50N - STF21NM50N - STB21NM 50N - STB21NM50N-1 - STW21NM50N

In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. These
packages have a Lead-free second level interconnect . The category of second level interconnect is
marked on the package and on the inner box label, i n compliance with JEDEC Standard JESD97. The
maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an
ST trademark. ECOPACK specifications are available at:

www.st.com

8/16

STP21NM50N - STF21NM50N - ST B21NM50N - STB21NM50N-1 - STW21NM50N

D2PAK FOOTPRINT

TAPE AND REEL SHIPMENT

REEL MECHANICAL DATA

DIM.

A 330 12.992
B 1.5 0.059
C 12.8 13.2 0.504 0.520
D 20.2 0795
G 24.4 26.4 0.960 1.039
N 100 3.937
T 30.4 1.197

mm inch

MIN. MAX. MIN. MAX.

T APE MECHANICAL DATA

DIM.

A0 10.5 10.7 0.413 0.421
B0 15.7 15.9 0.618 0.626

D 1.5 1.6 0.059 0.063

D1 1.59 1.61 0.062 0.063

E 1.65 1.85 0.065 0.073

F 11.4 11.6 0.449 0.456
K0 4.8 5.0 0.189 0.197
P0 3.9 4.1 0.153 0.161
P1 11.9 12.1 0.468 0.476
P2 1.9 2.1 0.075 0.082

R 50 1.574

T 0.25 0.35 0.0098 0.0137

W 23.7 24.3 0.933 0.956

* on sales type

mm inch

MIN. MAX. MIN. MAX.

BASE QTY BULK QTY

1000 1000

9/16

STP21NM50N - STF21NM50N - STB21NM 50N - STB21NM50N-1 - STW21NM50N

D2PAK MECHANICAL DATA

TO-247 MECHANICAL DATA

DIM.

A 4.4 4.6 0.173 0.181
A1 2.49 2.69 0.098 0.106
A2 0.03 0.23 0.001 0.009

B 0.7 0.93 0.027 0.036
B2 1.14 1.7 0.044 0.067

C 0.45 0.6 0.017 0.023
C2 1.23 1.36 0.048 0.053

D 8.95 9.35 0.352 0.368
D1 8 0.315

E 10 10.4 0.393
E1 8.5 0.334

G 4.88 5.28 0.192 0.208

L 15 15.85 0.590 0.625
L2 1.27 1.4 0.050 0.055
L3 1.4 1.75 0.055 0.068

M 2.4 3.2 0.094 0.126

R0.4 0.015
V2 0º 4º

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

10/16

3

STP21NM50N - STF21NM50N - ST B21NM50N - STB21NM50N-1 - STW21NM50N

TO-262 (I2PAK) MECHANICAL DATA

DIM.

A 4.40 4.60 0.173 0.181

A1 2.40 2.72 0.094 0.107

b 0.61 0.88 0.024 0.034

b1 1.14 1.70 0.044 0.066

c 0.49 0.70 0.019 0.027

c2 1.23 1.32 0.048 0.052

D 8.95 9.35 0.352 0.368
e 2.40 2.70 0.094 0.106

e1 4.95 5.15 0.194 0.202

E 10 10.40 0.393 0.410
L 13 14 0.511 0.551

L1 3.50 3.93 0.137 0.154
L2 1.27 1.40 0.050 0.055

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

11/16

STP21NM50N - STF21NM50N - STB21NM 50N - STB21NM50N-1 - STW21NM50N

TO-220 MECHANICAL DATA

DIM.

A 4.40 4.60 0.173 0.181
b 0.61 0.88 0.024 0.034

b1 1.15 1.70 0.045 0.066

c 0.49 0.70 0.019 0.027
D 15.25 15.75 0.60 0.620
E 10 10.40 0.393 0.409
e 2.40 2.70 0.094 0.106

e1 4.95 5.15 0.194 0.202

F 1.23 1.32 0.048 0.052
H1 6.20 6.60 0.244 0.256
J1 2.40 2.72 0.094 0.107

L 13 14 0.511 0.551
L1 3.50 3.93 0.137 0.154

L20 16.40 0.645
L30 28.90 1.137

øP

Q 2.65 2.95 0.104 0.116

MIN. TYP MAX. MIN. TYP. M AX.

3.75 3.85 0.147 0.151

mm. inch

12/16

STP21NM50N - STF21NM50N - ST B21NM50N - STB21NM50N-1 - STW21NM50N

TO-220FP MECHANICAL DATA

DIM.

A 4.4 4.6 0.173 0.181
B 2.5 2.7 0.098 0.106
D 2.5 2.75 0.098 0.108
E 0.45 0.7 0.017 0.027

F 0.75 1 0.030 0.039
F1 1.15 1.7 0.045 0.067
F2 1.15 1.7 0.045 0.067

G 4.95 5.2 0.195 0.204

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409
L2 16 0.630
L3 28.6 30.6 1.126 1.204
L4 9.8 10.6 .0385 0.417
L5 2.9 3.6 0.114 0.141
L6 15.9 16.4 0.626 0.645
L7 9 9.3 0.354 0.366

Ø 3 3.2 0.118 0.126

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

E

A

D

B

L3

L6

L7

F1

F

G1

H

F2

123

L4

L2

L5

G

13/16

STP21NM50N - STF21NM50N - STB21NM 50N - STB21NM50N-1 - STW21NM50N

TO-247 MECHANICAL DATA

DIM.

A 4.85 5.15 0.19 0.20

A1 2.20 2.60 0.086 0.102

b 1.0 1.40 0.039 0.055
b1 2.0 2.40 0.079 0.094
b2 3.0 3.40 0.118 0.134

c 0.40 0.80 0.015 0.03

D 19.85 20.15 0.781 0.793
E 15.45 15.75 0.608 0.620

e5.45 0.214

L 14.20 14.80 0.560 0.582
L1 3.70 4.30 0.14 0.17
L2 18.50 0.728

øP 3.55 3.65 0.140 0.143
øR 4.50 5.50 0.177 0.216

S5.50 0.216

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

14/16

STP21NM50N - STF21NM50N - ST B21NM50N - STB21NM50N-1 - STW21NM50N

Table 9: Revision History

Date Revision Description of Changes

07-Sep-2005 1 First Release.
28-Sep-2005 2 Symbol changed in Table 5

14-Oct-2005 3 Modified curves 5,8

15/16

STP21NM50N - STF21NM50N - STB21NM 50N - STB21NM50N-1 - STW21NM50N

I

s

o

d

b

t

t

t

a

nformation furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequence

f use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is grante
y implicat io n or ot h er wis e under an y pat e nt or pa te nt r igh ts of STMi c roe l ec tro ni c s. Sp ec i fi ca ti on s ment i o ne d in th is p ub li c ati on ar e s ub jec

o change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are no

uthorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.

The ST logo is a registered trademark of STMicroelectronics

All other names are the property of their respective owners

© 2005 STMicroelectronics - All Rights Reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

16/16
