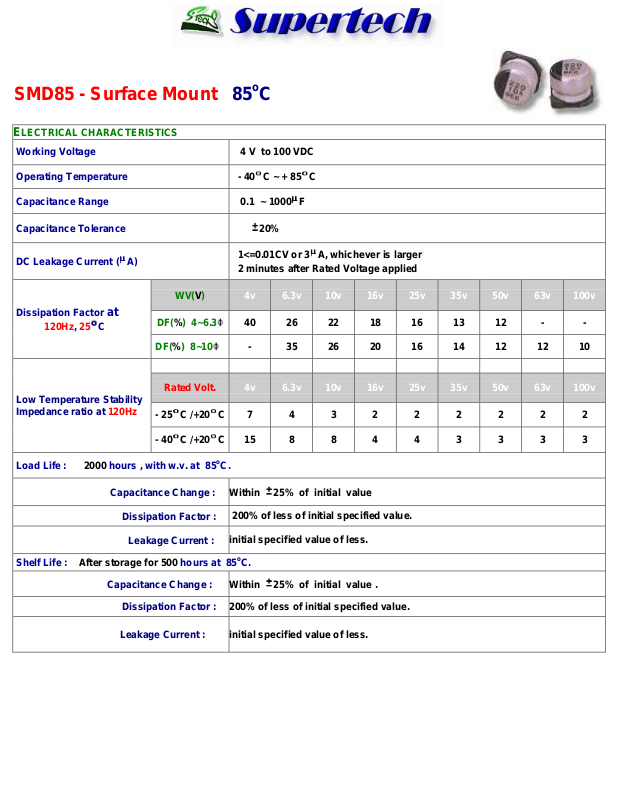

Page 1
SMD85 - Surface Mount 85oC
ELECTRICAL CHARACTERISTICS
Working Voltage
4 V to 100 VDC
Operating Temperature
- 40 C ~ + 85 C
Capacitance Range
0.1 ~ 1000 F
Capacitance Tolerance
20%
DC Leakage Current ( A)
1<=0.01CV or 3 A, whichever is larger
2 minutes after Rated Voltage applied
Dissipation Factor at
120Hz, 25 C
WV(V)
4v
6.3v
10v
16v
25v
35v
50v
63v
100v
DF(%) 4~6.3
40
26
22
18
16
13
12 - -
DF(%) 8~10
-
35
26
20
16
14
12
12
10
Low Temperature Stability
Impedance ratio at 120Hz
Rated Volt.
4v
6.3v
10v
16v
25v
35v
50v
63v
100v
- 25 C /+20 C
7 4 3 2 2 2 2 2 2
- 40 C /+20 C
15 8 8 4 4 3 3 3 3
Load Life : 2000 hours , with w.v. at 85oC.
Capacitance Change :
Within 25% of initial value
Dissipation Factor :
200% of less of initial specified value.
Leakage Current :
initial specified value of less.
Shelf Life : After storage for 500 hours at 85oC.
Capacitance Change :
Within 25% of initial value .
Dissipation Factor :
200% of less of initial specified value.
Leakage Current :
initial specified value of less.
Page 2
Case size & Max. Ripple Current
DxL (mm)
wv(sv) 4 6.3
10
16
25
35
50
63
100
uF
Size
mA
Size
mA
Size
mA
Size
mA
Size
mA
Size
mA
Size
mA
Size
mA
Size
mA
0.1
A
1.0
0.22
A
2.0
0.33
A
2.8
0.47
Ripple Current : mA R.M.S. at 120Hz 85oC
A
4.0
1.0
A
8.4
2.2
A
13
3.3
A
17
4.7
A
16 A 18 A 20
E
40
10
A
20 A 23 A 27
A,B
22/29
B,C
30/33
E
77
22
A
28 A 33
A,B
30/39
B,C
38/58
B,C
39/60
C,D
45/80
E
96 E 100
33 A 28 A 37 A 41 B 44
B,C
46/65
C
58 E 110 E 117 F 130
47 A 33
A,B
40/46
B
47
B,C
52/58
C
60
C,D
70/155
C8,E
105/140
E
140 F 155
100 B 56
B,C
47/71
B,C
54/76
C
86 D 160
C8,D
132/175
E,F
181/195
F
232
220 C 96
C,D
143/160
C8,D
173/250
C8,D
162/280
E
250
E,F
246/265
330
C8,D
145/152
C8,D
188/190
E
330 E 330 F 305
470
C8,D
200/220
E
265 E 290
E,F
275/330
1000
E
344
E,F
372/400
F
415
Diagram of dimensions
SIZE D L A C B W
P
A 4 5.5
4.3
4.3
5.1
0.5~0.8
1.0
B 5 5.5
5.3
5.3
5.9
0.5~0.8
1.4
C
6.3
5.5
6.6
6.6
7.2
0.5~0.8
2.0
C8
6.3
7.7
6.6
6.6
7.2
0.5~0.8
2.0
D 8 6.3
8.3
8.3
9.0
0.5~0.8
2.2
E 8 10.5
8.3
8.3
9.0
0.8~1.1
3.1
F
10
10.5
10.3
10.3
11.0
0.8~1.1
4.5
Supertech Copyright ©2005.11
