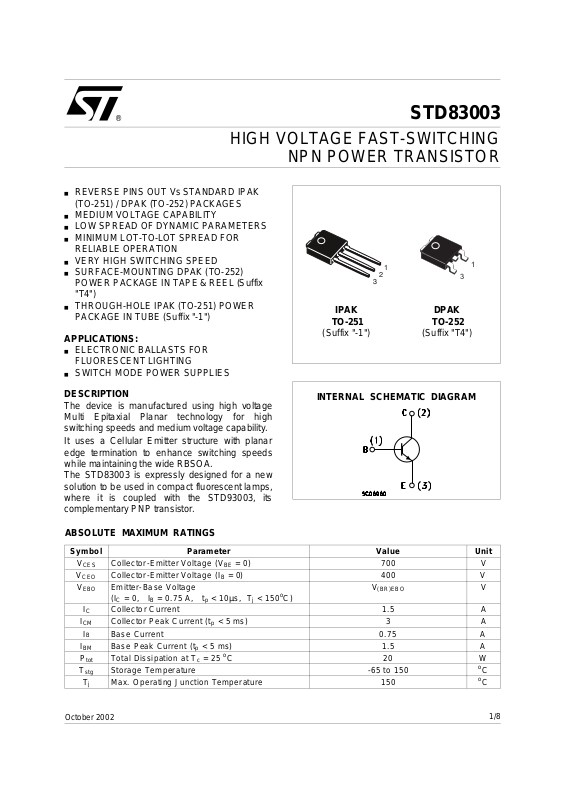

Page 1
®
HIGH VOLTAGE FAST-SWITCHING
■ REVERSE PINS O UT Vs STAN DARD IPA K
(TO-251) / DPAK (TO-252) PACKAGES
■ MEDIUM VOLTAGE CAPABILITY
■ LOW SPREAD OF DYNAMIC PARAMETERS
■ MINIMUM LOT- TO- LO T SPR E AD FO R
RELIABLE OPERATION
■ VERY HIGH SWI TCHING SPEED
■ SURFACE-MOUNTING DPAK (TO-252)
POWER PACKAGE IN TAPE & REEL (Suffix
"T4")
■ THROUGH-HO L E IPA K (TO-251) PO WE R
PACKA GE IN TU BE (Suf fix "- 1" )
APPLICATIONS:
■ ELECTRONIC BALLASTS FOR
FLUORESCENT LIGHTING
■ SWITCH MODE P OWER SUPPLIE S
STD83003
NPN POWER TRANSISTOR
1
3
IPAK
TO-251
(Suffix "-1" )
1
2
3
DPAK
TO-252
(Suffix "T4 ")
DESCRIPTION
INTERNAL SCHEMATIC DIAGRAM
The device is manufactured using high voltage
Multi Epitaxial Planar technology for high
switching speeds and medium voltage capability.
It uses a Cellular Emitter structure with planar
edge termination to enhance switching speeds
while maintaining the wide RBSOA.
The STD83003 is expressly designed for a new
solution to be used in compact fluorescent lamps,
where it is coupled with the STD93003, its
complementary PNP transistor .
ABSOL UT E MAXIMU M RATINGS
Symbol Parameter Value Unit
V
V
V
I
I
P
T
Collector-Emitter Voltage (VBE = 0) 700 V
CES
Collector-Emitter Voltage (IB = 0) 400 V
CEO
Emitter-Base Voltage
EBO
= 0, IB = 0.75 A, tp < 10µs, Tj < 150oC)
(I
C
Collector Current 1.5 A
I
C
Collector Peak Current (tp < 5 ms) 3 A
CM
I
Base Current 0.75 A
B
Base Peak Current (tp < 5 ms) 1.5 A
BM
Total Dissipation at Tc = 25 oC20W
tot
Storage Temperature -65 to 150
stg
T
Max. Operating Junction Temperature 150
j
V
(BR)EBO
V
o
C
o
C
October 2002
1/8
Page 2
STD83003
THERMAL DATA
R
thj-case
R
thj-amb
Thermal Resistance Junction-case Max
Thermal Resistance Junction-ambient Max
6.25
100
o
C/W
o
C/W
ELECTRICAL CHARACTERISTICS (T
= 25 oC unless otherwise specified)
case
Symbol Parameter Test Conditions Min. Typ. Max. Unit
I
CEV
V
(BR)EBO
Collector Cut-off
Current (V
= -1.5V)
BE
Emitter-Base
= 700V
V
CE
V
= 700V T
CE
I
= 10 mA 12 18 V
E
= 125oC
j
1
5
Breakdown Voltage
(I
= 0)
C
V
CEO(sus)
V
CE(sat)
V
BE(sat)
∗ Collector-Emitter
Sustaining Voltage
(I
= 0)
B
∗ Collector-Emitter
Saturation Voltage
∗ Base-Emitter
I
= 10 mA
C
400 V
L = 25 mH
IC = 0.5 A IB = 0.1 A
I
= 0.35 A IB = 50 mA
C
0.5
1
IC = 0.5 A IB = 0.1 A 1 V
Saturation Voltage
∗ DC Current Gain IC = 10 mA V
h
FE
I
= 0.35 A V
C
I
= 1 A V
C
CE
CE
CE
= 5 V
= 5 V
= 5 V
10
16
25 32
4
RESISTIVE LOAD
t
Rise Time
r
s
t
f
Storage Time
Fall Time
t
INDUCTIVE LOAD
s
t
f
Storage Time
Fall Time
t
∗ Pulsed: Pulse duration = 300µs, duty cycle = 1.5 %
I
= 0.35 A VCC = 125 V
C
I
= 70 mA IB2 = -70 mA
B1
≥ 25 µs (see figure 2)
T
p
I
= 0.5 A IB1 = 0.1 A
C
V
= -5 V L = 10 mH
BE(off)
V
= 300 V (see figure 1)
clamp
1.5
100
2.2
0.2
450
90
2.9
mA
mA
V
V
ns
µs
µs
ns
ns
2/8
Page 3
STD83003
Safe Operating Areas
DC Current Gain
Derating Curve
DC Current Gain
Collector Emitter Sat uration Volt a ge
Base Emitter Satur ation Voltage
3/8
Page 4
STD83003
Resistive Load Fall Time Resistive Load Storage Time
Inductive Load Fall Time Inductive Load Storage Time
Reverse B iased SOA
4/8
Page 5
Figure 1: Inductive Load Switching Test Circuit.
1) Fast electronic switch
2) Non-inductive Resistor
3) Fast recovery rectifier
Figure 2: Resistive Load Switching Test Circuit.
STD83003
1) Fast electronic switch
2) Non-inductive Resistor
5/8
Page 6
STD83003
TO-251 (IPAK) MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 2.20 2.40 0.087 0.094
A1 0.90 1.10 0.035 0.043
A3 0.70 1.30 0.028 0.051
B 0.64 0.90 0.025 0.035
B2 5.20 5.40 0.204 0.213
B3 0.85 0.033
B5 0.30 0.012
B6 0.95 0.037
C 0.45 0.60 0.018 0.024
C2 0.48 0.60 0.019 0.024
D 6.00 6.20 0.237 0.244
E 6.40 6.60 0.252 0.260
G 4.40 4.60 0.173 0.181
H 15.90 16.30 0.626 0.642
L 9.00 9.40 0.354 0.370
L1 0.80 1.20 0.031 0.047
L2 0.80 1.00 0.031 0.039
V1 10
mm inch
o
10
o
6/8
P032N_E
Page 7
TO-252 (DPAK) MECHANICAL DATA
STD83003
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 2.20 2.40 0.087 0.094
A1 0.90 1.10 0.035 0.043
A2 0.03 0.23 0.001 0.009
B 0.64 0.90 0.025 0.035
B2 5.20 5.40 0.204 0.213
C 0.45 0.60 0.018 0.024
C2 0.48 0.60 0.019 0.024
D 6.00 6.20 0.236 0.244
E 6.40 6.60 0.252 0.260
G 4.40 4.60 0.173 0.181
H 9.35 10.10 0.368 0.398
L2 0.8 0.031
L4 0.60 1.00 0.024 0.039
V2 0
o
o
8
o
0
o
0
P032P_B
7/8
Page 8
STD83003
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such inform ation nor for any infringe ment o f patents or other rig hts o f third par ties which ma y resul t from i ts use. N o li cen se is
granted by implicatio n or otherwise under any patent or patent rights of STMicroelectronics. Specification mentioned in this publication are
subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products
are not authorized for use as critical compo nents in life support devices or systems without express written approval of STMicroelectronics.
The ST logo is a trademark of STMicroelectronics
© 2002 STMicroelectro nics – Printed in Italy – All Rights Reserved
