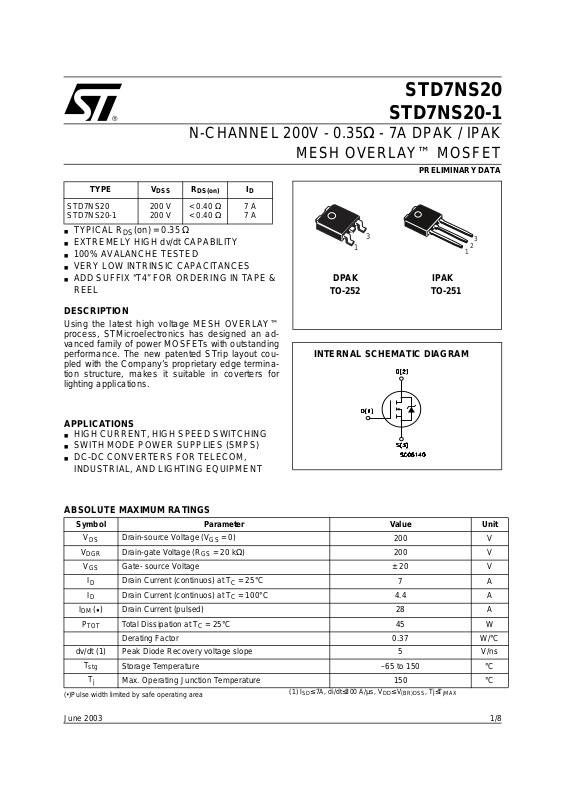

STD7NS20

STD7NS20-1

N-CHANNEL 200V - 0.35Ω - 7A DPAK / IPAK

MESH O VERL AY™ MOSFET

PRELIMINARY DATA

TYPE V

STD7NS20
STD7NS20-1

■ TYPICAL R

■ EXTREMELY HIGH dv/dt CAPABILITY

■ 100% AV ALANCHE TESTED

■ VERY LOW INTRINSIC CAPACITANCES

■ ADD SUFFIX “T4” FOR ORDERING IN TAPE &

DS

DSS

200 V
200 V

(on) = 0.35 Ω

R

DS(on)

< 0.40 Ω
< 0.40 Ω

I

D

7A
7A

REEL

DESCRIPTION

Using the l ate st high voltage MESH OVERLAY™
process, STMicroelectronics has designed an ad­vanced family of power MOSFETs with outstanding
performance. The new patented STrip layout cou­pled with the Company’s proprietary edge termina­tion s t ruc ture, makes it suitable in c ov erte rs for
lighting applications.

APPLICATIONS

■ HIGH CURRENT, HIGH SPEED SWITCHING

■ SWITH MODE POWER SUPPLIES (SMPS)

■ DC-DC CONVERTERS FOR TELECOM,

INDUSTRIAL, AND LIGHTING EQUIPMENT

3

1

DPAK

TO-252

IPAK

TO-251

INTERNAL SCHEMATIC DIAGRAM

3

2

1

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

DS

V

DGR

V

GS

I

D

I

D

I

DM

P

TOT

dv/dt (1) Peak Diode Recovery voltage slope 5 V/ns

T

stg

T

j

(•)Pulse width limited by safe operating area

June 2003

Drain-source Voltage (VGS=0)
Drain-gate Voltage (RGS=20kΩ)

200 V

200 V
Gate- source Voltage ± 20 V
Drain Current (continuos) at TC= 25°C
Drain Current (continuos) at TC= 100°C

()

Drain Current (pulsed) 28 A
Total Dissipation at TC= 25°C

7A

4.4 A

45 W

Derating Factor 0.37 W/°C

Storage Temperature –65 to 150 °C
Max. Operating Junction Temperature 150 °C

(1) ISD≤ 7A, di/dt≤300 A/µs, VDD≤ V

(BR)DSS

,Tj≤T

jMAX

1/8

STD7NS20 / STD7NS20-1

THERMAL DATA

Rthj-case Thermal Resistance Junction-case Max 2.7 °C/W
Rthj-amb Thermal Resistance Junction-ambient Max 100 °C/W

T

l

AVALANCHE CHARACTERISTICS

Symbol Parameter Max Value Unit

I

AR

E

AS

ELECTRICAL CHARACTERISTICS (TCASE = 25 °C UNLESS OTHERWISE SPECIFIED)
OFF

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

(BR)DSS

I

DSS

I

GSS

Maximum Lead Temperature For Soldering Purpose 275 °C

Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by T

max)

j

Single Pulse Avalanche Energy
(starting T

Drain-source

= 25 °C, ID=IAR,VDD=50V)

j

ID= 250 µA, VGS= 0 200 V

7A

60 mJ

Breakdown Voltage

= Max Rating

Zero Gate Voltage
Drain Current (V

GS

Gate-body Leakage
Current (V

DS

=0)

=0)

V

DS

= Max Rating, TC= 125 °C

V

DS

V

= ±20V ±100 nA

GS

1µA

10 µA

ON (1)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

GS(th)

R

DS(on)

Gate Threshold Voltage
Static Drain-source On

V

DS=VGS,ID

VGS=10V,ID= 3.5 A

= 250µA

234V

0.35 0.40 Ω

Resistance

DYNAMIC

Symbol Parameter Test Conditions Min. Typ. Max. Unit

(1) Forward Transconductance VDS>I

g

fs

C

iss

C

oss

C

rss

Input Capacitance
Output Capacitance 90 pF
Reverse Transfer

Capacitance

D(on)xRDS(on)max,

ID= 3.5 A

V

=25V,f=1MHz,VGS=0

DS

4S

540 pF

35 pF

2/8

STD7NS20 / STD7NS20-1

ELECTRICAL CHARACTERISTICS (CONTINUED)

SWITCHING ON

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

t

d(on)

Q
Q
Q

t

r

g
gs
gd

Turn-on Delay Time
Rise Time 15 ns
Total Gate Charge

Gate-Source Charge 7.5 nC
Gate-Drain Charge 9 nC

SWITCHING OFF

Symbol Parameter Test Conditions Min. Typ. Max. Unit

t

r(Voff)

t
t

f

c

Off-voltage Rise Time
Fall Time
Cross-over Time

SOURCE DRAIN DIODE

Symbol Parameter Test Conditions Min. Typ. Max. Unit

I

SD

I

SDM

V

SD

t

rr

Q

rr

I

RRM

Note: 1. Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %.

2. Pulse width limited by safe operating area.

Source-drain Current 7 A

(2)

Source-drain Current (pulsed) 28 A

(1)

Forward On Voltage
Reverse Recovery Time
Reverse Recovery Charge 0.95 µC
Reverse Recovery Current 11 A

=100V,ID= 3.5 A

DD

R

= 4.7Ω VGS=10V

G

(see test circuit, Figure 3)
V

=160V,ID=18A,

DD

=10V

V

GS

V

= 160 V, ID=7A,

clamp

RG=4.7Ω, VGS= 10V
(see test circuit, Figure 5)

ISD= 7 A, VGS=0
I

= 7 A, di/dt = 100A/µs

SD

VDD=50V,Tj= 150°C
(see test circuit, Figure 5)

10 ns

31 45 nC

12
12
25

1.5 V

170 ns

ns
ns
ns

3/8

STD7NS20 / STD7NS20-1

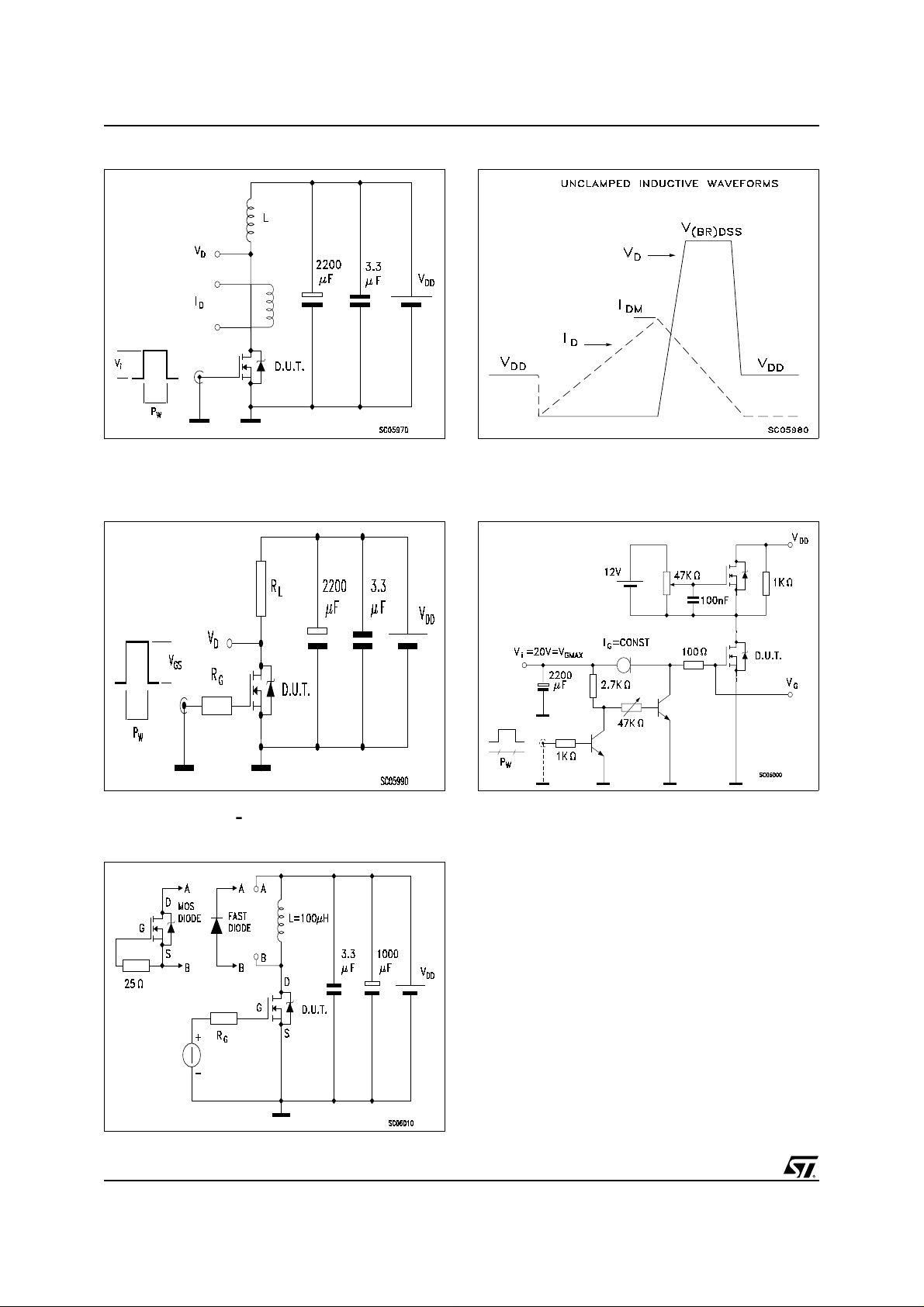

Fig. 2: Unclamped Inductive W av eformFig. 1: Unclamped Inductive Load Test Circuit

Fig. 3: Switching Times Test Circuit For

Resistive Load

Fig. 5: Test Circuit For Inductive Load Switching
And Diode Recovery Times

Fig. 4: Gate Charge test Circuit

4/8

TO-252 (DPAK) MECHANICAL DATA

STD7NS20 / STD7NS20-1

DIM.

A 2.20 2.40 0.087 0.094
A1 0.90 1.10 0.035 0.043
A2 0.03 0.23 0.001 0.009

B 0.64 0.90 0.025 0.035
B2 5.20 5.40 0.204 0.213

C 0.45 0.60 0.018 0.024
C2 0.48 0.60 0.019 0.024

D 6.00 6.20 0.236 0.244

E 6.40 6.60 0.252 0.260

G 4.40 4.60 0.173 0.181

H 9.35 10.10 0.368 0.398
L2 0.8 0.031
L4 0.60 1.00 0.024 0.039
V2 0

MIN. TYP. MAX. MIN. TYP. MAX.

o

mm inch

o

8

o

0

o

0

P032P_B

5/8

STD7NS20 / STD7NS20-1

TO-251 (IPAK) MECHANI CAL DAT A

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

mm inch

A 2.2 2.4 0.086 0.094
A1 0.9 1.1 0.035 0.043
A3 0.7 1.3 0.027 0.051

B 0.64 0.9 0.025 0.031
B2 5.2 5.4 0.204 0.212
B3 0.85 0.033
B5 0.3 0.012
B6 0.95 0.037

C 0.45 0.6 0.017 0.023
C2 0.48 0.6 0.019 0.023

D 6 6.2 0.236 0.244

E 6.4 6.6 0.252 0.260

G 4.4 4.6 0.173 0.181

H 15.9 16.3 0.626 0.641

L 9 9.4 0.354 0.370
L1 0.8 1.2 0.031 0.047
L2 0.8 1 0.031 0.039

H

6/8

A

C2

L2

E

B2

= =

= =

D

B3

2

1 3

L1

A1

L

B6

C

A3

B

B5

G

= =

0068771-E

STD7NS20 / STD7NS20-1

DPAK FOOTPRINT

All dimensions are in millimeters

TAPE AND REEL SHIPMENT (suffix ”T4”)*

TUBE SHIPMENT (no suffix)*

All dimensions

areinmillimeters

REEL MECHANICAL DATA

DIM.

A 330 12.992
B 1.5 0.059
C 12.8 13.2 0.504 0.520
D 20.2 0.795
G 16.4 18.4 0.645 0.724
N 50 1.968
T 22.4 0.881

mm inch

MIN. MAX. MIN. MAX.

TAPE MECHANICAL DATA

DIM.

A0 6.8 7 0. 267 0.275
B0 10.4 10.6 0.409 0.417
B1 12.1 0.476

D 1.5 1.6 0. 059 0.063

D1 1.5 0.059

E 1.65 1.85 0.065 0.073

F 7.4 7.6 0.291 0.299
K0 2.55 2.75 0.100 0.108
P0 3.9 4.1 0.153 0.161
P1 7.9 8.1 0.311 0.319
P2 1.9 2.1 0.075 0.082

R 40 1.574

W 15.7 16.3 0.618 0.641

* on sales type

mm inch

MIN. MAX. MIN. MAX.

BASE QTY BULK QTY

2500 2500

7/8

STD7NS20 / STD7NS20-1
