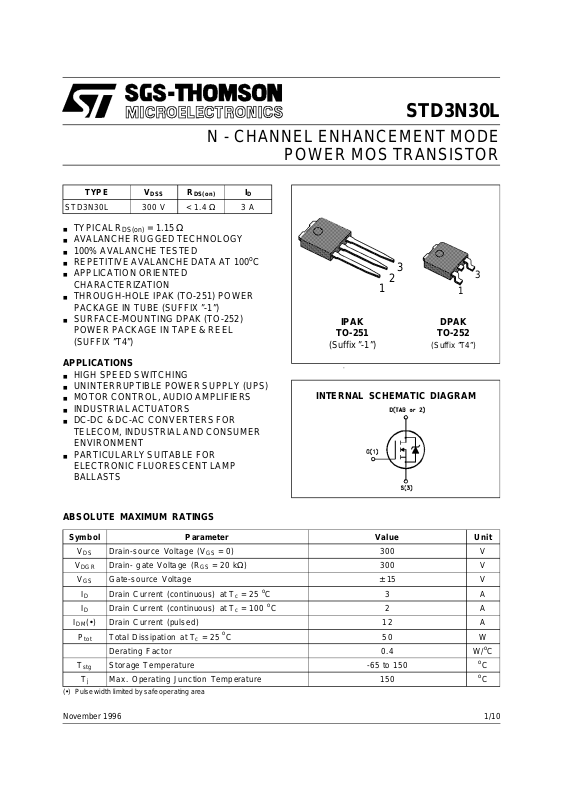

Page 1
STD3N30L
N - CHANNEL ENHANCEMENT MODE
POWER MOS TRANSISTOR
TYPE V
DSS
R
DS(on)
I
D
STD 3N30L 300 V < 1.4 Ω 3A
■ TYPICAL R
■ AVALANCHE RUGGED TECHNOLOGY
■ 100% AVALANCHE TESTED
■ REPETITIVE AVALANCHE DATA AT 100
■ APPLICATION ORIENTED
DS(on)
= 1.15 Ω
o
C
CHARACTERIZATION
■ THROUGH-HOLE IPAK (TO-251) POWER
PACKAGE IN TUBE (SUFFIX ”-1”)
■ SURFACE-MOUNTINGDPAK (TO-252)
POWER PACKAGE IN TAPE & REEL
(SUFFIX ”T4”)
APPLICATIONS
■ HIGH SPEED SWITCHING
■ UNINTERRUPTIBLE POWER SUPPLY (UPS)
■ MOTOR CONTROL, AUDIO AMPLIFIERS
■ INDUSTRIALACTUATORS
■ DC-DC & DC-AC CONVERTERS FOR
TELECOM, INDUSTRIAL AND CONSUMER
ENVIRONMENT
■ PARTICULARLY SUITABLE FOR
ELECTRONIC FLUORESCENT LAMP
BALLASTS
3
2
1
IPAK
TO-251
(Suffix ”-1”)
INTERNAL SCHEMATIC DIAGRAM
1
DPAK
TO-252
(Suffix ”T4”)
3
ABSOLUTE MAXIMUM RATINGS
Symb o l Paramet er Val u e Unit
V
V
V
I
DM
P
T
(•) Pulsewidth limited bysafe operating area
November 1996
Drain - s ource Voltage (VGS= 0) 300 V
DS
Drain- gate Voltage (RGS=20kΩ) 300 V
DGR
Gate-source Voltage ± 15 V
GS
Drain Current (continuous) at Tc=25oC3A
I
D
Drain Current (continuous) at Tc=100oC2A
I
D
(•) Drain Current (pulsed) 12 A
Total Di ssipation at Tc=25oC50W
tot
Derat ing Factor 0.4 W/
St or a ge Tem perature -65 to 150
stg
Max. Operating Junction Temperature 150
T
j
o
o
o
C
C
C
1/10
Page 2
STD3N30L
THERMAL DATA
R
thj-case
R
thj-amb
R
thc-sink
T
AVALANCHE CHARACTERISTICS
Symbol Parameter Max Valu e Uni t
I
AR
E
E
I
AR
Thermal Resistance Junction - cas e Max
Thermal Resistance Junction- ambient Max
Thermal Resistance Case-sink Typ
Maximum L ead Temperat ur e For Soldering Purpos e
l
Avalanc h e Cu rr ent , Repet itive or Not-R ep et itive
(pulse width limited by Tjmax, δ <1%)
Single Pul se Avalanche Ener gy
AS
(starti ng Tj=25oC, ID=IAR,VDD=50V)
Repetitive Avalanc he Energ y
AR
(pulse width limited by Tjmax, δ <1%)
Avalanc h e Cu rr ent , Repet itive or Not-R ep et itive
(Tc= 100oC, pulse width limited by Tjmax, δ <1%)
2.5
100
1.5
275
3A
20 mJ
5mJ
2A
o
C/W
o
C/W
o
C/W
o
C
ELECTRICAL CHARACTERISTICS (T
=25oC unless otherwise specified)
case
OFF
Symbol Parameter Test Condition s Min. Typ. Max. Unit
V
(BR)DSS
Drain - s ource
ID=250µAVGS= 0 300 V
Break d own Volta ge
I
DSS
I
GSS
Zer o Gate Volt age
Drain Current (V
GS
Gat e- body Leak age
=0)
=MaxRating
V
DS
V
= Max Rating x 0 .8 Tc=125oC
DS
10
100
VGS= ± 15 V ± 100 nA
Current (VDS=0)
ON (∗)
Symbol Parameter Test Condition s Min. Typ. Max. Unit
V
GS(th)
R
DS(on)
Gate Threshold Voltage VDS=VGSID=250µA11.62.5V
St at ic Drain-s our ce O n
VGS=5V ID= 1.5 A 1.15 1.4 Ω
Resistance
I
D(on)
On State Drain Current VDS>I
D(on)xRDS(on)max
3A
VGS=10V
DYNAMIC
Symbol Parameter Test Condition s Min. Typ. Max. Unit
(∗)Forward
g
fs
Tr ansconductance
C
C
C
Input Capacitance
iss
Out put Capacitance
oss
Reverse Transfer
rss
Capacitance
VDS>I
D(on)xRDS(on)maxID
=1.5A 1.5 3.5 S
VDS=25V f=1MHz VGS=0 580
75
15
800
120
25
µA
µA
pF
pF
pF
2/10
Page 3
STD3N30L
ELECTRICAL CHARACTERISTICS (continued)
SWITCHING ON
Symbol Parameter Test Condition s Min. Typ. Max. Unit
t
d(on)
(di/dt)
Q
Q
Q
Turn-on T im e
t
Rise Time
r
Turn-on C urrent S lope VDD=240V ID=3A
on
Total Gate Charge
g
Gat e- Source Charge
gs
Gate-Drain Charge
gd
SWITCHING OFF
Symbol Parameter Test Condition s Min. Typ. Max. Unit
t
r(Voff)
t
Off -voltage R ise Time
t
Fall Time
f
Cross-over Time
c
SOURCE DRAIN DIODE
VDD=150V ID=1.5A
RG=50 Ω VGS=5V
70
150
(see test circuit, figure 3)
115 A/µs
RG=50 Ω VGS=5V
(see test circuit, figure 5)
VDD= 240 V ID=3A VGS=5V 16
5
7
VDD=240V ID=3A
RG=50 Ω VGS=5V
(see test circuit, figure 5)
50
40
100
100
210
22 nC
70
60
140
ns
ns
nC
nC
ns
ns
ns
Symbol Parameter Test Condition s Min. Typ. Max. Unit
I
I
SDM
SD
Source-drain Current
(•)
Source-drain Current
3
12
(pulsed)
V
(∗) Forward On Volt age ISD=3A VGS=0 1.5 V
SD
t
Reverse Recovery
rr
Time
Q
Reverse Recovery
rr
ISD=3A di/dt=100A/µs
VDD= 200 V Tj=150oC
(see test circuit, figure 5)
300
1.5
Charge
I
RRM
Reverse Recovery
10
Current
(∗) Pulsed:Pulse duration = 300 µs, dutycycle 1.5 %
(•) Pulse widthlimited by safeoperating area
Safe Operating Area Thermal Impedance
A
A
ns
µC
A
3/10
Page 4
STD3N30L

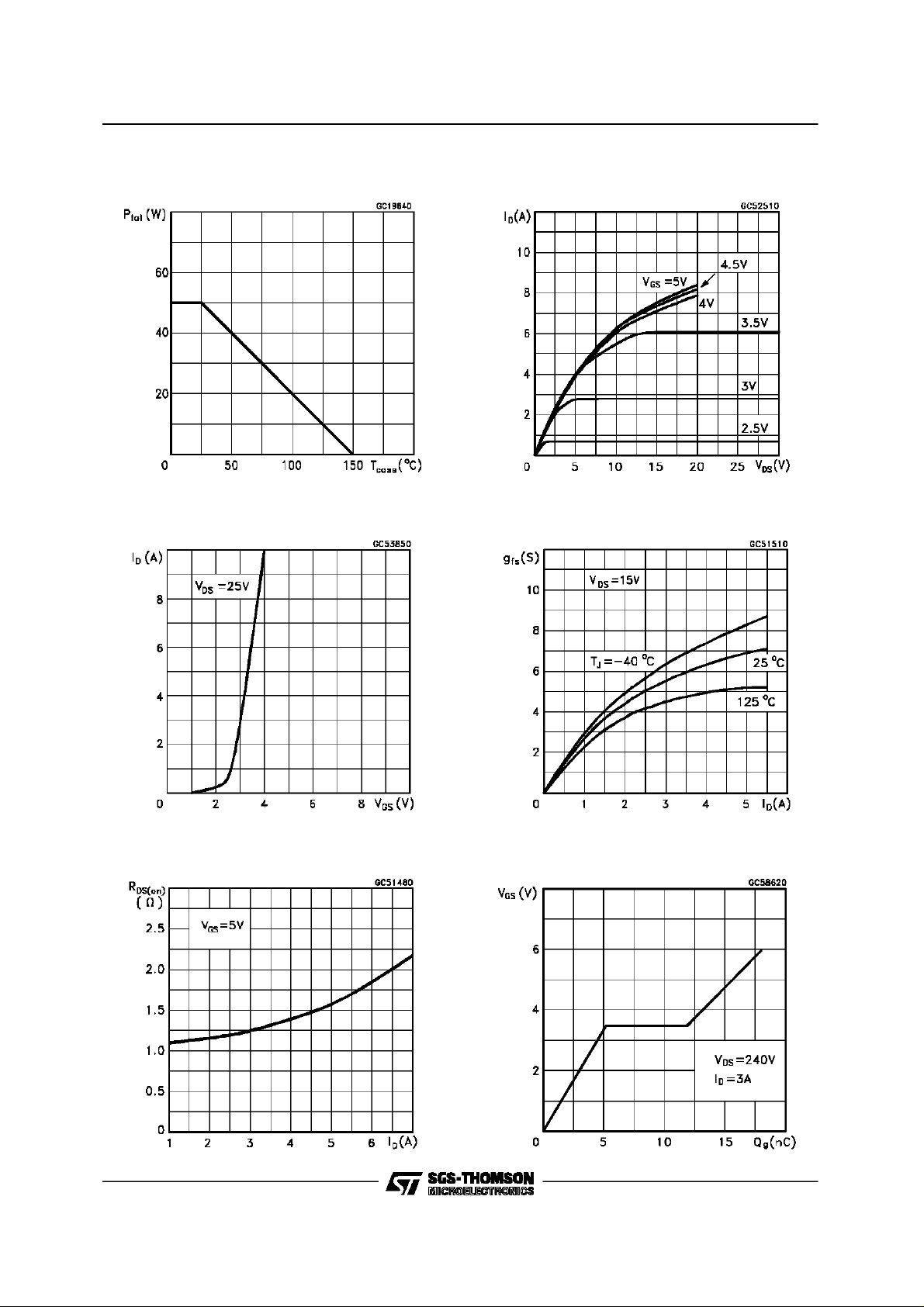

Derating Curve
Transfer Characteristics
Output Characteristics
Transconductance
Static Drain-source On Resistance
4/10
Gate Charge vs Gate-source Voltage
Page 5

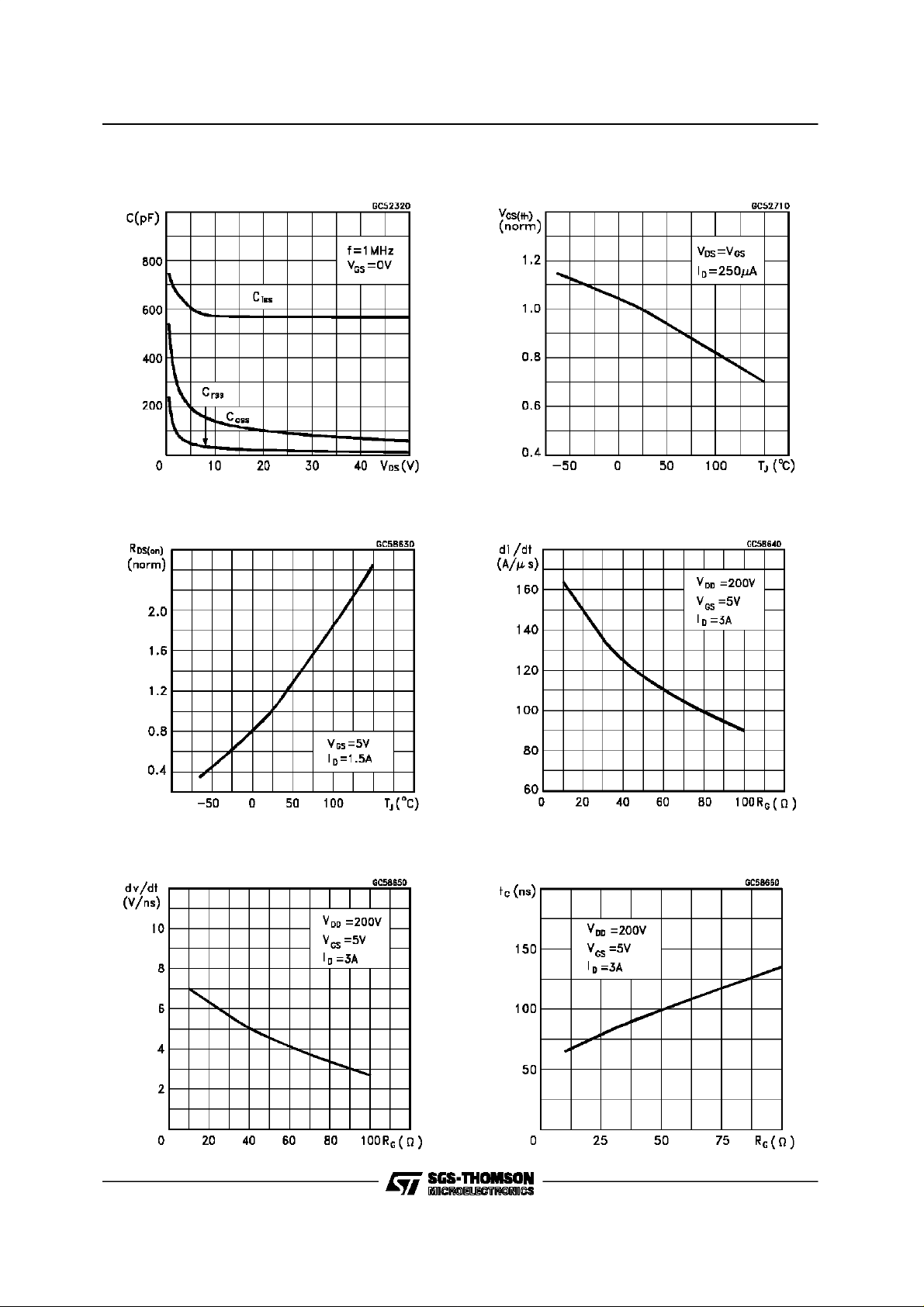

Capacitance Variations Normalized Gate Threshold Voltage vs
Temperature
Normalized On Resistance vs Temperature Turn-on Current Slope
STD3N30L
Cross-over TimeTurn-off Drain-source Voltage Slope
5/10
Page 6
STD3N30L

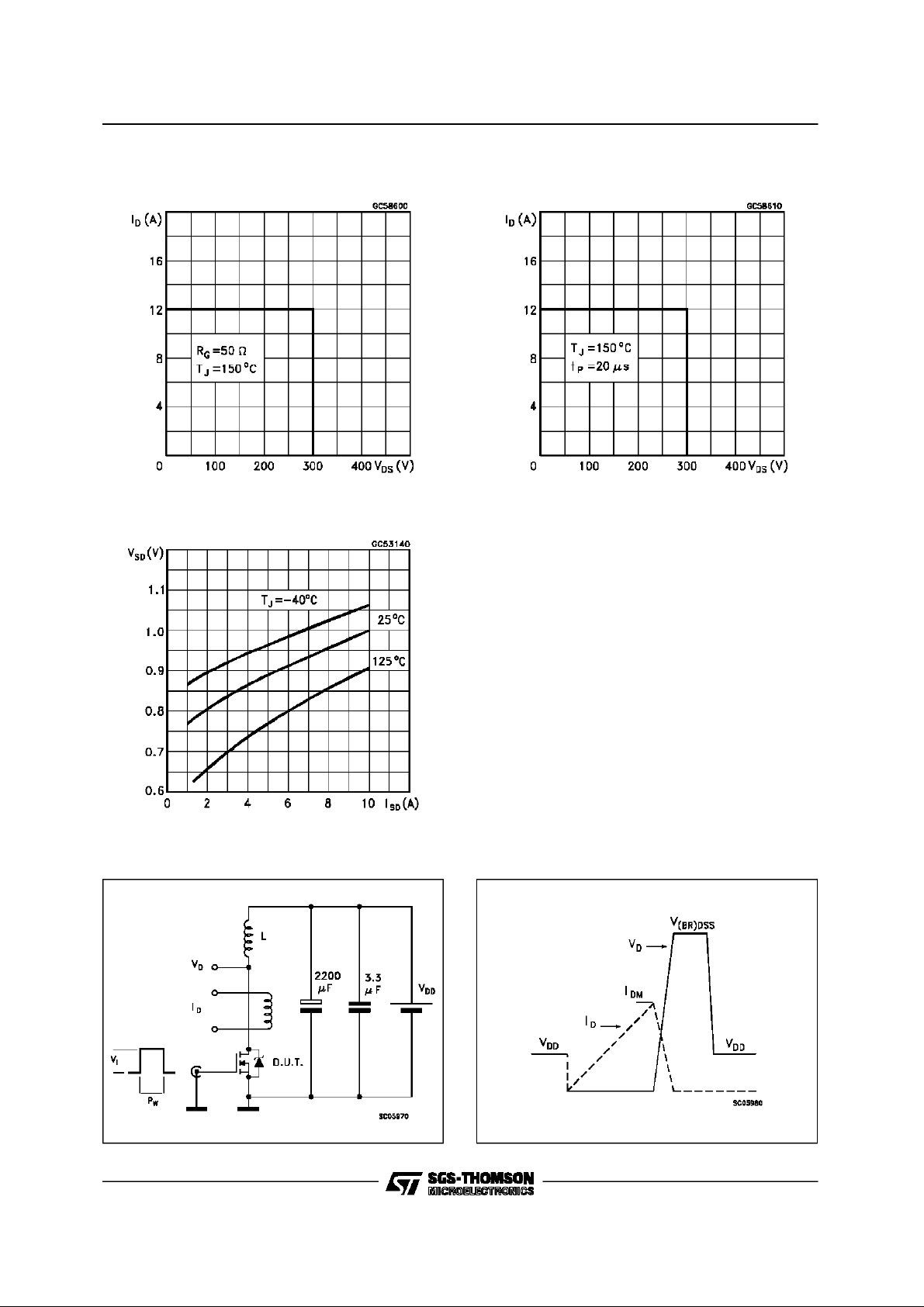

Switching SafeOperating Area Accidental Overload Area
Source-drain Diode Forward Characteristics
Fig. 1: Unclamped Inductive Load Test Circuits Fig. 2: Unclamped Inductive Waveforms
6/10
Page 7
STD3N30L

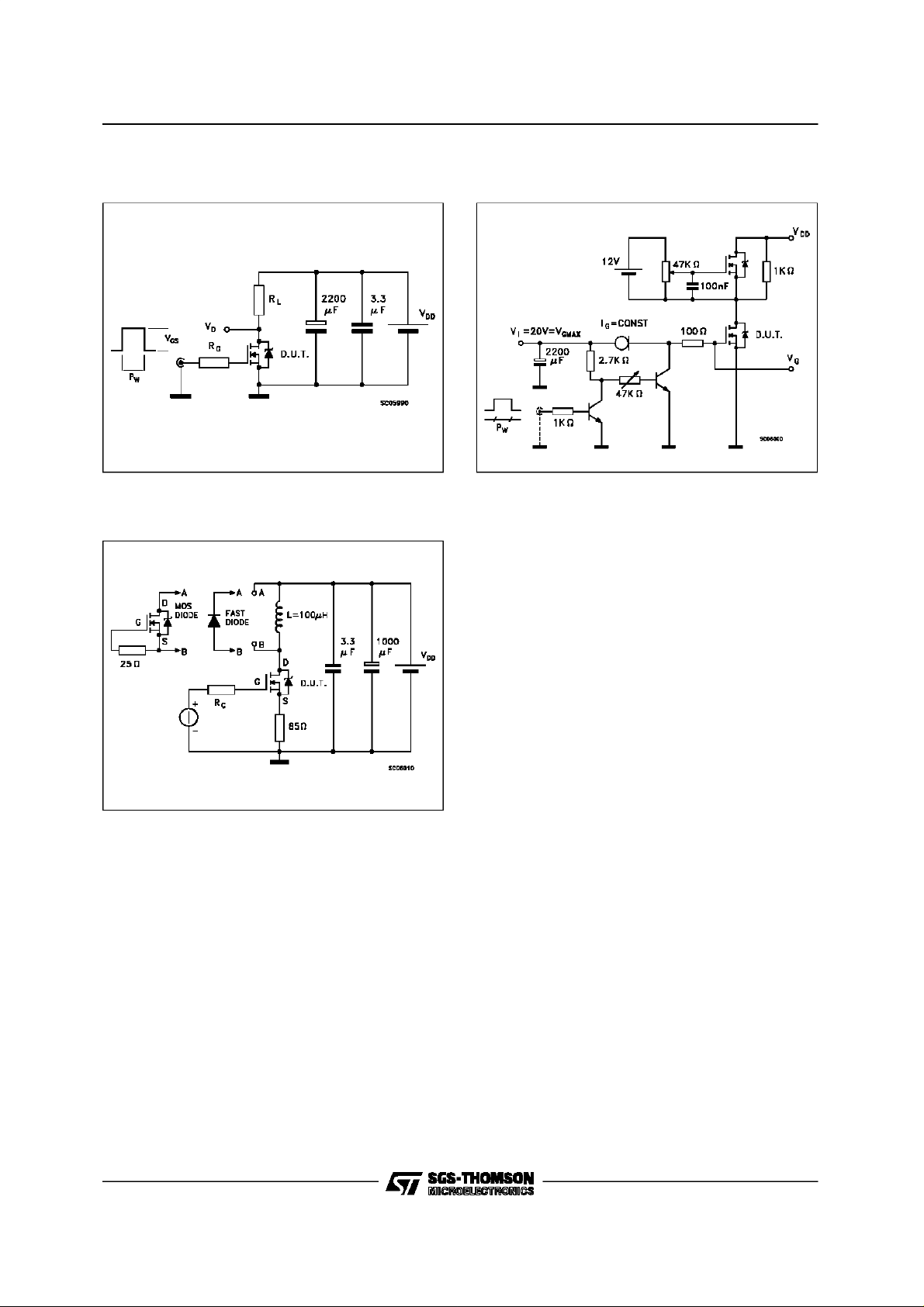

Fig. 3: Switching Times Test Circuits For
Resistive Load
Fig. 5: Test Circuit For Inductive Load Switching
And Diode Recovery Times
Fig. 4: Gate Charge Test Circuit
7/10
Page 8
STD3N30L
TO-251 (IPAK) MECHANICAL DATA
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 2.2 2.4 0.086 0.094
A1 0.9 1.1 0.035 0.043
A3 0.7 1.3 0.027 0.051
B 0.64 0.9 0.025 0.031
B2 5.2 5.4 0.204 0.212
B3 0.85 0.033
B5 0.3 0.012
B6 0.95 0.037
C 0.45 0.6 0.017 0.023
C2 0.48 0.6 0.019 0.023
D 6 6.2 0.236 0.244
E 6.4 6.6 0.252 0.260
G 4.4 4.6 0.173 0.181
H 15.9 16.3 0.626 0.641
L 9 9.4 0.354 0.370
L1 0.8 1.2 0.031 0.047
L2 0.8 1 0.031 0.039
8/10
A
E
==
C2
L2
B2
==
H
C
A3
A1
B6
L
B
B5
G
==
D
B3
2
13
L1
0068771-E
Page 9
TO-252 (DPAK) MECHANICAL DATA
STD3N30L
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 2.2 2.4 0.086 0.094
A1 0.9 1.1 0.035 0.043
A2 0.03 0.23 0.001 0.009
B 0.64 0.9 0.025 0.035
B2 5.2 5.4 0.204 0.212
C 0.45 0.6 0.017 0.023
C2 0.48 0.6 0.019 0.023
D 6 6.2 0.236 0.244
E 6.4 6.6 0.252 0.260
G 4.4 4.6 0.173 0.181
H 9.35 10.1 0.368 0.397
L2 0.8 0.031
L4 0.6 1 0.023 0.039
H
A
E
==
C2
L2
B2
==
DETAIL”A”
D
2
13
L4
A1
C
A2
DETAIL”A”
B
G
==
0068772-B
9/10
Page 10
STD3N30L
Information furnished is believed to be accurate and reliable. However, SGS-THOMSON Microelectronics assumes no responsability for the
consequences of useof such informationnor for any infringement of patents or other rightsof third parties which mayresults fromits use. No
licenseis granted by implication orotherwise under any patentor patent rights of SGS-THOMSONMicroelectronics. Specificationsmentioned
in thispublication are subject to change withoutnotice. Thispublication supersedes andreplacesall informationpreviously supplied.
SGS-THOMSONMicroelectronics products are not authorizedfor use ascriticalcomponents in lifesupportdevicesor systems withoutexpress
writtenapproval ofSGS-THOMSONMicroelectonics.
1996 SGS-THOMSON Microelectronics -Printed in Italy- AllRightsReserved
