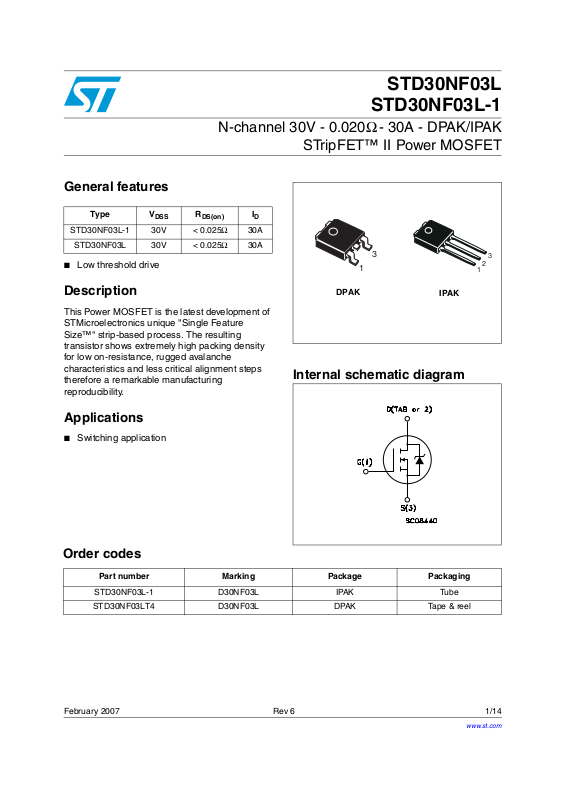

Datasheet STD30NF03LT4 Specification

N-channel 30V - 0.020Ω - 30A - DPAK/IPAK

3

General features

Type V

STD30NF03L-1 30V < 0.025Ω 30A

STD30NF03L 30V < 0.025Ω 30A

■ Low threshold drive

DSS

R

DS(on)

STD30NF03L

STD30NF03L-1

STripFET™ II Power MOSFET

I

D

3

1

2

1

Description

This Power MOSFET is the latest development of
STMicroelectronics unique "Single Feature
Size™" strip-based process. The resulting
transistor shows extremely high packing density
for low on-resistance, rugged avalanche
characteristics and less critical alignment steps
therefore a remarkable manufacturing
reproducibility.

Applications

■ Switching application

Order codes

DPAK

IPAK

Internal schematic diagram

Part number Marking Package Packaging

STD30NF03L-1 D30NF03L IPAK Tube

STD30NF03LT4 D30NF03L DPAK Tape & reel

February 2007 Rev 6 1/14

www.st.com

14

Contents STD30NF03L - STD30NF03L-1

Contents

1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5 Packing mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2/14

STD30NF03L - STD30NF03L-1 Electrical ratings

1 Electrical ratings

Table 1. Absolute maximum ratings

Symbol Parameter Value Unit

V

I

V

DGR

V

I

D

DM

P

I

DS

GS

(1)

D

(2)

tot

Drain-source voltage (VGS = 0) 30 V

Drain-gate voltage (RGS = 20 kΩ)30V

Gate- source voltage ± 20 V

Drain current (continuous) at TC = 25°C 30 A

Drain current (continuous) at TC = 100°C 19 A

Drain current (pulsed) 120 A

Total dissipation at TC = 25°C 50 W

Derating Factor 0.27 W/°C

(3)

E

AS

T

stg

T

j

1. Current limited by package

2. Pulse width limited by safe operating area.

3. Starting Tj = 25 °C, ID = 15A VDD = 15V

Single pulse avalanche energy 100 mJ

Storage temperature

-65 to 175 °C

Max. operating junction temperature

Table 2. Thermal data

Rthj-pcb Thermal resistance junction-pcb max 3.0 °C/W

Rthj-amb Thermal resistance junction-ambient max 100 °C/W

Rthj-sink Thermal resistance case-sink max 1.5 °C/W

T

J

Maximum lead temperature for soldering purpose 275 °C

3/14

Electrical characteristics STD30NF03L - STD30NF03L-1

2 Electrical characteristics

(T

=25°C unless otherwise specified)

CASE

Table 3. On/off states

Symbol Parameter Test conditions Min. Typ. Max. Unit

V

(BR)DSS

I

DSS

I

GSS

V

GS(th)

R

DS(on)

Drain-source
breakdown voltage

Zero gate voltage
drain current (V

GS

Gate-body leakage
current (V

DS

= 0)

= 0)

ID = 250µA, VGS =0 30 V

V

= Max rating

DS

VDS = Max rating,

= 125°C

T

C

1

10

VGS = ± 20V ±100 nA

Gate threshold voltage VDS = VGS, ID = 250µA 1 1.7 2.5 V

Static drain-source on
resistance

= 10V, ID = 15A

V

GS

= 4.5V, ID = 15A

V

GS

0.020

0.028

0.025

0.035

Table 4. Dynamic

Symbol Parameter Test conditions Min. Typ. Max. Unit

Forward

(1)

g

fs

transconductance

V

= 15V, ID= 15A 13 S

DS

µA
µA

Ω

Ω

C

C

C

t

d(on)

t

t

d(off)

t

Q
Q
Q

1. Pulsed: Pulse duration = 300 µs, duty cycle 1.5%.

Input capacitance

iss

Output capacitance

oss

Reverse transfer

rss

capacitance

Turn-on delay time
Rise time

r

Turn-off delay time
Fall time

f

Total gate charge

g

Gate-source charge

gs

Gate-drain charge

gd

= 25V, f = 1MHz,

V

DS

VGS = 0

= 15V, ID = 20A

V

DD

=4.7Ω VGS = 4.5V

R

G

(see Figure 12)

VDD = 24V, ID = 30A,

= 5V, RG=4.7Ω

V

GS

(see Figure 13)

830
230

92

35

205

90

240

18

7
8

pF
pF
pF

ns
ns
ns
ns

nC
nC
nC

4/14

STD30NF03L - STD30NF03L-1 Electrical characteristics

Table 5. Source drain diode

Symbol Parameter Test conditions Min. Typ. Max. Unit

I

SD

I

SDM

V

SD

t

Q

I

RRM

1. Pulse width limited by safe operating area.

2. Pulsed: Pulse duration = 300 µs, duty cycle 1.5%

Source-drain current
Source-drain current

(1)

(pulsed)

(2)

Forward on voltage ISD = 30A, VGS = 0 1.5 V

Reverse recovery time

rr

Reverse recovery charge

rr

Reverse recovery current

ISD = 40A, di/dt = 100A/µs,
VDD = 15V, Tj = 150°C
(see Figure 14)

65
72

30

240

A
A

ns

nC

2

A

5/14

Electrical characteristics STD30NF03L - STD30NF03L-1

2.1 Electrical characteristics (curves)

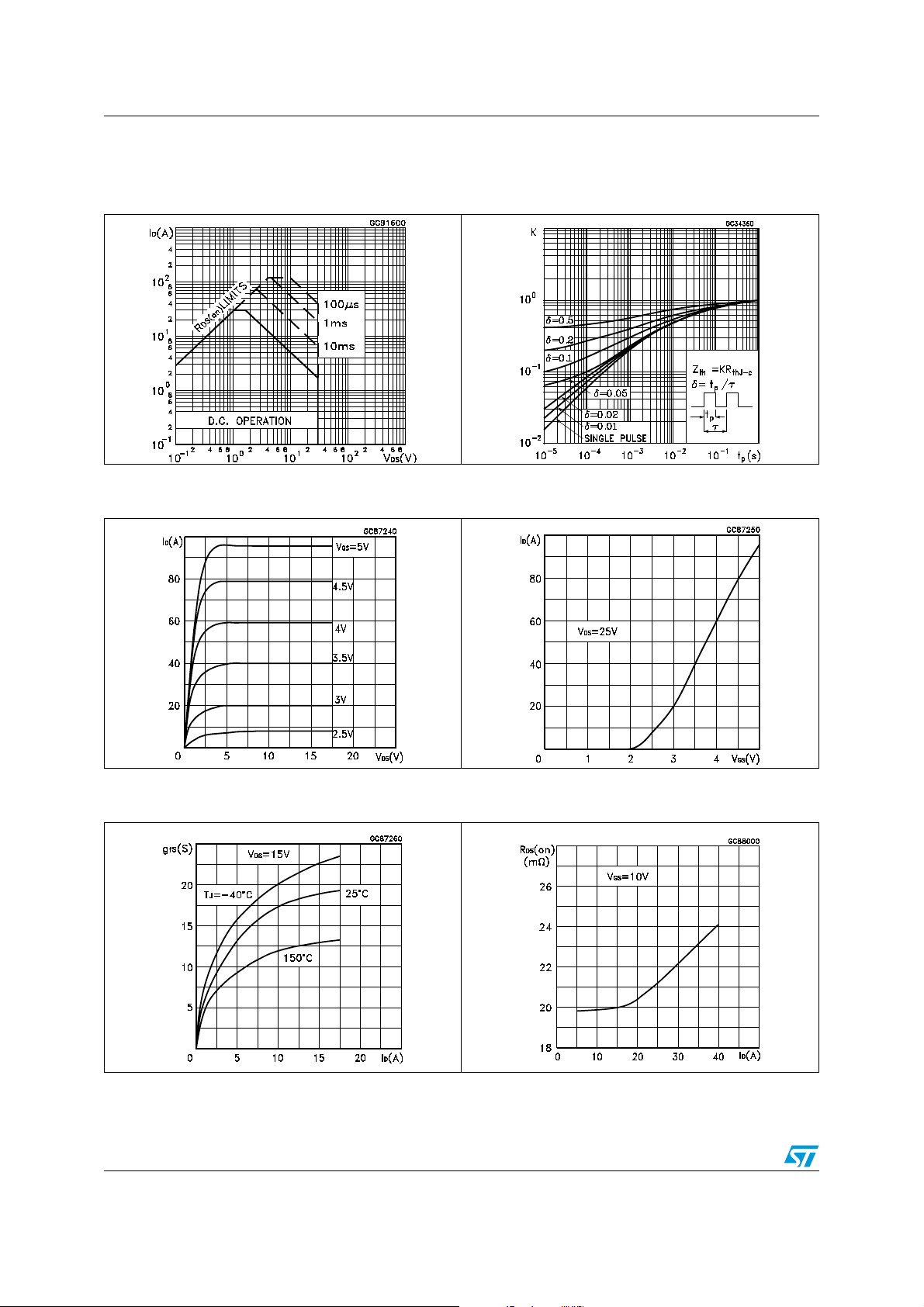

Figure 1. Safe operating area Figure 2. Thermal impedance

Figure 3. Output characteristics Figure 4. Transfer characteristics

Figure 5. Transconductance Figure 6. Static drain-source on resistance

6/14

STD30NF03L - STD30NF03L-1 Electrical characteristics

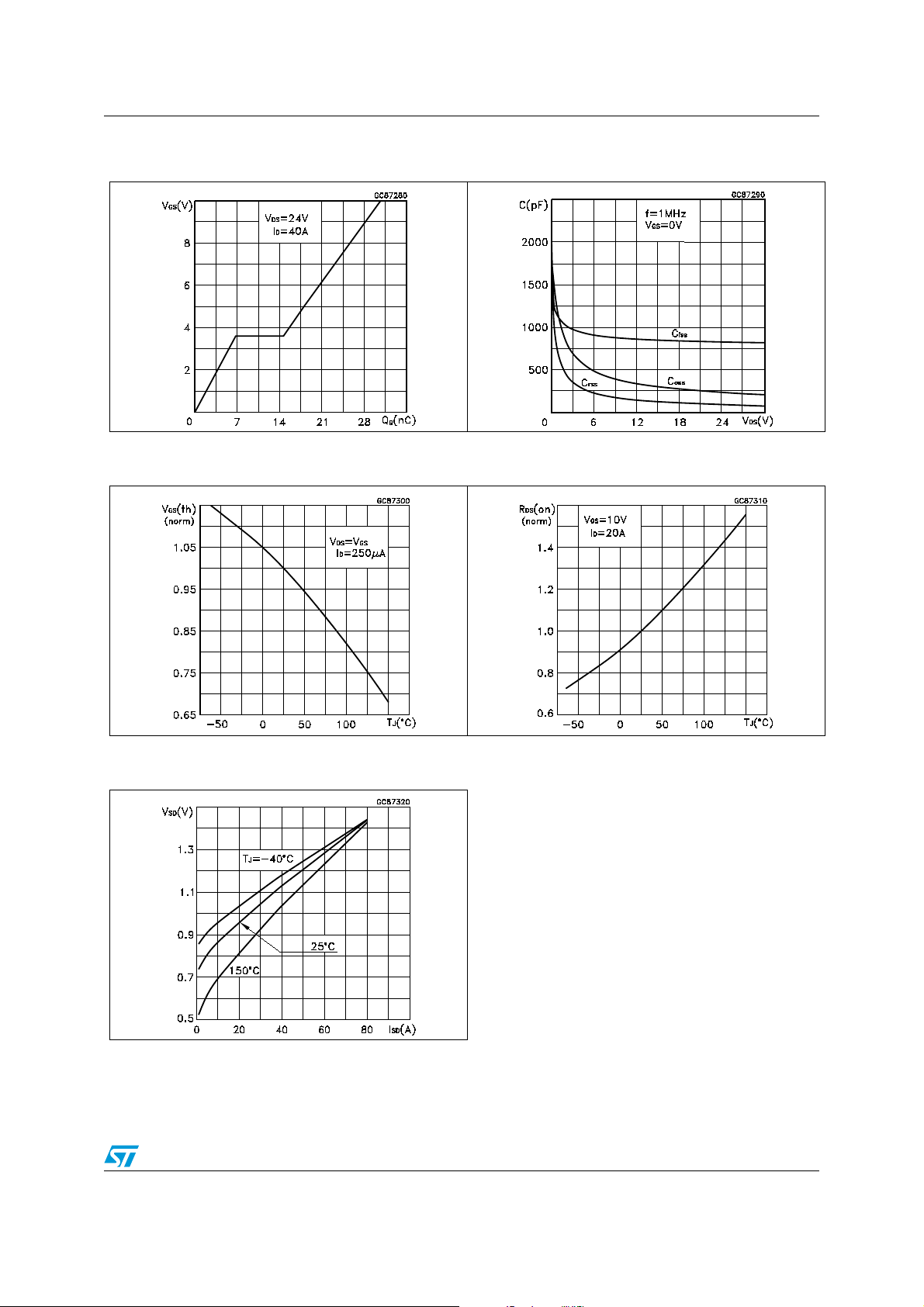

Figure 7. Gate charge vs. gate-source voltage Figure 8. Capacitance variations

Figure 9. Normalized gate threshold voltage

vs. temperature

Figure 11. Source-drain diode forward

characteristics

Figure 10. Normalized on resistance vs.

temperature

7/14

Test circuit STD30NF03L - STD30NF03L-1

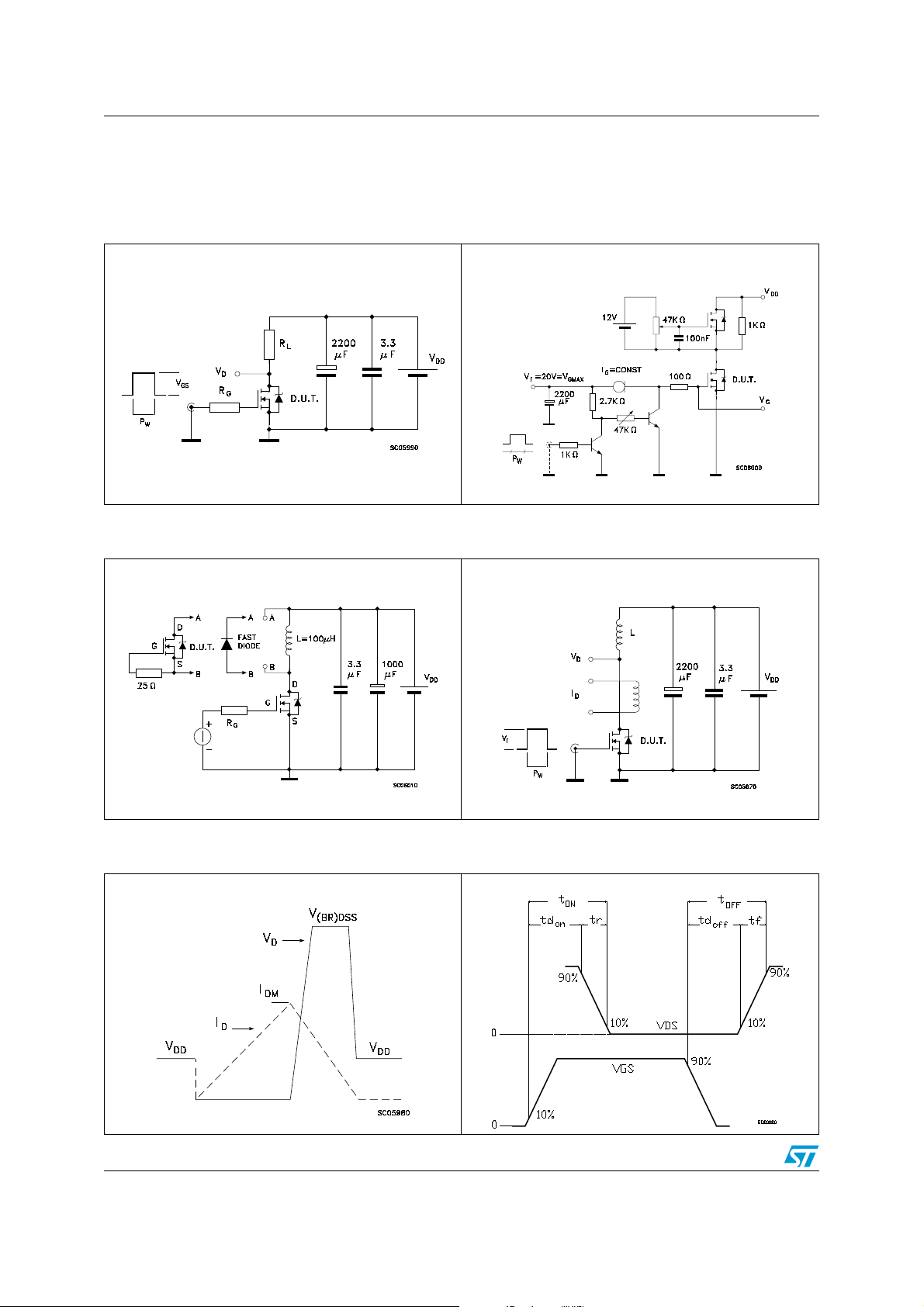

3 Test circuit

Figure 12. Switching times test circuit for

resistive load

Figure 14. Test circuit for inductive load

switching and diode recovery times

Figure 13. Gate charge test circuit

Figure 15. Unclamped Inductive load test

circuit

Figure 16. Unclamped inductive waveform Figure 17. Switching time waveform

8/14

STD30NF03L - STD30NF03L-1 Package mechanical data

4 Package mechanical data

In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com

9/14

Package mechanical data STD30NF03L - STD30NF03L-1

DPAK MECHANICAL DATA

DIM.

A 2.2 2.4 0.086 0.094
A1 0.9 1.1 0.035 0.043
A2 0.03 0.23 0.001 0.009

B 0.64 0.9 0.025 0.035

b4 5.2 5.4 0.204 0.212

C 0.45 0.6 0.017 0.023
C2 0.48 0.6 0.019 0.023

D 6 6.2 0.236 0.244
D1 5.1 0.200

E 6.4 6.6 0.252 0.260
E1 4.7 0.185

e 2.28 0.090

e1 4.4 4.6 0.173 0.181

H 9.35 10.1 0.368 0.397

L 1 0.039

(L1) 2.8 0.110

L2 0.8 0.031
L4 0.6 1 0.023 0.039

R 0.2 0.008
V2 0° 8° 0° 8°

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

10/14

0068772-F

STD30NF03L - STD30NF03L-1 Package mechanical data

0068771-E

TO-251 (IPAK) MECHANICAL DATA

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

mm inch

A 2.2 2.4 0.086 0.094

A1 0.9 1.1 0.035 0.043

A3 0.7 1.3 0.027 0.051

B 0.64 0.9 0.025 0.031

B2 5.2 5.4 0.204 0.212

B3 0.85 0.033

B5 0.3 0.012

B6 0.95 0.037

C 0.45 0.6 0.017 0.023

C2 0.48 0.6 0.019 0.023

D 6 6.2 0.236 0.244

E 6.4 6.6 0.252 0.260

G 4.4 4.6 0.173 0.181

H 15.9 16.3 0.626 0.641

L 9 9.4 0.354 0.370

L1 0.8 1.2 0.031 0.047

L2 0.8 1 0.031 0.039

H

C

A

E

= =

C2

L2

B2

= =

D

B3

2

1 3

L1

B6

A1

L

A3

B

B5

G

= =

11/14

Packing mechanical data STD30NF03L - STD30NF03L-1

5 Packing mechanical data

DPAK FOOTPRINT

All dimensions are in millimeters

TAPE AND REEL SHIPMENT

REEL MECHANICAL DATA

DIM.

A 330 12.992

B 1.5 0.059

C 12.8 13.2 0.504 0.520

D 20.2 0.795

G 16.4 18.4 0.645 0.724

N 50 1.968

T 22.4 0.881

mm inch

MIN. MAX. MIN. MAX.

TAPE MECHANICAL DATA

DIM.

A0 6.8 7 0.267 0.275

B0 10.4 10.6 0.409 0.417

B1 12.1 0.476

D 1.5 1.6 0.059 0.063

D1 1.5 0.059

E 1.65 1.85 0.065 0.073

F 7.4 7.6 0.291 0.299

K0 2.55 2.75 0.100 0.108

P0 3.9 4.1 0.153 0.161

P1 7.9 8.1 0.311 0.319

P2 1.9 2.1 0.075 0.082

R 40 1.574

W 15.7 16.3 0.618 0.641

mm inch

MIN. MAX. MIN. MAX.

12/14

BASE QTY BULK QTY

2500 2500

STD30NF03L - STD30NF03L-1 Revision history

6 Revision history

Table 6. Revision history

Date Revision Changes

21-Jun-2004 4 Preliminary version

03-Jul-2006 5 New template, no content change

20-Feb-2007 6 Typo mistake on page 1

13/14
