Page 1
1
2
3
TAB
TO-220
IPAK
TAB
1
2
3
TAB
1
3
2
DPAK
D(2, TAB)
G(1)
S(3)
AM01475V1

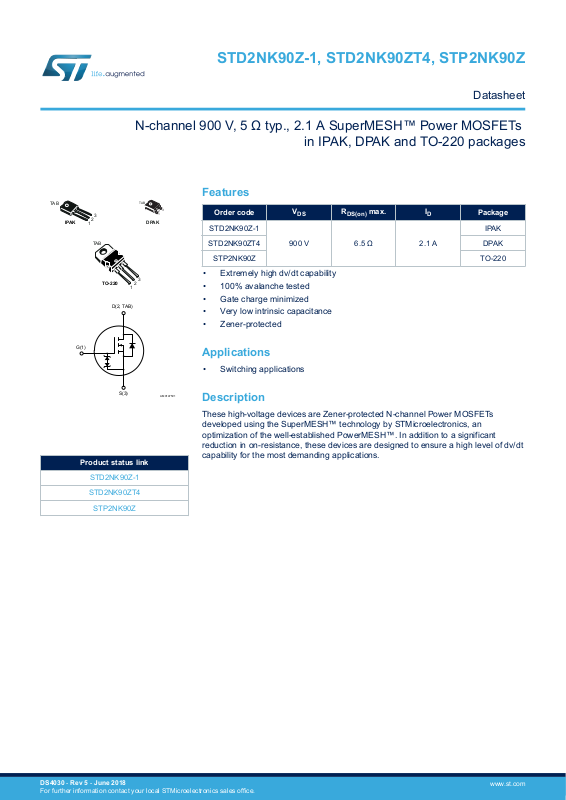

STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Datasheet
N-channel 900 V, 5 Ω typ., 2.1 A SuperMESH™ Power MOSFETs
in IPAK, DPAK and TO-220 packages
Features
Product status link
STD2NK90Z-1
STD2NK90ZT4
STP2NK90Z
Order code
V
DS
STD2NK90Z-1
STD2NK90ZT4 DPAK
900 V 6.5 Ω 2.1 A
R
max. I
DS(on)
D
Package
IPAK
STP2NK90Z TO-220
• Extremely high dv/dt capability
• 100% avalanche tested
• Gate charge minimized
• Very low intrinsic capacitance
• Zener-protected
Applications
• Switching applications
Description
These high-voltage devices are Zener-protected N-channel Power MOSFETs
developed using the SuperMESH™ technology by STMicroelectronics, an
optimization of the well-established PowerMESH™. In addition to a significant
reduction in on-resistance, these devices are designed to ensure a high level of dv/dt
capability for the most demanding applications.
DS4030 - Rev 5 - June 2018
For further information contact your local STMicroelectronics sales office.
www.st.com
Page 2
1 Electrical ratings
Symbol Parameter Value Unit
V
DS
V
GS
I
D
I
D
IDM
P
TOT
ESD Gate-source human body model (C = 100 pF, R =1.5 kΩ) 2 kV
dv/dt
T
T
stg
1. Pulse width limited by safe operating area.
2. ISD ≤ 2.1 A, di/dt ≤ 200 A/µs, VDD = 80% V
Drain-source voltage 900 V
Gate-source voltage ±30 V
Drain current (continuous) at TC = 25 °C
Drain current (continuous) at TC = 100 °C
(1)
Drain current (pulsed) 8.4 A
Total dissipation at TC = 25 °C
(2)
Peak diode recovery voltage slope 4.5 V/ns
Operating junction temperature range
j
Storage temperature range
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Table 1. Absolute maximum ratings
.
(BR)DSS
Electrical ratings
2.1 A
1.3 A
70 W
-55 to 150 °C
Table 2. Thermal data
Symbol
R
thj-case
R
thj-pcb
R
thj-amb
1. When mounted on FR-4 board of 1 inch², 2 oz Cu.
Thermal resistance junction-case 1.78
(1)
Thermal resistance junction-pcb 50
Thermal resistance junction-ambient 100 62.5
Parameter
Table 3. Avalanche characteristics
Symbol
(1)
IAS
EAS
1. Pulse width limited by T
2. Starting Tj = 25°C, ID = IAR, VDD = 50 V.
Single-pulse avalanche current 2.1 A
(2)
Single pulse avalanche energy 150 mJ
.
jmax
Parameter Value Unit
Value
Unit
DPAK IPAK TO-220
°C/W
DS4030 - Rev 5
page 2/24
Page 3
2 Electrical characteristics
(T
= 25 °C unless otherwise specified)
CASE
Symbol Parameter Test conditions Min. Typ. Max. Unit
V
(BR)DSS
I
DSS
I
GSS
V
GS(th)
R
DS(on)
1. Defined by design, not subject to production test.
Drain-source breakdown
voltage
Zero gate voltage drain
current
Gate-body leakage
current
Gate threshold voltage
Static drain-source on
resistance
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Table 4. On/off states
VGS = 0 V, ID = 1 mA
VGS = 0 V, VDS = 900 V
VGS = 0 V, VDS = 900 V, TC = 125 °C
VDS = 0 V, VGS = ±20 V
VDS = VGS, ID = 50 µA
VGS = 10 V, ID = 1.05 A
Electrical characteristics
900 V
1 µA
(1)
50 µA
±10 µA
3 3.75 4.5 V
5 6.5 Ω
C
1. C
Table 5. Dynamic
Symbol
C
iss
C
oss
C
rss
(1)
oss eq.
Q
g
Q
gs
Q
gd
is defined as a constant equivalent capacitance giving the same charging time as C
oss eq.
80% V
DSS
.
Parameter Test conditions Min. Typ. Max. Unit
Input capacitance
Output capacitance 50
Reverse transfer
VDS = 25 V, f = 1 MHz,
VGS = 0 V
capacitance
Equivalent output
capacitance
Total gate charge
Gate-source charge 3.4
Gate-drain charge 10.8
VGS = 0 V, VDS = 0 V to 720 V
VDD = 720 V, ID = 2 A,
VGS = 0 to 10 V
(see Figure 14. Test circuit for gate charge
behavior)
Table 6. Switching times
Symbol
t
d(on)
t
r
t
d(off)
t
r
Parameter Test conditions Min. Typ. Max. Unit
Turn-on delay time
Rise time 11
Turn-off delay time 43
Fall time 40
VDD = 450 V, ID = 1 A, RG = 4.7 Ω,
VGS = 10 V
(see Figure 13. Test circuit for resistive load
switching times and Figure 18. Switching
time waveform)
485
-
pF
10
- 24 pF
19.5 27
-
when VDSincreases from 0 to
oss
nC
21
-
- ns
DS4030 - Rev 5
page 3/24
Page 4
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Electrical characteristics
Table 7. Source-drain diode
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
SD
I
SDM
VSD
t
rr
Q
rr
I
RRM
t
rr
Q
rr
I
RRM
1. Pulsed: pulse duration = 300 μs, duty cycle 1.5%.
2. Pulse width is limited by safe operating area.
Source-drain current - 2.1
Source-drain current
(1)
(pulsed)
(2)
Forward on voltage
Reverse recovery time
Reverse recovery charge - 1.5 μC
Reverse recovery current - 7.2 A
Reverse recovery time
Reverse recovery charge - 1.9 μC
Reverse recovery current - 7.5 A
ISD = 2.1 A, VGS = 0 V
ISD = 2 A, di/dt = 100 A/µs
VDD = 50 V
(see Figure 15. Test circuit for inductive
load switching and diode recovery times)
ISD = 2 A, di/dt = 100 A/µs
VDD = 50 V, Tj = 150 °C
(see Figure 15. Test circuit for inductive
load switching and diode recovery times)
- 8.4
- 1.6 V
- 415 ns
- 515 ns
A
Table 8. Gate-source Zener diode
Symbol Parameter Test conditions Min. Typ. Max. Unit
V
(BR)GSO
Gate-source breakdown
voltage
IGS = ±1 mA, ID = 0 A
30 - - V
The built-in back-to-back Zener diodes are specifically designed to enhance the ESD performance of the device.
The Zener voltage facilitates efficient and cost-effective device integrity protection, thus eliminating the need for
additional external componentry.
DS4030 - Rev 5
page 4/24
Page 5
2.1 Electrical characteristics (curves)
VGS=10V
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Electrical characteristics (curves)
Figure 1. Safe operating area
Figure 2. Thermal impedance
Figure 3. Output characterisics Figure 4. Transfer characteristics
Figure 5. Static drain-source on resistance
DS4030 - Rev 5
Figure 6. Gate charge vs gate-source voltage
page 5/24
Page 6
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Electrical characteristics (curves)
Figure 7. Capacitance variations
Figure 8. Normalized gate threshold voltage vs
temperature
Figure 9. Normalized on resistance vs temperature Figure 10. Source-drain diode forward characteristics
Figure 11. Normalized V
DS4030 - Rev 5
(BR)DSS
vs temperature
Figure 12. Maximum avalanche energy vs temperature
page 6/24
Page 7
3 Test circuits
AM01468v1
V
D
R
G
R
L
D.U.T.
2200
μF
V
DD
3.3
μF
+
pulse width
V
GS
AM01469v1
47 kΩ
1 kΩ
47 kΩ
2.7 kΩ
1 kΩ
12 V
IG= CONST
100 Ω
100 nF
D.U.T.
+
pulse width
V
GS
2200
μF
V
G
V
DD
AM01470v1
A
D
D.U.T.
S
B
G
25 Ω
A
A
B
B
R
G
G
D
S
100 µH
µF
3.3
1000
µF
V
DD
D.U.T.
+
_
+
fast
diode
AM01471v1
V
D
I
D
D.U.T.
L
V
DD
+
pulse width
V
i
3.3
µF
2200
µF
AM01472v1
V(BR)DSS
VDD
VDD
VD
IDM
ID
AM01473v1
0
V
GS
90%
V
DS
90%
10%
90%
10%
10%
t
on
t
d(on)
t
r
0
t
off
t
d(off)
t
f
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Test circuits
Figure 13. Test circuit for resistive load switching times
Figure 15. Test circuit for inductive load switching and
diode recovery times
Figure 14. Test circuit for gate charge behavior
Figure 16. Unclamped inductive load test circuit
DS4030 - Rev 5
Figure 17. Unclamped inductive waveform
Figure 18. Switching time waveform
page 7/24
Page 8
4 Package information
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK
packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions
and product status are available at: www.st.com. ECOPACK® is an ST trademark.
®
DS4030 - Rev 5
page 8/24
Page 9
0068771_IK_typeA_rev14
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
4.1 IPAK (TO-251) type A package information

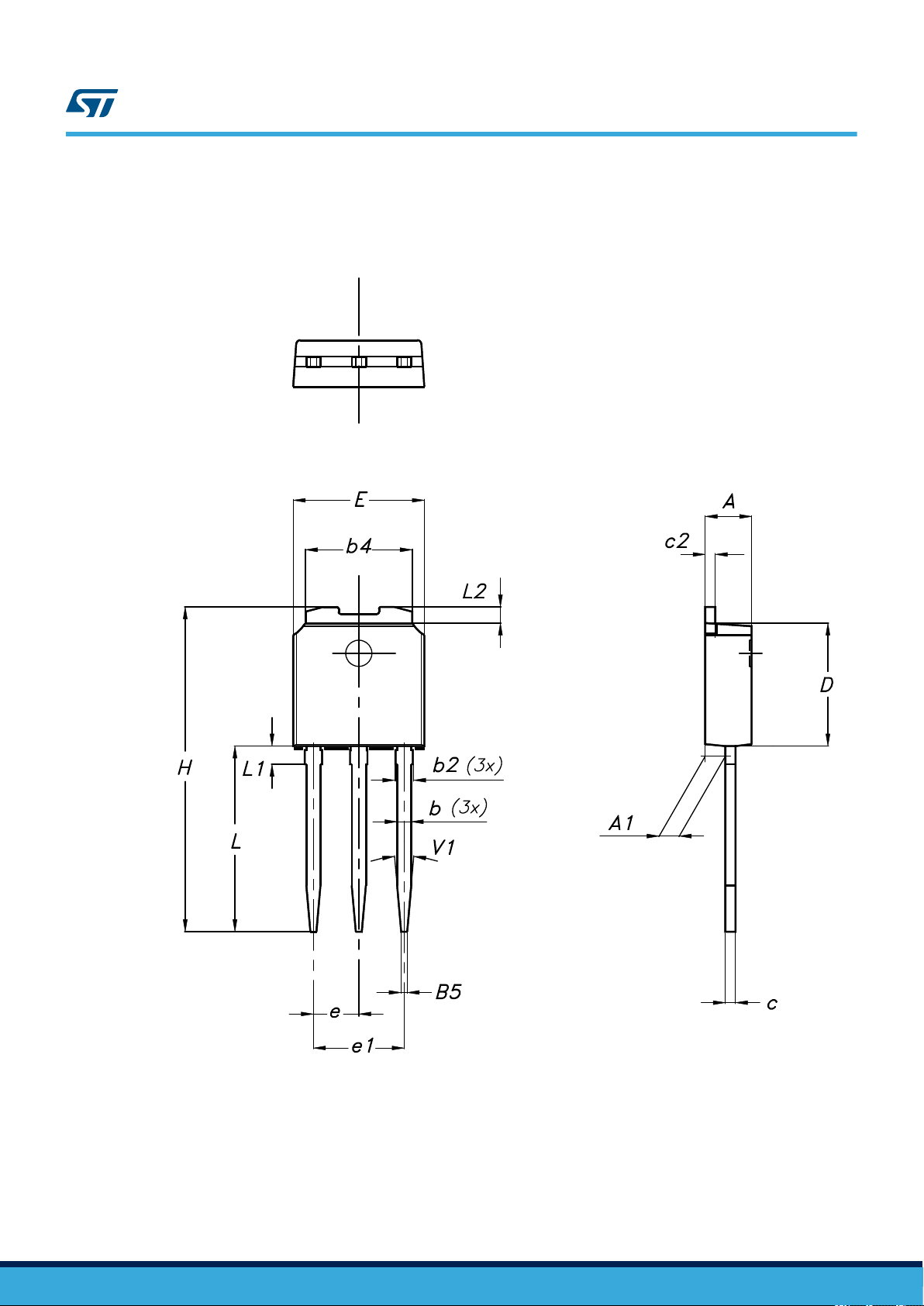

Figure 19. IPAK (TO-251) type A package outline
IPAK (TO-251) type A package information
DS4030 - Rev 5
page 9/24
Page 10
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
IPAK (TO-251) type A package information
Table 9. IPAK (TO-251) type A package mechanical data
Dim.
Min. Typ. Max.
A 2.20 2.40
A1 0.90 1.10
b 0.64 0.90
b2 0.95
b4 5.20 5.40
B5 0.30
c 0.45 0.60
c2 0.48 0.60
D 6.00 6.20
E 6.40 6.60
e 2.28
e1 4.40 4.60
H 16.10
L 9.00 9.40
L1 0.80 1.20
L2 0.80 1.00
V1 10°
mm
DS4030 - Rev 5
page 10/24
Page 11
0068772_type-A2_rev25
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
4.2 DPAK (TO-252) type A2 package information
Figure 20. DPAK (TO-252) type A2 package outline
DPAK (TO-252) type A2 package information
DS4030 - Rev 5
page 11/24
Page 12
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
DPAK (TO-252) type A2 package information
Table 10. DPAK (TO-252) type A2 mechanical data
Dim.
Min. Typ. Max.
A 2.20 2.40
A1 0.90 1.10
A2 0.03 0.23
b 0.64 0.90
b4 5.20 5.40
c 0.45 0.60
c2 0.48 0.60
D 6.00 6.20
D1 4.95 5.10 5.25
E 6.40 6.60
E1 5.10 5.20 5.30
e 2.159 2.286 2.413
e1 4.445 4.572 4.699
H 9.35 10.10
L 1.00 1.50
L1 2.60 2.80 3.00
L2 0.65 0.80 0.95
L4 0.60 1.00
R 0.20
V2 0° 8°
mm
DS4030 - Rev 5
page 12/24
Page 13
0068772_C2_25
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
4.3 DPAK (TO-252) type C2 package information
Figure 21. DPAK (TO-252) type C2 package outline
DPAK (TO-252) type C2 package information
DS4030 - Rev 5
page 13/24
Page 14
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
DPAK (TO-252) type C2 package information
Table 11. DPAK (TO-252) type C2 mechanical data
Dim.
Min. Typ. Max.
A 2.20 2.30 2.38
A1 0.90 1.01 1.10
A2 0.00 0.10
b 0.72 0.85
b4 5.13 5.33 5.46
c 0.47 0.60
c2 0.47 0.60
D 6.00 6.10 6.20
D1 5.10 5.60
E 6.50 6.60 6.70
E1 5.20 5.50
e 2.186 2.286 2.386
H 9.80 10.10 10.40
L 1.40 1.50 1.70
L1 2.90 REF
L2 0.90 1.25
L3 0.51 BSC
L4 0.60 0.80 1.00
L6 1.80 BSC
θ1 5° 7° 9°
θ2 5° 7° 9°
V2 0° 8°
mm
DS4030 - Rev 5
page 14/24
Page 15
0068772_type-E_rev.25
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
4.4 DPAK (TO-252) type E package information
Figure 22. DPAK (TO-252) type E package outline
DPAK (TO-252) type E package information
DS4030 - Rev 5
page 15/24
Page 16
FP_0068772_25
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
DPAK (TO-252) type E package information
Table 12. DPAK (TO-252) type E mechanical data
Dim.
Min. Typ. Max.
A 2.18 2.39
A2 0.13
b 0.65 0.884
b4 4.95 5.46
c 0.46 0.61
c2 0.46 0.60
D 5.97 6.22
D1 5.21
E 6.35 6.73
E1 4.32
e 2.286
e1 4.572
H 9.94 10.34
L 1.50 1.78
L1 2.74
L2 0.89 1.27
L4 1.02
mm
Figure 23. DPAK (TO-252) recommended footprint (dimensions are in mm)
DS4030 - Rev 5
page 16/24
Page 17
4.5 DPAK (TO-252) packing information
P1
A0
D1
P0
F
W
E
D
B0
K0
T
User direction of feed
P2
10 pitches cumulative
tolerance on tape +/- 0.2 mm
User direction of feed
R
Bending radius
B1
For machine ref. only
including draft and
radii concentric around B0
AM08852v1
Top cover
tape
Figure 24. DPAK (TO-252) tape outline
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
DPAK (TO-252) packing information
DS4030 - Rev 5
page 17/24
Page 18
A
D
B
Full radius
Tape slot
in core for
tape start
2.5mm min.width
G measured
at hub
C
N
40mm min.
access hole
at slot location
T
AM06038v1
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Figure 25. DPAK (TO-252) reel outline
DPAK (TO-252) packing information
Table 13. DPAK (TO-252) tape and reel mechanical data
Tape
Dim.
A0 6.8 7 A 330
B0 10.4 10.6 B 1.5
B1 12.1 C 12.8 13.2
D 1.5 1.6 D 20.2
D1 1.5 G 16.4 18.4
E 1.65 1.85 N 50
F 7.4 7.6 T 22.4
K0 2.55 2.75
P0 3.9 4.1 Base qty. 2500
P1 7.9 8.1 Bulk qty. 2500
P2 1.9 2.1
R 40
T 0.25 0.35
W 15.7 16.3
Min. Max. Min. Max.
mm
Dim.
Reel
mm
DS4030 - Rev 5
page 18/24
Page 19
4.6 TO-220 type A package information
0015988_typeA_Rev_21
Figure 26. TO-220 type A package outline
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
TO-220 type A package information
DS4030 - Rev 5
page 19/24
Page 20
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
TO-220 type A package information
Table 14. TO-220 type A package mechanical data
Dim.
Min. Typ. Max.
A 4.40 4.60
b 0.61 0.88
b1 1.14 1.55
c 0.48 0.70
D 15.25 15.75
D1 1.27
E 10.00 10.40
e 2.40 2.70
e1 4.95 5.15
F 1.23 1.32
H1 6.20 6.60
J1 2.40 2.72
L 13.00 14.00
L1 3.50 3.93
L20 16.40
L30 28.90
øP 3.75 3.85
Q 2.65 2.95
mm
DS4030 - Rev 5
page 20/24
Page 21
5 Ordering information
Order code Marking Package Packing
STD2NK90Z-1
STD2NK90ZT4 DPAK Tape and reel
STP2NK90Z P2NK90Z TO-220 Tube
Table 15. Order codes
D2NK90Z
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Ordering information
IPAK Tube
DS4030 - Rev 5
page 21/24
Page 22
Revision history
Date Version Changes
06-Oct-2004 1 First version
08-Sep-2005 2 Complete version
05-Mar-2006 3 Inserted Ecopack indication
27-Jul-2006 4 New template, no content change
28-Jun-2018 5
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Table 16. Document revision history
Removed maturity status indication from cover page. The document status is production
data.
Updated title in cover page, Section 1 Electrical ratings, Section 2 Electrical
characteristics and Section 4 Package information.
Minor text changes.
DS4030 - Rev 5
page 22/24
Page 23
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
Contents
Contents
1 Electrical ratings ..................................................................2
2 Electrical characteristics...........................................................3
2.1 Electrical characteristics (curves) .................................................5
3 Test circuits .......................................................................7
4 Package information...............................................................8
4.1 IPAK (TO-251) type A package information.........................................8
4.2 DPAK (TO-252) type A2 package information ......................................10
4.3 DPAK (TO-252) type C2 package information......................................12
4.4 DPAK (TO-252) type E package information .......................................14
4.5 DPAK (TO-252) packing information..............................................16
4.6 TO-220 type A package information ..............................................18
5 Ordering information .............................................................21
Revision history .......................................................................22
DS4030 - Rev 5
page 23/24
Page 24
STD2NK90Z-1, STD2NK90ZT4, STP2NK90Z
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST
products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST
products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of
Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2018 STMicroelectronics – All rights reserved
DS4030 - Rev 5
page 24/24
Loading...
