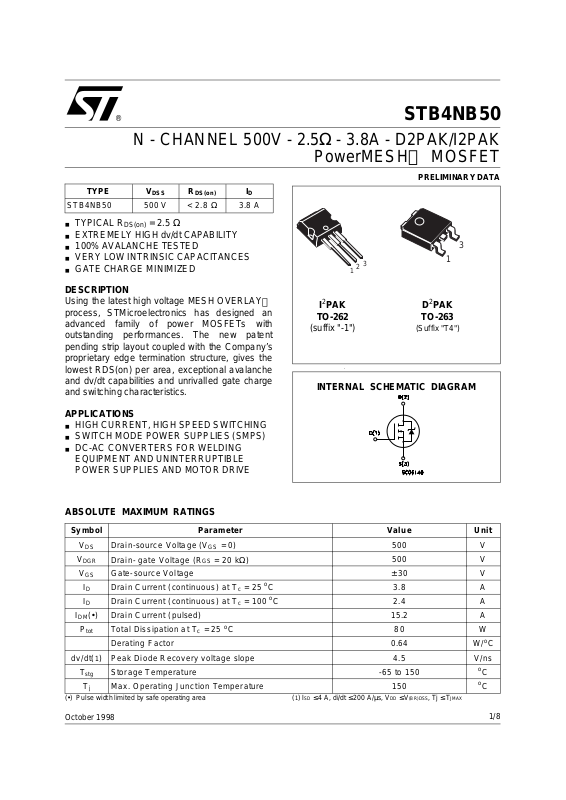

Page 1
®
N - CHANNEL 500V - 2.5Ω - 3.8A - D2PAK/I2PAK
TYPE V
DSS
STB4NB50 500 V < 2.8 Ω 3.8 A
■
TYPICAL R
■
EXTREMELY HIGH dv/dt CAPABILITY
■
100% AVALANCHE TESTED
■
VERY LOW INTRINSIC CAPACITANCES
■
GATE CHARGE MINIMIZED
DS(on)
= 2.5
DESCRIPTION
Using the latest high voltage MESH OVERLAY
process, STMicroelectronics has designed an
advanced family of power MOSFETs with
outstanding performances. The new patent
pending strip layout coupled with the Company’s
proprietary edge termination structure, gives the
lowest RDS(on) per area, exceptional avalanche
and dv/dt capabilities and unrivalled gate charge
and switching characteristics.
R
DS(on)
I
D
Ω
STB4NB50
PowerMESH MOSFET
PRELIMINARY DATA
3
3
2
1
I2PAK
TO-262
(suffix "-1" )
(Suffix "T4")
INTERNAL SCHEMATIC DIAGRAM
1
D2PAK
TO-263
APPLICATIONS
■
HIGH CURRENT, HIGH SPEED SWITCH ING
■
SWITCH MODE POWER SUPPLIES (SMPS)
■
DC-AC CONVERTERS FOR WELDING
EQUIPMENT AND UNINTERRUPTI BLE
POWER SUPPLIES AND MOTOR DRIVE
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
V
V
I
DM
P
dv/dt(
T
(•) Pulse width limited by safe operating area (1) ISD ≤ 4 A, di/dt ≤ 200 A/µs, VDD ≤ V
Drain-source Voltage (VGS = 0) 500 V
DS
Drain- gate Voltage (RGS = 20 kΩ)
DGR
Gate-source Voltage ± 30 V
GS
I
Drain Current (continuous) at Tc = 25 oC 3.8 A
D
I
Drain Current (continuous) at Tc = 100 oC 2.4 A
D
500 V
(•) Drain Current (pulsed) 15.2 A
Total Dissipation at Tc = 25 oC80W
tot
Derating Factor 0.64 W/
) Peak Diode Recovery voltage slope 4.5 V/ns
1
Storage Temperature -65 to 150
stg
T
Max. Operating Junction Temperature 150
j
, Tj ≤ T
(BR)DSS
JMAX
o
C
o
C
o
C
October 1998
1/8
Page 2
STB4NB50
THERMAL DATA
R
thj-case
Rthj-am b
R
thc-sink
T
Thermal Resistance Junction-case Max
Thermal Resistance Junction-ambient Max
Thermal Resistance Case-sink Typ
Maximum Lead Temperature For Soldering Purpose
l
AVALANCHE CHARACTERIST ICS
Symbol Parameter Max Value Unit
I
AR
E
Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by T
Single Pulse Avalanche Energy
AS
(starting T
= 25 oC, ID = IAR, V
j
max)
j
DD
= 50 V)
1.56
62.5
0.5
300
3.8 A
220 mJ
o
C/W
oC/W
o
C/W
o
C
ELECTRICAL CHARACTERISTICS
= 25 oC unless otherwise specified)
(T
case
OFF
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
(BR)DSS
Drain-source
I
= 250 µA V
D
GS
= 0
500 V
Breakdown Voltage
I
DSS
I
GSS
Zero Gate Voltage
Drain Current (V
GS
Gate-body Leakage
Current (V
DS
= 0)
= 0)
= Max Rating
V
DS
V
= Max Rating Tc = 125 oC
DS
V
= ± 30 V
GS
1
50
± 100 nA
ON (∗)
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
GS(th)
Gate Threshold
V
= VGS ID = 250 µA
DS
345V
Voltage
R
DS(on)
Static Drain-source On
VGS = 10V ID = 1.9 A 2.5 2.8 Ω
Resistance
I
D(on)
On State Drain Current VDS > I
V
= 10 V
GS
D(on)
x R
DS(on)max
3.8 A
DYNAMIC
Symbol Parameter Test Conditions Min. Typ. Max. Unit
g
(∗) Forward
fs
Transconductance
C
C
C
Input Capacitance
iss
Output Capacitance
oss
Reverse Transfer
rss
Capacitance
VDS > I
V
DS
x R
D(on)
DS(on)max
= 25 V f = 1 MHz V
ID = 1.9 A 1.2 2.3 S
= 0 400
GS
62
7.5
520
81
10
µA
µA
pF
pF
pF
2/8
Page 3
STB4NB50
ELECTRICAL CHARACTERISTICS
(continued)
SWITCHING ON
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
d(on)
Q
Q
Q
Turn-on Time
t
Rise Time
r
Total Gate Charge
g
Gate-Source Charge
gs
Gate-Drain Charge
gd
V
= 250 V ID = 1.9 A
DD
= 4.7 Ω VGS = 10 V
R
G
V
= 400 V ID = 3.8 A V
DD
= 10 V 14.5
GS
11
8
6.5
5
17
12
22 nC
SWITCHING OFF
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
r(Voff)
t
t
Off-voltage Rise Time
Fall Time
f
Cross-over Time
c
V
= 400 V ID = 3.8 A
DD
= 4.7 Ω VGS = 10 V
R
G
8
5
14
12
9
20
SOURCE DRAIN DIODE
Symbol Parameter Test Conditions Min. Typ. Max. Unit
3.8
15.2
I
SDM
I
SD
Source-drain Current
(•)
Source-drain Current
(pulsed)
V
(∗) Forward On Voltage ISD = 5.8 A VGS = 0 1.6 V
SD
t
Q
Reverse Recovery
rr
Time
Reverse Recovery
rr
I
= 3.8 A di/dt = 100 A/µs
SD
V
= 100 V Tj = 150 oC
DD
245
980
Charge
I
RRM
Reverse Recovery
8
Current
(∗) Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %
(•) Pulse width limited by safe operating area
ns
ns
nC
nC
ns
ns
ns
A
A
ns
µC
A
3/8
Page 4
STB4NB50
TO-262 (I2PAK) MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 4.3 4.6 0.169 0.181
A1 2.49 2.69 0.098 0.106
B 0.7 0.93 0.027 0.036
B1 1.2 1.38 0.047 0.054
B2 1.25 1.4 0.049 0.055
C 0.45 0.6 0.017 0.023
C2 1.21 1.36 0.047 0.053
D 8.95 9.35 0.352 0.368
e 2.44 2.64 0.096 0.104
E 10 10.28 0.393 0.404
L 13.2 13.5 0.519 0.531
L1 3.48 3.78 0.137 0.149
L2 1.27 1.4 0.050 0.055
mm inch
4/8
C
A
A1
C2
B2
B
e
E
L1
L2
D
L
P011P5/C
Page 5
P011P6/C
TO-263 (D2PAK) MECHANICAL DATA
STB4NB50
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 4.3 4.6 0.169 0.181
A1 2.49 2.69 0.098 0.106
B 0.7 0.93 0.027 0.036
B2 1.25 1.4 0.049 0.055
C 0.45 0.6 0.017 0.023
C2 1.21 1.36 0.047 0.053
D 8.95 9.35 0.352 0.368
E 10 10.28 0.393 0.404
G 4.88 5.28 0.192 0.208
L 15 15.85 0.590 0.624
L2 1.27 1.4 0.050 0.055
L3 1.4 1.75 0.055 0.068
mm inch
E
A
C2
L2
D
L
L3
B2
B
A1
C
G
5/8
Page 6
STB4NB5 0
