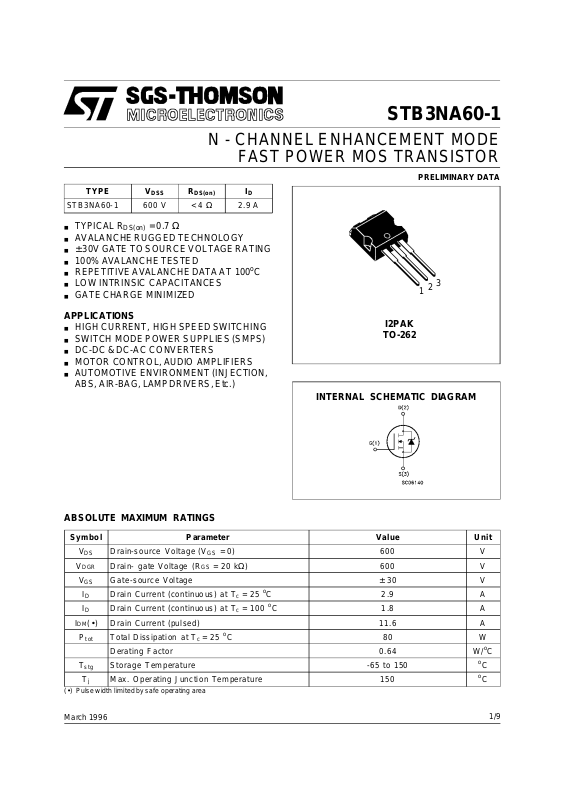

N - CHANNEL ENHANCEMENT MODE
FAST POWER MOS TRANSISTOR
TYPE V
DSS
STB3N A 60-1 600 V < 4 Ω 2.9 A
R
DS(on)
I
D
STB3NA60-1
PRELIMINARY DATA
■ TYPICALR
■ AVALANCHERUGGEDTECHNOLOGY
■ ±
30V GATETO SOURCE VOLTAGERATING
■ 100% AVALANCHETESTED
■ REPETITIVEAVALANCHEDATAAT 100
■ LOW INTRINSIC CAPACITANCES
■ GATECHARGE MINIMIZED
DS(on)
=0.7 Ω
o
C
APPLICATIONS
■ HIGH CURRENT, HIGH SPEEDSWITCHING
■ SWITCHMODE POWER SUPPLIES (SMPS)
■ DC-DC& DC-AC CONVERTERS
■ MOTORCONTROL,AUDIO AMPLIFIERS
■ AUTOMOTIVEENVIRONMENT (INJECTION,
ABS, AIR-BAG,LAMPDRIVERS,Etc.)
3
2
1
I2PAK
TO-262
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symb o l Parame t er Val u e Uni t
V
V
DGR
V
I
DM
P
T
(•) Pulse width limited by safe operating area
March 1996
Drain-source Voltage (VGS= 0) 600 V
DS
Drain- gate Voltage (RGS=20kΩ) 600 V
Gate-source Voltage ± 30 V
GS
I
Drain Current (c ont inuo us) a t Tc=25oC2.9A
D
I
Drain Current (c ont inuo us) a t Tc=100oC1.8A
D
(•) Drain Current (puls ed) 11.6 A
Total Dissipat i on at Tc=25oC80W
tot
Derat ing Factor 0.64 W/
Stora ge Temperature -65 to 150
stg
T
Max. Operat ing Junct i on Temperatu re 150
j
o
C
o
C
o
C
1/9
Page 2
STB3NA60-1
THERMAL DATA
R
thj-case
R
thj-amb
R
thj-amb
T
AVALANCHE CHARACTERISTICS
Symb o l Para met er Max V alue Uni t
I
AR
E
E
I
AR
Ther mal Resistance Junct ion-case Max
Ther mal Resistance Junct ion-ambient Max
Ther mal Resistance Case-s i nk Typ
Maximum Lead Tempera t ure For Solder ing Purpo se
l
Avalanche Current , Repet it iv e or Not-Repe t it ive
(pulse width limi t ed by T
Single Pu lse Avalanc he E nerg y
AS
(starti ng T
Repetitive Avalanche Energy
AR
=25oC, ID=IAR,VDD=50V)
j
(pulse width limi t ed by T
max, δ <1%)
j
max, δ <1%)
j
Avalanche Current , Repet it iv e or Not-Repe t it ive
=100oC, p ulse wid t h limited by Tjmax, δ <1%)
(T
c
1.56
62.5
0.5
300
2.9 A
42 mJ
1.6 mJ
1.8 A
o
C/W
o
C/W
o
C/W
o
C
ELECTRICAL CHARACTERISTICS (T
=25oC unlessotherwise specified)
case
OFF
Symbol Parameter Test Condition s Min. Typ. Max. Unit
V
(BR)DSS
Drain-source
ID= 250 µAV
= 0 600 V
GS
Break dow n Voltage
I
I
DSS
GSS
Zero Gate Voltage
Drain Current (V
GS
Gat e- bod y Leaka ge
Current (V
DS
=0)
=0)
=MaxRating
V
DS
V
=MaxRatingx0.8 Tc= 125oC
DS
V
= ± 30 V ±100 nA
GS
250
1000µAµA
ON (∗)
Symbol Parameter Test Condition s Min. Typ. Max. Unit
V
GS(th )
R
DS(on)
I
D(on)
Gat e Thre shold Volt age VDS=VGSID=250µA2.2533.75V
St at ic Drain-source On
Resistance
VGS=10V ID=1.5A
=10V ID=1.5A TC= 100oC
V
GS
On State Drain Current VDS>I
D(on)xRDS(on)maxVGS
=10 V 2.9 A
3.3 4
8
DYNAMIC
Symbol Parameter Test Condition s Min. Typ. Max. Unit
g
(∗)Forward
fs
Tr ansc on ductance
C
C
C
Input Capac it an ce
iss
Out put Capac itance
oss
Reverse Transfer
rss
Capacit a nc e
VDS>I
D(on)xRDS(on)maxID
=1.5A 1 2 S
VDS=25V f=1MHz VGS= 0 380
57
17
500
75
23
Ω
pF
pF
pF
2/9
Page 3
STB3NA60-1
ELECTRICAL CHARACTERISTICS (continued)
SWITCHINGON
Symbol Parameter Test Condition s Min. Typ. Max. Unit
t
d(on)
t
r
Turn-on Time
Rise Time
VDD=300V ID=1.5A
=18 Ω VGS=10V
R
G
(see test cir cuit, figure 3)
(di/dt)
Tur n-on C urr ent Slope VDD=400V ID=3A
on
R
=18 Ω VGS=10V
G
(see test cir cuit, figure 5)
Q
Q
Q
Tot al Gat e Charge
g
Gate-Source Charge
gs
Gat e- Drain Charge
gd
ID=3A VGS=10V
= M ax Rating x 0.8
V
DD
SWITCHINGOFF
Symbol Parameter Test Condition s Min. Typ. Max. Unit
t
r(Voff)
t
Off -voltage Rise Time
t
Fall T ime
f
Cross-over Time
c
VDD=480V ID=3A
=18Ω VGS=10V
R
G
(see test cir cuit, figure 5)
SOURCE DRAIN DIODE
14
25
20
35
300 A/ µs
22
30 nC
6
9
13
24
12
18
34
17
ns
ns
nC
nC
ns
ns
ns
Symbol Parameter Test Condition s Min. Typ. Max. Unit
I
I
SDM
SD
Source-drain Current
(•)
Source-drain Current
2.9
11.6
(pulsed)
(∗)ForwardOnVoltage ISD=2.9A VGS=0 1.5 V
V
SD
t
Q
Reverse Recovery
rr
Time
Reverse Recovery
rr
ISD= 3 A di/dt = 100 A/µs
=100V Tj=150oC
V
DD
(see test cir cuit, figure 5)
460
5.6
Charge
I
RRM
Reverse Recovery
24
Current
(∗) Pulsed: Pulse duration =300 µs,duty cycle 1.5 %
(•) Pulse width limited by safe operating area
Safe Operating Area ThermalImpedance
A
A
ns
µC
A
3/9
Page 4
STB3NA60-1

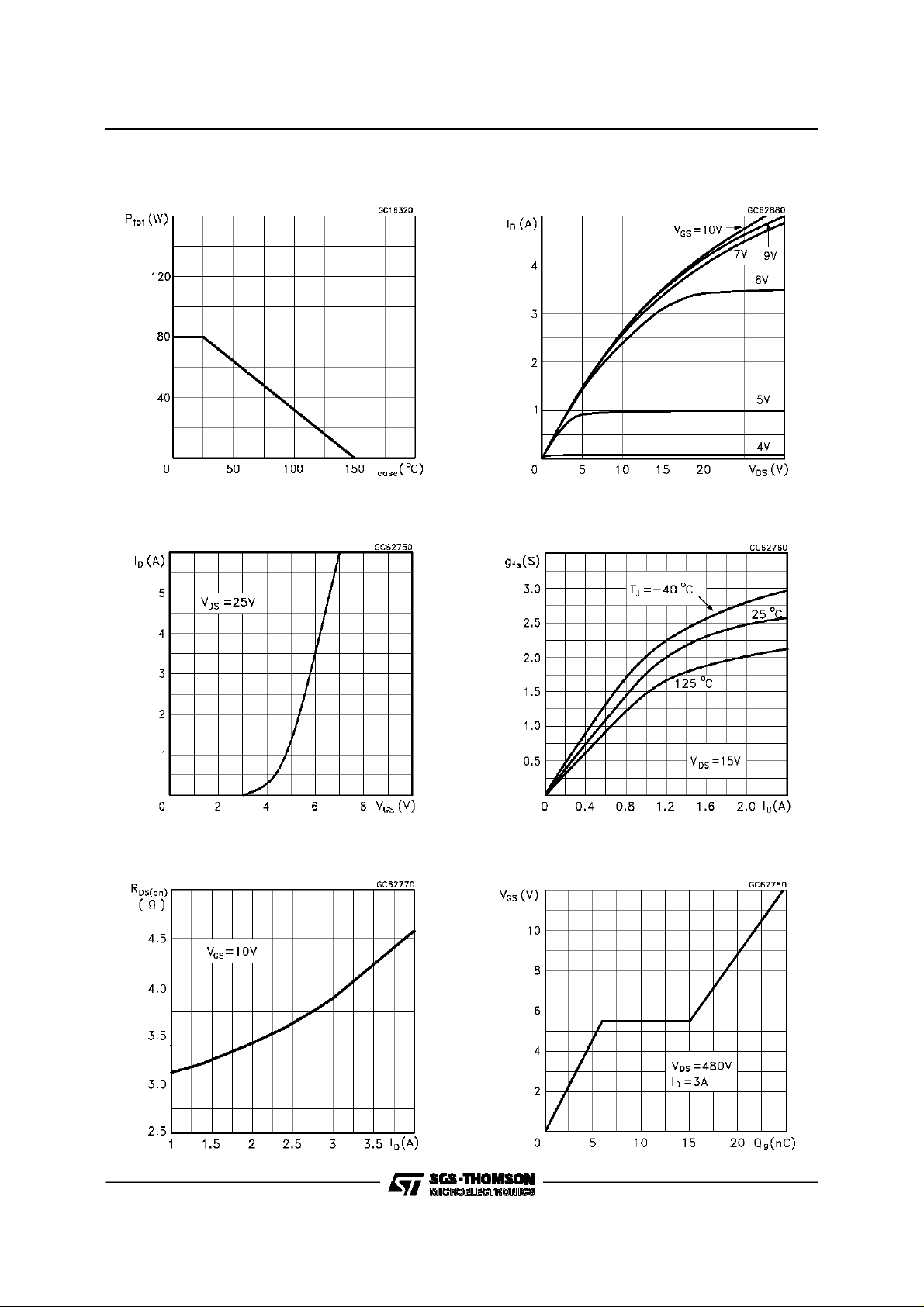

Derating Curve
TransferCharacteristics
OutputCharacteristics
Transconductance
StaticDrain-source On Resistance
4/9
Gate Charge vs Gate-source Voltage
Page 5
STB3NA60-1

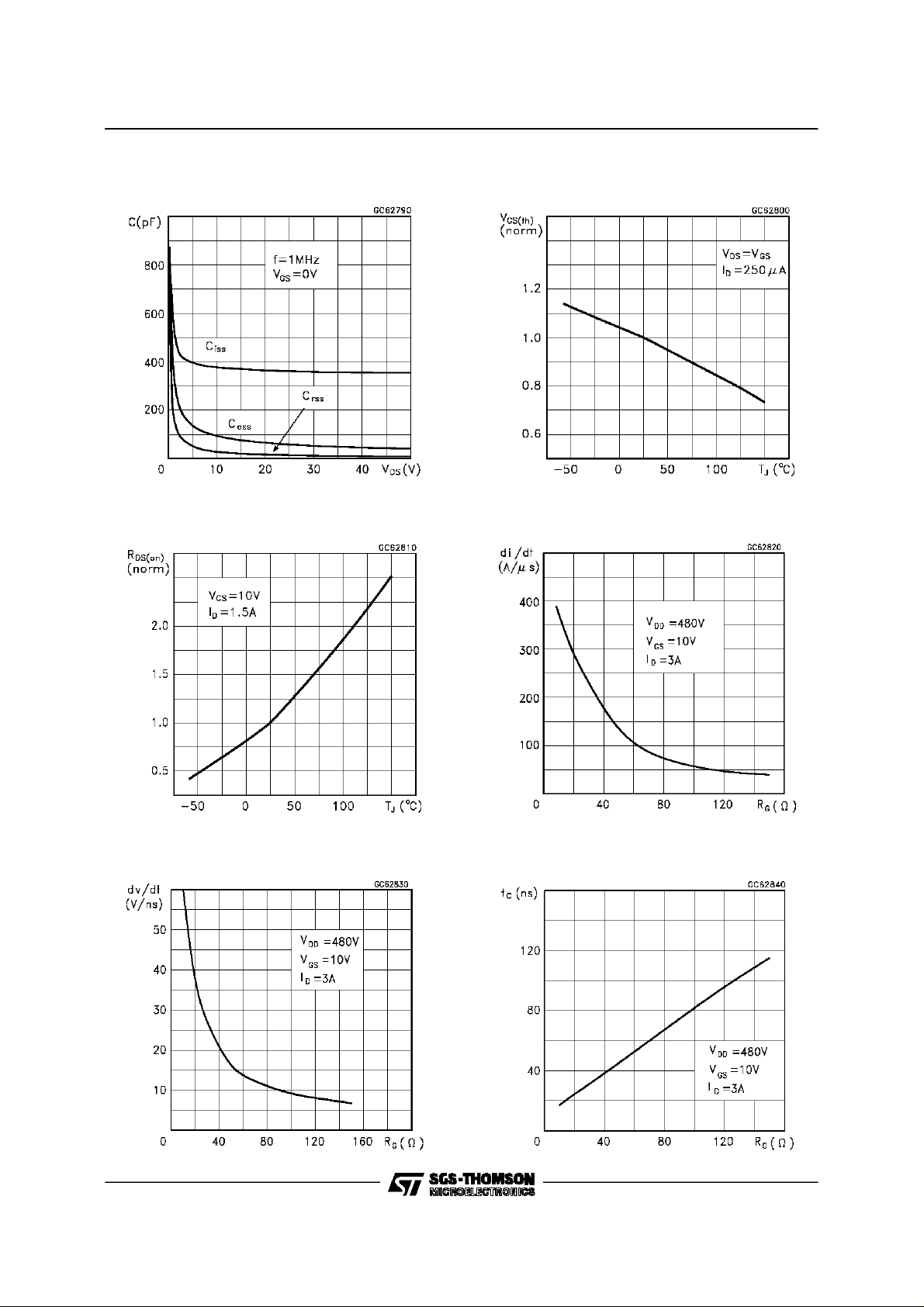

CapacitanceVariations
Normalized OnResistance vs Temperature
Normalized GateThreshold Voltage vs
Temperature
Turn-onCurrent Slope
Turn-offDrain-source VoltageSlope
Cross-overTime
5/9
Page 6
STB3NA60-1
SwitchingSafe Operating Area
Source-drainDiode Forward Characteristics
AccidentalOverload Area
Fig. 1: UnclampedInductive Load Test Circuit Fig.2: UnclampedInductive Waveform
6/9
Page 7
STB3NA60-1

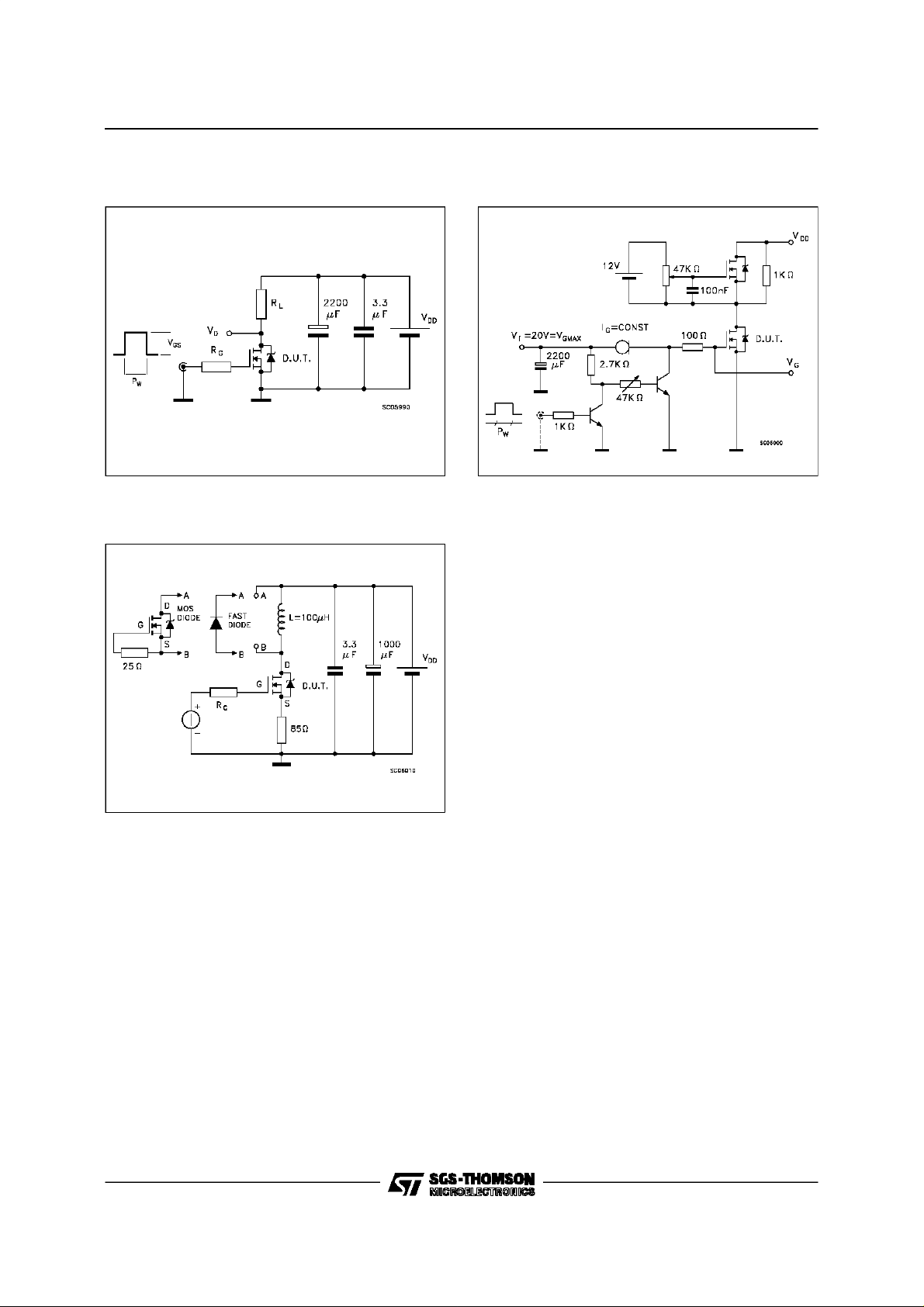

Fig. 3: SwitchingTimes Test Circuits For
ResistiveLoad
Fig. 5: Test CircuitFor Inductive Load Switching
And DIodeRecovery Times
Fig. 4: GateCharge test Circuit
7/9
Page 8
STB3NA60-1
TO-262(I2PAK) MECHANICALDATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 4.3 4.6 0.169 0.181
A1 2.49 2.69 0.098 0.106
B 0.7 0.93 0.027 0.036
B1 1.2 1.38 0.047 0.054
B2 1.25 1.4 0.049 0.055
C 0.45 0.6 0.017 0.023
C2 1.21 1.36 0.047 0.053
D 9 9.35 0.354 0.368
e 2.44 2.64 0.096 0.104
E 10 10.28 0.393 0.404
L 13.2 13.5 0.519 0.531
L1 3.48 3.78 0.137 0.149
L2 1.27 1.37 0.050 0.054
mm inch
8/9
C
A
A1
C2
B2
B
e
E
L1
L2
D
L
Page 9
STB3NA60-1
