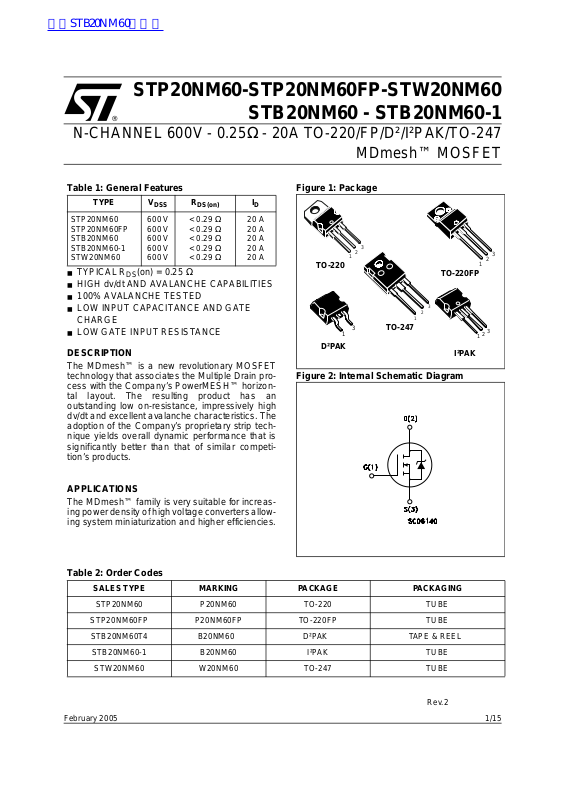

Datasheet STP20NM60, STP20NM60FP, STW20NM60, STB20NM60, STB20NM60-1 Datasheet (ST)

查询STB20NM60供应商

STP20NM60-STP20NM60FP-STW20NM60

STB20NM60 - STB20NM60-1

N-CHANNEL 600V - 0.25Ω - 20A TO-220/FP/D²/I²PAK/TO-247

MDmesh™ MOSFET

Table 1: Ge neral Features

TYPE V

STP20NM60
STP20NM60FP
STB20NM60
STB20NM60-1
STW20NM60

■ TYPICAL R

■ HIGH dv/dt AND AVALANCHE CAPABILITIES

■ 100% AVALANCHE TESTED

■ LOW INPUT CAPACITANCE AND GATE

DSS

600 V
600 V
600 V
600 V
600 V

(on) = 0.25 Ω

DS

R

DS(on)

< 0.29 Ω
< 0.29 Ω
< 0.29 Ω
< 0.29 Ω
< 0.29 Ω

I

D

20 A
20 A
20 A
20 A
20 A

CHARGE

■ LOW GATE INPUT RESISTAN CE

DESCRIPTION

The MDmesh™

is a new revolutionary MOSF ET

technology that asso ciates the Mul tiple Drain pro­cess with the Company’s PowerMESH™ horizon­tal layout. The resulting product has an
outstanding low on-resistance, impressively high
dv/dt and excellent avalanche characteristics. The
adoption of the Com pany’s proprietary strip tech­nique yields overall dynamic p erformance that is
significantly better than that of similar competi­tion’s products.

Figure 1: Package

3

2

1

TO-220

D²PAK

3

1

TO-247

1

3

2

TO-220FP

I²PAK

Figure 2: Internal Schematic Diagram

3

2

1

3

2

1

APPLICATIONS

The MDmesh™ family is very suitable for increas­ing power density of high voltage converters allow­ing system miniaturization and higher efficiencies.

Table 2: Order Codes

SALES TYPE MARKING PACKAGE PACKAGING

STP20NM60 P20NM60 TO-220 TUBE
STP20NM60FP P20NM60FP TO-220FP TUBE
STB20NM60T4 B20NM60 D²PAK TAPE & REEL

STB20NM60-1 B20NM60 I²PAK TUBE

STW20NM60 W20NM60 TO-247 TUBE

Rev.2

1/15February 2005

STP20NM60 - STP20NM60FP - STB20NM 60 - STW20NM60 - STB20NM60-1

Table 3: Absolute Maximum ratings

Symbol Parameter Value Unit

TO-220/D²PAK/

I²PAK/TO-247

V

I

V

V

DM

P

DGR

GS

I
I

TOT

DS

D
D

Drain-source Voltage (VGS = 0)
Drain-gate Voltage (RGS = 20 kΩ)

600 V

600 V
Gate- source Voltage ±30 V
Drain Current (continuous) at TC = 25°C
Drain Current (continuous) at TC = 100°C

()

Drain Current (pulsed) 80 80 (*) A
Total Dissipation at TC = 25°C

20 20 (*) A

12.6 12.6 (*) A

192 45 W

Derating Factor 1.2 0.36 W/°C

dv/dt (1) Peak Diode Recovery voltage slope 15 V/ns

V

ISO

T

stg

T

Insulation Winthstand Voltage (DC) -- 2500 V
Storage Temperature -65 to 150 °C
Max. Operating Junction Temperature 150 °C

j

() Pulse width limited by safe operating area

(1) I

≤ 20 A, di/dt ≤ 400 A/µs, V

SD

(*) Limited only by maximum temperature allowed

DD

≤ V

(BR)/DSS, Tj

≤ T

JMAX

TO-220FP

Table 4: Thermal Data

TO-220/D²PAK/

I²PAK/TO-247

Rthj-case Thermal Resistance Junction-case Max 0.65 2.8 °C/W

Rthj-amb Thermal Resistance Junction-ambient Max 62.5 °C/W

T

Maximum Lead Temperature For Soldering Purpose 300 °C

l

TO-220FP

Table 5: Avalanche Characteristics

Symbol Parame ter Max. Value Unit

I

AR

E

AS

Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by T

max)

j

Single Pulse Avalanche Energy
(starting T

= 25 °C, ID = IAR, VDD = 50 V)

j

ELECTRICAL CHARACTERISTICS (T

=25°C UNLESS OTHERWISE SPECIFIED)

CASE

10 A

650 mJ

Table 6: On/Off

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

(BR)DSS

I

DSS

I

GSS

V

GS(th)

R

DS(on)

Drain-source
Breakdown Voltage

Zero Gate Voltage
Drain Current (V

GS

= 0)

Gate-body Leakage
Current (V

DS

= 0)
Gate Threshold Voltage
Static Drain-source On

Resistance

ID = 250 µA, VGS = 0 600 V

= Max Rating

V

DS

VDS= Max Rating, TC= 125°C
V

= ± 30V ±100 µA

GS

V

= VGS, ID = 250 µA

DS

345V

1

10

VGS = 10V, ID = 10 A 0.25 0.29 Ω

Unit

µA
µA

2/15

STP20NM60 - STP20NM60FP - STB20NM60 - STW20NM60 - STB20NM60-1

ELECTRICAL CHARACTERISTICS (CONTINUED)
Table 7: Dynamic

Symbol Parameter Test Conditions Min. Typ. Max. Unit

(1) Forward Transconductance VDS > I

g

fs

C

oss eq.

C

iss

C

oss

C

rss

Input Capacitance
Output Capacitance
Reverse Transfer
Capacitance

(3) Equivalent Outpu t

Capacitance

t

d(on)

t

d(off)

Q
Q
Q

R

t

r

t

f

t

c

g
gs
gd

g

Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Cross-over Time

Total Gate Charge
Gate-Source Charge
Gate-Drain Charge

Gate Input Resistance f = 1 MHz Gate DC Bias = 0

ID = 10 A
V

DS

VGS = 0V, VDS = 0V to 400 V 215 pF

V

DD

RG = 4.7Ω VGS = 10 V
(Resistive Load see, Figure 3)
V

DD

(See test circuit, Figure 5)
V

DD

V

GS

Test Signal Level = 20 mV
Open Drain

D(on)

x R

DS(on)max,

11 S

= 25V, f = 1 MHz, VGS = 0 1500

350

35

= 200 V, ID = 10 A

25
20

6

= 480 V, ID = 20 A

11
21

= 400 V, ID = 20 A,
= 10V

39
10
20

1.6 Ω

54

pF
pF
pF

ns
ns
ns
ns
ns

nC
nC
nC

Table 8: Source Drain Diode

Symbol Parameter Test Conditions Min. Typ. Max. Unit

I

SD

I

SDM

VSD (1)

t

rr

Q

rr

I

RRM

t

rr

Q

rr

I

RRM

Note: 1. Pulsed: P ul se duration = 300 µs, duty cyc l e 1. 5 %.

2. Pulse wi dt h l i m ited by safe opera ting area.

3. C

Source-drain Current

(2)

Source-drain Current (pulsed)
Forward On Voltage
Reverse Recovery Time

Reverse Recovery Charge
Reverse Recovery Current

Reverse Recovery Time
Reverse Recovery Charge
Reverse Recovery Current

is defined as a constant equivalent capacitance giving the same charging time as C

oss eq.

V

.

DSS

ISD = 20 A, VGS = 0
I

SD

VDD = 100 V, Tj = 25°C
(see test circuit, Figure 5)

I

SD

V

DD

(see test circuit, Figure 5)

=20 A, di/dt = 100 A/µs

=20 A, di/dt = 100 A/µs

= 100 V, Tj = 150°C

390

5

25

510

6.5
26

when VDS increases from 0 to 80%

oss

20
80

1.5 V

A
A

ns

µC

A

ns

µC

A

3/15

STP20NM60 - STP20NM60FP - STB20NM 60 - STW20NM60 - STB20NM60-1

Figure 3: Safe Operating Area for TO-220/
D²PAK/I²PAK

Figure 4: Safe Operating Area for TO-220FP

Figure 6: Thermal Impedance for TO-220/
D²PAK/I²PAK

Figure 7: Thermal Impedan ce for TO -2 20FP

Figure 5: Safe Operating Area for TO-247

4/15

Figure 8: Thermal Impedan ce for TO -2 47

STP20NM60 - STP20NM60FP - STB20NM60 - STW20NM60 - STB20NM60-1

Figure 9: Output Characteristics

Figure 10: Transconductance

Figure 12: Gate Charge vs Gate-source Voltage

Figure 13: Normalized Gate Threshold Voltage
vs Tem p.

Figure 11: Transfer Characteristics

Figure 14: Static Drain-source On Resistance

5/15

STP20NM60 - STP20NM60FP - STB20NM 60 - STW20NM60 - STB20NM60-1

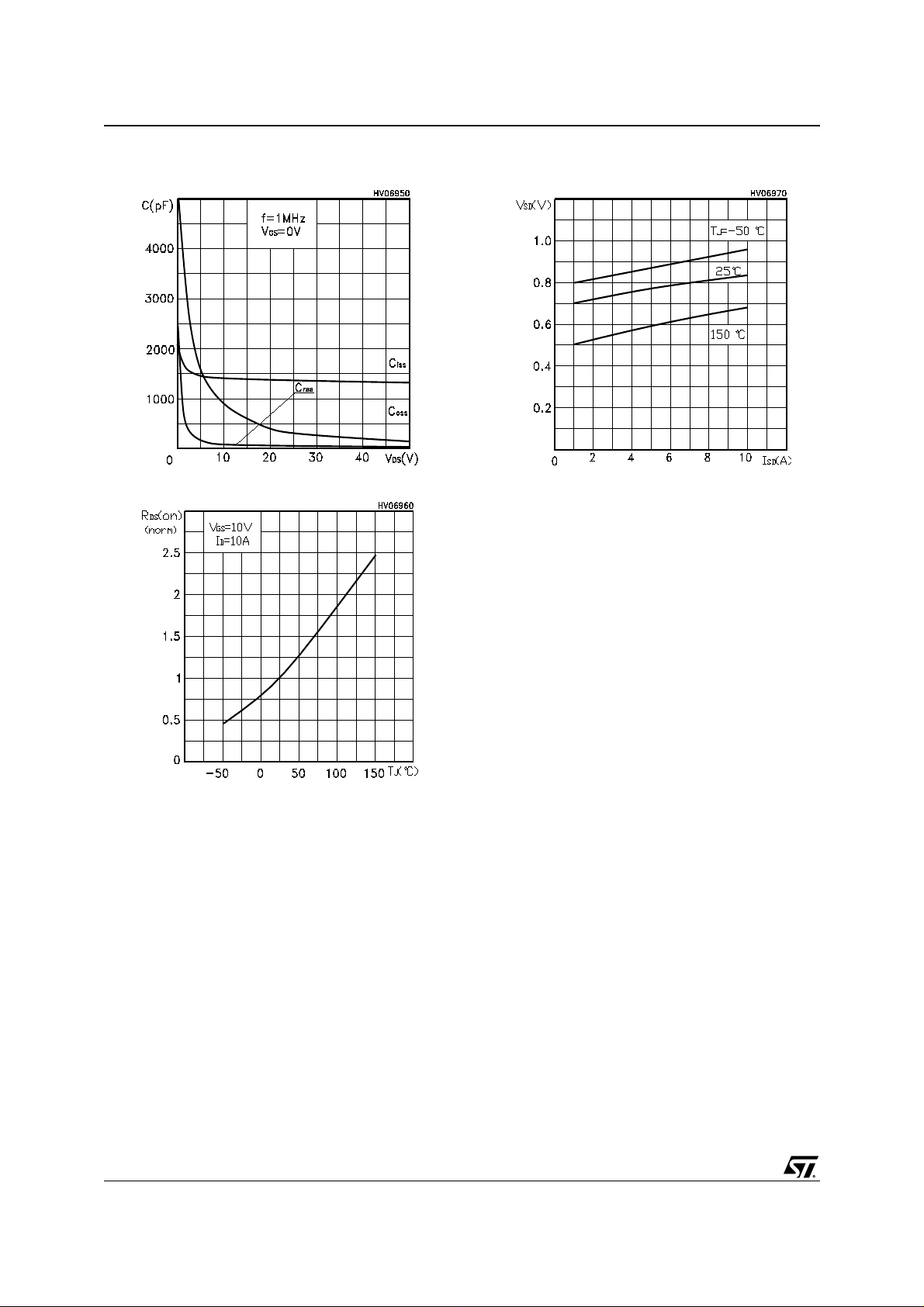

Figure 15: Capacitance Variations

Figure 16: Norm alized O n Resis tance vs T em­perature

Figure 17: Sour ce-drain Diode Forward Char­acteristics

6/15

STP20NM60 - STP20NM60FP - STB20NM60 - STW20NM60 - STB20NM60-1

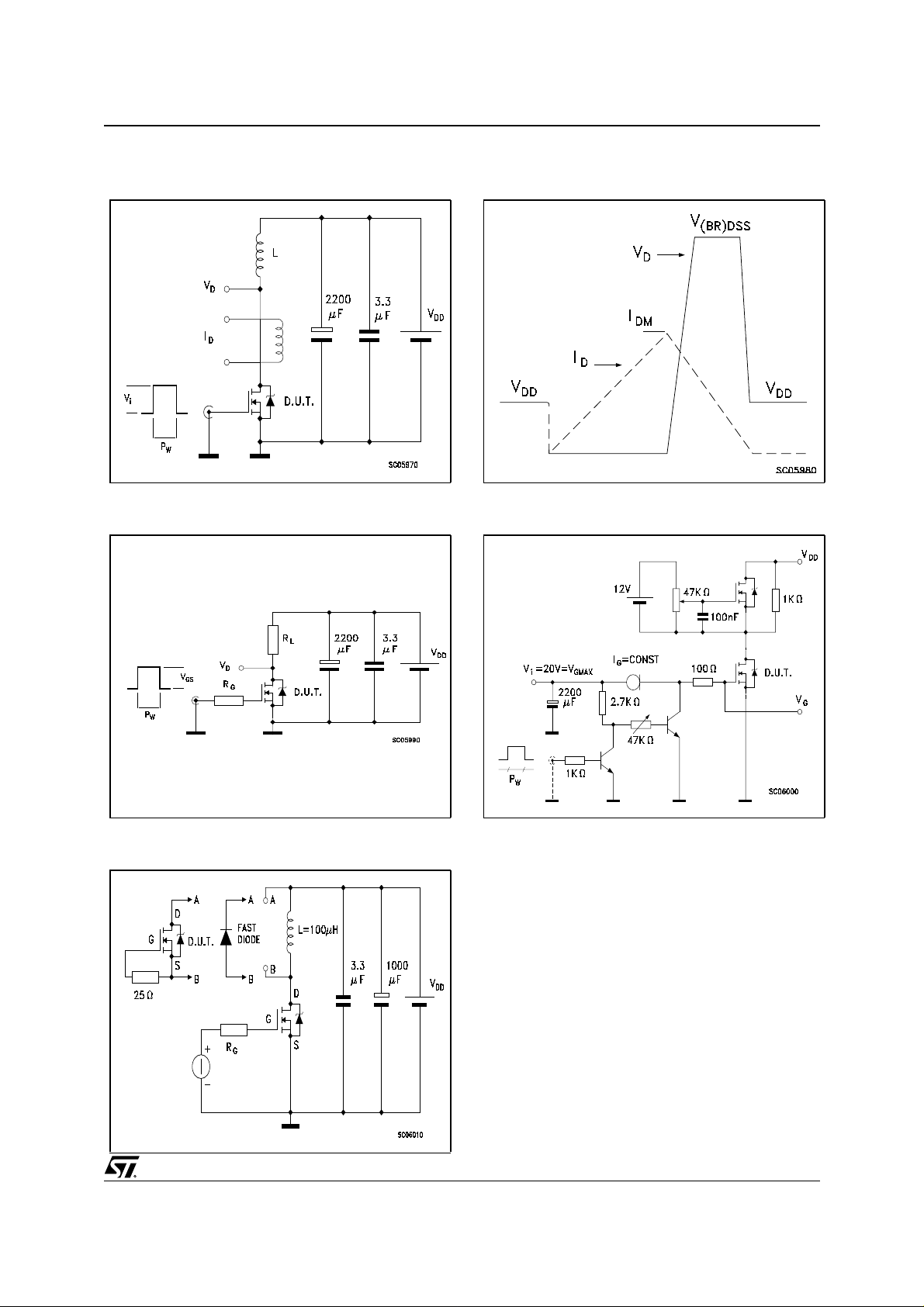

Figure 18: Unclamped Inductive Load Test Cir­cuit

Figure 19: Switching Times Test Circuit For
Resistive Load

Figure 21: Unclamped Inductive Wafeform

Figure 22: Gate Charge Test Circuit

Figure 20: Test Circuit For Inductive Load
Switching and Diode Recovery Times

7/15

STP20NM60 - STP20NM60FP - STB20NM 60 - STW20NM60 - STB20NM60-1

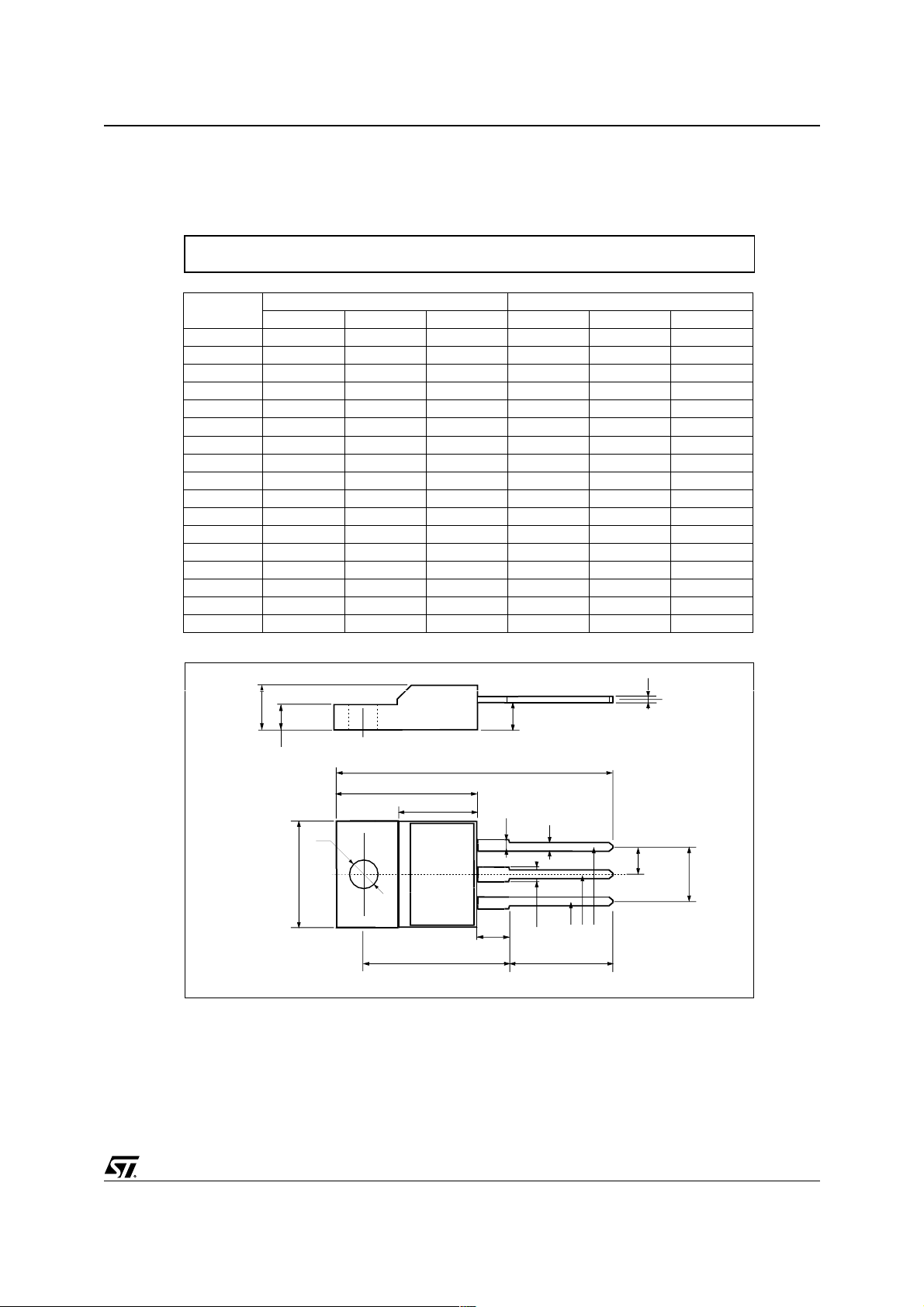

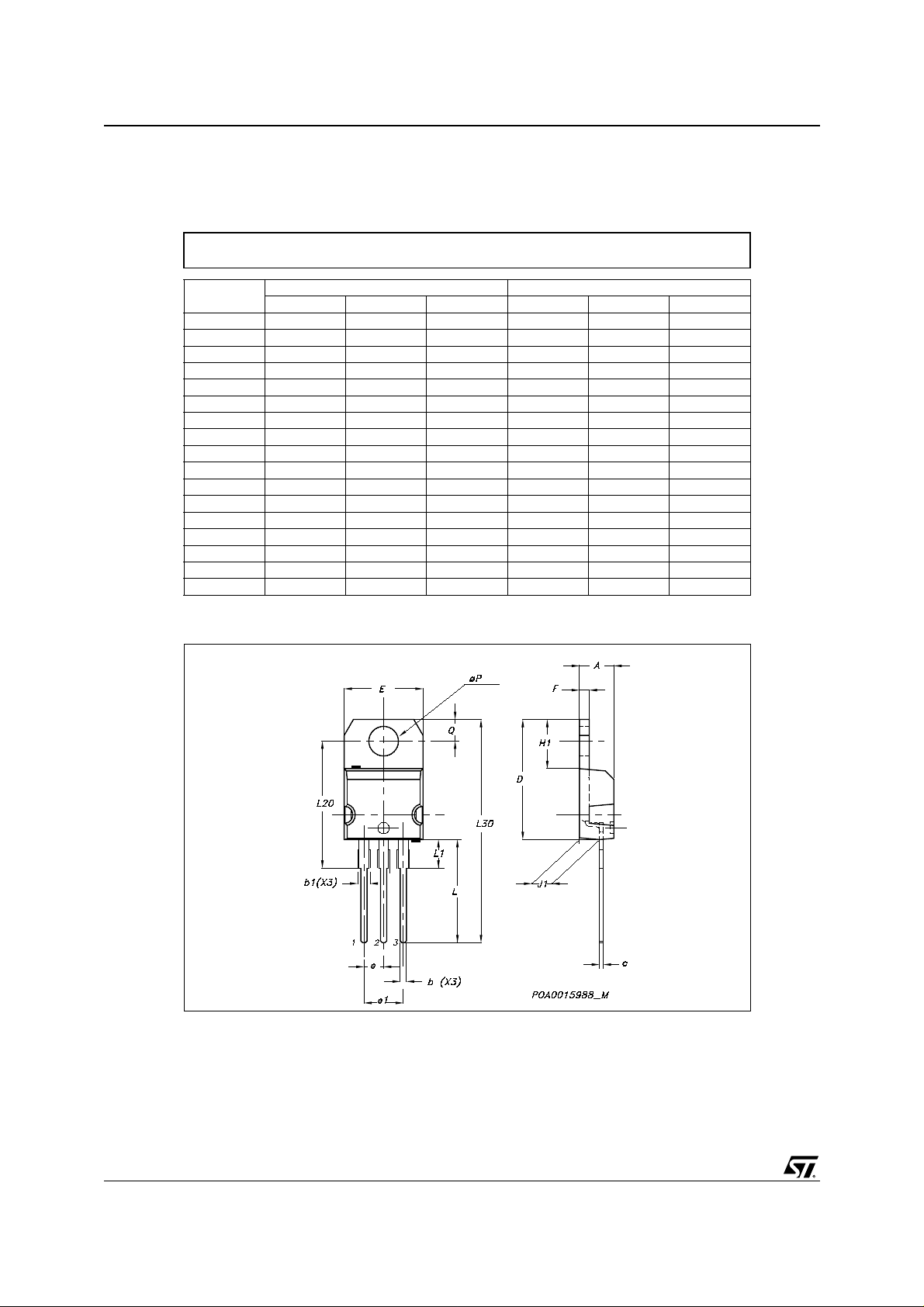

TO-220 MECHANICAL DATA

DIM.

A 4.40 4.60 0.173 0.181

b 0.61 0.88 0.024 0.034

b1 1.15 1.70 0.045 0.066

c 0.49 0.70 0.019 0.027
D 15.25 15.75 0.60 0.620
E 10 10.40 0.393 0.409

e 2.40 2.70 0.094 0.106

e1 4.95 5.15 0.194 0.202

F 1.23 1.32 0.048 0.052

H1 6.20 6.60 0.244 0.256

J1 2.40 2.72 0.094 0.107

L 13 14 0.511 0.551

L1 3.50 3.93 0.137 0.154
L20 16.40 0.645
L30 28.90 1.137

øP 3.75 3.85 0.147 0.151

Q 2.65 2.95 0.104 0.116

MIN. TYP MAX. M IN. TYP. MAX.

mm. inch

8/15

STP20NM60 - STP20NM60FP - STB20NM60 - STW20NM60 - STB20NM60-1

TO-220FP MECHANICAL DATA

DIM.

A 4.4 4.6 0.173 0.181
B 2.5 2.7 0.098 0.106
D 2.5 2.75 0.098 0.108
E 0.45 0.7 0.017 0.027

F 0.75 1 0.030 0.039
F1 1.15 1.7 0.045 0.067
F2 1.15 1.7 0.045 0.067

G 4.95 5.2 0.195 0.204

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409
L2 16 0.630
L3 28.6 30.6 1.126 1.204
L4 9.8 10.6 .0385 0.417
L5 2.9 3.6 0.114 0.141
L6 15.9 16.4 0.626 0.645
L7 9 9.3 0.354 0.366

Ø 3 3.2 0.118 0.126

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

E

A

D

B

L3

L6

L7

1
F

F

1

H

G

G

L2

L5

2
F

123

L4

9/15

STP20NM60 - STP20NM60FP - STB20NM 60 - STW20NM60 - STB20NM60-1

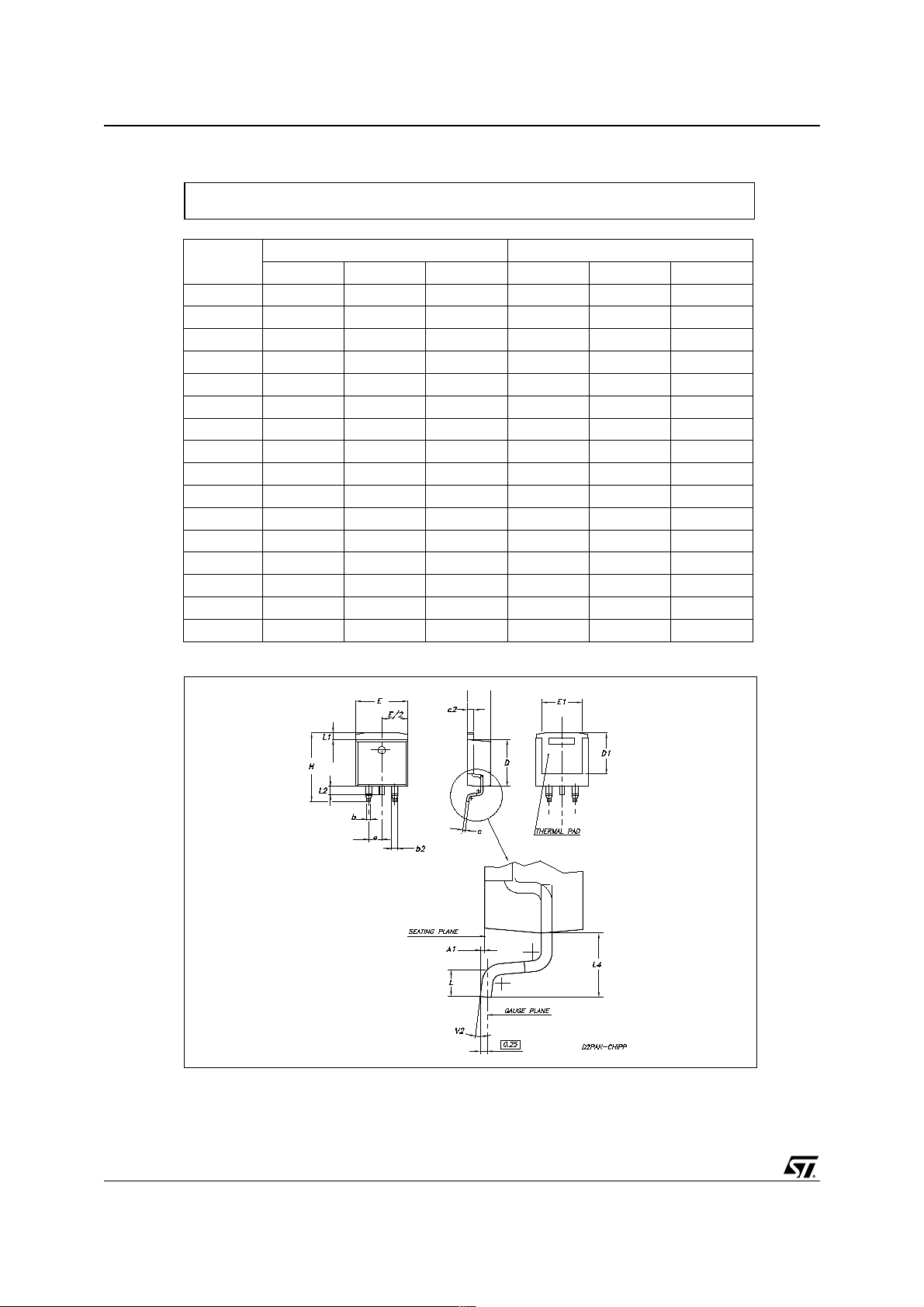

TO-263 (D2PAK) MECHANICAL DATA

DIM.

A 4.32 4.57 0.178 0.180

A1 0.00 0.25 0.00 0.009

b 0.71 0.91 0.028 0.350
b2 1.15 1.40 0.045 0.055

c 0.46 0.61 0.018 0.024
c2 1.22 1.40 0.048 0.055

D 8.89 9.02 9.40 0.350 0.355 0.370

D1 8.01 0.315

E 10.04 10.28 0.395 0.404

e 2.54 0.010

H 13.10 13.70 0.515 0.540

L 1.30 1.70 0.051 0.067
L1 1.15 1.39 0.045 0.054
L2 1.27 1.77 0.050 0.069
L4 2.70 3.10 0.106 0.122

V2 0° 8° 0°

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

8°

10/15

STP20NM60 - STP20NM60FP - STB20NM60 - STW20NM60 - STB20NM60-1

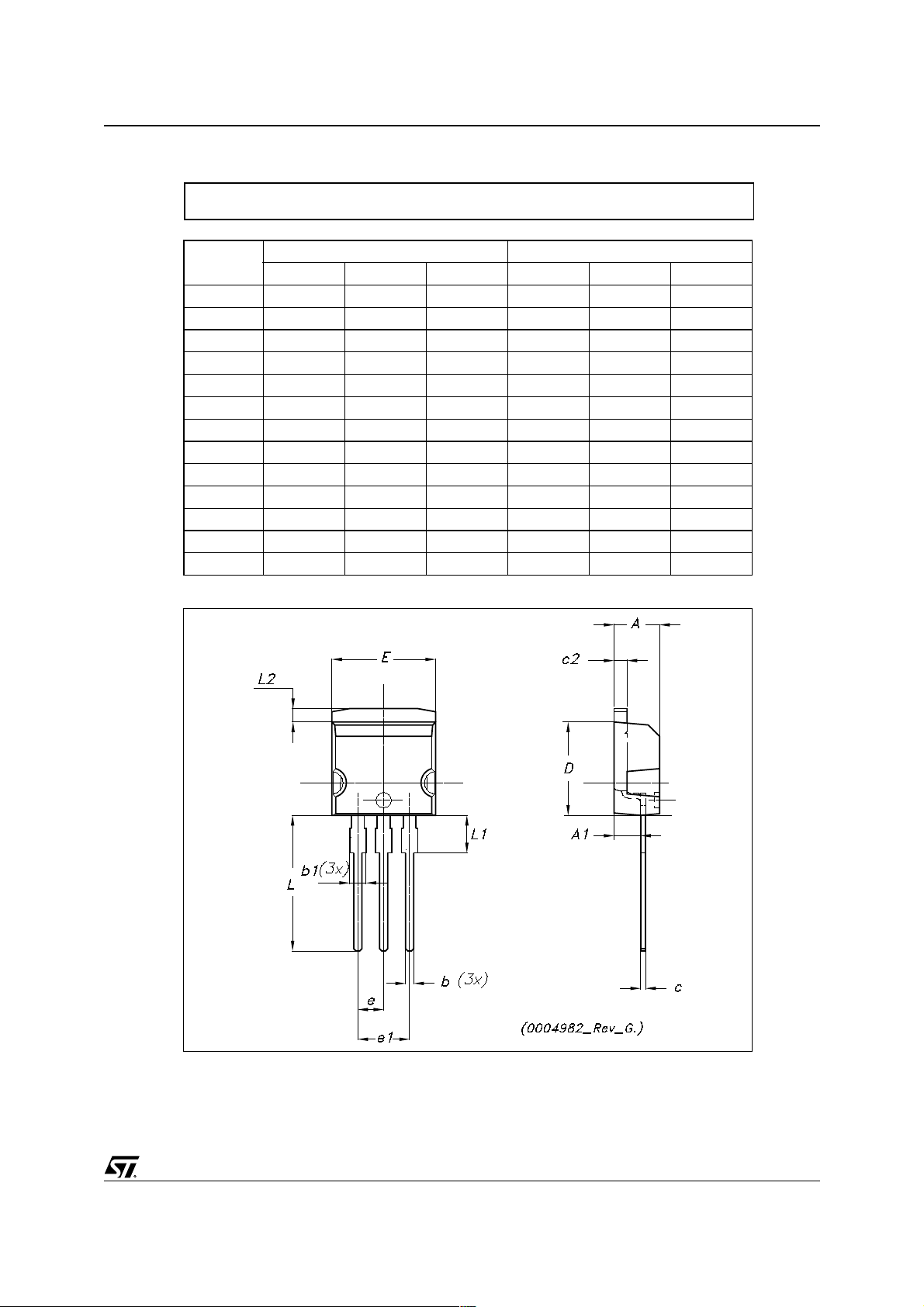

TO-262 (I2PAK) MECHANICAL DATA

DIM.

A 4.40 4.60 0.173 0.181

A1 2.40 2.72 0.094 0.107

b 0.61 0.88 0.024 0.034
b1 1.14 1.70 0.044 0.066

c 0.49 0.70 0.019 0.027

c2 1.23 1.32 0.048 0.052

D 8.95 9.35 0.352 0.368

e 2.40 2.70 0.094 0.106
e1 4.95 5.15 0.194 0.202

E 10 10.40 0.393 0.410

L 13 14 0.511 0.551
L1 3.50 3.93 0.137 0.154
L2 1.27 1.40 0.050 0.055

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

11/15

STP20NM60 - STP20NM60FP - STB20NM 60 - STW20NM60 - STB20NM60-1

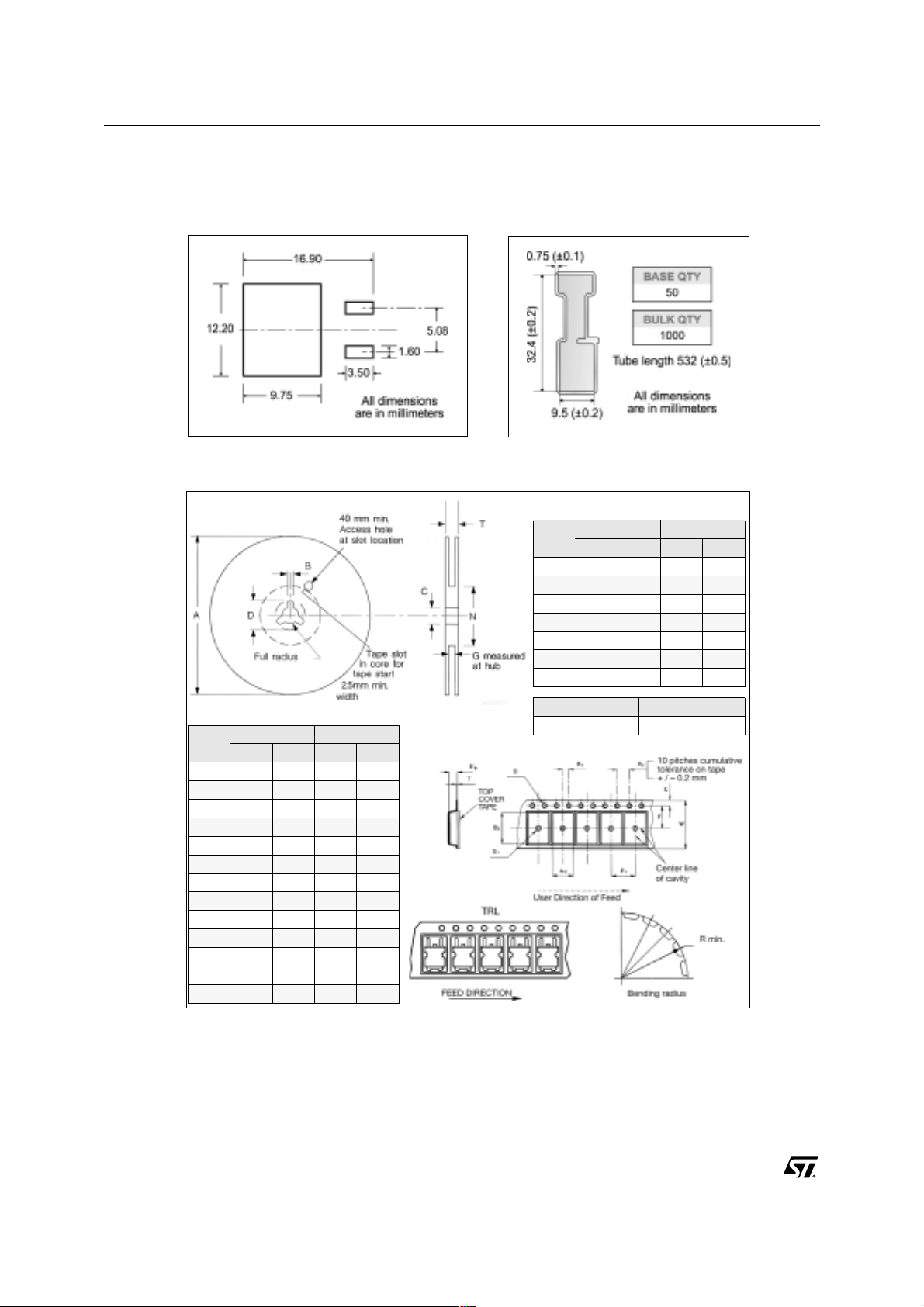

D2PAK FOOTPRINT

TAPE AND REEL SHIPMENT (suffix ”T4”)*

TUBE SHIPMENT (no suffix)*

REEL MECHANICAL DATA

DIM.

A 330 12.992
B 1.5 0.059
C 12.8 13.2 0.504 0.520
D 20.2 0795
G 24.4 26.4 0.960 1.039
N 100 3.937
T 30.4 1.197

mm inch

MIN. MAX. MIN. MAX.

T APE MECHANICAL DATA

DIM.

A0 10.5 10.7 0.413 0.421
B0 15.7 15.9 0.618 0.626

D 1.5 1.6 0.059 0.063

D1 1.59 1.61 0.062 0.063

E 1.65 1.85 0.065 0.073

F 11.4 11.6 0.449 0.456
K0 4.8 5.0 0.189 0.197
P0 3.9 4.1 0.153 0.161
P1 11.9 12.1 0.468 0.476
P2 1.9 2.1 0.075 0.082

R 50 1.574

T 0.25 0.35 0.0098 0.0137

W 23.7 24.3 0.933 0.956

* on sales type

mm inch

MIN. MAX. MIN. MAX.

BASE QTY BULK QTY

1000 1000

12/15

STP20NM60 - STP20NM60FP - STB20NM60 - STW20NM60 - STB20NM60-1

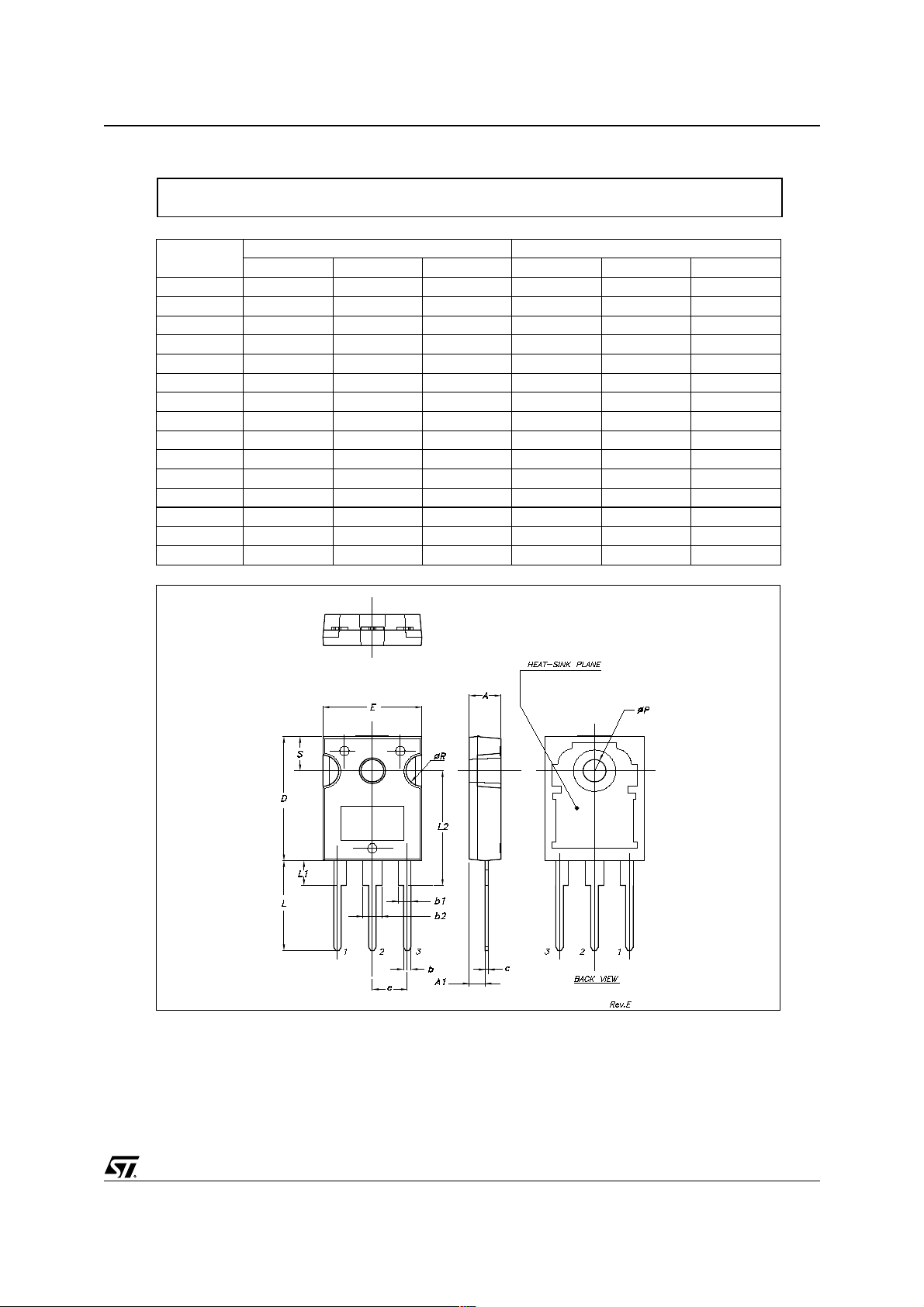

TO-247 MECHANICAL DATA

DIM.

A 4.85 5.15 0.19 0.20

A1 2.20 2.60 0.086 0.102

b 1.0 1.40 0.039 0.055
b1 2.0 2.40 0.079 0.094
b2 3.0 3.40 0.118 0.134

c 0.40 0.80 0.015 0.03

D 19.85 20.15 0.781 0.793
E 15.45 15.75 0.608 0.620

e5.45 0.214

L 14.20 14.80 0.560 0.582
L1 3.70 4.30 0.14 0.17
L2 18.50 0.728

øP 3.55 3.65 0.140 0.143
øR 4.50 5.50 0.177 0.216

S5.50 0.216

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

13/15

STP20NM60 - STP20NM60FP - STB20NM 60 - STW20NM60 - STB20NM60-1

Table 9: Revision History

Date Revision Description of Change s

26-Jul-2004 1 First Release

17-Feb-2005 2 Insert the TO-247 package

14/15

STP20NM60 - STP20NM60FP - STB20NM60 - STW20NM60 - STB20NM60-1

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is g ranted
by implic ati o n or ot h er wis e und er an y pat ent or pa te nt r igh ts of STMi cr oe l ect ro ni cs . Sp ec if i cat i on s ment i o ned i n th is p ub li c ati on ar e s ubj ec t
to change without notice. This publication supers edes and replaces all informa tion previously supplied. STMicroelec tronics products are not
authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.

The ST logo is a registered trademark of STMicroelectronics

All other names are the property of their respective owners

© 2005 STMicroelectronics - All Rights Reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

15/15
