STB160NF03L
N-CHANNEL 30V - 0.0021Ω - 160A D2 PAK
STripFET™ POWER MOSFET
TYPE V
DSS
STB160NF03L 30 V < 0.0030
■ TYPICAL R
■ LOW THRESHOLD DRIVE
■ ULTRA LOW ON-RESISTANCE
■ VERY LOW GATE CHARGE
■ 100% AVALANCHE TESTED
(on) = 0.0021Ω
DS
R
DS(on)
I
D
Ω
160 A
DESCRIPTION
This Power MOSFET is the latest dev elo pment of
STMicroelectronics unique “Single Feature
™” strip-based process. The re sulting tran-
Size
sistor shows extremely high packing density with
ultra low on-resistance, superior switching characteristics and less critical alignment steps therefore
a remarkable manufacturing reproducibility. This
device is particularly suitable for high current, low
voltage switching application where efficiency is
crucial.
APPLICATIONS
■ BUCK CONVERTERS IN HIGH
PERFORMANCE TELECOM AND VRMs
■ DC-DC CONVERTERS
3
1
D2PAK
(TO-263)
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
DS
V
DGR
V
GS
I
(1) Drain Current (continuos) at TC = 25°C
D
I
D
I
DM
P
TOT
E
AS
T
stg
T
j
(●) Pulse width limited by safe operating area
Drain-source Voltage (VGS = 0)
Drain-gate Voltage (RGS = 20 kΩ)
30 V
30 V
Gate- source Voltage ±15 V
160 A
Drain Current (continuos) at TC = 100°C
(●)
Drain Current (pulsed) 640 A
Total Dissipation at TC = 25°C
113 A
300 W
Derating Factor 2 W/°C
(2)
Single Pulse Avalanche Energy 2 J
Storage Temperature –65 to 175 °C
Max. Operating Junction Temperature 175 °C
(1) Limited by Package
≤100A, di/dt ≤300A/µs, VDD ≤ V
(2) I
SD
(BR)DSS
, Tj ≤ T
JMAX.
1/9February 2001
Page 2
STB160NF03L
THERMA L D ATA
Rthj-case Thermal Resistance Junction-case Max 0.5 °C/W
Rthj-amb Thermal Resistance Junction-ambient Max 62.5 °C/W
T
l
ELECTRICAL CHARACTERISTICS (TCASE = 25 °C UNLESS OTHERWISE SPECIFIED)
OFF
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
(BR)DSS
I
DSS
I
GSS
ON
(1)
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
GS(th)
R
DS(on)
I
D(on)
Maximum Lead Temperature For Soldering Purpose 300 °C
Drain-source
ID = 250 µA, VGS = 0 30 V
Breakdown Voltage
Zero Gate Voltage
Drain Current (V
GS
= 0)
Gate-body Leakage
Current (V
DS
= 0)
Gate Threshold Voltage
Static Drain-source On
Resistance
On State Drain Current VDS > I
V
= Max Rating
DS
V
= Max Rating, TC = 125 °C
DS
V
= ±15V ±100 nA
GS
V
= VGS, ID = 250µA
DS
VGS = 10 V, ID = 80 A
VGS = 5 V, ID = 80 A
x R
D(on)
DS(on)max,
1V
0.0021 0.0030
0.0042 0.0070
160 A
1µA
10 µA
VGS=10V
Ω
Ω
DYNAMIC
Symbol Parameter Test Conditions Min. Typ. Max. Unit
(1) Forward Transconductance VDS > I
g
fs
C
iss
C
oss
C
rss
Input Capacitance
Output Capacitance 1720 pF
Reverse Transfer
Capacitance
ID=80 A
V
DS
D(on)
x R
DS(on)max,
= 25V, f = 1 MHz, VGS = 0
210 S
5600 pF
310 pF
2/9
Page 3
STB160NF03L
ELECTRICAL CHARACTERISTICS (CONTINUED)
SWITCHING ON
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
t
d(on)
Q
Q
Q
t
r
g
gs
gd
Turn-on Delay Time
Rise Time 285 ns
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
SWITCHING OFF
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
d(off)
t
d(off)
t
f
t
f
t
c
Turn-off-Delay Time
Fall Time
Off-voltage Rise Time
Fall Time
Cross-over Time
SOURCE DRAIN DIODE
Symbol Parameter Test Conditions Min. Typ. Max. Unit
I
SD
I
SDM
VSD (2)
t
rr
Q
rr
I
RRM
Note: 1. Pulsed: Pu l se duration = 300 µs, duty cyc l e 1.5 %.
2. Pulse width li mited by safe o perating area .
Source-drain Current 160 A
(1)
Source-drain Current (pulsed) 640 A
Forward On Voltage
Reverse Recovery Time
Reverse Recovery Charge
Reverse Recovery Current
= 15V, ID = 80A
DD
RG= 4.7Ω VGS = 10V
(see test circuit, Figure 3)
= 24V, ID = 160A,
V
DD
VGS = 10V
VDD = 15V, ID = 80A,
RG=4.7Ω, V
GS
= 10V
(see test circuit, Figure 5)
GS
=40A
D
= 10V
Vclamp =24V, I
RG=4.7Ω, V
ISD = 160A, VGS = 0
= 80A, di/dt = 100A/µs,
I
SD
VDD = 15V, Tj = 25°C
(see test circuit, Figure 5)
28 ns
123
21
40
110
65
110
35
70
1.3 V
80
180
4.5
nC
nC
nC
ns
ns
ns
ns
ns
ns
nC
A
Safe Operating Area
Ther m al Imp e d ance
3/9
Page 4
STB160NF03L

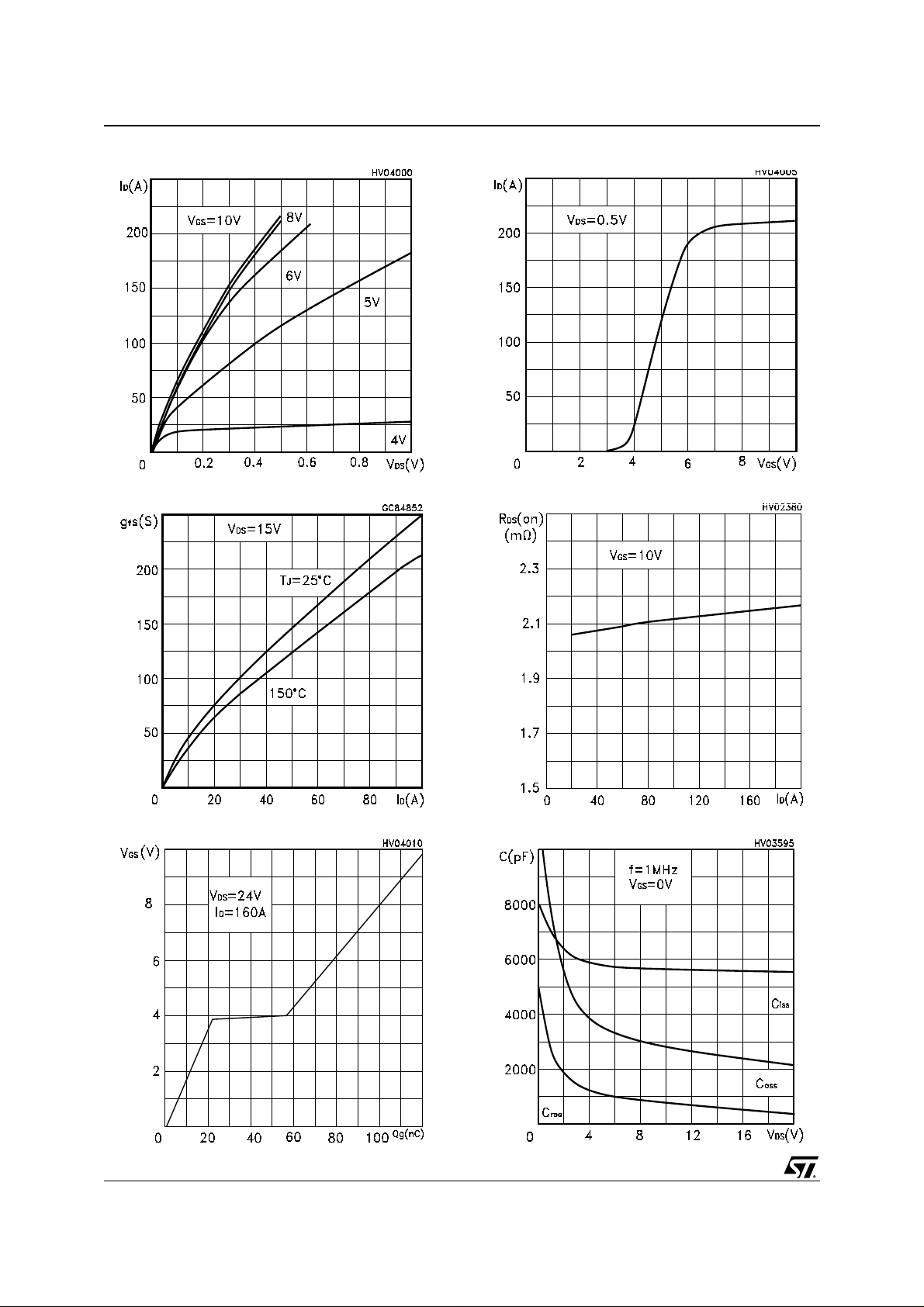

Output Characteristics
Tranconductance
Tranfer Characteristics
Static Drain-Source On Resistance
4/9
Capacitance VariationsGate Charge vs Gate-source Voltage
Page 5
STB160NF03L
Normalized Gate Thereshold Voltage vs Temp.
Source-drain Diode Forward Characteristics
Normalized On Resistance vs Temperatur e
5/9
Page 6
STB160NF03L

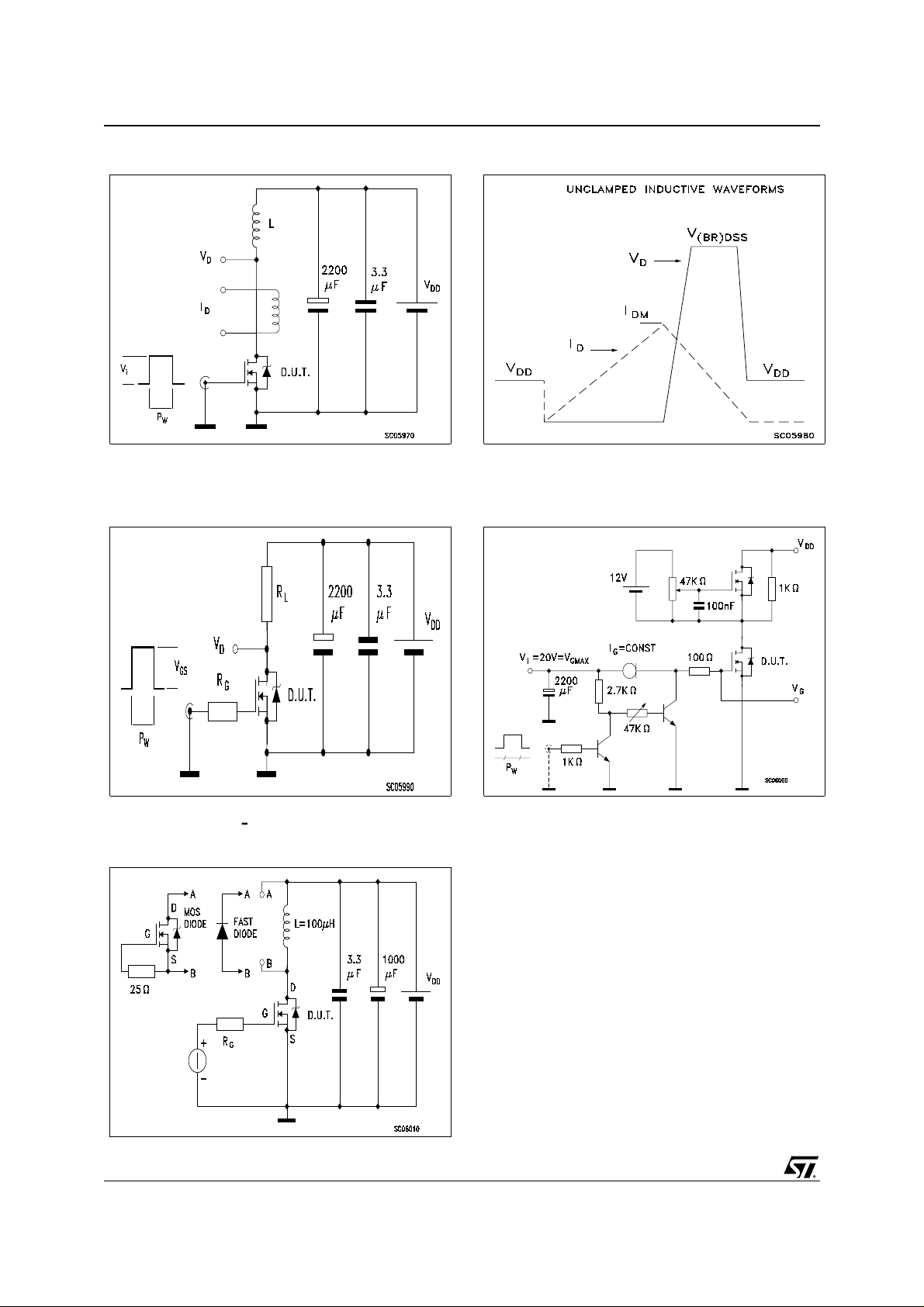

Fig. 2: Unclamped Inductive WaveformFig. 1: Unclamped Inductive Load Test Circuit
Fig. 3: Switching Times Test Circuit For
Resistive Load
Fig. 5: Test Circuit For Inductive Load Switching
And Diode Recovery Times
Fig. 4: Gate Charge test Circuit
6/9
Page 7
2
D
PAK MECHANICAL DATA
STB160NF03L
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 4.4 4.6 0.173 0.181
A1 2.49 2.69 0.098 0.106
A2 0.03 0.23 0.001 0.009
B 0.7 0.93 0.027 0.036
B2 1.14 1.7 0.044 0.067
C 0.45 0.6 0.017 0.023
C2 1.23 1.36 0.048 0.053
D 8.95 9.35 0.352 0.368
D1 8 0.315
E 10 10.4 0.393
E1 8.5 0.334
G 4.88 5.28 0.192 0.208
L 15 15.85 0.590 0.625
L2 1.27 1.4 0.050 0.055
L3 1.4 1.75 0.055 0.068
mm. inch
M 2.4 3.2 0.094 0.126
R 0.4 0.015
V2 0º8º
3
7/9
1
Page 8
STB160NF03L
D2PAK FOOTPRINT
TAPE AND REEL SHIPMENT (suffix ”T4”)*
TUBE SHIPMENT (no suffix)*
REEL MECHANICAL DATA
DIM.
A 330 12.992
B 1.5 0.059
C 12.8 13.2 0.504 0.520
D 20.2 0795
G 24.4 26.4 0.960 1.039
N 100 3.937
T 30.4 1.197
mm inch
MIN. MAX. MIN. MAX.
TAPE MECHANICAL DATA
DIM.
A0 10.5 10.7 0.413 0.421
B0 15.7 15.9 0.618 0.626
D 1.5 1.6 0.059 0.063
D1 1.59 1.61 0.062 0.063
E 1.65 1.85 0.065 0.073
F 11.4 11.6 0.449 0.456
K0 4.8 5.0 0.189 0.197
P0 3.9 4.1 0.153 0.161
P1 11.9 12.1 0.468 0.476
P2 1.9 2.1 0.075 0.082
R 50 1.574
T 0.25 0.35 0.0098 0.0137
W 23.7 24.3 0.933 0.956
* on sales type
8/9
mm inch
MIN. MAX. MIN. MAX.
BASE QTY BULK QTY
1000 1000
Page 9
STB160NF03L
