Page 1

September 1999 1/84

ST72101/ST72212/ST72213

8-BIT MCU WITH 4 TO 8K ROM/OTP/EPROM,

256 BYTES RAM, ADC, WDG, SPI AND 1 OR 2 TIMERS

DATASHEET

■ User Program Memory (ROM/OTP/EPROM):

4 to8K bytes

■ Data RAM: 256 bytes, including 64 bytes of

stack

■ Master Resetand Power-On Reset

■ Run, Wait, Slow, Halt and RAM Retention

modes

■ 22 multifunctionalbidirectional I/O lines:

– 22 programmable interrupt inputs – 8 high sinkoutputs – 6 analog alternateinputs – 10 to 14 alternate functions – EMI filtering

■ Programmable watchdog (WDG)

■ One or two 16-bit Timers, each featuring:

– 2 Input Captures – 2 Output Compares – External Clock input (on Timer A only) – PWM and Pulse Generator modes

■ Synchronous Serial Peripheral Interface (SPI)

■ 8-bit Analog-to-Digital converter (6 channels)

(ST72212 and ST72213 only)

■ 8-bit Data Manipulation

■ 63 Basic Instructions

■ 17 mainAddressing Modes

■ 8 x8 Unsigned Multiply Instruction

■

True BitManipulation

■ Complete Development Support on PC/DOS-

WINDOWSTMReal-Time Emulator

■ Full Software Package on DOS/WINDOWS

(C-Compiler, Cross-Assembler, Debugger)

Device Summary

SO28

PSDIP32

CSDIP32W

(See ordering information at the end of datasheet)

Features ST72101G1 ST72101G2 ST72213G1 ST72212G2

Program Memory- bytes 4K 8K 4K 8K RAM (stack) - bytes 256 (64) 16-bit Timers one one one two ADC no no yes yes Other Peripherals Watchdog, SPI Operating Supply 3 to 5.5 V CPU Frequency 8MHz max (16MHz oscillator) - 4MHz max over 85°C Temperature Range - 40°C to + 125°C Package SO28 - SDIP32

Rev. 1.7

Page 2

2/84

Table of Contents

1 GENERAL DESCRIPTION . . . . . . ................................................ 4

1.1 INTRODUCTION . . . . . . . . . . . . ............................................. 4

1.2 PIN DESCRIPTION . . ..................................................... 5

1.3 EXTERNAL CONNECTIONS . .. . . . . . . . . . . . . . . . . . . .. . . . . . . .. . . . . . . . . ......... 9

1.4 MEMORY MAP . . . . . .. . . . ............................................... 10

2 CENTRAL PROCESSING UNIT . . ............................................... 13

2.1 INTRODUCTION . . . . . . . . . . . . ............................................13

2.2 MAIN FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . .............................. 13

2.3 CPU REGISTERS . . . .................................................... 13

3 CLOCKS, RESET, INTERRUPTS & POWER SAVING MODES . . . . . .. . . . . . . ...........16

3.1 CLOCK SYSTEM . . . . . .. . . . . . ............................................16

3.1.1 General Description . . . .. . ...........................................16

3.2 RESET . . . . . . . . . . . . .. . . . . . . .. . . . . . . . . . . . . .............................. 17

3.2.1 Introduction . . . .................................................... 17

3.2.2 External Reset . . . . . . ...............................................17

3.2.3 Reset Operation . . . . . . . . . . . . . . . . . . . . . . . . . ........................... 17

3.2.4 Power-on Reset .................................................... 17

3.3 INTERRUPTS . . . .. . . . . . .. . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .. . . . . . . .. . . . . . . 18

3.4 POWER SAVING MODES . .. . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .. . . . . . . ........ 21

3.4.1 Introduction . . . .................................................... 21

3.4.2 Slow Mode . . .. . . . . . . . . . . . . . . . . . . . ................................. 21

3.4.3 Wait Mode . . . . . . . . . . . . . . .. ........................................ 21

3.4.4 Halt Mode . . . . . .................................................... 22

3.5 MISCELLANEOUS REGISTER . . . . .. . . . . . .................................. 23

4 ON-CHIP PERIPHERALS . . . . . . . . . . . ...........................................24

4.1 I/O PORTS . . . . . . . . .. . . . . . . . . ...........................................24

4.1.1 Introduction . . . .................................................... 24

4.1.2 Functional Description . . . . ...........................................24

4.1.3 I/O Port Implementation . . . . . . . . . . . . . . . . . . . ........................... 25

4.1.4 Register Description . . . . . . ...........................................28

4.2 WATCHDOG TIMER (WDG) . . . . . . .. . . . . . . .. . . .. . . .. . . . . . . . . . . . . . . . .. . . . . . . 30

4.2.1 Introduction . . . .................................................... 30

4.2.2 Main Features . .. . . . ...............................................30

4.2.3 Functional Description . . . . ...........................................31

4.2.4 Low Power Modes . . . ............................................... 31

4.2.5 Interrupts . . . . . .. . . . . . . . . . .. . . . . . . ................................. 31

4.2.6 Register Description . . . . . . ...........................................31

4.3 16-BIT TIMER . . . . . . . . . . . . . . . . . . ........................................32

4.3.1 Introduction . . . .................................................... 32

4.3.2 Main Features . .. . . . ...............................................32

4.3.3 Functional Description . . . . ...........................................32

4.3.4 Low Power Modes . . ............................................... 43

4.3.5 Interrupts . . .. . .................................................... 43

4.3.6 Register Description . . . . . . ...........................................44

Page 3

3/84

Table of Contents

4.4 SERIAL PERIPHERAL INTERFACE (SPI) . . . . . . . . . . . . . . . .. . . . . . . . . ...........49

4.4.1 Introduction . . . .................................................... 49

4.4.2 Main Features . .. . . . ...............................................49

4.4.3 General description . . . . . .. . . . . . . . .. . . .. . . . . . . . . . .. . . . . . . . . . . . . . . . . . . 49

4.4.4 Functional Description . . . . ...........................................51

4.4.5 Low Power Modes . . . ............................................... 58

4.4.6 Interrupts . . .. . .................................................... 58

4.4.7 Register Description . . . . . . ...........................................59

4.5 8-BIT A/D CONVERTER (ADC) . . . . . .. . . . . . . . . . . . ........................... 62

4.5.1 Introduction . . . .................................................... 62

4.5.2 Main Features . .. . . . ...............................................62

4.5.3 Functional Description . . . . ...........................................63

4.5.4 Low Power Modes . . . ............................................... 63

4.5.5 Interrupts . . . . . .. . . . . . . . . . .. . . . . . . ................................. 63

4.5.6 Register Description . . . . . . ...........................................64

5 INSTRUCTION SET . . . . . . . . . . . . . . . . . . ........................................ 65

5.1 ST7 ADDRESSING MODES . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 65

5.1.1 Inherent . . . . . . . . . . . ...............................................66

5.1.2 Immediate . .. . . . . . . . . . . . . . . . . . . .. . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

5.1.3 Direct . ........................................................... 66

5.1.4 Indexed (No Offset, Short, Long) . . . . . . . . . . . . ........................... 66

5.1.5 Indirect (Short, Long) . . . . .. . . . . . . . . . .. . . . . . . . . . . . .. . . .. . . . . . . . . . . . . . . 66

5.1.6 Indirect Indexed (Short,Long) . ........................................67

5.1.7 Relative mode (Direct,Indirect) . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . .. . . . . . . . 67

5.2 INSTRUCTION GROUPS . . . . . . . . . . . . . . . . ................................. 68

6 ELECTRICALCHARACTERISTICS . . . . . . . . . . . . . . . . .............................. 71

6.1 ABSOLUTE MAXIMUM RATINGS . . . ........................................71

6.2 RECOMMENDED OPERATING CONDITIONS . . ............................... 72

6.3 DC ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . .. . . . . . . . . . . . . ...........73

6.4 RESET CHARACTERISTICS . . . . . . . . . ..................................... 74

6.5 OSCILLATOR CHARACTERISTICS . . . .. . . . . . . .............................. 74

6.6 A/D CONVERTERCHARACTERISTICS (ST72212 AND ST72213ONLY) . . . ........ 75

6.7 SPI CHARACTERISTICS . . ...............................................77

7 GENERAL INFORMATION . . . . . . . . . . ........................................... 80

7.1 EPROM ERASURE . . .. . . . . . . . . . . . . .. . . . . . ............................... 80

7.2 PACKAGE MECHANICALDATA . . . . . . . . . . . . .. . . . ........................... 80

7.3 ORDERING INFORMATION . . . . . .. . . . . . . .................................. 82

7.3.1 Transfer Of CustomerCode . . . . . . . . . . . .. . . .. . . . . . . . . . . . ............... 82

8 SUMMARY OF CHANGES . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Page 4

4/84

ST72101/ST72212/ST72213

1 GENERAL DESCRIPTION

1.1 INTRODUCTION

The ST72101, ST72213 and ST72212 HCMOS Microcontroller Units are members of the ST7 family. These devices are based on an industrystandard 8-bit core and feature an enhanced instruction set. They normally operate ata 16MHz oscillator frequency. Under software control, the ST72101, ST72213 and ST72212 may be placed in either WAIT, SLOW or HALT modes, thus reducing power consumption. The enhanced instruction set and addressing modes afford real programming potential. In addition to standard 8-bit data management, the ST72101, ST72213 and ST72212 feature true bit manipulation, 8x8

unsigned multiplication and indirect addressing modes on the whole memory. The devices include an on-chip oscillator, CPU, program memory (ROM/OTP/EPROM versions), RAM, 22 I/O lines and the following on-chip peripherals: Analog-toDigital Converter (ADC) with 6 multiplexed analog inputs (ST72212 and ST72213 only), industry standard synchronous SPI serial interface, digital Watchdog, one or two independent 16-bit Timers, one featuring an External Clock Input, and both featuring Pulse Generator capabilities, 2 Input Captures and 2 Output Compares.

Figure 1. ST72101, ST72213 and ST72212 Block Diagram

8-BIT CORE

ALU

ADDRESSAND DATA BUS

OSCIN

OSCOUT

RESET

PORT B

TIMER A

PORT A

SPI

PORT C

8-BIT ADC

WATCHDOG

PB0 -> PB7

(8 bits)

PC0 -> PC5

(6 bits)

OSC

Internal CLOCK

CONTROL

RAM

(256 Bytes)

PA0 -> PA7

(8 bits)

POWER

SUPPLY

TIMER B

1) ST72213 and ST72212 only

2) ST72212 only

PROGRAM

(4 - 8K Bytes)

MEMORY

Page 5

5/84

ST72101/ST72212/ST72213

1.2 PIN DESCRIPTION Figure 2. ST72212 Pinout (SO28)

Figure 3. ST72213 Pinout (SO28)

Figure 4. ST72101 Pinout (SO28)

Figure 5. ST72212 Pinout (SDIP32)

Figure 6. ST72213 Pinout (SDIP32)

Figure 7. ST72101 Pinout (SDIP32)

TEST/V

PA0 PA1 PA2 PA3 PA4 PA5 PA6 PA7 PC0/ICAP1_B/AIN0 PC1/OCMP1_B/AIN1 PC2/CLKOUT/AIN2

RESET

OSCIN

OSCOUT

SS/PB7

SCK/PB6 MISO/PB5 MOSI/PB4

OCMP2_A/PB3

ICAP2_A/PB2

OCMP1_A/PB1

ICAP1_A/PB0

AIN5/EXTCLK_A/PC5

AIN4/OCMP2_B/PC4

AIN3/ICAP2_B/PC3

28 27 26 25 24 23 22 21

1 2 3 4 5 6 7 8 9 10 11 12 13 14

1) VPPonEPROM/OTP only

TEST/V

PA0 PA1 PA2 PA3 PA4 PA5 PA6 PA7 PC0/AIN0 PC1/AIN1 PC2/CLKOUT/AIN2

RESET

OSCIN

OSCOUT

SS/PB7

SCK/PB6 MISO/PB5 MOSI/PB4

OCMP2_A/PB3

ICAP2_A/PB2

OCMP1_A/PB1

ICAP1_A/PB0

AIN5/EXTCLK_A/PC5

AIN4/PC4 AIN3/PC3

28 27 26 25 24 23 22 21

1 2 3 4 5 6 7 8 9 10 11 12 13 14

1) VPPon EPROM/OTPonly

TEST/V

PA0 PA1 PA2 PA3 PA4 PA5 PA6 PA7 PC0 PC1 PC2/CLKOUT

RESET

OSCIN

OSCOUT

SS/PB7

SCK/PB6 MISO/PB5 MOSI/PB4

OCMP2_A/PB3

ICAP2_A/PB2

OCMP1_A/PB1

ICAP1_A/PB0

EXTCLK_A/PC5

PC4 PC3

28 27 26 25 24 23 22 21

1 2 3 4 5 6 7 8 9 10 11 12 13

1) VPPon EPROM/OTP only

RESET

OSCIN

OSCOUT

SS/PB7

SCK/PB6 MISO/PB5 MOSI/PB4

OCMP2_A/PB3

ICAP2_A/PB2

OCMP1_A/PB1

ICAP1_A/PB0

AIN5/EXTCLK_A/PC5

AIN4/OCMP2_B/PC4

AIN3/ICAP2_B/PC3

TEST/V

PA0 PA1 PA2 PA3

PA4 PA5 PA6 PA7 PC0/ICAP1_B/AIN0 PC1/OCMP1_B/AIN1 PC2/CLKOUT/AIN2

28 27 26 25 24 23 22 21 20 19 18 17

1 2 3 4 5 6 7 8

9 10 11 12 13 14

1) VPPon EPROM/OTP only

RESET

OSCIN

OSCOUT

SS/PB7

SCK/PB6 MISO/PB5 MOSI/PB4

OCMP2_A/PB3

ICAP2_A/PB2

OCMP1_A/PB1

ICAP1_A/PB0

AIN5/EXTCLK_A/PC5

AIN4/PC4 AIN3/PC3

TEST/V

PA0 PA1 PA2 PA3

PA4 PA5 PA6 PA7 PC0/AIN0 PC1/AIN1 PC2/CLKOUT/AIN2

28 27 26 25 24 23 22 21 20 19 18 1716

1 2 3 4 5 6 7 8

9 10 11 12 13 14

1) VPPonEPROM/OTP only

TEST/V

PA0 PA1 PA2 PA3

PA4 PA5 PA6 PA7 PC0 PC1 PC2/CLKOUT

RESET

OSCIN

OSCOUT

SS/PB7

SCK/PB6 MISO/PB5 MOSI/PB4

OCMP2_A/PB3

ICAP2_A/PB2

OCMP1_A/PB1

ICAP1_A/PB0

EXTCLK_A/PC5

PC4 PC3

28 27 26 25 24 23 22 21 20 19 18 1716

1 2 3 4 5 6 7 8

9 10 11 12 13 14

1) VPPon EPROM/OTPonly

Page 6

6/84

ST72101/ST72212/ST72213

Table 1. ST72212 Pin Configuration

Note 1:VPPon EPROM/OTP only

Pin n°

SDIP32

Pin n °

SO28

Pin Name Type Description Remarks

1 1 RESET I/O Bidirectional. Active low. Top priority non maskable interrupt. 22OSCIN I

Input/Output Oscillator pin. These pins connect a parallel-resonant crystal, or an external source to the on-chip oscillator.

3 3 OSCOUT O 4 4 PB7/SS I/O Port B7 or SPI Slave Select (active low) External Interrupt: EI1 5 5 PB6/SCK I/O Port B6 or SPI Serial Clock External Interrupt: EI1 6 6 PB5/MISO I/O Port B5 or SPI Master In/ Slave Out Data External Interrupt: EI1 7 7 PB4/MOSI I/O Port B4 or SPI Master Out / Slave In Data External Interrupt: EI1 8 NC Not Connected

9 NC Not Connected 10 8 PB3/OCMP2_A I/O Port B3 or TimerA Output Compare 2 External Interrupt: EI1 11 9 PB2/ICAP2_A I/O Port B2 or TimerA Input Capture 2 External Interrupt: EI1 12 10 PB1/OCMP1_A I/O Port B1 or TimerA Output Compare 1 External Interrupt: EI1 13 11 PB0/ICAP1_A I/O Port B0 or TimerA Input Capture 1 External Interrupt: EI1 14 12 PC5/EXTCLK_A/AIN5 I/O PortC5orTimerA InputClockorADCAnalog Input5 External Interrupt: EI1

15 13 PC4/OCMP2_B/AIN4 I/O

PortC4orTimerB OutputCompare2orADCAnalog Input 4

External Interrupt: EI1

16 14 PC3 /IC A P2 _ B /AIN 3 I/O

Port C3 orTimerB InputCapture 2 orADC Analog Input 3

External Interrupt: EI1

17 15 PC2/CLKOUT/AIN2 I/O

Port C2or InternalClockFrequency Outputor ADC Analog Input 2. Clockout is driven by Bit 5 of the miscellaneous register.

External Interrupt: EI1

18 16 PC1/OCMP1_B/AIN1 I/O

PortC1orTimerB OutputCompare1orADCAnalog Input 1

External Interrupt: EI1

19 17 PC0 /IC A P1 _ B /AIN 0 I/O

Port C0 orTimerB InputCapture 1 orADC Analog Input 0

External Interrupt: EI1

20 18 PA7 I/O Port A7, High Sink External Interrupt: EI0 21 19 PA6 I/O Port A6, High Sink External Interrupt: EI0 22 20 PA5 I/O Port A5, High Sink External Interrupt: EI0 23 21 PA4 I/O Port A4, High Sink External Interrupt: EI0 24 NC Not Connected 25 NC Not Connected 26 22 PA3 I/O Port A3, High Sink External Interrupt: EI0 27 23 PA2 I/O Port A2, High Sink External Interrupt: EI0 28 24 PA1 I/O Port A1, High Sink External Interrupt: EI0 29 25 PA0 I/O Port A0, High Sink External Interrupt: EI0

30 26 TEST/V

(1)

I/S

Test mode pin (should be tied low in user mode). In the EPROM programming mode, this pin acts as the programming voltage input V

PP.

31 27 V

S Ground

32 28 V

S Main power supply

Page 7

7/84

ST72101/ST72212/ST72213

Table 2. ST72213 Pin Configuration

Note 1:VPPon EPROM/OTP only

Pin n°

SDIP32

Pin n°

SO28

Pin Name Type Description Remarks

1 1 RESET I/O

Bidirectional. Active low. Top priority non maskable interrupt.

2 2 OSCIN I

Input/Output Oscillator pin. These pins connect a parallel-resonant crystal, oran external source to the on-chip oscillator.

3 3 OSCOUT O

4 4 PB7/SS I/O Port B7 orSPI Slave Select (active low) External Interrupt: EI1

5 5 PB6/SCK I/O Port B6 orSPI Serial Clock External Interrupt: EI1

6 6 PB5/MISO I/O Port B5 orSPI Master In/ Slave Out Data External Interrupt: EI1

7 7 PB4/MOSI I/O Port B4 orSPI Master Out / Slave In Data External Interrupt: EI1

8 NC Not Connected

14 12 PC5/EXTCLK_A/AIN5 I/O

Port C5 orTimerA Input Clock or ADC Analog Input 5

External Interrupt: EI1

15 13 PC4/AIN4 I/O Port C4 or ADC Analog Input 4 External Interrupt: EI1 16 14 PC3/AIN3 I/O Port C3 or ADC Analog Input 3 External Interrupt: EI1

17 15 PC2/CLKOUT/AIN2 I/O

Port C2 orInternal Clock Frequency Output or ADC Analog Input 2. Clockout is driven by Bit 5 of the miscellaneous register.

External Interrupt: EI1

18 16 PC1/AIN1 I/O Port C1 or ADC Analog Input 1 External Interrupt: EI1 19 17 PC0/AIN0 I/O Port C0 or ADC Analog Input 0 External Interrupt: EI1 20 18 PA7 I/O Port A7, High Sink External Interrupt: EI0 21 19 PA6 I/O Port A6, High Sink External Interrupt: EI0 22 20 PA5 I/O Port A5, High Sink External Interrupt: EI0 23 21 PA4 I/O Port A4, High Sink External Interrupt: EI0 24 NC Not Connected 25 NC Not Connected 26 22 PA3 I/O Port A3, High Sink External Interrupt: EI0 27 23 PA2 I/O Port A2, High Sink External Interrupt: EI0 28 24 PA1 I/O Port A1, High Sink External Interrupt: EI0 29 25 PA0 I/O Port A0, High Sink External Interrupt: EI0

30 26 TEST/V

(1)

I/S

Test mode pin (should be tied low in user mode). In the EPROM programming mode, this pin acts asthe programming voltage input V

PP.

31 27 V

S Ground

32 28 V

S Main power supply

Page 8

8/84

ST72101/ST72212/ST72213

Table 3. ST72101 Pin Configuration

Pin n°

SDIP32

Pinn°

SO28

Pin Name Type Description Remarks

1 1 RESET I/O Bidirectional. Active low. Top priority non maskable interrupt.

2 2 OSCIN I

Input/Output Oscillator pin. These pins connect a parallel-resonant crystal, or an external source to the on-chip oscillator.

3 3 OSCOUT O

4 4 PB7/SS I/O Port B7 orSPI Slave Select (active low) External Interrupt: EI1

5 5 PB6/SCK I/O Port B6 orSPI Serial Clock External Interrupt: EI1

6 6 PB5/MISO I/O Port B5 orSPI Master In/ Slave Out Data External Interrupt: EI1

7 7 PB4/MOSI I/O Port B4 orSPI Master Out / Slave In Data External Interrupt: EI1

8 NC Not Connected

9 NC Not Connected 10 8 PB3/OCMP2_A I/O Port B3 orTimerA Output Compare 2 External Interrupt: EI1 11 9 PB2/ICAP2_A I/O Port B2 orTimerA Input Capture 2 External Interrupt: EI1 12 10 PB1/OCMP1_A I/O Port B1 orTimerA Output Compare 1 External Interrupt: EI1 13 11 PB0/ICAP1_A I/O Port B0 orTimerA Input Capture 1 External Interrupt: EI1 14 12 PC5/EXTCLK_A I/O Port C5 or TimerA Input Clock External Interrupt: EI1 15 13 PC4 I/O Port C4 External Interrupt: EI1 16 14 PC3 I/O Port C3 External Interrupt: EI1

17 15 PC2/CLKOUT I/O

Port C2 or Internal Clock Frequency Output.Clockout is driven by MCO bit of the miscellaneous register.

External Interrupt: EI1

18 16 PC1 I/O Port C1 External Interrupt: EI1 19 17 PC0 I/O Port C0 External Interrupt: EI1 20 18 PA7 I/O Port A7, High Sink External Interrupt: EI0 21 19 PA6 I/O Port A6, High Sink External Interrupt: EI0 22 20 PA5 I/O Port A5, High Sink External Interrupt: EI0 23 21 PA4 I/O Port A4, High Sink External Interrupt: EI0 24 NC Not Connected 25 NC Not Connected 26 22 PA3 I/O Port A3, High Sink External Interrupt: EI0 27 23 PA2 I/O Port A2, High Sink External Interrupt: EI0 28 24 PA1 I/O Port A1, High Sink External Interrupt: EI0 29 25 PA0 I/O Port A0, High Sink External Interrupt: EI0

30 26 TEST/V

(1)

I/S

Test mode pin (should be tied low in user mode). In the EPROM programming mode, this pin acts as the programming voltage input V

PP.

31 27 V

S Ground

32 28 V

S Main power supply

Note 1:V

on EPROM/OTP only.

Page 9

9/84

ST72101/ST72212/ST72213

1.3 EXTERNAL CONNECTIONS

The following figure shows the recommended external connections for the device.

The VPPpin is only used for programming OTP and EPROM devices and must betied to ground in user mode.

The 10 nF and 0.1 µF decoupling capacitors on the power supply lines are a suggested EMC performance/cost tradeoff.

The external reset network is intended to protect the device against parasitic resets, especially in noisy environments.

Unused I/Os should be tied high to avoid any unnecessary power consumption on floating lines. An alternative solution is to program the unused ports as inputs with pull-up.

Figure 8. Recommended External Connections

OSCIN

OSCOUT

RESET

0.1µF

See Clocks Section

0.1µF

EXTERNAL RESET CIRCUIT

Or configure unused I/O ports

Unused I/O

10nF

4.7K

10K

by software as input with pull-up

Page 10

10/84

ST72101/ST72212/ST72213

1.4 MEMORY MAP Figure 9. Memory Map

Table 4. Interrupt Vector Map

Vector Address Description Remarks

FFE0-FFE1h FFE2-FFE3h FFE4-FFE5h FFE6-FFE7h FFE8-FFE9h

FFEA-FFEBh

FFEC-FFEDh

FFEE-FFEFh

FFF0-FFF1h FFF2-FFF3h FFF4-FFF5h FFF6-FFF7h FFF8-FFF9h FFFA-FFFBh

FFFC-FFFDh

FFFE-FFFFh

Not Used Not Used Not Used Not Used Not Used Not Used Not Used

TIMER B Interrupt Vector (ST72212 only)

Not Used

TIMER A Interrupt Vector

SPI Interrupt Vector

Not Used External Interrupt Vector EI1 External Interrupt Vector EI0

TRAP (software) Interrupt Vector

RESET Vector

Internal Interrupt

Internal Interrupt Internal Interrupt

External Interrupt External Interrupt

CPU Interrupt

0000h

8K Bytes

Interrupt & Reset Vectors

HW Registers

017Fh

0080h

007Fh

DFFFh

Reserved

(see Table 5)

E000h

FFDFh

FFE0h

FFFFh

(see Table 4)

4K Bytes

F000h

256 Bytes RAM

Short Addressing RAM (zero page)

16-bit Addressing

RAM

0100h

0140h

017Fh

0080h

00FFh

013Fh

64 Bytes Stack or

16-bit Addressing RAM

0180h

Program Memory

Page 11

11/84

ST72101/ST72212/ST72213

Table 5. Hardware Register Memory Map

Address

Block Name

Label

0000h 0001h 0002h

Port C

PCDR PCDDR PCOR

Data Register Data Direction Register Option Register

00h 00h 00h

R/W R/W

R/W 0003h Reserved Area (1 Byte) 0004h

0005h 0006h

Port B

PBDR PBDDR PBOR

Data Register Data Direction Register Option Register

00h 00h 00h

R/W

R/W 0007h Reserved Area (1 Byte) 0008h

0009h 000Ah

Port A

PADR PADDR PAOR

Data Register Data Direction Register Option Register

00h 00h 00h

R/W

R/W 000Bh to

001Fh

Reserved Area (21 Bytes)

0020h MISCR Miscellaneous Register 00h R/W 0021h

0022h 0023h

SPI

SPIDR SPICR SPISR

Data I/O Register Control Register Status Register

xxh 0xh 00h

R/W

Read Only 0024h WDG WDGCR Watchdog Control register 7Fh R/W 0025h to

0030h

Reserved Area (12 Bytes)

0031h 0032h 0033h 0034h-0035h

0036h-0037h

0038h-0039h

003Ah-003Bh

003Ch-003Dh

003Eh-003Fh

Timer A

TACR2 TACR1 TASR TAIC1HR TAIC1LR TAOC1HR TAOC1LR TACHR TACLR TAACHR TAACLR TAIC2HR TAIC2LR TAOC2HR TAOC2LR

Control Register2 Control Register1 Status Register Input Capture1 High Register Input Capture1 Low Register Output Compare1 High Register Output Compare1 Low Register Counter High Register Counter Low Register Alternate Counter High Register Alternate Counter Low Register Input Capture2 High Register Input Capture2 Low Register Output Compare2 High Register Output Compare2 Low Register

00h 00h 00h xxh xxh 80h

00h FFh FCh FFh FCh

xxh

80h

00h

R/W

R/W Read Only Read Only Read Only

R/W

R/W Read Only Read Only Read Only Read Only Read Only Read Only

R/W

0040h Reserved Area (1 Byte)

Page 12

12/84

ST72101/ST72212/ST72213

Notes:

1. ST72212 only, reserved area for other devices.

2. ST72212 and ST72213 only, reserved otherwise.

0041h 0042h 0043h 0044h-0045h

0046h-0047h

0048h-0049h

004Ah-004Bh

004Ch-004Dh

004Eh-004Fh

Timer B

TBCR2 TBCR1 TBSR TBIC1HR TBIC1LR TBOC1HR TBOC1LR TBCHR TBCLR TBACHR TBACLR TBIC2HR TBIC2LR TBOC2HR TBOC2LR

00h 00h 00h xxh xxh 80h

00h FFh FCh FFh FCh

xxh

80h

00h

R/W

R/W Read Only Read Only Read Only

R/W

R/W Read Only Read Only Read Only Read Only Read Only Read Only

R/W

0050h to 006Fh

Reserved Area (32 Bytes)

0070h 0071h

ADC

ADCDR ADCCSR

Data Register Control/Status Register

00h 00h

Read Only

R/W

0072h to 007Fh

Reserved Area (14 Bytes)

Address

Block Name

Label

Page 13

13/84

ST72101/ST72212/ST72213

2 CENTRAL PROCESSING UNIT

2.1 INTRODUCTION

This CPU hasa full 8-bit architecture andcontains six internal registers allowing efficient 8-bit data manipulation.

2.2 MAIN FEATURES

■ 63 basicinstructions

■ Fast 8-bit by 8-bit multiply

■ 17 main addressing modes (with indirect

addressing mode)

■ Two 8-bit index registers

■ 16-bit stackpointer

■ 8 MHzCPU internal frequency

■ Low power modes

■ Maskable hardware interrupts

■ Non-maskable software interrupt

2.3 CPU REGISTERS

The 6 CPU registers shown in Figure 10 are not present in thememory mapping and are accessed by specificinstructions.

Accumulator (A)

The Accumulator is an 8-bit general purpose register used to hold operands and the results of the arithmetic and logic calculations andto manipulate data.

Index Registers (Xand Y)

In indexedaddressingmodes, these 8-bit registers are used to create either effective addresses or temporary storage areas for data manipulation. (The Cross-Assembler generates a precede instruction (PRE) to indicate that the following instruction refers to the Y register.)

The Y register is notaffected by theinterrupt automatic procedures (notpushed toand popped from the stack).

Program Counter (PC)

The program counteris a16-bit register containing the address of the next instruction to be executed by the CPU. It is made of two 8-bit registers PCL (Program CounterLow whichis the LSB) and PCH (Program Counter High which is the MSB).

Figure 10. CPU Registers

ACCUMULATOR

X INDEX REGISTER

Y INDEX REGISTER

STACK POINTER

CONDITION CODE REGISTER

PROGRAM COUNTER

1C11HINZ

RESET VALUE= RESET VECTOR @ FFFEh-FFFFh

15 8

PCH

PCL

87 0

RESET VALUE = STACKHIGHER ADDRESS

RESET VALUE =

1X11X1XX

RESET VALUE = XXh

RESET VALUE= XXh

RESET VALUE = XXh

X = Undefined Value

Page 14

14/84

ST72101/ST72212/ST72213

CENTRAL PROCESSING UNIT (Cont’d) CONDITION CODE REGISTER (CC)

Read/Write Reset Value: 111x1xxx

The 8-bit Condition Code register contains the interrupt mask and four flags representative of the result of the instructionjust executed. This register can also be handled by the PUSH and POP instructions.

These bits can be individually tested and/or controlled by specific instructions.

Bit 4 = H

Half carry

This bit isset byhardware when a carry occurs between bits 3 and 4 of the ALU during an ADD or ADC instruction.Itis reset by hardware during the same instructions. 0: No half carry has occurred. 1: A half carry has occurred.

This bit is tested using the JRH or JRNH instruction. The H bit is useful in BCD arithmetic subroutines.

Bit 3 = I

Interrupt mask

This bit is set by hardware when entering in interrupt or by software to disable all interrupts except the TRAP software interrupt. This bit is cleared by software. 0: Interrupts are enabled. 1: Interrupts are disabled.

This bit is controlled by the RIM, SIM and IRET instructions andis tested bythe JRM and JRNM instructions.

Note: Interrupts requested while I is set are latched and can be processed when I is cleared. By default an interrupt routine is not interruptable because the I bit is set by hardware when you en-

ter it and resetby the IRET instruction at theend of the interrupt routine. If the I bit is cleared by software inthe interrupt routine, pending interruptsare serviced regardless of the priority levelof the current interrupt routine.

Bit 2 = N

Negative

This bit is set and cleared by hardware.It is representative of the result sign of the last arithmetic, logical or data manipulation. It is a copy of the 7

bit of the result. 0:Theresult of the last operation is positiveor null. 1: The result of the last operation is negative

(i.e. the most significant bit is a logic 1).

This bit isaccessed by the JRMIand JRPL instructions.

Bit 1 = Z

Zero

This bit is set and clearedby hardware. Thisbit indicates that the result of the last arithmetic, logical or data manipulation is zero. 0: The result of the last operation is different from

zero.

1: The result of the last operation is zero. This bit is accessed by the JREQ and JRNE test

instructions.

Bit 0 = C

Carry/borrow.

This bit is set and cleared by hardware and software. It indicates an overflow or anunderflow has occurred during the last arithmetic operation. 0: No overflowor underflow has occurred. 1: An overflow or underflow has occurred.

This bit is driven by the SCFand RCF instructions and tested by theJRC andJRNC instructions.It is also affected by the“bit test and branch”, shift and rotate instructions.

111HINZC

Page 15

15/84

ST72101/ST72212/ST72213

CENTRAL PROCESSING UNIT (Cont’d) Stack Pointer (SP)

Read/Write Reset Value: 01 7Fh

The Stack Pointer is a 16-bit register which is always pointingto the next free location in the stack. It isthen decremented after datahas been pushed onto the stack and incremented before data is popped from the stack (see Figure 11).

Since the stack is 64 bytes deep, the 10 most significant bits are forced by hardware. Following an MCU Reset, or after a Reset Stack Pointer instruction (RSP), the Stack Pointer contains its reset value (the SP5 to SP0 bits are set) which is the stack higher address.

The least significant byte of the Stack Pointer (called S) can be directly accessed by a LD instruction.

Note: When the lower limit is exceeded, the Stack Pointer wraps around tothe stackupper limit, without indicating the stack overflow. The previously stored information is then overwritten and therefore lost.The stackalso wrapsin caseof anunderflow.

The stack is used to save the return address during a subroutine call and the CPU context during an interrupt.Theuser may also directly manipulate the stack by means of the PUSH and POP instructions. In the case ofan interrupt, the PCLis stored at the first location pointed to by the SP. Then the other registers are stored in the next locations as shown in Figure 11.

– Whenan interrupt isreceived, the SP is decre-

mented and the context is pushed on the stack.

– Onreturn from interrupt, the SP is incremented

and thecontext is popped from the stack.

A subroutine call occupies twolocations and aninterrupt five locations in the stack area.

Figure 11. Stack Manipulation Example

15 8

00000001

0 1 SP5 SP4 SP3 SP2 SP1 SP0

PCH

PCL

PCH PCL

PCL

PCH

PCL

PCH

PCL

PCH

PCL

CALL

Subroutine

Interrupt

Event

PUSH Y POP Y IRET

RET

or RSP

@ 017Fh

@ 0140h

Stack Lower Address = 0140h Stack Higher Address =

017Fh

Page 16

16/84

ST72101/ST72212/ST72213

3 CLOCKS, RESET, INTERRUPTS & POWER SAVING MODES

3.1 CLOCK SYSTEM

3.1.1 General Description

The MCU accepts either a Crystal or Ceramicresonator, or an external clock signal to drive the internal oscillator. The internal clock (f

CPU

) is de-

rived fromthe external oscillator frequency (f

OSC).

The external Oscillator clock is first divided by 2, and division factor of 32 can be applied if Slow Mode is selected by settingthe SMS bit in the Miscellaneous Register. This reduces the frequency of the f

CPU

; the clock signal is also routed to the

on-chip peripherals. The internal oscillator is designed to operate with

an AT-cut parallel resonant quartz crystal resonator in the frequency range specified for f

osc

.The

circuit shown in Figure 13 is recommended when using a crystal, and Table 6 lists the recommended capacitance and feedback resistance values. The crystal and associated componentsshould be mounted as close as possible to the input pins in order to minimize output distortion and start-up stabilisation time.

Use of an external CMOS oscillator is recommended when crystals outside the specified frequency ranges are to be used.

Table 6. Recommended Values for 16 MHz

Crystal Resonator (C0<7pF)

C0: parasitic shunt capacitance of the quartz crys-

tal.

SMAX

: equivalent serialresistor of the crystal (up-

er limit, see crystal specification).

OSCOUT,COSCIN

: maximum total capacitance on

OSCIN and OSCOUT, including the external capacitance plus the parasitic capacitance of the board and the device.

Figure 12. External Clock Source Connections

Figure 13. Crystal/CeramicResonator

Figure 14. Clock Prescaler Block Diagram

SMAX

40 Ω 60 Ω 150 Ω

OSCIN

56pF 47pF 22pF

OSCOUT

56pF 47pF 22pF

OSCIN OSCOUT

EXTERNAL

CLOCK

OSCIN OSCOUT

OSCIN

OSCOUT

OSCIN

OSCOUT

OSCIN

OSCOUT

%2 % 16

CPU

to CPU and Peripherals

Page 17

17/84

ST72101/ST72212/ST72213

3.2 RESET

3.2.1 Introduction

There are three sources of Reset: – RESET pin (externalsource) – Power-On Reset (Internal source) – WATCHDOG (Internal Source) The Reset Service Routine vectoris located at ad-

dress FFFEh-FFFFh.

3.2.2 External Reset

The RESET pin is both an input and an open-drain output with integrated pull-up resistor. When one of the internal Reset sources is active, the Reset pin is driven low , for a duration of t

RESET,

to reset

the whole application.

3.2.3 Reset Operation

The duration of the Reset state is a minimum of 4096 internal CPU Clock cycles. During the Reset state, all I/Os take their reset value.

A Reset signal originating from an externalsource must have a duration of at least t

PULSE

in order to be recognised. This detection is asynchronous and therefore the MCU can enter Reset state even in Halt mode.

At the end of the Reset cycle, the MCU may be held in the Reset state by an External Reset signal. The RESET pin may thus be used to ensure VDDhas risen to a point where theMCU can operate correctly before the user program is run. Fol-

lowing a Reset event, or after exiting Halt mode, a 4096 CPU Clock cycle delay period is initiated in order to allow the oscillator to stabilise and to ensure that recovery hastaken place from the Reset state.

In the high state, the RESET pin is connected internally to a pull-up resistor (RON). This resistor can be pulled low by external circuitry to reset the device.

The RESET pin is an asynchronous signal which plays a majorrole in EMS performance. In a noisy environment, it is recommended to use the external connections shown in Figure8.

3.2.4 Power-on Reset

This circuit detects the ramping up of VDD, and generates a pulse that is used to reset the application (at approximately VDD= 2V).

Power-On Reset is designed exclusively to cope with power-up conditions, and should not be used in order to attempt to detect a drop in the power supply voltage.

Caution:

to re-initialize the Power-On Reset, the power supply must fall below approximately 0.8V (Vtn), prior to rising above 2V. If this condition is not respected, on subsequent power-upthe Reset pulse may not be generated. An external Reset pulse may be required to correctly reactivate the circuit.

Figure 15. Reset Block Diagram

INTERNAL RESET

WATCHDOG RESET

OSCILLATOR

SIGNAL

COUNTER

RESET

TO ST7

RESET

POWER-ON RESET

Page 18

18/84

ST72101/ST72212/ST72213

3.3 INTERRUPTS

The ST7 coremaybe interruptedby one of two different methods: maskable hardware interrupts as listed in the Interrupt Mapping Table and a nonmaskable software interrupt (TRAP). The Interrupt processing flowchartis shown in Figure16. The maskable interrupts mustbe enabled clearing the I bitin order to be serviced. However, disabled interrupts may be latched and processed when they are enabled (see external interrupts subsection).

When an interrupt has to be serviced: – Normal processing is suspended at the end of

the current instruction execution.

– The PC, X, A and CC registersare saved onto

the stack.

– The I bit of the CC register is set to prevent addi-

tional interrupts.

– ThePC is thenloaded with theinterrupt vector of

the interrupt to service and the first instructionof the interrupt serviceroutine is fetched(refer to the Interrupt Mapping Table for vector addresses).

The interrupt service routine should finish with the IRET instruction which causes the contents of the saved registersto be recovered from thestack.

Note: As a consequence of the IRET instruction, the I bit will be cleared and the main program will resume.

Priority management

By default, a servicing interrupt can not be interrupted because the I bit is set by hardware entering in interrupt routine.

In the case several interrupts are simultaneously pending, an hardware priority defines which one will be serviced first (seethe Interrupt Mapping Table).

Non Maskable Software Interrupts

This interrupt is entered when the TRAP instruction is executed regardless of the state of theI bit. It will be serviced according to the flowchart on Figure 16.

Interrupts and Low power mode

All interrupts allowthe processorto leave the Wait low power mode. Only external and specific mentioned interrupts allow the processor to leave the

Halt low power mode(referto the “Exit from HALT“ column in the Interrupt Mapping Table).

External Interrupts

External interrupt vectorscan be loaded in the PC register if the corresponding external interrupt occurred and if the I bit is cleared. These interrupts allow the processor to leave the Halt low power mode.

The external interrupt polarity is selected through the miscellaneous register or interrupt register (if available).

External interrupt triggered on edge will be latched and the interrupt request automatically cleared upon entering the interrupt service routine.

If several input pins, connected to the same interrupt vector, are configured as interrupts, their signals are logically ANDed before entering theedge/ level detection block.

Warning: The type of sensitivity defined in the Miscellaneous or Interrupt register (if available) applies to the EI source. In case of an ANDed source (as described on the I/O ports section), a low level on an I/O pin configured as input with interrupt, masks the interrupt request even in case of rising-edge sensitivity.

Peripheral Interrupts

Different peripheral interrupt flags in the status register are able to cause an interrupt when they are active if both:

– TheI bit of the CC register is cleared. – Thecorresponding enablebit is set in thecontrol

If any of these two conditions is false, theinterrupt is latched and thus remains pending.

Clearing an interrupt request is done by: – writing “0” to the corresponding bit in the status

– anaccess to the status register while the flag is

set followed bya read or write of anassociated register.

Note: the clearing sequence resets the internal latch. A pending interrupt (i.e. waiting for being enabled) will therefore be lost ifthe clear sequence is executed.

Page 19

19/84

ST72101/ST72212/ST72213

INTERRUPTS (Cont’d) Figure 16. Interrupt Processing Flowchart

BIT I SET

IRET

FROM RESET

LOAD PC FROM INTERRUPT VECTOR

STACK PC, X, A, CC

SET I BIT

FETCH NEXT INSTRUCTION

EXECUTE INSTRUCTION

THIS CLEARS I BIT BY DEFAULT

RESTORE PC, X, A,CC FROM STACK

BIT I SET

Page 20

20/84

ST72101/ST72212/ST72213

Table 7. Interrupt Mapping

Note 1: Timer B is available on ST72212 only.

Source

Block

Description

Label

Flag

Exit

from

HALT

Vector

Address

Priority

Order

RESET Reset N/A N/A yes FFFEh-FFFFh

TRAP Software N/A N/A no FFFCh-FFFDh

EI0 External Interrupt PA0:PA7 N/A N/A yes FFFAh-FFFBh EI1 External Interrupt PB0:PB7, PC0:PC5 N/A N/A yes FFF8h-FFF9h

Not Used FFF6h-FFF7h

SPI

Transfer Complete

SPISR

SPIF

no FFF4h-FFF5h

Mode Fault MODF

TIMER A

Input Capture 1

TASR

ICF1_A

no FFF2h-FFF3h

Output Compare 1 OCF1_A

Input Capture 2 ICF2_A

Output Compare 2 OCF2_A

Timer Overflow TOF_A

Not Used FFF0h-FFF1h

TIMER B

Input Capture 1

TBSR

ICF1_B

no FFEEh-FFEFh

Output Compare 1 OCF1_B

Input Capture 2 ICF2_B

Output Compare 2 OCF2_B

Timer Overflow TOF_B

Not Used

FFECh-FFEDh

FFEAh-FFEBh

FFE8h-FFE9h FFE6h-FFE7h FFE4h-FFE5h FFE2h-FFE3h

FFE0h-FFE1h

Highest

Priority

Lowest

Page 21

21/84

ST72101/ST72212/ST72213

3.4 POWER SAVING MODES

3.4.1 Introduction

There are threePower Saving modes. SlowMode is selected by setting the relevant bits in the Miscellaneous register. Wait and Halt modes may be entered usingthe WFI and HALT instructions.

3.4.2 Slow Mode

In Slow mode, the oscillator frequency can be divided by a value defined in the Miscellaneous Register. The CPU and peripherals are clocked at this lower frequency. Slow mode isused to reduce power consumption, andenables the user to adapt clock frequencyto available supply voltage.

3.4.3 Wait Mode

Wait mode places the MCU in a low power consumption mode by stoppingthe CPU. Allperipherals remain active. During Wait mode, the I bit (CC Register) is cleared, so as to enable all interrupts. All otherregisters and memory remain unchanged. The MCU will remain in Wait mode until an Interrupt or Reset occurs, whereupon the Program Counter branches to the starting address of the Interrupt orReset Service Routine. The MCU will remain in Wait mode until a Reset or an Interrupt occurs, causing it to wake up.

Refer to Figure 17 below.

Figure 17. WAIT Flow Chart

WFI INSTRUCTION

RESET

INTERRUPT

CPU CLOCK

OSCILLATOR PERIPH. CLOCK

I-BIT

CLEARED

OFF

Note: Before servicing an interrupt, the CC register is pushed on the stack. The I-Bit is set during the interrupt routine and cleared when the CC register is popped.

4096 CPU CLOCK

FETCH RESET VECTOR

OR SERVICE INTERRUPT

CYCLES DELAY

CPU CLOCK

OSCILLATOR PERIPH. CLOCK

I-BIT

SET

CPU CLOCK

OSCILLATOR PERIPH. CLOCK

I-BIT

SET

Page 22

22/84

ST72101/ST72212/ST72213

POWER SAVINGMODES (Cont’d)

3.4.4 Halt Mode

The Halt mode is the MCU lowest power consumption mode. The Halt mode is entered byexecuting theHALT instruction. The internal oscillator is then turnedoff, causing allinternal processing to be stopped, including the operation of the on-chip peripherals. The Halt mode cannot be used when the watchdog isenabled, ifthe HALT instruction is executed while the watchdog system is enabled,a watchdog reset is generatedthus resetting the entire MCU.

When entering Halt mode, the Ibit in the CC Register is clearedso as toenable ExternalInterrupts. If an interrupt occurs, the CPU becomes active.

The MCU canexit theHalt mode upon reception of an interrupt or a reset. Refer to the Interrupt Mapping Table. The oscillator is then turned on and a stabilization time is provided beforereleasing CPU operation. Thestabilization timeis 4096 CPU clock cycles.

After the start up delay, the CPU continuesoperation byservicingthe interrupt whichwakes it up or by fetching the reset vector if a reset wakes it up.

Figure 18. HALT Flow Chart

EXTERNAL

INTERRUPT

RESET

HALT INSTRUCTION

4096 CPU CLOCK

FETCH RESET VECTOR

OR SERVICE INTERRUPT

CYCLES DELAY

CPU CLOCK

OSCILLATOR PERIPH. CLOCK

I-BIT

OFF

SET

CPU CLOCK

OSCILLATOR PERIPH. CLOCK

I-BIT

OFF

CLEARED

OFF

WDG

ENABLED?

RESET

WATCHDOG

1) or some specific interrupts

Note: Before servicing an interrupt, the CC register is pushed on the stack. The I-Bit is set during the interrupt routine and cleared when the CC register is popped.

CPU CLOCK

OSCILLATOR PERIPH. CLOCK

I-BIT

SET

2) if reset PERIPH. CLOCK = ON ;if interrupt PERIPH. CLOCK = OFF

Page 23

23/84

ST72101/ST72212/ST72213

3.5 MISCELLANEOUS REGISTER

The Miscellaneous register allows to select the SLOW operatingmode, the polarity of external interrupt requestsand to output the internal clock.

Bit 7:6 = PEI[3:2]

External Interrupt EI1 Polarity

Option

These bits are set and cleared by software. They determine which event on EI1 causes the external interrupt according to Table 8.

Table 8. EI1 External Interrupt Polarity Options

Note: Any modification of one of these twobits re-

sets the interrupt request related to this interrupt vector.

Bit 5 = MCO

Main Clock Out

This bit isset andcleared by software. When set, it enables the output of the Internal Clock on the PC2 I/Oport. 0 -PC2 is a general purpose I/O port. 1 -MCO alternate function (f

CPU

is output on PC2

pin).

Bit 4:3 = PEI[1:0]

External Interrupt EI0 Polarity

Option

These bits are set and cleared by software. They determine which event on EI0 causes the external interrupt according to Table 9.

Table 9. EI0 External Interrupt Polarity Options

Note: Any modification of oneof these two bits re-

sets the interrupt request related to this interrupt vector.

Bit 1:2 = Unused, always read at 0.

Warning:

Software must write 1 to these bits for

compatibility with future products.

Bit 0 = SMS

Slow Mode Select

This bit is set andcleared by software. 0- Normal mode - f

CPU

= Oscillator frequency / 2

(Reset state)

1- Slow mode - f

CPU

= Oscillatorfrequency /32

PEI3 PEI2 MCO PEI1 PEI0 - - SMS

MODE PEI3 PEI2

Falling edge and low level

(Reset state)

Falling edge only 1 0

Rising edge only 0 1

Rising and falling edge 1 1

MODE PEI1 PEI0

Falling edge and low level

(Reset state)

Falling edge only 1 0

Rising edge only 0 1

Rising and falling edge 1 1

Page 24

24/84

ST72101/ST72212/ST72213

4 ON-CHIP PERIPHERALS

4.1 I/O PORTS

4.1.1 Introduction

The I/O ports offer different functional modes: – transferof data through digital inputsand outputs and forspecific pins: – analog signal input (ADC) – alternate signal input/output for the on-chip pe-

ripherals. – external interrupt generation An I/O port is composed of up to 8 pins. Each pin

can be programmedindependently as digital input (with or without interrupt generation) or digital output.

4.1.2 Functional Description

Each portis associated to 2 main registers: – Data Register (DR) – Data Direction Register (DDR) and someof them to an optional register: – Option Register (OR) Each I/Opin may beprogrammed using thecorre-

sponding register bits inDDR and ORregisters: bit X corresponding to pin Xof the port.The same correspondence is used for the DR register.

The following description takes into account the OR register, for specific ports whichdo not provide this register refer to the I/O Port Implementation Section 4.1.3. The generic I/O block diagram is shown onFigure 20.

4.1.2.1 Input Modes

The input configuration isselected by clearing the corresponding DDRregister bit.

In this case, reading the DR register returns the digital value applied to the external I/O pin.

Different input modes can beselected by software through theOR register.

Notes:

1. All the inputs are triggered by a Schmitt trigger.

2. When switching from input mode to output mode, the DR register should be written first to output the correct value as soon as the port is configured as an output.

Interrupt function

When an I/O is configured in Input with Interrupt, an event on this I/O can generate an external Interrupt request to the CPU. Theinterrupt polarity is given independently according to the description mentioned in the Miscellaneous register or in the interrupt register (where available).

Each pin can independently generate an Interrupt request.

Each external interrupt vector is linked to a dedicated group of I/O port pins (see Interrupts section). If several input pins are configured as inputs to the same interrupt vector, their signals are logically ANDed before entering the edge/level detection block. For this reason if one of the interrupt pins is tied low, it masks the other ones.

4.1.2.2 Output Mode

The pin is configured in output mode bysetting the corresponding DDR registerbit.

In this mode, writing “0” or “1” to the DR register applies this digital value to the I/O pin through the latch. Then reading the DR register returns the previously stored value.

Note: In this mode, the interrupt function is disabled.

4.1.2.3 Digital Alternate Function

When an on-chipperipheral is configured to use a pin, the alternate function is automatically selected. This alternate function takes priority over standard I/O programming. When the signal is coming from an on-chip peripheral, the I/O pin is automatically configuredin output mode (push-pull or open drain according to theperipheral).

When the signal is going to an on-chip peripheral, the I/O pin has to be configured ininput mode. In this case, the pin’s state is also digitally readable by addressing the DR register.

Notes:

1. Input pull-up configuration can cause an unexpected value atthe input of the alternate peripheral input.

2. When the on-chip peripheral uses apin asinput and output, this pin must be configured as an input (DDR = 0).

Warning

: The alternate function must not be acti-

vated as long as the pin isconfigured as inputwith interrupt, in order to avoid generating spurious interrupts.

Page 25

25/84

ST72101/ST72212/ST72213

I/O PORTS (Cont’d)

4.1.2.4 Analog Alternate Function

When the pin isused asan ADC input theI/O must be configured as input, floating. The analog multiplexer (controlled by the ADC registers) switches the analog voltage present on the selected pin to the common analog rail which is connected to the ADC input.

It isrecommended not to change the voltage level or loading on any port pin while conversion is in progress. Furthermore it is recommended not to have clocking pins located close to a selected analog pin.

Warning

: The analog input voltage level must be within the limits stated in the Absolute Maximum Ratings.

4.1.3 I/O Port Implementation

The hardware implementation oneach I/O port depends on the settingsin theDDR andOR registers and specific feature ofthe I/O portsuch as ADCInput (see Figure 20) or true open drain. Switching these I/O ports from one state to another should be done in a sequence that prevents unwanted side effects. Recommended safetransitions areillustrated in Figure 19. Other transitions are potentially risky and should be avoided, since they are likely to present unwanted side-effects such as spurious interrupt generation.

Figure 19. Recommended I/O State Transition Diagram

with interrupt

INPUT

OUTPUT

no interrupt

INPUT

push-pullopen-drain

OUTPUT

Page 26

26/84

ST72101/ST72212/ST72213

I/O PORTS (Cont’d) Figure 20. I/O BlockDiagram

Table 10. Port Mode Configuration

Legend:

0 - present, not activated 1 - present and activated

Notes:

– No OR Register on some ports (see register map). – ADC Switch on ports with analog alternate functions.

DDR

LATCH

DATA BUS

DR SEL

DDR SEL

PAD

ANALOG SWITCH

ANALOG ENABLE

(ADC)

M U

ALTERNATE

ALTERNATE ENABLE

COMMON ANALOG RAIL

ALTERNATE

M U

ALTERNATE INPUT

PULL-UP

OUTPUT

P-BUFFER

EE TABLE BELOW)

N-BUFFER

LATCH

ORSEL

FROM OTHER BITS

EXTERNAL

PULL-UP CONDITION

ENABLE

GND

EE TABLE BELOW)

EE NOTE BELOW)

CMOS

SCHMITT TRIGGER

SOURCE (EIx)

INTERRUPT

POLARITY

SEL

GND

DIODE

(SEE TABLEBELOW)

Configuration Mode Pull-up P-buffer V

Diode

Floating 0 0 1 Pull-up 1 0 1 Push-pull 0 1 1

True Open Drain not present not present

not present in OTP

and EPROM devices

Open Drain (logic level) 0 0 1

Page 27

27/84

ST72101/ST72212/ST72213

Table 11. Port Configuration

*Reset State

Port Pin Name

Input (DDR = 0) Output (DDR = 1)

OR = 0 OR =1 OR = 0 OR = 1

Port A PA0:PA7 Floating* Floating with Interrupt

True Open Drain,

High Sink Capability

Reserved

Port B PB0:PB7 Floating* Pull-up with Interrupt Open Drain (Logic level) Push-pull Port C PC0:PC5 Floating* Pull-up with Interrupt Open Drain (Logic level) Push-pull

Page 28

28/84

ST72101/ST72212/ST72213

I/O PORTS (Cont’d)

4.1.4 Register Description

4.1.4.1 Data registers

Port A Data Register (PADR) Port B Data Register (PBDR) Port C Data Register (PCDR) Read/Write

Reset Value: 0000 0000 (00h)

Bit 7:0 = D7-D0

Data Register 8 bits.

The DR register has a specific behaviour according to the selected input/output configuration. Writing the DR register is always taken in account even if the pin is configured as an input. Reading the DR register returns either theDR register latch content (pin configuredas output) or the digital value applied to the I/O pin (pin configured as input).

4.1.4.2 Data direction registers

Port A Data Direction Register (PADDR) Port B Data Direction Register (PBDDR) Port C Data Direction Register (PCDDR) Read/Write

Reset Value: 0000 0000 (00h) (input mode)

Bit 7:0 = DD7-DD0

Data Direction Register 8 bits.

The DDR register gives the input/output direction configuration of the pins. Each bit is set and cleared by software.

0: Input mode 1: Output mode

4.1.4.3 Option registers

Port A OptionRegister (PAOR) Port B OptionRegister (PBOR) Port C Option Register (PCOR) Read/Write

Reset Value: 0000 0000 (00h) (nointerrupt)

Bit 7:0 = O7-O0

Option Register8 bits.

For specific I/O pins, thisregister is not implemented. In this case the DDR register is enough to select the I/O pin configuration.

The OR register allow to distinguish: in input mode if the interrupt capability or the floating configuration is selected, in output mode if the push-pull or open drain configuration is selected.

Each bit is set and clearedby software. Input mode: 0: floating input

1: input interrupt with or without pull-up Output mode (only for PB0:PB7, PC0:PC5): 0: output open drain (with P-Bufferinactivated)

1: output push-pull Output mode (only for PA0:PA7): 0: output open drain 1: reserved

D7 D6 D5 D4 D3 D2 D1 D0

DD7 DD6 DD5 DD4 DD3 DD2 DD1 DD0

O7 O6 O5 O4 O3 O2 O1 O0

Page 29

29/84

ST72101/ST72212/ST72213

I/O PORTS (Cont’d) Table 12. I/O Port RegisterMap and Reset Values

Address

(Hex.)

Label

76543210

0000h

PCDR

Reset Value

D37

0001h

PCDDR

Reset Value

DD7

DD6

DD5

DD4

DD3

DD2

DD1

DD0

0002h

PCOR

Reset Value

0004h

PBDR

Reset Value

D37

0005h

PBDDR

Reset Value

DD7

DD6

DD5

DD4

DD3

DD2

DD1

DD0

0006h

PBOR

Reset Value

0008h

PADR

Reset Value

D37

0009h

PADDR

Reset Value

DD7

DD6

DD5

DD4

DD3

DD2

DD1

DD0

000Ah

PAOR

Reset Value

Page 30

30/84

ST72101/ST72212/ST72213

4.2 WATCHDOG TIMER (WDG)

4.2.1 Introduction

The Watchdog timer is used to detect the occurrence of a software fault, usually generated by external interference or by unforeseen logical conditions, which causes the application program to abandon its normal sequence. The Watchdog circuit generates an MCU reset on expiry of a programmed time period, unless theprogram refreshes the counter’s contents before the T6 bit becomes cleared.

4.2.2 Main Features

■ Programmable timer (64 increments of 12288

CPU cycles)

■ Programmablereset

■ Reset (if watchdog activated) after a HALT

instruction or whenthe T6 bit reaches zero

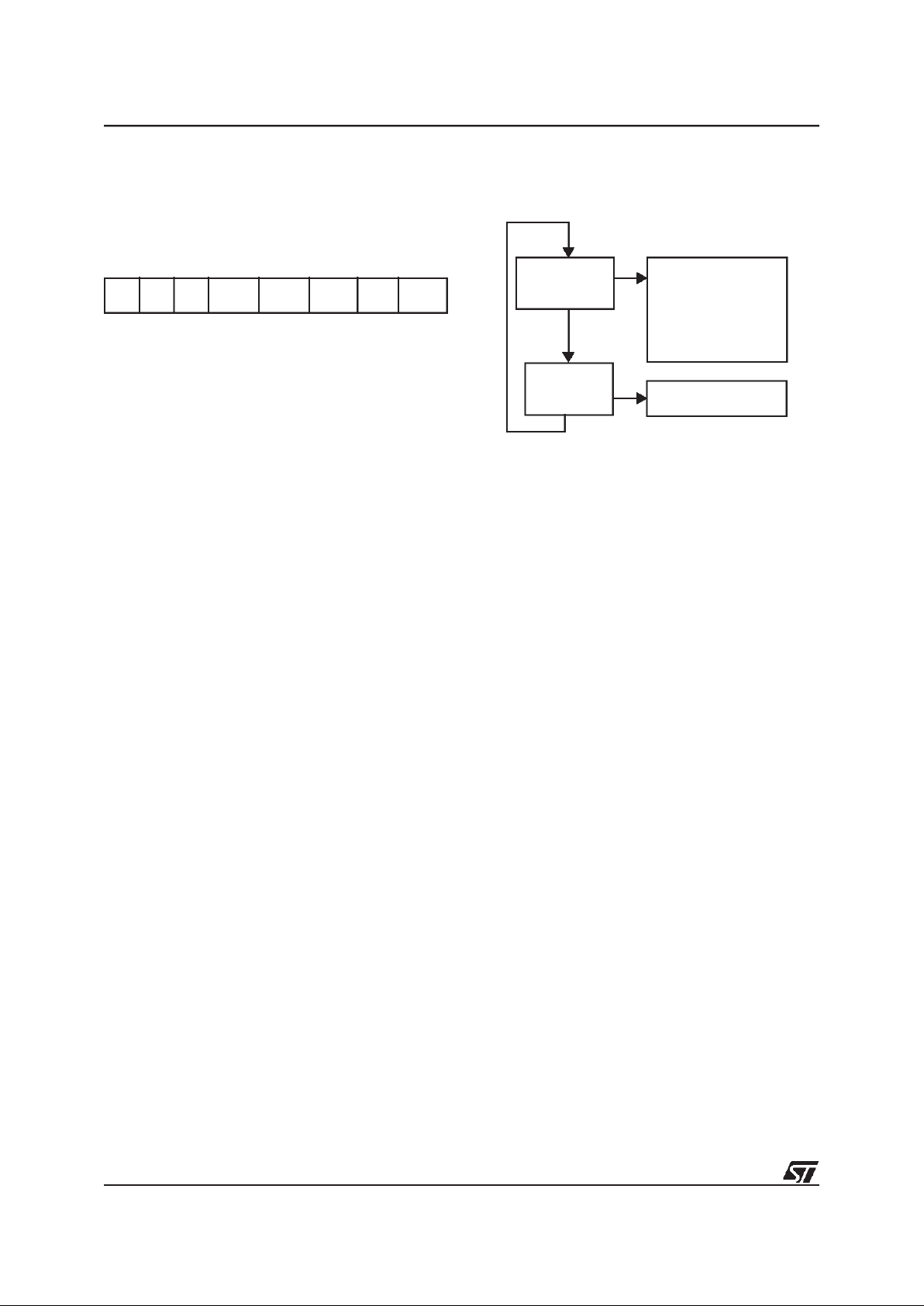

Figure 21. Watchdog Block Diagram

RESET

WDGA

7-BIT DOWNCOUNTER

CPU

T6 T0

CLOCK DIVIDER

WATCHDOG CONTROL REGISTER (CR)

÷12288

Page 31

31/84

ST72101/ST72212/ST72213

WATCHDOG TIMER (Cont’d)

4.2.3 Functional Description

The counter value stored in the CR register (bits T6:T0), is decremented every 12,288 machine cycles, and the length of the timeout period can be programmed by the user in 64increments.

If the watchdog is activated (the WDGA bit is set) and when the 7-bit timer (bits T6:T0) rolls over from 40h to 3Fh (T6 becomes cleared), it initiates a reset cycle pulling low the reset pin for typically 500ns.

The application program must write in theCR register at regular intervals during normal operation to prevent an MCU reset. The value to be stored in the CR register must be between FFh and C0h (see Table 13):

– The WDGA bit is set (watchdog enabled) – The T6 bit is set to prevent generating an imme-

diate reset

– TheT5:T0 bits containthenumber ofincrements

which represents the time delay before the watchdog produces areset.

Table 13. Watchdog Timing (f

CPU

= 8MHz)

Notes: Following a reset, the watchdog is disa-

bled. Onceactivated it cannot be disabled, except by areset.

The T6 bit can be used to generate a software reset (the WDGA bitis set and the T6 bit is cleared).

If the watchdog is activated, the HALT instruction will generate a Reset.

4.2.4 Low Power Modes

4.2.5 Interrupts

None.

4.2.6 Register Description CONTROL REGISTER (CR)

Read/Write Reset Value: 0111 1111 (7Fh)

Bit 7 = WDGA

Activation bit

. This bit is set by software and only cleared by hardware after a reset. When WDGA = 1, the watchdog can generatea reset. 0: Watchdog disabled 1: Watchdog enabled

Bit 6:0 = T[6:0]

7-bit timer (MSB to LSB).

These bits contain the decremented value. A reset is produced when it rolls overfrom 40h to 3Fh(T6 becomes cleared).

Table 14. Watchdog Timer Register Map and Reset Values

CR Register

initial value

WDG timeout period

(ms)

Max FFh 98.304

Min C0h 1.536

Mode Description

WAIT No effect on Watchdog.

HALT

Immediate reset generation assoon as the HALT instruction is executed ifthe Watchdog is activated(WDGA bit is set).

WDGA T6 T5 T4 T3 T2 T1 T0

Address

(Hex.)

Label

76543210

0024h

WDGCR

Reset Value

WDGA

Page 32

32/84

ST72101/ST72212/ST72213

4.3 16-BIT TIMER

4.3.1 Introduction

The timer consists of a 16-bit free-running counter driven by a programmable prescaler.

It may be used for a variety of purposes, including pulse length measurement of up to two input signals (

input capture

) orgeneration of upto two out-

put waveforms (

output compare

and

PWM

Pulse lengths and waveform periods can be modulated from a few microseconds to several milliseconds using the timer prescaler and the CPU clock prescaler.

4.3.2 Main Features

■ Programmableprescaler:f

CPU

dividedby2,4or8.

■ Overflow statusflag and maskable interrupt

■ External clock input (must be at least 4 times

slower thantheCPUclockspeed)withthe choice of activeedge

■ Output compare functions with

– 2 dedicated 16-bitregisters – 2 dedicated programmablesignals – 2 dedicated statusflags – 1 dedicated maskableinterrupt

■ Input capturefunctions with

– 2 dedicated 16-bitregisters – 2 dedicated active edge selection signals – 2 dedicated statusflags – 1 dedicated maskableinterrupt

■ Pulse widthmodulation mode (PWM)

■ One pulse mode

■ 5 alternatefunctionson I/Oports (ICAP1,ICAP2,

OCMP1, OCMP2, EXTCLK)*

The Block Diagram is shown in Figure 22. *Note: Some external pins are not available on all

devices. Refer to the devicepin outdescription. When reading an input signal which is not availa-

ble on an external pin, the value will always be ‘1’.

4.3.3 Functional Description

4.3.3.1 Counter

The principal block of the Programmable Timer is a 16-bit free running increasing counter and itsassociated 16-bit registers:

Counter Registers

– Counter High Register (CHR) isthe most sig-

nificant byte (MSB).

– Counter Low Register (CLR) is the least sig-

nificant byte (LSB).

Alternate Counter Registers

– AlternateCounter HighRegister (ACHR) is the

most significant byte(MSB).

– AlternateCounter Low Register (ACLR) is the

least significant byte (LSB).

These two read-only 16-bit registers contain the same value but with the differencethat reading the ACLR register doesnot clear the TOF bit (overflow flag), (see note at the end of paragraph titled16-bit read sequence).

Writing in the CLRregister or ACLR register resets the free running counter to the FFFCh value.

The timer clock depends on the clock control bits of the CR2 register, as illustratedin Table 15. The value in the counter register repeats every

131.072, 262.144 or 524.288 internal processorclock cycles depending on the CC1and CC0 bits.

Page 33

33/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d) Figure 22. Timer Block Diagram

MCU-PERIPHERAL INTERFACE

COUNTER

ALTERNATE REGISTER

OUTPUT

COMPARE

OUTPUT COMPARE

EDGE DETECT

OVERFLOW

DETECT

CIRCUIT

1/2 1/4

1/8

8-bit

buffer

ST7 INTERNAL BUS

LATCH1

OCMP1

ICAP1

EXTCLK

CPU

TIMER INTERRUPT

ICF2ICF1 000OCF2OCF1 TOF

PWMOC1E EXEDGIEDG2CC0CC1

OC2E

OPMFOLV2ICIE OLVL1IEDG1OLVL2FOLV1OCIE TOIE

ICAP2

LATCH2

OCMP2

8 low

8 high

16 16

CR1

CR2

888

high

low

high

low

EXEDG

TIMER INTERNAL BUS

CIRCUIT1

EDGE DETECT

CIRCUIT2

CIRCUIT

OUTPUT

COMPARE REGISTER

INPUT

CAPTURE

INPUT

CAPTURE

CC1 CC0

16 BIT

FREE RUNNING

COUNTER

Page 34

34/84

ST72101/ST72212/ST72213

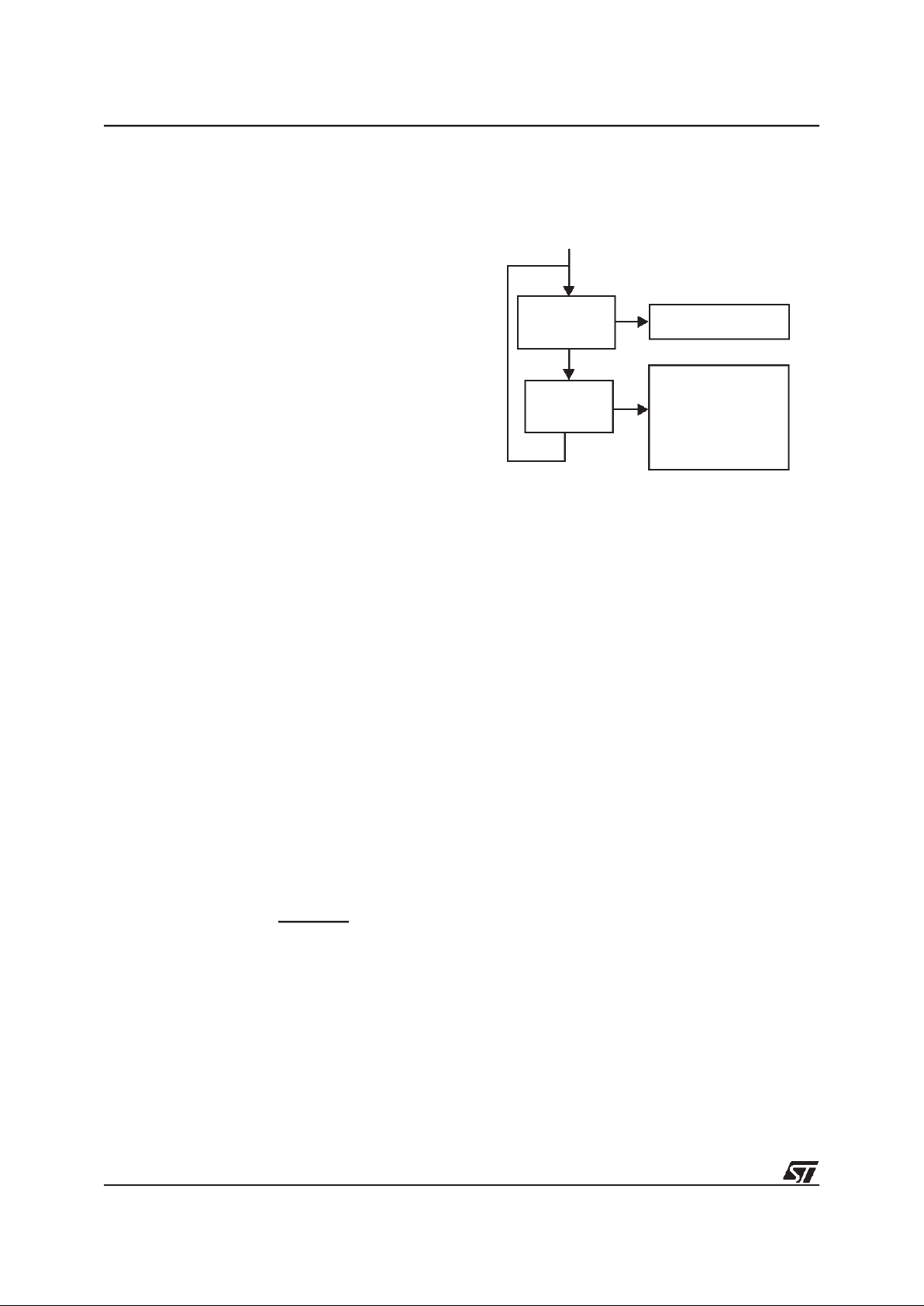

16-BIT TIMER (Cont’d) 16-bit read sequence: (from either the Counter

The user must read the MSB first, then the LSB value isbuffered automatically.

This buffered value remains unchanged until the 16-bit read sequence is completed, even if the user readsthe MSB several times.

After a complete reading sequence, if only the CLR register or ACLR register are read, they return the LSB of the count value at the time of the read.

Whatever the timer mode used (input capture, output compare, one pulse mode or PWM mode) an overflow occurs when the counter rolls over from FFFFh to0000h then:

– The TOF bitof the SRregister is set. – A timer interrupt is generated if:

– TOIE bit of the CR1 registeris set and – I bit ofthe CC register is cleared.

If one of these conditions is false, the interrupt remains pending to be issued as soon as they are both true.

Clearing the overflow interrupt request is done in two steps:

1.Reading theSR registerwhile the TOF bit isset.

2.An access (read or write) to the CLR register. Notes: The TOF bit is not cleared by accesses to

ACLR register. This feature allows simultaneous use of the overflow function and reads of the free running counter at random times (for example, to measure elapsed time) without the risk ofclearing the TOF biterroneously.

The timer is not affected byWAIT mode. In HALT mode,the counter stops countinguntil the

mode is exited. Counting then resumes from the previous count(MCU awakenedby an interrupt) or from the reset count (MCU awakened by aReset).

4.3.3.2 External Clock

The external clock (where available) is selected if CC0=1 and CC1=1 in CR2 register.

The status of the EXEDG bit determines the type of level transition on the external clock pin EXTCLK that willtrigger the free running counter.

The counter is synchronised with the falling edge of the internal CPU clock.

At least four falling edges of the CPU clock must occur between two consecutive active edges of the external clock; thus the external clock frequency must be less than a quarter of the CPU clock frequency.

LSB is buffered

Read MSB

At t0

Read LSB

Returns the buffered

LSB value at t0

At t0 +∆t

Other

instructions

Beginning of the sequence

Sequence completed

Page 35

35/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d) Figure 23. Counter Timing Diagram, internal clock dividedby 2

Figure 24. Counter Timing Diagram, internal clock dividedby 4

Figure 25. Counter Timing Diagram, internal clock dividedby 8

CPU CLOCK

FFFD FFFE FFFF 0000 0001 0002 0003

INTERNAL RESET

TIMER CLOCK

COUNTER REGISTER

OVERFLOW FLAG TOF

FFFC FFFD 0000 0001

CPU CLOCK

INTERNAL RESET

TIMERCLOCK

COUNTER REGISTER

OVERFLOW FLAG TOF

CPU CLOCK

INTERNAL RESET

TIMER CLOCK

COUNTER REGISTER

OVERFLOW FLAG TOF

FFFC FFFD

0000

Page 36

36/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d)

4.3.3.3 Input Capture

In this section, the index,i, may be 1 or 2. The two input capture 16-bit registers (IC1R and

IC2R) are used to latch the value of the free running counter after a transition detected by the ICAPipin (see figure 5).

ICiregister is a read-only register. The active transition is software programmable

through theIEDGibitof theControl Register(CRi). Timing resolution is one count of the free running

counter: (f

CPU

/(CC1.CC0)).

Procedure:

To use the input capturefunction select thefollowing in the CR2 register:

– Select the timer clock (CC1-CC0) (see Table

15).

– Select the edge of the active transition on the

ICAP2 pin with the IEDG2 bit (the ICAP2 pin

must be configured as floating input). And selectthe following in theCR1 register: – Set the ICIE bit to generate an interruptafter an

input capture coming from both the ICAP1 pin or

the ICAP2 pin – Select the edge of the active transition on the

ICAP1 pin with theIEDG1 bit(the ICAP1pinmust

be configured as floating input).

When an input capture occurs: – ICFibit is set. – The ICiR register contains the value of the free

running counter on the active transition on the ICAPipin (seeFigure 27).

– Atimer interrupt is generatedif the ICIEbit is set

and theI bit is cleared in the CC register.Otherwise, the interrupt remains pending until both conditions become true.

Clearing the Input Capture interrupt request is done in two steps:

1.Reading the SRregister while the ICFibitis set.

2.An access (read or write) to the ICiLR register.

Notes:

1.After reading the ICiHR register, transfer of input capture data is inhibited until the ICiLR register is also read.

2.The ICiR register always contains the free running counter value which corresponds to the most recentinput capture.

3.The 2 input capture functions can be used together even if the timer also uses the output compare mode.

4.In One pulse Mode and PWM mode only the input capture 2 can be used.

5.The alternate inputs (ICAP1 & ICAP2) are always directly connected to the timer. So any transitions on these pins activate the input capture process.

6.Moreover if one of the ICAPipin is configured as an input and the second one as an output, an interrupt can be generated if the user toggle the output pin and if the ICIE bit isset.

7.The TOF bit can be used with interrupt in order to measure event that go beyond the timer range (FFFFh).

MS Byte LS Byte

ICiR IC

HR ICiLR

Page 37

37/84

ST72101/ST72212/ST72213

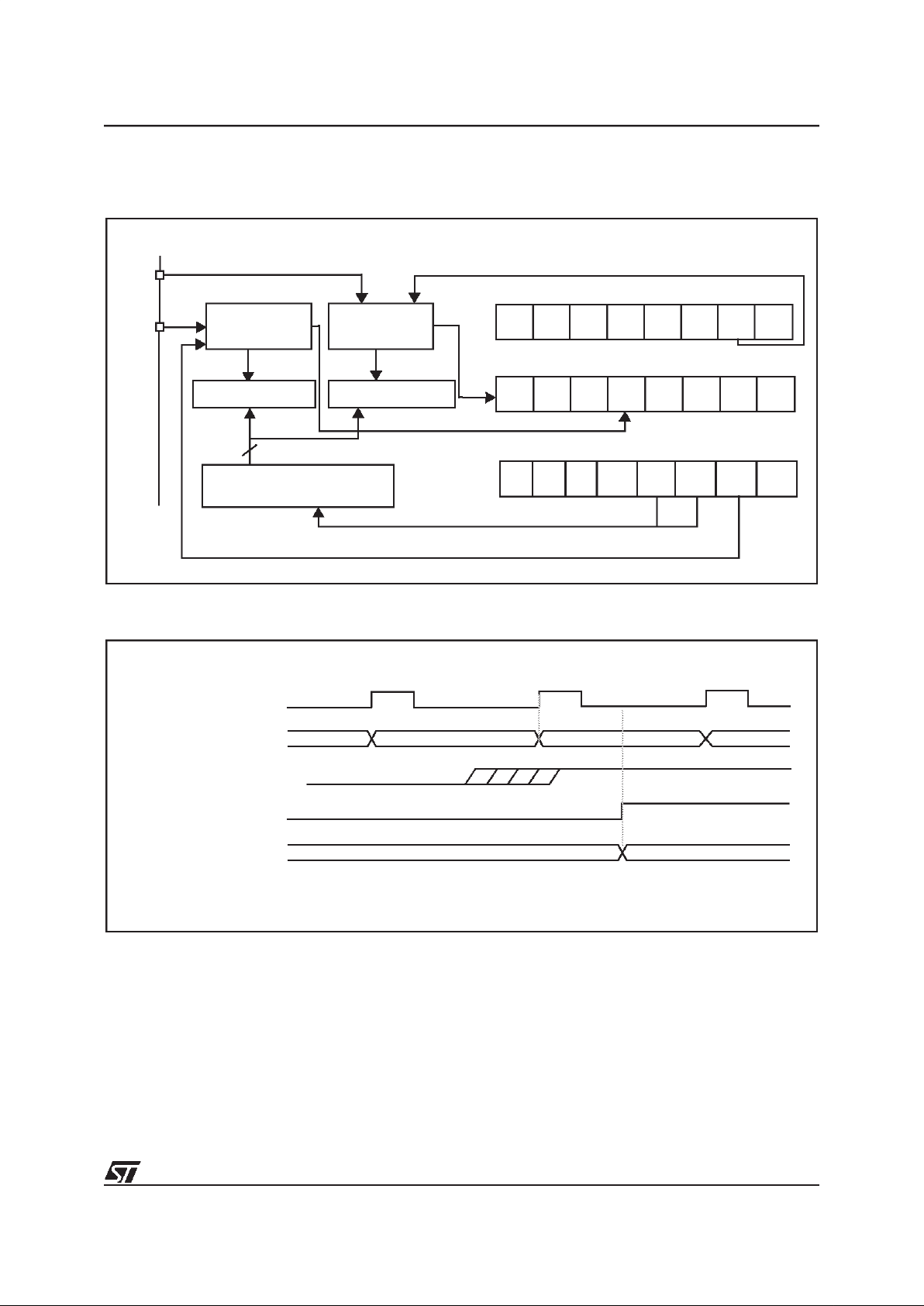

16-BIT TIMER (Cont’d) Figure 26. Input Capture Block Diagram

Figure 27. Input Capture Timing Diagram

ICIE

CC0

CC1

16-BIT FREE RUNNING

COUNTER

IEDG1

(Control Register 1) CR1

(Control Register 2) CR2

ICF2ICF1 000

(Status Register) SR

IEDG2

ICAP1

ICAP2

EDGE DETECT

CIRCUIT2

16-BIT

IC1R RegisterIC2R Register

EDGE DETECT

CIRCUIT1

FF01 FF02 FF03

FF03

TIMER CLOCK

COUNTER REGISTER

ICAPi PIN

ICAPi FLAG

ICAPi REGISTER

Note: A

ctive edge is rising edge.

Page 38

38/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d)

4.3.3.4 Output Compare

In this section, the index,i, may be 1 or 2. This function can be used to control an output

waveform or indicating when a period of time has elapsed.

When a match is found between the Output Compare register and the free running counter, the output compare function:

– Assigns pins with a programmable value if the

OCIE bit is set – Sets a flag in the status register – Generates an interrupt if enabled

Two 16-bit registers Output Compare Register 1 (OC1R) and Output Compare Register 2 (OC2R) contain the value to be compared to the free running counter each timer clock cycle.

These registers are readable and writable and are not affected by the timer hardware. A reset event changes the OCiR valueto 8000h.

Timing resolution is one count of the free running counter: (f

CPU/(CC1.CC0)

Procedure:

To use the outputcompare function, select thefollowing in the CR2 register:

– Set the OCiE bit if an output is needed then the

OCMPipin is dedicated to the output compare

function.

– Select the timer clock (CC1-CC0) (see Table

15). And selectthe following in theCR1 register: – Select theOLVLibitto applied to theOCMPipins

after the matchoccurs.

– Set the OCIE bit to generate an interrupt if it is

needed. When a match is found: – OCFibit is set. – The OCMPipin takes OLVLibit value (OCMP

pin latch is forced low during reset andstays low

until valid compares change it to a high level). – A timer interrupt is generated if the OCIE bit is

set in the CR2 register and the I bit iscleared in

the CC register (CC). The OCiR register valuerequired for a specifictim-

ing application can be calculated using thefollowing formula:

Where:

∆t = Desired output compare period (in sec-

onds)

CPU

= Internal clock frequency

PRESC

= Timer prescaler factor (2, 4 or 8 de-

pending on CC1-CC0 bits, see Table

15)

Clearing the output compare interrupt request is done by:

1.Reading the SR register while the OCFibit is set.

2.An access (read or write) to the OCiLR register.

The following procedure is recommended to prevent the OCFibit from being set between the time it is read and the write to the OCiR register:

– Writeto the OCiHR register (further compares

are inhibited).

– Readthe SR register (firststep of theclearance

of the OCFibit, which may be already set).

– Writeto the OCiLR register (enablesthe output

compare functionand clears the OCFibit).

Notes:

1.After a processor write cycle to the OCiHR register, the output compare function is inhibited until theOCiLR register is also written.

2.If the OCiE bit is not set, the OCMPipin is a general I/O port and the OLVLibit will not appear when a match is found but an interrupt could be generated if the OCIE bit is set.

3.When the clock is divided by 2, OCFiand OCMPiare set while the counter value equals the OCiR register value (see Figure 29, on page 39). This behaviour is the same in OPM or PWM mode. When the clock is divided by 4, 8 or in external clock mode, OCFiand OCMPiare set while the counter value equals the OCiR register value plus 1(see Figure 30, on page39).

4.The output compare functions can be usedboth for generating external events on the OCMP

pins even if the input capture mode is also used.

5.The value in the 16-bit OCiR register and the OLVibit should be changed after each successful comparisonin orderto control an output waveform orestablish a new elapsed timeout.

MS Byte LS Byte

ROC

HR OCiLR

∆OC

∆t*f

CPU

PRESC

Page 39

39/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d) Figure 28. Output Compare BlockDiagram

Figure 29. Output Compare Timing Diagram, Internal Clock Divided by 2

Figure 30. Output Compare Timing Diagram, Internal Clock Divided by 4

OUTPUT COMPARE

16-bit

CIRCUIT

OC1R Register

16 BIT FREE RUNNING

COUNTER

OC1E CC0CC1

OC2E

OLVL1OLVL2OCIE

(Control Register 1) CR1

(Control Register 2) CR2

000OCF2OCF1

(Status Register) SR

16-bit

OCMP1

OCMP2

Latch

OC2R Register

INTERNAL CPU CLOCK

TIMER CLOCK

COUNTER

OUTPUT COMPARE REGISTER

OUTPUT COMPARE FLAG (OCFi)

OCMPi PIN (OLVLi=1)

2ED3

2ED0 2ED1 2ED2

2ED3

2ED42ECF

INTERNAL CPU CLOCK

TIMER CLOCK

COUNTER

OUTPUT COMPARE REGISTER

COMPARE REGISTER LATCH

OCFi AND OCMPi PIN (OLVLi=1)

2ED3

2ED0 2ED1 2ED2

2ED3

2ED42ECF

Page 40

40/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d)

4.3.3.5 Forced Compare

In this sectionimay represent 1 or 2. The following bits of the CR1 register are used:

When the FOLVibit is set by software, the OLVL

bit iscopied to the OCMPipin. The OLVibithas to be toggled in order to toggle the OCMPipin when it is enabled (OCiE bit=1). The OCFibitis then not set by hardware, and thus no interrupt request is generated.

FOLVLibitshaveno effectin both one pulse mode and PWMmode.

4.3.3.6 One Pulse Mode

One Pulse mode enables the generation of a pulse when an externalevent occurs.This mode is selected viathe OPM bit inthe CR2 register.

The one pulse mode uses the Input Capture1 function and the Output Compare1 function.

Procedure:

To useone pulse mode:

1. Load the OC1R register with the value corresponding to the length of the pulse (see theformula inSection 4.3.3.7).

2. Select the following in the CR1 register: – Using the OLVL1 bit, select the levelto be ap-

plied to the OCMP1 pin after the pulse.

– Using the OLVL2 bit, select the levelto be ap-

plied to the OCMP1 pin during the pulse.

– Select the edge of the active transition on the

ICAP1 pin with the IEDG1 bit (the ICAP1 pin must be configured as floating input).

3. Select the following in the CR2 register: – Set the OC1E bit, the OCMP1 pin is then ded-

icated to the Output Compare 1 function. – Set the OPM bit. – Select the timer clock CC1-CC0 (see Table

15).

Then, on a valid event on the ICAP1 pin, the counter is initialized to FFFCh and OLVL2 bit is loaded on the OCMP1pin, the ICF1 bit is set and thevalue FFFDh is loaded in the IC1R register.

When the value of the counteris equal to the value of the contents of the OC1R register, the OLVL1 bit is output on the OCMP1pin, (See Figure 31).

Notes:

1.The OCF1 bit cannot be set by hardware in one pulse mode but the OCF2 bit can generate an Output Compareinterrupt.

2.The ICF1 bit is set when an active edge occurs and can generate an interrupt if the ICIE bit is set.

3.When the Pulse Width Modulation (PWM) and One Pulse Mode (OPM) bits are both set, the PWM modeis the only active one.

4.If OLVL1=OLVL2 a continuous signal will be seen onthe OCMP1 pin.

5.The ICAP1 pin cannot be usedto perform input capture. TheICAP2 pin can be used to perform input capture(ICF2 canbe set andIC2R can be loaded) but the user must take care that the counter is reset each time a valid edge occurs on the ICAP1 pin and ICF1 can also generates interrupt if ICIE is set.

6.When the one pulse mode is used OC1R is dedicated to this mode. Nevertheless OC2R and OCF2 can be used to indicate a period of time has been elapsed but cannot generate an output waveform because the level OLVL2 is dedicated to the one pulse mode.

FOLV2 FOLV1 OLVL2 OLVL1

event occurs

Counter = OC1R

OCMP1 = OLVL1

When

on ICAP1

One pulsemode cycle

OCMP1 = OLVL2

Counter is reset

to FFFCh

ICF1 bit is set

Page 41

41/84

ST72101/ST72212/ST72213

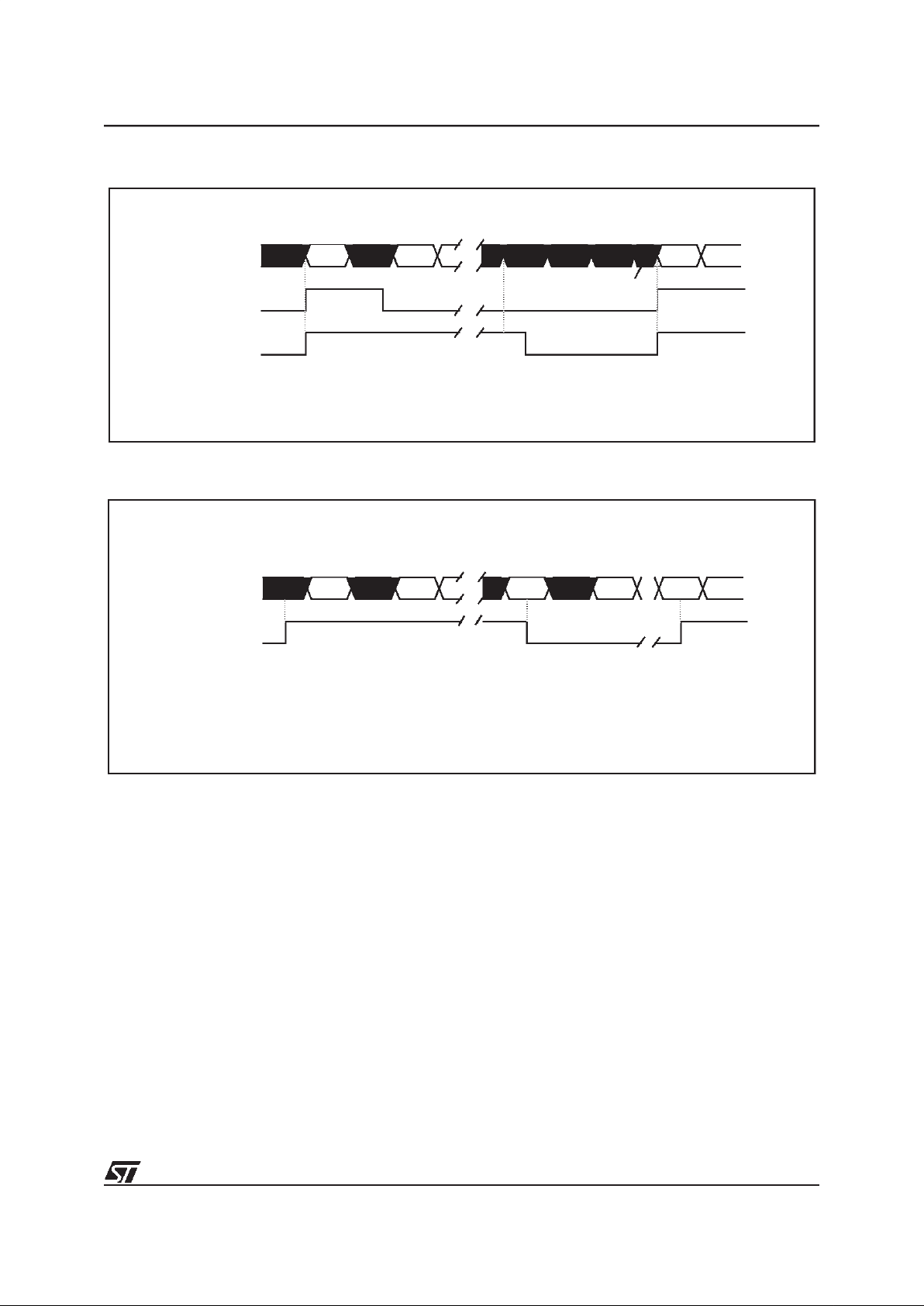

Figure 31. One Pulse Mode Timing Example

Figure 32. Pulse Width Modulation Mode Timing Example

COUNTER

....

FFFC FFFD FFFE 2ED0 2ED1 2ED2

2ED3

FFFC FFFD

OLVL2

OLVL2OLVL1

ICAP1

OCMP1

compare1

Note: IEDG1=1, OC1R=2ED0h, OLVL1=0, OLVL2=1

COUNTER

34E2 FFFC FFFD FFFE 2ED0 2ED1 2ED2 34E2 FFFC

OLVL2

OLVL2OLVL1

OCMP1

compare2 compare1 compare2

Note: OC1R=2ED0h, OC2R=34E2, OLVL1=0, OLVL2= 1

Page 42

42/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d)

4.3.3.7 Pulse Width Modulation Mode

Pulse Width Modulation(PWM)mode enables the generation of a signal with a frequency and pulse length determined by the value of the OC1R and OC2R registers.

The pulse width modulation mode uses the complete Output Compare 1 function plus the OC2R register, and so these functionality can not be used whenthe PWM mode is activated.

Procedure

To usepulse width modulation mode:

1. Load the OC2R register with the value corresponding to the period of the signal.

2. Load the OC1R register with the value corresponding to the length of the pulse if (OLVL1=0 and OLVL2=1).

3. Select the following in the CR1 register: – Using the OLVL1 bit, select the levelto be ap-

plied to the OCMP1 pin after a successful comparison with OC1R register.

– Using the OLVL2 bit, select the levelto be ap-

plied to the OCMP1 pin after a successful comparison with OC2R register.

4. Select the following in the CR2 register: – Set OC1E bit: the OCMP1 pinis thendedicat-

ed to the output compare 1 function. – Set the PWM bit. – Select the timer clock (CC1-CC0) (see Table

15).

If OLVL1=1 and OLVL2=0 the length of the positive pulse is the difference betweenthe OC2R and OC1R registers.

If OLVL1=OLVL2 a continuous signal will be seen on the OCMP1 pin.

The OCiR register valuerequired for a specifictiming application can be calculated using thefollowing formula:

Where: t = Desired output compare period (in sec-

onds)

CPU

= Internal clock frequency

PRESC

= Timer prescaler factor (2, 4 or 8 de-

pending on CC1-CC0 bits, see Table

15)

The Output Compare 2 event causes the counter to be initializedto FFFCh (SeeFigure 32).

Notes:

1.After a write instruction to the OCiHR register, the output compare function is inhibited until the OCiLR register is also written. Therefore the Input Capture 1 function is inhibited but the Input Capture2 is available.

2.The OCF1 and OCF2 bits cannot be set by hardware in PWM mode therefore the Output Compare interruptis inhibited.

3.The ICF1 bit is set by hardware when the counter reaches the OC2R value and can produce a timer interrupt if theICIE bit is setand the I bit is cleared.

4.In PWM mode the ICAP1 pin can not be used to perform input capture because it is disconnected tothe timer.The ICAP2 pin can beused to perform input capture (ICF2 can be set and IC2R can be loaded) but the user must take care that the counter is reset each period and ICF1 canalso generates interrupt if ICIE is set.

5.When the Pulse Width Modulation (PWM) and One Pulse Mode (OPM) bits are both set, the PWM modeis the only active one.

OCiR Value=

t*f

CPU

PRESC

-5

Counter

OCMP1 = OLVL2

Counter = OC2R

OCMP1 = OLVL1

When

= OC1R

Pulse Width Modulation cycle

Counter is reset

to FFFCh

ICF1 bitis set

Page 43

43/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d)

4.3.4 LowPower Modes

4.3.5 Interrupts

Note: The 16-bit Timer interrupt events are con-

nected tothe sameinterrupt vector(see Interrupts chapter). These events generate an interrupt if the corresponding Enable Control Bit is set and the I-bit in the CC register is reset (RIM instruction).

Mode Description

WAIT

No effect on 16-bit Timer. Timer interrupts cause the device to exit from WAIT mode.

HALT

16-bit Timer registers are frozen. In HALT mode, the counter stops counting until Halt mode is exited. Counting resumes from the previous

count whenthe MCU is woken up by an interrupt with “exit from HALT mode” capability or fromthe counter reset value when the MCU is woken up by a RESET.

If an input capture event occurs on the ICAP

pin, the input capture detection circuitry is armed. Consequent-

ly, when the MCU is woken up by an interrupt with“exit from HALT mode” capability, the ICF

bit is set, and

the counter value present when exiting from HALT mode is captured into the IC

R register.

Interrupt Event

Event

Flag

Enable

Control

Bit

Exit from Wait

Exit

from

Halt

Input Capture 1 event/Counter reset in PWM mode ICF1

ICIE

Yes No

Input Capture 2 event ICF2 Yes No Output Compare 1 event (not available in PWM mode) OCF1

OCIE

Yes No

Output Compare 2 event (not available in PWM mode) OCF2 Yes No Timer Overflow event TOF TOIE Yes No

Page 44

44/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d)

4.3.6 Register Description

Each Timer is associated with three control and status registers, and with six pairsof data registers (16-bit values) relating to the two input captures, the two output compares, the counter and the alternate counter.

CONTROL REGISTER 1 (CR1)

Read/Write Reset Value: 0000 0000 (00h)

Bit 7 = ICIE

Input Capture Interrupt Enable.

0: Interrupt is inhibited. 1: A timer interrupt is generated whenever the

ICF1 or ICF2 bit of the SR register isset.

Bit 6 = OCIE

Output Compare Interrupt Enable.

0: Interrupt is inhibited. 1: A timer interrupt is generated whenever the

OCF1 or OCF2 bit of the SR register is set.

Bit 5 = TOIE

Timer Overflow Interrupt Enable.

0: Interrupt is inhibited. 1: A timer interrupt is enabled whenever the TOF

bit of the SR register is set.

Bit 4 = FOLV2

Forced Output Compare 2.

This bit is set andcleared by software. 0: No effecton the OCMP2 pin. 1:Forces the OLVL2 bit to be copied to the

OCMP2 pin, if the OC2E bit is set and even if there isno successful comparison.

Bit 3 = FOLV1

Forced Output Compare 1.

This bit is set andcleared by software. 0: No effecton the OCMP1 pin. 1: Forces OLVL1 to becopied to theOCMP1 pin,if

the OC1E bit is set and even if there is no successful comparison.

Bit 2 = OLVL2

Output Level 2.

This bit is copied to the OCMP2 pin whenever a successful comparison occurs withthe OC2Rregister and OCxE is set in the CR2 register.This value is copied to the OCMP1 pinin One Pulse Mode and Pulse Width Modulation mode.

Bit 1 = IEDG1

Input Edge1.

This bit determines which type of level transition on the ICAP1 pin will trigger the capture. 0: A falling edge triggers the capture. 1: A rising edge triggers the capture.

Bit 0 = OLVL1

Output Level 1.

The OLVL1 bit is copied to the OCMP1 pin whenever a successful comparison occurs with the OC1R register and the OC1E bit is set in the CR2 register.

ICIE OCIE TOIE FOLV2 FOLV1 OLVL2 IEDG1 OLVL1

Page 45

45/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d) CONTROL REGISTER 2 (CR2)

Read/Write Reset Value: 0000 0000 (00h)

Bit 7 = OC1E

Output Compare 1 Pin Enable.

This bit is used only to output the signal from the timer on the OCMP1 pin (OLV1 in Output Compare mode, both OLV1 and OLV2 in PWM and one-pulse mode). Whateverthe value of theOC1E bit, the Output Compare1 function of the timer remains active. 0: OCMP1 pin alternate function disabled (I/O pin

free for general-purpose I/O).

1: OCMP1 pin alternate function enabled.

Bit 6 = OC2E

Output Compare 2 Enable.

This bit is used only to output the signal from the timer on the OCMP2 pin (OLV2 in Output Compare mode). Whatever the value of the OC2E bit, the Output Compare 2 function of the timer remains active. 0: OCMP2 pin alternate function disabled (I/O pin

free for general-purpose I/O).

1: OCMP2 pin alternate function enabled.

Bit 5 = OPM

One PulseMode.

0: One Pulse Mode is not active. 1: One PulseMode isactive, theICAP1 pin can be

used totrigger one pulseon the OCMP1 pin; the active transition is given by the IEDG1 bit. The length of the generated pulse depends on the contents of the OC1R register.

Bit 4 = PWM

Pulse WidthModulation.

0: PWM modeis not active. 1: PWM mode is active, the OCMP1 pin outputs a

programmable cyclic signal; the length of the pulse depends on the value of OC1R register; the period depends on the valueof OC2R register.

Bit 3, 2 = CC1-CC0

Clock Control.

The value ofthe timer clock depends onthese bits:

Table 15. Clock Control Bits

Bit 1 = IEDG2

Input Edge2.

This bit determines which type of level transition on the ICAP2 pin will trigger the capture. 0: A falling edge triggers the capture. 1: A rising edge triggers the capture.

Bit 0 = EXEDG

External Clock Edge.

This bit determines which type of level transition on the external clock pin EXTCLK will trigger the free running counter. 0: A falling edge triggers the freerunning counter. 1: A rising edge triggers the free running counter.

OC1E OC2E OPM PWM CC1 CC0 IEDG2 EXEDG

Timer Clock CC1 CC0

CPU

/4 0 0

CPU

/2 0 1

CPU

/8 1 0

External Clock (where

available)

Page 46

46/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d) STATUS REGISTER (SR)

Read Only Reset Value: 0000 0000 (00h) The three least significant bits arenot used.

Bit 7 = ICF1

Input Capture Flag 1.

0: No input capture (reset value). 1: An input capture has occurred or the counter

has reached the OC2R value in PWM mode. To clear thisbit, firstread the SRregister, then read or write the low byte of the IC1R (IC1LR) register.

Bit 6 = OCF1

Output Compare Flag 1.

0: No match (reset value). 1: The content of the free running counter has

matched the content of the OC1R register. To clear thisbit, firstread the SRregister, then read or writethe low byte of the OC1R (OC1LR) register.

Bit 5 = TOF

Timer Overflow.

0: No timer overflow (reset value). 1:The freerunning counter rolled overfrom FFFFh

to 0000h. To clear thisbit, first read the SR register, then read or write the low byte of the CR (CLR) register.

Note: Reading or writing the ACLR register does not clear TOF.

Bit 4 = ICF2

Input Capture Flag 2.

0: No input capture (reset value). 1: An input capture has occurred.To clear this bit,

first read the SR register, then read or write the low byte of the IC2R (IC2LR) register.

Bit 3 = OCF2

Output Compare Flag 2.

0: No match (reset value). 1: The content of the free running counter has

matched the content of the OC2R register. To clear thisbit, firstread the SRregister, then read or writethe low byte of the OC2R (OC2LR) register.

Bit 2-0 = Reserved, forced by hardware to 0.

INPUT CAPTURE 1 HIGH REGISTER (IC1HR)

Read Only Reset Value: Undefined

This is an8-bit read only register thatcontains the high part of the counter value (transferred by the input capture 1 event).

INPUT CAPTURE 1 LOW REGISTER (IC1LR)

Read Only Reset Value: Undefined

This is an8-bit read only register thatcontains the low part of the counter value (transferred by the input capture 1 event).

OUTPUT COMPARE 1 HIGH REGISTER (OC1HR)

Read/Write Reset Value: 1000 0000 (80h)

This is an 8-bit register that contains the high part of the value to be comparedto the CHR register.

OUTPUT COMPARE 1 LOW REGISTER (OC1LR)

Read/Write Reset Value: 0000 0000 (00h)

This isan 8-bitregister that containsthelow part of the value to be compared to the CLR register.

ICF1 OCF1 TOF ICF2 OCF2 0 0 0

MSB LSB

Page 47

47/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d) OUTPUT COMPARE 2 HIGH REGISTER

(OC2HR)

Read/Write Reset Value: 1000 0000 (80h)

This is an 8-bit register that contains the high part of the value to be comparedto the CHRregister.

OUTPUT COMPARE 2 LOW REGISTER (OC2LR)

Read/Write Reset Value: 0000 0000 (00h)

This is an 8-bitregister that contains thelow part of the value to be compared tothe CLR register.

COUNTER HIGH REGISTER (CHR)

Read Only Reset Value: 1111 1111 (FFh)

This is an 8-bit register that contains the high part of the counter value.

COUNTER LOW REGISTER (CLR)

Read Only Reset Value: 1111 1100 (FCh)

This is an 8-bitregister that contains thelow part of the counter value. A writeto thisregisterresets the counter. Anaccess to this registerafter accessing the SR register clears the TOF bit.

ALTERNATE COUNTER HIGH REGISTER (ACHR)

Read Only Reset Value: 1111 1111 (FFh)

This is an 8-bit register that contains the high part of the counter value.

ALTERNATE COUNTER LOW REGISTER (ACLR)

Read Only Reset Value: 1111 1100 (FCh)

This isan 8-bitregister that containsthelow part of the counter value. Awrite to this register resets the counter. An access to this register after anaccess to SR register does not clear the TOF bit in SR register.

INPUT CAPTURE 2 HIGH REGISTER (IC2HR)

Read Only Reset Value: Undefined

This is an8-bit read only register thatcontains the high part of the counter value (transferred by the Input Capture 2 event).

INPUT CAPTURE 2 LOW REGISTER (IC2LR)

Read Only Reset Value: Undefined

This is an8-bit read only register thatcontains the low part of thecounter value(transferred by the Input Capture 2 event).

MSB LSB

Page 48

48/84

ST72101/ST72212/ST72213

16-BIT TIMER (Cont’d) Table 16. 16-Bit Timer Register Map and Reset Values

Address

(Hex.)

Name

76543210

TimerA: 32 TimerB: 42

CR1

Reset Value

ICIE

OCIE

TOIE0FOLV20FOLV10OLVL20IEDG10OLVL1

0 TimerA: 31 TimerB: 41

CR2

Reset Value

OC1E

OC2E

OPM

PWM

CC1

CC0

IEDG20EXEDG

0 TimerA: 33 TimerB: 43SRReset Value

ICF1

OCF1

TOF

ICF2

OCF2

0 TimerA: 34 TimerB: 44

IC1HR

Reset Value

MSB

------

LSB

TimerA: 35 TimerB: 45

IC1LR

Reset Value

MSB

------

LSB

TimerA: 36 TimerB: 46

OC1HR

Reset Value

MSB

LSB

TimerA: 37 TimerB: 47

OC1LR

Reset Value

MSB

LSB

0 TimerA: 3E TimerB: 4E

OC2HR

Reset Value

MSB

LSB

0 TimerA: 3F TimerB: 4F

OC2LR

Reset Value

MSB

LSB

0 TimerA: 38 TimerB: 48

CHR

Reset Value

MSB

1111111

LSB

1 TimerA: 39

TimerB: 49

CLR

Reset Value

MSB

1111110

LSB

0 TimerA: 3A TimerB: 4A

ACHR

Reset Value

MSB

1111111

LSB

1 TimerA: 3B TimerB: 4B

ACLR

Reset Value

MSB

1111110

LSB

TimerA: 3C TimerB: 4C

IC2HR

Reset Value

MSB

------

LSB

TimerA: 3D TimerB: 4D

IC2LR

Reset Value

MSB

------

LSB

Page 49

49/84

ST72101/ST72212/ST72213

4.4 SERIAL PERIPHERAL INTERFACE (SPI)

4.4.1 Introduction

The Serial Peripheral Interface (SPI) allows fullduplex, synchronous, serial communication with external devices. An SPI system may consist of a master and one or more slaves or a system in which devices may be either mastersor slaves.

The SPI is normally used for communication between themicrocontroller and external peripherals or another microcontroller.

Refer to the Pin Descriptionchapter for the devicespecific pin-out.

4.4.2 Main Features

■ Full duplex, three-wire synchronous transfers

■ Master orslave operation

■ Four mastermode frequencies

■ Maximum slave mode frequency = fCPU/2.

■ Four programmablemaster bit rates

■ Programmable clock polarity and phase

■ End of transfer interrupt flag

■ Write collision flag protection

■ Master modefault protection capability.

4.4.3 General description

The SPI is connected to external devices through 4 alternate pins:

– MISO: Master In Slave Out pin – MOSI: Master Out Slave In pin – SCK: Serial Clock pin – SS: Slave select pin

A basic example of interconnections between a single master and a single slave is illustrated on Figure 33.

The MOSI pins are connected together as are MISO pins. In this way data is transferred serially between master and slave (most significant bit first).

When the master device transmits data to a slave device via MOSI pin, the slave device responds by sending data to the master device via the MISO pin. This implies full duplex transmission with both data out and data in synchronized with the same clock signal (which is provided by the master device via the SCK pin).

Thus, the byte transmitted is replacedby the byte received and eliminates the need for separate transmit-empty and receiver-full bits. A status flag is used to indicate that the I/O operation is complete.

Four possible data/clock timing relationships may be chosen (see Figure 36) but master and slave must be programmed with the same timing mode.

Figure 33. Serial Peripheral Interface Master/Slave

8-BIT SHIFT REGISTER

SPI

CLOCK

GENERATOR

8-BIT SHIFT REGISTER

MISO

MOSI

MISO

SCK

SLAVE

MASTER

+5V

MSBit LSBit MSBit LSBit

Page 50

50/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d) Figure 34. Serial Peripheral Interface Block Diagram

Read Buffer

8-Bit Shift Register

Write

Read

Internal Bus

SPI

SPIE SPE SPR2 MSTR CPHA SPR0SPR1CPOL

SPIF

WCOL

MODF

SERIAL CLOCK GENERATOR

MOSI

MISO

SCK

CONTROL

STATE

request

MASTER

CONTROL

Page 51

51/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d)

4.4.4 Functional Description

Figure 33 shows the serial peripheral interface (SPI) blockdiagram.

This interface contains 3 dedicated registers:

– A Control Register (CR) – A Status Register (SR) – A Data Register (DR)

Refer to the CR, SR and DR registers in Section

4.4.7for the bit definitions.

4.4.4.1 Master Configuration

In a master configuration, the serial clock is generated onthe SCK pin.

Procedure

– Select the SPR0 & SPR1 bits todefine these-

rial clock baud rate (see CR register).

– Select the CPOL and CPHA bits todefine one

of the four relationships between the data transfer and the serial clock (see Figure 36).

– The SS pin must be connected to ahigh level

signal during the complete byte transmit sequence.

– The MSTR and SPE bits must beset (they re-

main set only if the SS pin is connected to a high level signal).

In this configuration the MOSI pin is a data output and to the MISO pin is a data input.

Transmit sequence

The transmit sequencebegins when abyte is written the DRregister.

The data byte is parallel loaded into the 8-bit shift register (from the internal bus)during a writecycle and then shifted out serially to the MOSI pin most significant bit first.

When data transfer is complete:

– The SPIF bit is set by hardware – An interrupt is generatedif the SPIE bit is set

and the I bit in the CCR register is cleared.

During the last clock cycle the SPIF bit is set, a copy of the data byte received in the shift register is moved to a buffer. Whenthe DR register isread, the SPI peripheralreturns this buffered value.

Clearing the SPIF bit isperformed bythe following software sequence:

1.An access to the SR registerwhile the SPIF bit is set

2.A write ora read of the DR register.

Note: While the SPIF bit is set, all writes to the DR

Page 52

52/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d)

4.4.4.2 Slave Configuration

In slave configuration, the serial clock is received on the SCK pin from themaster device.

The value of the SPR0& SPR1 bits is not used for the data transfer.

Procedure

– For correct data transfer, the slave device

must be in the same timing mode asthe master device (CPOL and CPHA bits).See Figure

36.

– The SS pin must be connected to a low level

signal during the complete byte transmit sequence.

– Clear the MSTRbit and set the SPE bit to as-

sign the pins to alternate function.

In this configuration the MOSI pin is a data input and theMISO pin is a data output.

Transmit Sequence

The data byte is parallel loaded into the 8-bit shift register (from the internalbus) during a write cycle and then shifted out serially to the MISO pin most significant bit first.

The transmit sequence begins whenthe slave device receivesthe clock signal and the most significant bit of the data on its MOSI pin.

When data transfer is complete:

– The SPIF bit is set by hardware – An interrupt is generatedif SPIE bit is set and

I bit in CCR register iscleared.

Clearing the SPIF bit isperformed bythe following software sequence:

1.An access to the SR registerwhile the SPIF bit is set.

2.A write ora read of the DR register.

Notes: While the SPIF bit is set, all writes to the DR register are inhibited until the SR register is read.

The SPIF bit can be cleared during a second transmission; however, it must be cleared before the second SPIF bit in order to prevent an overrun condition (see Section 4.4.4.6).

Depending on the CPHA bit, the SS pin has to be set to write to the DR register between each data byte transfer to avoid awrite collision(see Section

4.4.4.4).

Page 53

53/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d)

4.4.4.3 Data Transfer Format

During an SPI transfer, data is simultaneously transmitted (shifted out serially) and received (shifted in serially). Theserial clock isused tosynchronize the data transfer during a sequence of eight clockpulses.

The SS pin allows individual selection of a slave device; theother slave devices that are notselected do not interfere with the SPI transfer.

Clock Phase and Clock Polarity

Four possible timing relationships may be chosen by software,using the CPOL and CPHA bits.

The CPOL (clock polarity) bit controls the steady state value of the clock when no data is being transferred. This bit affects both master andslave modes.

The combination between the CPOL and CPHA (clock phase) bits selects the data capture clock edge.

Figure 36, shows an SPI transfer with the four combinations of the CPHAand CPOL bits. Thediagram may be interpreted as a master or slave timing diagram where the SCK pin, the MISO pin, the MOSI pin are directly connected between the master and theslave device.

The SS pin is the slavedevice select input andcan be driven by the master device.

The master device applies data to its MOSI pinclock edge before the capture clockedge.

CPHA bit is set

The second edge on the SCK pin (falling edge if the CPOL bit is reset, rising edge if the CPOL bit is set) is theMSBit capture strobe. Data islatched on the occurrence of the first clock transition.

No write collision should occur even if the SS pin stays low during a transfer of several bytes (see Figure 35).

CPHA bit is reset

The firstedge on theSCKpin (falling edge ifCPOL bit is set, rising edge if CPOL bit is reset) is the MSBit capture strobe. Data is latched on the occurrence of the second clock transition.

This pin must be toggled high and low between each byte transmitted (see Figure 35).

To protect the transmission froma writecollision a low value on the SS pin of a slave device freezes the data in its DR register and does not allow it to be altered. Therefore the SS pin must be high to write a new data byte in the DR without producing a write collision.

Figure 35. CPHA / SS Timing Diagram

MOSI/MISO

Master

Slave SS

(CPHA=0)

Slave

(CPHA=1)

Byte 1 Byte 2

Byte 3

VR02131A

Page 54

54/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d) Figure 36. Data Clock Timing Diagram

CPOL = 1

CPOL =0

MSBit Bit 6 Bit 5

Bit 4 Bit3 Bit 2 Bit 1 LSBit

MISO

(from master)

MOSI

(from slave)

(to slave)

CAPTURE STROBE

CPHA =1

CPOL = 1

CPOL = 0

MSBit Bit 6 Bit 5

Bit 4 Bit3 Bit 2 Bit 1 LSBit

MSBit Bit 6 Bit 5 Bit 4 Bit3 Bit 2 Bit 1 LSBit

MISO

(from master)

MOSI

(to slave)

CAPTURE STROBE

CPHA =0

Note: This figureshould not be usedas a replacement forparametric information.

Refer to the Electrical Characteristics chapter.

(from slave)

VR02131B

MSBit Bit 6 Bit 5

Bit 4 Bit3 Bit 2 Bit 1 LSBit

Page 55

55/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d)

4.4.4.4 Write Collision Error

A write collision occurs when the software tries to write to the DR register while a data transfer is taking place with an external device. When this happens, the transfer continues uninterrupted; and the software write will be unsuccessful.

Write collisions can occurboth inmaster and slave mode.

Note: a ”read collision” will never occur since the received data byte is placed in a buffer in which access is alwayssynchronous withthe MCU operation.

In Slave mode

When the CPHA bit is set: The slave device will receive a clock (SCK) edge

prior to the latch of the first data transfer. This first clock edgewill freeze the data in the slave device DR register and output the MSBit on to the external MISO pin of the slave device.

The SS pin lowstate enables the slave device but the output of the MSBit onto the MISO pin does not take place until the first data transfer clock edge.

When the CPHA bit is reset: Data is latchedon the occurrence of thefirst clock

transition. The slave device does not have any way of knowing when that transition will occur; therefore, the slave device collision occurs when software attempts to write the DR registerafter its SS pin has been pulled low.

For this reason, the SS pin mustbe high, between each data byte transfer, to allow the CPU to write in the DR register without generating a write collision.

In Master mode

Collision in the master device is definedas a write of the DR register while the internal serial clock (SCK) is in the process of transfer.

The SS pin signal must be always high on the master device.

WCOL bit

The WCOL bit in the SR register is set if a write collision occurs.

No SPI interrupt is generated when the WCOL bit is set (the WCOL bit is a status flagonly).

Clearing the WCOLbit is done through a software sequence (see Figure37).

Figure 37. Clearing the WCOLbit (Write Collision Flag) Software Sequence

Clearing sequence after SPIF = 1(end of a databyte transfer)

1st Step

Read SR

Read DR Write DR

2nd Step

SPIF =0 WCOL=0

SPIF =0 WCOL=0 if no transfer has started WCOL=1 if a transfer has started

Clearing sequence before SPIF = 1 (during a data byte transfer)

1st Step

2nd Step

WCOL=0

before the 2nd step

Read SR

Read DR

Note: Writing in DR register instead of reading in it do not reset WCOL bit

Read SR

THEN

Page 56

56/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d)

4.4.4.5 Master Mode Fault

Master mode fault occurs when the master device has its SS pin pulled low, then the MODF bit isset.

Master mode fault affectstheSPI peripheral in the following ways:

– The MODF bit is set and an SPI interrupt is

generated if theSPIE bit is set.

– The SPE bit is reset. This blocks all output

from the device and disables the SPI peripheral.

– The MSTR bit is reset,thus forcingthe device

into slave mode.

Clearing theMODF bit is done through a software sequence:

1. A read or write access to the SR register while the MODF bit is set.

2. A writeto the CR register.

Notes: To avoid any multiple slave conflicts in the case of a system comprising several MCUs, the SS pinmust be pulled high during the clearingsequence of the MODF bit. The SPE and MSTRbits

may be restored to their original state during or after this clearing sequence.

Hardware does not allow the user to set the SPE and MSTR bits while the MODFbit isset exceptin the MODF bit clearing sequence.

In a slave device the MODF bit can notbe set, but in a multi masterconfiguration the device can be in slave mode with this MODF bit set.

The MODF bit indicates that there might have been a multi-master conflict for system control and allows a proper exitfrom systemoperation toa reset or default system state using an interrupt routine.

4.4.4.6 Overrun Condition

An overrun condition occurs, when themaster device has sent several data bytes and the slavedevice has not cleared the SPIF bit issuing from the previous data bytetransmitted.

In this case, the receiver buffer contains the byte sent after the SPIF bit was last cleared. A read to the DR register returns this byte. All other bytes are lost.

This condition isnot detected by the SPIperipheral.

Page 57

57/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d)

4.4.4.7 Single Master and Multimaster Configurations

There are two types of SPI systems: – Single Master System – Multimaster System

Single MasterSystem

A typical single master systemmay beconfigured, using an MCU as the master and four MCUs as slaves (see Figure 38).

The master device selects the individualslave devices byusing fourpins ofa parallel port to control the four SS pinsof the slave devices.

The SS pins are pulled high during reset since the master device ports will be forced to be inputs at that time,thus disabling the slave devices.

Note: To prevent a bus conflict on the MISO line the master allows only one slave device during a transmission.

For more security, the slave device may respond to the masterwith thereceived data byte. Then the master willreceivethe previous byte backfrom the slave device if all MISO and MOSI pins are connected and the slave has not written its DR register.

Other transmission security methods can use ports for handshake lines or data bytes with command fields.

Multi-master System

A multi-master system may also be configured by the user. Transfer of master control could be implemented using a handshake method through the I/O ports or by an exchange of code messages through the serial peripheral interface system.

The multi-master system is principally handled by the MSTR bit in the CRregister and the MODF bit in the SR register.

Figure 38. Single Master Configuration

MISO

MOSI

MOSI MOSI MOSIMISO MISO MISOMISO

SCK SCK

SCK

Ports

Slave

MCU

Slave MCU

Slave

MCU

Slave

MCU

Master MCU

Page 58

58/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d)

4.4.5 LowPower Modes

4.4.6 Interrupts

Note: The SPI interrupt events are connected to

the same interrupt vector (see Interrupts chapter). They generate an interrupt if the corresponding Enable Control Bitis set and the I-bitin the CCregister is reset (RIM instruction).

Mode Description

WAIT

No effect on SPI. SPI interrupt events cause the device to exit from WAIT mode.

HALT

SPI registers are frozen. In HALT mode, the SPI is inactive. SPI operation resumes when the MCU is woken up by an interrupt with “exit from HALT mode” capability.

Interrupt Event

Event

Flag

Enable

Control

Bit

Exit from Wait

Exit

from

Halt

SPI End of Transfer Event SPIF

SPIE

Yes No

Master Mode Fault Event MODF Yes No

Page 59

59/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d)

4.4.7 Register Description CONTROL REGISTER (CR)

Read/Write Reset Value: 0000xxxx (0xh)

Bit 7 = SPIE

Serial peripheral interrupt enable.

This bit is set and cleared by software. 0: Interrupt is inhibited 1: An SPI interruptis generated whenever SPIF=1

or MODF=1in the SR register

Bit 6 = SPE

Serial peripheral output enable.

This bit is set and cleared by software. It is also cleared by hardware when, inmaster mode, SS=0 (see Section 4.4.4.5 Master Mode Fault). 0: I/O port connected to pins 1: SPI alternate functions connected to pins

The SPE bit is clearedby reset,so the SPI peripheral isnot initially connected to the external pins.

Bit 5 = SPR2

Divider Enable

this bit is set and cleared by software and it is cleared by reset.It is usedwith theSPR[1:0] bits to set the baud rate. Refer to Table 17. 0: Divider by 2 enabled 1: Divider by 2 disabled

Bit 4 = MSTR

Master.

This bit is set and cleared by software. It is also cleared by hardware when, inmaster mode, SS=0 (see Section 4.4.4.5 Master Mode Fault). 0: Slave mode is selected 1: Master mode is selected, the function of the

SCK pin changesfrom an input to an output and the functions ofthe MISO and MOSI pinsare reversed.

Bit 3 = CPOL

Clock polarity.

This bit is setand cleared by software. This bit determines the steady state of the serial Clock. The CPOL bit affects both the master and slave modes. 0: The steady state is a low value at the SCK pin. 1: The steady state is a high value at the SCK pin.

Bit 2 = CPHA

Clock phase.

This bit is set andcleared by software. 0: The first clock transition isthe firstdata capture

edge.

1: The second clock transition is the first capture

edge.

Bit 1:0 = SPR[1:0]

Serial peripheral rate.

These bits are set and cleared by software.Used with the SPR2 bit,they select one of six baudrates to be used as the serial clock when the deviceis a master.

These 2 bits have no effectin slave mode.

Table 17. Serial Peripheral Baud Rate

SPIE SPE SPR2 MSTR CPOL CPHA SPR1 SPR0

Serial Clock SPR2 SPR1 SPR0

CPU

/2 1 0 0

CPU

/8 0 0 0

CPU

/16 0 0 1

CPU

/32 1 1 0

CPU

/64 0 1 0

CPU

/128 0 1 1

Page 60

60/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d) STATUS REGISTER (SR)

Read Only Reset Value: 0000 0000 (00h)

Bit 7 = SPIF

Serial Peripheral data transfer flag.

This bit is set by hardware when a transfer has been completed. An interrupt is generated if SPIE=1 in the CR register. It is cleared by a software sequence (an access to the SR register followed by a read or write to the DR register). 0: Data transfer is in progressor has beenap-

proved by a clearing sequence.

1: Data transfer between the device and an exter-

nal device has been completed.

Note: While the SPIFbit is set, allwrites to the DR register are inhibited.

Bit 6 = WCOL

Write Collision status.

This bit is set by hardware when a write to the DR register is done during a transmit sequence. It is cleared by a software sequence (see Figure 37). 0: No write collision occurred 1: A write collision has been detected

Bit 5 = Unused.

Bit 4 = MODF

Mode Fault flag.

This bit is set by hardware when the SS pin is pulled low in master mode (see Section 4.4.4.5 Master Mode Fault). An SPI interrupt can be generated if SPIE=1 in the CR register. This bit is cleared by a software sequence (An accessto the SR register while MODF=1 followed by a write to the CR register). 0: No master mode fault detected 1: A fault in master mode has been detected

Bits 3-0= Unused.

DATA I/O REGISTER (DR)

Read/Write Reset Value: Undefined

The DR register is used to transmit and receive data on the serial bus. In the master device only a write to this register will initiate transmission/reception of anotherbyte.

Notes: During the last clock cycle the SPIF bit is set, a copy of the received data byte in the shift register is movedto a buffer. Whenthe user reads the serial peripheral data I/O register, the buffer is actually being read.

Warning:

A write to theDR register places data directly into the shift register fortransmission.

A write to the the DR register returns the value located in the bufferand notthe contentsof the shift register (See Figure 34 ).

SPIF WCOL - MODF - - - -

D7 D6 D5 D4 D3 D2 D1 D0

Page 61

61/84

ST72101/ST72212/ST72213

SERIAL PERIPHERAL INTERFACE (Cont’d) Table 18. SPI Register Map and Reset Values

Address

(Hex.)

Name

76543210

Reset Value

SPIE

SPE

SPR20MSTR

CPOL

CPHA

SPR1

SPR0

Reset Value

SPIF

WCOL

MODF

Page 62

62/84

ST72101/ST72212/ST72213

4.5 8-BIT A/D CONVERTER (ADC)

4.5.1 Introduction

The on-chip Analog to Digital Converter (ADC) peripheral is a 8-bit, successive approximation converter with internal sample and hold circuitry. This peripheral has up to 8 multiplexed analog input channels (refer to device pin out description) that allow the peripheral to convert the analog voltage levels from up to 8 different sources.

The result of the conversion is stored in a 8-bit Data Register. The A/D converter is controlled through a Control/Status Register.

4.5.2 Main Features

■ 8-bit conversion

■ Up to 8 channels with multiplexed input

■ Linear successive approximation

■ Data register (DR) which contains the results

■ Conversioncomplete status flag

■ On/off bit (to reduce consumption)

The block diagram is shown in Figure 39.

Figure 39. ADC block diagram

SAMPLE

ANALOG

MUX

AIN0 AIN1

AIN2 AIN3 AIN4 AIN5 AIN6 AIN7

(Control Status Register) CSR

(Data Register) DR

HOLD

CPU

ANALOG TO DIGITAL CONVERTER

COCO

0CH0CH1CH2-- ADON

AD7

AD4 AD0AD1AD2AD3AD6 AD5

Page 63

63/84

ST72101/ST72212/ST72213

8-BIT A/D CONVERTER (ADC) (Cont’d)

4.5.3 Functional Description

The high level reference voltage V

DDA

must be connected externallyto the VDDpin. The low level reference voltage V

SSA

must be connected externally to the VSSpin. In some devices (refer to device pin out description) high and low level reference voltages are internally connected to the V

and VSSpins. Conversion accuracy may therefore be degraded

by voltage drops and noise in the event of heavily loaded orbadly decoupled power supply lines.

Figure 40. Recommended Ext. Connections

Characteristics:

The conversion is monotonic, meaning the result never decreases if the analog input does not and never increases if the analog input does not.

If input voltage is greater than or equal to V

(voltage reference high) then results = FFh (full scale) withoutoverflow indication.

If input voltage ≤ VSS(voltage reference low) then the results = 00h.

The conversion time is 64 CPU clock cycles including asampling time of 31.5 CPU clock cycles.

AIN

is the maximum recommended impedance for an analog input signal. If the impedance is too high, this will result in a loss of accuracy due to leakage and sampling not being completed in the alloted time.

The A/D converter is linear and the digital result of the conversion is given by theformula:

Where Reference Voltage is VDD-VSS.

The accuracy of the conversion is describedin the Electrical Characteristics Section.

Procedure:

Refer to the CSRand DRregister description section for the bit definitions.

Each analog input pin must be configured as input, no pull-up, no interrupt. Refer to the «I/O ports» chapter. Using these pins as analog inputs does not affect the abilityof the port to beread as a logic input.

In the CSR register:

– Select the CH2 to CH0 bits to assign the ana-

log channel toconvert. Refer to Table 19.

– Set the ADON bit. Then the A/D converter is

enabled after a stabilization time (typically 30 µs). It then performs a continuous conversion of the selected channel.

When a conversionis complete

– The COCO bit is set by hardware. – No interrupt isgenerated. – The result is in the DR register.

A write to the CSR register aborts the current conversion, resets the COCO bit and starts a new conversion.

4.5.4 Low Power Modes Note: The A/D converter may be disabled by re-

setting the ADON bit. This feature allows reduced power consumption when no conversion is needed.

4.5.5 Interrupts

None

ST7

Px.x/AINx

DDA

SSA

0.1µF

AIN

Digital result =

255 x Input Voltage Reference Voltage

Mode Description

WAIT No effect on A/D Converter

HALT

A/D Converterdisabled. After wakeup from Halt mode, theA/D

Converter requires a stabilisation time before accurate conversionscan be performed.

Page 64

64/84

ST72101/ST72212/ST72213

8-BIT A/D CONVERTER (ADC) (Cont’d)

4.5.6 Register Description CONTROL/STATUS REGISTER (CSR)

Read/Write Reset Value: 0000 0000 (00h)

Bit 7 = COCO

Conversion Complete

This bit is set by hardware. It is cleared by software readingthe resultin the DRregister or writing to the CSR register. 0: Conversion is not complete. 1: Conversion can be read from theDR register.

Bit 6 = Reserved. Must always be cleared.

Bit 5 = ADON

A/D converter On

This bit is set and cleared by software. 0: A/D converter is switched off. 1: A/D converter is switched on.

Note: a typically 30µs delay time is necessary for the ADC tostabilize when the ADON bit is set.

Bit 4 = Reserved. Forced by hardware to 0.

Bit 3 = Reserved. Must always be cleared.

Bits 2-0:CH[2:0]

Channel Selection

These bits are set and cleared by software. They select the analog input to convert.

Table 19. Channel Selection

*IMPORTANT NOTE:

The number of pins AND the channel selection vary according to the device. REFER TO THEDEVICE PINOUT).

DATA REGISTER (DR)

Read Only Reset Value: 0000 0000 (00h)

Bit 7:0 = AD[7:0]

Analog Converted Value

This register contains the converted analog value in the range 00h to FFh.

Reading this registerreset the COCOflag.

Table 20. ADC Register Map

COCO - ADON 0 - CH2 CH1 CH0

Pin* CH2 CH1 CH0

AIN0 0 0 0 AIN1 0 0 1 AIN2 0 1 0 AIN3 0 1 1 AIN4 1 0 0 AIN5 1 0 1 AIN6 1 1 0 AIN7 1 1 1

AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0

Address

(Hex.)

Name

765 43210

Reset Value

AD7

AD6

AD5

AD4

AD3

AD2

AD1

AD0

Reset Value

CSR

COCO

ADON

0 0

CH2

CH1

CH0

Page 65

65/84

ST72101/ST72212/ST72213

5 INSTRUCTION SET

5.1 ST7 ADDRESSING MODES

The ST7 Core features 17 different addressing modes which can be classified in7 main groups:

The ST7 Instruction set is designed to minimize the number ofbytes requiredper instruction: To do

so, most of the addressing modes may be subdivided in two sub-modes called long andshort:

– Longaddressing mode is more powerful be-

cause itcan use thefull64 Kbyte addressspace, however it uses more bytes and more CPU cycles.

– Short addressing mode isless powerfulbecause

it can generally only access page zero (0000h 00FFh range),but the instruction size ismore compact, andfaster. All memory to memory instructions use short addressing modes only (CLR, CPL,NEG, BSET, BRES, BTJT, BTJF, INC, DEC, RLC, RRC, SLL, SRL, SRA, SWAP)

The ST7 Assembler optimizes the use of long and short addressing modes.

Table 21. ST7 Addressing Mode Overview

Note 1. At the time the instruction is executed,the Program Counter (PC) points to the instructionfollowing JRxx.

Addressing Mode Example

Inherent nop Immediate ld A,#$55 Direct ld A,$55 Indexed ld A,($55,X) Indirect ld A,([$55],X) Relative jrne loop Bit operation bset byte,#5

Mode Syntax

Destination/

Source

Pointer

Address

(Hex.)

Pointer

Size

(Hex.)

Length

(Bytes)

Inherent nop + 0 Immediate ld A,#$55 + 1 Short Direct ld A,$10 00..FF + 1 Long Direct ld A,$1000 0000..FFFF + 2

No Offset Direct Indexed ld A,(X) 00..FF

+ 0 (with X register)

+ 1 (with Y register) Short Direct Indexed ld A,($10,X) 00..1FE + 1 Long Direct Indexed ld A,($1000,X) 0000..FFFF + 2 Short Indirect ld A,[$10] 00..FF 00..FF byte + 2 Long Indirect ld A,[$10.w] 0000..FFFF 00..FF word + 2 Short Indirect Indexed ld A,([$10],X) 00..1FE 00..FF byte + 2 Long Indirect Indexed ld A,([$10.w],X) 0000..FFFF 00..FF word + 2 Relative Direct jrne loop PC-128/PC+127

+1 Relative Indirect jrne [$10] PC-128/PC+127

00..FF byte + 2 Bit Direct bset $10,#7 00..FF + 1 Bit Indirect bset [$10],#7 00..FF 00..FF byte + 2 Bit Direct Relative btjt $10,#7,skip 00..FF + 2 Bit Indirect Relative btjt [$10],#7,skip 00..FF 00..FF byte + 3

Page 66

66/84

ST72101/ST72212/ST72213

ST7 ADDRESSING MODES (Cont’d)

5.1.1 Inherent

All Inherent instructions consist of a single byte. The opcode fully specifies all the required information for theCPU to process the operation.

5.1.2 Immediate

Immediate instructions have two bytes, the first byte contains the opcode, the second byte contains the the operand value. .

5.1.3 Direct

In Direct instructions, theoperands are referenced by their memory address.

The direct addressing mode consists of two submodes:

Direct (short)

The address is a byte, thus requires only one byte after the opcode, but only allows 00 - FF addressing space.

Direct (long)

The address is a word, thus allowing 64 Kbyte addressing space, but requires 2 bytes after the opcode.

5.1.4 Indexed (No Offset, Short, Long)

In this mode, the operand is referenced by its memory address,which is defined by the unsigned addition of an index register (X or Y)with an offset.

The indirect addressing mode consists of three sub-modes:

Indexed (No Offset)

There is nooffset, (noextra byteafter the opcode), and allows 00 - FF addressingspace.

Indexed (Short)

The offset is a byte, thus requires only one byteafter the opcode and allows 00 - 1FE addressing space.

Indexed (long)

The offset is a word, thus allowing 64 Kbyte addressing space and requires 2 bytes after the opcode.

5.1.5 Indirect (Short, Long)

The required data byteto do the operation is found by itsmemory address, located in memory (pointer).

The pointer address follows the opcode. The indirect addressing mode consists of two sub-modes:

Indirect (short)

The pointer addressis a byte, thepointer size is a byte, thus allowing 00 - FFaddressing space, and requires 1 byteafter the opcode.

Indirect (long)

The pointer addressis a byte, thepointer size is a word, thus allowing 64 Kbyte addressing space, and requires 1 byte after the opcode.

Inherent Instruction Function

NOP No operation TRAP S/W Interrupt

WFI

Wait For Interrupt (Low Power Mode)

HALT

Halt Oscillator (Lowest Power

Mode) RET Sub-routine Return IRET Interrupt Sub-routine Return SIM Set Interrupt Mask RIM Reset Interrupt Mask SCF Set Carry Flag RCF Reset Carry Flag RSP Reset Stack Pointer LD Load CLR Clear PUSH/POP Push/Pop to/from the stack INC/DEC Increment/Decrement TNZ Test Negative or Zero CPL, NEG 1 or 2 Complement MUL Byte Multiplication SLL, SRL, SRA, RLC,

RRC

Shift and Rotate Operations SWAP Swap Nibbles

Immediate Instruction Function

LD Load CP Compare BCP Bit Compare AND, OR, XOR Logical Operations ADC, ADD, SUB, SBC Arithmetic Operations

Page 67

67/84

ST72101/ST72212/ST72213

ST7 ADDRESSING MODES (Cont’d)

5.1.6 Indirect Indexed (Short, Long)

This is acombination of indirect and short indexed addressing modes. The operand is referenced by its memory address, which is defined by the unsigned addition of an index register value (X or Y) with apointer value located in memory. The pointer address followsthe opcode.

The indirect indexed addressing mode consists of two sub-modes:

Indirect Indexed(Short)

The pointer address is a byte, the pointer size is a byte, thus allowing 00 - 1FE addressing space, and requires1 byte after the opcode.

Indirect Indexed(Long)

The pointer address is a byte, the pointer size is a word, thus allowing 64 Kbyte addressing space, and requires1 byte after the opcode.

Table 22. Instructions Supporting Direct, Indexed, Indirect and Indirect Indexed Addressing Modes

5.1.7 Relative mode (Direct, Indirect)

This addressing mode is used to modify the PC register value, by adding an 8-bit signed offset to it.

The relative addressing mode consists oftwo submodes:

Relative (Direct)

The offset is following the opcode.

Relative (Indirect)

The offset is defined in memory, which address follows the opcode.

Long and Short

Instructions

Function

LD Load CP Compare AND, OR, XOR Logical Operations

ADC, ADD, SUB, SBC

Arithmetic Addition/subtraction operations

BCP Bit Compare

Short Instructions Only Function

CLR Clear INC, DEC Increment/Decrement TNZ Test Negative or Zero CPL, NEG 1 or 2 Complement BSET, BRES Bit Operations

BTJT, BTJF

Bit Test and Jump Operations

SLL, SRL, SRA, RLC, RRC

Shift and Rotate Operations

SWAP Swap Nibbles CALL, JP Call or Jump subroutine

Available Relative Direct/

Indirect Instructions

Function

JRxx Conditional Jump CALLR Call Relative

Page 68

68/84

ST72101/ST72212/ST72213

5.2 INSTRUCTION GROUPS

The ST7 family devices use an Instruction Set consisting of 63 instructions. The instructions may

be subdivided into 13 main groups as illustrated in the following table:

Using a pre-byte

The instructions are described with one to four bytes.

In order to extend the number of available opcodes for an 8-bitCPU (256opcodes), three different prebyte opcodes are defined. These prebytes modify the meaning of the instruction they precede.

The whole instruction becomes:

PC-2 End of previous instruction PC-1 Prebyte PC opcode

PC+1 Additional word (0 to 2) according to the numberof bytesrequired tocompute the effective address

These prebytes enable instruction in Y as well as indirect addressing modes to be implemented. They precede the opcode of the instruction in X or the instruction using direct addressing mode. The prebytes are:

PDY 90 Replace an X based instruction using immediate, direct, indexed, or inherent addressing mode by a Y one.

PIX 92 Replace an instruction using direct, direct bit, or direct relative addressing mode to an instruction using the corresponding indirect addressing mode. It also changesan instruction using Xindexed addressing modeto an instruction using indirect Xindexed addressing mode.

PIY 91 Replace an instruction using X indirect indexed addressing mode by a Y one.

Load and Transfer LD CLR Stack operation PUSH POP RSP Increment/Decrement INC DEC Compare and Tests CP TNZ BCP Logical operations AND OR XOR CPL NEG Bit Operation BSET BRES Conditional Bit Test and Branch BTJT BTJF Arithmetic operations ADC ADD SUB SBC MUL Shift and Rotates SLL SRL SRA RLC RRC SWAP SLA Unconditional Jump or Call JRA JRT JRF JP CALL CALLR NOP RET Conditional Branch JRxx Interruption management TRAP WFI HALT IRET Code Condition Flag modification SIM RIM SCF RCF

Page 69

69/84

ST72101/ST72212/ST72213

INSTRUCTION GROUPS (Cont’d)

Mnemo Description Function/Example Dst Src H I N Z C

ADC Add with Carry A = A + M + C A M H N Z C ADD Addition A = A + M A M H N Z C AND Logical And A = A . M A M N Z BCP Bit compare A, Memory tst (A . M) A M N Z BRES Bit Reset bres Byte, #3 M BSET Bit Set bset Byte, #3 M BTJF Jump if bit is false (0) btjf Byte, #3, Jmp1 M C BTJT Jump if bit is true (1) btjt Byte, #3, Jmp1 M C CALL Call subroutine CALLR Call subroutine relative CLR Clear reg, M 0 1 CP Arithmetic Compare tst(Reg - M) reg M N Z C CPL One Complement A = FFH-A reg, M N Z 1 DEC Decrement dec Y reg, M N Z HALT Halt 0 IRET Interrupt routine return Pop CC, A,X, PC H I N Z C INC Increment inc X reg, M N Z JP Absolute Jump jp [TBL.w] JRA Jump relative always JRT Jump relative JRF Never jump jrf * JRIH Jump if ext. interrupt = 1 JRIL Jump if ext. interrupt = 0 JRH Jump if H = 1 H = 1? JRNH Jump if H = 0 H = 0? JRM Jump if I = 1 I = 1 ? JRNM Jump if I = 0 I = 0 ? JRMI Jump if N = 1(minus) N = 1? JRPL Jump if N = 0(plus) N = 0? JREQ Jump if Z = 1 (equal) Z = 1 ? JRNE Jump if Z = 0 (not equal) Z =0 ? JRC Jump if C = 1 C = 1? JRNC Jump if C = 0 C = 0? JRULT Jump if C = 1 Unsigned < JRUGE Jump if C = 0 Jmp if unsigned >= JRUGT Jump if (C + Z = 0) Unsigned >

Page 70

70/84

ST72101/ST72212/ST72213

INSTRUCTION GROUPS (Cont’d)

Mnemo Description Function/Example Dst Src H I N Z C

JRULE Jump if (C + Z = 1) Unsigned <= LD Load dst <= src reg, M M, reg N Z MUL Multiply X,A =X * A A, X, Y X, Y, A 0 0 NEG Negate (2’s compl) neg $10 reg, M N Z C NOP No Operation OR OR operation A = A + M A M N Z POP Pop from the Stack pop reg reg M

pop CC CC M H I N Z C PUSH Push onto the Stack push Y M reg, CC RCF Reset carry flag C = 0 0 RET Subroutine Return RIM Enable Interrupts I = 0 0 RLC Rotate left true C C <= Dst <= C reg, M N Z C RRC Rotate right true C C => Dst => C reg, M N Z C RSP Reset Stack Pointer S = Max allowed SBC Subtract with Carry A = A - M -C A M N Z C SCF Set carry flag C = 1 1 SIM Disable Interrupts I = 1 1 SLA Shift left Arithmetic C <= Dst <= 0 reg, M N Z C SLL Shift left Logic C <= Dst <= 0 reg, M N Z C SRL Shift right Logic 0 => Dst => C reg, M 0 Z C SRA Shift right Arithmetic Dst7 => Dst => C reg, M N Z C SUB Subtraction A = A - M A M N Z C SWAP SWAP nibbles Dst[7..4] <=> Dst[3..0] reg, M N Z TNZ Test for Neg & Zero tnz lbl1 N Z TRAP S/W trap S/W interrupt 1 WFI Wait for Interrupt 0 XOR Exclusive OR A = A XOR M A M N Z

Page 71

71/84

ST72101/ST72212/ST72213

6 ELECTRICAL CHARACTERISTICS

6.1 ABSOLUTE MAXIMUM RATINGS

This product contains devices to protect the inputs against damage due to high static voltages, however it is advisable to take normal precaution to avoid application of any voltage higher than the specified maximum ratedvoltages.

For proper operation it is recommended that V

and VObe higher than VSSand lower than VDD. Reliability is enhanced if unused inputs are connected to an appropriate logic voltage level (V

or VSS).

Power Considerations.The average chip-junction temperature, TJ, in Celsius can be obtained from:

TJ= TA + PD x RthJA

Where: TA= Ambient Temperature.

RthJA = Package thermal resistance

(junction-to ambient).

PD=P

INT+PPORT

INT=IDDxVDD

(chip internal power).

PORT

=Portpower dissipation

determined by the user)

Note: Stresses above those listed as “absolute maximum ratings” may cause permanent damage to thedevice. This is

a stress rating only and functional operation ofthe device atthese conditions isnot implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Symbol Parameter Value Unit

Supply Voltage -0.3 to6.0 V

Input Voltage VSS- 0.3 to VDD+ 0.3 V

Analog Input Voltage (A/D Converter) VSS- 0.3 to VDD+ 0.3 V

Output Voltage VSS- 0.3 to VDD+ 0.3 V

TotalCurrent into VDD(source) 80 mA

TotalCurrent out of VSS(sink) 80 mA

Junction Temperature 150 °C

STG

Storage Temperature -60 to 150 °C

Page 72

72/84

ST72101/ST72212/ST72213

6.2 RECOMMENDED OPERATING CONDITIONS

Note 1: A/D operation and Oscillator start-up are not guaranteed below 1MHz.

Figure 41. Maximum Operating Frequency (f

OSC

) Versus Supply Voltage (VDD)

Symbol Parameter Test Conditions

Value

Unit

Min. Typ. Max.

Operating Temperature

1 Suffix Version 0 70 °C 6 Suffix Version -40 85 °C 3 Suffix Version -40 125 °C

Operating Supply Voltage

OSC

=16 MHz (1 & 6 Suffix)

OSC

=8 MHz

3.5

3.0

5.5

OSC

Oscillator Frequency

= 3.0V

= 3.5V (1 & 6 Suffix)

MHz

OSC

[MHz]

Supplly Voltage

[V]

1 0

2.5 3 3.5 4 4.5 5 5.5

FUNCTIONALITY NOT GUARANTEED IN THISAREA

FUNCTIONALITY NOT GUARANTEED IN THIS AREAWITH RESONATOR

FUNCTIONALITY GUARANTEED IN THIS AREA

FUNCTIONALITY NOT GUARANTEED IN THIS AREA

FOR TEMPERATURE HIGHER THAN85°C

Page 73

73/84

ST72101/ST72212/ST72213

6.3 DC ELECTRICAL CHARACTERISTICS

(TA= -40°C to+125°C and VDD= 5Vunless otherwise specified)

Notes:

1. Hysteresis voltage between switching levels. Based on characterisation results, not tested.

2. CPU running with memory access, no DC load or activity on I/O’s; clockinput (OSCIN) driven by external square wave.

3. No DCload or activity on I/O’s; clock input (OSCIN) driven by external square wave.

4. Except OSCIN and OSCOUT

5. WAIT Mode with SLOW Mode selected. Based oncharacterisation results, not tested.

Symbol Parameter Test Conditions

Value

Unit

Min. Typ. Max.

Input Low Level Voltage All Input pins

3V < V

< 5.5V VDDx 0.3 V

Input High LevelVoltage All Input pins

3V < V

< 5.5V VDDx 0.7 V

HYS

Hysteresis Voltage

All Input pins

400 mV

Low Level Output Voltage All Output pins

IOL=+10µA I

= + 2mA

0.1

0.4 V

Low Level Output Voltage High Sink I/O pins

=+10µA

= +10mA

= + 15mA

= + 20mA, TA=85°Cmax

0.1

1.5

3.0

High Level Output Voltage All Output pins

IOH=-10µA I

= - 2mA

4.9

4.2

Input Leakage Current All Input pins but RESET

VIN=VSS(No Pull-up configured) V

IN=VDD

0.1 1.0 µA

Input Leakage Current RESET pin

IN=VDD

0.1 1.0

Reset Weak Pull-up R

VIN>V

VIN<V

20 60

12080240

kΩ

I/O Weak Pull-up R

VIN<V

100 kΩ

Supply Current in RUN Mode

OSC

= 4 MHz, f

CPU

=2MHz

OSC

= 8 MHz, f

CPU

=4MHz

OSC

= 16 MHz, f

CPU

= 8 MHz

5.5

6 11 20

Supply Current in SLOW Mode

OSC

= 4 MHz, f

CPU

= 125 kHz

OSC

= 8 MHz, f

CPU

= 250 kHz

OSC

= 16 MHz, f

CPU

= 500 kHz

1.5

2.5 4

3 5 8

Supply Current in WAIT Mode

OSC

= 4MHz, f

CPU

= 2MHz

OSC

= 8MHz, f

CPU

= 4 MHz

OSC

= 16MHz, f

CPU

=8MHz

3.5 6

4 7

Supply Current in WAIT-MINIMUM Mode

OSC

= 4 MHz, f

CPU

= 125 kHz

OSC

= 8 MHz, f

CPU

= 250 kHz

OSC

= 16 MHz, f

CPU

= 500 kHz

0.8 1

1.6

1.5 2

3.5

Supply Current in HALTMode

LOAD

=0mA,TA=85°Cmax

LOAD

=0mA

1 5

10 20

µA

Page 74

74/84

ST72101/ST72212/ST72213

6.4 RESET CHARACTERISTICS

(TA=-40...+125oC and VDD=5V±10% unless otherwisespecified.

Note:

1) These values given only as design guidelines and are not tested.

6.5 OSCILLATOR CHARACTERISTICS

(TA= -40°C to+125°C unless otherwise specified)

Symbol Parameter Conditions Min Typ

Max Unit

Reset Weak Pull-up R

VIN>V

VIN<V

20 60

120

240

kΩ

RESET

Pulse duration generated by watchdog and POR reset

1 µs

PULSE

Minimum pulse duration to be applied on external RESET pin

Symbol Parameter Test Conditions

Value

Unit

Min. Typ. Max.

Oscillator transconductance 2 9 mA/V

OSC

Crystal frequency 1 16 MHz

START

Osc. start up time VDD=5V±10% 50 ms

Page 75

75/84

ST72101/ST72212/ST72213

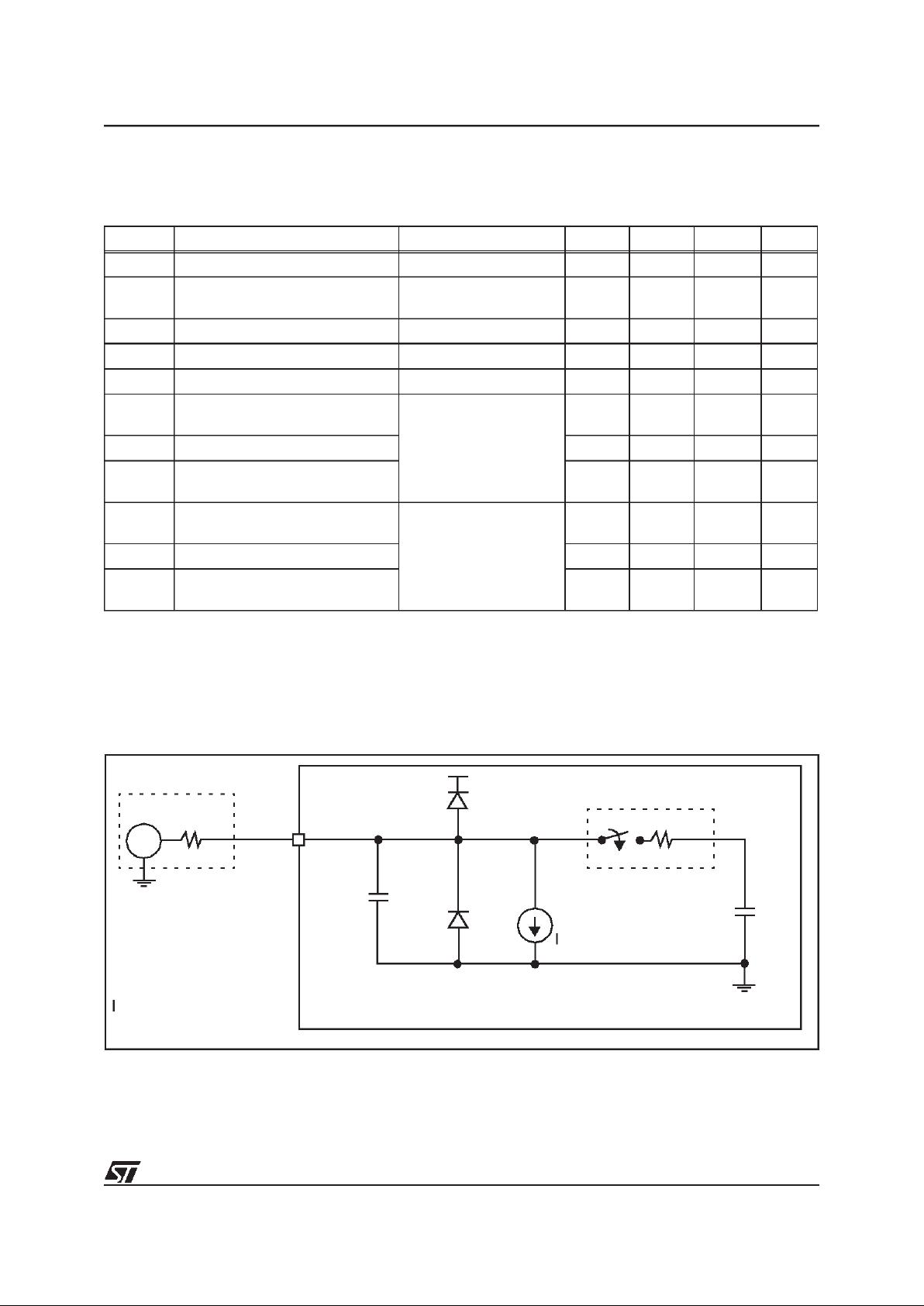

6.6 A/D CONVERTER CHARACTERISTICS (ST72212 and ST72213 only)

(TA= -40°C to+125°C and VDD=5V±10% unlessotherwise specified )

*Note:

ADC Accuracyvs. Negative Injection Current

For I

inj-

=0.8mA, the typical leakageinduced inside the die is 1.6µA and theeffect on the ADC accuracy is a lossof 1 LSB by 10KΩ increase of the external analog source impedance. These measurement results and recommendations take worst case injection conditions into account:

- negative injection

- injectionto an Input with analogcapability, adjacent to the enabled Analog Input

-at5VVDDsupply, and worst case temperature.

Symbol Parameter Conditions Min Typ Max Unit

SAMPLE

Sample Duration 31.5 1/f

CPU

Res ADC Resolution

CPU

=8MHz

DD=VDDA

=5V

8 bit

DLE Differential Linearity Error* ±0.6 ±1 ILE Integral Linearity Error* ±2 V

AIN

Analog Input Voltage V

SSA

DDA

ADC

Supply current rise during A/Dconversion

CPU

=8MHz

DD=VDDA

=5V

1mA

STAB

Stabilization timeafter ADC enable 30 µs

CONV

Conversion Time

µs 1/f

CPU

AIN

Resistance of analog sources (V

AIN)

CPU

=8MHz, T=25°C,

DD=VDDA

=5V

15 ΚΩ

HOLD

Hold Capacitance 22 pF

Resistance ofsampling switch and internal trace

2 ΚΩ

Px.x/AINx

AIN

5pF

VT= 0.6V

leakage max.

= 0.6V

leakage

hold

Sampling

Switch

at the pin due to various junctions

hold

22 pF

capacitance

= input capacitance = threshold voltage

= sampling switch = sample/hold

±1µA

= leakage current

2ΚΩ

Page 76

76/84

ST72101/ST72212/ST72213

A/D CONVERTER CHARACTERISTICS (Cont’d) Figure 42. ADC conversion characteristics

(2)

(1)

(3)

(4)

(5)

VR02133A

Offset Error OSE

Gain Error GE

1 LSB(ideal)

1LSB

ideal

refPVrefM

–

256

--------------------------------------- -=

in(A)

(LSB

ideal

)

(1) Example of an actual transfer curve (2) The ideal transfer curve (3) Differential non-linearity error (DLE) (4) Integral non-linearity error (ILE) (5) Center of a step of the actual transfer curve

code out

255 254 253 252

251 250

5 4

3 2

1 0

7 6

1 2 3 4 5 6 7 250 251252 253 254 255 256

Page 77

77/84

ST72101/ST72212/ST72213

6.7 SPI CHARACTERISTICS

Measurement points are VOL,VOH,VILand VIHin the SPI Timing Diagram

Figure 43. SPI Master Timing Diagram CPHA=0, CPOL=0

Serial Peripheral Interface

Ref. Symbol Parameter Condition

Value

Unit

Min. Max.

SPI

SPI frequency

Master Slave

1/128

1/4 1/2

CPU

SPI

SPI clock period

Master Slave

4 2

CPU

Lead

Enable lead time Slave 120 ns

Lag

Enable lag time Slave 120 ns

SPI_H

Clock (SCK) high time

Master Slave

100

SPI_L

Clock (SCK) low time

Master Slave

100

Data set-up time

Master Slave

100 100

Data hold time (inputs)

Master Slave

100 100

Access time (time to data active from high impedance state)

Slave

0 120 ns

Dis

Disable time (hold time to high impedance state)

240 ns

10 t

Data valid

Master (before capture edge) Slave (after enableedge)

0.25 120

CPU

11 t

Hold

Data hold time (outputs)

Master (before capture edge) Slave (after enableedge)

0.25

CPU

12 t

Rise

Rise time (20% V

to 70% VDD,CL=200pF)

Outputs: SCK,MOSI,MISO Inputs: SCK,MOSI,MISO,SS

100 100

ns µs

13 t

Fall

Fall time (70% V

to 20% VDD,CL=200pF)

Outputs: SCK,MOSI,MISO Inputs: SCK,MOSI,MISO,SS

100 100

ns µs

10 11

1213

(INPUT)

SCK

(OUTPUT)

MISO

MOSI

(INPUT)

(OUTPUT)

D7-OUT D6-OUT D0-OUT

D7-IN D6-IN

D0-IN

VR000109

Page 78

78/84

ST72101/ST72212/ST72213

SPI CHARACTERISTICS (Cont’d)

Measurement points are VOL,VOH,VILand VIHin the SPI Timing Diagram

Figure 44. SPI Master Timing Diagram CPHA=0, CPOL=1

Figure 45. SPI Master Timing Diagram CPHA=1, CPOL=0

Figure 46. SPI Master Timing Diagram CPHA=1, CPOL=1

10 11

1213

(INPUT)

SCK

(OUTPUT)

MISO

MOSI

(INPUT)

(OUTPUT)

VR000110

D7-OUT D6-OUT D0-OUT

D7-IN D6-IN

D0-IN

10 11

1213

(INPUT)

SCK

(OUTPUT)

MISO

MOSI

(INPUT)

(OUTPUT)

VR000107

D7-IN

D6-IN D0-IN

D7-OUT D6-OUT

D0-OUT

10 11

(INPUT)

SCK

(OUTPUT)

MISO

MOSI

(INPUT)

(OUTPUT)

VR000108

D7-OUT D6-OUT D0-OUT

D7-IN D6-IN

D0-IN

Page 79

79/84

ST72101/ST72212/ST72213

SPI CHARACTERISTICS (Cont’d)

Measurement points are VOL,VOH,VILand VIHin the SPI Timing Diagram

Figure 47. SPI Slave Timing Diagram CPHA=0, CPOL=0

Figure 48. SPI Slave Timing Diagram CPHA=0, CPOL=1

Figure 49. SPI Slave Timing Diagram CPHA=1, CPOL=0

Figure 50. SPI Slave Timing Diagram CPHA=1, CPOL=1

(INPUT)

SCK

MISO

MOSI

(INPUT)

(OUTPUT)

(INPUT)

HIGH-Z

VR000113

D7-IN

D6-IN D0-IN

D7-OUT

D6-OUT D0-OUT

10 11

(INPUT)

SCK

MISO

MOSI

(INPUT)

(OUTPUT)

(INPUT)

HIGH-Z

VR000114

D7-IN

D6-IN D0-IN

D7-OUT

D6-OUT D0-OUT

(INPUT)

SCK

MISO

MOSI

(INPUT)

(OUTPUT)

(INPUT)

8 9

HIGH-Z

VR000111

D7-OUT

D6-OUT D0-OUT

D7-IN

D6-IN D0-IN

12 13

(INPUT)

SCK

MISO

MOSI

(INPUT)

(OUTPUT)

(INPUT)

HIGH-Z

D7-OUT D6-OUT

D0-OUT

D7-IN D6-IN D0-IN

VR000112

Page 80

80/84

ST72101/ST72212/ST72213

7 GENERAL INFORMATION

7.1 EPROM ERASURE

EPROM version devices are erased by exposure to high intensity UV light admitted through the transparent window. This exposure discharges the floating gate to its initial state through induced photo current.

It is recommended that the EPROM devices be kept out of direct sunlight, since the UV content of sunlight can be sufficient to cause functional failure. Extended exposure to room level fluorescent lighting mayalso cause erasure.

An opaque coating (paint, tape, label, etc...) should be placed over the package window if the product is to beoperated undertheselighting conditions. Covering the window also reduces IDDin power-saving modes due to photo-diode leakage currents.

An Ultraviolet source of wave length 2537 Å yielding a total integrated dosageof 15 Watt-sec/cm2is required to erase the device. It will beerased in 15 to 20 minutes ifsuch aUV lamp with a 12mW/cm

power rating is placed 1 inch from the device window without any interposed filters.

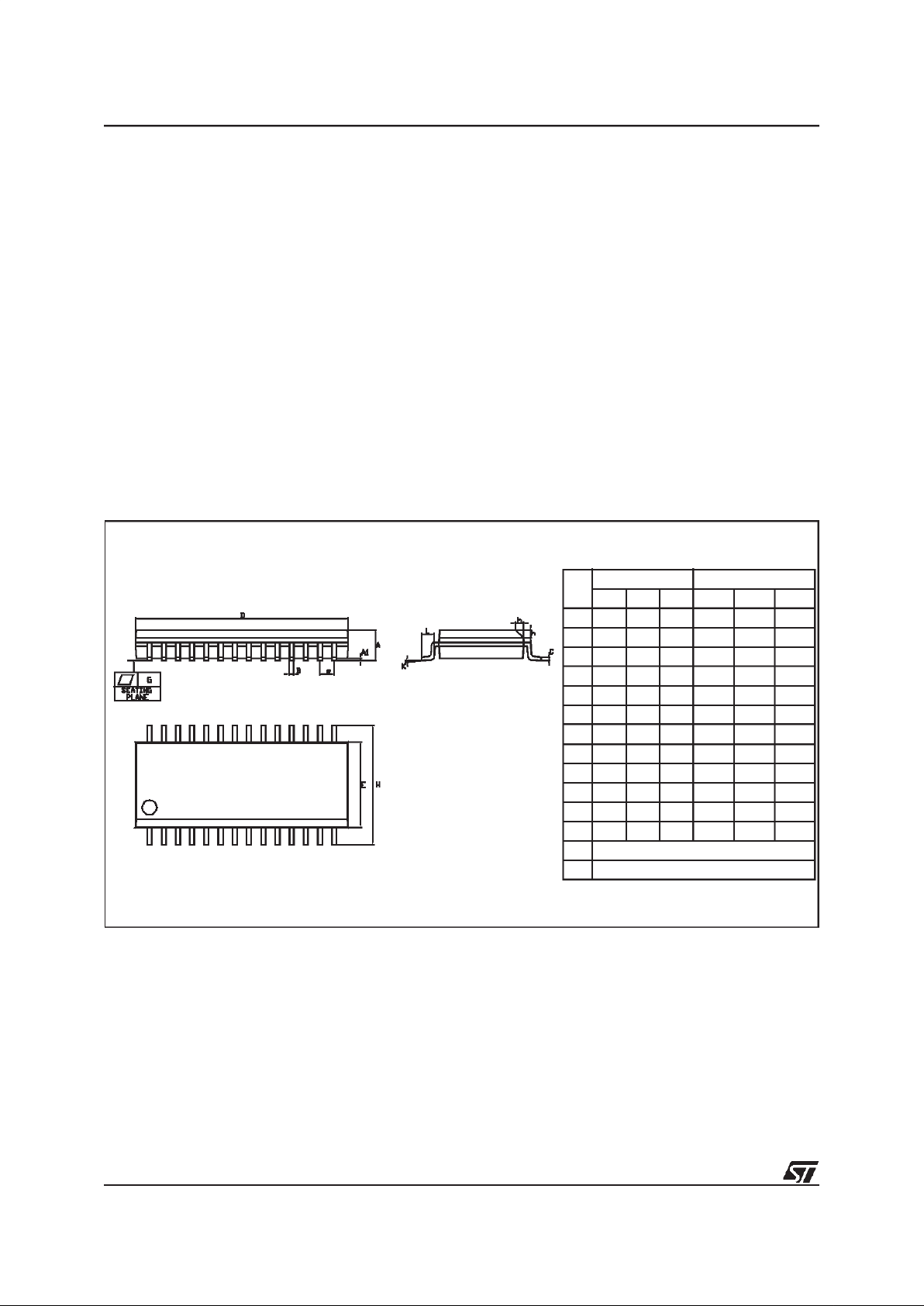

7.2 PACKAGE MECHANICAL DATA Figure 51. 28-Pin Small Outline Package, 300-mil Width

Dim.

mm inches

Min Typ Max Min Typ Max

A 2.35 2.65 0.0926 0.1043

A1 0.10 0.30 0.0040 0.0118

B 0.33 0.51 0.013 0.020 C 0.23 0.32 0.0091 0.0125 D 17.70 18.10 0.6969 0.7125 E 7.40 7.60 0.2914 0.2992

e 1.27 0.0500

H 10.01 10.64 0.394 0.419

h 0.25 0.74 0.010 0.029

K 0° 8°

L 0.41 1.27 0.016 0.050

G 0.10 0.004

Number of Pins

N28

SO28

Page 81

81/84

ST72101/ST72212/ST72213

Figure 52. 32-Pin Shrink Plastic Dual In Line Package

Figure 53. 32-Pin Shrink Ceramic Dual In-Line Package

VR01725J

N/2

See Lead Detail

Dim.

mm inches

Min Typ Max Min Typ Max

A 3.56 3.76 5.08 0.140 0.148 0.200 A1 0.51 0.020 A2 3.05 3.56 4.57 0.120 0.140 0.180

b 0.36 0.46 0.58 0.014 0.018 0.023

b1 0.76 1.02 1.40 0.030 0.040 0.055

C 0.20 0.25 0.36 0.008 0.010 0.014

D 27.43 27.94 28.45 1.080 1.100 1.120

E 9.91 10.41 11.05 0.390 0.410 0.435

E1 7.62 8.89 9.40 0.300 0.350 0.370

e 1.78 0.070 eA 10.16 0.400 eB 12.70 0.500

L 2.54 3.05 3.81 0.100 0.120 0.150

Number of Pins

N32

CDIP32SW

Dim.

mm inches

Min Typ Max Min Typ Max

A 3.63 0.143

A1 0.38 0.015

B 0.36 0.46 0.58 0.014 0.018 0.023

B1 0.64 0.89 1.14 0.025 0.035 0.045

C 0.20 0.25 0.36 0.008 0.010 0.014 D 29.41 29.97 30.53 1.158 1.180 1.202

D1 26.67 1.050

E 10.16 0.400

E1 9.45 9.91 10.36 0.372 0.390 0.408

e 1.78 0.070

G 9.40 0.370 G1 14.73 0.580 G2 1.12 0.044

L 3.30 0.130

Ø 7.37 0.290

Number of Pins

N32

Page 82

82/84

ST72101/ST72212/ST72213

7.3 ORDERING INFORMATION

Each deviceis available forproduction in user programmable version (OTP) as well as in factory coded version (ROM). OTPdevices areshipped to customer with a default blank content FFh, while ROM factory coded partscontain thecode sentby customer. There is one common EPROM version for debugging and prototyping which features the maximum memory size and peripherals of the family. Care must be taken to only use resources available on the target device.

7.3.1 Transfer Of Customer Code

Customer code is made up of the ROM contents and the list of the selected options (if any). The

ROM contents are to be sent on diskette, or by electronic means,with thehexadecimal file in .S19 format generated by the development tool. All unused bytes must be set to FFh.

The selected options are communicated to STMicroelectronics using the correctly completed OPTION LIST appended.

The STMicroelectronics Sales Organization will be pleased to provide detailed information on contractual points.

Figure 54. ROM Factory Coded Device Types

Figure 55. OTP User Programmable Device Types

Note: TheST72E251G2D0 (CERDIP 25 °C) is used as the EPROMversion for the above devices.

DEVICE

PACKAGE

TEMP.

RANGE

XXX/

Code name (defined by STMicroelectronics) 1 = standard 0 to +70°C

3 = automotive -40 to +125°C 6 = industrial -40 to +85°C

B = Plastic DIP M = Plastic SOIC

ST72101G1 ST72101G2 ST72212G2 ST72213G1

DEVICE

PACKAGE

TEMP.

RANGE

Option (if any) 3 = automotive -40 to +125°C

6 = industrial -40 to +85°C B = Plastic DIP

M = Plastic SOIC ST72T101G1

ST72T101G2 ST72T212G2 ST72T213G1

XXX

Page 83

83/84

ST72101/ST72212/ST72213

ST72101, ST72213 and ST72212 MICROCONTROLLER OPTION LIST

Customer . . . .. . . . . . . .. . . . . . . . . . . . . . . ..

Address . . . . . . . . . . . .. . . . . . . . . . . . . . . . .

.............................

Contact . . . . . . . . . . . . . . . . . . . . . . . . .. . . .

Phone No . . . .. . . . . . . . . . . . . . . . . . . .. . . ..

Reference . . . . . . . . . . . .. . . . . . .. . . . . . . . . .

STMicroelectronics references Device: [ ] ST72101 [ ] ST72212 [ ] ST72213 Package: [ ] Dual in Line Plastic [ ] Small OutlinePlastic with conditioning:

[ ] Standard (Stick)

[ ] Tape & Reel Temperature Range: [ ] 0°Cto+70°C []-40°Cto+85°C[]-40°C to+ 125°C Special Marking: [ ] No [ ] Yes ”_ _ _ _ _______” Authorized characters are letters, digits, ’.’,’-’, ’/’ and spaces only. Maximum character count: SDIP32: 10

SO28: 8

Comments: Supply Operating Range in the application: Oscillator Frequency in the application:

Notes . . . . . . . . . . . .. . . . . . .. . . . . . . . . .

Signature . . . . . . . . . . . .. . . . . . . . . . . . . . . . .

Date . . . .. . . . . . . .. . . . . . .. . . . . . . . . .

Page 84

84/84

ST72101/ST72212/ST72213

8 SUMMARY OF CHANGES

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of useof such information nor for any infringement ofpatents orotherrights ofthird parties which may result from itsuse. No license isgranted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without the express written approval of STMicroelectronics.

The ST logo is a registered trademark of STMicroelectronics

Purchase of I

C Components by STMicroelectronics conveys a license under the Philips I2C Patent. Rights to use these components in an

C system is granted provided that the system conforms to the I2C Standard Specification as defined by Philips.

STMicroelectronics Group of Companies

Australia - Brazil - China - Finland - France - Germany - Hong Kong -India - Italy - Japan - Malaysia - Malta - Morocco - Singapore - Spain

Sweden - Switzerland - United Kingdom - U.S.A.

http://www.st.com

Change Description (Rev. 1.5 to 1.6) Page

Added new External Connections section 9 Removed RP external resistor 16 Changed ORed to ANDed in External interrupts paragraph, to read “If several inputpins, con-

nected to the sameinterrupt vector, areconfigured asinterrupts, their signals are logically ANDed before entering the edge/level detection block”.

18 and 24

Added note ”Any modification ofone of these two bits resets the interrupt request related to this interrupt vector.”

Added clamping diodes to I/O pin figure andtable 26 Added sections on low power modes and interrupts to peripheral descriptions 31,43,58,63 Changed 16-bit Timer Chapter 32 to 48 Added details to description of FOLV1 and FOLV2 bits 44 Added ADC recommended external connections 63 Added Reset characteristics section 74 Added figure to ADC electrical characteristics section 75

Change Description (Rev. 1.6 to 1.7)

SPR2 bit reinstated in SPI chapter 49 to 61

Datasheet ST72T213G1, ST72T212G2, ST72T101G2, ST72T101G1, ST72101G2 Datasheet (SGS Thomson Microelectronics)

Specifications and Main Features

Frequently Asked Questions

User Manual
