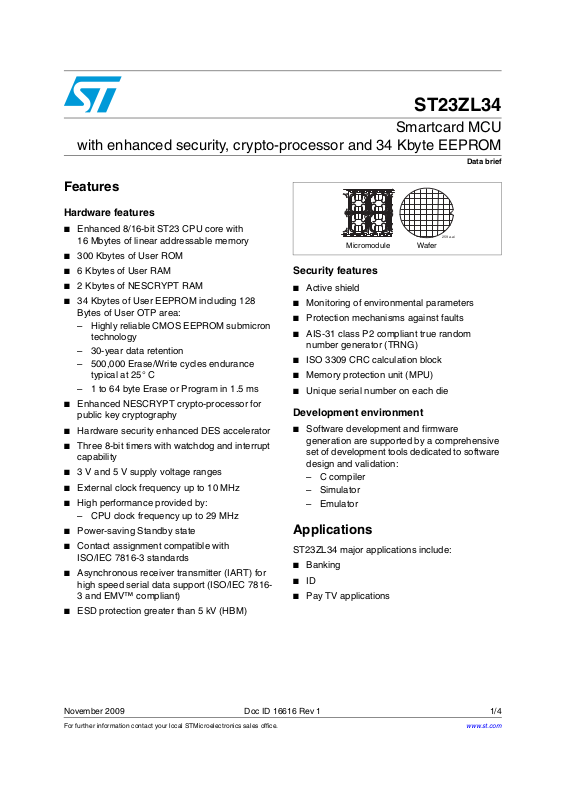

Page 1
ST23ZL34
259a.ai
Micromodule Wafer
Smartcard MCU
with enhanced security, crypto-processor and 34 Kbyte EEPROM
Data brief
Features
Hardware features
■ Enhanced 8/16-bit ST23 CPU core with
16 Mbytes of linear addressable memory
■ 300 Kbytes of User ROM
■ 6 Kbytes of User RAM
■ 2 Kbytes of NESCRYPT RAM
■ 34 Kbytes of User EEPROM including 128
Bytes of User OTP area:
– Highly reliable CMOS EEPROM submicron
technology
– 30-year data retention
– 500,000 Erase/Write cycles endurance
typical at 25° C
– 1 to 64 byte Erase or Program in 1.5 ms
■ Enhanced NESCRYPT crypto-processor for
public key cryptography
■ Hardware security enhanced DES accelerator
■ Three 8-bit timers with watchdog and interrupt
capability
■ 3 V and 5 V supply voltage ranges
■ External clock frequency up to 10 MHz
■ High performance provided by:
– CPU clock frequency up to 29 MHz
■ Power-saving Standby state
■ Contact assignment compatible with
ISO/IEC 7816-3 standards
■ Asynchronous receiver transmitter (IART) for
high speed serial data support (ISO/IEC 78163 and EMV™ compliant)
■ ESD protection greater than 5 kV (HBM)
Security features
■ Active shield
■ Monitoring of environmental parameters
■ Protection mechanisms against faults
■ AIS-31 class P2 compliant true random
number generator (TRNG)
■ ISO 3309 CRC calculation block
■ Memory protection unit (MPU)
■ Unique serial number on each die
Development environment
■ Software development and firmware
generation are supported by a comprehensive
set of development tools dedicated to software
design and validation:
– C compiler
– Simulator
–Emulator
Applications
ST23ZL34 major applications include:
■ Banking
■ ID
■ Pay TV applications
November 2009 Doc ID 16616 Rev 1 1/4
For further information contact your local STMicroelectronics sales office.
www.st.com
1
Page 2
Description ST23ZL34
1 Description
The ST23ZL34 product is a serial access microcontroller specially designed for secure
smartcard applications.
It is based on an enhanced STMicroelectronics 8/16-bit CPU core offering 16 Mbytes of
linear addressing space. It is manufactured using an advanced highly reliable ST CMOS
EEPROM technology.
Moreover, an ISO 7816-3 EMV-compliant asynchronous receiver transmitter (IART)
communication peripheral is available.
Figure 1. ST23ZL34 block diagram
RAM
CRC
Module
EEPROM
Clock
Gene-
rator
Module
CLK
User
ROM
3 x
8-bit
timers
ST ROM
(Boot software)
ST ROM Firewall
Internal Bus
Security
Monitor-
ing and
Control
RESET
True
Random
Number
Gene-
rator
Vcc
EDES
Accelerator
GND
NESCRYPT
NESCRYPT RAM
MPU
8/16-bit
CPU
Core
IART
2 I/Os
Ai12565
2/4 Doc ID 16616 Rev 1
Page 3
ST23ZL34 Revision history
1.1 Development environment
Development tools for smartcard products include a complete range of hardware systems
and software tools from STMicroelectronics and third-party tool suppliers. The range of tools
includes solutions to help you to develop and debug your application and evaluate
smartcard products and their peripherals.
An Integrated Development Environment (IDE), the ST Visual Develop (STVD), provides a
set of tools for developing embedded applications. This interface manages the project
configuration, code edition, code generation and program debugging.
A Smartcard ICS emulator (SCICS) and simulator are available for developing and validating
your application code.
All the information needed to generate the application code and personalization will be
collected in a delivery file (.DLV extension). This file is created using the Delivery menu of
the STMicroelectronics configuration software tool, SCOOL.
2 Revision history
Table 1. Document revision history
Date Revision Changes
04-Nov-2009 1 Initial release.
Doc ID 16616 Rev 1 3/4
