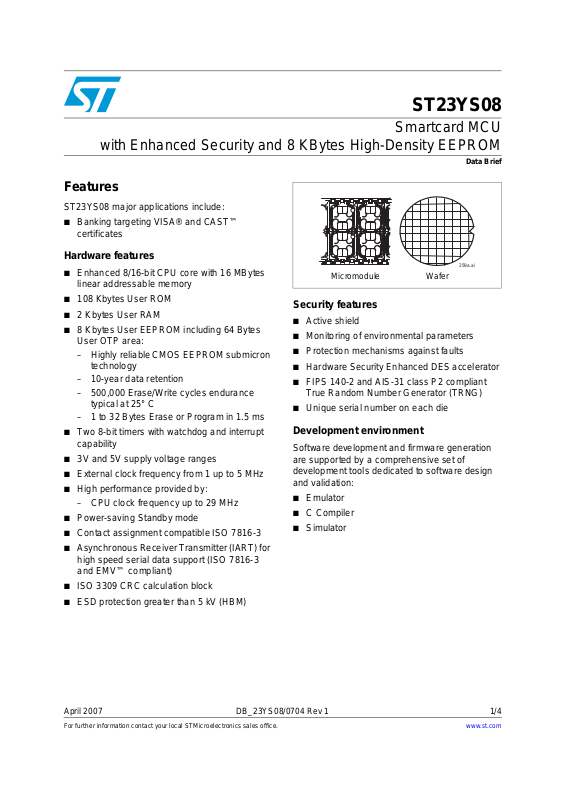

Page 1
with Enhanced Security and 8 KBytes High-Density EEPROM
Features
ST23YS08 major applications include:
■ Banking targeting VISA® and CAST™
certificates
ST23YS08
Smartcard MCU
Data Brief
Hardware features
■ Enhanced 8/16-bit CPU core with 16 MBytes
linear addressable memory
■ 108 Kbytes User ROM
■ 2 Kbytes User RAM
■ 8 Kbytes User EEPROM including 64 Bytes
User OTP area:
– Highly reliable CMOS EEPROM submicron
technology
– 10-year data retention
– 500,000 Erase/Write cycles endurance
typical at 25° C
– 1 to 32 Bytes Erase or Program in 1.5 ms
■ Two 8-bit timers with watchdog and interrupt
capability
■ 3V and 5V supply voltage ranges
■ External clock frequency from 1 up to 5 MHz
■ High performance provided by:
– CPU clock frequency up to 29 MHz
■ Power-saving Standby mode
■ Contact assignment compatible ISO 7816-3
■ Asynchronous Receiver Transmi tter (IART) for
high speed serial data support (ISO 7816-3
and EMV™ compliant)
■ ISO 3309 CRC calculation block
■ ESD protection greater than 5 kV (HBM)
259a.ai
Micromodule Wafer
Security features
■ Active shield
■ Monitoring of environmental paramete rs
■ Protection mechanisms against faults
■ Hardware Security Enhanced DES accelerator
■ FIPS 140-2 and AIS-31 class P2 compliant
True Random Number Generator (TRNG)
■ Unique serial number on each die
Development environment
Software development and firmware generation
are supported by a comprehensive set of
development tools dedicated to software design
and validation:
■ Emulator
■ C Compiler
■ Simulator
April 2007 DB_23YS08/0704 Rev 1 1/4
For further information contact your local STMicroelectronics sales office .
www.st.com
1
Page 2
Description ST23YS08
1 Description
The ST23YS08 product is a serial access microcontroller specially designed for secure
smartcard applications.
It is based on an enhanced STMicroelectronics 8/16-bit CPU core of fering 16 MBytes linear
addressing space.
It is manufactured using an advanced highly reliable ST CMOS EEPROM technology.
The device includes an Enhanced DES accelerator (EDES). It enables Cipher Block
Chaining (CBC) mode, DES and triple DES computation.
A serial interface fully compatible with the ISO 7816-3 standard (T = 0 and T = 1) for
Smartcard applications is available.
A CRC calculation block is also available.
Figure 1. ST23YS08 block diagram
RAM
CRC
Module
EEPROM
Clock
Gene-
rator
Module
CLK
2 x
8-bit
timers
User ROM
Internal Bus
Security
Monitor-
ing and
Control
RESET
ST ROM
(Boot software)
ST ROM Firewall
True
Random
Number
Gene-
rator
Vcc
8/16-bit
CPU
Core
GND
EDES
Accelerator
IART
I/O
Ai12551
2/4 DB_23YS08/0704
Page 3
ST23YS08 Revision history
1.1 Development environment
Development tools for smartcard products include a complete range of hardware systems
and software tools from STMicroelectronics and thir d-party tool suppliers. The range of tools
includes solutions to help you to develop and debug your application and evaluate
smartcard products and their peripherals.
An Integrated Development Environment (I DE), the STMicroelectronics Visual Debug
(STVD), provides a set of tools for developing embedded applications. This interface
manages the project configuration, code edition, code generation and program debugging.
An emulator (SCICS) and a simulator are available for developing and validating your
application code.
All the information needed to generate the application code and personalization will be
collected in a delivery file (.DLV extension). This file is created using the Delivery menu of
the STMicroelectronics configuration software tool, SCOOL.
2 Revision history
Table 1. Document revision history
Date Revision Changes
23-Jan-2007 0.1 Initial release.
10-Apr-2007 1
Updated Section 1: Description and Figure 1: ST23YS08 block
diagram. Added Section 1.1: Development environment.
DB_23YS08/0704 3/4
