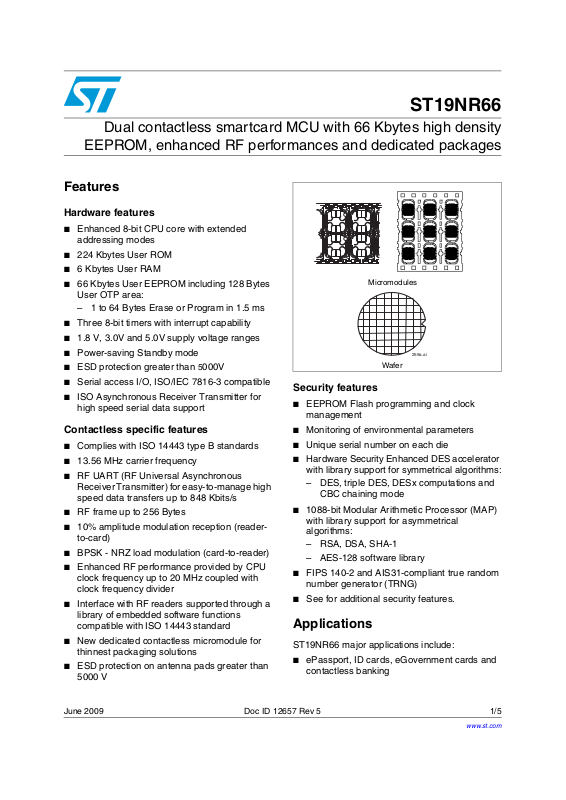

ST19NR66
259a.ai
Micromodules
Wafer
Dual contactless smartcard MCU with 66 Kbytes high density
EEPROM, enhanced RF performances and dedicated packages
Features
Hardware features
■ Enhanced 8-bit CPU core with extended
addressing modes
■ 224 Kbytes User ROM
■ 6 Kbytes User RAM
■ 66 Kbytes User EEPROM including 128 Bytes
User OTP area:
– 1 to 64 Bytes Erase or Program in 1.5 ms
■ Three 8-bit timers with interrupt capability
■ 1.8 V, 3.0V and 5.0V supply voltage ranges
■ Power-saving Standby mode
■ ESD protection greater than 5000V
■ Serial access I/O, ISO/IEC 7816-3 compatible
■ ISO Asynchronous Receiver Transmitter for
high speed serial data support
Contactless specific features
■ Complies with ISO 14443 type B standards
■ 13.56 MHz carrier frequency
■ RF UART (RF Universal Asynchronous
Receiver Transmitter) for easy-to-manage high
speed data transfers up to 848 Kbits/s
■ RF frame up to 256 Bytes
■ 10% amplitude modulation reception (reader-
to-card)
■ BPSK - NRZ load modulation (card-to-reader)
■ Enhanced RF performance provided by CPU
clock frequency up to 20 MHz coupled with
clock frequency divider
■ Interface with RF readers supported through a
library of embedded software functions
compatible with ISO 14443 standard
■ New dedicated contactless micromodule for
thinnest packaging solutions
■ ESD protection on antenna pads greater than
5000 V
Security features
■ EEPROM Flash programming and clock
management
■ Monitoring of environmental parameters
■ Unique serial number on each die
■ Hardware Security Enhanced DES accelerator
with library support for symmetrical algorithms:
– DES, triple DES, DESx computations and
CBC chaining mode
■ 1088-bit Modular Arithmetic Processor (MAP)
with library support for asymmetrical
algorithms:
– RSA, DSA, SHA-1
– AES-128 software library
■ FIPS 140-2 and AIS31-compliant true random
number generator (TRNG)
■ See for additional security features.
Applications
ST19NR66 major applications include:
■ ePassport, ID cards, eGovernment cards and
contactless banking
June 2009 Doc ID 12657 Rev 5 1/5
www.st.com
1
Page 2
Description ST19NR66
1 Description
The device, member of the ST19N platform, is a serial-access microcontroller specially
designed for cost-effective secure portable applications.
It is manufactured using an advanced highly reliable ST CMOS EEPROM technology.
It is based on the STMicroelectronics 8-bit CPU and includes on-chip memories: User ROM,
User RAM and EEPROM with state-of-the-art security features. ROM, RAM and EEPROM
memories can be configured into partitions with customized access rules.
An additional ST ROM contains all ST provided functions and libraries.
Access from any memory area to another are protected by hardware firewalls. Access rules
are user-defined and can be selected by mask options or during the life of the device.
The device includes an Enhanced DES accelerator which is accessible via cryptographic
software libraries located in ST ROM.
The device includes a Modular Arithmetic Processor (MAP) based on a 1088-bit processor
architecture. It processes modular multiplication, squaring and additional operand
calculations up to 2176 bits.
The internal MAP and Enhanced DES accelerator are designed to speed up cryptographic
calculations using Public Key Algorithms and Secret Key Algorithms.
An RF Interface including an RF Universal Asynchronous Receiver Transmitter (RF UART)
enables contactless communication up to 848 Kbits/s compatible with the ISO 14443-B
standard.
As with the other ST19N devices, a serial interface electrically compatible with the ISO 7816
standard is available as well as an ISO-compatible high-speed ISO Asynchronous Receiver
Transmitter (IART) enabling communications up to 1.25 Mbit/s.
A CRC calculation block is also available and is directly accessible by the User.
Development environment
Software development and firmware generation (ROM and options) are supported by a
comprehensive set of development tools, dedicated at development and validation of
software:
■ Smartcard ICs Emulator
■ ST19X simulation package
■ ScDevTools environment for Windows® 2000 and XP -based stations
■ Powerful C/C++ compiler and debugger are also available (third-party tools)
■ RF contactless demokit based on ISO 14443 type B standard
2/5 Doc ID 12657Rev 5
Page 3
ST19NR66 Description
Internal Bus
Memory Access Firewall
I/O
1 Serial
I/O
Inter-
face
GND
8-bit
CPU
3 x 8
Bit
Timer
CRC
Module
CLK
Clock
Gene-
rator
Module
ST ROM, MAP and EDES Firewall
RAM
User ROM
ST ROM, RF
and Crypto
Librairies
EDES
Accelerator
MAP
529
Vcc
TRNG
Secu-
rity
Admin.
RESET
EEPROM
IART
RF
UART
RF
Inter-
face
AC0 AC1

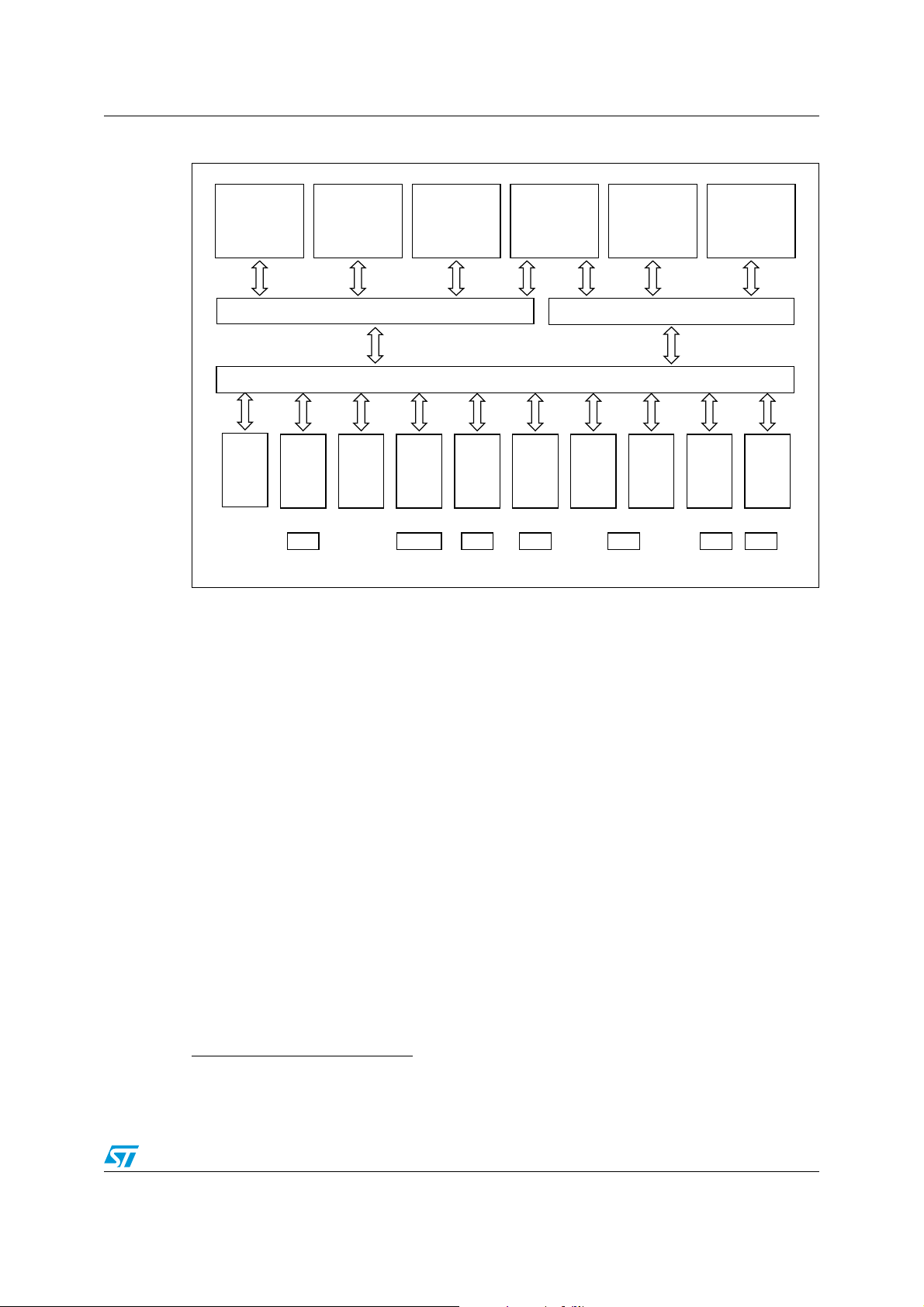

Figure 1. ST19NR66 block diagram
1.1 Additional security features
● Security firewalls for protecting the memory arrays and the cryptographic coprocessors
(MAP and EDES)
● ISO 3309 CRC calculation block
● Cryptographic performances
1. Best performance achieved using a 15-MHz clock frequency.
2. CRT: Chinese Remainder Theorem.
– RSA 1024-bit signature with CRT
– RSA 1024-bit signature without CRT
– RSA 1024-bit verification (e=’$10001’): 3.6 ms
– RSA 1024-bit key generation: 1.6 s
– RSA 2048-bit signature with CRT
– RSA 2048-bit verification (e=’$10001’): 59 ms
– Triple DES (with enhanced security): 38 µs
– Single DES (with enhanced security): 28 µs
(1)
:
(2)
(2)
: 55 ms
(2)
: 183 ms
: 371 ms
Doc ID 12657Rev 5 3/5
Page 4
Revision history ST19NR66
2 Revision history
Table 1. Document revision history
Date Revision Changes
03-Nov-2005 1 Initial release.
14-Nov-2005 2 Speed values updated. See Speed on page 2 in table.
17-Jan-2006 3 Disclaimer updated.
22-Jun-2009 4 Disclaimer updated.
