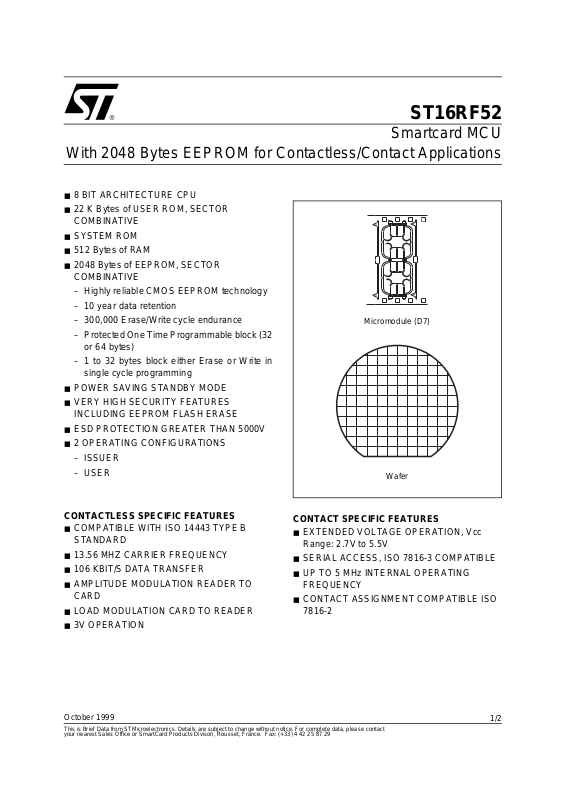

ST16RF52
Smar tcard MC U
With 2048 Bytes EEPROM for Contactless/Contact Applications
■ 8 BIT ARCHITECTURE CPU
■ 22 K Bytes of USER ROM, SECTOR
COMBINATIVE
■ SYSTEM ROM
■ 512 By tes of RAM
■ 2048 Bytes of EEPROM, SECTOR
COMBINATIVE
– Highly reliable CMOS EEPROM technology
– 10 year data retention
– 300,000 Erase/Write cycle endurance
– Protected One Time Programmable block (32
or 64 bytes)
– 1 to 32 bytes block either Erase or W rite in
single cycle programming
■ POWER SAVING STANDBY MODE
■ VERY HIGH SECURITY FEATURES
INCLUDING EEPROM FLASH ERASE
■ ESD PROT E CTION GRE A TER THA N 5000V
■ 2 OPE RATING CONFIGURATIONS
–ISSUER
– USER
4
4
Micromodule (D7)
4
4
Wafer
CONTACTLESS SPECIFIC FEATURES
■ COM PA TIBL E WITH ISO 14443 TYP E B
STANDARD
■ 13.56 MHZ CARRIER FREQUENCY
■ 106 KBIT/S DATA TRANSFER
■ AMPLITUDE MODULATION READER TO
CARD
■ LOAD MODULATION CARD TO READER
■ 3V OPERATION
October 1999
This is Brief Data from STMicroelectronics. Details are subject to change without notice. For complete data, please contact
your nearest Sales Office or SmartCard Products Divison, Rousset, France. Fax: (+33) 4 42 25 87 29
CONTACT SPECIFIC FEATURES
■ EXTENDED VOLTAGE OPERATION, Vcc
Range: 2.7V to 5.5V
■ S ER IAL ACCESS , ISO 7816-3 COM PAT IBLE
■ UP TO 5 MHz INTERNAL OPERATING
FREQUENCY
■ CONT ACT ASSIGNMENT COMPATIBLE ISO
7816-2
1/2
1
Page 2
ST16RF52
DESCRIPTION
The ST16RF52, a member of the standard ST16
device family, is a serial access microcontroller
especially designed for large volume contactless/
contact Smartcard applications.
The ST16RF52 is based on 8 bit CPU core and includes on chip memories: 512 B ytes of RAM, 22
KBytes of USER ROM, SYSTEM ROM, and 2048
Bytes of EEPROM.
Both ROM and EEPROM memories can be configured into two sectors. Access rules from any
Figure 1 Block Diagram
RAM
8 BIT
CPU
SYSTEM
ROM
memory section or sector to any other are set-up
by the User’s defined Memory Access Control Matrix (M ACM) .
Reliability dat a related to the ST1 6RF52 product,
manufactured using STMicroelectronics’ advanced CMOS EEPROM technology, confirm
data retention of up to 10 years and endurance up
to 300,000 Erase/Write cycles.
Contact operation is fully compatible with the ISO
standards for Smartcard applications.
V GENERATION
ROM
22 KBytes512 Bytes
SECTORS
COMBIN.
CC
EEPROM
2048 Bytes
SECTORS COMBINATIVE
2/2
CLK
SERIAL I/0
INTERFACE
I/O1
RF INTERFACE
AC0AC1
SECT.
S
SECT. ASECT.
B
MEMORY ACCESS CONTROL MATRIX
INTERNAL BUS
NUMBER
GENERATOR
SECTOR
A
SECURITY
LOGIC
SECTOR
B
RST
V
CC
GND
