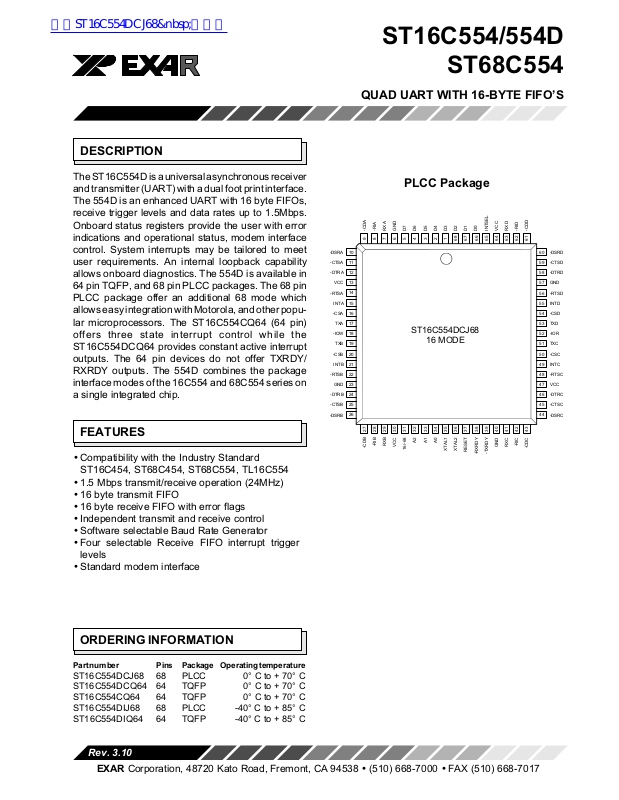

DESCRIPTION

ST16C554/554D

ST68C554

QUAD UART WITH 16-BYTE FIFOS

The ST16C554D is a universal asynchronous receiver

and transmitter (UART) with a dual foot print interface.

The 554D is an enhanced UART with 16 byte FIFOs,

receive trigger levels and data rates up to 1.5Mbps.

Onboard status registers provide the user with error

indications and operational status, modem interface

control. System interrupts may be tailored to meet

user requirements. An internal loopback capability

allows onboard diagnostics. The 554D is available in

64 pin TQFP, and 68 pin PLCC packages. The 68 pin

PLCC package offer an additional 68 mode which

allows easy integration with Motorola, and other popu-

lar microprocessors. The ST16C554CQ64 (64 pin)

offers three state interrupt control while the

ST16C554DCQ64 provides constant active interrupt

outputs. The 64 pin devices do not offer TXRDY/

RXRDY outputs. The 554D combines the package

interface modes of the 16C554 and 68C554 series on

a single integrated chip.

FEATURES

• Compatibility with the Industry Standard

ST16C454, ST68C454, ST68C554, TL16C554

• 1.5 Mbps transmit/receive operation (24MHz)

• 16 byte transmit FIFO

• 16 byte receive FIFO with error flags

• Independent transmit and receive control

• Software selectable Baud Rate Generator

• Four selectable Receive FIFO interrupt trigger

levels

• Standard modem interface

-DSRA

-CTSA

-DTRA

VCC

-RTSA

INTA

-CSA

TXA

-IOW

TXB

-CSB

INTB

-RTSB

GND

-DTRB

-CTSB

-DSRB

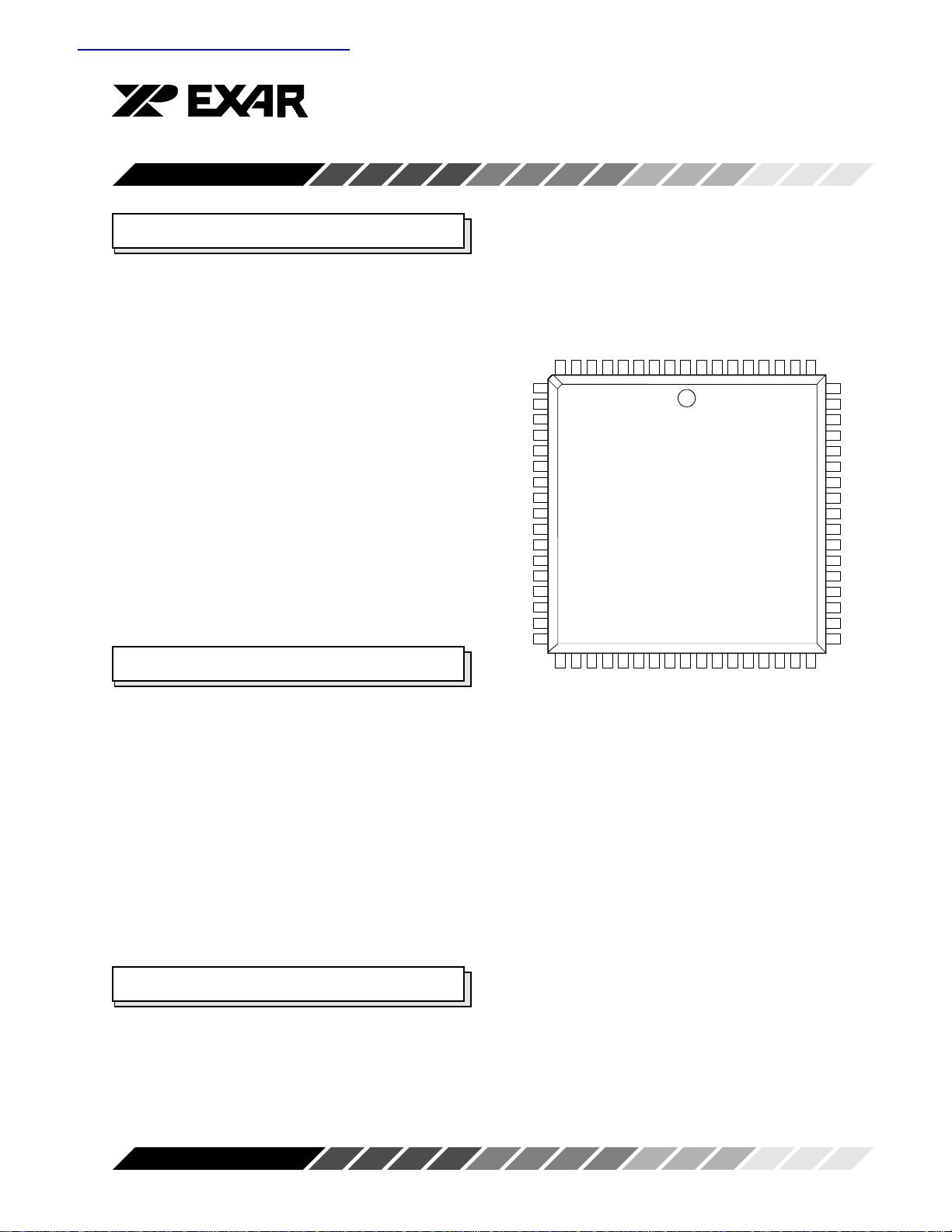

PLCC Package

-CDA

-RIA

RXA

987654321

2728293031323334353637383940414243

-CDB

GNDD7D6D5D4D3D2D1D0

ST16C554DCJ68

16 MODE

-RIB

RXB

A2A1A0

VCC

16/-68

68676665646362

XTAL1

XTAL2

INTSEL

RESET

-TXRDY

-RXRDY

VCC

GND

RXD

-RID

-CDD

-DSRD

-CTSD

-DTRD

GND

-RTSD

INTD

-CSD

TXD

-IOR

TXC

-CSC

INTC

-RTSC

VCC

-DTRC

-CTSC

-DSRC

-RIC

RXC

-CDC

ORDERING INFORMATION

Part number Pins Package Operating temperature

ST16C554DCJ68 68 PLCC 0° C to + 70° C

ST16C554DCQ64 64 TQFP 0° C to + 70° C

ST16C554CQ64 64 TQFP 0° C to + 70° C

ST16C554DIJ68 68 PLCC -40° C to + 85° C

ST16C554DIQ64 64 TQFP -40° C to + 85° C

Rev. 3.10

EXAR Corporation, 48720 Kato Road, Fremont, CA 94538 • (510) 668-7000 • FAX (510) 668-7017

Page 2

ST16C554/554D/68C554

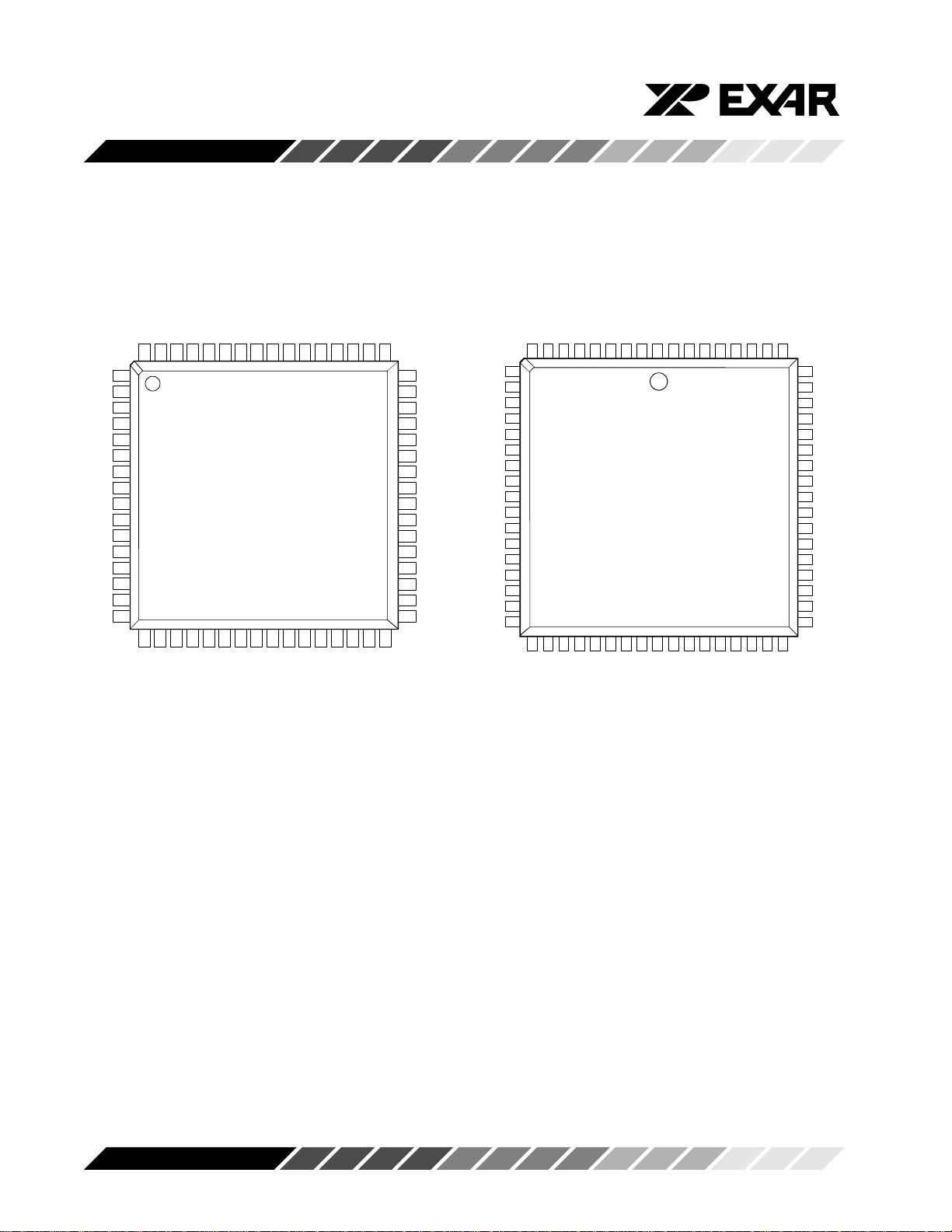

Figure 1, Package Descriptions

64 Pin TQFP Package 68 Pin PLCC Package

-CDA

-RIA

RXA

-DSRA

-CTSA

-DTRA

VCC

-RTSA

INTA

-CSA

TXA

-IOW

-TXB

-CSB

INTB

-RTSB

GND

-DTRB

-CTSB

GNDD7D6D5D4D3D2D1D0

646362616059585756555453525150

171819202122232425262728293031

-CDB

-DSRB

ST16C554CQ64

ST16C554DCQ64

RXB

VCC

A2A1A0

-RIB

XTAL1

XTAL2

VCC

RXD

-RID

-CDD

-DSRD

-CTSD

-DTRD

GND

-RTSD

INTD

-CSD

TXD

-IOR

TXC

-CSC

INTC

-RTSC

VCC

-DTRC

-CTSC

-RIC

RXC

GND

RESET

-CDC

-DSRC

-DSRA

-CTSA

-DTRA

VCC

-RTSA

-IRQ

-CS

TXA

R/-W

TXB

N.C.

-RTSB

GND

-DTRB

-CTSB

-DSRB

-CDA-RIA

RXA

987654321

2728293031323334353637383940414243

-CDB

GNDD7D6D5D4D3D2D1D0

ST16C554DCJ68

68 MODE

-RIB

RXB

A2A1A0

VCC

16/-68

68676665646362

XTAL1

XTAL2

N.C.

-RESET

-TXRDY

-RXRDY

VCC

GND

RXD

-RID

-CD

-DSRD

-CTSD

-DTRD

GND

-RTSD

N.C.

TXD

N.C.

TXC

N.C.

-RTSC

VCC

-DTRC

-CTSC

-DSRC

-RIC

RXC

-CDC

Rev. 3.10

Page 3

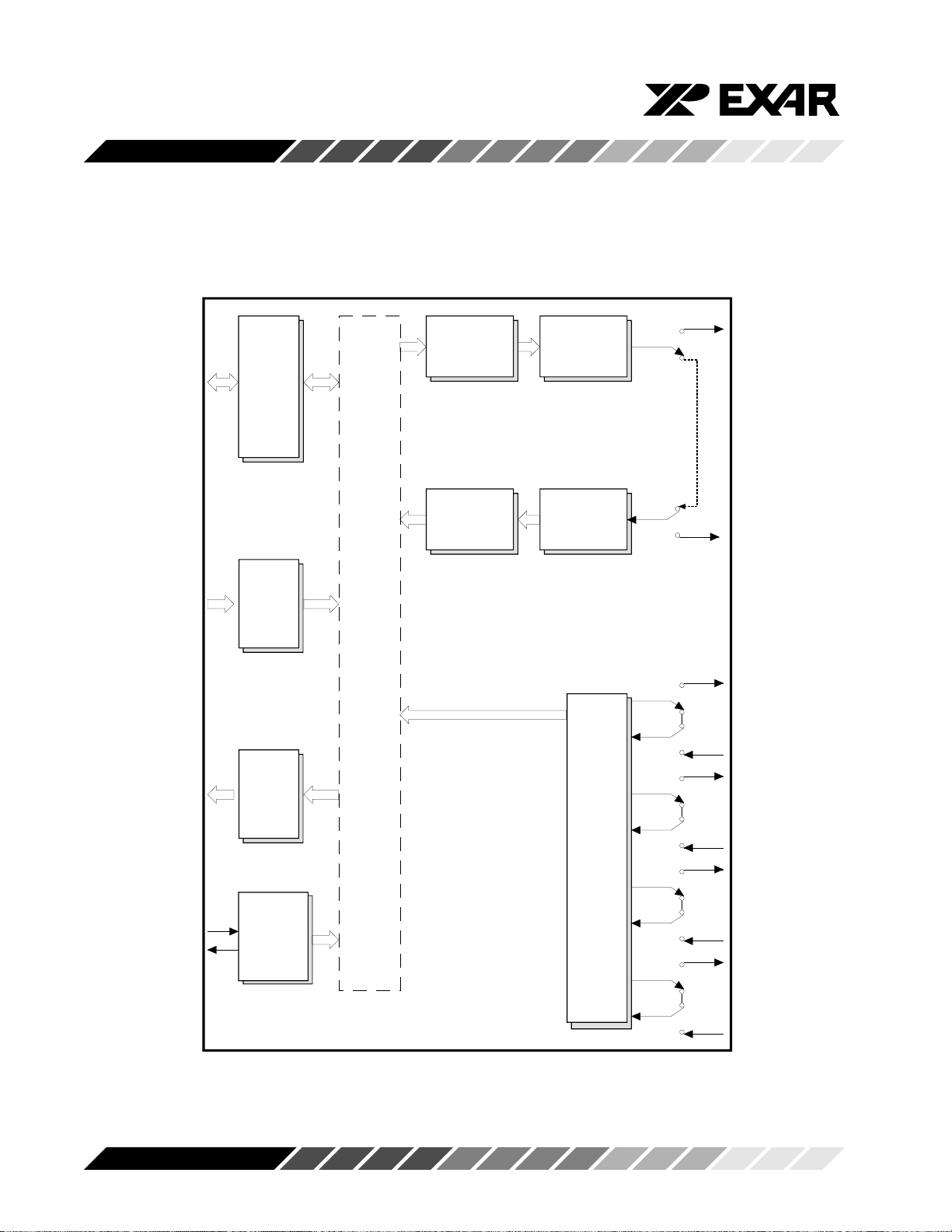

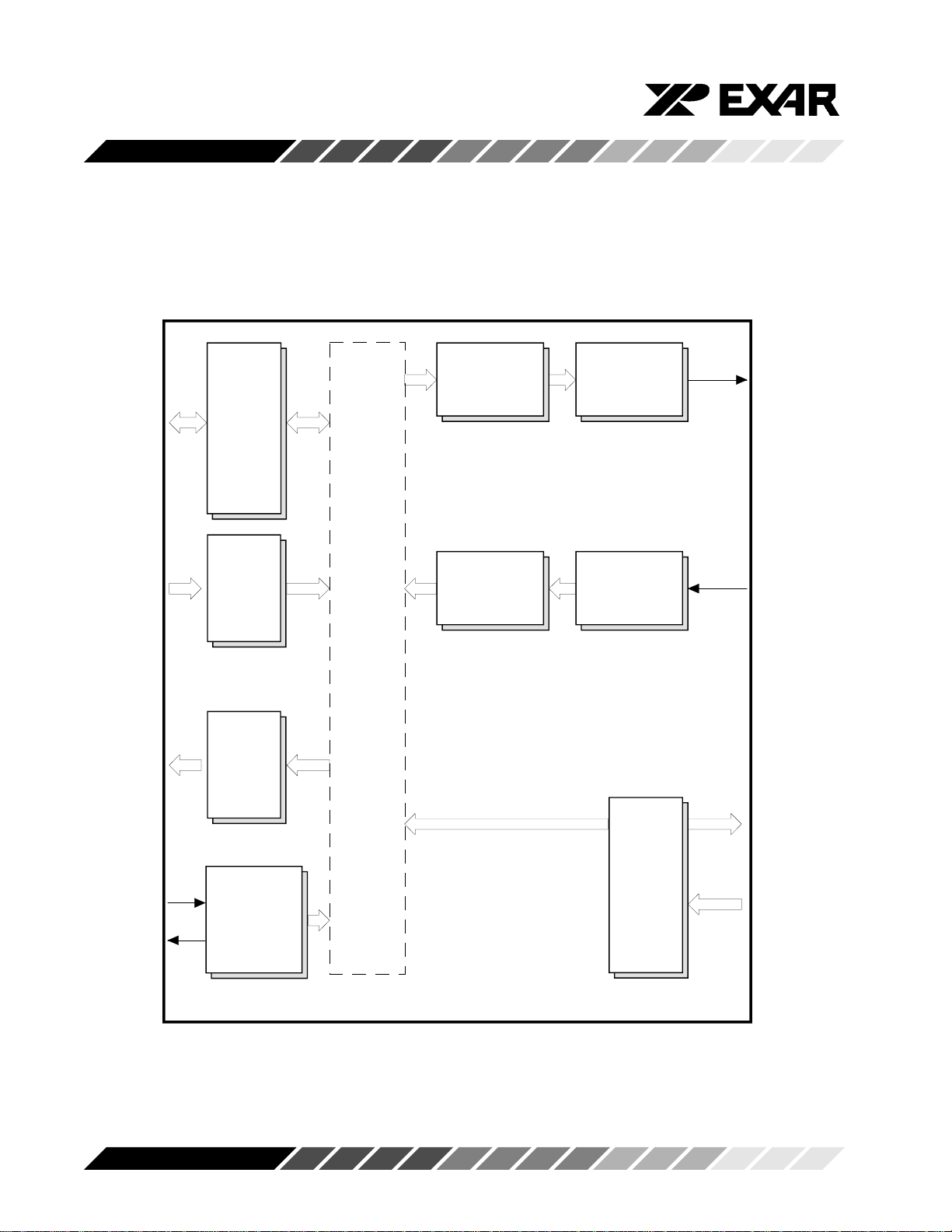

Figure 2, Block Diagram 16 Mode

ST16C554/554D/68C554

D0-D7

-IOR

-IOW

RESET

A0-A2

-CS A-D

NT A-D

-RXRDY

-TXRDY

INTSEL

Data bus

Interrupt

Select

Control

Transmit

FIFO

Registers

Control Logic

Receive

Logic

Control signals

Inter Connect Bus Lines

Logic

FIFO

Registers

Transmit

Shift

Receive

Shift

TX A-D

RX A-D

-DTR A-D

-RTS A-D

Modem

XTAL1

XTAL2

Rev. 3.10

Clock

Generator

Baud Rate

Control

Logic

-CTS A-D

-RI A-D

-CD A-D

-DSR A-D

Page 4

ST16C554/554D/68C554

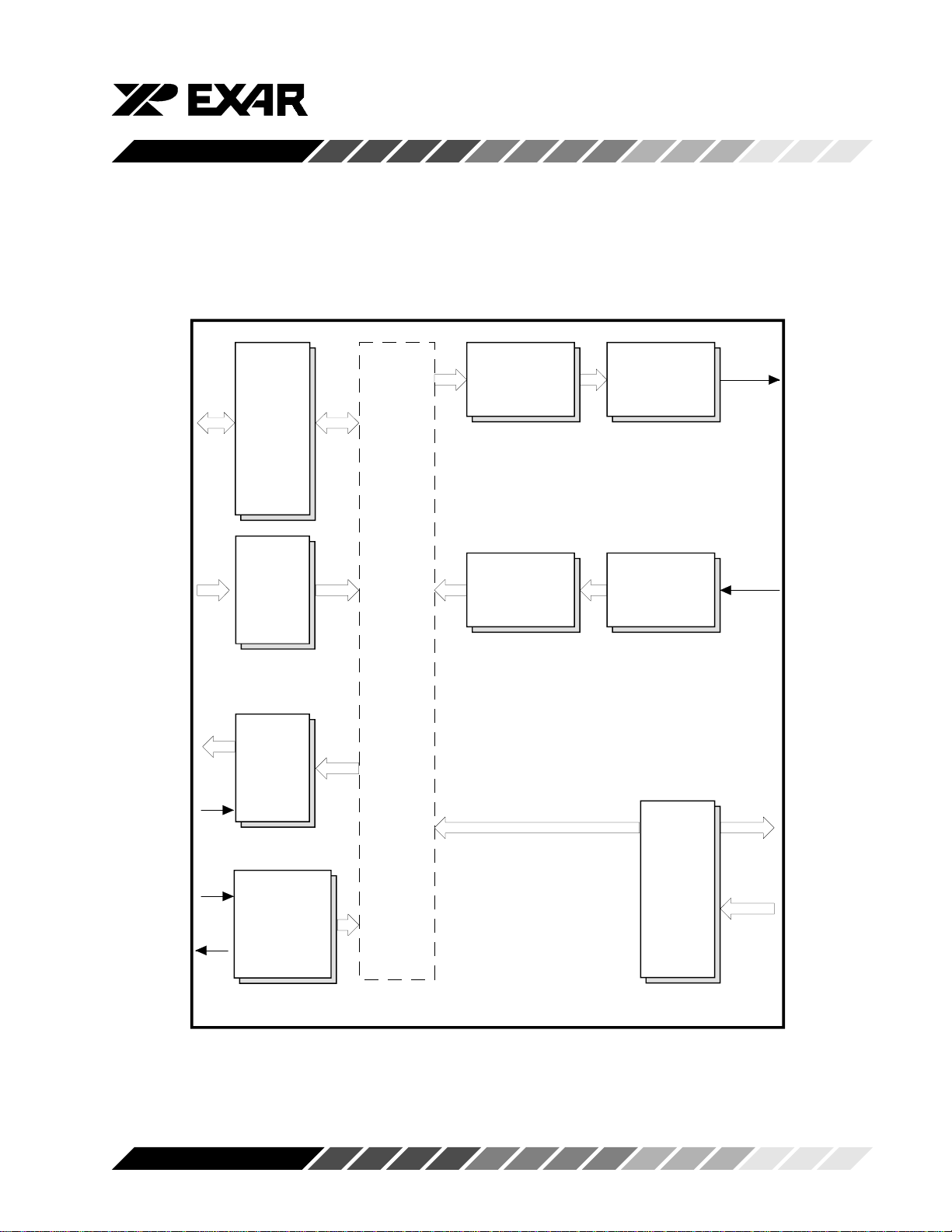

Figure 3, Block Diagram 68 Mode

D0-D7

R/-W

-RESET

A0-A4

-CS

-IRQ

-RXRDY

-TXRDY

Transmit

FIFO

Registers

Data bus

Control Logic

Receive

Logic

Select

Control signals

Inter Connect Bus Lines

Logic

Control

Interrupt

FIFO

Registers

Transmit

Shift

Receive

Shift

TX A-D

RX A-D

-DTR A-D

-RTS A-D

XTAL1

XTAL2

Rev. 3.10

Modem

Control

Clock

Generator

Baud Rate

Logic

-CTS A-D

-RI A-D

-CD A-D

-DSR A-D

Page 5

ST16C554/554D/68C554

SYMBOL DESCRIPTION

Symbol Pin Signal Pin Description

68 64 type

16/-68 31 - I 16/68 Interface Type Select (input with internal pull-up). -

This input provides the 16 (Intel) or 68 (Motorola) bus

interface type select. The functions of -IOR, -IOW, INT A-

D, and -CS A-D are re-assigned with the logical state of this

pin. When this pin is a logic 1, the 16 mode interface

16C554D is selected. When this pin is a logic 0, the 68 mode

interface (68C554) is selected. When this pin is a logic 0, -

IOW is re-assigned to -R/W, RESET is re-assigned to -

RESET, -IOR is not used, and INT A-D(s) are connected in

a WIRE-OR configuration. The WIRE-OR outputs are

connected internally to the open source IRQ signal output.

This pin is not available on 64 pin packages which operate

in the 16 mode only.

A0 34 24 I Address-0 Select Bit. Internal registers address selection in

16 and 68 modes.

A1 33 23 I Address-1 Select Bit. Internal registers address selection in

16 and 68 modes.

A2 32 22 I Address-2 Select Bit. - Internal registers address selection

in 16 and 68 modes.

A3-A4 20,50 - I Address 3-4 Select Bits. - When the 68 mode is selected,

these pins are used to address or select individual UARTs

(providing -CS is a logic 0). In the 16 mode, these pins are

reassigned as chip selects, see -CSB and -CSC. These pins

are not available on 64 pin packages which operate in the

16 mode only.

-CS 16 - I Chip Select. (active low) - In the 68 mode, this pin functions

as a multiple channel chip enable. In this case, all four

UARTs (A-D) are enabled when the -CS pin is a logic 0. An

individual UART channel is selected by the data contents of

address bits A3-A4. When the 16 mode is selected (68 pin

device), this pin functions as -CSA, see definition under -CS

A-B. This pin is not available on 64 pin packages which

operate in the 16 mode only.

Rev. 3.10

Page 6

ST16C554/554D/68C554

SYMBOL DESCRIPTION

Symbol Pin Signal Pin Description

68 64 type

-CS A-B 16,20 7,11

-CS C-D 50,54 38,42 I Chip Select A, B, C, D (active low) - This function is

associated with the 16 mode only, and for individual chan-

nels, A through D. When in 16 Mode, these pins enable

data transfers between the user CPU and the ST16C554D

for the channel(s) addressed. Individual UART sections (A,

B, C, D) are addressed by providing a logic 0 on the

respective -CS A-D pin. When the 68 mode is selected, the

functions of these pins are reassigned. 68 mode functions

are described under the their respective name/pin head-

ings.

D0-D2 66-68 53-55 I/O

D3-D7 1-5 56-60 Data Bus (Bi-directional) - These pins are the eight bit, three

state data bus for transferring information to or from the

controlling CPU. D0 is the least significant bit and the first

data bit in a transmit or receive serial data stream.

GND 6,23 14,28

GND 40,57 45,61 Pwr Signal and power ground.

INT A-B 15,21 6,12

INT C-D 49,55 37,43 O Interrupt A, B, C, D (active high) - This function is associated

with the 16 mode only. These pins provide individual

channel interrupts, INT A-D. INT A-D are enabled when

MCR bit-3 is set to a logic 1, interrupts are enabled in the

interrupt enable register (IER), and when an interrupt con-

dition exists. Interrupt conditions include: receiver errors,

available receiver buffer data, transmit buffer empty, or

when a modem status flag is detected. When the 68 mode

is selected, the functions of these pins are reassigned. 68

mode functions are described under the their respective

name/pin headings.

INTSEL 65 - I Interrupt Select. (active high, with internal pull-down) - This

function is associated with the 16 mode only. When the 16

mode is selected, this pin can be used in conjunction with

MCR bit-3 to enable or disable the three state interrupts, INT

A-D or override MCR bit-3 and force continuous interrupts.

Interrupt outputs are enabled continuously by making this

Rev. 3.10

Page 7

ST16C554/554D/68C554

SYMBOL DESCRIPTION

Symbol Pin Signal Pin Description

68 64 type

pin a logic 1. Making this pin a logic 0 allows MCR bit-3 to

control the three state interrupt output. In this mode, MCR

bit-3 is set to a logic 1 to enable the three state outputs.

This pin is disabled in the 68 mode. Due to pin limitations on

64 pin packages, this pin is not available. To cover this

limitation, two 64 pin QFP package versions are offered.

The ST16C554DCQ64 operates in the continuos interrupt

enable mode by bonded this pin to VCC internally. The

ST16C554CQ64 operates with MCR bit-3 control by bond-

ing this pin to GND.

-IOR 52 40 I Read strobe. (active low Strobe) - This function is associ-

ated with the 16 mode only. A logic 0 transition on this pin

will load the contents of an Internal register defined by

address bits A0-A2 onto the ST16C554D data bus (D0-D7)

for access by an external CPU. This pin is disabled in the 68

mode.

-IOW 18 9 I Write strobe. (active low strobe) - This function is associ-

ated with the 16 mode only. A logic 0 transition on this pin

will transfer the contents of the data bus (D0-D7) from the

external CPU to an internal register that is defined by

address bits A0/A2. When the 16 mode is selected, this pin

functions as -R/W, see definition under R/W.

-IRQ 15 - O Interrupt Request or Interrupt A - This function is associ-

ated with the 68 mode only. In the 68 mode, interrupts from

UART channels A-D are WIRE-ORed internally to function

as a single IRQ interrupt. This pin transitions to a logic 0 (if

enabled by the interrupt enable register) whenever a UART

channel(s) requires service. Individual channel interrupt

status can be determined by addressing each channel

through its associated internal register, using -CS and A3-

A4. In the 68 mode an external pull-up resistor must be

connected between this pin and VCC. The function of this

pin changes to INTA when operating in the 16 mode, see

definition under INTA.

Rev. 3.10

Page 8

ST16C554/554D/68C554

SYMBOL DESCRIPTION

Symbol Pin Signal Pin Description

68 64 type

-RESET

RESET 37 27 I Reset. - In the 16 mode a logic 1 on this pin will reset the

internal registers and all the outputs. The UART transmitter

output and the receiver input will be disabled during reset

time. (See ST16C554D External Reset Conditions for ini-

tialization details.) When 16/-68 is a logic 0 (68 mode), this

pin functions similarly but, as an inverted reset interface

signal, -RESET.

-R/W 18 - I Read/Write Strobe (active low) - This function is associated

with the 68 mode only. This pin provides the combined

functions for Read or Write strobes. A logic 1 to 0 transition

transfers the contents of the CPU data bus (D0-D7) to the

transition places the contents of a 554D register selected by

-CS and A0-A4 on the data bus, D0-D7, for transfer to an

external CPU.

-RXRDY 38 - O Receive Ready (active low) - This function is associated

with 68 pin packages only. -RXRDY contains the wire OR-

ed status of all four receive channel FIFOs, RXRDY A-D.

A logic 0 indicates receive data ready status, i.e. the RHR

is full or the FIFO has one or more RX characters available

for unloading. This pin goes to a logic 1 when the FIFO/RHR

is full or when there are no more characters available in

either the FIFO or RHR. For 64/68 pin packages, individual

channel RX status is read by examining individual internal

registers via -CS and A0-A4 pin functions.

-TXRDY 39 - O Transmit Ready (active low) - This function is associated

with 68 pin package only. -TXRDY contains the wire OR-

ed status of all four transmit channel FIFOs, TXRDY A-D.

A logic 0 indicates a buffer ready status, i.e., at least one

location is empty and available in one of the TX channels (A-

D). This pin goes to a logic 1 when all four channels have no

more empty locations in the TX FIFO or THR.

VCC 13 4,21

VCC 47,64 35,52 I Power supply inputs.

Rev. 3.10

Page 9

ST16C554/554D/68C554

SYMBOL DESCRIPTION

Symbol Pin Signal Pin Description

68 64 type

XTAL1 35 25 I Crystal or External Clock Input - Functions as a crystal input

or as an external clock input. A crystal can be connected

between this pin and XTAL2 to form an internal oscillator

circuit (see figure 8). Alternatively, an external clock can be

connected to this pin to provide custom data rates (see

Baud Rate Generator Programming).

XTAL2 36 26 O Output of the Crystal Oscillator or Buffered Clock - (See also

XTAL1). Crystal oscillator output or buffered clock output.

-CD A-B 9,27 64,18

-CD C-D 43,61 31,49 I Carrier Detect (active low) - These inputs are associated

with individual UART channels A through D. A logic 0 on this

pin indicates that a carrier has been detected by the modem

for that channel.

-CTS A-B 11,25 2,16

-CTS C-D 45,59 33,47 I Clear to Send (active low) - These inputs are associated with

individual UART channels, A through D. A logic 0 on the -

CTS pin indicates the modem or data set is ready to accept

transmit data from the 554D. Status can be tested by

reading MSR bit-4.

-DSR A-B 10,26 1,17

-DSR C-D 44,60 32,48 I Data Set Ready (active low) - These inputs are associated

with individual UART channels, A through D. A logic 0 on

this pin indicates the modem or data set is powered-on and

is ready for data exchange with the UART. This pin has no

effect on the UARTs transmit or receive operation. This pin

has no effect on the UARTs transmit or receive operation.

-DTR A-B 12,24 3,15

-DTR C-D 46,58 34,46 O Data Terminal Ready (active low) - These inputs are

associated with individual UART channels, A through D. A

logic 0 on this pin indicates that the 554D is powered-on and

ready. This pin can be controlled via the modem control

output to logic 0, enabling the modem. This pin will be a logic

1 after writing a logic 0 to MCR bit-0. This pin has no effect

on the UARTs transmit or receive operation.

Rev. 3.10

Page 10

ST16C554/554D/68C554

SYMBOL DESCRIPTION

Symbol Pin Signal Pin Description

68 64 type

-RI A-B 8,28 63,19

-RI C-D 42,62 30,50 I Ring Indicator (active low) - These inputs are associated

with individual UART channels, A through D. A logic 0 on

this pin indicates the modem has received a ringing signal

from the telephone line. A logic 1 transition on this input pin

will generate an interrupt.

-RTS A-B 14,22 5,13

-RTS C-D 48,56 36,44 O Request to Send (active low) - These outputs are associated

with individual UART channels, A through D. A logic 0 on the

-RTS pin indicates the transmitter has data ready and

waiting to send. Writing a logic 1 in the modem control

data is available. After a reset this pin will be set to a logic

1. This pin has no effect on the UARTs transmit or receive

operation.

RX A-B 7,29 62,20

RX C-D 41,63 29,51 I Receive Data Input RX A-D. - These inputs are associated

with individual serial channel data to the ST16C554D. The

RX signal will be a logic 1 during reset, idle (no data), or

when the transmitter is disabled. During the local loopback

mode, the RX input pin is disabled and TX data is internally

connected to the UART RX Input, internally.

TX A-B 17,19 8,10

TX C-D 51,53 39,41 O Transmit Data - These outputs are associated with indi-

vidual serial transmit channel data from the 554D. The TX

signal will be a logic 1 during reset, idle (no data), or when

the transmitter is disabled. During the local loopback mode,

the TX input pin is disabled and TX data is internally

connected to the UART RX Input.

Rev. 3.10

Page 11

ST16C554/554D/68C554

GENERAL DESCRIPTION

The 554D provides serial asynchronous receive data

synchronization, parallel-to-serial and serial-to-paral-

lel data conversions for both the transmitter and

receiver sections. These functions are necessary for

converting the serial data stream into parallel data that

is required with digital data systems. Synchronization

for the serial data stream is accomplished by adding

start and stops bits to the transmit data to form a data

character (character orientated protocol). Data integ-

rity is insured by attaching a parity bit to the data

character. The parity bit is checked by the receiver for

any transmission bit errors. The electronic circuitry to

provide all these functions is fairly complex especially

when manufactured on a single integrated silicon

chip. The ST16C554D represents such an integration

with greatly enhanced features. The 554D is fabri-

cated with an advanced CMOS process to achieve low

drain power and high speed requirements.

The 554D is an upward solution that provides 16 bytes

of transmit and receive FIFO memory, instead of 1

bytes provided in the 16/68C454. The 554D is de-

signed to work with high speed modems and shared

network environments, that require fast data process-

ing time. Increased performance is realized in the

554D by the larger transmit and receive FIFOs. This

allows the external processor to handle more network-

ing tasks within a given time. This increases the

service interval giving the external CPU additional

time for other applications and reducing the overall

UART interrupt servicing time.

The 554D combines the package interface modes of

the 16C554D and 68C554 series on a single inte-

grated chip. The 16 mode interface is designed to

operate with the Intel type of microprocessor bus while

the 68 mode is intended to operate with Motorola, and

other popular microprocessors. Following a reset, the

554D is down-ward compatible with the ST16C454/

ST68C454 dependent on the state of the interface

mode selection pin, 16/-68.

The 554D is capable of operation to 1.5Mbps with a 24

MHz crystal or external clock input. With a crystal of

14.7464 MHz, the user can select data rates up to

921.6Kbps.

The rich feature set of the 554D is available through

internal registers. Selectable receive FIFO trigger

levels, selectable TX and RX baud rates, modem

interface controls. In the 16 mode INTSEL and MCR

bit-3 can be configured to provide a software con-

trolled or continuous interrupt capability. Due of pin

limitations for the 64 pin 554D this feature is offered by

two different QFP packages. The ST16C554DCQ64

operates in the continuos interrupt enable mode by

bonded INTSEL to VCC internally. The

ST16C554CQ64 operates in conjunction with MCR

bit-3 by bonding INTSEL to GND internally.

FUNCTIONAL DESCRIPTIONS

Interface Options

Two user interface modes are selectable for the 554D

package. These interface modes are designated as

the 16 mode and the 68 mode. This nomenclature

corresponds to the early 16C554D and 68C554 pack-

age interfaces respectively.

The 16 Mode Interface

The 16 mode configures the package interface pins for

connection as a standard 16 series (Intel) device and

operates similar to the standard CPU interface avail-

able on the 16C554D. In the 16 mode (pin 16/-68 logic

1) each UART is selected with individual chip select

(CSx) pins as shown in Table 2 below.

Table 2, SERIAL PORT CHANNEL SELECTION

GUIDE, 16 MODE INTERFACE

-CSA -CSB -CSC -CSD UART

CHANNEL

1111 None

0111 A

1011 B

1101 C

1110 D

Rev. 3.10

Page 12

ST16C554/554D/68C554

The 68 Mode Interface

The 68 mode configures the package interface pins for

connection with Motorola, and other popular micro-

processor bus types. The interface operates similar to

the 68C454/554. In this mode the 554D decodes two

additional addresses, A3-A4 to select one of the four

UART ports. The A3-A4 address decode function is

used only when in the 68 mode (16/-68 logic 0), and is

shown in Table 3 below.

Table 3, SERIAL PORT CHANNEL SELECTION

GUIDE, 68 MODE INTERFACE

-CS A4 A3 UART

CHANNEL

1 N/A N/A None

000 A

001 B

010 C

011 D

Internal Registers

The 554D provides 13 internal registers for monitoring

and control. These resisters are shown in Table 4

below. Twelve registers are similar to those already

available in the standard 16C454. These registers

function as data holding registers (THR/RHR), inter-

rupt status and control registers (IER/ISR), line status

and control registers (LCR/LSR), modem status and

control registers (MCR/MSR), programmable data

rate (clock) control registers (DLL/DLM), and a user

assessable scratchpad register (SPR). Register func-

tions are more fully described in the following para-

graphs.

Table 4, INTERNAL REGISTER DECODE

A2 A1 A0 READ MODE WRITE MODE

General Register Set (THR/RHR, IER/ISR, MCR/MSR, LCR/LSR, SPR):

0 0 0 Receive Holding Register Transmit Holding Register

0 0 1 Interrupt Enable Register

0 1 0 Interrupt Status Register FIFO Control Register

0 1 1 Line Control Register

1 0 0 Modem Control Register

1 0 1 Line Status Register

1 1 0 Modem Status Register

1 1 1 Scratchpad Register Scratchpad Register

Baud Rate Register Set (DLL/DLM): Note *2

0 0 0 LSB of Divisor Latch LSB of Divisor Latch

0 0 1 MSB of Divisor Latch MSB of Divisor Latch

Note *2: These registers are accessible only when LCR bit-7 is set to a logic 1.

Rev. 3.10

Page 13

ST16C554/554D/68C554

FIFO Operation

The 16 byte transmit and receive data FIFOs are

enabled by the FIFO Control Register (FCR) bit-0.

With 16C554 devices, the user can only set the

receive trigger level. The receiver FIFO section in-

cludes a time-out function to ensure data is delivered

to the external CPU. An interrupt is generated when-

ever the Receive Holding Register (RHR) has not

been read following the loading of a character or the

receive trigger level has not been reached.

Timeout Interrupts

The interrupts are enabled by IER bits 0-3. Care must

be taken when handling these interrupts. Following a

reset the transmitter interrupt is enabled, the 554D will

issue an interrupt to indicate that transmit holding

to continuing operations. The LSR register provides

the current singular highest priority interrupt only.

Servicing the interrupt without investigating further

interrupt conditions can result in data errors.

When two interrupt conditions have the same priority,

it is important to service these interrupts correctly.

Receive Data Ready and Receive Time Out have the

same interrupt priority (when enabled by IER bit-0).

The receiver issues an interrupt after the number of

characters have reached the programmed trigger

level. In this case the 554D FIFO may hold more

characters than the programmed trigger level. Follow-

ing the removal of a data byte, the user should recheck

LSR bit-0 for additional characters. A Receive Time

Out will not occur if the receive FIFO is empty. The

time out counter is reset at the center of each stop bit

received or each time the receive holding register

(RHR) is read. The actual time out value is T (Time out

length in bits) = 4 X P (Programmed word length) + 12.

To convert the time out value to a character value, the

user has to consider the complete word length, includ-

ing data information length, start bit, parity bit, and the

size of stop bit, i.e., 1X, 1.5X, or 2X bit times.

Example -A: If the user programs a word length of 7,

with no parity and one stop bit, the time out will be:

T = 4 X 7( programmed word length) +12 = 40 bit times.

The character time will be equal to 40 / 9 = 4.4

characters, or as shown in the fully worked out ex-

ample: T = [(programmed word length = 7) + (stop bit

= 1) + (start bit = 1) = 9]. 40 (bit times divided by 9) =

4.4 characters.

Example -B: If the user programs the word length = 7,

with parity and one stop bit, the time out will be:

T = 4 X 7(programmed word length) + 12 = 40 bit times.

Character time = 40 / 10 [ (programmed word length

= 7) + (parity = 1) + (stop bit = 1) + (start bit = 1) = 4

characters.

In the 16 mode for 68 pin packages, the system/board

designer can optionally provide software controlled

three state interrupt operation. This is accomplished

by INTSEL and MCR bit-3. When INTSEL interface

pin is left open or made a logic 0, MCR bit-3 controls

the three state interrupt outputs, INT A-D. When

INTSEL is a logic 1, MCR bit-3 has no effect on the INT

A-D outputs and the package operates with interrupt

outputs enabled continuously.

Programmable Baud Rate Generator

The 554D supports high speed modem technologies

that have increased input data rates by employing

data compression schemes. For example a 33.6Kbps

modem that employs data compression may require a

115.2Kbps input data rate. A 128.0Kbps ISDN modem

that supports data compression may need an input

data rate of 460.8Kbps. The 554D can support a

standard data rate of 921.6Kbps.

Single baud rate generator is provided for the

transmitter and receiver, allowing independent TX/

RX channel control. The programmable Baud Rate

Generator is capable of accepting an input clock up

to 24 MHz, as required for supporting a 1.5Mbps

data rate. The 554D can be configured for internal

or external clock operation. For internal clock

oscillator operation, an industry standard micropro-

cessor crystal (parallel resonant/ 22-33 pF load) is

connected externally between the XTAL1 and

XTAL2 pins (see figure 8). Alternatively, an external

clock can be connected to the XTAL1 pin to clock

the internal baud rate generator for standard or

custom rates. (see Baud Rate Generator Program-

ming).

Rev. 3.10

Page 14

ST16C554/554D/68C554

The generator divides the input 16X clock by any

divisor from 1 to 216 -1. The 554D divides the basic

crystal or external clock by 16. Further division of this

16X clock provides two table rates to support low and

high data rate applications using the same system

design. Customized Baud Rates can be achieved by

selecting the proper divisor values for the MSB and

LSB sections of baud rate generator.

Programming the Baud Rate Generator Registers

DLM (MSB) and DLL (LSB) provides a user capability

for selecting the desired final baud rate. The example

in Table 5 below, shows the two selectable baud rate

tables available when using a 7.3728 MHz crystal.

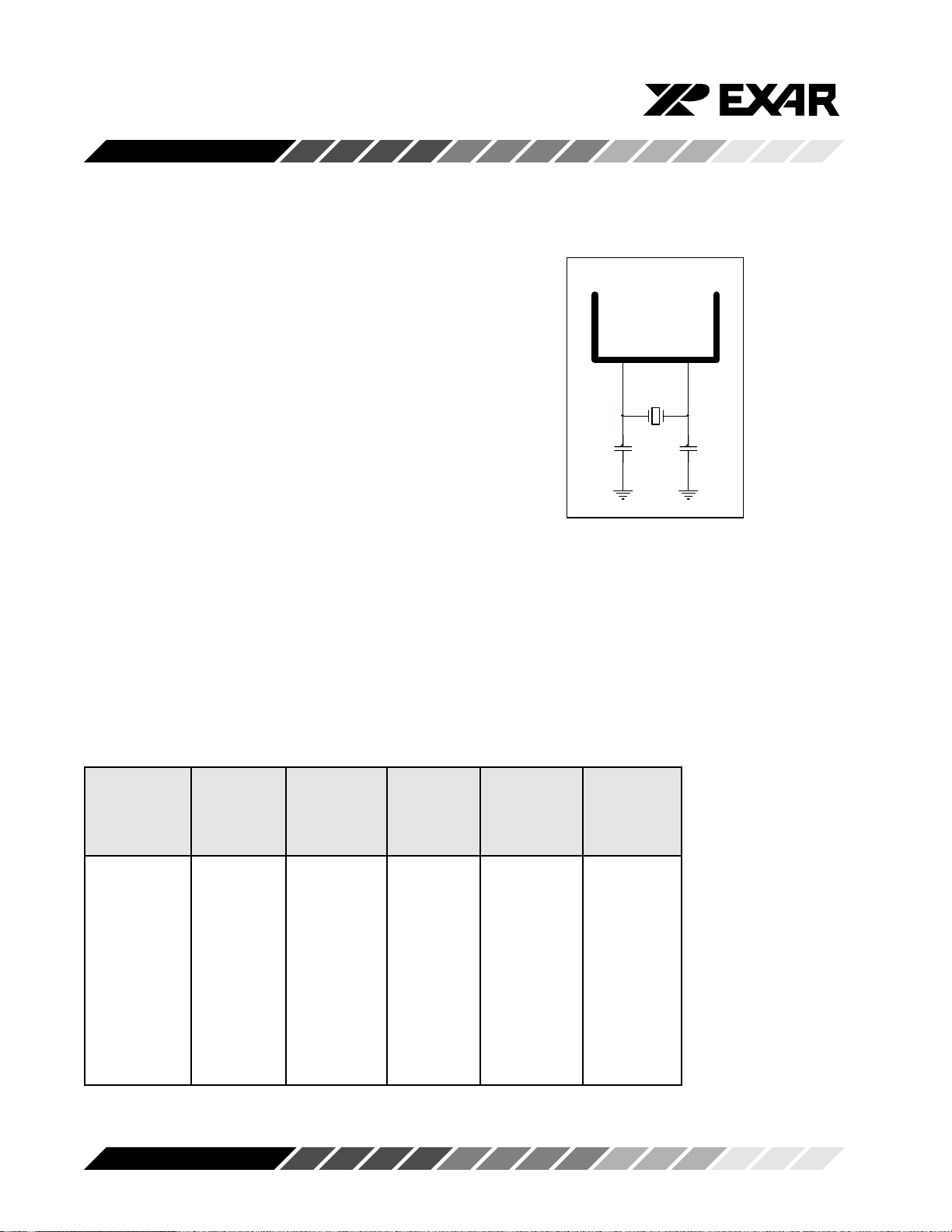

Figure 8, Crystal oscillator connection

XTAL 1

22pF

1.8432 MHz

XTAL 2

33pF

Table 5, BAUD RATE GENERATOR PROGRAMMING TABLE:

Output Output User User DLM DLL

Baud Rate Baud Rate 16 x Clock 16 x Clock Program Program

(1.8432 MHz (7.3728 MHz Divisor Divisor Value Value

Clock) Clock) (Decimal) (HEX) (HEX) (HEX)

50 200 2304 900 09 00

300 1200 384 180 01 80

600 2400 192 C0 00 C0

1200 4800 96 60 00 60

2400 9600 48 30 00 30

4800 19.2K 24 18 00 18

9600 38.4k 12 0C 00 0C

19.2k 76.8k 6 06 00 06

38.4k 153.6k 3 03 00 03

57.6k 230.4k 2 02 00 02

115.2k 460.8k 1 01 00 01

Rev. 3.10

Page 15

ST16C554/554D/68C554

DMA Operation

The 554D FIFO trigger level provides additional

flexibility to the user for block mode operation. LSR

bits 5-6 provide an indication when the transmitter is

empty or has an empty location(s). The user can

optionally operate the transmit and receive FIFOs in

the DMA mode (FCR bit-3). When the transmit and

receive FIFOs are enabled and the DMA mode is

deactivated (DMA Mode 0), the 554D activates the

interrupt output pin for each data transmit or receive

operation. When DMA mode is activated (DMA Mode

1), the user takes the advantage of block mode

operation by loading or unloading the FIFO in a block

sequence determined by the preset trigger level. In

this mode, the 554D sets the interrupt output pin when

characters in the transmit FIFOs are below the trans-

mit trigger level, or the characters in the receive FIFOs

are above the receive trigger level.

Loopback Mode

The internal loopback capability allows onboard diag-

nostics. In the loopback mode the normal modem

interface pins are disconnected and reconfigured for

loopback internally. MCR register bits 0-3 are used for

controlling loopback diagnostic testing. In the

loopback mode OP1 and OP2 in the MCR register

(bits 3/2) control the modem -RI and -CD inputs

respectively. MCR signals -DTR and -RTS (bits 0-1)

are used to control the modem -CTS and -DSR inputs

respectively. The transmitter output (TX) and the

receiver input (RX) are disconnected from their asso-

ciated interface pins, and instead are connected to-

gether internally (See Figure 12). The -CTS, -DSR, -

CD, and -RI are disconnected from their normal

modem control inputs pins, and instead are connected

internally to -DTR, -RTS, -OP1 and -OP2. Loopback

test data is entered into the transmit holding register

via the user data bus interface, D0-D7. The transmit

UART serializes the data and passes the serial data to

the receive UART via the internal loopback connec-

tion. The receive UART converts the serial data back

into parallel data that is then made available at the

user data interface, D0-D7. The user optionally com-

pares the received data to the initial transmitted data

for verifying error free operation of the UART TX/RX

circuits.

In this mode, the receiver and transmitter interrupts

are fully operational. The Modem Control Interrupts

are also operational. However, the interrupts can only

be read using lower four bits of the Modem Control

Status Register bits 4-7. The interrupts are still con-

trolled by the IER.

Rev. 3.10

Page 16

ST16C554/554D/68C554

Figure 12, INTERNAL LOOPBACK MODE DIAGRAM

D0-D7

-IOR,-IOW

RESET

A0-A2

-CS A-D

INT A-D

-RXRDY

-TXRDY

Transmit

FIFO

Registers

Data bus

Control Logic

Receive

FIFO

Registers

Logic

Select

Control signals

Inter Connect Bus Lines

Logic

Control

Interrupt

Transmit

Shift

Receive

Shift

TX A-D

MCR Bit-4=1

RX A-D

-RTS A-D

-CD A-D

-DTR A-D

XTAL1

XTAL2

Rev. 3.10

-RI A-D

(-OP1 A-D)

Modem Control Logic

Clock

Generator

Baud Rate

-DSR A-D

(-OP2 A-D)

-CTS A-D

Page 17

ST16C554/554D/68C554

The following table delineates the assigned bit functions for the fifteen 554D internal registers. The assigned

bit functions are more fully defined in the following paragraphs.

Table 6, ST16C554D INTERNAL REGISTERS

A2 A1 A0 Register BIT-7 BIT-6 BIT-5 BIT-4 BIT-3 BIT-2 BIT-1 BIT-0

[Note *5]

General Register Set

0 0 0 RHR[XX] bit-7 bit-6 bit-5 bit-4 bit-3 bit-2 bit-1 bit-0

0 0 0 THR[XX] bit-7 bit-6 bit-5 bit-4 bit-3 bit-2 bit-1 bit-0

0 0 1 IER[00] 0000modem receive transmit receive

0 1 0 FCR RCVR RCVR 0 0 DMA XMIT RCVR FIFO

trigger trigger mode FIFO FIFO enable

(MSB) (LSB) select reset reset

0 1 0 ISR[01] FIFOs FIFOs 0 0 INT INT INT INT

enabled enabled priority priority priority status

0 1 1 LCR[00] divisor set set even parity stop word word

latch break parity parity enable bits length length

enable bit-1 bit-0

1 0 0 MCR[00] 0 0 0 loop -OP2/ -OP1 -RTS -DTR

back INTx

status line holding holding

interrupt status register register

interrupt

bit-2 bit-1 bit-0

enable

1 0 1 LSR[60] FIFO trans. trans. break framing parity overrun receive

1 1 0 MSR[X0] CD RI DSR CTS delta delta delta delta

1 1 1 SPR[FF] bit-7 bit-6 bit-5 bit-4 bit-3 bit-2 bit-1 bit-0

data empty holding interrupt error error error data

error empty ready

-CD -RI -DSR -CTS

Special Register set: Note *2

0 0 0 DLL[XX] bit-7 bit-6 bit-5 bit-4 bit-3 bit-2 bit-1 bit-0

0 0 1 DLM[XX] bit-15 bit-14 bit-13 bit-12 bit-11 bit-10 bit-9 bit-8

Note *2: The Special register set is accessible only when LCR bit-7 is set to 1.

Rev. 3.10

Page 18

ST16C554/554D/68C554

Note *5: The value between the square brackets

represents the registers initialized HEX value.

Transmit (THR) and Receive (RHR) Holding Reg-

isters

A) The receive data available interrupts are issued to

the external CPU when the FIFO has reached the

programmed trigger level. It will be cleared when the

FIFO drops below the programmed trigger level.

The serial transmitter section consists of an 8-bit

Transmit Hold Register (THR) and Transmit Shift

the Line Status Register (LSR). Writing to the THR

transfers the contents of the data bus (D7-D0) to the

THR, providing that the THR or TSR is empty. The

THR empty flag in the LSR register will be set to a logic

1 when the transmitter is empty or when data is

transferred to the TSR. Note that a write operation can

be performed when the transmit holding register

empty flag is set (logic 0 = FIFO full, logic 1= at least

one FIFO location available).

The serial receive section also contains an 8-bit

Receive Holding Register, RHR. Receive data is

removed from the 554D and receive FIFO by reading

the RHR register. The receive section provides a

mechanism to prevent false starts. On the falling edge

of a start or false start bit, an internal receiver counter

starts counting clocks at 16x clock rate. After 7 1/2

clocks the start bit time should be shifted to the center

of the start bit. At this time the start bit is sampled and

if it is still a logic 0 it is validated. Evaluating the start

bit in this manner prevents the receiver from assem-

bling a false character. Receiver status codes will be

posted in the LSR.

Interrupt Enable Register (IER)

B) FIFO status will also be reflected in the user

accessible ISR register when the FIFO trigger level is

reached. Both the ISR register status bit and the

interrupt will be cleared when the FIFO drops below

the trigger level.

C) The data ready bit (LSR BIT-0) is set as soon as a

character is transferred from the shift register to the

receive FIFO. It is reset when the FIFO is empty.

IER Vs Receive/Transmit FIFO Polled Mode Op-

eration

When FCR BIT-0 equals a logic 1; resetting IER bits

0-3 enables the 554D in the FIFO polled mode of

operation. Since the receiver and transmitter have

separate bits in the LSR either or both can be used in

the polled mode by selecting respective transmit or

receive control bit(s).

A) LSR BIT-0 will be a logic 1 as long as there is one

byte in the receive FIFO.

B) LSR BIT 1-4 will provide the type of errors encoun-

tered, if any.

C) LSR BIT-5 will indicate when the transmit FIFO is

empty.

The Interrupt Enable Register (IER) masks the inter-

rupts from receiver ready, transmitter empty, line

status and modem status registers. These interrupts

would normally be seen on the INT A-D output pins in

the 16 mode, or on WIRE-OR IRQ output pin, in the 68

mode.

IER Vs Receive FIFO Interrupt Mode Operation

When the receive FIFO (FCR BIT-0 = a logic 1) and

receive interrupts (IER BIT-0 = logic 1) are enabled,

the receive interrupts and register status will reflect

the following:

Rev. 3.10

D) LSR BIT-6 will indicate when both the transmit

FIFO and transmit shift register are empty.

E) LSR BIT-7 will indicate any FIFO data errors.

IER BIT-0:

This interrupt will be issued when the FIFO has

reached the programmed trigger level or is cleared

when the FIFO drops below the trigger level in the

FIFO mode of operation.

Logic 0 = Disable the receiver ready interrupt. (normal

Page 19

ST16C554/554D/68C554

default condition)

Logic 1 = Enable the receiver ready interrupt.

IER BIT-1:

This interrupt will be issued whenever the THR is

empty and is associated with bit-1 in the LSR register.

Logic 0 = Disable the transmitter empty interrupt.

(normal default condition)

Logic 1 = Enable the transmitter empty interrupt.

IER BIT-2:

This interrupt will be issued whenever a fully as-

sembled receive character is transferred from the

RSR to the RHR/FIFO, i.e., data ready, LSR bit-0.

Logic 0 = Disable the receiver line status interrupt.

(normal default condition)

Logic 1 = Enable the receiver line status interrupt.

IER BIT-3:

Logic 0 = Disable the modem status register interrupt.

(normal default condition)

Logic 1 = Enable the modem status register interrupt.

IER BIT 4-7:

Not used - Initialized to a logic 0.

FIFO Control Register (FCR)

This register is used to enable the FIFOs, clear the

FIFOs, set the transmit/receive FIFO trigger levels,

and select the DMA mode. The DMA, and FIFO

modes are defined as follows:

DMA MODE

Mode 0 Set and enable the interrupt for each

single transmit or receive operation, and is similar to

the ST16C454 mode. Transmit Ready (-TXRDY) will

go to a logic 0 when ever an empty transmit space is

available in the Transmit Holding Register (THR).

Receive Ready (-RXRDY) will go to a logic 0 when-

ever the Receive Holding Register (RHR) is loaded

with a character.

Mode 1 Set and enable the interrupt in a block

mode operation. The transmit interrupt is set when the

transmit FIFO is below the programmed trigger level.

-TXRDY remains a logic 0 as long as one empty FIFO

location is available. The receive interrupt is set when

the receive FIFO fills to the programmed trigger level.

However the FIFO continues to fill regardless of the

programmed level until the FIFO is full. -RXRDY

remains a logic 0 as long as the FIFO fill level is above

the programmed trigger level.

FCR BIT-0:

Logic 0 = Disable the transmit and receive FIFO.

(normal default condition)

Logic 1 = Enable the transmit and receive FIFO. This

bit must be a 1 when other FCR bits are written to or

they will not be programmed.

FCR BIT-1:

Logic 0 = No FIFO receive reset. (normal default

condition)

Logic 1 = Clears the contents of the receive FIFO and

resets the FIFO counter logic (the receive shift regis-

ter is not cleared or altered). This bit will return to a

logic 0 after clearing the FIFO.

FCR BIT-2:

Logic 0 = No FIFO transmit reset. (normal default

condition)

Logic 1 = Clears the contents of the transmit FIFO and

resets the FIFO counter logic (the transmit shift regis-

ter is not cleared or altered). This bit will return to a

logic 0 after clearing the FIFO.

FCR BIT-3:

Logic 0 = Set DMA mode 0. (normal default condi-

tion)

Logic 1 = Set DMA mode 1.

Transmit operation in mode 0:

When the 554D is in the ST16C450 mode (FIFOs

disabled, FCR bit-0 = logic 0) or in the FIFO mode

(FIFOs enabled, FCR bit-0 = logic 1, FCR bit-3 = logic

0) and when there are no characters in the transmit

FIFO or transmit holding register, the -TXRDY pin will

be a logic 0. Once active the -TXRDY pin will go to a

logic 1 after the first character is loaded into the

transmit holding register.

Receive operation in mode 0:

When the 554D is in mode 0 (FCR bit-0 = logic 0) or

in the FIFO mode (FCR bit-0 = logic 1, FCR bit-3 =

logic 0) and there is at least one character in the

receive FIFO, the -RXRDY pin will be a logic 0. Once

active the -RXRDY pin will go to a logic 1 when there

are no more characters in the receiver.

Rev. 3.10

Page 20

ST16C554/554D/68C554

Transmit operation in mode 1:

When the 554D is in FIFO mode ( FCR bit-0 = logic 1,

FCR bit-3 = logic 1 ), the -TXRDY pin will be a logic 1

when the transmit FIFO is completely full. It will be a

logic 0 if one or more FIFO locations are empty.

Receive operation in mode 1:

When the 554D is in FIFO mode (FCR bit-0 = logic 1,

FCR bit-3 = logic 1) and the trigger level has been

reached, or a Receive Time Out has occurred, the -

RXRDY pin will go to a logic 0. Once activated, it will

go to a logic 1 after there are no more characters in the

FIFO.

FCR BIT 4-5:

Not used - Initialized to a logic 0.

FCR BIT 6-7: (logic 0 or cleared is the default condi-

tion, Rx trigger level = 1)

These bits are used to set the trigger level for the

receive FIFO interrupt.

An interrupt is generated when the number of charac-

ters in the FIFO equals the programmed trigger level.

However the FIFO will continue to be loaded until it is

full.

Interrupt Status Register (ISR)

The 554D provides four levels of prioritized interrupts

to minimize external software interaction. The Inter-

rupt Status Register (ISR) provides the user with six

interrupt status bits. Performing a read cycle on the

ISR will provide the user with the highest pending

interrupt level to be serviced. No other interrupts are

acknowledged until the pending interrupt is serviced.

Whenever the interrupt status register is read, the

interrupt status is cleared. However it should be noted

that only the current pending interrupt is cleared by the

read. A lower level interrupt may be seen after reread-

ing the interrupt status bits. The Interrupt Source

Table 7 (below) shows the data values (bit 0-5) for the

four prioritized interrupt levels and the interrupt

sources associated with each of these interrupt levels:

BIT-7 BIT-6 RX FIFO trigger level

00 1

01 4

10 8

11 14

Table 7, INTERRUPT SOURCE TABLE

Priority [ ISR BITS ]

Level Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0 Source of the interrupt

1 000110 LSR (Receiver Line Status Register)

2 000100 RXRDY (Received Data Ready)

2 001100 RXRDY (Receive Data time out)

3 000010 TXRDY ( Transmitter Holding Register Empty)

4 000000 MSR (Modem Status Register)

Rev. 3.10

Page 21

ST16C554/554D/68C554

ISR BIT-0:

Logic 0 = An interrupt is pending and the ISR contents

may be used as a pointer to the appropriate interrupt

service routine.

Logic 1 = No interrupt pending. (normal default condi-

tion)

ISR BIT 1-3: (logic 0 or cleared is the default condition)

These bits indicate the source for a pending interrupt

at interrupt priority levels 1, 2, and 3 (See Interrupt

Source Table).

ISR BIT 4-5:

Not used - Initialized to a logic 0.

ISR BIT 6-7: (logic 0 or cleared is the default condition)

These bits are set to a logic 0 when the FIFO is not

being used. They are set to a logic 1 when the FIFOs

are enabled.

Line Control Register (LCR)

The Line Control Register is used to specify the

asynchronous data communication format. The word

length, the number of stop bits, and the parity are

selected by writing the appropriate bits in this register.

LCR BIT 0-1: (logic 0 or cleared is the default condi-

tion)

These two bits specify the word length to be transmit-

ted or received.

BIT-1 BIT-0 Word length

00 5

01 6

10 7

11 8

BIT-2 Word length Stop bit

length

(Bit time(s))

0 5,6,7,8 1

1 5 1-1/2

1 6,7,8 2

LCR BIT-3:

Parity or no parity can be selected via this bit.

Logic 0 = No parity. (normal default condition)

Logic 1 = A parity bit is generated during the transmis-

sion, receiver checks the data and parity for transmis-

sion errors.

LCR BIT-4:

If the parity bit is enabled with LCR bit-3 set to a logic

1, LCR BIT-4 selects the even or odd parity format.

Logic 0 = ODD Parity is generated by forcing an odd

number of logic 1s in the transmitted data. The

receiver must be programmed to check the same

format. (normal default condition)

Logic 1 = EVEN Parity is generated by forcing an even

the number of logic 1s in the transmitted. The receiver

must be programmed to check the same format.

LCR BIT-5:

If the parity bit is enabled, LCR BIT-5 selects the

forced parity format.

LCR BIT-5 = logic 0, parity is not forced. (normal

default condition)

LCR BIT-5 = logic 1 and LCR BIT-4 = logic 0, parity bit

is forced to a logical 1 for the transmit and receive

data.

LCR BIT-5 = logic 1 and LCR BIT-4 = logic 1, parity bit

is forced to a logical 0 for the transmit and receive

data.

LCR BIT-2: (logic 0 or cleared is the default condition)

The length of stop bit is specified by this bit in

conjunction with the programmed word length.

Rev. 3.10

Page 22

ST16C554/554D/68C554

Logic 0 = Forces INT (A-D) outputs to the three state

LCR LCR LCR Parity selection

Bit-5 Bit-4 Bit-3

X X 0 No parity

0 0 1 Odd parity

0 1 1 Even parity

1 0 1 Force parity 1

1 1 1 Forced parity 0

LCR BIT-6:

When enabled the Break control bit causes a break

condition to be transmitted (the TX output is forced to

a logic 0 state). This condition exists until disabled by

setting LCR bit-6 to a logic 0.

Logic 0 = No TX break condition. (normal default

condition)

Logic 1 = Forces the transmitter output (TX) to a logic

0 for alerting the remote receiver to a line break

condition.

LCR BIT-7:

Not used - Initialized to a logic 0.

Modem Control Register (MCR)

This register controls the interface with the modem or

a peripheral device.

MCR BIT-0:

Logic 0 = Force -DTR output to a logic 1. (normal

default condition)

Logic 1 = Force -DTR output to a logic 0.

MCR BIT-1:

Logic 0 = Force -RTS output to a logic 1. (normal

default condition)

Logic 1 = Force -RTS output to a logic 0.

MCR BIT-2:

This bit is used in the Loopback mode only. In the

loopback mode this bit is use to write the state of the

modem -RI interface signal via -OP1.

MCR BIT-3: (Used to control the modem -CD signal

in the loopback mode.)

mode during the 16 mode. (normal default condition)

In the Loopback mode, sets -OP2 (-CD) internally to a

logic 1.

Logic 1 = Forces the INT (A-D) outputs to the active

mode during the 16 mode. In the Loopback mode, sets

-OP2 (-CD) internally to a logic 0.

MCR BIT-4:

Logic 0 = Disable loopback mode. (normal default

condition)

Logic 1 = Enable local loopback mode (diagnostics).

MCR BIT 5-7:

Not used - Initialized to a logic 0.

Line Status Register (LSR)

This register provides the status of data transfers

between. the 554D and the CPU.

LSR BIT-0:

Logic 0 = No data in receive holding register or FIFO.

(normal default condition)

Logic 1 = Data has been received and is saved in the

receive holding register or FIFO.

LSR BIT-1:

Logic 0 = No overrun error. (normal default condition)

Logic 1 = Overrun error. A data overrun error occurred

in the receive shift register. This happens when addi-

tional data arrives while the FIFO is full. In this case

the previous data in the shift register is overwritten.

Note that under this condition the data byte in the

receive shift register is not transfered into the FIFO,

therefore the data in the FIFO is not corrupted by the

error.

LSR BIT-2:

Logic 0 = No parity error. (normal default condition)

Logic 1 = Parity error. The receive character does not

have correct parity information and is suspect. In the

FIFO mode, this error is associated with the character

at the top of the FIFO.

LSR BIT-3:

Logic 0 = No framing error. (normal default condition)

Logic 1 = Framing error. The receive character did not

Rev. 3.10

Page 23

ST16C554/554D/68C554

have a valid stop bit(s). In the FIFO mode this error is

associated with the character at the top of the FIFO.

LSR BIT-4:

Logic 0 = No break condition. (normal default condi-

tion)

Logic 1 = The receiver received a break signal (RX

was a logic 0 for one character frame time). In the

FIFO mode, only one break character is loaded into

the FIFO.

LSR BIT-5:

This bit is the Transmit Holding Register Empty indi-

cator. This bit indicates that the UART is ready to

accept a new character for transmission. In addition,

this bit causes the UART to issue an interrupt to CPU

when the THR interrupt enable is set. The THR bit is

set to a logic 1 when a character is transferred from the

transmit holding register into the transmitter shift

loading of the transmitter holding register by the CPU.

In the FIFO mode this bit is set when the transmit FIFO

is empty; it is cleared when at least 1 byte is written to

the transmit FIFO.

LSR BIT-6:

This bit is the Transmit Empty indicator. This bit is set

to a logic 1 whenever the transmit holding register and

the transmit shift register are both empty. It is reset to

logic 0 whenever either the THR or TSR contains a

data character. In the FIFO mode this bit is set to one

whenever the transmit FIFO and transmit shift register

are both empty.

LSR BIT-7:

Logic 0 = No Error. (normal default condition)

Logic 1 = At least one parity error, framing error or

break indication is in the current FIFO data. This bit is

cleared when LSR register is read.

Modem Status Register (MSR)

This register provides the current state of the control

interface signals from the modem, or other peripheral

device that the 554D is connected to. Four bits of this

These bits are set to a logic 1 whenever a control input

from the modem changes state. These bits are set to

a logic 0 whenever the CPU reads this register.

MSR BIT-0:

Logic 0 = No -CTS Change (normal default condition)

Logic 1 = The -CTS input to the 554D has changed

state since the last time it was read. A modem Status

Interrupt will be generated.

MSR BIT-1:

Logic 0 = No -DSR Change. (normal default condition)

Logic 1 = The -DSR input to the 554D has changed

state since the last time it was read. A modem Status

Interrupt will be generated.

MSR BIT-2:

Logic 0 = No -RI Change. (normal default condition)

Logic 1 = The -RI input to the 554D has changed from

a logic 0 to a logic 1. A modem Status Interrupt will be

generated.

MSR BIT-3:

Logic 0 = No -CD Change. (normal default condition)

Logic 1 = Indicates that the -CD input to the has

changed state since the last time it was read. A

modem Status Interrupt will be generated.

MSR BIT-4:

-CTS (active high, logical 1). Normally MSR bit-4 bit

is the compliment of the -CTS input. However in the

loopback mode, this bit is equivalent to the RTS bit in

the MCR register.

MSR BIT-5:

DSR (active high, logical 1). Normally this bit is the

compliment of the -DSR input. In the loopback mode,

this bit is equivalent to the DTR bit in the MCR register.

MSR BIT-6:

RI (active high, logical 1). Normally this bit is the

compliment of the -RI input. In the loopback mode this

bit is equivalent to the OP1 bit in the MCR register.

Rev. 3.10

Page 24

ST16C554/554D/68C554

MSR BIT-7:

CD (active high, logical 1). Normally this bit is the

compliment of the -CD input. In the loopback mode

this bit is equivalent to the OP2 bit in the MCR register.

Scratchpad Register (SPR)

The ST16C554D provides a temporary data register

to store 8 bits of user information.

ST16C554D EXTERNAL RESET CONDITIONS

REGISTERS RESET STATE

IER IER BITS 0-7=0

ISR ISR BIT-0=1, ISR BITS 1-7=0

LCR LCR BITS 0-7=0

MCR MCR BITS 0-7=0

LSR LSR BITS 0-4=0,

LSR BITS 5-6=1 LSR, BIT 7=0

MSR MSR BITS 0-3=0,

MSR BITS 4-7= input signals

FCR FCR BITS 0-7=0

SIGNALS RESET STATE

TX A-D High

-RTS A-D High

-DTR A-D High

-RXRDY High

-TXRDY Low

Rev. 3.10

Page 25

ST16C554/554D/68C554

AC ELECTRICAL CHARACTERISTICS

TA=0° - 70°C (-40° - +85°C for Industrial grade packages), Vcc=3.3 - 5.0 V ± 10% unless otherwise specified.

Symbol Parameter Limits Limits Units Conditions

3.3 5.0

Min Max Min Max

T1w,T2w Clock pulse duration 17 17 ns

T3w Oscillator/Clock frequency 8 24 MHz

T6s Address setup time 5 0 ns

T7d -IOR delay from chip select 10 10 ns

T7w -IOR strobe width 35 25 ns

T7h Chip select hold time from -IOR 0 0 ns

T9d Read cycle delay 40 30 ns

T12d Delay from -IOR to data 35 25 ns

T12h Data disable time 25 35 15 ns

T13d -IOW delay from chip select 10 10 ns

T13w -IOW strobe width 35 25 ns

T13h Chip select hold time from -IOW 0 0 ns

T15d Write cycle delay 40 30 ns

T16s Data setup time 20 15 ns

T16h Data hold time 5 5 ns

T17d Delay from -IOW to output 50 40 ns 100 pF load

T18d Delay to set interrupt from MODEM 40 35 ns 100 pF load

input

T19d Delay to reset interrupt from -IOR 40 35 ns 100 pF load

T20d Delay from stop to set interrupt 1 1 Rclk

T21d Delay from -IOR to reset interrupt 45 40 ns 100 pF load

T22d Delay from stop to interrupt 45 40 ns

T23d Delay from initial INT reset to transmit 8 24 8 24 Rclk

start

T24d Delay from -IOW to reset interrupt 45 40 ns

T25d Delay from stop to set -RxRdy 1 1 Rclk

T26d Delay from -IOR to reset -RxRdy 45 40 ns

T27d Delay from -IOW to set -TxRdy 45 40 ns

T28d Delay from start to reset -TxRdy 8 8 Rclk

T30s Address setup time 10 10 ns

T30w Chip select strobe width 40 40 ns

T30h Address hold time 15 15 ns

T30d Read cycle delay 70 70 ns

T31d Delay from -CS to data 15 15 ns

T31h Data disable time 15 ns

T32s Write strobe setup time 10 10 ns

T32h Write strobe hold time 10 10 ns

T32d Write cycle delay 70 70 ns

Rev. 3.10

Page 26

ST16C554/554D/68C554

AC ELECTRICAL CHARACTERISTICS

TA=0° - 70°C (-40° - +85°C for Industrial grade packages), Vcc=3.3 - 5.0 V ± 10% unless otherwise specified.

Symbol Parameter Limits Limits Units Conditions

3.3 5.0

Min Max Min Max

T33s Data setup time 20 15 ns

T33h Data hold time 10 10 ns

TR Reset pulse width 40 40 ns

N Baud rate devisor 1 216-1 1 216-1 Rclk

Rev. 3.10

Page 27

ST16C554/554D/68C554

ABSOLUTE MAXIMUM RATINGS

Supply range 7 Volts

Voltage at any pin GND - 0.3 V to VCC +0.3 V

Operating temperature -40° C to +85° C Storage temperature -65° C to 150° C

Package dissipation 500 mW

DC ELECTRICAL CHARACTERISTICS

TA=0° - 70°C (-40° - +85°C for Industrial grade packages), Vcc=3.3 - 5.0 V ± 10% unless otherwise specified.

Symbol Parameter Limits Limits Units Conditions

3.3 5.0

Min Max Min Max

ILCK

IHCK

Clock input low level -0.3 0.6 -0.5 0.6 V

Clock input high level 2.4 VCC 3.0 VCC V

Input low level -0.3 0.8 -0.5 0.8 V

Input high level 2.0 2.2 VCC V

Output low level on all outputs 0.4 V IOL= 5 mA

Output low level on all outputs 0.4 V IOL= 4 mA

Output high level 2.4 V IOH= -5 mA

Output high level 2.0 V IOH= -1 mA

Input leakage ±10 ±10 µA Clock leakage ±10 ±10 µA

Avg power supply current 3 6 mA

Input capacitance 5 5 pF

RIN Internal pull-up resistance 3 15 kΩ

Note: See the Symbol Description Table, for a listing of pins having internal pull-up resistors.

Rev. 3.10

Page 28

ST16C554/554D/68C554

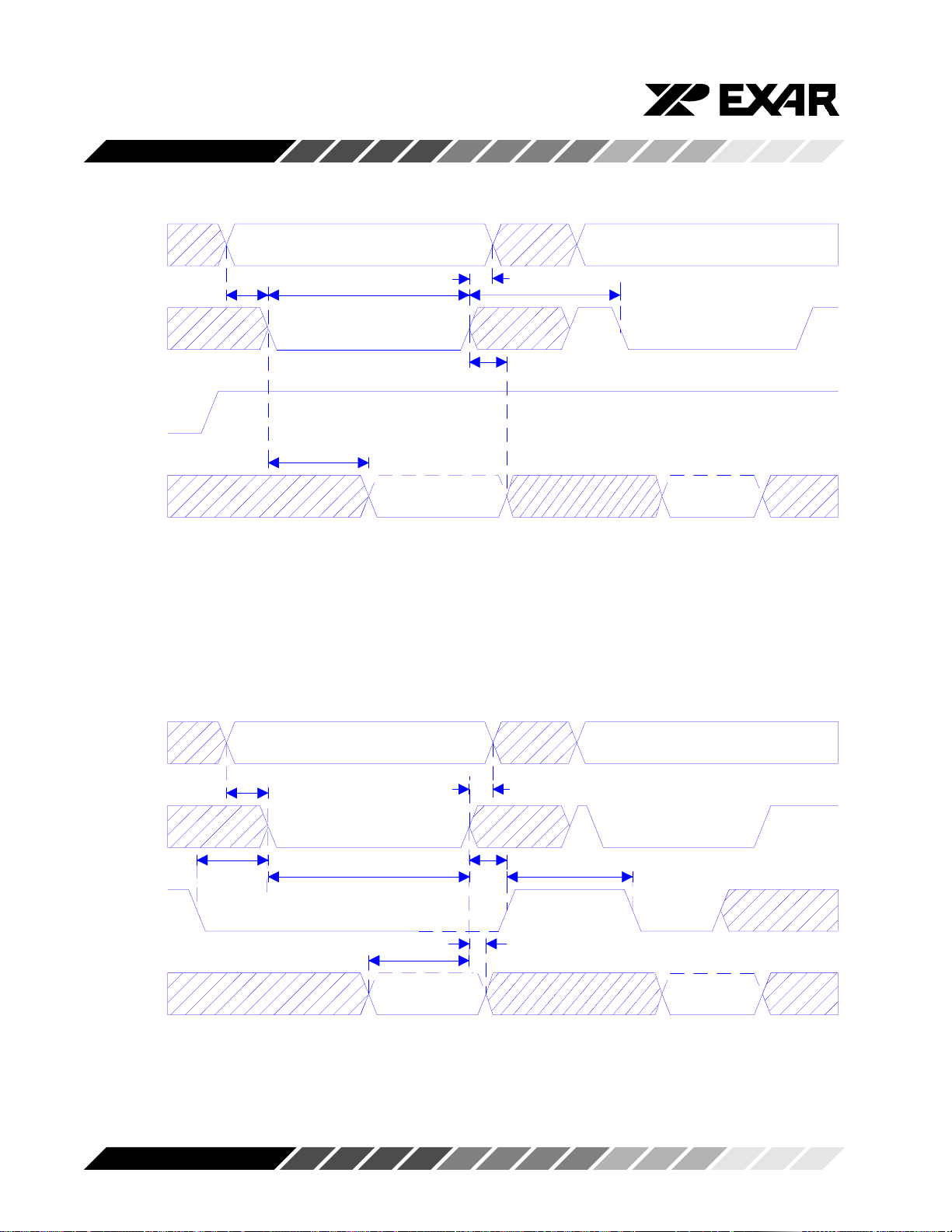

A0-A4

-CS

R/-W

D0-D7

T30s

T30w

T31d

T30h

T31h

General read timing in 68 mode

T30d

8654-RD-1

A0-A4

-CS

R/-W

D0-D7

Rev. 3.10

T32s

T30s

T30h

T32h

T30w

T33h

T33s

General write timing in 68 mode

T32d

8654-WD-1

Page 29

ST16C554/554D/68C554

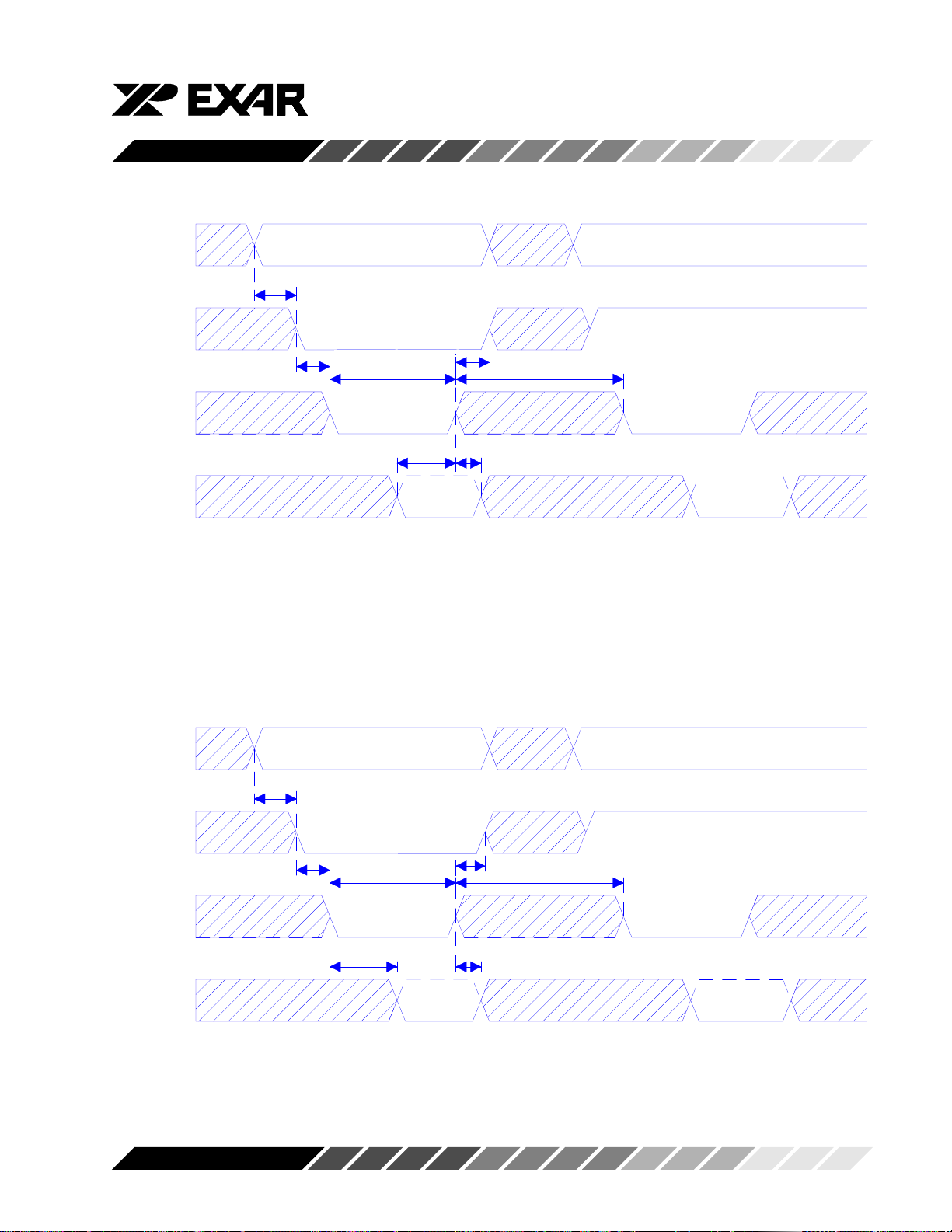

A0-A2

-CS

-IOW

D0-D7

T6s

Valid

Address

Active

T13wT13d

Active

T16s T16h

Data

T13h

T15d

General write timing in 16 mode

X552-WD-1

A0-A2

-CS

-IOR

D0-D7

Rev. 3.10

Valid

Address

T6s

Active

T7wT7d T7h T9d

Active

T12d T12h

Data

X552-RD-1

General read timing in 16 mode

Page 30

ST16C554/554D/68C554

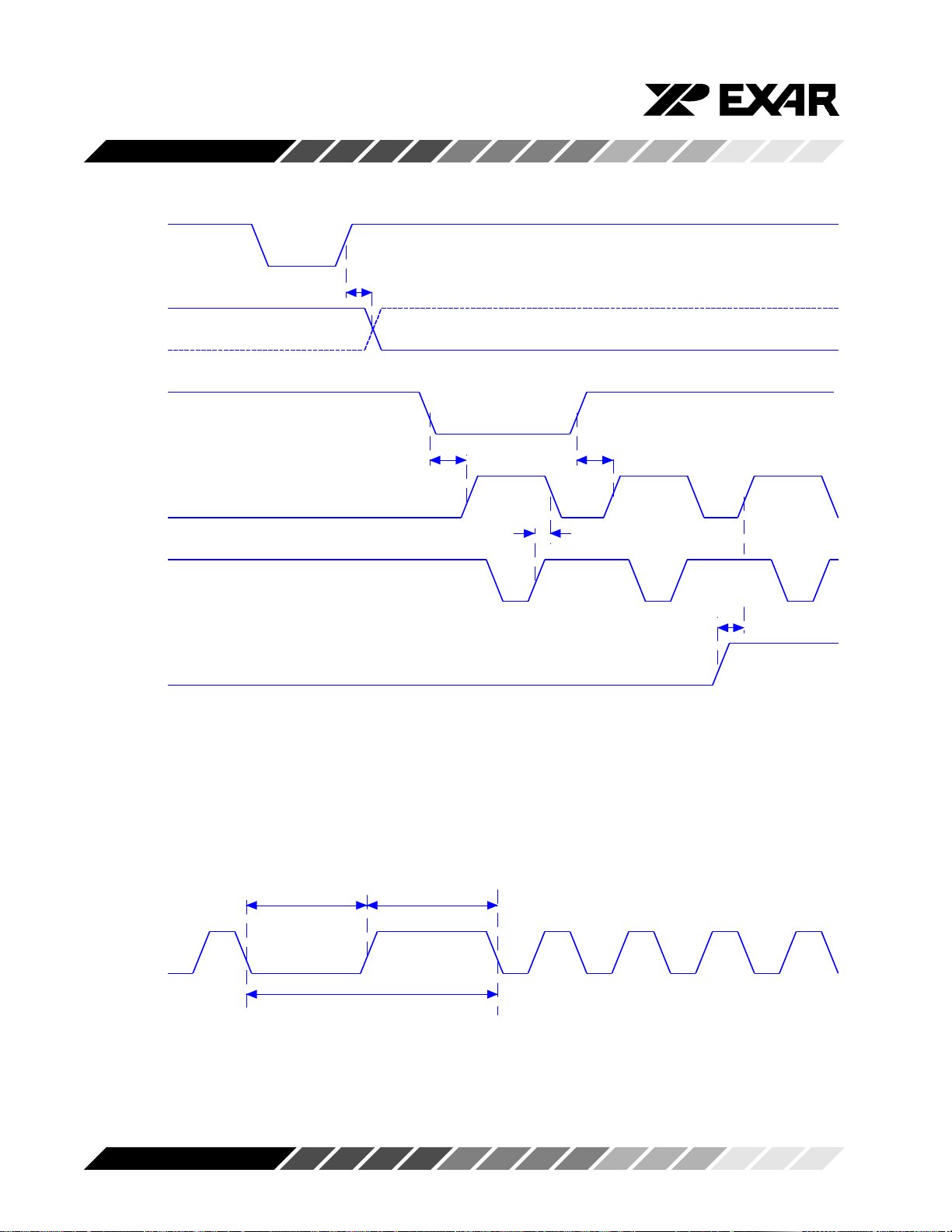

-IOW

-RTS

-DTR

-CD

-CTS

-DSR

INT

-IOR

-RI

Active

Change of state

T17d

Change of state

T18d T18d

Active Active

T19d

Active

Change of state

Active

Active Active

T18d

Change of state

EXTERNAL

CLOCK

T2w

Modem input/output timing

T1w

T3w

External clock timing

X552-MD-1

X654-CK-1

Rev. 3.10

Page 31

ST16C554/554D/68C554

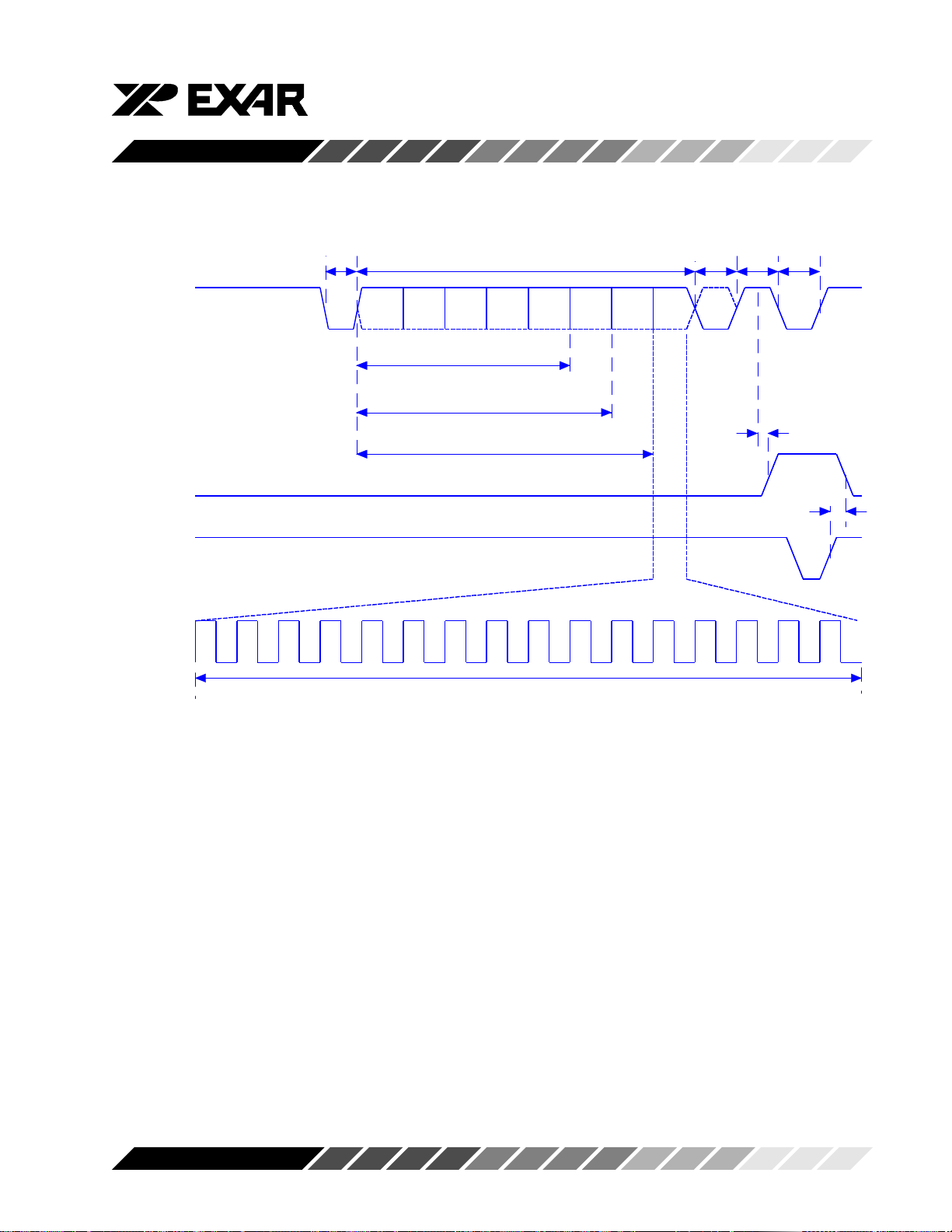

INT

-IOR

START

BIT

DATA BITS (5-8)

D0 D1 D2 D3 D4 D5 D6 D7

5 DATA BITS

6 DATA BITS

7 DATA BITS

PARITY

BIT

STOP

BIT

DATA

START

BIT

T20d

Active

T21d

Active

16 BAUD RATE CLOCK

Receive timing

X552-RX-1

Rev. 3.10

Page 32

ST16C554/554D/68C554

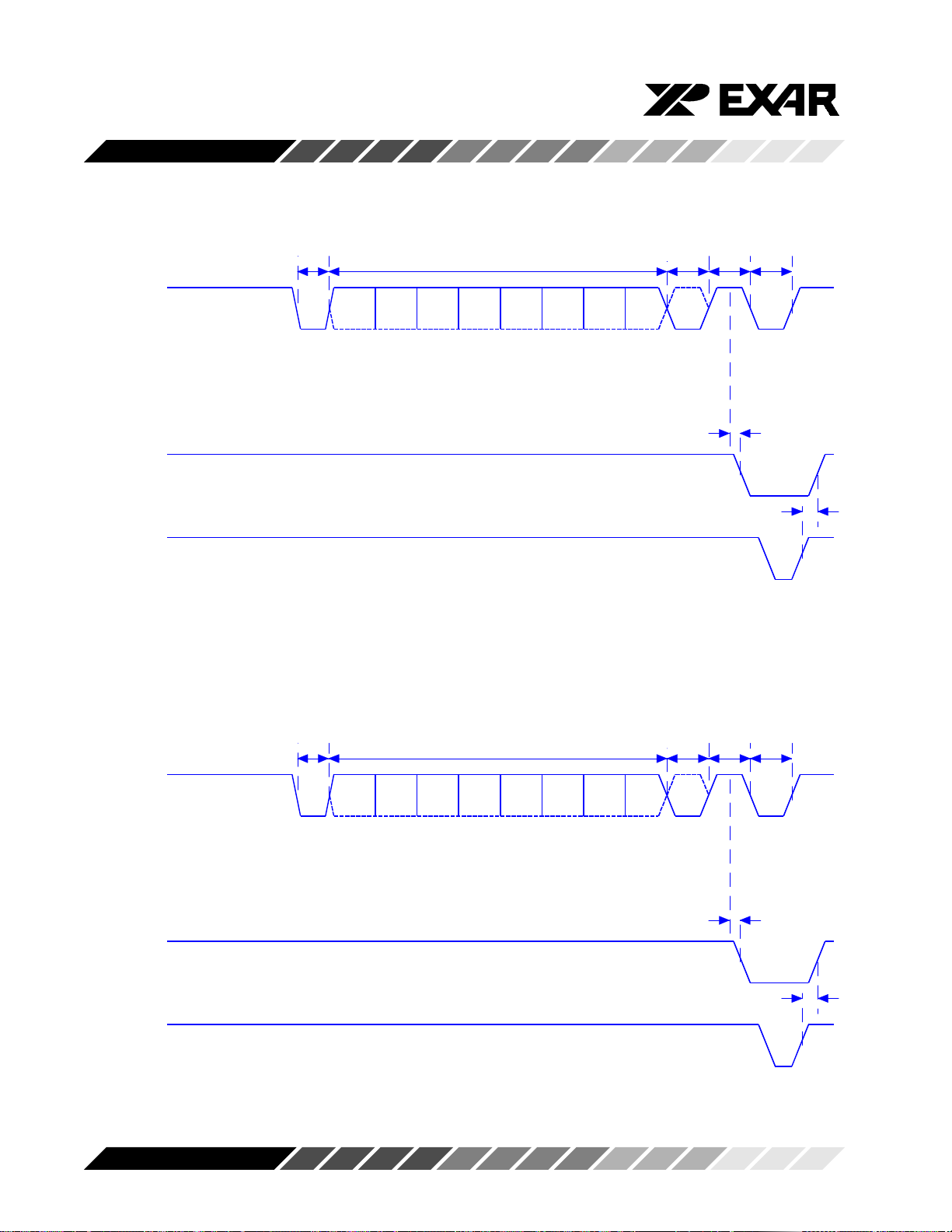

-RXRDY

-IOR

START

BIT

D0 D1 D2 D3 D4 D5 D6 D7

DATA BITS (5-8)

Receive ready timing in none FIFO mode

PARITY

BIT

STOP

BIT

DATA

START

BIT

T25d

Active

Data

Ready

T26d

Active

X552-RX-2

-RXRDY

-IOR

Rev. 3.10

START

BIT

D0 D1 D2 D3 D4 D5 D6 D7

DATA BITS (5-8)

Receive timing in FIFO mode

PARITY

BIT

STOP

BIT

First byte

that reaches

the trigger

level

T25d

Active

Data

Ready

T26d

Active

X552-RX-3

Page 33

ST16C554/554D/68C554

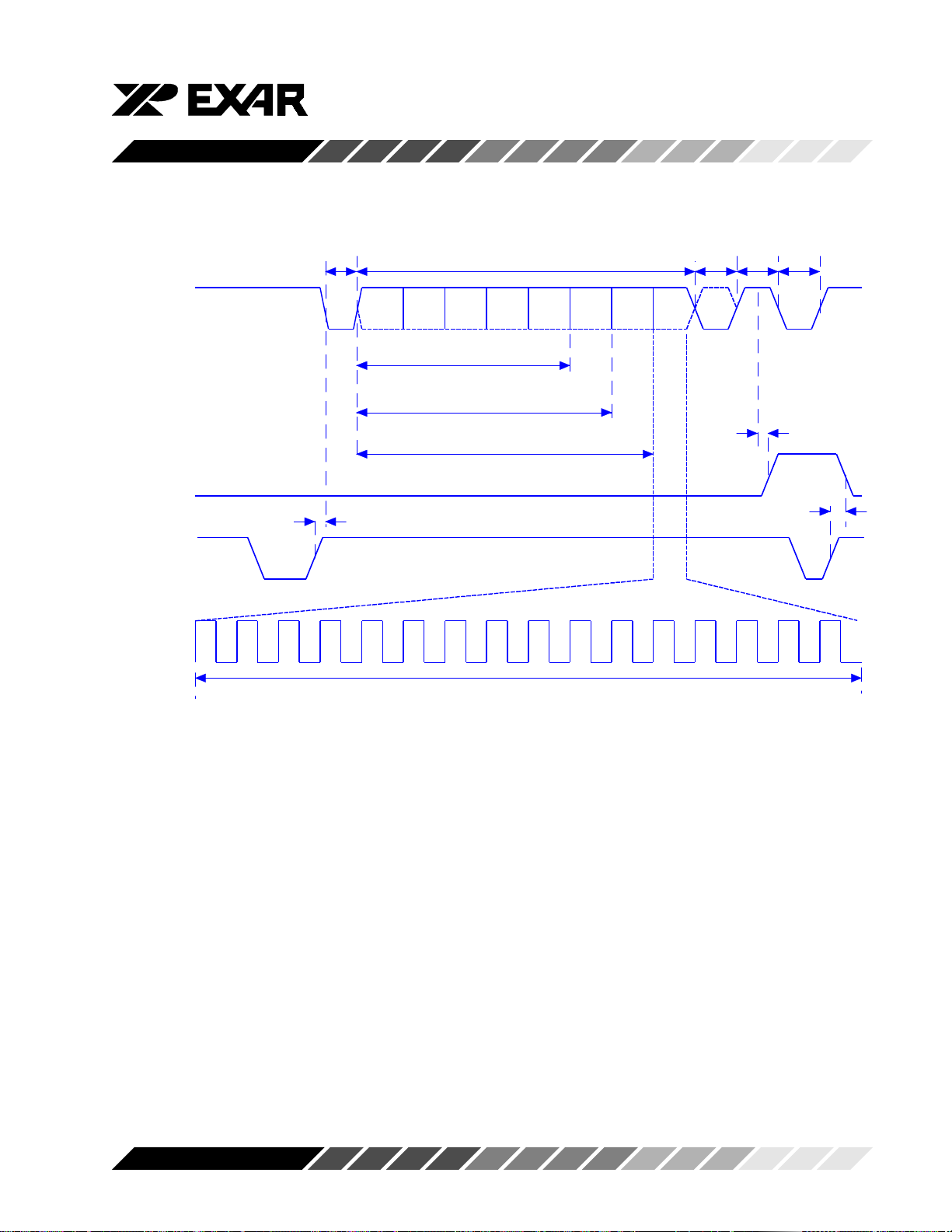

INT

-IOW

Active

START

BIT

DATA BITS (5-8)

D0 D1 D2 D3 D4 D5 D6 D7

5 DATA BITS

6 DATA BITS

7 DATA BITS

T23d

PARITY

BIT

STOP

BIT

DATA

START

BIT

T22d

Active

Tx Ready

T24d

Active

16 BAUD RATE CLOCK

Transmit timing

X552-TX-1

Rev. 3.10

Page 34

ST16C554/554D/68C554

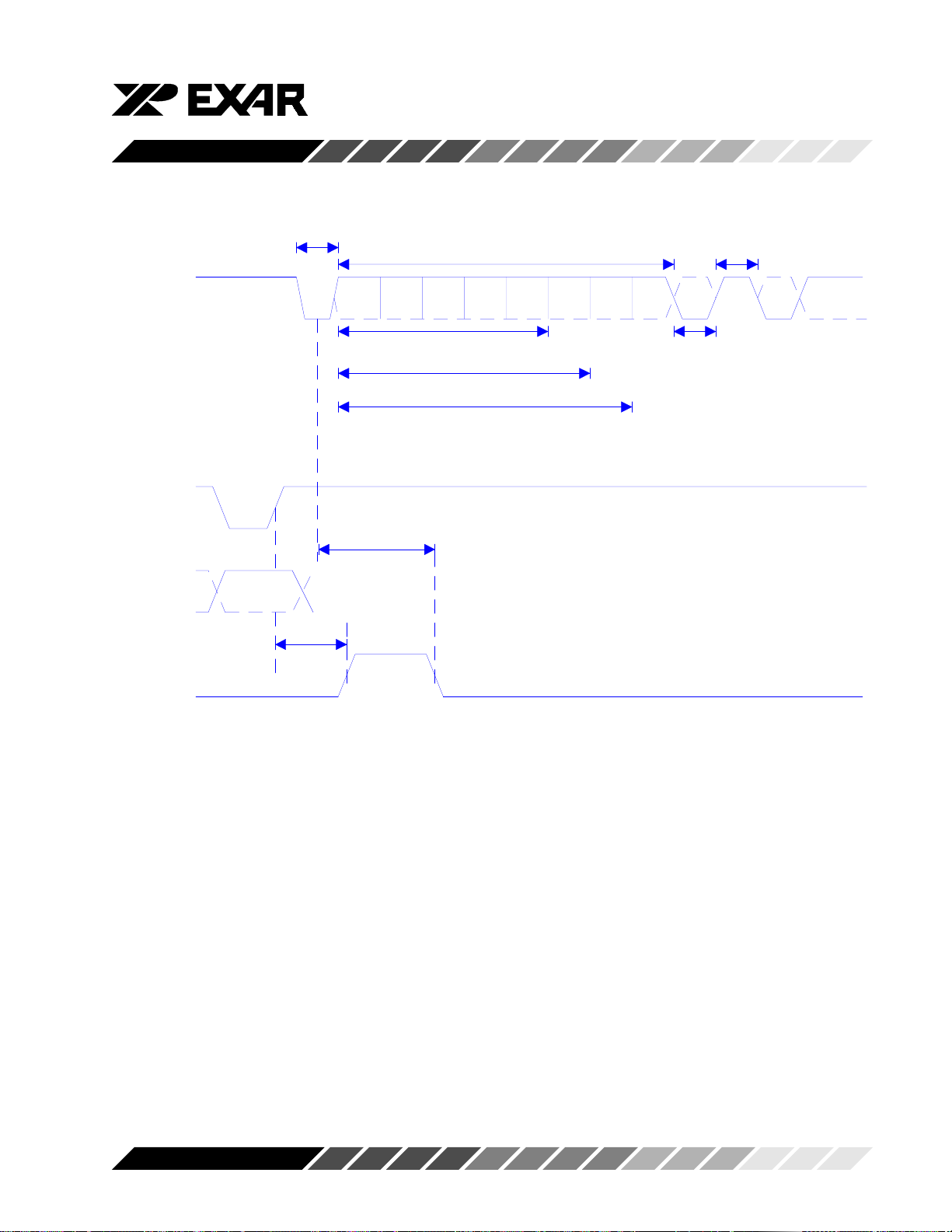

-IOW

D0-D7

-TXRDY

Active

BYTE #1

START

BIT

DATA BITS (5-8)

D0 D1 D2 D3 D4 D5 D6 D7

T27d

Active

Transmitter ready

PARITY

BIT

STOP

BIT

DATA

START

BIT

T28d

Transmitter

not ready

X654-TX-2

Rev. 3.10

Transmit ready timing in none FIFO mode

Page 35

START BIT

ST16C554/554D/68C554

DATA BITS (5-8)

STOP BIT

-IOW

D0-D7

-TXRDY

Active

BYTE #16

T27d

D0 D1 D2 D3 D4 D5 D6 D7

5 DATA BITS

6 DATA BITS

7 DATA BITS

T28d

FIFO Full

PARITY BIT

X552-TX-3

Rev. 3.10

Transmit ready timing in FIFO mode

Page 36

ST16C554/554D/68C554

Rev. 3.10

Page 37

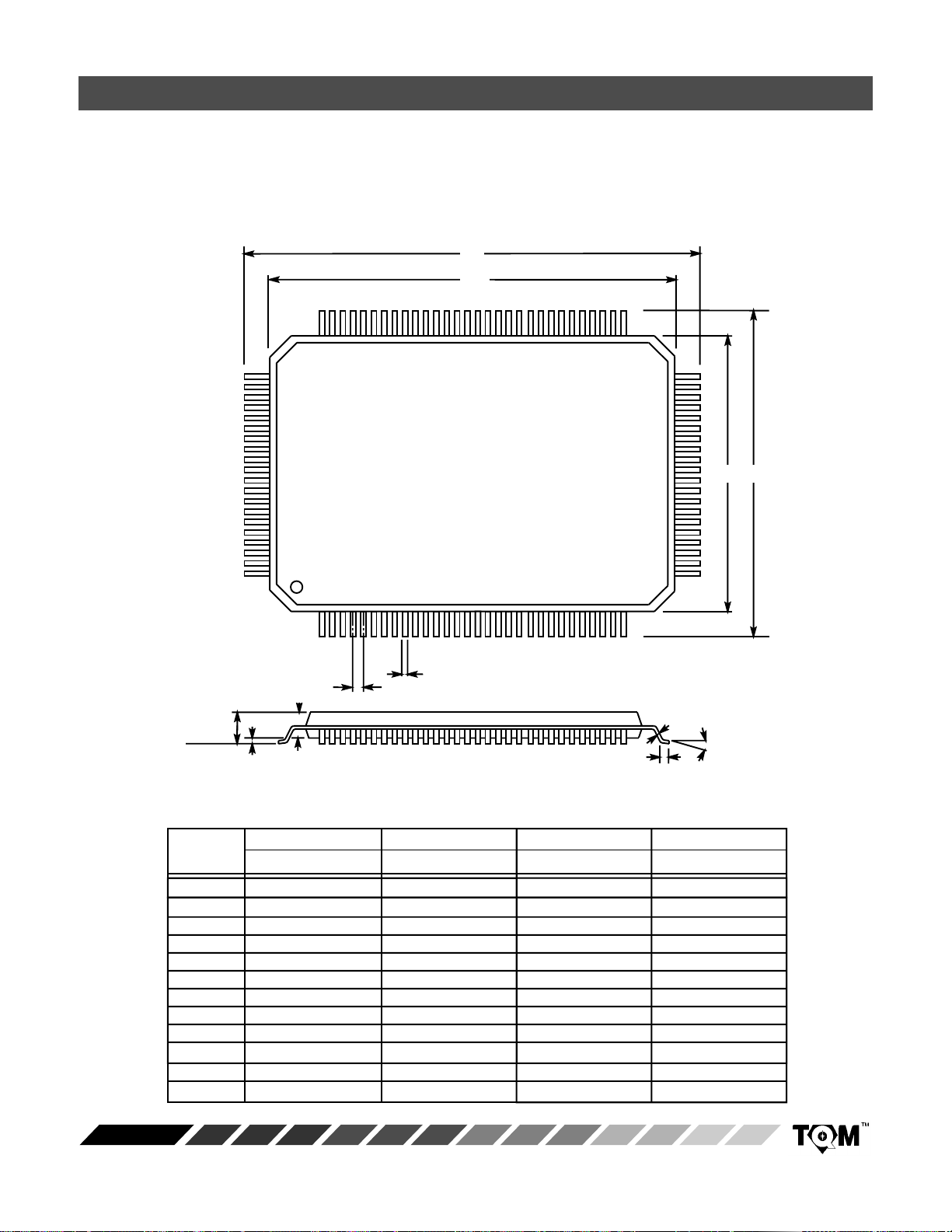

Package Dimensions

100 LEAD PLASTIC QUAD FLAT PACK

(14 mm x 20 mm, QFP)

Rev. 2.00

80 51

100

Seating Plane

130

1.6 mm Form 1.95 mm Form

INCHES MILLIMETERS

SYMBOL MIN MAX MIN MAX

A 0.102 0.130 2.60 3.30 0.102 0.134 2.60 3.40 A

B 0.009 0.015 0.22 0.38 0.009 0.015 0.22 0.38 C 0.005 0.009 0.13 0.23 0.005 0.009 0.13 0.23 D 0.904 0.923 22.95 23.45 0.931 0.951 23.65 24.15 D

E 0.667 0.687 16.95 17.45 0.695 0.715 17.65 18.15 E

e 0.0256 BSC 0.65 BSC 0.0256 BSC 0.65 BSC L 0.029 0.040 0.73 1.03 0.026 0.037 0.65 0.95

0.002 0.010 0.05 0.25 0.002 0.014 0.05 0.35

0.100 0.120 2.55 3.05 0.100 0.120 2.55 3.05

0.783 0.791 19.90 20.10 0.783 0.791 19.90 20.10

0.547 0.555 13.90 14.10 0.547 0.555 13.90 14.10

INCHES MILLIMETERS

MIN MAX MIN MAX

α 0° 7° 0° 7° 0° 7° 0° 7°

Note: The control dimension is the millimeter column

Page 38

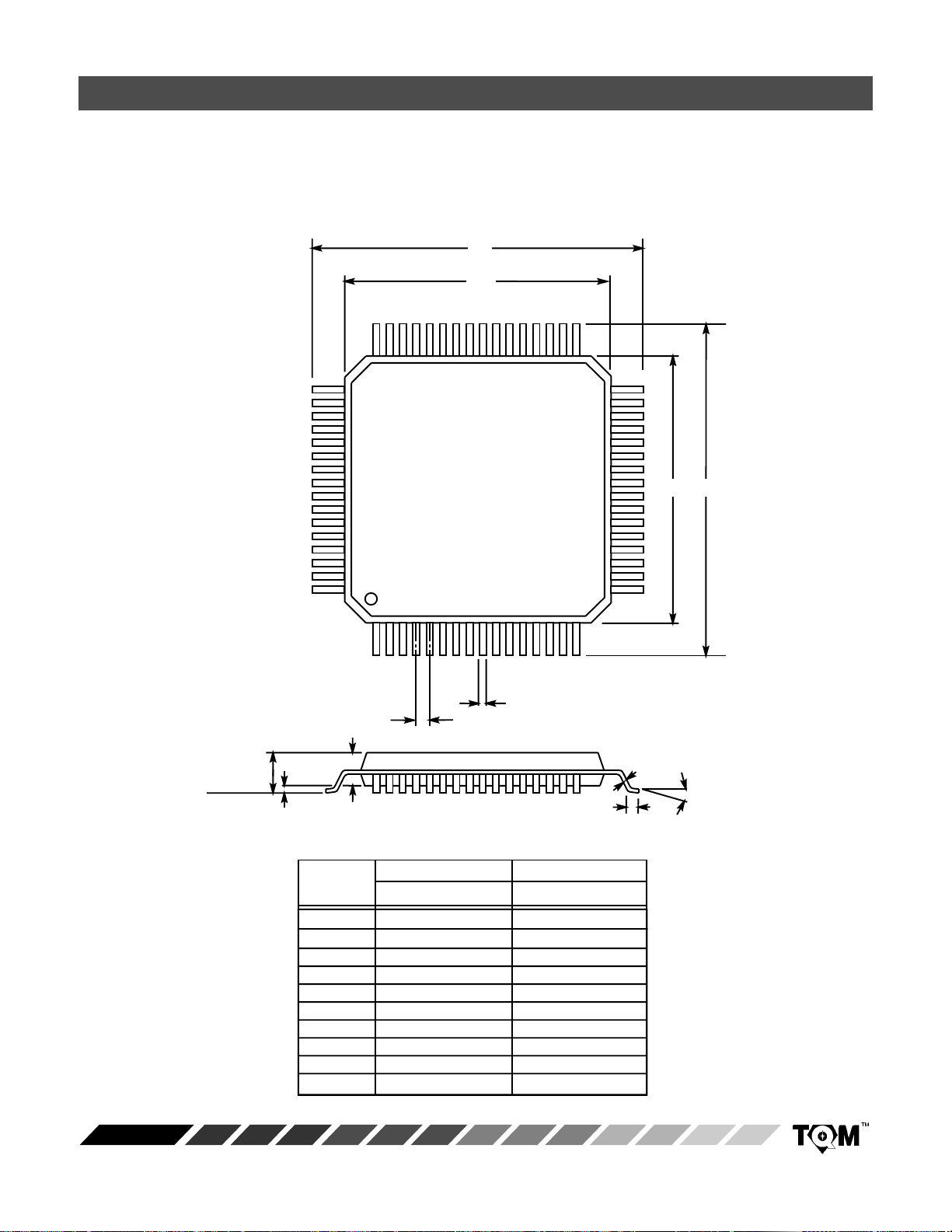

Package Dimensions

64 LEAD THIN QUAD FLAT PACK

(10 x 10 x 1.4 mm, TQFP)

Rev. 2.00

48 33

Seating Plane

116

INCHES MILLIMETERS

SYMBOL MIN MAX MIN MAX

A 0.055 0.063 1.40 1.60 A

B 0.005 0.009 0.13 0.23 C 0.004 0.008 0.09 0.20 D 0.465 0.480 11.80 12.20 D

e 0.020 BSC 0.50 BSC L 0.018 0.030 0.45 0.75

0.002 0.006 0.05 0.15

0.053 0.057 1.35 1.45

0.390 0.398 9.90 10.10

α 0° 7° 0° 7°

Note: The control dimension is the millimeter column

Page 39

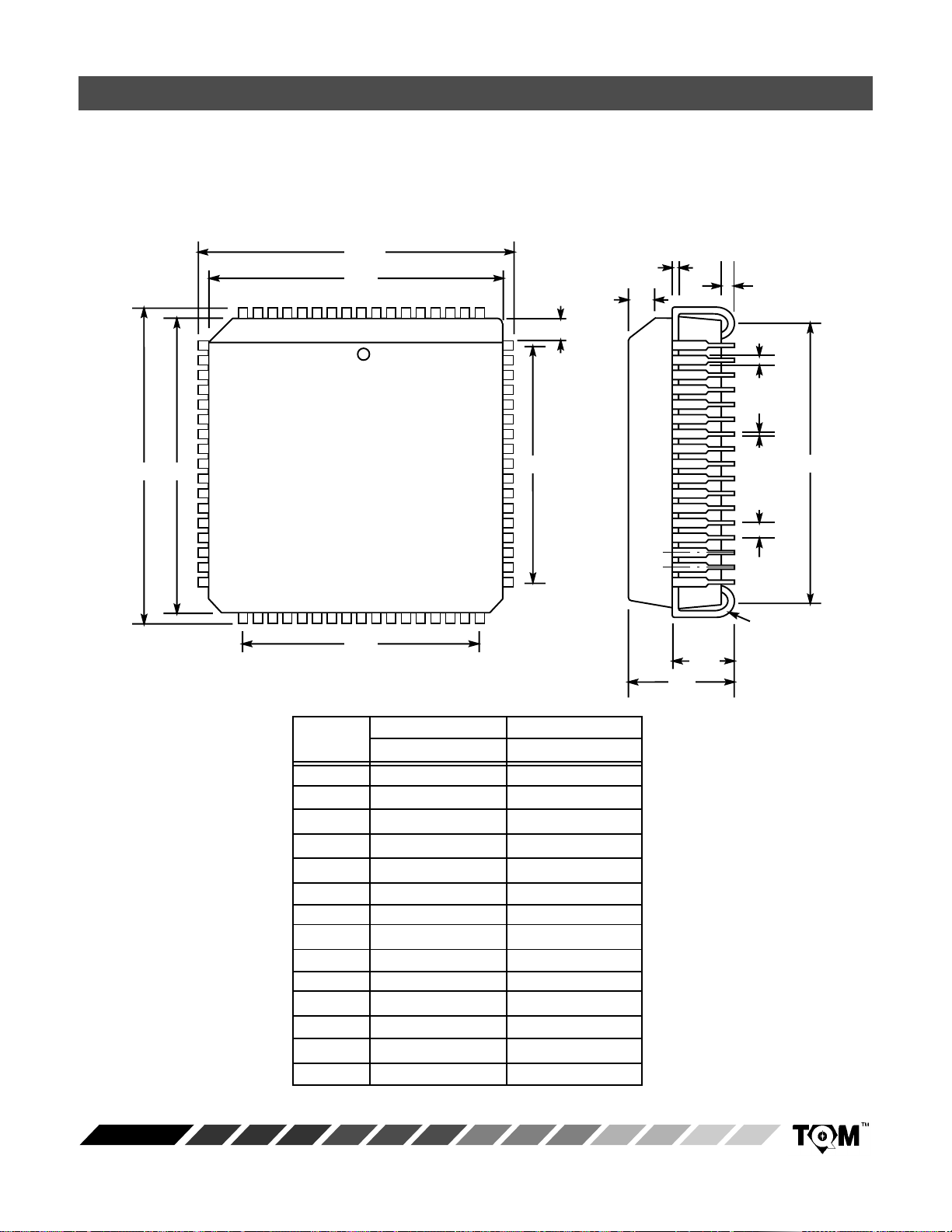

Package Dimensions

68 LEAD PLASTIC LEADED CHIP CARRIER

(PLCC)

Rev. 1.00

D D

268

45° x H2

45° x H1

Seating Plane

INCHES MILLIMETERS

SYMBOL MIN MAX MIN MAX

A 0.165 0.200 4.19 5.08 A

B 0.013 0.021 0.33 0.53 B

C 0.008 0.013 0.19 0.32 D 0.985 0.995 25.02 25.27 D

e 0.050 BSC 1.27 BSC H1 0.042 0.056 1.07 1.42 H2 0.042 0.048 1.07 1.22 R 0.025 0.045 0.64 1.14

0.090 0.130 2.29 3.30

0.020 –––. 0.51 –––

0.026 0.032 0.66 0.81

0.950 0.958 24.13 24.33

0.890 0.930 22.61 23.62

0.800 typ. 20.32 typ.

Note: The control dimension is the inch column

Page 40

NOTICE

EXAR Corporation reserves the right to make changes to the products contained in this publication in order to improve design, performance or reliability . EXAR Corporation assumes no responsibility for the use of any circuits described herein, conveys no license under any patent or other right, and makes no representation that the circuits are free of patent infringement. Charts and schedules contained here in are only for illustration purposes and may vary depending upon a user’s specific application. While the information in this publication has been carefully checked; no responsibility, however, is assumed for inaccuracies.

EXAR Corporation does not recommend the use of any of its products in life support applications where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless EXAR Corporation receives, in writing, assurances to its satisfaction that: (a) the risk of injury or damage has been minimized; (b) the user assumes all such risks; (c) potential liability of EXAR Corporation is adequately protected under the circumstances.
