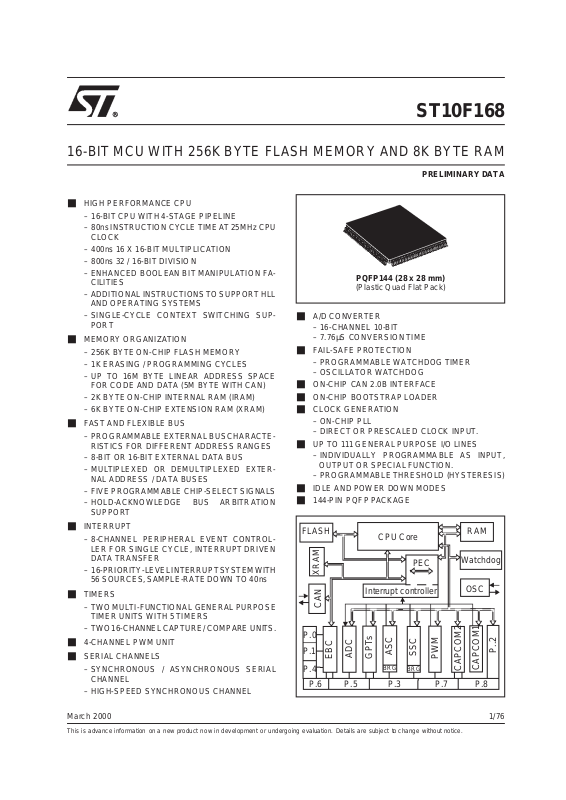

Page 1
ST10F168
16-BIT MCU WITH 256K BYTE FLASH MEMORY AND 8K BYTE RAM
PRELIMINARY DATA
■ HIGH PERFORMANCE CPU
– 16-BIT CPU WITH 4-STAGE PIPELINE
– 80ns INSTRUCTION CYCLETIME AT25MHz CPU
CLOCK
– 400ns 16 X 16-BIT MULTIPLICATION
– 800ns 32 / 16-BIT DIVISION
– ENHANCED BOOLEAN BIT MANIPULATION FA-
CILITIES
– ADDITIONAL INSTRUCTIONS TOSUPPORT HLL
AND OPERATING SYSTEMS
– SINGLE-CYCLE CONTEXT SWITCHING SUP-
PORT
■ MEMORY ORGANIZATION
– 256K BYTE ON-CHIP FLASH MEMORY
– 1K ERASING / PROGRAMMING CYCLES
– UP TO 16M BYTE LINEAR ADDRESS SPACE
FOR CODE AND DATA (5M BYTE WITH CAN)
– 2K BYTE ON-CHIP INTERNAL RAM (IRAM)
– 6K BYTE ON-CHIP EXTENSION RAM (XRAM)
■ FAST AND FLEXIBLE BUS
– PROGRAMMABLE EXTERNAL BUSCHARACTE-
RISTICS FOR DIFFERENT ADDRESS RANGES
– 8-BIT OR16-BIT EXTERNAL DATA BUS
– MULTIPLEXED OR DEMULTIPLEXED EXTER-
NAL ADDRESS / DATA BUSES
– FIVE PROGRAMMABLE CHIP-SELECT SIGNALS
– HOLD-ACKNOWLEDGE BUS ARBITRATION
SUPPORT
■ INTERRUPT
– 8-CHANNEL PERIPHERAL EVENT CONTROL-
LER FOR SINGLE CYCLE, INTERRUPT DRIVEN
DATA TRANSFER
– 16-PRIORITY-LEVELINTERRUPTSYSTEMWITH
56 SOURCES, SAMPLE-RATE DOWN TO40ns
■ TIMERS
– TWO MULTI-FUNCTIONAL GENERAL PURPOSE
TIMER UNITS WITH 5 TIMERS
– TWO16-CHANNELCAPTURE/ COMPAREUNITS.
■ 4-CHANNEL PWM UNIT
■ SERIAL CHANNELS
– SYNCHRONOUS / ASYNCHRONOUS SERIAL
CHANNEL
– HIGH-SPEED SYNCHRONOUS CHANNEL
■ A/D CONVERTER
– 16-CHANNEL 10-BIT
– 7.76µS CONVERSIONTIME
■ FAIL-SAFE PROTECTION
– PROGRAMMABLE WATCHDOG TIMER
– OSCILLATOR WATCHDOG
■ ON-CHIP CAN 2.0B INTERFACE
■ ON-CHIP BOOTSTRAP LOADER
■ CLOCK GENERATION
– ON-CHIP PLL
– DIRECT OR PRESCALED CLOCK INPUT.
■ UP TO 111 GENERAL PURPOSE I/OLINES
– INDIVIDUALLY PROGRAMMABLE AS INPUT,
OUTPUT OR SPECIAL FUNCTION.
– PROGRAMMABLE THRESHOLD (HYSTERESIS)
■ IDLE AND POWER DOWN MODES
■ 144-PIN PQFP PACKAGE
FLASH
XRAM
CAN
P.0
P.1
P.4
P.6 P.5
PQFP144 (28 x 28 mm)
(Plastic Quad Flat Pack)
CPU Core
Interrupt controller
ADC
EBC
GPTs
BRG
P.3
ASC
PEC
SSC
BRG
RAM
Watchdog
OSC
PWM
CAPCOM1
CAPCOM2
P.7 P.8
P..2
This is advance information on a new product now in development or undergoing evaluation. Details are subject tochange without notice.
1/76March 2000
Page 2
ST10F168
TABLE OF CONTENTS Page
1 INTRODUCTION......................................................................................................... 4
2 PIN DATA ................................................................................................................... 5
3 FUNCTIONAL DESCRIPTION.................................................................................... 10
4 MEMORY ORGANIZATION........................................................................................ 11
5 FLASH MEMORY................................................................................... .................... 13
5.1 PROGRAMMING / ERASING WITH ST EMBEDDED ALGORITHM KERNEL .......... 14
5.2 PROGRAMMING EXAMPLES .................................................................................... 16
5.3 FLASH MEMORY CONFIGURATION......................................................................... 18
5.4 FLASH PROTECTION............................... ................................................................. 18
5.5 BOOTSTRAP LEADER MODE................................................................................... 18
6 CENTRAL PROCESSING UNIT (CPU)...................................................................... 19
6.1 INSTRUCTION SET SUMMARY................................................................................. 20
7 EXTERNAL BUS CONTROLLER............................................................................... 22
8 INTERRUPT SYSTEM ................................................................................................ 23
9 CAPTURE / COMPARE (CAPCOM) UNIT................................................................. 26
10 GENERAL PURPOSE TIMER UNIT........................................................................... 28
10.1 GPT1 ........................................................................................................................... 28
10.2 GPT2 ........................................................................................................................... 28
11 PWM MODULE ................ ........................................................................................... 31
12 PARALLEL PORTS.................................................................................................... 32
13 A/D CONVERTER...................................... ................................................................. 33
14 SERIAL CHANNELS .............................................................................. .................... 34
15 CAN MODULE............................................................................................................ 36
16 WATCHDOG TIMER................................................................................................... 36
17 SYSTEM RESET......................................................................................................... 37
17.1 ASYNCHRONOUS RESET (LONG HARDWARE RESET) ........................................ 37
17.2 SYNCHRONOUS RESET (WARM RESET) ............................................................... 38
17.3 SOFTWARE RESET ................................................................................................... 39
17.4 WATCHDOG TIMER RESET..................................................................................... . 39
17.5 RESET CIRCUITRY................................................................................................... 39
2/76
Page 3
ST10F168
18 POWER REDUCTION MODES .................................................................................. 43
19 SPECIAL FUNCTION REGISTER OVERVIEW.......................................................... 44
19.1 IDENTIFICATION REGISTERS .................................................................................. 50
20 ELECTRICAL CHARACTERISTICS ......................................................................... . 51
20.1 ABSOLUTE MAXIMUM RATINGS............. ................................................................. 51
20.2 PARAMETER INTERPRETATION.............................................................................. 51
20.3 DC CHARACTERISTICS............................................................................................ 51
20.4 A/D CONVERTER CHARACTERISTICS.................................................................... 54
20.5 AC CHARACTERISTICS............................................................................................. 55
20.5.1 Test Waveforms ........................................................................................................ 55
20.5.2 Definition of Internal Timing......................................................................................... 55
20.5.3 Clock Generation Modes............................................................................................. 56
20.5.4 Prescaler Operation..................................................................................................... 57
20.5.5 Direct Drive................................................................................................................. . 57
20.5.6 Oscillator Watchdog (OWD)........................................................................................ 57
20.5.7 Phase Locked Loop..................................................................................................... 57
20.5.8 External Clock Drive XTAL1....................... ................................................................. 58
20.5.9 Memory Cycle Variables.......................................................................... .................... 59
20.5.10 Multiplexed Bus ............................................................. ..............................................59
20.5.11 Demultiplexed Bus....................................................................................................... 65
20.5.12 CLKOUT and READY.............................................................................. .................... 71
20.5.13 External Bus Arbitration............................................................................................... 73
21 PACKAGE MECHANICAL DATA ................................ .............................................. 75
22 ORDERING INFORMATION....................................................................................... 75
3/76
Page 4
ST10F168
1 - INTRODUCTION
The ST10F168 is a derivative of the ST Microelectronics 16-bit single-chip CMOS microcontrollers.
It combines high CPU performance (up to
12.5 million instructions per second) with high
Figure 1 : Logic Symbol
peripheral functionality and enhanced I/O capabilities. It also provides on-chip high-speed
Flash memory, on-chip high-speed RAM, and
clock generation via PLL.
XTAL1
XTAL2
RSTIN
RSTOUT
V
PP
V
AREF
V
AGND
NMI
EA
READY
ALE
RD
WR/WRL
Port 5
16-bit
V
DD
ST10F168
V
SS
Port 0
16-bit
Port 1
16-bit
Port 2
16-bit
Port 3
15-bit
Port 4
8-bit
Port 6
8-bit
Port 7
8-bit
Port 8
8-bit
4/76
Page 5
2 - PIN DATA
Figure 2 : Pin Configuration (top view)
ST10F168
P6.0/CS0
P6.1/CS1
P6.2/CS2
P6.3/CS3
P6.4/CS4
P6.5/HOLD
P6.6/HLDA
P6.7/BREQ
P8.0/CC16IO
P8.1/CC17IO
P8.2/CC18IO
P8.3/CC19IO
P8.4/CC20IO
P8.5/CC21IO
P8.6/CC22IO
P8.7/CC23IO
V
DD
V
P7.0/POUT0
P7.1/POUT1
SS
P7.2/POUT2
P7.3/POUT3
P7.4/CC28I0
P7.5/CC29I0
P7.6/CC30I0
P7.7/CC31I0
P5.0/AN0
P5.1/AN1
P5.2/AN2
P5.3/AN3
P5.4/AN4
P5.5/AN5
P5.6/AN6
P5.7/AN7
P5.8/AN8
P5.9/AN9
VSSNMI
VDDRSTOUT
144
1
143
142
141
RSTIN
140
VSSXTAL1
XTAL2
VDDP1H.7/A15/CC27IO
137
139
138
136
135
P1H.6/A14/CC26IO
P1H.5/A13/CC25IO
P1H.4/A12/CC24IO
P1H.3/A11
P1H.2/A10
P1H.1/A9
P1H.0/A8
VSSVDDP1L.7/A7
134
133
132
131
130
129
128
127
126
P1L.6/A6
125
124
123
P1L.5/A5
P1L.4/A4
P1L.3/A3
122
121
P1L.2/A2
P1L.1/A1
P1L.0/A0
120
119
118
P0H.7/AD15
P0H.6/AD14
P0H.5/AD13
117
116
115
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
ST10F168
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
3738394041424344454647484950515253545556575859606162636465666768697071
P0H.4/AD12
P0H.3/AD11
P0H.2/AD10
P0H.1/AD9
114
113
112
111
VSSV
110
72
DD
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
P0H.0/AD8
P0L.7/AD7
P0L.6/AD6
P0L.5/AD5
P0L.4/AD4
P0L.3/AD3
P0L.2AD2
P0L.1/AD1
P0L.0/AD0
EA
ALE
READY
WR/WRL
RD
V
SS
V
DD
P4.7/A23
P4.6/A22/CAN_TxD
P4.5/A21/CAN_RxD
P4.4/A20
P4.3/A19
P4.2/A18
P4.1/A17
P4.0/A16
V
/RPD
PP
V
SS
V
DD
P3.15/CLKOUT
P3.13/SCLK
P3.12/BHE/WRH
P3.11/RXD0
P3.10/TXD0
P3.9/MTSR
P3.8/MRST
P3.7/T2IN
P3.6/T3IN
AREF
AGND
V
V
P5.12/AN12/T6IN
P5.13/AN13/T5IN
P5.10/AN10/T6EUD
P5.11/AN11/T5EUD
SS
DD
V
V
P2.0/CC0IO
P2.1/CC1IO
P2.2/CC2IO
P2.3/CC3IO
P5.14/AN14/T4EUD
P5.15/AN15/T2EUD
V
P2.4/CC4IO
P2.5/CC5IO
P2.6/CC6IO
P2.7/CC7IO
SS
DD
V
P2.8/CC8IO/EX0IN
P2.9/CC9IO/EX1IN
P2.10/CC10IOEX2IN
P2.11/CC11IOEX3IN
P3.0/T0IN
P3.2/CAPIN
P3.1/T6OUT
P3.3/T3OUT
P2.12/CC12IO/EX4IN
P2.13/CC13IO/EX5IN
P2.14/CC14IO/EX6IN
P2.15/CC15IO/EX7IN/T7IN
SS
DD
V
V
P3.5/T4IN
P3.4/T3EUD
5/76
Page 6
ST10F168
Table 1 : Pin Description
Symbol Pin Type Function
P6.0 - P6.7 1 - 8 I/O 8-bit bidirectional I/O port, bit-wise programmable for input or output viadirection bit.
Programming an I/O pin as input forces the corresponding output driver to high
impedance state. Port 6 outputs can be configured as push-pull or open drain
drivers. The following Port 6 pins have alternate functions:
1 O P6.0 CS0 Chip Select 0 Output
... ... ... ... ...
5 O P6.4 CS4 Chip Select 4 Output
6 I P6.5 HOLD External Master Hold Request Input
7 O P6.6 HLDA Hold Acknowledge Output
8 O P6.7 BREQ Bus Request Output
P8.0 - P8.7 9-16 I/O 8-bit bidirectional I/O port, bit-wise programmable for input or output viadirection bit.
9 I/O P8.0 CC16IO CAPCOM2: CC16 Capture Input / Compare Output
... ... ... ... ...
16 I/O P8.7 CC23IO CAPCOM2: CC23 Capture Input / Compare Output
P7.0 - P7.7 19-26 I/O 8-bit bidirectional I/O port, bit-wise programmable for input or output via direction bit.
19 O P7.0 POUT0 PWM Channel 0 Output
... ... ... ... ...
22 O P7.3 POUT3 PWM Channel 3 Output
23 I/O P7.4 CC28IO CAPCOM2: CC28 Capture Input / Compare Output
... ... ... ... ...
26 I/O P7.7 CC31IO CAPCOM2: CC31 Capture Input / Compare Output
P5.0 - P5.9
P5.10 - P5.15
27-36
39-44
39 I P5.10 T6EUD GPT2 TimerT6 External Up / Down Control Input
40 I P5.11 T5EUD GPT2 TimerT5 External Up / Down Control Input
41 I P5.12 T6IN GPT2 Timer T6 Count Input
42 I P5.13 T5IN GPT2 Timer T5 Count Input
43 I P5.14 T4EUD GPT1 TimerT4 External Up / Down Control Input
44 I P5.15 T2EUD GPT1 TimerT2 External Up / Down Control Input
Programming an I/O pin as input forces the corresponding output driver to high
impedance state. Port 8 outputs can be configured as push-pull or open drain
drivers. The input threshold of Port 8 is selectable (TTL or special).
The following Port 8 pins have alternate functions:
Programming an I/O pin as input forces the corresponding output driver to high
impedance state. Port 7 outputs can be configured as push-pull or open drain
drivers. The input threshold of Port 7 is selectable (TTL or special).
The following Port 7 pins have alternate functions:
II16-bit input-only port with Schmitt-Trigger characteristics. The pins of Port 5 can be
the analog input channels (up to 16) for the A/D converter, where P5.x equals ANx
(Analog input channel x), or they are timer inputs:
6/76
Page 7
Table 1 : Pin Description (continued)
Symbol Pin Type Function
ST10F168
P2.0 - P2.7
P2.8 - P2.15
P3.0 - P3.5
P3.6 - P3.13,
P3.15
47-54
57-64
47 I/O P2.0 CC0IO CAPCOM: CC0 Capture Input / Compare Output
... ... ... ... ...
54 I/O P2.7 CC7IO CAPCOM: CC7 Capture Input / Compare Output
57 I/O P2.8 CC8IO CAPCOM: CC8 Capture Input / Compare Output
... ... ... ... ...
64 I/O P2.15 CC15IO CAPCOM: CC15 Capture Input / Compare Output
65-70,
73-80,
81
65 I P3.0 T0IN CAPCOM Timer T0 Count Input
66 O P3.1 T6OUT GPT2 Timer T6 Toggle Latch Output
67 I P3.2 CAPIN GPT2 Register CAPREL Capture Input
68 O P3.3 T3OUT GPT1 Timer T3 Toggle Latch Output
69 I P3.4 T3EUD GPT1 Timer T3 External Up /Down Control Input
70 I P3.5 T4IN GPT1 Timer T4 Input for Count / Gate / Reload / Capture
73 I P3.6 T3IN GPT1 Timer T3 Count / Gate Input
74 I P3.7 T2IN GPT1 Timer T2 Input for Count / Gate / Reload / Capture
75 I/O P3.8 MRST SSC Master-Receiver / Slave-Transmitter I/O
76 I/O P3.9 MTSR SSC Master-Transmitter / Slave-Receiver O/I
77 O P3.10 TxD0 ASC0 Clock / Data Output (Asynchronous / Synchronous)
78 I/O P3.11 RxD0 ASC0 Data Input (Asynchronous) or I/O (Synchronous)
79 O P3.12 BHE External Memory High Byte Enable Signal
80 I/O P3.13 SCLK SSC Master Clock Output / Slave Clock Input
81 O P3.15 CLKOUT System Clock Output (=CPU Clock)
I/O 16-bit bidirectional I/O port, bit-wise programmable for input or output via direction
bit. Programming an I/O pin as input forces the corresponding output driver to high
impedance state. Port 2 outputs can be configured as push-pull or open drain
drivers. The input threshold of Port 2 is selectable (TTL or special).
The following Port 2 pins have alternate functions:
I EX0IN Fast External Interrupt 0 Input
I EX7IN Fast External Interrupt 7 Input
I T7IN CAPCOM2 TimerT7 Count Input
I/O
15-bit (P3.14 is missing) bidirectional I/O port, bit-wise programmable for input or
I/O
output via direction bit. Programming an I/O pin as input forces the corresponding
I/O
output driver to high impedance state. Port 3 outputs can be configured as push-pull
or open drain drivers. The input threshold of Port 3 is selectable (TTL or special).
The following Port 3 pins have alternate functions:
WRH External Memory High Byte Write Strobe
7/76
Page 8
ST10F168
Table 1 : Pin Description (continued)
Symbol Pin Type Function
P4.0 - P4.7 85-92 I/O 8-bit bidirectional I/O port, bit-wise programmable for input or output via direction bit.
Programming an I/O pin as input forces the corresponding output driver to high
impedance state. For external bus configuration, Port 4 can be used to output the
segment address lines:
85-89 O P4.0-P4.4 A16-A20 Segment Address Line
90 O P4.5 A21 Segment Address Line
I CAN_RxD CAN Receiver Data Input
91 O P4.6 A22 Segment Address Line
O CAN_TxD CAN Transmitter Data Output
92 O P4.7 A23 Most Significant Segment Addrress Line
RD 95 O External Memory Read Strobe. RD is activated for every external instruction or data
WR/WRL 96 O External Memory Write Strobe. In WR-mode this pin is activated for every external
READY/
READY
ALE 98 O Address Latch Enable Output. In case of use of external addressing or of multi-
EA 99 I External Access Enable pin. A low level at this pin during and after Reset forces the
P0L.0 - P0L.7
P0H.0
P0H.1 - P0H.7
97 I Ready Input. The active level is programmable. When the Ready function is
100 - 107,
108,
111 - 117
read access.
data write access. In WRL mode this pin is activated for low Byte data write
accesses on a 16-bit bus, and for every data write access on an 8-bit bus. See
WRCFG in the SYSCON register for mode selection.
enabled, the selected inactive level at this pin, during an external memory access,
will force the insertion of wait state cycles until the pin returns to the selected active
level.
plexed mode, this signal is the latch command of the address lines.
ST10F168 to start the program in internal memory space. A high level forces the
ST10F168 to start in the external memory space.
I/O Two 8-bit bidirectional I/O ports P0L and P0H, bit-wise programmable for input or
output via direction bit. Programming an I/O pin as input forces the corresponding
output driver to high impedance state.
In case of an external bus configuration, Port0 serves as the address (A) and as the
address / data (AD)bus in multiplexed bus modes and as the data (D) bus in demultiplexed bus modes.
8/76
Demultiplexed bus modes
Data Path Width: 8-bit 16-bit
P0L.0 – P0L.7: D0 – D7 D0 - D7
P0H.0 – P0H.7: I/O D8 - D15
Multiplexed bus modes
Data Path Width: 8-bit 16-bit
P0L.0 – P0L.7: AD0 – AD7 AD0 - AD7
P0H.0 – P0H.7: A8 – A15 AD8 – AD15
Page 9
Table 1 : Pin Description (continued)
Symbol Pin Type Function
ST10F168
P1L.0 - P1L.7
P1H.0 - P1H.7
118-125
128-135
I/O Two 8-bit bidirectional I/O ports P1L and P1H, bit-wise programmable for input or
output via direction bit. Programming an I/O pin as input forces the corresponding
output driver to high impedance state. Port1 is used as the 16-bit address bus (A) in
demultiplexed bus modes and also after switching from a demultiplexed bus mode
to a multiplexed bus mode.
The following Port1 pins have alternate functions:
132 I P1H.4 CC24IO CAPCOM2: CC24 Capture Input
133 I P1H.5 CC25IO CAPCOM2: CC25 Capture Input
134 I P1H.6 CC26IO CAPCOM2: CC26 Capture Input
135 I P1H.7 CC27IO CAPCOM2: CC27 Capture Input
XTAL1 138 I XTAL1 Oscillator amplifier and internal clock generator input
XTAL2 137 O XTAL2: Oscillator amplifier circuit output.
To clock the device from an external source, drive XTAL1 while leaving XTAL2
unconnected. Minimum and maximum high / low and rise / fall times specified in the
AC Characteristics must be observed.
RSTIN 140 I Reset Input with Schmitt-Trigger characteristics. A low level at this pin for a specified
duration while the oscillator is running resets the ST10F168. An internal pullup
resistor permits power-on reset using only a capacitor connected to V
. In bidirec-
SS
tional reset mode (enabled by setting bit BDRSTEN in SYSCON register), the
RSTIN line is pulled low for the duration of the internal reset sequence.
RSTOUT 141 O Internal Reset Indication Output. This pin is set to a low level during hardware, soft-
ware or watchdog timer reset.
RSTOUT remains low until the EINIT (end of initial-
ization) instruction is executed.
NMI 142 I Non-Maskable Interrupt Input. A high to low transition at this pin causes the CPU to
vector to the NMI trap routine. If bit PWDCFG = ‘0’ in SYSCON register, when the
PWRDN (power down) instruction is executed, the NMI pin must be low in order to
force the ST10F168 to go into power down mode. If NMIis high and PWDCFG =’0’,
when PWRDN is executed, the part will continue to run in normal mode.
If it is not used, pin NMI should be pulled high externally.
V
AREF
V
AGND
V
/RPD 84 - Flash programming voltage. Programming voltage of the on-chip Flash memory
PP
37 - A/D converter reference voltage.
38 - A/D converter reference ground.
must be supplied to this pin.
It is used also as the timing pin for the return from interruptible powerdown mode.
V
DD
17,46,
56,72,
82,93,
109, 126,
Digital Supply Voltage:
= + 5V during normal operation and idle mode.
> 2.5V during power down mode.
136, 144
V
SS
18,45,
55,71,
83,94,
Digital Ground.
110, 127,
139, 143
9/76
Page 10
ST10F168
3 - FUNCTIONAL DESCRIPTION
The architecture of the ST10F168 combines
advantages of both RISC and CISC processors
and an advanced peripheral subsystem.
Figure 3 : Block Diagram
256KByte
Flash
memory
32
The block diagram gives an overview of the
different on-chip components and the high
bandwidth internal bus structure of the ST10F168.
16
CPU-Core
16
Internal
RAM
CAN_RxD P4.5
CAN_TxDP4.6
6K Byte
XRAM
CAN
16
16
8
Port0Port1Port4
Port 6
8
Controller
ExternalBus
16
10-BitADC
Port 5
16
16
Interrupt Controller
GPT1
GPT2
BRG
Port 3
PEC
16
ASCusart
15 8 8
SSC
BRG
PWM
CAPCOM2
Port7
Watchdog
OSC.
+PLL
CAPCOM1
Port 8
Port2
XTAL1
XTAL2
16
10/76
Page 11
4 - MEMORY ORGANIZATION
The memory space of the ST10F168 is configured
in a Von Neumann architecture. Code memory,
data memory, registers and I/O ports are organized within the same linear address space of
16M Byte. The entire memory space can be
accessed bytewise or wordwise. Particular portions of the on-chip memory have additionally
been made directly bit addressable.
FLASH: 256K Byte of on-chip Flash memory. See
Flash Memory
on page13
IRAM: 2K Byte of on-chip internal RAM
(dual-port) is provided as a storage for data, system stack, general purpose register banks and
code. A register bank is 16 wordwide (R0 to R15)
and / or bytewide (RL0, RH0, …, RL7, RH7) general purpose registers.
XRAM: 6K Byte of on-chip extension RAM (single
port XRAM) is provided asa storage for data, user
stack and code. The XRAM is connected to the
internal XBUS and is accessed like an external
memory in16-bit demultiplexed bus-mode without
wait state or read / write delay (80ns access at
25MHz CPU clock). Byte and Word access are
allowed.
The XRAM address range is 00’D000h 00’E7FFh if the XRAM is enabled (XPEN bit 2 of
SYSCON register). As the XRAM appears like
external memory, it cannot be used for the
ST10F168’s system stack or register banks. The
XRAM is not provided for single bit storage and
ST10F168
therefore is not bit addressable. If bit XPEN is
cleared, then any access in the address range
00’D000h - 00’E7FFh will be directed to external
memory interface, using the BUSCONx register
corresponding to address matching ADDRSELx
register.
SFR/ESFR: 1024 Byte (2 x 512 Byte) of address
space is reserved for the Special Function Register areas. SFRs are wordwide registers which are
used for controlling and monitoring functions of
the different on-chip units.
CAN: Address range 00’EF00h - 00’EFFFh is
reserved for the CAN Module access. The CAN is
enabled by setting XPEN bit 2 of the SYSCON
register. Accesses to the CANModule use demultiplexed addresses and a 16-bit data bus (Byte
accesses are possible). Two wait states give an
access time of 160ns at 25MHz CPU clock. No
tristate wait state is used.
Note If the CAN module is used, Port 4 can not
be programmed to output all 8 segment
address lines. Therefore, only 4 segment
address lines can be used, reducing the
external memory space to 5M Byte (1M
Byte per CS line)
To meet the needs of designs where more memory is requiredthan is provided on chip, up to 16M
Byte of external RAM and / or ROM can be connected to the microcontroller.
11/76
Page 12
ST10F168
Figure 4 : ST10F168 on-chip memory mapping
0x5’00000x14
0x4’FFFF
0x4’C0000x13
0x4’80000x12
Segment 4Segment 3Segment 2Segment 1Segment 0
0x4’40000x11
0x4’00000x10
0x3’C0000x0F
0x3’80000x0E
0x3’7FFF
0x3’40000x0D
0x3’00000x0C
0x2’C0000x0B
0x2’80000x0A
0x2’40000x09
0x2’00000x08
0x1’FFFF
0x1’C0000x07
0x1’80000x06
0x1’7FFF
0x1’40000x05
0x1’3FFF
0x04
0x1’0000
Bank 3 : 96K Byte
Bank 2 : 96K Byte
Bank 1H : 32K Byte
Bank 1L : 16K Byte
Bank 0 : 16K Byte
RAM, SFR and X-pheripherals are
mapped into the address space.
SYSCON.XPEN=1enables CAN
and XRAM (before EINIT)
0x0’FFFF
SFR Area
0x0’FE00
0x0’FDFF
IRAM : 2K Byte
0x0’F600
0x0’EFFF
CAN Module
0x0’EF00
0x02 0x0’8000
0x0’7FFF
0x0’40000x01
0x0’3FFF
0x00
Data
Page
Number
0x0’0000
Absolut
Memory
Address
Bank 1L : 16K Byte
Bank 0 : 16K Byte
0x0’E7FF
XRAM : 6K Byte
0x0’D000
* Bank 0 and Bank 1 L may be remapped from segment 0
to segment 1 by setting SYSCON.ROMS1 (before EINIT)
12/76
Page 13
5 - FLASH MEMORY
The ST10F168 provides 256K Byte of an
electrically erasable and reprogrammable Flash
Memory on-chip.
The Flash Memory can be used both forcode and
data storage. It is organized into four 32-bit wide
blocks allowing even double Word instructions to
be fetched in one machine cycle. The four blocks
of size16K, 48K,96K and 96KByte can be erased
and reprogrammed individually (see Table 2 and
Table 3).
The Flash Memory can be programmed in a programming board or in the target system which
provides high system flexibility. The algorithms to
program or erase the flash memory are embedded in the Flash Memory itself (ST Embedded
Algorithm Kernel, or STEAKTM).
To start a program / erase operation, the user’s
software has just to load GPRs with the address
and data to be programmed, or sector to be
erased. STEAK uses embedded routines, which
ST10F168
check the validity of the programmed parameters,
decode and then execute the programming or
erase command. During operation, the STEAK
routines carry out checks and retries to verify
proper cell programming or erasing. When an
error occurs, STEAK returns an error-code which
identifies the cause of the error.
A Flash Memory protection option prevents the
read-back of the Flash Memory contents from
external memory, or from on-chip RAM. Code
operation from within the Flash continues as normal.
The first bank (16K Byte) and part of the second
bank (16K Byte out of 48K Byte) of the on-chip
Flash Memory of the ST10F168 can be mapped
to either segment 0 (addresses 00000h to
07FFFh) or to segment 1 (addresses 10000h to
17FFFh) during the initialization phase. External
memory can be used for additional system
flexibility.
VDD=5V±10%, VPP=12V ± 5%, VSS=0V,f
= 25MHz, for Q6 version : TA=-40, +85°C and for Q2
CPU
version TA = -40, +125°C.
Table 2 : Flash Memory Characteristics
Symbol Parameter Test Conditions Min. Typ. Max. Unit
CPU Frequency during
CPU
erasing / programming operation
= 25MHz
Erasing /Programming Cycles
Single Word Programming Time
Double Word Programming Time
Sector Erasing Time
Data Retention Time Defectivity below 1ppm / year
RET
1. Typical value for a non cycled flash. Maximum value is a software limit put inside STEAK. Can be changed after flash
characterization by STMicroelectronics.
f
CPU
f
CPU
f
CPU
f
CPU
= 25MHz
= 25MHz
= 25MHz
Note
f
Cyc
t
SPRG
t
DPRG
t
EBNK
t
5 - 25 MHz
--
-10
-10
-0.8
10 - - year
1000
80
80
60
1
1
1
1
Table 3 : Flash Memory Bank Organisation
Bank Addresses (segment 0) Addresses (segment 1) Size (Byte)
0
000000h to 003FFFh
1
004000h to 007FFFh + 018000h to 01FFFFh
2
020000h to 037FFFh
3
038000h to 04FFFFh
010000h to 013FFFh
014000h to 01FFFFh
020000h to 03FFFFh
038000h to 04FFFFh
16K
48K
96K
96K
µs
µs
s
13/76
Page 14
ST10F168
5.1 - Programming / Erasing with ST
Embedded Algorithm Kernel
There are three stages to run STEAK :
– To load the registers R0 to R4 with the STEAK
command, the address and the data to be programed, or sector to be erased. Table 4 gives
the STEAK parameters for each type of Flash
programming / erasing operation. Table 5 defines the codes used in Table 4.
– To initiatethe Unlock Sequence.The Unlock Se-
quence is composed of two consecutive writes
to an even address in the Flash active address
space - the first write has direct addressing
mode (MOV mem, Rwn) - the second write has
– To read the return values in R0. When the em-
bedded programming / erasing algorithm returns to trigger point, return values are given in
R0. Table 6 gives the error-code definitions,
Table 7 gives the return values in each register
for each type of Flash programming / erasing
command.
Note The Flash Embedded STEAK Algorithms
require at least 50 words on the Internal
System Stack. STEAK verifies that there is
enough free space on the System Stack,
before performing a programming or erasing operation.The MDH, MDL and MDC
register content are modified.
indirect addressing mode (MOV [Rwm], Rwn).
Rwn can be any unused Word-GPR (R6to R15)
loaded with a value resulting in the same even
address as “mem”.
Code examples for programming and erasing the
Flash Memory using STEAK are given in
Section 5.2.
Table 4 : STEAK parameters
Command R0 R1 R2 R3 R4
Single Word programming 55Ash AddOff W nu 2TCL
Double Word programming DD4sh AddOff DWL DWH 2TCL
Multiple (block) programming AA5sh BegAddOff EndAddOff SourceAddr 2TCL
Sector Erasing EEEEh 5555h Bnk Bnk 2TCL
Read Status 7777h nu nu nu 2TCL
Table 5 : Programming / erasing code definition
s Segment of the Target Flash Memory cell,
AddOff Segment Offset of the Target Flash Memory cell. Must be even value (Word-aligned address).
W Data (Word) to be written in Flash.
DWL,DWH Data (double Word, DHL = low Word, DWH = high Word) to be written in Flash.
BegAddOff
EndAddOff
SourceAdd
Bnk Number of the Bank to be erased. For security, R2 and R3 must hold the same value.
2TCL CPU clock period innano-seconds (eg. R4 = 50d means CPU frequency is 20MHz).
Segment Offset of the FIRST Target Flash Memory Word to be written in a Multiple programming
command. Must be even value (Word-aligned address).
Segment Offset of the LAST Target Flash Memory Word to be written in a Multiple programming
command.
Must be even value (Word-aligned address). The value D = (EndAddOff - BegAddOff) must be: 0 <= D <
16384 (ie. up to one page (16K Byte) can be written in the flash with one multi-Word programming
command).
Start address for the block to be programmed.
This address is using implicitly the data paging mechanism of the CPU. SourceAdd value must respect
the following rules :
- SourceAdd + (EndAddOff - BegAddOff) < 16384.
- Page 0 and 1can NOT be used for source data if bit ROMS1 = ‘1’ (in SYSCON register).
Note that source data can be located in Flash (In pages 0, 1, 6 to 19 if bit ROMS1 = ‘0’, or in pages 4 to19
if bit ROMS1 = ‘1’).
14/76
Page 15
Table 6 : Error Code Definition (R0 content after STEAK execution)
Error Code Meaning
00h Operation was successful
01h Flash Protection is active
02h Vpp voltage not present
03h Programming operation failed
04h Address value (R1) incorrect: not in Flash address area or odd
05h CPU period out of range (must be between 30 ns to 500 ns)
06h Not enough free space on system stack for proper operation
07h Incorrect bank number (R2,R3) specified
08h Erase operation failed (phase 1)
09h Bad source address for Multiple Word programming command
0Ah Bad number of words to be copied in Multiple Word programming command: one destination will be
out of flash.
0Bh PLL Unlocked or Oscillator watchdog overflow occured during programming or erasing the flash.
0Ch Erase operation failed (phase 2)
FFh Unknown or bad command
ST10F168
Table 7 : Return values for each programming / erase command
Programming
Command
Single or
double Word
programming
Block
programming
Erasing Error
After status
read
Note The Flash Embedded STEAK Algorithms
require at least 50 words on the Internal
System Stack for proper operation. The
program itself verifies that there is enough
free space on the System Stack before
performing a programming or erasing
operation, by computing the Word number
between Stack Pointer (SP) and Stack
Overflow register (STKOV ).
The MDH, MDL and MDC register content
are modified.
Registers R0 to R4 are used as Input Data
for STEAK, and are modified as explained
R0 R1 R2 R3 R4-R15
Error
code
Error
The last segment offset address of the
code
last written Word in Flash (failing Flash
address if R0 is not equal to zero)
code
Error
Flash embedded rev
code
MSByte = major release
LSByte = minor revision
Unchanged Data in Flash for
location Segment +
Segment Offset
(R0.[3:0] with R1)
Undefined Unchanged
Undefined Unchanged
Circuit identifiers :
R2 = #0787h
R3 = #0101h for this device
above (Return Values).
Registers R5 to R15 are used internally by
STEAK, but preserved on entry and
restore on exit of STEAK.
IT IS VERY IMPORTANT TO TAKE INTO
ACCOUNT THE FACT THAT STEAK
USES UP TO 50 WORDS ON THE SYSTEM STACK. TO PREVENT ANY
ABNORMAL SITUATION, IT IS VERY
IMPORTANT TO INITIALIZE CORRECTLY THE STACKSIZE TO AT LEAST
64 WORDS, AND TO CORRECTLY INITIALIZE REGISTER STKOV.
Data in Flash for
location Segment +
Segment Offset + 2
(R0[3:0] with R1+2)
Unchanged
Unchanged
15/76
Page 16
ST10F168
5.2 - Programming Examples
Programming a double Word
; code shown below assumes that Flash is mapped in segment 1
; ie. bit ROMS1 = ‘1’ in SYSCON register
; Flash must be enabled, ie. bit ROMEN = ‘1’ in SYSCON.
MOV R0, #0DD40h ; DD4xh : Double Word programming command
OR R0, #01h ; Selects segment 1 in flash memory
MOV R1, #00224h ; Address to be programmed is 01’0224h
MOV R2, #03456h ; Data to be programmed at 01’0224h
MOV R3, #04567h ; Data to be programmed at 01’0226h
MOV R4, #050d ; 50ns is 20MHz CPU clock frequency
MOV R7, #08000h ; R7 used for Flash trigger sequence
#define FCR 08000h
; Flash Unlock Sequence consists in two consecutive writes, with the direct
addressing mode and then the indirect addressing mode. FCR must represent an
even address in the active address space of the Flash memory, and Rwn can be
any unused Word GPR (R6 to R15)loaded with a value resulting in the same even
address than FCR
EXTS #1, #2 ; Flash can be mapped in segment 0 or 1
MOV FCR, R7 ; first part
MOV [R7], R7 ; second part
NOP ; WARNING: place 2 NOP operations after
NOP ; the Unlock sequence to avoid all possible
; pipeline conflicts in STEAK programs
Note For easier coding, the standard data paging addressing scheme is overriden for the two MOV
instructions of the Flash Trigger Sequence (EXTS instruction). However this coding also locks
both standard and PEC interrupts and class A hardware traps. This override can be replaced by
an ATOMIC instruction if thestandard DPP addressing scheme must be preserved.
16/76
Page 17
ST10F168
Programming a block of data
The following code is provided as an example to program ablock of data. Flash to be programmed is from
address 01’9000h to 01’9FFEh (included). Source data (data to be copied into flash)is located in external
RAM from address 05’1000h (to 05’1FFEh, implicitly) :
; code shown below assumes that flash is mapped in segment 1
; ie. bit ROMS1 = ‘1’ in SYSCON register
; Flash must be enabled, ie. bit ROMEN = ‘1’ in SYSCON.
MOV R0, #0AA50h ; AA5xh : Multi Word programming command
OR R0, #01h ; Selects segment 1 in Flash memory
MOV R1, #09000h ; First Flash Segment Offset Address
MOV R2, #09FFEh ; Last Flash Segment Offset Address
MOV R3, #09000h ; Source data address: use DPP2 as
; data page pointer
SCXT DPP2,#20d ; Source is in page 20 (first page of
; segment 5): save previous DPP2 value
; and load it with source page number
MOV R4, #050d ; 50ns is 20MHz CPU clock frequency
MOV R7, #08000h ; R7 used for Flash trigger sequence
#define FCR 08000h
EXTS #1, #2 ; Flash can be mapped in segment 0 or 1
MOV FCR, R7 ; first part
MOV [R7], R7 ; second part
NOP ; WARNING: place 2 NOP operations after
NOP ; the Unlock sequence to avoid all possible
; pipeline conflicts in STEAK programs
POP DPP2 ; restore DPP2
17/76
Page 18
ST10F168
5.3 - Flash Memory Configuration
The default memory configuration of the
ST10F168 Memory is determined by the state of
the EA pin at reset. This value is stored in the
Internal ROM Enable bit : ROMEN of the
SYSCON Register.
When ROMEN = 0, the internal FLASH is disabled
and external ROM is used for startup control.
Flash memory can be enabled later by setting the
ROMEN bit of SYSCON to 1. Ensure that the
code which performs this setting is NOT running
from external ROM in a segment that will be
replaced by FLASH memory, otherwise unexpected behaviour may occur.
For example, if the external ROM code is located
in the first 32K Byte of segment 0, the first
32K Byte of the FLASH must then be enabled in
segment 1. This is done by setting the ROMS1 bit
of SYSCON to 0, before or simultaneously with
setting the ROMEN bit. This must be done in the
externally supplied program, before the execution
of the EINIT instruction. If program execution
starts from external memory, but the Flash memory mapped in segment 0 is accessed later, then
the code that sets the ROMEN bit must be executed either in segment 0 but above address
00’8000h, or from the internal RAM.
Bit ROMS1 only affects the mapping of the first
32K Byte of the Flash memory. All other parts of
the Flash memory (addresses 01’8000h 04’FFFFh) remain unaffected.
Note: TheSGTDIS Segmentation Disable / Enable
must also be set to 0 to enable the use of the full
256K Byte of on-chip memory in addition to the
external boot memory. The correct procedure for
changing the segmentation registers must be
observed to prevent an unwanted trap condition :
– Instructions that configure the internal memory
must onlybe executed from external memoryor
from the internal RAM.
– An Absolute Inter-Segment Jump (JMPS)
instructionmust beexecuted after Flash enabling,
before the next instruction, even if the next
instruction is locatedin the consecutive address.
– Whenever the internalmemory is disabled, ena-
bled or remapped, the DPPs must be explicitly
(re)loaded to enable correct data accesses to
the internal memory and / or external memory.
5.4 - Flash Protection
If Flash Protection is active, data operands in the
on-chip Flash Memory area can only be read by a
program executed from the Flash Memory itself.
Program branches from or into the on-chip Flash
memory are possible in the Flash protection mode.
Erasing and programming of the Flash memory is
not possible as long as protection is active.
Flash protection is controlled by the Protection
UPROM Programming Bit (UPROG). UPROG is a
’hidden’ one-time programmable bit only accessible in a special mode which can be entered via a
Flash EPROM programming board for example. If
UPROG is set to ”1”, Flash protection is active
after reset. By default Flash Protection is disabled
(UPROG=0).
When flash protection is active (the default after
reset if UPROG bit is set), then any read accessin
the flash by a code executed from external or
internal RAM (IRAM or XRAM) will return the
value 0B88Bh. Any call of STEAK will return the
error code ‘01’ (Protected flash).
Normally Flash protection should never be deactivated, once activated. If this has to be done, for
example because the Flash memory has to be
reprogrammed with updated program / variables,
a zero value has to be written at any even address
in the active address space of the Flash memory.
This write can be done only by an instruction executed from the internal Flash Memory itself.
For example:
MOV FLASH,ZEROS ; Deactivate Flash
Protection.
; Flash is any even address in Flash
memory space. This instruction MUST
be executed from Flash memory itself.
After this instruction, the flash is temporarily
de-protected, thus any read access of the flash
from code executed from external memory or
internal RAMs will be correctly executed, and calls
of STEAK can be correctly performed (programming, erasing or status reading).
Notes 1. That all STEAK commands re-activate
the flash protection if bit UPROG is set
when completed.
2. Currently the only way to program the
UPROG one-time programmable bit is by
using an external ST10F167 / ST10F168
EPB kit.
5.5 - Bootstrap Leader Mode
Pin P0L.4 (BSL) activates the on-chip bootstrap
loader, when low during hardware reset. The
bootstrap loader allows moving the start code into
the internal RAM of the ST10F168 via the serial
interface ASC0. The ST10F168 will remain in
bootstrap loader mode until a hardware reset with
P0L.4 high or a software reset. The bootstraps
loader acknowledge byte is D5h.
18/76
Page 19
6 - CENTRAL PROCESSING UNIT (CPU)
The CPU includes a4-stage instruction pipeline, a
16-bit arithmetic and logic unit (ALU) and dedicated SFRs. Additional hardware has been added
for a separate multiply and divide unit, a bit-mask
generator and a barrel shifter.
Most of the ST10F168’s instructions can be executed in one instruction cycle which requires 80ns
at 25MHz CPU clock. For example, shift and
rotate instructions are processed in one instruction cycle independent of the number of bit to be
shifted. Multiple-cycle instructionshave been optimized: branches are carried out in 2 cycles, 16 x
16-bit multiplication in 5 cycles and a 32/16 bit
division in 10 cycles.The jump cache reduces the
execution timeof repeatedly performed jumps in a
loop, from 2 cycles to 1 cycle.
Figure 5 : CPU Block Diagram
ST10F168
The CPU uses a bank of 16 word registers to run
the current context. This bank of General Purpose
Registers (GPR) is physically stored within the
on-chip RAM area. A Context Pointer (CP) register determines the base address of the active register bank to be accessed by the CPU. The
number of register banks is only restricted by the
available internal RAM space. Foreasy parameter
passing, one register bank may overlap others.
A system stack of up to 2048 Byte stores temporary data. The system stack is allocated in the
on-chip RAM area, and it is accessed by the CPU
via the stack pointer (SP) register. Two separate
SFRs, STKOV and STKUN, are implicitly compared against the stack pointer value on each
stack access, for the detection of a stack overflow
or underflow.
256K Byte
Flash
memory
32
SP
STKOV
STKUN
Exec. Unit
Instr. Ptr
Instr. Reg
4-Stage
Pipeline
PSW
SYSCON
BUSCON 0
BUSCON 1
BUSCON 2
BUSCON 3
BUSCON 4
Data Pg. Ptrs
CPU
MDH
MLD
Mul./Div.-HW
Bit-Mask Gen.
ALU
16-Bit
Barrel-Shift
CP
ADDRSEL 1
ADDRSEL 2
ADDRSEL 3
ADDRSEL 4
Code Seg. Ptr.
R15
General
Purpose
Registers
R0
16
16
Internal
RAM
2K Byte
Bank
n
Bank
i
Bank
0
19/76
Page 20
ST10F168
6.1 - Instruction Set Summary
The Table8 liststhe instructions of the ST10F168.
The various addressing modes, instruction operation, parameters for conditional execution of
Table 8 : Instruction set summary
Mnemonic Description Bytes
ADD(B) Add Word (Byte) operands 2 / 4
ADDC(B) Add Word (Byte) operands with Carry 2 / 4
SUB(B) Subtract Word (Byte) operands 2 / 4
SUBC(B) Subtract Word (Byte) operands with Carry 2 / 4
MUL(U) (Un)Signed multiply direct GPRby direct GPR (16 x 16-bit) 2
DIV(U) (Un)Signed divide register MDL by direct GPR (16 / 16-bit) 2
DIVL(U) (Un)Signed long divide register MD by direct GPR (32 / 16-bit) 2
CPL(B) Complement direct Word (Byte) GPR 2
NEG(B) Negate direct Word (Byte) GPR 2
AND(B) Bitwise AND, (Word / Byte operands) 2 / 4
OR(B) Bitwise OR, (Word / Byte operands) 2 / 4
XOR(B) Bitwise XOR, (Word / Byte operands) 2 / 4
BCLR Clear direct bit 2
BSET Set direct bit 2
BMOV(N) Move (negated) direct bit to direct bit 4
BAND, BOR, BXOR AND / OR / XOR direct bit with direct bit 4
BCMP Compare direct bit to direct bit 4
BFLDH/L Bitwise modify masked high / low Byte of bit-addressable direct Word memory with
immediate data
CMP(B) Compare Word (Byte) operands 2 / 4
CMPD1/2 Compare Word data to GPR and decrement GPR by 1/2 2 / 4
CMPI1/2 Compare Word data to GPR and increment GPR by 1/2 2 / 4
PRIOR Determine number of shift cycles to normalize direct Word GPR and store result in
direct Word GPR
SHL/SHR Shift left / right direct Word GPR 2
ROL/ROR Rotate left / right direct Word GPR 2
ASHR Arithmetic (sign bit) shift right direct Word GPR 2
MOV(B) Move Word (Byte) data 2 / 4
MOVBS Move Byte operand to Word operand with sign extension 2 / 4
MOVBZ Move Byte operand to Word operand. with zero extension 2 / 4
JMPA, JMPI, JMPR Jump absolute / indirect / relative if condition ismet 4
JMPS Jump absolute to a code segment 4
J(N)B Jump relative if direct bit is (not) set 4
JBC Jump relative and clear bit if direct bit is set 4
instructions, opcodes and a detailed description of
each instructioncan be found in the“ST10 Family
Programming Manual”.
4
2
20/76
Page 21
ST10F168
Table 8 : Instruction set summary
Mnemonic Description Bytes
JNBS Jump relative and set bit if direct bit is not set 4
CALLA, CALLI, CALLR Call absolute / indirect / relative subroutine if condition is met 4
CALLS Call absolute subroutine in any code segment 4
PCALL Push direct Word register onto system stack and call absolute subroutine 4
TRAP Call interrupt service routine via immediate trap number 2
PUSH, POP Push / pop direct Word register onto / from system stack 2
SCXT
RET Return from intra-segment subroutine 2
RETS Return from inter-segment subroutine 2
RETP Return from intra-segment subroutine and pop direct Word register from system
RETI Return from interrupt service subroutine 2
SRST Software Reset 4
IDLE Enter Idle Mode 4
PWRDN Enter Power Down Mode (supposes NMI-pin being low) 4
SRVWDT Service Watchdog Timer 4
DISWDT Disable Watchdog Timer 4
EINIT
ATOMIC Begin ATOMIC sequence 2
EXTR Begin EXTended Register sequence 2
EXTP(R) Begin EXTended Page (and Register) sequence 2 / 4
EXTS(R) Begin EXTended Segment (and Register) sequence 2 / 4
NOP Null operation 2
Push direct Word register onto system stack and update register with Word operand 4
stack
Signify End-of-Initialization on
RSTOUT-pin
2
4
21/76
Page 22
ST10F168
7 - EXTERNAL BUS CONTROLLER
All external memory accesses are performed by
the on-chip external bus controller. The EBC can
be programmed to single chip mode when no
external memory is required, or to one of four different external memory access modes :
– 16 / 18 / 20 / 24-bit addresses and 16-bit data,
demultiplexed.
– 16 / 18 / 20 / 24-bit addresses and 16-bit data,
multiplexed.
– 16 / 18 / 20 / 24-bit addresses and 8-bit data,
multiplexed.
– 16 / 18 / 20 / 24-bit addresses and 8-bit data,
demultiplexed.
In demultiplexed busmodes addresses areoutput
on Port1 and data are input / output on Port0 or
P0L, respectively. In the multiplexed bus modes
both addresses and data use Port0 for input/ output.
Timing characteristics of the external bus interface (memory cycle time, memory tri-state time,
length of ALE and read / write delay) areprogrammable giving the choice of a wide range of memories and external peripherals.Up to 4 independent
address windows may be defined (using register
pairs ADDRSELx / BUSCONx) to access different
resources and bus characteristics. These address
windows are arranged hierarchically where
BUSCON4 overrides BUSCON3 and BUSCON2
overrides BUSCON1. All accesses to locations
not covered by these 4 address windows are controlled by BUSCON0. Up to 5 external CS signals
(4 windows plus default) can be generated in
order to save external glue logic. Access to very
slow memories is supported by a ‘Ready’ function.
A HOLD/HLDA protocol is available for bus arbitration which shares external resources with other
bus masters. The bus arbitration is enabled by
setting bit HLDEN in register SYSCON. After setting HLDEN once, pins P6.7...P6.5 (BREQ,
HLDA, HOLD) are automatically controlled by the
EBC. In master mode (default after reset) the
HLDA pin is an output. By setting bit DP6.7 to’1’
the slave mode is selected where pin HLDA is
switched to input. This directly connects the slave
controller to another master controller without
glue logic.
For applications which require less external
memory space, the address space can be
restricted to 1M Byte, 256K Byte or to 64K Byte.
Port4 outputs all 8 address lines if an address
space of 16M Byte is used, otherwise four, two or
no address lines.
Chip select timingcan be programmed. By default
(after reset), the CSx lines change half a CPU
clock cycle after the rising edge of ALE. With the
CSCFG bit set in the SYSCON register the CSx
lines can change with the rising edge of ALE.
The active level of the READY pin can be set by
bit RDYPOLx in the BUSCONx registers. When
the READY function is enabled for a specific
address window, each bus cycle within the window must be terminated with the active level
defined by bit RDYPOLx in the associated BUSCONx register.
22/76
Page 23
8 - INTERRUPT SYSTEM
The interrupt response time for internal program
execution is from 200ns to 480ns at 25MHz CPU
clock.
The ST10F168 architecture supports several
mechanisms for fast and flexible response to service requests that can be generated from various
sources (internal or external) to the microcontroller. Any of these interrupt requests can be serviced by the Interrupt Controller or by the
Peripheral Event Controller (PEC).
In contrast to a standard interrupt service where
the current program execution is suspended and
a branch to theinterrupt vector table is performed,
just one cycle is ‘stolen’ from the current CPU
activity to perform a PEC service. A PEC service
implies a single Byte or Word data transfer
between any two memory locations with an
additional increment of either the PEC source or
the destination pointer. An individual PEC transfer
counter is implicitly decremented for each PEC
service except when performing in the continuous
transfer mode. When this counter reaches zero, a
standard interrupt is performed to the
corresponding source related vector location.
PEC services are very well suited to perform the
transmission or the reception of blocks of data.
ST10F168
The ST10F168 has 8 PEC channels, each of
them offers such fast interrupt-driven data transfer
capabilities.
A interrupt control register which contains an
interrupt request flag, an interrupt enable flag and
an interrupt priority bitfield is dedicated to each
existing interrupt source. Thanks to its related
register, each source can be programmed to one
of sixteen interrupt priority levels. Once starting to
be processed by the CPU, an interrupt service
can only be interrupted by a higher prioritized
service request. For the standard interrupt
processing, each of the possible interrupt sources
has a dedicated vector location.
Fast external interrupt inputs are provided to service external interrupts with high precision
requirements. These fast interrupt inputs feature
programmable edge detection (rising edge, falling
edge or both edges). Software interrupts are supported by means of the ‘TRAP’ instruction in combination with an individual trap (interrupt) number.
Table 9 shows all the available ST10F168 interrupt sources and the corresponding hardware-related interrupt flags, vectors, vector
locations and trap (interrupt) numbers:
Table 9 : Interrupt sources
Source of Interrupt or PEC Service Request
CAPCOM Register 0 CC0IR CC0IE CC0INT 00’0040h 10h
CAPCOM Register 1 CC1IR CC1IE CC1INT 00’0044h 11h
CAPCOM Register 2 CC2IR CC2IE CC2INT 00’0048h 12h
CAPCOM Register 3 CC3IR CC3IE CC3INT 00’004Ch 13h
CAPCOM Register 4 CC4IR CC4IE CC4INT 00’0050h 14h
CAPCOM Register 5 CC5IR CC5IE CC5INT 00’0054h 15h
CAPCOM Register 6 CC6IR CC6IE CC6INT 00’0058h 16h
CAPCOM Register 7 CC7IR CC7IE CC7INT 00’005Ch 17h
CAPCOM Register 8 CC8IR CC8IE CC8INT 00’0060h 18h
CAPCOM Register 9 CC9IR CC9IE CC9INT 00’0064h 19h
CAPCOM Register 10 CC10IR CC10IE CC10INT 00’0068h 1Ah
CAPCOM Register 11 CC11IR CC11IE CC11INT 00’006Ch 1Bh
CAPCOM Register 12 CC12IR CC12IE CC12INT 00’0070h 1Ch
CAPCOM Register 13 CC13IR CC13IE CC13INT 00’0074h 1Dh
CAPCOM Register 14 CC14IR CC14IE CC14INT 00’0078h 1Eh
CAPCOM Register 15 CC15IR CC15IE CC15INT 00’007Ch 1Fh
CAPCOM Register 16 CC16IR CC16IE CC16INT 00’00C0h 30h
CAPCOM Register 17 CC17IR CC17IE CC17INT 00’00C4h 31h
CAPCOM Register 18 CC18IR CC18IE CC18INT 00’00C8h 32h
CAPCOM Register 19 CC19IR CC19IE CC19INT 00’00CCh 33h
Request
Flag
Enable
Flag
Interrupt
Vector
Vector
Location
Trap
Number
23/76
Page 24
ST10F168
Table 9 : Interrupt sources(continued)
Source of Interrupt or PEC Service Request
CAPCOM Register 20 CC20IR CC20IE CC20INT 00’00D0h 34h
CAPCOM Register 21 CC21IR CC21IE CC21INT 00’00D4h 35h
CAPCOM Register 22 CC22IR CC22IE CC22INT 00’00D8h 36h
CAPCOM Register 23 CC23IR CC23IE CC23INT 00’00DCh 37h
CAPCOM Register 24 CC24IR CC24IE CC24INT 00’00E0h 38h
CAPCOM Register 25 CC25IR CC25IE CC25INT 00’00E4h 39h
CAPCOM Register 26 CC26IR CC26IE CC26INT 00’00E8h 3Ah
CAPCOM Register 27 CC27IR CC27IE CC27INT 00’00ECh 3Bh
CAPCOM Register 28 CC28IR CC28IE CC28INT 00’00F0h 3Ch
CAPCOM Register 29 CC29IR CC29IE CC29INT 00’0110h 44h
CAPCOM Register 30 CC30IR CC30IE CC30INT 00’0114h 45h
CAPCOM Register 31 CC31IR CC31IE CC31INT 00’0118h 46h
CAPCOM Timer 0 T0IR T0IE T0INT 00’0080h 20h
CAPCOM Timer 1 T1IR T1IE T1INT 00’0084h 21h
CAPCOM Timer 7 T7IR T7IE T7INT 00’00F4h 3Dh
CAPCOM Timer 8 T8IR T8IE T8INT 00’00F8h 3Eh
GPT1 Timer 2 T2IR T2IE T2INT 00’0088h 22h
GPT1 Timer 3 T3IR T3IE T3INT 00’008Ch 23h
GPT1 Timer 4 T4IR T4IE T4INT 00’0090h 24h
GPT2 Timer 5 T5IR T5IE T5INT 00’0094h 25h
GPT2 Timer 6 T6IR T6IE T6INT 00’0098h 26h
GPT2 CAPREL Register CRIR CRIE CRINT 00’009Ch 27h
A/D Conversion Complete ADCIR ADCIE ADCINT 00’00A0h 28h
A/D Overrun Error ADEIR ADEIE ADEINT 00’00A4h 29h
ASC0 Transmitter S0TIR S0TIE S0TINT 00’00A8h 2Ah
ASC0 Transmitter Buffer S0TBIR S0TBIE S0TBINT 00’011Ch 47h
ASC0 Receiver S0RIR S0RIE S0RINT 00’00ACh 2Bh
ASC0 Error S0EIR S0EIE S0EINT 00’00B0h 2Ch
SSC Transmitter SCTIR SCTIE SCTINT 00’00B4h 2Dh
SSC Receiver SCRIR SCRIE SCRINT 00’00B8h 2Eh
SSC Error SCEIR SCEIE SCEINT 00’00BCh 2Fh
PWM Channel 0...3 PWMIR PWMIE PWMINT 00’00FCh 3Fh
CAN Interface XP0IR XP0IE XP0INT 00’0100h 40h
X-Peripheral Node XP1IR XP1IE XP1INT 00’0104h 41h
X-Peripheral Node XP2IR XP2IE XP2INT 00’0108h 42h
PLL Unlock XP3IR XP3IE XP3INT 00’010Ch 43h
Request
Flag
Enable
Flag
Interrupt
Vector
Vector
Location
Trap
Number
Hardware traps are exceptions or error conditions
that arise during run-time. They cause immediate
non-maskable system reaction similar to a standard interrupt service (branching to a dedicated
vector table location).
The occurrence of a hardware trap is
additionallysignified by an individualbit in the
24/76
trap flag register (TFR). Except when another
higher prioritized trap service is in progress, a
hardwaretrap will interrupt any other program
execution.
Hardware trap services cannot not be interrupted
by standard interrupt or by PEC interrupts.
Page 25
ST10F168
Table 10 shows all of the possible exceptions or error conditions that can arise during run-time :
Table 10 : Exceptions or error conditions that can arise during run-time
Exception Condition TrapFlag Trap Vector Vector Location Trap Number Trap Priority
Reset Functions
Hardware Reset RESET 00’0000h 00h III
Software Reset RESET 00’0000h 00h III
Watchdog Timer Overflow RESET 00’0000h 00h III
Class A Hardware Traps
Non-Maskable Interrupt NMI NMITRAP 00’0008h 02h II
Stack Overflow STKOF STOTRAP 00’0010h 04h II
Stack Underflow STKUF STUTRAP 00’0018h 06h II
Class B Hardware Traps
Undefined Opcode UNDOPC BTRAP 00’0028h 0Ah I
Protected Instruction Fault PRTFLT BTRAP 00’0028h 0Ah I
Illegal WordOperand Access ILLOPA BTRAP 00’0028h 0Ah I
Illegal Instruction Access ILLINA BTRAP 00’0028h 0Ah I
Illegal External Bus Access ILLBUS BTRAP 00’0028h 0Ah I
Reserved [2Ch –3Ch] [0Bh – 0Fh]
Software Traps
TRAP Instruction
Any [00’0000h– 00’01FCh]
in steps of 4h
Any [00h – 7Fh] Current CPU
Priority
25/76
Page 26
ST10F168
9 - CAPTURE / COMPARE (CAPCOM) UNIT
The ST10F168 has two 16 channel CAPCOM
units which support generation and control of
timing sequences on up to 32 channels with a
maximum resolution of 320ns at 25MHz CPU
clock.
The CAPCOM units are typically used to handle
high speed I/O tasks such as pulse and waveform
generation, pulse width modulation (PMW), Digital
to Analog (D/A) conversion, software timing, or
time recording relative to external events.
Four 16-bit timers (T0/T1, T7/T8) with reload
registers provide two independent time bases for
the capture / compare register array.
The input clock for the timers is programmable to
several prescaled values of the internal system
clock, or maybe derived from an overflow/ underflow of timer T6 in module GPT2.
This provides a wide range of variation for the
timer period and resolution and allows precise
adjustments to application specific requirements.
In addition, external count inputs for CAPCOM
timers T0 and T7 allow event scheduling for the
capture / compare registers relative to external
events.
Each of the two capture / compare register arrays
contain 16 dual purpose capture / compare registers, each of which may be individually allocated
to either CAPCOM timer T0 or T1 (T7or T8,
respectively), and programmed for capture
or compare functions. Each register has one
associated port pin which serves as an input pin
for triggering the capture function, or as an output
pin (except for CC24...CC27) to indicate the
occurrence of a compare event.
When a capture / compare register has been
selected for capture mode, the current contentsof
the allocated timer will be latched (captured) into
the dedicated capture / compare register in
response to an external event at the
corresponding port pin which is associated with
this register. In addition, a specific interrupt
request for this capture / compare register is
generated.
Either a positive, a negative, or both a positive
and a negative external signal transition at the pin
can be selected as the triggering event.
The contents of all the registers which have been
selected for one of the five compare modes are
continuously compared with the contents of the
allocated timers.
When a match occurs between the timer value
and the value in a capture / compare register, specific actions will be taken based on the selected
compare mode.
The input frequencies fTx, for the timer input
selector Txl, are determined as a function of the
CPU clock. The timer input frequencies, the resolution and the periods which result from the
selected pre-scaler option in TxI when using a
25MHz CPU clock are listed in the Table12.
The numbers of the timer periods are based on a
reload value of 0000H. Note that some numbers
are roundedto 3 significant figures.
Table 11 : Compare Modes
Compare Modes Function
Mode 0 Interrupt-only compare mode ; several compare interrupts per timer period are possible.
Mode 1 Pin toggles on each compare match ; several compare events per timer period are possible.
Mode 2 Interrupt-only compare mode ; only one compare interrupt per timer period is generated.
Mode 3 Pin set ‘1’ on match; pin reset ‘0’ on compare time overflow ; only one compare event per
timer period is generated.
Double Register Mode Two registers operate on one pin; pin toggles on each compare match ; several compare
events per timer period are possible.
26/76
Page 27
ST10F168
Table 12 : CAPCOM timer input frequencies, resolution and periods
Timer Input Selection TxI
f
= 25MHz
CPU
f
pre-scaler 8 16 32 64 128 256 512 1024
CPU
000
B
Input Frequency 3.125MHz 1.56MHz 781KHz 391KHz 195KHz 97.7KHz 48.8KHz 24.4KHz
Resolution
320ns 640ns
Period 21.0ms 41.9ms 83.9ms 167ms 336ms 671ms 1.34s 2.68s
Table 13 : CAPCOM Channels Pin Assignement
001
B
010
1.28
µs 2.56µs 5.12µs 10.24µs 20.48µs 40.96µs
011
B
B
100
B
101
B
110
B
111
B
CAPCOM
Unit
CAPCOM1
CAPCOM2 I/O CC16 CC17 CC18 CC19 CC20 CC21 CC22 CC23 CC24 CC25 CC26 CC27 CC28 CC29 CC30 CC31
Note 1. Input only.
Channel 0123456789101112131415
I/O
Port 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 2.10 2.11 2.12 2.13 2.14 2.15
Pin Number 47 48 49 50 51 52 53 54 57 58 59 60 61 62 63 64
Port 8.0 8.1 8.2 8.3 8.4 8.5 8.6 8.7 1H.4 1H.5 1H.6 1H.7 7.4 7.5 7.6 7.7
Pin Number 9 10 11 12 13 14 15 16 132 133 134 135 23 24 25 26
CC0 CC1 CC2 CC3 CC4 CC5 CC6 CC7
1
CC91CC101CC11
CC8
1
CC12 CC13 CC14 CC15
27/76
Page 28
ST10F168
10 - GENERAL PURPOSE TIMER UNIT
The GPT unit is a flexible multifunctional timer /
counter structure which is used for time related
tasks such as event timing and counting, pulse
width and duty cycle measurements, pulse
generation, or pulse multiplication. The GPT unit
contains five 16-bit timers organized into two
separate modules GPT1 and GPT2. Each timer
in each module may operate independently in
several different modes, or may be concatenated
with another timer of the same module.
10.1 - GPT1
Each of the three timers T2, T3, T4 of the GPT1
module can be configured individually for one of
four basic modes of operation: timer, gated
timer, counter mode and incremental interface
mode. In timer mode, the inputclock for a timer is
derived from the CPU clock, divided by a programmable prescaler. In countermode, the timer is
clocked in referenceto externalevents. Pulse width
or duty cycle measurement is supported in gated
timer mode where the operation of a timer is controlled by the ‘gate’ level on an external input pin.
For these purposes, each timer has one associated
port pin (TxIN) which serves as gateor clock input.
Table 14 lists the timer input frequencies, resolution and periods for each pre-scaler option at
25MHz CPU clock. This also applies tothe Gated
Timer Mode of T3 and to the auxiliary timers T2
and T4 in Timer and Gated Timer Mode.
The count direction (up / down) for each timer is
programmable by software or may be altered
dynamically by an external signal on a port pin
(TxEUD).
In Incremental Interface Mode, the GPT1 timers
(T2, T3, T4) can be connected directly to the
incremental position sensor signals A and B by
their respective inputs TxIN and TxEUD. Direction
and count signals are internally derived from
these two input signals so that the contents of the
respective timer Tx corresponds to the sensor
position. The third position sensor signal TOP0
can be connected to an interrupt input.
TimerT3 hasoutput toggle latches (TxOTL)which
changes state on each timer over-flow / underflow. The state of this latch may be output on port
pins (TxOUT) e. g. for time out monitoring of
external hardware components, or may be used
internally to clock timers T2 and T4 for high resolution oflong duration measurements.
In addition to their basic operating modes, timers
T2 and T4 may be configured as reload or capture
registers for timer T3. When used as capture or
reload registers, timers T2 and T4 are stopped.
The contents of timer T3 is captured into T2 or T4
in response to a signal at their associated input
pins (TxIN). Timer T3 is reloaded with the
contents of T2 or T4 triggered either by an
external signal or by a selectable state transition
of its toggle latch T3OTL. When both T2 and T4
are configured to alternately reload T3 on
opposite state transitions of T3OTL with the low
and high times of a PWM signal, this signal
can be constantly generated without software
intervention.
10.2 - GPT2
The GPT2 module provides precise event control
and time measurement. It includes two timers(T5,
T6) and a capture / reload register (CAPREL).
Both timers can be clocked with an input clock
which is derived from the CPU clock via a programmable prescaler or with external signals. The
count direction (up / down) for each timer is programmable by software or may additionally be
altered dynamically by an external signal on a port
pin (TxEUD). Concatenation of the timers is supported via the output togglelatch (T6OTL) of timer
T6 which changes its state on each timer
overflow / underflow.
Table 14 : GPT1 timerinput frequencies, resolution and periods
Timer Input Selection T2I / T3I / T4I
f
= 25MHz
CPU
Pre-scaler Factor 8 16 32 64 128 256 512 1024
Input Frequency 3.125MHz 1.563MHz 781.3KHz 390.6KHz 195.3KHz 97.66KHz 48.83KHz 24.41KHz
Resolution 320ns 640ns 1.28µs 2.56µs 5.12µs 10.24µs 20.48µs 40.96µs
Period 21.0ms 41.9ms 83.9ms 167ms 336ms 671ms 1.34s 2.68s
28/76
000
B
001
B
010
011
B
B
100
B
101
B
110
B
111
B
Page 29
ST10F168
The state of this latch may be used to clock timer
T5, or it may be output on a port pin (T6OUT).
The overflows / underflows oftimer T6can also be
used to clock the CAPCOM timers T0 or T1, and
to cause a reload from the CAPREL register.
The CAPREL register can capture the contents of
T5 from an external signal transition on the
corresponding port pin (CAPIN), and T5 may be
optionally cleared after the capture procedure.
This allows absolute time differences to be
measured or pulse multiplication to be performed
without software overhead.
The capture trigger (timer T5 to CAPREL) may
also be generated on transitionsof GPT1timer T3
inputs T3IN and / or T3EUD. This is useful when
T3 operatesin Incremental Interface Mode.
Table 15 lists the timer input frequencies, resolution and periods for each pre-scaler option at
25MHz CPU clock. This also applies to the Gated
Timer Mode of T6 and to the auxiliary timer T5 in
Timer and Gated Timer Mode.
Table 15 : GPT2 timerinput frequencies, resolution and periods
f
= 25MHz
CPU
Pre-scaler Factor 4 8 16 32 64 128 256 512
Input Frequency 6.25MHz 3.125MHz 1.563MHz 781.3KHz 390.6KHz 195.3KHz 97.66KHz 48.83KHz
Resolution 160ns 320ns 640ns 1.28µs 2.56µs 5.12µs 10.24µs 20.48µs
Period 10.49ms 21.0ms 41.9ms 83.9ms 167ms 336ms 671ms 1.34s
000B 001B 010B 011B 100B 101B 110B 111B
Timer Input Selection T5I / T6I
Figure 6 : Block Diagram of GPT1
T2EUD
U/D
CPU Clock
T2IN
CPU Clock
T3IN
T3EUD
T4IN
CPU Clock
T4EUD
2nn=3...10
2nn=3...10
2nn=3...10
T2
Mode
Control
T3
Mode
Control
T4
Mode
Control
Reload
Capture
Capture
Reload
GPT1 Timer T2
GPT1 Timer T3
U/D
GPT1 Timer T4
U/D
Interrupt
Request
T3OUT
T3OTL
Interrupt
Request
Interrupt
Request
29/76
Page 30
ST10F168
Figure 7 : Block Diagram of GPT2
T5EUD
CPU Clock
T5IN
CAPIN
T6IN
CPU Clock
T6EUD
2n n=2...9
2n n=2...9
T5
Mode
Control
T6
Mode
Clear
Capture
U/D
GPT2 Timer T5
GPT2 CAPREL
GPT2 Timer T6
U/D
Reload
ToggleFF
T60TL
Interrupt
Request
Interrupt
Request
Interrupt
Request
T6OUT
to CAPCOM
Timers
30/76
Page 31
ST10F168
11 - PWM MODULE
The pulse width modulation module can generate
up to four PWM output signals using edge-aligned
or centre-aligned PWM. In addition, the PWM
module can generate PWM burst signals and sin-
Table 16 : PWM unit frequencies and resolution at 25MHz CPU clock
Mode 0 Resolution 8-bit 10-bit 12-bit 14-bit 16-bit
CPU Clock / 1 40ns 97.66KHz 24.41KHz 6.104KHz 1.526KHz 0.381KHz
CPU Clock / 64 2.56µs 1.526KHz 381.5Hz 95.37Hz 23.84Hz 5.96Hz
Mode 1 Resolution 8-bit 10-bit 12-bit 14-bit 16-bit
CPU Clock / 1 40ns 48.82KHz 12.20KHz 3.05KHz 762.9Hz 190.7Hz
CPU Clock / 64 2.56µs 762.9Hz 190.7Hz 47.68Hz 11.92Hz 2.98Hz
Figure 8 : PWM Module Block Diagram
gle shot outputs. The Table 16 shows the PWM
frequencies for different resolutions. The level of
the output signals is selectable and the PWM
module can generate interrupt requests.
Clock1
Clock2
*User readable& writeableregister
Input
Control
Run
PPxPeriodRegister
Comparator
PTx
16-BitUp/DownCounter
Comparator
ShadowRegister
PWxPulseWidthRegister
*
*
*
Match
Match
ClearControl
OutputControl
WriteControl
Up/Down/
POUTx
Enable
31/76
Page 32
ST10F168
12 - PARALLEL PORTS
The ST10F168 provides up to 111 I/O lines
organized into eight input / output ports and one
input port. All port lines are bit-addressable, and
all input / output lines are individually (bit-wise)
programmable as input or output via direction
registers. TheI/O ports are true bidirectional ports
which areswitched to high impedance state when
configured as inputs.The outputdrivers of fiveI/O
ports can be configured (pin by pin) for push-pull
operation or open-drain operation via control
registers. During the internal reset, all port pins
are configured as inputs.
The input threshold of Port 2, Port 3, Port 7 and
Port 8 is selectable (TTL or CMOS-like), where
the special CMOS-like input threshold reduces
noise sensitivity to the input hysteresis. The input
thresholds are selected with bit of PICON register
dedicated to blocks of 8 input pins (2-bit for Port2,
2-bit for Port3, 1-bit for Port7, 1-bit for Port8).
All pins of I/O ports also support an alternate programmable function:
– Port0 and Port1 may be used as address and
data lines when accessing external memory.
– Port 2, Port 7 and Port 8 are associated with the
capture inputs or with the compare outputs of
the CAPCOM units and / or with the outputs of
the PWM module.
– Port 3 includes the alternate functions of timers,
serial interfaces, the optional bus control signal
BHE and the system clock output (CLKOUT).
– Port 4 outputs the additional segment address
bit A16 to A23 in systems where segmentation
is enabled to access more than 64K Byte of
memory.
– Port 5 is used as analog input channels of the
A/Dconverter or as timer control signals.
– Port 6 provides optional bus arbitration signals
(BREQ, HLDA, HOLD) and chip select signals.
All port lines that are not used for alternate functions may be used as general purpose I/O lines.
32/76
Page 33
13 - A/D CONVERTER
A10-bit A/D converter with 16 multiplexed input
channels and a sample and hold circuit is
integrated on-chip. The sample time (for loading
the capacitors) and the conversion time is
programmable and can be adjusted to the
external circuitry.
Overrun error detection / protection is controlled
by the ADDAT register. Either an interrupt request
is generated whenthe result of aprevious conversion has not been read from the result register at
the time the next conversion is complete, or the
next conversion is suspended until the previous
result has been read. For applications which
require less than 16 analog input channels, the
remaining channel inputs can be used as digital
input port pins.
The AD converter of the ST10F168 supports different conversion modes :
– Single channel single conversion : the analog
level of the selected channel is sampled once
and converted. The result of the conversion is
stored in the ADDAT register.
– Single channel continuous conversion : the
analog levelof the selected channelis repeatedly
sampled and converted. The result of the conversion is stored in the ADDAT register.
– Auto scan single conversion : the analog level
of the selected channels are sampled once and
converted. After each conversion the result is
stored in the ADDAT register. The data can be
transfered to the RAM by interrupt software
management or using the powerfull Peripheral
Event Controller data transfert.
– Auto scan continuous conversion : the ana-
log level of the selected channels arerepeatedly
sampled and converted. The result of the conversion is stored in the ADDAT register. The
data can be transfered to the RAM by interrupt
software management or using the powerfull
Peripheral Event Controller data transfert.
Table 17 : ADC sample clock and conversion clock
ST10F168
– Wait for ADDAT read mode : when using con-
tinuous modes, in order to avoid to overwrite
the result of the current conversion by the next
one, the ADWR bit of ADCON control register
must be activated. Then,until the ADDATregister is read, the new result is stored in a temporary buffer and the conversion is on hold.
– Channel injection mode : when using
continuous modes, a selected channel can be
converted in between without changing the
current operating mode. The 10 bit data of the
conversion are stored in ADRES field of
ADDAT2.The current continuous mode remains
active after the single conversion is completed.
The Table17 shows conversion clock and sample
clock of the ADC unit. A complete conversion will
take 14tCC+2tSC+ 4TCL. This time includes the
conversion it self, the sampling time and the time
required to transfer the digital value to the result
register. For example at25MHz of CPU clock, the
minimum complete conversion time is 7.76µs.
The A/D converter provides automatic offset and
linearity self calibration. The calibration operation
is performed in two ways :
– A full calibration sequence is performed after a
reset and lasts 1.6ms minimum (at 25MHz CPU
clock). During this time, the ADBSY flag is set to
indicate the operation. Normal conversion can
be performed during this time. The duration of
the calibration sequence isthen extended by the
time consumed bythe conversions.
Note : After a power-on reset, the total
unadjusted error (TUE) of the ADC might be
worse than±2LSB (max.±4LSB). During the full
calibration sequence, the TUE is constantly
improved until at the end of the cycle, TUE is
within the specified limits of ±2LSB.
– One calibration cycle is performed after each
conversion : each calibration cycle takes 4 ADC
clock cycles. These operation cycles ensure
constant updating of the ADC accuracy, compensating changing operating conditions.
Conversion Clock t
ADCTC
00 TCL x 24 0.48µs00 t
01 Reserved, do not use - 01 tCCx2
10 TCL x 96 1.92µs10t
11 TCL x 48 0.96µs11t
Notes 1. See chapter XX.
2. t
CC
TCL1= 1/2 x f
= TCL x 24.
XTAL
At f
CC
CPU
= 25MHz
ADSTC
Sample Clock t
-
CC 0.48µs
x4
CC
x8
CC
At f
SC
CPU
0.96µs
1.92µs
3.84µs
= 25MHz
2
2
2
2
33/76
Page 34
ST10F168
14 - SERIAL CHANNELS
Serial communication with other microcontrollers,
processors, terminals or external peripheral components is provided by two serial interfaces: the
asynchronous / synchronous serial channel
(ASC0) and the high-speed synchronous serial
channel (SSC).
Two dedicated Baud rate generators set up all
standard Baud rates without the requirement of
oscillator tuning. For transmission, reception and
erroneous reception, 3 separate interrupt vectors
are provided for each serial channel.
ASCO
ASCO supports full-duplex asynchronous communication atup to 781.25K Baud and half-duplex
Table 18 : Commonly used Baud rates byreload value and deviation errors
synchronous communication up to 5M Baud at
25MHz system clock.
For asynchronous operation, the Baud rate generator provides a clock with 16 times the rate of the
established Baud rate.
Table 18 lists various commonly used Baud rates
together with the required reload values and the
deviation errors compared to the intended
Baud rate.
For synchronous operation, the Baud rate generator provides a clock with 4 times the rate of the
established Baud rate.
S0BRS = ‘0’, f
Baud Rate (Baud) Deviation Error Reload Value Baud Rate (Baud) Deviation Error Reload Value
781250 ±0.0% 0000h 520833 ±0.0% 0000h
56000 +7.3% / -0.4% 000Ch / 000Dh 56000 +3.3% / -7.0% 0008h / 0009h
38400 +1.7% / -3.1% 0013h / 0014h 38400 +4.3% / -3.1% 000Ch / 000Dh
19200 +1.7% / -0.8% 0027h / 0028h 19200 +0.5% / -3.1% 001Ah / 001Bh
9600 +0.5% / -0.8% 0050h/ 0051h 9600 +0.5% / -1.4% 0035h / 0036h
4800 +0.5% / -0.1% 00A1h / 00A2h 4800 +0.5% / -0.5% 006Bh / 006Ch
2400 +0.2% / -0.1% 0144h / 0145h 2400 +0.0% / -0.5% 00D8h / 00D9h
1200 +0.0% / -0.1% 028Ah / 028Bh 1200 +0.0% / -0.2% 01B1h / 01B2h
600 +0.0% / -0.1% 0515h / 0516h 600 +0.0% / -0.1% 0363h / 0364h
95 +0.4% 1FFFh / 1FFFh 75 +0.0% / 0.0% 1B1Fh / 1B20h
= 25MHz S0BRS = ‘1’, f
CPU
63 +0.9% 1FFFh / 1FFFh
CPU
= 25MHz
34/76
Page 35
ST10F168
High Speed Synchronous Serial Channel
(SSC)
The High-Speed Synchronous Serial Interface
SSC provides flexible high-speed serial
communication between the ST10F168 and other
microcontrollers, microprocessors or external
peripherals.
The SSC supports full-duplex and half-duplex
synchronous communication; The serial clock
signal can be generated by the SSC itself (master
mode) or be received from an external master
(slave mode). Data width, shift direction, clock
polarity and phase are programmable.
This allows communication with SPI-compatible
devices. Transmission and reception of data is
double-buffered. A 16-bit Baud rate generatorprovides the SSC with a separate serial clock signal.
The serial channel SSC has its own dedicated
16-bit Baud rate generator with 16-bit reload
capability, allowing Baud rate generation independent from the timers.
SSCBR is the dual-functionBaud rate Generator /
Reload register. Table19 lists some possible
Baud rates against the required reload values and
the resulting bit times fora 25MHz CPU clock.
Note The deviation errors given in the Table 18
are rounded. To avoid deviation errors use
a Baud rate crystal (providing a multiple of
the ASC0/SSC sampling frequency).
Table 19 : Synchronous Baud rate and reload values
Baud Rate Bit Time Reload Value
Reserved use a reload value > 0. --- 0000h
5M Baud 200ns 0001h
3.3M Baud 303ns 0002h
2.5M Baud 400ns 0004h
2M Baud 500ns 0005h
1M Baud 1µs 000Bh
100K Baud 10µs 007Ch
10K Baud 100µs 04E1h
1K Baud 1ms 30D3h
190.7 Baud 5.2ms FFFFh
35/76
Page 36
ST10F168
15 - CAN MODULE
The integrated CAN module completely handles
the autonomous transmissionand the reception of
CAN frames according to the CAN specification
V2.0 part B (active). The on-chip CAN module can
receive and transmit standard frames with 11-bit
identifiers as well as extended frames with 29-bit
identifiers.
The CAN Module Provides full CAN functionality
on up to 15 message objects. Message object 15
can be configured for basic CAN functionality.
Both modes provide separate masks for acceptance filtering, allowing a number of identifiers in
full CAN mode to be accepted and disregarding a
number ofidentifiers in basic CAN mode. Allmessage objects can be updated independently from
other objects and are equipped for the maximum
message length of 8 Byte.
The bit timing is derived from the XCLK andis programmable up to a data rate of 1M Baud. The
CAN module uses two pins to interface to a bus
transceiver.
16 - WATCHDOG TIMER
The Watchdog Timer is a fail-safe mechanism
which prevents the microcontroller from malfunctioning for long periods of time.
The Watchdog Timer is always enabled after a
reset of the chip and can only be disabled in the
time interval until the EINIT (end of initialization)
instruction has been executed.
Therefore, the chip start-up procedure is always
monitored. The software must be designed to service the watchdog timer before it overflows. If, due
to hardware or software related failures, the software fails to do so, the watchdog timer overflows
and generates an internal hardware reset. It pulls
the RSTOUT pin low in order to allow external
hardware components to be reset.
The Watchdog Timer is 16-bit, clocked with the
system clock divided by 2 or 128. The high Byte of
the watchdog timer register can be set to a
pre-specified reload value (stored in WDTREL).
Each time it is serviced by the application software, the high Byte of the watchdog timer is
reloaded.
For security, rewrite WDTCON each
time before the watchdog timer is serviced.
Table 20 shows the watchdog time range for
25MHz CPU clock.
Table 20 : Watchdog time range (25MHz clock)
Reload value
in WDTREL
FF
h
00
h
Prescaler for f
2 (WDTIN = ‘0’) 128 (WDTIN = ‘1’)
20.48µs 1.31ms
5.24ms 336ms
CPU
36/76
Page 37
17 - SYSTEM RESET
Table 21 : Reset event definition
Reset Source Short-cut Conditions
Power-on reset PONR Power-on
Long Hardware reset (asynchronous reset)
Short Hardware reset (synchronous reset)
Watchdog Timer reset WDTR WDT overflow
Software reset SWR SRST execution
LHWR t
SHWR 4 TCL < t
RSTIN
> 1032 TCL
RSTIN
ST10F168
< 1032 TCL
System reset initializes the MCU in a predefined
state. There are five ways to activate a reset state.
The system start-up configuration is different for
each case as shown in Table 21.
17.1 - Asynchronous Reset (Long Hardware
Reset)
An asynchronous reset is triggered when RSTIN
pin is pulled low while V
pin is at low level. Then
PP
the MCU is immediately forced in reset default
state. It pulls low RSTOUT pin, it cancels pending
internal hold states if any, it waits for any internal
access cycles to finish, it aborts externalbus cycle,
it switches buses (data, address and control signals) and I/O pin drivers to high-impedance, it pulls
high Port0 pins and the reset sequencestarts.
Power-on Reset
The asynchronous reset must be used during the
power-on of the MCU. Depending on crystal frequency, the on-chip oscillator needs about 10ms
to 50ms to stabilize. The logic of the MCU does
not need a stabilized clock signal to detect an
Figure 9 : Asynchronous Reset Timing
3or 4CPUClock
asynchronous reset, so it is suitable for power-on
conditions. To ensure a proper reset sequence,
the RSTIN pin and the VPPpinmust be held atlow
level until the MCU clock signal is stabilized and
the system configuration value on Port0 is settled.
Hardware Reset
The asynchronous reset must be used to recover
from catastrophic situations of the application. It
may be triggerred by the hardware of the application. Internal hardware logic and application circuitry aredescribed in Reset circuitry chapter and
Figures 12, 13 and 14.
Exit of Asynchrounous Reset State
When the RSTIN pin is pulled high, the MCU
restarts. The system configuration is latched from
Port0 and ALE, RDand R/W pinsare driven to their
inactive level. The MCU starts program execution
from memory location 00’0000h in code segment 0.
This starting location will typically point to the general initialization routine. Timing of asynchronous
reset sequence aresummarized in Figure 9.
1
CPUClock
RSTIN
Asynchronous
Reset Condition
V
PP
RSTOUT
ALE
Port0 ResetConfiguration
Latchingpointof Port0
Internal
Reset
Signal
Note 1. RSTIN rising edge to internal latch of Port0 is 3CPU clock cycles if the PLL is bypassed and the prescaler ison (f
else it is4 CPU clock cycles.
forsystemstart-up
configuration
INST#1
CPU=fXTAL
/2),
37/76
Page 38
ST10F168
17.2 - Synchronous Reset (WarmReset)
A synchronous reset is triggered when RSTINpin
is pulled low while VPPpin isat high level. In order
to properly activate the internal reset logic of the
MCU, the RSTIN pin must be held low, at least,
during 4 TCL (2 periods of CPU clock). The I/O
pins are set to high impedance andRSTOUTpin is
driven low. After RSTIN level is detected, a short
duration of 12 TCL (approximately 6 periods of
CPU clock) elapes, during which pending internal
hold states are cancelled and the current internal
access cycle if any is completed. External bus
cycle is aborted. The internal pulldown of RSTIN
pin is activated if bit BDRSTEN of SYSCON register was previously set by software. This bit is
always cleared on power-on or after a reset
sequence.
Exit of Synchrounous Reset State
The internal reset sequence starts for 1024 TCL
(512 periods of CPU clock) and RSTINpin level is
sampled. The reset sequence is extended until
RSTIN level becomes high. Then, the MCU
restarts. The system configuration is latched from
Port0 and ALE, RD and R/W pins are driven to
their inactive level. The MCU starts program execution from memory location 00’0000h in code
segment 0. This starting location will typically
point to the general initialization routine. Timing of
synchronous reset sequence are summarized in
Figure 10 and 11.
Figure 10 : Synchronous Warm Reset: Short low pulse on RSTIN
6 or 8 TCL
CPUClock
RSTIN
V
PP
4TCL 12TCL
min. max.
1 Internallypulledlow
1024TCL
4
3
200µADischarge
RSTOUT
ALE
Port0
Internal
Reset
Signal
Notes 1. RSTIN assertion can be released there.
2. If during the reset condition (RSTIN low), Vpp voltage drops below the threshold voltage (about 2.5V for 5V operation), the
asynchronous reset is then immediately entered.
3. RSTINrising edge to internal latch of Port0 is3CPU clock cycles if the PLL isbypassed and the prescaler is on (f
it is 4 CPU clock cycles.
4) RSTIN pin ispulled low if bit BDRSTEN (bit 5 of SUSCON register) was previously set by software. Bit BDRSTENis cleared after
reset. If a synchronous reset is used as a power-up reset in place of an asynchronous reset, note that the behaviour of RSTIN (ie.
pulled low or not during 1024 TCL) isundetermined. This should be not a problem, because in such power-up reset, the pin RSTIN
must be maintained to ‘0’ at least during two reset sequences (2*1024 TCL, 40.96
ResetConfiguration
Latchingpointof Port0
forsystemstart-upconfiguration
2
VPP>2.5V AsynchronousResetnot entered.
INST#1
µ
s at 25MHz CPU clock).
CPU=fXTAL
, else
38/76
Page 39
Figure 11 : Synchronous Warm Reset: Long low pulse on RSTIN
ST10F168
4 TCL 12TCL 1024TCL
CPUClock
RSTIN
V
PP
200µADischarge
RSTOUT
ALE
Port0
Internal
Reset
Signal
Notes 1. RSTIN rising edge to internal latch of Port0 is 3CPU clock cycles if the PLL is bypassed and the prescaler ison (f
else it is4 CPU clock cycles.
2. If during the reset condition (RSTIN low), Vpp voltage drops below the threshold voltage (about 2.5V for 5V operation), the
asynchronous reset is then immediately entered.
3. RSTINpin is pulled low if bit BDRSTEN (bit 5 of SYSCON register) was previously set by soft-ware. Bit BDRSTENis cleared after
reset. If a synchronous reset is used as a power-up reset in place of an asynchronous reset, note that the behaviour of RSTIN (ie.
pulled low or not during 1024 TCL) isundetermined. This should be not a problem, because in such power-up reset, the pin RSTIN
must be maintained to ‘0’ at least during two reset sequences (2*1024 TCL, 40.96
Internallypulledlow
ResetConfiguration
3
LatchingpointofPort0
forsystemstart-upconfiguration
6 or 8 TCL
2
VPP>2.5V AsynchronousResetnot entered.
1
µ
s at 25MHz CPU clock).
CPU=fXTAL
/ 2),
17.3 - Software Reset
A software reset sequence can be triggered at
any time by the protected SRST (software reset)
instruction. This instruction can be deliberately
executed within aprogram, e.g. toleave bootstrap
loader mode, or on a hardware trap that reveals
system failure.
On execution of the SRST instruction, the internal
reset sequence is started. The microcontroller
behaviour is the same as for a synchronous reset,
except that only bitP0.12...P0.8 are latched at the
end of the reset sequence, while previously
latched, bit P0.7...P0.2 are cleared.
17.4 - Watchdog Timer Reset
When the watchdog timer is not disabled during
the initialization, or serviced regularly during program execution, it will overflow and trigger the
reset sequence.
Unlike hardware and software resets, the watchdog reset completes a running external bus cycle
if this bus cycle either does not use READY, or if
READY is sampled active (low) after the programmed wait states.
When READY is sampled inactive (high) after the
programmed wait states the running external bus
cycle is aborted. Then the internal reset sequence
is started.
Bit P0.12...P0.8 arelatched at the end of the reset
sequence and bit P0.7...P0.2 are cleared.
17.5 - Reset Circuitry
Internal reset circuitry is described in Figure 13.
The RSTINpin provides an internal pullup resistor
of 50KΩ to 250KΩ (The minimum reset time must
be calculated using the lowest value).
It also provides a programmable (BDRSTEN bitof
SYSCON register) pulldown to output internal
reset state signal (synchronous reset, watchdog
timer reset or software reset).
This bidirectional reset function is useful in applications where external devices require a reset
signal but cannot be connected toRSTOUTpin.
This is the case of an external memory running
codes before EINIT ( end of initialization) instruction is executed. RSTOUT pin is pulled high only
when EINIT is executed.
39/76
Page 40
ST10F168
The VPPpin provides an internal weak pulldown
resistor which discharges external capacitor at a
typical rate of 200µA. If bit PWDCFG of SYSCON
register is set, an internal pullup resistor is
activated at the end of the reset sequence. This
pullup willcharge any capacitor connected on V
PP
pin.
The simplest way to reset the ST10F168 is to
insert a capacitor C1 betweenRSTINpin and VSS,
and a capacitor between VPPpin and VSS(C0)
with a pullup resistor R0 between VPPpin and
VCC. The input RSTIN provides an internal pullup
device equalling a resistor of 50kΩ to 150kΩ (the
minimum reset time must be determined by the
lowest value). Select C1 that produce a sufficient
discharge time to permit the internal or external
oscillator and / or internal PLL to stabilize.
To insure correct power-up reset with controlled
supply current consumption, specially if clock signal requires a long period of time to stabilized, an
asynchronous hardware reset is required during
power-up. It is recommended to connect the
external R0C0 circuit shown in Figure 12 to the
VPPpin.On power-up, the logicallow level on V
PP
pin forces an asynchronous harware reset when
RSTINis asserted.
The external pullup R0 will then charge the capacitor C0. Note that an internal pulldown device on
VPPpin is turned on when RSTIN pin is low, and
causes the external capacitor (C0) to begin dis-
charging at a typical rate of 100µA to 200µA. With
this mechanism, after power-up reset, short low
pulses applied on RSTIN produce synchronous
hardware reset. If RSTINis asserted longer than
the time needed for C0 to be discharged by the
internal pulldown device, then the device is forced
in an asynchronous reset. This mechanism
insures recovery from verycatastrophic failure.
Figure 12 : Minimum External Reset Circuitry
RSTOUT
RSTIN
ST10F168
+
C1
V
CC
R0
V
PP
+
C0
External Hardware
a) Hardware
Reset
b) For Power-up
Reset
(and Interruptible
Power-down
mode)
40/76
Page 41
Figure 13 : Internal (simplified) Reset Circuitry
EINITInstruction
Clr
Q
Set
Reset State
Machine
Clock
V
ST10F168
RSTOUT
CC
Trigger
Clr
Reset Sequence
(512 CPU Clock Cycles)
Asynchronous
Reset
VPP(Flashdevice)
From/toExit
Powerdown
Circuit
SRST instruction
watchdog overflow
The minimum reset circuit of Figure 14 is not adequate when the RSTIN pin is driven from the
ST10F168 itself during software or watchdog triggered resets, because of thecapacitor C1that will
keep the voltage on RSTIN pin above VILafter the
end of the internal reset sequence, and thus will
triggered an asynchronous reset sequence.
RSTIN
BDRSTEN
V
CC
V
PP
Weak Pulldown
(~200µA)
generate power-up or manual reset, and R0C0
circuit on VPPis used for power-up reset and to
exit from powerdown mode. Diode D1 creates a
wired-OR gate connection to the reset pin and
may be replaced by open-collector schmitt trigger
buffer. Diode D2 provides a faster cycle time for
repetitive power-on resets.
Figure 14 shows an example of a reset circuit. In
this example, R1C1external circuit is only used to
R2 is an optional pullup for faster recovery and
correct biasing of TTL Open Collectordrivers.
41/76
Page 42
ST10F168
Figure 14 : System Reset Circuit
V
CC
R2
V
CC
RSTOUT
RSTIN
ST10F168
External Hardware
D2
R1
+
V
CC
D1
o.d.
C1
External
Reset Source
R0
OpenDrain Inverter
V
PP
+
C0
42/76
Page 43
18 - POWER REDUCTION MODES
ST10F168
Two different power reduction modes with
different levels of powerreduction can be entered
under software control.
In Idle mode the CPU is stopped, while the
peripherals continue their operation. Idle mode
can be terminated by any reset or interrupt
request.
In Power Down mode both the CPU and the
peripherals are stopped. Power Down mode can
be configured by software in order to be terminated only by a hardware reset or by an external
interrupt source on fast external interrupt pins.
There are two different operating Power Down
modes:
– Protected power down mode: selected by set-
ting bit PWDCFGin the SYSCONregister to ‘0’.
This mode can be used in conjunction with an
external power failure signal which pulls the NMI
pin low when a power failure is imminent. The
microcontroller enters the NMI trap routine and
saves the internal state into RAM. The trap routine then sets a flag or writes a bit pattern into
specific RAM locations, and executes the
PWRDN instruction. If the NMI pin is still low at
this time, Power Down mode will be entered, if
not program execution continues. During power
downthe voltage at the VCCpins can belowered
to2.5 V and the contents of theinternal RAM will
still be preserved.
– Interruptible power down mode: this
mode is selected by setting bit PWDCFG in the
SYSCON register. The CPU and peripheral
clocks are frozen, and the oscillator and PLL are
stopped. To exit power down mode with an external interrupt, an EXxIN (x = 7...0) pin has to
be asserted for at least 40ns. This signal enables the internal oscillator and PLL circuitry, and
turns on the weak pulldown. If the Interrupt was
enabled before entering power down mode, the
device executes the interrupt service routine,
and then resumes execution after the PWRDN
instruction. If the interrupt was disabled,the device executes the instruction following PWRDN
instruction, and the Interrupt Request Flag remains set until it is cleared by software.
All external bus actions are completed before Idle
or Power Down mode is entered. However, Idle or
Power Down mode is not entered if READY is
enabled, but has not been activated (driven low
for negative polarity, or driven high for positive
polarity) during the last bus access.
43/76
Page 44
ST10F168
19 - SPECIAL FUNCTION REGISTER OVERVIEW
Table 22 lists all SFRs which are implemented
in the ST10F168 in alphabetical order.
Bit-addressable SFRs are marked with the letter
“b” in column “Name”. SFRs within the Extended
SFR-Space (ESFRs) are marked with the letter
“E” in column “Physical Address”.
Table 22 : Special Function Registers listed by name
An SFRcan be specified by its individual mnemonic
name. Depending on the selected addressing
mode, an SFR can be accessed via its physical
address (using the Data Page Pointers), or via its
short 8-bit address (without using the Data Page
Pointers).
Name
ADCIC b FF98h CCh A/D Converter End Of Conversion Interrupt Control Register 0000h
ADCON b FFA0h D0h A/D Converter Control Register 0000h
ADDAT FEA0h 50h A/D Converter Result Register 0000h
ADDAT2 F0A0h E 50h A/D Converter 2Result Register 0000h
ADDRSEL1 FE18h 0Ch Address Select Register 1 0000h
ADDRSEL2 FE1Ah 0Dh Address Select Register 2 0000h
ADDRSEL3 FE1Ch 0Eh Address Select Register 3 0000h
ADDRSEL4 FE1Eh 0Fh Address Select Register 4 0000h
ADEIC b FF9Ah CDh A/D converter Overrun Error Interrupt Control Register 0000h
BUSCON0 b FF0Ch 86h Bus Configuration Register 0 0XX0h
BUSCON1 b FF14h 8Ah Bus Configuration Register 1 0000h
BUSCON2 b FF16h 8Bh Bus Configuration Register 2 0000h
BUSCON3 b FF18h 8Ch Bus Configuration Register 3 0000h
BUSCON4 b FF1Ah 8Dh Bus Configuration Register 4 0000h
CAPREL FE4Ah 25h GPT2 Capture / Reload Register 0000h
CC0 FE80h 40h CAPCOM Register 0 0000h
CC0IC b FF78h BCh CAPCOM Register 0 Interrupt Control Register 0000h
CC1 FE82h 41h CAPCOM Register 1 0000h
CC1IC b FF7Ah BDh CAPCOM Register 1 Interrupt Control Register 0000h
CC2 FE84h 42h CAPCOM Register 2 0000h
CC2IC b FF7Ch BEh CAPCOM Register 2 Interrupt Control Register 0000h
CC3 FE86h 43h CAPCOM Register 3 0000h
CC3IC b FF7Eh BFh CAPCOM Register 3 Interrupt Control Register 0000h
CC4 FE88h 44h CAPCOM Register 4 0000h
CC4IC b FF80h C0h CAPCOM Register 4 Interrupt Control Register 0000h
CC5 FE8Ah 45h CAPCOM Register 5 0000h
CC5IC b FF82h C1h CAPCOM Register 5 Interrupt Control Register 0000h
CC6 FE8Ch 46h CAPCOM Register 6 0000h
CC6IC b FF84h C2h CAPCOM Register 6 Interrupt Control Register 0000h
CC7 FE8Eh 47h CAPCOM Register 7 0000h
CC7IC b FF86h C3h CAPCOM Register 7 Interrupt Control Register 0000h
CC8 FE90h 48h CAPCOM Register 8 0000h
CC8IC b FF88h C4h CAPCOM Register 8 Interrupt Control Register 0000h
CC9 FE92h 49h CAPCOM Register 9 0000h
Physical
address
8-bit
address
Description
Reset
value
44/76
Page 45
Table 22 : Special Function Registers listed by name
ST10F168
Name
CC9IC b FF8Ah C5h CAPCOM Register 9 Interrupt Control Register 0000h
CC10 FE94h 4Ah CAPCOM Register 10 0000h
CC10IC b FF8Ch C6h CAPCOM Register 10 Interrupt Control Register 0000h
CC11 FE96h 4Bh CAPCOM Register 11 0000h
CC11IC b FF8Eh C7h CAPCOM Register 11 Interrupt Control Register 0000h
CC12 FE98h 4Ch CAPCOM Register 12 0000h
CC12IC b FF90h C8h CAPCOM Register 12 Interrupt Control Register 0000h
CC13 FE9Ah 4Dh CAPCOM Register 13 0000h
CC13IC b FF92h C9h CAPCOM Register 13 Interrupt Control Register 0000h
CC14 FE9Ch 4Eh CAPCOM Register 14 0000h
CC14IC b FF94h CAh CAPCOM Register 14 Interrupt Control Register 0000h
CC15 FE9Eh 4Fh CAPCOM Register 15 0000h
CC15IC b FF96h CBh CAPCOM Register 15 Interrupt Control Register 0000h
CC16 FE60h 30h CAPCOM Register 16 0000h
CC16IC b F160h E B0h CAPCOM Register 16 Interrupt Control Register 0000h
CC17 FE62h 31h CAPCOM Register 17 0000h
CC17IC b F162h E B1h CAPCOM Register 17 Interrupt Control Register 0000h
CC18 FE64h 32h CAPCOM Register 18 0000h
CC18IC b F164h E B2h CAPCOM Register 18 Interrupt Control Register 0000h
CC19 FE66h 33h CAPCOM Register 19 0000h
CC19IC b F166h E B3h CAPCOM Register 19 Interrupt Control Register 0000h
CC20 FE68h 34h CAPCOM Register 20 0000h
CC20IC b F168h E B4h CAPCOM Register 20 Interrupt Control Register 0000h
CC21 FE6Ah 35h CAPCOM Register 21 0000h
CC21IC b F16Ah E B5h CAPCOM Register 21 Interrupt Control Register 0000h
CC22 FE6Ch 36h CAPCOM Register 22 0000h
CC22IC b F16Ch E B6h CAPCOM Register 22 Interrupt Control Register 0000h
CC23 FE6Eh 37h CAPCOM Register 23 0000h
CC23IC b F16Eh E B7h CAPCOM Register 23 Interrupt Control Register 0000h
CC24 FE70h 38h CAPCOM Register 24 0000h
CC24IC b F170h E B8h CAPCOM Register 24 Interrupt Control Register 0000h
CC25 FE72h 39h CAPCOM Register 25 0000h
CC25IC b F172h E B9h CAPCOM Register 25 Interrupt Control Register 0000h
CC26 FE74h 3Ah CAPCOM Register 26 0000h
CC26IC b F174h E BAh CAPCOM Register 26 Interrupt Control Register 0000h
CC27 FE76h 3Bh CAPCOM Register 27 0000h
CC27IC b F176h E BBh CAPCOM Register 27 Interrupt Control Register 0000h
CC28 FE78h 3Ch CAPCOM Register 28 0000h
CC28IC b F178h E BCh CAPCOM Register 28 Interrupt Control Register 0000h
CC29 FE7Ah 3Dh CAPCOM Register 29 0000h
Physical
address
8-bit
address
Description
Reset
value
45/76
Page 46
ST10F168
Table 22 : Special Function Registers listed by name
Name
CC29IC b F184h E C2h CAPCOM Register 29 Interrupt Control Register 0000h
CC30 FE7Ch 3Eh CAPCOM Register 30 0000h
CC30IC b F18Ch E C6h CAPCOM Register 30 Interrupt Control Register 0000h
CC31 FE7Eh 3Fh CAPCOM Register 31 0000h
CC31IC b F194h E CAh CAPCOM Register 31 Interrupt Control Register 0000h
CCM0 b FF52h A9h CAPCOM Mode Control Register 0 0000h
CCM1 b FF54h AAh CAPCOM Mode Control Register 1 0000h
CCM2 b FF56h ABh CAPCOM Mode Control Register 2 0000h
CCM3 b FF58h ACh CAPCOM Mode Control Register 3 0000h
CCM4 b FF22h 91h CAPCOM Mode Control Register 4 0000h
CCM5 b FF24h 92h CAPCOM Mode Control Register 5 0000h
CCM6 b FF26h 93h CAPCOM Mode Control Register 6 0000h
CCM7 b FF28h 94h CAPCOM Mode Control Register 7 0000h
CP FE10h 08h CPU Context Pointer Register FC00h
CRIC b FF6Ah B5h GPT2 CAPREL Interrupt Control Register 0000h
CSP FE08h 04h CPU Code Segment Pointer Register (read only) 0000h
DP0L b F100h E 80h P0L Direction Control Register 00h
DP0H b F102h E 81h P0h Direction Control Register 00h
DP1L b F104h E 82h P1L Direction Control Register 00h
DP1H b F106h E 83h P1h Direction Control Register 00h
DP2 b FFC2h E1h Port 2 Direction Control Register 0000h
DP3 b FFC6h E3h Port 3 Direction Control Register 0000h
DP4 b FFCAh E5h Port 4 Direction Control Register 00h
DP6 b FFCEh E7h Port 6 Direction Control Register 00h
DP7 b FFD2h E9h Port 7 Direction Control Register 00h
DP8 b FFD6h EBh Port 8 Direction Control Register 00h
DPP0 FE00h 00h CPU Data Page Pointer 0 Register (10-bit) 0000h
DPP1 FE02h 01h CPU Data Page Pointer 1 Register (10-bit) 0001h
DPP2 FE04h 02h CPU Data Page Pointer 2 Register (10-bit) 0002h
DPP3 FE06h 03h CPU Data Page Pointer 3 Register (10-bit) 0003h
EXICON b F1C0h E E0h External Interrupt Control Register 0000h
IDCHIP F07Ch E
IDMANUF F07Eh E 3Fh Manufacturer Identifier Register 0400h
IDMEM F07Ah E 3Dh On-chip Memory Identifier Register 3040h
IDPROG F078h E 3Ch Programming Voltage Identifier Register 9A40h
MDC b FF0Eh 87h CPU Multiply Divide Control Register 0000h
MDH FE0Ch 06h CPU Multiply Divide Register – High Word 0000h
MDL FE0Eh 07h CPU Multiply Divide Register – Low Word 0000h
ODP2 b F1C2h E E1h Port 2 Open Drain Control Register 0000h
Physical
address
8-bit
address
3Eh
Device Identifier Register
Description
Reset
value
0A8Xh
1
46/76
Page 47
Table 22 : Special Function Registers listed by name
ST10F168
Name
ODP3 b F1C6h E E3h Port 3 Open Drain Control Register 0000h
ODP6 b F1CEh E E7h Port 6 Open Drain Control Register 00h
ODP7 b F1D2h E E9h Port 7 Open Drain Control Register 00h
ODP8 b F1D6h E EBh Port 8 Open Drain Control Register 00h
ONES FF1Eh 8Fh Constant Value1’s Register (read only) FFFFh
P0L b FF00h 80h Port 0 Low Register (Lower half of Port0) 00h
P0H b FF02h 81h Port 0 High Register (Upper half of Port0) 00h
P1L b FF04h 82h Port 1 Low Register (Lower half of Port1) 00h
P1H b FF06h 83h Port 1 High Register (Upper half of Port1) 00h
P2 b FFC0h E0h Port 2 Register 0000h
P3 b FFC4h E2h Port 3 Register 0000h
P4 b FFC8h E4h Port 4 Register (8-bit) 00h
P5 b FFA2h D1h Port 5 Register (read only) XXXXh
P6 b FFCCh E6h Port 6 Register (8-bit) 00h
P7 b FFD0h E8h Port 7 Register (8-bit) 00h
P8 b FFD4h EAh Port 8 Register (8-bit) 00h
PECC0 FEC0h 60h PEC Channel 0 Control Register 0000h
PECC1 FEC2h 61h PEC Channel 1 Control Register 0000h
PECC2 FEC4h 62h PEC Channel 2 Control Register 0000h
PECC3 FEC6h 63h PEC Channel 3 Control Register 0000h
PECC4 FEC8h 64h PEC Channel 4 Control Register 0000h
PECC5 FECAh 65h PEC Channel 5 Control Register 0000h
PECC6 FECCh 66h PEC Channel 6 Control Register 0000h
PECC7 FECEh 67h PEC Channel 7 Control Register 0000h
PICON F1C4h E E2h Port Input Threshold Control Register 0000h
PP0 F038h E 1Ch PWM Module Period Register 0 0000h
PP1 F03Ah E 1Dh PWM Module Period Register 1 0000h
PP2 F03Ch E 1Eh PWM Module Period Register 2 0000h
PP3 F03Eh E 1Fh PWM Module Period Register 3 0000h
PSW b FF10h 88h CPU Program Status Word 0000h
PT0 F030h E 18h PWM Module Up / Down Counter 0 0000h
PT1 F032h E 19h PWM Module Up / Down Counter 1 0000h
PT2 F034h E 1Ah PWM Module Up / Down Counter 2 0000h
PT3 F036h E 1Bh PWM Module Up / Down Counter 3 0000h
PW0 FE30h 18h PWM Module Pulse Width Register 0 0000h
PW1 FE32h 19h PWM Module Pulse Width Register 1 0000h
PW2 FE34h 1Ah PWM Module Pulse Width Register 2 0000h
PW3 FE36h 1Bh PWM Module Pulse Width Register 3 0000h
PWMCON0 b FF30h 98h PWM Module Control Register 0 0000h
PWMCON1 b FF32h 99h PWM Module Control Register 1 0000h
Physical
address
8-bit
address
Description
Reset
value
47/76
Page 48
ST10F168
Table 22 : Special Function Registers listed by name
Name
PWMIC b F17Eh E BFh PWM Module Interrupt Control Register 0000h
RP0H b F108h E 84h System Start-up Configuration Register (read only) XXh
S0BG FEB4h 5Ah Serial Channel 0 Baud Rate Generator Reload Register 0000h
S0CON b FFB0h D8h Serial Channel 0 Control Register 0000h
S0EIC b FF70h B8h Serial Channel 0 Error Interrupt Control Register 0000h
S0RBUF FEB2h 59h Serial Channel 0 Receive Buffer Register (read only) XXh
S0RIC b FF6Eh B7h Serial Channel 0 Receive Interrupt Control Register 0000h
S0TBIC b F19Ch E CEh Serial Channel 0 Transmit Buffer Interrupt Control Register 0000h
S0TBUF FEB0h 58h Serial Channel 0 Transmit Buffer Register (write only) 00h
S0TIC b FF6Ch B6h Serial Channel 0 Transmit Interrupt Control Register 0000h
SP FE12h 09h CPU System Stack Pointer Register FC00h
SSCBR F0B4h E 5Ah SSC Baud Rate Register 0000h
SSCCON b FFB2h D9h SSC Control Register 0000h
SSCEIC b FF76h BBh SSC Error Interrupt Control Register 0000h
SSCRB F0B2h E 59h SSC Receive Buffer (read only) XXXXh
SSCRIC b FF74h BAh SSC Receive Interrupt Control Register 0000h
SSCTB F0B0h E 58h SSC Transmit Buffer (write only) 0000h
SSCTIC b FF72h B9h SSC Transmit Interrupt Control Register 0000h
STKOV FE14h 0Ah CPU Stack Overflow Pointer Register FA00h
STKUN FE16h 0Bh CPU Stack Underflow Pointer Register FC00h
SYSCON b FF12h
T0 FE50h 28h CAPCOM Timer 0 Register 0000h
T01CON b FF50h A8h CAPCOM Timer 0 and Timer 1 Control Register 0000h
T0IC b FF9Ch CEh CAPCOM Timer 0 Interrupt Control Register 0000h
T0REL FE54h 2Ah CAPCOM Timer 0 Reload Register 0000h
T1 FE52h 29h CAPCOM Timer 1 Register 0000h
T1IC b FF9Eh CFh CAPCOM Timer 1 Interrupt Control Register 0000h
T1REL FE56h 2Bh CAPCOM Timer 1 Reload Register 0000h
T2 FE40h 20h GPT1 Timer 2 Register 0000h
T2CON b FF40h A0h GPT1 Timer 2 Control Register 0000h
T2IC b FF60h B0h GPT1 Timer 2 Interrupt Control Register 0000h
T3 FE42h 21h GPT1 Timer 3 Register 0000h
T3CON b FF42h A1h GPT1 Timer 3 Control Register 0000h
T3IC b FF62h B1h GPT1 Timer 3 Interrupt Control Register 0000h
T4 FE44h 22h GPT1 Timer 4 Register 0000h
T4CON b FF44h A2h GPT1 Timer 4 Control Register 0000h
T4IC b FF64h B2h GPT1 Timer 4 Interrupt Control Register 0000h
T5 FE46h 23h GPT2 Timer 5 Register 0000h
T5CON b FF46h A3h GPT2 Timer 5 Control Register 0000h
T5IC b FF66h B3h GPT2 Timer 5 Interrupt Control Register 0000h
Physical
address
8-bit
address
89h
Description
CPU System Configuration Register
Reset
value
0xx0h
2
48/76
Page 49
Table 22 : Special Function Registers listed by name
ST10F168
Name
Physical
address
8-bit
address
Description
Reset
value
T6 FE48h 24h GPT2 Timer 6 Register 0000h
T6CON b FF48h A4h GPT2 Timer 6 Control Register 0000h
T6IC b FF68h B4h GPT2 Timer 6 Interrupt Control Register 0000h
T7 F050h E 28h CAPCOM Timer 7 Register 0000h
T78CON b FF20h 90h CAPCOM Timer 7 and 8 Control Register 0000h
T7IC b F17Ah E BEh CAPCOM Timer 7 Interrupt Control Register 0000h
T7REL F054h E 2Ah CAPCOM Timer 7 Reload Register 0000h
T8 F052h E 29h CAPCOM Timer 8 Register 0000h
T8IC b F17Ch E BFh CAPCOM Timer 8 Interrupt Control Register 0000h
T8REL F056h E 2Bh CAPCOM Timer 8 Reload Register 0000h
TFR b FFACh D6h Trap Flag Register 0000h
WDT FEAEh 57h Watchdog Timer Register (read only) 0000h
WDTCON FFAEh
XP0IC b F186h E
XP1IC b F18Eh E
XP2IC b F196h E
XP3IC b F19Eh E
D7h
C3h
C7h
CBh
CFh
Watchdog Timer Control Register
CAN Module Interrupt Control Register
X-Peripheral 1 Interrupt Control Register
X-Peripheral 2 Interrupt Control Register
PLL unlock Interrupt Control Register
000xh
0000h
0000h
0000h
0000h
ZEROS b FF1Ch 8Eh Constant Value0’s Register (read only) 0000h
3
4
4
4
4
Notes 1. The value depends on the silicon revision and is described in the chapter XIX.1.
2. The system configuration is selected during reset.
3. Bit WDTR indicates a watchdog timer triggered reset.
4. The XPnIC Interrupt Control Registers control the interrupt requests from integrated X-Bus peripherals. Nodes where no
X-Peripherals are connected may be used to generate software controlled interrupt requests by setting the respective XPnIRbit.
49/76
Page 50
ST10F168
19.1 - Identification Registers
The ST10F168 has four Identification registers, mapped in ESFR space. These register contain:
– A manufacturer identifier,
– A chipidentifier, with its revision,
– A internalmemory and size identifier,
– Programming voltage description.
IDMANUF (F07Eh / 3Fh) ESFR
1514131211109876543210
MANUF
R
Description
MANUF : Manufacturer Identifier - 020h: STmicroelectronics Manufacturer (JTAG worldwide normalisation).
IDCHIP (F07Ch / 3Eh) ESFR
1514131211109876543210
CHIPID REVID
RR
-----
Description
REVID : Device Revision Identifier - 1h for the first step, 2h for the second step,...
CHIPID: Device Identifier- 0A8h is the identifier of ST10F168.
IDMEM (F07Ah / 3Dh) ESFR
15 14131211109876543210
MEMTYP MEMSIZE
RR
Description
MEMSIZE : Internal Memory Size - 040h for ST10F168 (256K Bytes).
Internal Memory size is 4 * <MEMSIZE> (in K Byte).
MEMTYP : Internal Memory Type - 3h for ST10F168 (Flash memory).
IDPROG (F078h / 3Ch) ESFR
1514131211109876543210
PROGVPP PROGVDD
RR
Description
PROGVDD : Programming VDDVoltage
VDDvoltage when programming EPROM or Flash devices is calculated using the following formula: VDD= 20 * <PROGVDD> / 256 [V] - 40h for ST10F168 (5V).
PROGVPP : Programming VPPVoltage
VPPvoltage when programming EPROM or Flash devices is calculated using the following formula: VPP= 20 * <PROGVDD> / 256 [V] - 9Ah for ST10F168 (12V).
50/76
Page 51
ST10F168
20 - ELECTRICAL CHARACTERISTICS
20.1 - Absolute Maximum Ratings
Symbol Parameter Value Unit
V
DD
V
IO Voltage on any pin with respect to ground
I
OV
I
TOV Absolute Sum of all input currents during overload condition
P
tot
T
A
T
stg Storage Temperature
Note 1. Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress
rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections
of thisspecification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
During overload conditions (V
defined by the Absolute Maximum Ratings.
Voltage on VDDpins with respect to ground
Input Current on any pin during overload condition
Power Dissipation
1
Ambient Temperature under bias for- Q6
Ambient Temperature under bias for- Q2
1
or VIN<VSS) the voltage on pins with respect to ground (VSS) must not exceed the values
IN>VDD
1
1
1
1
-0.5, +6.5 V
-0.5, (VDD+0.5)
-10, +10 mA
|100 mA| mA
V
1.5 W
1
1
-40, +85
-40, +125
°C
°C
-65, +150 °C
20.2 - Parameter Interpretation
The parameters listed in the following tables represent the characteristics of the ST10F168 and its
demands on the system.
Where the ST10F168 logic provides signals with their respective timing characteristics, the symbol “CC”
for Controller Characteristics is included in the “Symbol” column.
Where the external system must provide signals with their respective timing characteristics to the
ST10F168, the symbol “SR” for System Requirement is included in the “Symbol” column.
20.3 - DC Characteristics
VDD=5V±10%, VSS= 0V, Reset active, for Q6 version : TA= -40, +85°C and for Q2 version TA = -40,
+125°C, unless otherwise specified.
Symbol Parameter Test Conditions Min. Max. Unit
V
SR Input low voltage – – 0.5
IL
V
SR Input low voltage (special threshold) – – 0.5 2.0 V
ILS
V
IH
V
IH1
V
IH2
V
IHS
Input high voltage
SR
(all except RSTIN and XTAL1)
SR Input high voltage RSTIN –
SR Input high voltage XTAL1 –
SR Input high voltage (special threshold) –
–
0.2 V
0.6 V
0.7 V
0.8 V
DD
DD
0.2 V
+ 0.9 VDD+ 0.5
DD
DD
- 0.2 VDD+ 0.5
HYS Input Hysteresis (special threshold) – 300 - mV
1
V
CC
OL
V
OL1
CC
Output low voltage
RD, WR, BHE, CLKOUT, RSTOUT)
Output low voltage
(Port0, Port1, Port4, ALE,
1
(all other outputs)
I
I
OL
OL1
= 2.4mA
= 1.6mA
–0.45V
–0.45V
– 0.1
DD
VDD+ 0.5
VDD+ 0.5
V
V
V
V
V
51/76
Page 52
ST10F168
Symbol Parameter Test Conditions Min. Max. Unit
V
CC
OH
V
R
I
RWH
I
RWL
I
ALEL
I
ALEH
I
I
I
I
CC
OH1
I
CC Input leakage current (Port 5)
OZ1
I
CC Input leakage current (all other)
OZ2
I
SR Overload current
OV
CC
RST
5
7
6
6
6
P6H
7
P6L
6
P0H
7
P0L
1
Output high voltage
(Port0, Port1, Port4, ALE,
RD, WR, BHE, CLKOUT, RSTOUT)
12
Output high voltage
RSTIN pull-up resistor
Read / Write inactive current
Read / Write active current
ALE inactive current
ALE active current
Port 6 inactive current
Port 6 active current
Port 0 configuration current
(all other outputs)
3
6
6
6
6
6
6
6
= – 500µA
I
OH
= –2.4mA
I
OH
I
= – 250µA
OH
I
= – 1.6mA
OH
0V < V
IN<VDD
0V < V
IN<VDD
34
0V < VIN<V
V
= 2.4V
OUT
V
OUT=VOLmax
V
OUT=VOLmax
V
= 2.4V
OUT
V
= 2.4V
OUT
V
OUT=VOL1max
VIN=V
IHmin
VIN=V
ILmax
ILmax
0.9 V
2.4
0.9 V
2.4
DD
DD
–
–
–
–
V
V
V
– ±0.5 µA
– ±1 µA
– ±5mA
50 250 kΩ
–-40µA
-500 – µA
40 – µA
– 600 µA
–-40µA
-500 – µA
–-10µA
-100 – µA
I
CC XTAL1 input current
IL
C
CC
IO
I
CC
I
ID
I
PD
I
PPR
I
PPW
11
V
PP
52/76
0V < V
Pin capacitance
6
(digital inputs / outputs)
Power supply current
Idle mode supply current
Power-down mode supply current
f = 1MHz, T
25°C
RSTIN = V
f
in [MHz]
CPU
RSTIN = V
f
in [MHz]
CPU
= 5.5V
V
DD
VPPRead Current VPP<V
VPPProgramming / Erasing Current
3
VPP= 12V,
= 25MHz
f
CPU
VPPduring Programming / Erasing Operations
IN<VDD
A
IH1
IH1
10
DD
– ±20 µA
=
8
9
–10pF
–
–
20 + 6 x f
20 + 3 x f
CPU
CPU
mA
mA
– 100 µA
– 200 µA
–20mA
11,4 12,6 V
Page 53
ST10F168
Notes 1. ST10F168 pins are equipped with low-noise output drivers which significantly improve the device’s EMI performance. These
low-noise drivers deliver their maximum current only until the respective target output level is reached. After this, the output current
is reduced. This results in increased impedance ofthe driver, which attenuates electrical noise from the connected PCB tracks. The
current specified in column “Test Conditions” is delivered in all cases.
This specification is not valid foroutputs which are switched to open drain mode. In this case the respective output will float and the
2.
voltage results from the external circuitry.
3. Partially tested
4.
Overload conditions occur if the standard operating conditions are exceeded, i.e. the voltage on any pin exceeds the specified
range (i.e. V
supply voltage must remain within the specified limits.
5.
The maximum current may be drawn while the respective signal line remains inactive.
6.
This specification is only valid during Reset, or during Hold-mode or Adapt-mode. Port 6 pins are only affected if they are used for
CS output and the open drain function is not enabled.
7.
The minimum current must be drawn in order to drive the respective signal lineactive.
8.
The power supply current is a function of the operating frequency. This dependency is illustrated in the Figure 15. These
parameters are tested at V
configured with a demultiplexed 16-bit bus, direct clock drive, 5 chip select lines and 2 segment address lines, EA pin is low during
reset. After reset, Port 0 is driven with the value ‘00CCh’ that produces infinite execution of NOP instruction with 15 wait-state, R/W
delay, memory tristate wait state, normal ALE. Peripherals are not activated.
9.
Idle mode supply current is a function of the operating frequency. This dependency is illustrated in the Figure 15. These
parameters are tested at V
10.
This parameter value includes leakage currents. With all inputs (including pins configured as inputs) at 0 V to 0.1V or at
– 0.1V to VDD,V
V
DD
11.
Apply 12V on VPP10ms after VDDis stable at power up. VPPpin must be switched to 0V before to switch off VDD(5V).
, guaranteed by design characterization.
OV>VDD
+0.5V or VOV<-0.5V). Theabsolute sumof input overload currents on all port pins may not exceed 50mA. The
max and 25MHz CPU clock with all outputs disconnected and all inputs at VIL or VIH. The chip is
DD
max and 25MHz CPU clock with all outputs disconnected and all inputs at VILor VIH.
DD
= 0V, all outputs (including pins configured as outputs) disconnected.
REF
Figure 15 : Supply / idle current as a function of operation frequency
I [mA]
200
100
95
10
I
CCmax
I
IDmax
[MHz]
f
5
10
15 20
25
CPU
53/76
Page 54
ST10F168
20.4 - A/D Converter Characteristics
VDD=5V±10%, VSS= 0V, 4.0V ≤ V
≤ VDD+ 0.1V, VSS- 0.1V ≤ V
AREF
≤ VSS+ 0.2V, Q6 version :
AGND
TA= -40, +85°C and for Q2 version TA = -40°C, +125°C, unless otherwise specified
Symbol Parameter Test Conditions Min. Max. Unit
V
SR Analog input voltage range 1
AIN
t
CC
S
t
C
Sample time
CC
Conversion time
2
2
34 –
54 –
V
AGND
TUE CC Total unadjusted error 6 – ± 2 LSB
R
R
Notes 1. V
SR Internal resistance of reference voltage source tCCin [ns]
AREF
SR Internal resistance of analog source tSin [ns]
ASRC
C
CC ADC input capacitance 8 – 33 pF
AIN
may exceed V
AIN
X000
or X3FFH, respectively.
H
2. Sample and conversion time are programmable, use table below to calculate values.
3. During the sample time the input capacitance
analog source must allow thecapacitance toreach itsfinal voltage level within
analog input voltage have noeffect on the conversion result.
Values for the sample clock t
AGND
or V
SC
up to the absolute maximum ratings. However, the conversion result in these cases will be
AREF
C
can be charged / discharged by the external source. The internal resistance of the
I
depend on programming and can be taken from the table below.
78
38
t
. After the end of the sample time tS, changes ofthe
S
–
–
14 t
t
CC
t
V
AREF
2t
SC
CC+tCS
/ 165 - 0.25
/ 330 - 0.25
S
+ 4TCL
V
kΩ
kΩ
4. This parameter is fixed by ADC control logic.
5. This parameter includes the sample time t
the conversion result.
Values for the conversion clock t
6. TUE is tested at V
defined voltage range.
The specified TUE is guaranteed only if an overload condition (see IOV specification) occurs on maximum of 2 not selected analog
input pins and the absolute sum of input overload currents on all analog input pins does not exceed 10mA.
During the reset calibration sequence the maximum TUE may be
7. During the conversion the ADC’s capacitance must be repeatedly charged or discharged. The internal resistance of the reference
voltage source must allow the capacitance to reach its respective voltage level within t
from the programmed conversion timing.
8. Partially tested, guaranteed by design characterization.
AREF
=5.0V, V
depend on programming and can be taken from the table below.
CC
AGND
, the time for determining the digital result and the time to load the result register with
S
=0V, VCC= 4.9V. It is guaranteed by design characterization for all other voltages within the
±
4 LSB.
. The maximum internal resistance results
CC
ADC Sample time and conversion time are programmable. The table below should be used to calculate
the above timings.
Conversion Time Sample Time
ADCON.15|14 (ADCTC)
00 TCL x 24 00
01 Reserved, do not use 01
10 TCL x 96 10
11 TCL x 48 11
Conversion clock t
CC
ADCON.13|12 (ADSTC)
Sample clock t
t
CC
t
x2
CC
x4
t
CC
t
x8
CC
SC
54/76
Page 55
20.5 - AC Characteristics
20.5.1 - Test Waveforms
Figure 16 : Input / output waveforms
ST10F168
2.4V
0.45V
0.2V
0.2V
DD
DD
+0.9
-0.1
Test Points
0.2V
0.2V
DD
DD
+0.9
-0.1
AC inputs during testing are driven at 2.4V for a logic ‘1’ and 0.4V for a logic ‘0’.
Timing measurements are made at VIHmin for a logic ‘1’ and VILmax for a logic ‘0’.
Figure 17 : Float waveforms
V
OH
-0.1V
V
V
+0.1V
V
Load
V
Load
Load
-0.1V
Timing
Reference
Points
V
OL
For timing purposes a port pin is no longer floating when V
changes of ±100mV.
LOAD
OH
+0.1V
V
OL
It begins to float when a 100mV change from the loaded VOH/VOLlevel occurs (IOH/IOL= 20mA).
20.5.2 - Definition of Internal Timing
The internal operation of the ST10F168 is
controlled by the internal CPU clock f
CPU
. Both
edges of the CPU clock can trigger internal (e.g.
pipeline) orexternal (e.g. bus cycles) operations.
The specification of the external timing (AC
Characteristics) therefore depends on the time
between two consecutive edgesof the CPU clock,
called “TCL” (see Figure 18).
The CPU clock signal can be generated by
different mechanisms. The duration of TCL and its
variation (and also the derived external timing)
depends on the mechanism used to generate
f
.
CPU
This influence must be regarded when calculating
the timings for the ST10F168.
The example for PLL operation shown in the
Figure 18 refers to a PLL factor of 4.
The mechanism used to generate the CPU clock
is selected during reset by the logic levels on pins
P0.15-13 (P0H.7-5).
55/76
Page 56
ST10F168
Figure 18 : Generation Mechanisms for the CPU Clock
Phase locked loop operation
f
XTAL
f
CPU
Direct Clock Drive
f
XTAL
f
CPU
Prescaler Operation
f
XTAL
f
CPU
TCL TCL
TCL TCL
TCL TCL
20.5.3 - Clock Generation Modes
The Table 23 associates the combinations of these three bit with the respective clock generation mode.
Table 23 : CPU FrequencyGeneration
P0H.7 P0H.6 P0H.5
111
110
101
100
011
010
001
000
Notes 1. The external clock input range refers to a CPU clock range of 1...25MHz.
2. The maximum depends on the duty cycleof the external clock signal.
3. The maximum input frequency is 25MHz when using an external crystal with the internal oscillator; providing that internal serial
resistance of the crystal is less than 40Ω. However, higher frequencies can be applied with an external clock source, but in this case,
the input clock signal must reach the defined levels V
CPU Frequency f
F
XTAL
F
XTAL
F
XTAL
F
XTAL
F
XTAL
F
XTAL
F
XTAL
F
XTAL
CPU=fXTAL
x4
x3
x2
x5
x1
x 1.5
/2
x 2.5
IL
xF
External Clock InputRange
2.5 to 6.25MHz Default configuration
3.33 to 8.33MHz
5 to 12.5MHz
2 to 5MHz
1 to 25MHz
6.66 to 16.6MHz
2 to 50MHz
4 to 10MHz
and V
IH2.
1
Direct drive
Notes
2
CPU clock via prescaler
3
56/76
Page 57
ST10F168
20.5.4 - Prescaler Operation
When pins P0.15-13 (P0H.7-5) equal ’001’ during
reset, the CPU clock is derived from the internal
oscillator (input clock signal) by a 2:1 prescaler.
The frequency of f
f
and the high and low time of f
XTAL
is half the frequency of
CPU
CPU
(i.e. the
duration of an individual TCL) is defined by the
period of the input clock f
XTAL
.
The timings listed in the AC Characteristics that
refer to TCL therefore can be calculated using the
period of f
for any TCL.
XTAL
Note that if the bit OWDDIS in SYSCON register
is cleared, the PLL runs on its free-running
frequency and delivers the clock signal for the
Oscillator Watchdog. If bit OWDDIS is set, then
the PLL is switched off.
20.5.5 - Direct Drive
When pins P0.15-13 (P0H.7-5) equal ’011’ during
reset the on-chip phase locked loop is disabled and
the CPU clock is directly driven from the internal
oscillatorwith the input clock signal.
The frequency of f
frequency of f
f
(i.e. the duration of an individual TCL) is
CPU
so the high and low time of
XTAL
defined by the duty cycle of the input clock f
directly follows the
CPU
XTAL
.
Therefore, the timings given in this chapter refer
to the minimum TCL. This minimum value can be
calculated by the following formula:
TC L
min
1f⁄
XTAL
DC
×=
min
DC duty cycle=
For two consecutive TCLs, the deviation caused
by the duty cycle of f
duration of 2TCL is always 1/f
value TCL
has to beused only once for timings
min
is compensated, so the
XTAL
. The minimum
XTAL
that require an odd number of TCLs (1,3,...).
Timings that require an even number of TCLs
(2,4,...) may use the formula:
2TCL 1 f
⁄=
XTAL
Note The address float timings in Multiplexed
bus mode (t11and t45) use the maximum
duration of TCL (TCL
DC
) insteadof TCL
max
min
max
.
=1/f
XTAL
If bit OWDDIS in the SYSCON register is cleared,
the PLL runs on its free-running frequency and
delivers the clock signal for the Oscillator
Watchdog. If bit OWDDIS is set, then the PLL is
switched off.
20.5.6 - Oscillator Watchdog (OWD)
When the clock option selected is direct drive or
direct drive with prescaler, in order to provide afail
safe mechanism in case of a loss of the external
clock, an oscillator watchdog is implemented as
an additional functionality of the PLLcircuitry. This
oscillator watchdog operates as follows :
After a reset, the Oscillator Watchdog is enabled
by default. To disable the OWD, the bit OWDDIS
(bit 4 of SYSCON register) must be set.
When the OWD is enabled, the PLL runs on its
free-running frequency, and increments the
Oscillator Watchdog counter. On each transition
of XTAL1 pin, the Oscillator Watchdog is cleared.
If an external clock failure occurs, then the
Oscillator Watchdog counter overflows (after 16
PLL clock cycles). The CPU clock signal will be
switched to the PLL free-running clock signal, and
the Oscillator Watchdog Interrupt Request
(XP3INT) is flagged. The CPU clock will not
switch back to the external clock even if a valid
external clock exits on XTAL1 pin. Only a
hardware reset can switch the CPU clock source
back to direct clock input.
When the OWD is disabled, the CPU clock is
always fed from the oscillator input and the PLL is
switched off to decrease power supply current.
20.5.7 - Phase Locked Loop
For all other combinations of pins P0.15-13
(P0H.7-5) during reset the on-chip phase locked
loop is enabled and provides the CPU clock (see
Table 23).
The PLL multiplies the input frequency by the
factor F which is selected via the combination of
pins P0.15-13 (i.e. f
CPU=fXTAL
F’th transition of f
XTAL
x F). With every
the PLL circuit
synchronizes the CPU clock to the input clock.
This synchronization is done smoothly, i.e. the
CPU clock frequency does not change abruptly.
Due to this adaptation to the input clock the
frequency of f
locked to f
x
of f
XTAL
which also effects the duration of
CPU
is constantly adjusted so it is
CPU
. Theslight variation causes a jitter
individual TCL.
The timings listed in the AC Characteristics that
refer to TCL therefore must be calculated using
the minimum TCL that is possible under the
respective circumstances.
57/76
Page 58
ST10F168
The real minimum value for TCL depends on the
jitter of the PLL. The PLL tunes f
locked on f
. The relative deviation of TCL is
XTAL
CPU
to keep it
the maximum when it is refered to one TCL
period. It decreases according to the formula and
to the Figure 19 given below. ForNperiods of
TCL the minimum value is computed using the
corresponding deviation DN:
D
N
-------------–
TCL
MIN
D
N
TCL
4N15)%[]⁄–(±=
NOM
×=
1
100
Figure 19 : Approximated maximum PLL jitter
Max.jitter[%]
±4
±3
±2
±1
42
8
where N = number of consecutive TCL periods
and 1 ≤ N ≤ 40. So for a period of 3 TCL periods
(N = 3):
D
3
3TCL
3TCL
= 4 - 3/15 = 3.8%
= 3TCL
min
= 3TCL
= (57.72ns at f
min
x (1 -3.8/100)
NOM
x 0.962
NOM
CPU
= 25MHz)
Thisis especiallyimportant for bus cyclesusing wait
states and e.g. for the operation of timers, serial
interfaces, etc. For all slower operationsand longer
periods (e.g.pulsetraingeneration or measurement,
lower Baud rates, etc.) the deviation caused by the
PLLjitter is negligible (see Figure19).
Thisapproximated formulais valid for
1 < N < 40and10MHz < f
CPU
< 25MHz.
3216
N
20.5.8 - External Clock Drive XTAL1
VDD=5V±10%, VSS= 0V, for Q6 version : TA= -40, +85°C and for Q2 version TA = -40, +125°C, unless
otherwise specified.
f
CPU=fXTAL
N=1.5/2/2.5/3/4/5
Symbol Parameter
f
CPU=fXTALfCPU=fXTAL
/2
Min. Max. Min. Max. Min. Max.
t
Notes 1. Theoretical minimum. The real minimum value depends on the duty cycle of the input clock signal.
SR Oscillator period
OSC
t
SR High time
1
t
SR Low time
2
t
SR Rise time –
3
t
SR Fall time –
4
2. The input clock signal must reach the defined levels V
40
18
18
1
1000 20 500 40 x N 100 x N ns
2
2
IL
10
10
and V
–
–
2
2
IH2
2
6
2
6
–
–
.
–
–
2
6
2
6
10
10
–
–
2
2
xN
Unit
–ns
–ns
10
10
2
2
ns
ns
Figure 20 : External clock drive XTAL1
IH2
t
3
V
IL
t
2
t
OSC
t
1
V
t
4
58/76
Page 59
ST10F168
20.5.9 - Memory Cycle Variables
The tables below use three variables which are derived from the BUSCONx registers and which
represent the special characteristics of the programmed memory cycle. The following table describes
how these variables are computed.
Symbol Description Values
t
A
t
C
t
20.5.10 - Multiplexed Bus
VDD=5V±10%, VSS=0V, for Q6 version: TA=-40,+85°C and for Q2version TA= -40, +125°C, CL= 100pF,
ALE cycle time = 6 TCL+ 2t
unlessotherwise specified.
Table 24 : Multiplexed bus characteristics
ALE Extension TCL x <ALECTL>
Memory Cycle Time wait states 2TCL x (15 - <MCTC>)
Memory Tristate Time 2TCL x (1 - <MTTC>)
F
A+tC+tF
(120nsat 25MHz CPU clock withoutwait states),
Max. CPU Clock
Symbol Parameter
Min. Max. Min. Max.
CC ALE high time 10 + t
t
5
t
CC Address setup to ALE 4 + t
6
t
CC Address hold after ALE 10 + t
7
t
CC ALE falling edge to RD, WR
8
t
9
t
10
(with RW-delay)
CC ALE falling edge to RD, WR
(no RW-delay)
CC
Address float after RD, WR
1
10 + t
-10 + t
–6 – 6ns
(with RW-delay)
t
CC
11
Address float after RD, WR
1
– 26 – TCL + 6 ns
(no RW-delay)
CC RD, WR low time (with RW-delay) 30 + t
t
12
t
CC RD, WR low time (no RW-delay) 50 + t
13
t
SR RD to valid data in (with RW-delay) – 20 + t
14
t
SR RD to valid data in (no RW-delay) – 40 + t
15
25MHz
A
A
A
A
A
C
C
Variable CPU Clock
1/2 TCL = 1 to 25MHz
–TCL-10+t
– TCL -16+ t
–TCL-10+t
–TCL-10+t
– -10 + t
– 2TCL - 10 + t
– 3TCL - 10 + t
C
C
A
A
A
A
A
C
C
– 2TCL - 20+ tCns
– 3TCL - 20+ tCns
Unit
–ns
–ns
–ns
–ns
–ns
–ns
–ns
t
SR ALE low to valid data in – 40 + tA+t
16
SR Address / Unlatched CS to valid data in – 50 + 2tA+t
t
17
t
SR Data hold after RD rising edge 0 – 0 – ns
18
t
SR
19
Data float after RD
1
–26+t
C
C
F
– 3TCL - 20
+t
A+tC
– 4TCL - 30
+2t
A+tC
– 2TCL - 14 + tFns
ns
ns
59/76
Page 60
ST10F168
Table 24 : Multiplexed bus characteristics (continued)
Max. CPU Clock
Symbol Parameter
25MHz
Min. Max. Min. Max.
t22CC Data valid to WR 20 + t
t
CC Data hold after WR 26 + t
23
t
CC ALE rising edge after RD,WR 26 + t
25
t
CC Address / Unlatched CS hold
27
t
38
t
39
t
40
t
42
t
43
t
44
after RD, WR
CC ALE falling edge to Latched CS -4 -t
SR Latched CS low to Valid Data In – 40 + tC+2t
CC Latched CS hold after RD, WR 46 + t
CC ALE fall. edge to RdCS, WrCS
(with RW delay)
CC ALE fall. edge to RdCS, WrCS
(no RW delay)
CC
Address float after RdCS, WrCS
1
C
F
F
26 + t
F
A
F
16 + t
A
-4 + t
A
–0 – 0ns
(with RW delay)
CC
t
45
Address float after RdCS, WrCS
1
– 20 – TCL ns
(no RW delay)
Variable CPU Clock
1/2 TCL = 1 to 25MHz
– 2TCL - 20 + t
– 2TCL - 14 + t
– 2TCL - 14 + t
– 2TCL - 14 + t
10 - t
A
-4 - t
A
– 3TCL - 14 + t
–TCL-4+t
–-4+t
C
F
F
F
A
– 3TCL - 20
F
A
A
Unit
–ns
–ns
–ns
–ns
10 - t
A
ns
ns
+t
+2t
C
A
–ns
–ns
–ns
t
SR RdCS to Valid Data In (with RW delay) – 16 +t
46
t
SR RdCS to Valid Data In (no RW delay) – 36 +t
47
t
CC RdCS, WrCS Low Time (with RW delay) 30 + t
48
t
CC RdCS, WrCS Low Time (no RW delay) 50 + t
49
t
CC Data valid to WrCS 26 + t
50
t
SR Data hold after RdCS 0 – 0 – ns
51
t
SR
52
t
54
t
56
Note 1. Partially tested, guaranteed by design characterization.
Data float after RdCS
CC Address hold after RdCS, WrCS 20 + t
CC Data hold after WrCS 20 + t
1
C
C
C
–20+t
F
F
C
C
– 2TCL - 10 + t
– 3TCL - 10 + t
–2TCL-14+t
F
– 2TCL - 20 + t
– 2TCL - 20 + t
–2TCL-24+t
–3TCL-24+t
C
C
C
– 2TCL - 20 + tFns
F
F
ns
C
ns
C
–ns
–ns
–ns
–ns
–ns
60/76
Page 61
ST10F168
Figure 21 : External Memory Cycle : multiplexed bus, with / without read/write delay, normalALE
CLKOUT
ALE
CSx
A23-A16
(A15-A8)
BHE
Read Cycle
BUS (P0)
RD
t
t
5
6
t
6
t
6m
t
38
Address
t
9
t
16
t
17
t
39
t
17
t
25
t
40
t
27
t
27
Address
t
16
t
7
t
t
8
10
t
14
t
12
t
13
t
11
Data In
t
18
Address
t
19
Write Cycle
BUS (P0)
WR
WRL
WRH
t
15
t
23
Data OutAddress
t
8
t
9
t
t
22
t
12
13
61/76
Page 62
ST10F168
Figure 22 : External Memory Cycle: multiplexed bus, with / without read/write delay, extended ALE
CLKOUT
ALE
CSx
A23-A16
(A15-A8)
BHE
Read Cycle
BUS (P0)
RD
t
t
6
t
6
t
6
5
Address
t
16
t
38
t
17
t
39
t
17
t
25
t
40
t
27
Address
t
27
t
7
Data In
t
t
8
t
9
t
10
t
11
t
14
18
t
19
Write Cycle
BUS (P0)
WR
WRL
WRH
62/76
Address
t
9
t
15
t
12
t
13
Data Out
t
23
t
8
t
10
t
11
t
13
t
22
t
12
Page 63
ST10F168
Figure 23 : External Memory Cycle: multiplexed bus, with / without read/write delay, normal ALE,
read/write chip select
CLKOUT
ALE
A23-A16
(A15-A8)
BHE
Read Cycle
BUS (P0)
RdCSx
t
5
t
6
t
6
Address
t
42
t
43
t
16
t
17
t
25
t
27
Address
t
16
t
7
t
44
t
46
t
48
t
49
t
45
Data In
t
51
Address
t
52
Write Cycle
BUS (P0)
WrCSx
t
47
t
56
Data OutAddress
t
42
t
43
t
t
50
t
48
49
63/76
Page 64
ST10F168
Figure 24 : External Memory Cycle: multiplexed bus, with / without read/write delay, extended ALE,
read/write chip select
CLKOUT
ALE
A23-A16
(A15-A8)
BHE
Read Cycle
BUS (P0)
RdCSx
t
6
t
6
t
5
Address
t
t
43
17
t
t
Address
7
t
42
16
t
25
t
54
Data In
t
t
44
t
45
t
t
46
t
48
47
t
49
18
t
19
Write Cycle
BUS (P0)
WrCSx
64/76
Address
Data Out
t
42
t
43
t
44
t
45
t
49
t
50
t
48
t
56
Page 65
ST10F168
20.5.11 - Demultiplexed Bus
VDD=5V±10%, VSS= 0V, for Q6 version : TA= -40, +85°C and for Q2 version TA= -40, +125°C, CL=
100pF, ALE cycle time = 4 TCL + 2tA+tC+tF(80ns at 25MHz CPU clock without wait states), unless
otherwise specified.
Table 25 : Demultiplexed bus characteristics
Symbol Parameter
Max. CPU Clock
25MHz
Variable CPU Clock
1/2 TCL = 1 to 25MHz
Min. Max. Min. Max.
t
CC ALE high time 10 + t
5
t
CC Address setup to ALE 4 + t
6
t
CC Address /Unlatched CS setup to RD, WR
80
t
81
t
12
t
13
t
14
t
15
t
16
t
17
t
18
(with RW-delay)
CC Address / Unlatched CS setup to RD, WR
(no RW-delay)
CC RD, WR low time (with RW-delay) 30 + t
CC RD, WR low time (no RW-delay) 50 + t
SR RD to valid data in (with RW-delay) – 20 + t
SR RD to valid data in (no RW-delay) – 40 + t
SR ALE low to valid data in – 40 + tA+t
SR Address / Unlatched CS to valid data in – 50 + 2tA+t
SR Data hold after RD rising edge 0 – 0 – ns
30 + 2t
10 + 2t
A
A
A
A
C
C
– TCL -10+ t
– TCL -16+ t
– 2TCL - 10 + 2t
– TCL -10 +2t
– 2TCL - 10 + t
– 3TCL - 10 + t
C
C
C
C
–2TCL-20+t
–3TCL-20+t
– 3TCL - 20
– 4TCL - 30
A
A
A
A
C
C
–ns
–ns
–ns
–ns
–ns
–ns
+t
A+tC
+2t
A+tC
Unit
ns
C
ns
C
ns
ns
t
SR Data float after RD rising edge
20
(with RW-delay)
SR Data float after RD rising edge
t
21
(no RW-delay)
CC Data valid to WR 20 + t
t
22
t
CC Data hold after WR 10 + t
24
t
CC ALE rising edge after RD,WR -10 + t
26
t
CC
28
t
28h
t
38
Address / UnlatchedCShold after RD,WR
CC Address / Unlatched CS hold after WRH -5 + t
CC ALE falling edge to Latched CS -4 -t
12
12
–26+t
–10+t
C
F
F
3
0 (no tF)
-5 + t
F
(tF>0)
F
A
F
F
– 2TCL- 20 +t
–TCL-10+t
–-10+t
– 2TCL - 14
–TCL-10
C
F
F
– 0 (no tF)
-5 + tF(tF>0)
–-5+t
10 - t
A
F
-4 - t
A
ns
F
+2t
A
1
+t
ns
F
+2t
A
1
+t
–ns
–ns
–ns
–ns
–ns
10 - t
A
ns
65/76
Page 66
ST10F168
Table 25 : Demultiplexed bus characteristics (continued)
Symbol Parameter
Max. CPU Clock
25MHz
Variable CPU Clock
1/2 TCL = 1 to 25MHz
Min. Max. Min. Max.
t39SR Latched CS low to Valid Data In – 40 + tC+2t
CC Latched CS hold after RD, WR 6 + t
t
41
t
CC Address setup to RdCS, WrCS
82
t
83
t
46
t
47
t
48
t
49
t
50
t
51
t
53
t
68
(with RW-delay)
CC Address setup to RdCS, WrCS
(no RW-delay)
SR RdCS to Valid Data In (with RW-delay) – 16 + t
SR RdCS to Valid Data In (no RW-delay) – 36 + t
CC RdCS, WrCS Low Time (with RW-delay) 30 + t
CC RdCS, WrCS Low Time (no RW-delay) 50 + t
CC Data valid to WrCS 26 + t
SR Data hold after RdCS 0 – 0 – ns
SR
Data float after RdCS (with RW-delay)
SR
Data float after RdCS (no RW-delay)
2
2
F
26 + 2t
A
6+2t
A
C
C
C
–20+t
–0+t
A
– TCL - 14 + t
– 2TCL - 14 + 2t
– TCL -14 +2t
C
C
– 2TCL - 10 + t
– 3TCL - 10 + t
– 2TCL - 14 + t
F
F
– 3TCL - 20
+t
+2t
C
F
A
A
–ns
–ns
–ns
–2TCL-24+t
–3TCL-24+t
C
C
C
–ns
–ns
–ns
– 2TCL - 20 + tFns
–TCL-20+t
Unit
A
C
C
F
ns
ns
ns
ns
t
CC Address hold after RdCS, WrCS -10 + t
55
t
CC Data hold after WrCS 6 + t
57
Notes 1. RW-delay and tArefer to the following bus cycle.
2. Partially tested, guaranteed by design characterization.
3. Read data is latched with the same clock edge that triggers the address change and the rising RD edge. Therefore address
changes before the end of RD have no impact on read cycles.
F
F
–-10+t
– TCL - 14 + t
F
F
–ns
–ns
66/76
Page 67
ST10F168
Figure 25 : External Memory Cycle: demultiplexed bus, with / without read/write delay, normal ALE
CLKOUT
ALE
CSx
A23-A16
(A15-A8)
BHE
Read Cycle
Data Bus (P0)
RD
t
5
t
6
t
38
t
6
t
16
t
17
t
39
t
17
t
26
t
41
t
41u
t
28
Address
t
18
Data In
t
80
t
81
t
14
t
15
t
20
t
21
Write Cycle
Data Bus (P0)
WR
WRL
WRH
t
12
t
13
Data Out
t
80
t
81
t
13
t
t
12
t
22
24
67/76
Page 68
ST10F168
Figure 26 : External Memory Cycle: demultiplexed bus, with / without read/write delay, extended ALE
CLKOUT
ALE
CSx
A23-A16
(A15-A8)
BHE
Read Cycle
t
5
t
6
t
38
t
6
t
17
t
16
t
17
t
39
Address
t
26
t
41
t
28
t
28
t
18
Data Bus
(P0)
RD
Write Cycle
Data Bus
(P0)
WR
WRL
WRH
Data In
t
80
t
81
t
14
t
15
t
12
t
13
t
20
t
21
Data Out
t
80
t
81
t
13
t
22
t
12
t
24
68/76
Page 69
ST10F168
Figure 27 : External Memory Cycle: demultiplexed bus, with / without read/write delay, normal ALE,
read/write chip select
CLKOUT
ALE
A23-A16
(A15-A8)
BHE
Read Cycle
Data Bus (P0)
RdCsx
Write Cycle
t
5
t
6
t
16
t
17
t
26
t
55
Address
t
51
Data In
t
82
t
83
t
46
t
47
t
48
t
49
t
53
t
68
Data Bus (P0)
WrCSx
Data Out
t
82
t
83
t
49
t
t
48
t
50
57
69/76
Page 70
ST10F168
Figure 28 : External Memory Cycle: demultiplexed bus, no read/write delay, extended ALE, read/write
chip select
CLKOUT
ALE
A23-A16
(A15-A8)
BHE
Read Cycle
t
5
t
6
t
17
t
16
Address
t
26
t
55
t
51
Data Bus (P0)
RdCsx
Write Cycle
Data Bus (P0)
WrCSx
Data In
t
82
t
83
t
46
t
47
t
48
t
49
t
53
t
68
Data Out
t
82
t
83
t
49
t
50
t
48
t
57
70/76
Page 71
ST10F168
20.5.12 - CLKOUT and READY
VDD=5V±10%, VSS= 0V, for Q6 version : TA= -40, +85°C and for Q2 version TA= -40, +125°C, CL=
100pF, unless otherwise specified
Table 26 : CLKOUT and READY characteristics
Symbol Parameter
Max. CPU Clock
25MHz
Variable CPU Clock
1/2 TCL = 1 to 25MHz
Min. Max. Min. Max.
CC CLKOUT cycle time 40 40 2TCL 2TCL ns
t
29
CC CLKOUT high time 14 – TCL – 6 – ns
t
30
CC CLKOUT low time 10 – TCL – 10 – ns
t
31
CC CLKOUT rise time – 4 – 4 ns
t
32
CC CLKOUT fall time – 4 – 4 ns
t
33
CC CLKOUT rising edge to ALE falling edge -3 + t
t
34
SR Synchronous READY setup time to CLKOUT 14 – 14 – ns
t
35
SR Synchronous READY hold time after CLKOUT 4 – 4 – ns
t
36
SR Asynchronous READY low time 54 – 2TCL + 14 – ns
t
37
SR
t
58
t
59
t
60
Asynchronous READY setup time
SR
Asynchronous READY hold time
SR Async. READY hold time after RD, WR high
(Demultiplexed Bus)
2
1
1
14 – 14 – ns
4– 4 –ns
00+2t
A
+7 + t
+tC+t
A
A
2
F
-3 + t
A
+7 + t
0TCL-20
+2t
+tC+t
A
Unit
A
ns
ns
2
F
Notes 1. These timings aregiven for test purposes only, in orderto assure recognition at a specific clock edge.
2. Demultiplexed bus is the worst case. For multiplexed bus 2TCL are to be added to the maximum values. This adds even more time
for deactivating READY.
and tCrefer to the next following bus cycle, tFrefers to the current bus cycle.
The 2t
A
71/76
Page 72
ST10F168
Figure 29 : CLKOUT and READY
CLKOUT
ALE
RD, WR
Synchronous
READY
Asynchronous
READY
29
t
35
READY
wait state
t
36
3)
Running cycle 1)
t
32
t
30
t
34
t
58
t
59
3)
t
33
t
t
31
2)
t
t
35
58
t
36
3)
t
59
3)
t
37
5)
MUX / Tristate 6)
t
4)
60
6)
7)
Notes 1. Cycle as programmed, including MCTC waitstates (Example shows 0 MCTC WS).
2. The leading edge of the respective command depends on RW-delay.
3. READY sampled HIGH at this sampling point generates a READY controlled wait state, READY sampled LOW at this sampling
point terminates the currently running bus cycle.
4. READY may be deactivated in response to the trailing (rising) edge of the corresponding command (RD or WR).
5. If the Asynchronous READY signal does not fulfill the indicated setup and hold times with respect to CLKOUT (e.g. because
CLKOUT is not enabled), it must fulfill t
to the command (see Note 4)).
6. Multiplexed bus modes have a MUX wait state added after a bus cycle, and an additional MTTC wait state may be inserted here.
For a multiplexed bus with MTTC wait state this delay is 2 CLKOUT cycles, for a demultiplexed bus without MTTC wait state this
delay is zero.
7. The next external bus cycle may start here.
37
in order to be safely synchronized. This is guaranteed, if READY is removed in response
72/76
Page 73
ST10F168
20.5.13 - External Bus Arbitration
VDD=5V±10%, VSS= 0V, for Q6 version : TA= -40, +85°C and for Q2 version TA = -40, +125°C, CL=
100pF, unless otherwise specified.
Max. CPU Clock
Symbol Parameter
SR HOLD input setup time to CLKOUT 20 – 20 – ns
t
61
t
CC CLKOUT to HLDA high or BREQ low delay – 20 – 20 ns
62
t
CC CLKOUT to HLDA low or BREQ high delay – 20 – 20 ns
63
t
CC
64
t
65
t
66
t
67
Note 1. Partially tested, guaranted by design characterization.
CSx release
CC CSx drive -4 24 -4 24 ns
CC
Other signals release
CC Other signals drive -4 24 -4 24 ns
1
1
25MHz
Min. Max. Min. Max.
–20 – 20ns
–20 – 20ns
Variable CPU Clock
1/2 TCL = 1 to 25MHz
Figure 30 : External bus arbitration,releasing the bus
CLKOUT
t
61
HOLD
t
63
Unit
HLDA
BREQ
CSx
(P6.x)
Others
Notes 1. The ST10F168 will complete the currently running bus cycle before granting bus access.
2. This is the firstpossibility for BREQ to become active.
3. The CS outputs will be resistive high (pullup) after
1)
t
62
2)
t
64
3)
t
1)
t
.
64
66
73/76
Page 74
ST10F168
Figure 31 : External bus arbitration,(regaining the bus)
CLKOUT
HOLD
HLDA
BREQ
CSx
(P6.x)
Others
2)
t
61
t
62
t
62
t
62
1)
t
63
t
65
t
67
Notes 1. This is the last opportunity for BREQ to trigger the indicated regain-sequence.
Even if BREQ is activated earlier, the regain-sequence is initiated by HOLD going high.
Please note that HOLD may also be deactivated without the ST10F168 requesting the bus.
2. The next ST10F168 driven bus cycle may start here.
74/76
Page 75
21 - PACKAGE MECHANICAL DATA
Figure 32 : Package Outline PQFP144 (28 x 28mm)
144 109
1
e
108
E3
E1
0,10 mm
.004 inch
SEATING PLANE
E
ST10F168
A
A2
A1
B
36
37 72
D3
D1
D
Millimeters
1
73
Dimensions
Min. Typ. Max. Min. Typ. Max.
A 4.07 0.160
A1 0.25 0.010
A2 3.17 3.42 3.67 0.125 0.133 0.144
B 0.22 0.38 0.009 0.015
c 0.13 0.23 0.005 0.009
D 30.95 31.20 31.45 1.219 1.228 1.238
D1 27.90 28.00 28.10 1.098 1.102 1.106
D3 22.75 0.896
e 0.65 0.026
E 30.95 31.20 31.45 1.219 1.228 1.238
E1 27.90 28.00 28.10 1.098 1.102 1.106
L 0.65 0.80 0.95 0.026 0.031 0.037
L1 1.60 0.063
K0°(Min.), 7° (Max.)
Note
1. Package dimensions are in mm. The dimensions quoted in inches are rounded.
c
L1
L
K
Inches (approx)
22 - ORDERING INFORMATION
Sales type Temperature range Package
ST10F168-Q6 -40°Cto85°C PQFP144 (28 x 28mm)
ST10F168-Q2 -40°Cto125°C PQFP144 (28 x 28mm)
75/76
Page 76
ST10F168
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights ofthird parties which may resultfrom
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or
systems without express written approval of STMicroelectronics.
The ST logo is a registered trademark of STMicroelectronics
2000 STMicroelectronics - All Rights Reserved
STMicroelectronics GROUP OF COMPANIES
Australia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Malaysia - Malta - Morocco
Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A.
http://www.st.com
76/76
Loading...
